◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08A - CLUTCH MASTER CYLINDER ▶
2-08A — CLUTCH MASTER CYLINDER (#4406) — 24 parça

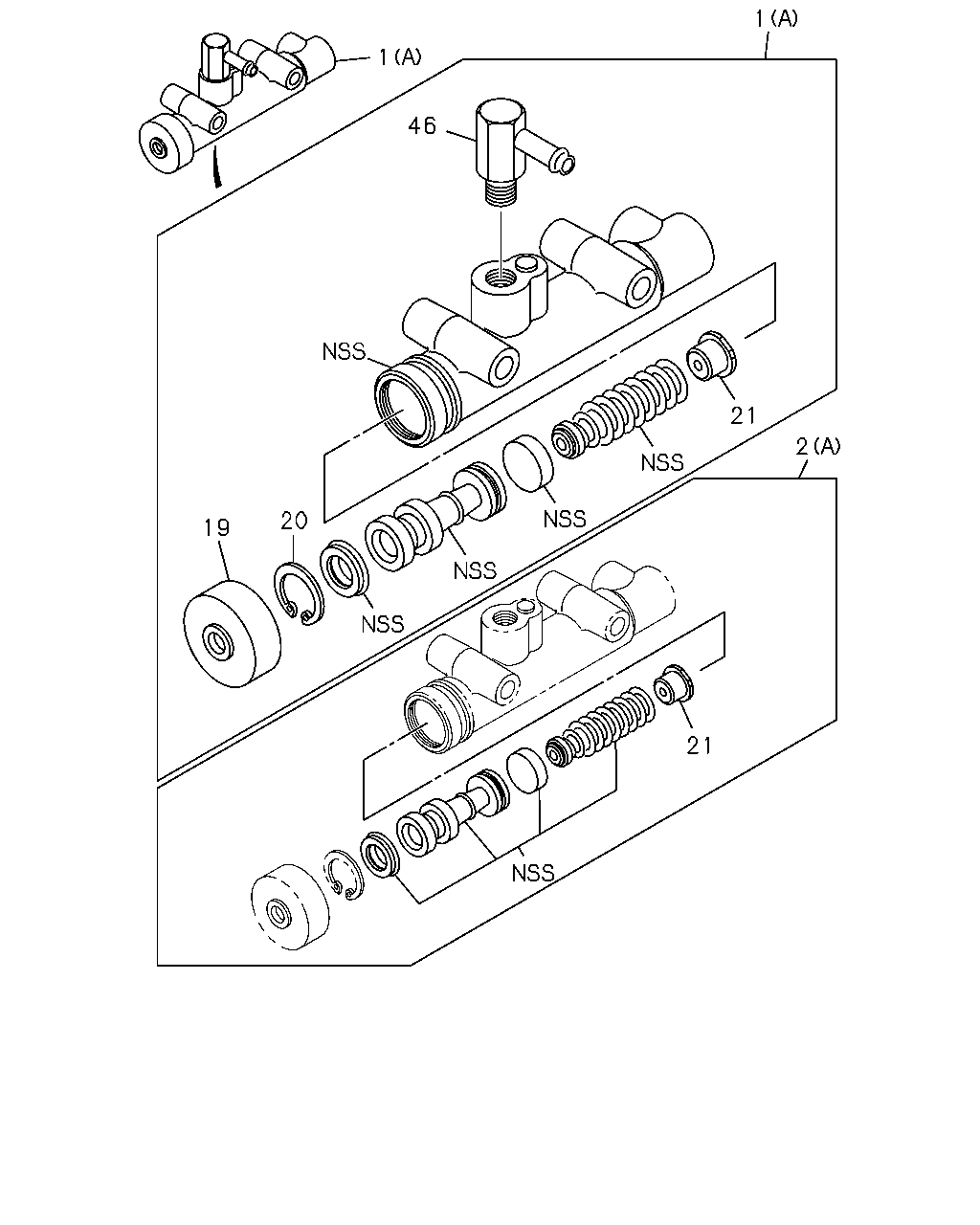

çizim 5546
1 1 46 21 2 20 19 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-47500-196-1 01 1 9101-9504 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-47500-222-0 01 1 9101-9504 ● ● ● ●
2 REPAIR KIT; CLU M/CYL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-87830-077-4 01 1 9101-9504 ● ● ●
2 REPAIR KIT; CLU M/CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-87830-370-1 01 1 9101-9504 ● ● ● ●
19 BOOT; CLU M/CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-47545-032-0 01 1 9101-9504 ● ● ● ●
20 RING; SNAP,BODY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> OD=26.9 		9-09180-125-0 01 1 9101-9504 ● ● ● ●
21 VALVE; CHECK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-47565-044-0 02 1 9101-9504 ● ● ●
21 VALVE; CHECK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-47565-004-0 01 1 9101-9504 ● ● ● ●
46 CONNECTOR; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-47559-016-0 01 1 9101-9504 ● ● ● ●
çizim 36575
1 1 26 23 25 21 23 29 28 22 24 27 6 2 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-47500-196-1 01 1 9101-9504 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-47500-222-0 01 1 9101-9504 ● ● ● ●
2 REPAIR KIT; CLU M/CYL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-87830-077-4 01 1 9101-9504 ● ● ●
2 REPAIR KIT; CLU M/CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-87830-370-1 01 1 9101-9504 ● ● ● ●
6 BOOT; CLU M/CYL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-47545-004-0 01 1 9101-9504 ● ● ●
21 VALVE; CHECK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-47565-044-0 02 1 9101-9504 ● ● ●
21 VALVE; CHECK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-47565-004-0 01 1 9101-9504 ● ● ● ●
22 GASKET; NIPPLE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-47513-012-0 01 1 9101-9504 ● ● ●
23 GASKET; JOINT,CLU M/CYL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-09920-415-0 02 1 9101-9504 ● ● ●
24 NIPPLE; M/CYL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-09902-620-0 01 1 9101-9504 ● ● ●
25 JOINT; EYE,CLU M/CYL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-09907-066-0 01 1 9101-9504 ● ● ●
26 CAP; EYE JOINT,CLU M/CYL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-47512-084-0 01 1 9101-9504 ● ● ●
27 ROD; PUSH
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-47541-041-0 01 1 9101-9504 ● ● ●
28 NUT; LK,CLU M/CYL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09111-410-0 01 1 9101-9504 ● ● ●
29 JOINT; JAW,CLU M/CYL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-09768-043-0 01 1 9101-9504 ● ● ●
