7-40 — INSTRUMENT PANEL AND BOX (#44059) — 70 parça

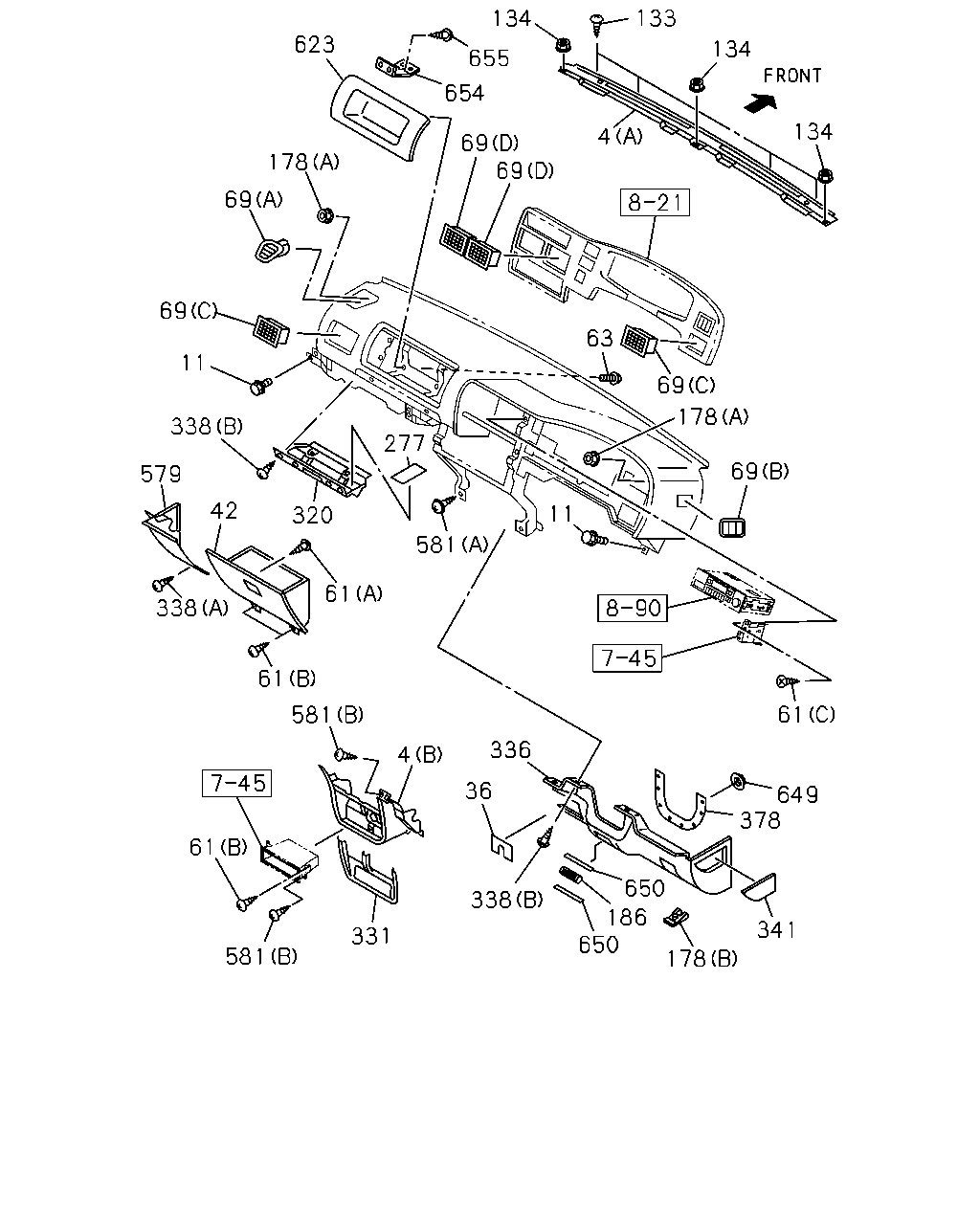

çizim 10535
133 134 623 134 655 654 134 4 69 69 178 69 69 63 277 11 69 178 338 69 579 42 11 320 581 61 338 61 581 61 336 4 36 649 378 61 650 186 650 338 341 331 581 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 COVER; INST PNL
(A) 		8-97142-696-0 01 1 0009- ● ● ● ● ● ● ● ●
4 COVER; INST PNL
(B) THA 		8-97915-416-0 01 1 0009- ● ● ● ● ● ● ● ●
11 BOLT; INST PNL
M6X20 W/WASHER THA 		8-97916-314-0 05 1 0009- ● ● ● ● ● ● ● ●
36 BEZEL; INST SIDE CLUSTER
THA 		8-97915-519-0 01 1 0009- ●
42 BOX; GLOVE,INST PNL
THA 		8-97910-707-0 01 1 0009- ● ● ● ● ● ● ● ●
61 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 0009- ● ● ● ● ● ● ● ●
61 SCREW; GLOVE BOX
(B) THA 		8-97920-077-0 02 1 0009- ● ● ● ● ● ● ● ●
61 SCREW; GLOVE BOX
(C) M5X16 TAPPING 		9-09829-323-1 04 1 0009- ● ● ● ● ● ● ● ●
63 SCREW; BINDER HD
M5X14 THA 		8-97912-797-2 04 1 0009- ● ● ● ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) THA 		8-97910-574-1 01 1 0009- ● ● ● ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) THA 		8-97910-575-1 01 1 0009- ● ● ● ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR<6TN> (D) BLACK 		8-94388-773-3 02 1 0009- ● ● ● ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR<6TN> (C) BLACK 		8-97152-701-1 02 1 0009- ● ● ● ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. VENTILATION RAM AIR<6TN> (C),(D) BLACK 		8-97152-701-1 04 1 0009- ● ● ● ● ● ● ● ●
133 SCREW; COVER,INST PNL
M6X16 		8-94479-534-0 05 1 0009- ● ● ● ● ● ● ● ●
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-97063-399-0 06 1 0009- ● ● ● ● ● ● ● ●
178 NUT; INST PANEL
(A) M6 W/DISHED WASHER THA 		8-94170-192-0 03 1 0009- ● ● ● ● ● ● ● ●
178 NUT; INST PANEL
(B) THA 		8-97916-128-0 02 1 0009- ● ● ● ● ● ● ● ●
186 GRILLE; LAP VENTILATOR
BLACK THA 		8-97915-504-0 01 1 0009- ● ● ● ● ● ● ● ●
277 RUBBER; STOPPER GLOVE LID
THA 		8-97915-374-0 02 1 0009- ● ● ● ● ● ● ● ●
320 COVER; GLOVE BOX
THA 		8-97910-710-0 01 1 0009- ● ● ● ● ● ● ● ●
331 CLUSTER; INST SIDE
EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR 2<7SB> THA 		8-97915-399-0 01 1 0105- ●
331 CLUSTER; INST SIDE
THA 		8-97915-399-0 01 1 0105- ● ● ●
331 CLUSTER; INST SIDE
EXC. POWER STEERING<N40> THA 		8-97915-399-0 01 1 0105- ●
331 CLUSTER; INST SIDE
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97915-399-0 01 1 0105- ●
331 CLUSTER; INST SIDE
THA 		8-97915-399-0 01 1 0009-0101 ● ● ● ● ● ● ● ●
331 CLUSTER; INST SIDE
THA 		8-97921-873-0 01 1 0102-0104 ● ● ● ● ● ● ● ●
331 CLUSTER; INST SIDE
SPECIAL PACKAGE<7BB> SPECIAL PACKAGE VAR 2<7SB> THA 		8-97921-873-0 01 1 0105-0106 ●
331 CLUSTER; INST SIDE
POWER STEERING<N40> THA 		8-97921-873-0 01 1 0105-0106 ●
331 CLUSTER; INST SIDE
SPECIAL PACKAGE<7BB> SPECIAL PACKAGE VAR 2<7SB> THA 		8-97922-146-0 01 1 0107- ●
331 CLUSTER; INST SIDE
POWER STEERING<N40> THA 		8-97922-146-0 01 1 0107- ●
336 COVER; INST PANEL SIDE
THA 		8-97915-502-0 01 1 0009- ● ● ● ● ● ● ●
336 COVER; INST PANEL SIDE
GRAY THA 		8-97156-096-2 01 1 0009- ●
338 SCREW; COVER
(A) M5X16 THA 		8-94279-312-0 01 1 0009- ● ● ● ● ● ● ● ●
338 SCREW; COVER
(B) M5X16 TAPPING 		9-09829-323-1 12 1 0009- ● ● ● ● ● ● ● ●
341 LID; FUSE BOX
THA 		8-97915-503-0 01 1 0009- ● ● ● ● ● ● ● ●
378 SEAL; INST PANEL
THA 		8-97915-505-0 01 1 0009- ● ● ● ● ● ● ● ●
579 COVER; INST PNL
THA 		8-97910-706-0 01 1 0009- ● ● ● ● ● ● ● ●
581 SCREW
(A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 02 1 0009- ● ● ● ● ● ● ● ●
581 SCREW
(B) M5X16 THA 		8-94279-312-0 07 1 0009- ● ● ● ● ● ● ● ●
623 BOX; UTILITY
THA 		8-97910-713-0 01 1 0009- ● ● ● ● ● ● ● ●
649 NUT; PUSH
THA 		8-97916-129-0 08 1 0009- ● ● ● ● ● ● ● ●
650 PAD; LAP VENT
THA 		8-97916-127-0 02 1 0009- ● ● ● ● ● ● ● ●
654 BRACKET; UTILITY BOX
THA 		8-97218-109-0 01 1 0009- ● ● ● ● ● ● ● ●
655 SCREW; BRKT,UTILITY BOX
M5X14 TAPPING 		9-07066-514-0 02 1 0009- ● ● ● ● ● ● ● ●

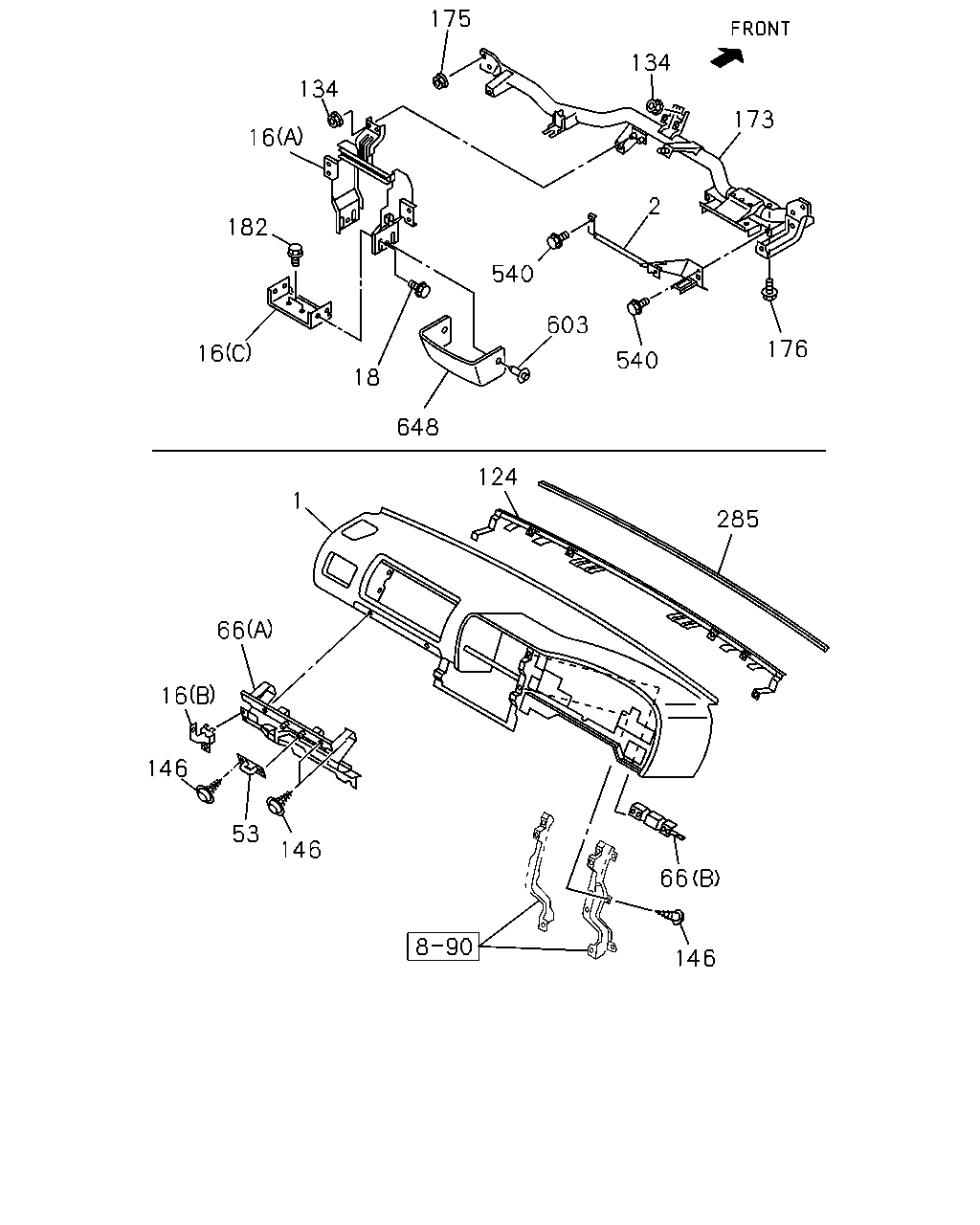

çizim 46907
175 134 134 173 16 2 182 540 603 176 16 540 18 648 124 1 285 66 16 146 53 146 66 146
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 PANEL; INST
THA 		8-97910-989-0 01 1 0009- ● ● ● ● ● ● ● ●
2 REINFORCEMENT; INST PNL,LWR
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> 		8-97187-498-1 01 1 0009- ●
2 REINFORCEMENT; INST PNL,LWR 8-97187-498-1 01 1 0009- ● ●
2 REINFORCEMENT; INST PNL,LWR
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> 		8-97101-851-6 01 1 0009- ● ● ●
2 REINFORCEMENT; INST PNL,LWR 8-97101-851-6 01 1 0009- ● ● ●
16 BRACKET; INST PNL
(B) THA 		8-97120-886-0 01 1 0009- ● ● ● ● ● ● ● ●
16 BRACKET; INST PNL
(A) THA 		8-97910-946-1 01 1 0009- ● ● ● ● ● ● ● ●
16 BRACKET; INST PNL
(C) THA 		8-97910-947-1 01 1 0009- ● ● ● ● ● ● ● ●
18 BOLT; BRKT
M6X16 FLANGE 		8-97803-298-0 04 1 0009-0111 ● ● ● ● ● ● ● ●
18 BOLT; BRKT
M6X16 FLANGE 		8-97808-792-1 04 1 0112- ● ● ● ● ● ● ● ●
53 STRIKER; GLOVE BOX
THA 		8-97910-986-0 01 1 0009- ● ● ● ● ● ● ● ●
66 REINFORCEMENT; INST PANEL
(A) THA 		8-97910-990-2 01 1 0009- ● ● ● ● ● ● ● ●
66 REINFORCEMENT; INST PANEL
(B) THA 		8-97910-991-0 01 1 0009- ● ● ● ● ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-97910-984-0 01 1 0009- ● ● ● ● ● ● ● ●
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-97063-399-0 06 1 0009- ● ● ● ● ● ● ● ●
146 SCREW; TAP
M5X14 THA 		8-97912-797-2 11 1 0009- ● ● ● ● ● ● ● ●
173 BEAM ASM; CROSS,INST PANEL
THA 		8-97910-921-3 01 1 0009- ● ● ● ● ● ● ●
173 BEAM ASM; CROSS,INST PANEL
THA 		8-97910-922-2 01 1 0009- ●
175 NUT; CROSS BEAM
M8 W/LK WASHER 		8-97065-435-0 04 1 0009- ● ● ● ● ● ● ● ●
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28080-816-0 01 1 0009- ● ● ● ● ● ● ● ●
182 BOLT; BRKT,INST PANEL
M6X16 FLANGE 		8-97803-298-0 02 1 0009- ● ● ● ● ● ● ● ●
285 FINISHER; INST PANEL
THA 		8-97910-987-3 01 1 0009- ● ● ● ● ● ● ● ●
540 BOLT; REINFORCEMENT
M6X20 W/WASHER THA 		8-97916-314-0 02 1 0009- ● ● ● ● ● ● ● ●
603 CLIP; COVER
THA 		8-97915-329-0 02 1 0009- ● ● ● ● ● ● ●
648 COVER; BRKT
THA 		8-97915-195-1 01 1 0009- ● ● ● ● ● ● ●
