◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#44058) — 24 parça

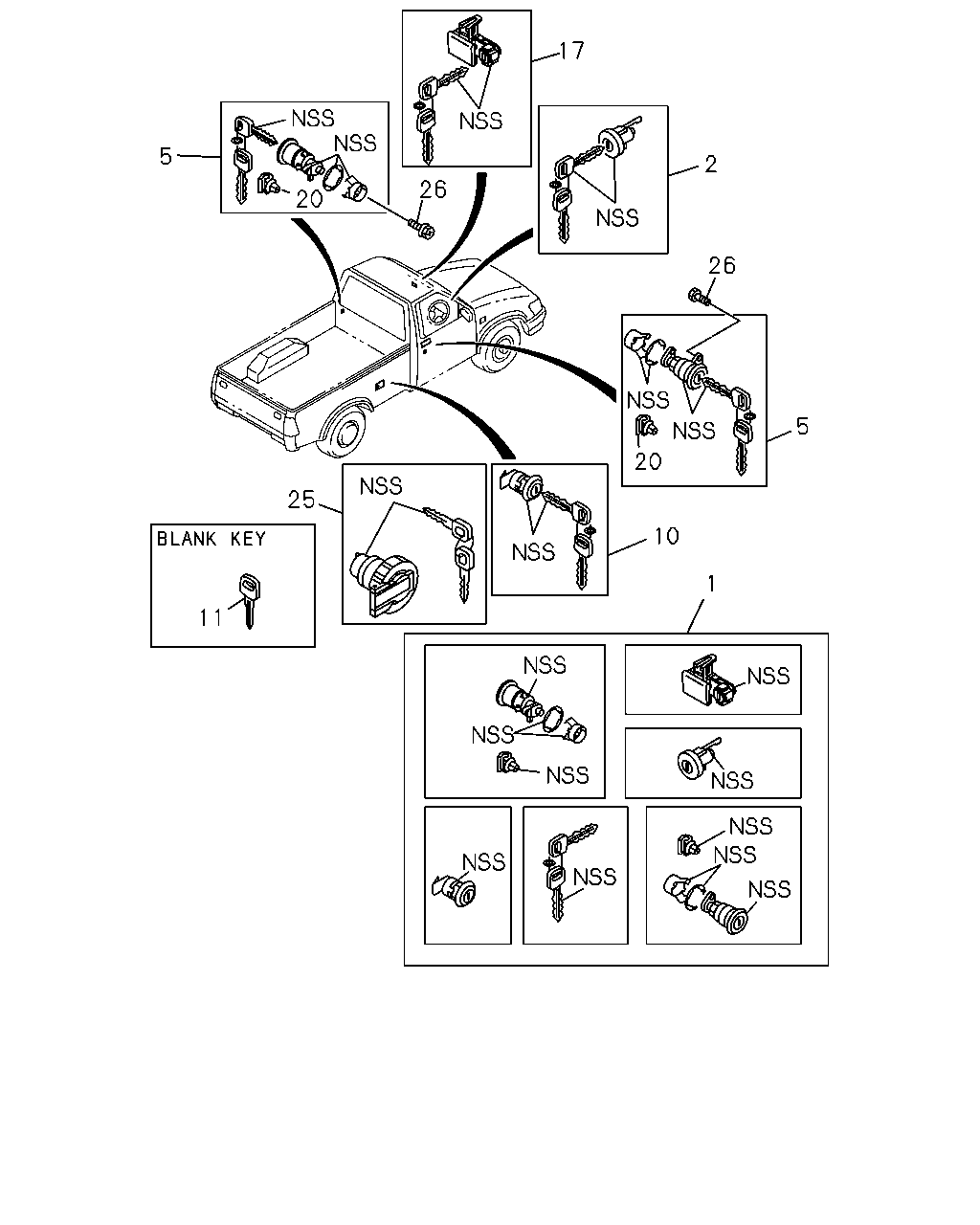

çizim 51418
17 5 2 26 20 26 20 5 25 10 1 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 CYLINDER SET; CAR LOCK
GRAY 		8-97199-792-0 01 1 0009- ● ● ●
1 CYLINDER SET; CAR LOCK
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> GRAY 		8-97199-792-0 01 1 0009- ●
1 CYLINDER SET; CAR LOCK
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> GRAY 		8-97199-792-0 01 1 0009- ●
1 CYLINDER SET; CAR LOCK
GRAY 		8-97154-715-1 01 1 0009- ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> GRAY 		8-97154-716-1 01 1 0009- ●
2 BARREL ASM; W/KEY,STRG LOCK 8-97110-657-0 01 1 0009- ● ● ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> 		8-97110-657-0 01 1 0009- ●
5 CYLINDER ASM; DOOR LOCK 8-97115-852-0 01 1 0009- ● ● ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> 		8-97115-852-0 01 1 0009- ●
5 CYLINDER ASM; DOOR LOCK 8-97115-851-0 01 1 0009- ● ● ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> 		8-97115-851-0 01 1 0009- ●
10 CYLINDER ASM; W/KEY,FUEL FILLER 8-97115-854-0 01 1 0009- ● ● ●
11 KEY; BLANK
WO/NOTCH 		8-94320-972-0 AR 1 0009- ● ● ● ● ● ● ●
11 KEY; BLANK
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> WO/NOTCH 		8-94320-972-0 AR 1 0009- ●
11 KEY; BLANK
W/NOTCH 		8-94320-973-0 AR 1 0009- ● ● ● ● ● ● ●
11 KEY; BLANK
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> W/NOTCH 		8-94320-973-0 AR 1 0009- ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK 5-87410-585-0 01 1 0009- ● ● ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> 		5-87410-585-0 01 1 0009- ●
20 SNAP; DOOR LOCK CYL
YELLOW 		8-97040-452-0 01 1 0009- ● ● ● ● ● ● ●
20 SNAP; DOOR LOCK CYL
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> YELLOW 		8-97040-452-0 01 1 0009- ●
20 SNAP; DOOR LOCK CYL
BROWN 		8-97040-453-0 01 1 0009- ● ● ● ● ● ● ●
20 SNAP; DOOR LOCK CYL
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> BROWN 		8-97040-453-0 01 1 0009- ●
25 CAP; FUEL TANK,W/KEY
EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> 		8-97115-855-0 01 1 0009- ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-97175-668-0 02 1 0009- ● ● ● ● ● ● ● ●
