◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#44055) — 57 parça

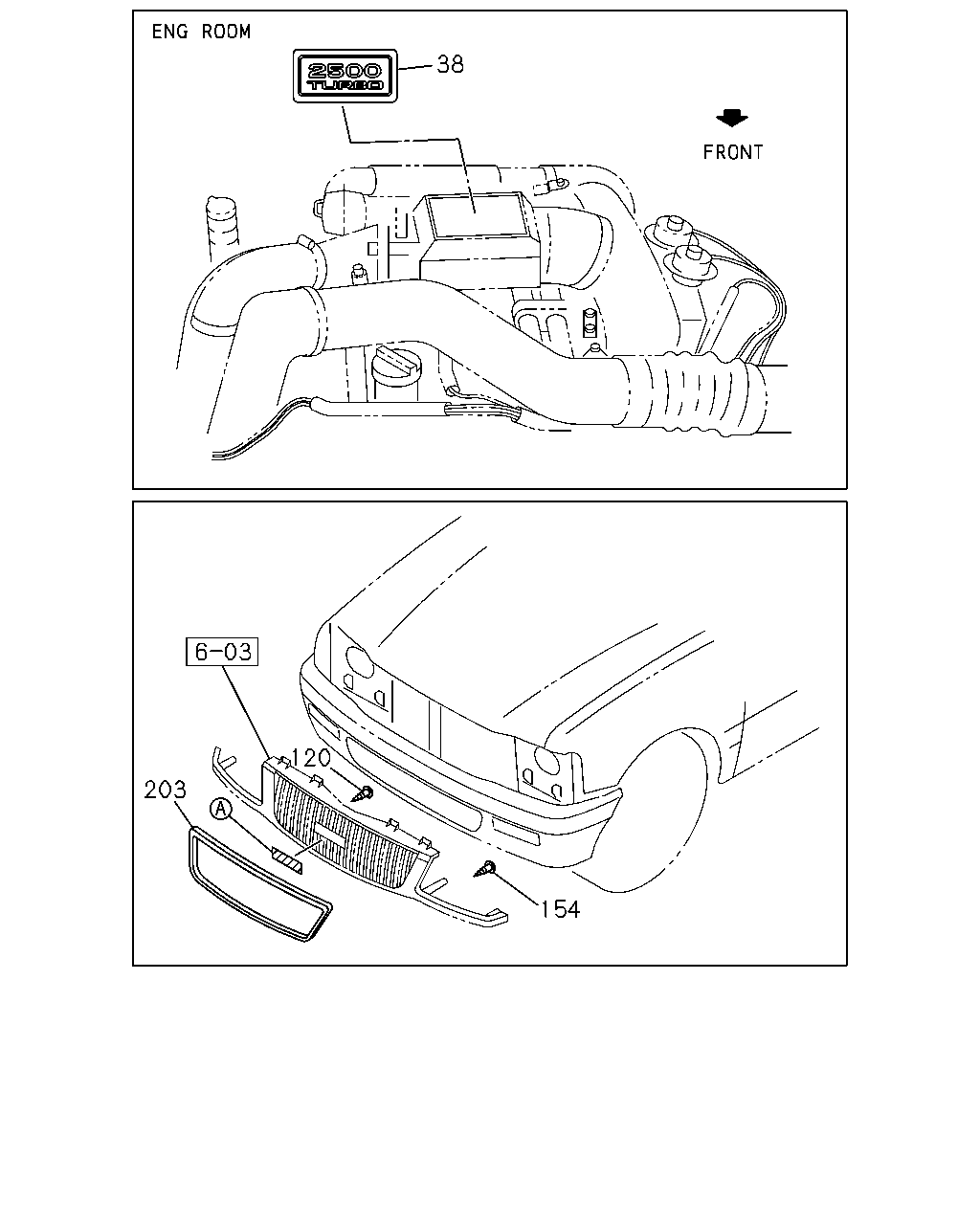

çizim 9292
38 120 203 154
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 PLATE; NAME
4JA1 ENG<RLE> THA 		8-97918-125-1 01 1 0009- ● ● ●
120 SCREW; MARK
M5X16 		8-94380-268-0 02 1 0009- ● ● ● ● ● ●
120 SCREW; MARK
EXC. SPECIAL PACKAGE VAR.2<7TB> M5X16 		8-94380-268-0 02 1 0009- ●
120 SCREW; MARK
SPECIAL PACKAGE VAR.2<7TB> M5X16 		8-94380-268-0 04 1 0009- ●
120 SCREW; MARK
M5X16 		8-94380-268-0 04 1 0009- ●
154 SCREW
M4X14 TAPPING W/PL WASHER 		0-74300-414-0 AR 1 0009- ● ● ● ● ● ●
203 MOLDING; ORNAMENT
SPECIAL PACKAGE VAR 2<7SB> THA 		8-97940-909-0 01 1 0102- ●
203 MOLDING; ORNAMENT
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. SPECIAL PACKAGE<7BB> THA 		8-97940-911-0 01 1 0009-0101 ●
203 MOLDING; ORNAMENT
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. SPECIAL PACKAGE<7BB> THA 		8-97940-911-0 01 1 0102- ●
203 MOLDING; ORNAMENT
POWER STEERING<N40> THA 		8-97940-911-0 01 1 0102- ●
203 MOLDING; ORNAMENT
SPECIAL PACKAGE<7BB> THA 		8-97940-909-0 01 1 0009- ●
203 MOLDING; ORNAMENT
THA 		8-97940-909-0 01 1 0009- ●
203 MOLDING; ORNAMENT
THA 		8-97940-909-0 01 1 0009- ● ●
203 MOLDING; ORNAMENT
THA 		8-97940-911-0 01 1 0009- ●
346 DECAL; POWER STEERING
THA 		8-97921-623-0 01 1 0009-0009 ●
346 DECAL; POWER STEERING
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97921-623-0 01 1 0010-0010 ●
346 DECAL; POWER STEERING
POWER STEERING<N40> RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97921-623-0 01 1 0010- ●

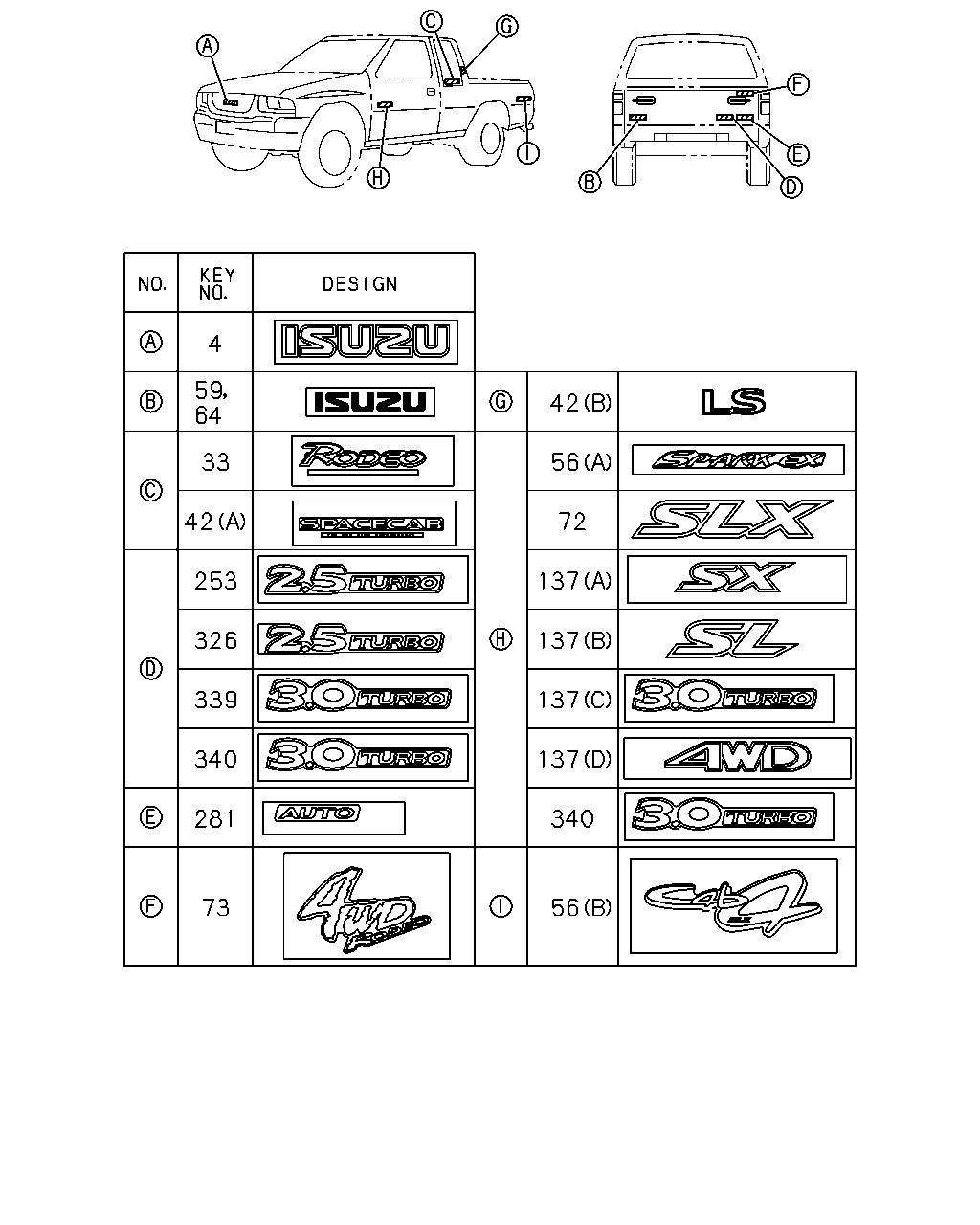

çizim 48669
4 59 64 42 33 56 42 72 253 137 326 137 339 137 340 137 281 340 73 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 EMBLEM; RAD GRILLE
THA 		8-97910-948-0 01 1 0009- ● ● ● ● ● ●
4 EMBLEM; RAD GRILLE
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97910-948-0 01 1 0009- ●
4 EMBLEM; RAD GRILLE
SPECIAL PACKAGE VAR.2<7TB> 		8-97203-475-2 01 1 0009- ●
4 EMBLEM; RAD GRILLE 8-97203-475-2 01 1 0009- ●
33 DECAL; RR QTR GLASS
THA 		8-97920-432-2 02 1 0009- ●
42 DECAL; RR QUARTER
(A) THA 		8-97920-431-2 02 1 0009- ●
42 DECAL; RR QUARTER
SPECIAL PACKAGE VAR.2<7TB> (B) THA 		8-97915-398-0 02 1 0009- ●
42 DECAL; RR QUARTER
(B) THA 		8-97915-398-0 02 1 0009- ●
56 DECAL; BODY SIDE
COOLER WO/HEATER<YL1> (A) THA 		8-97920-428-0 02 1 0009- ●
56 DECAL; BODY SIDE
(B) THA 		8-97921-374-0 02 1 0009- ●
56 DECAL; BODY SIDE
(B) THA 		8-97921-375-0 02 1 0009- ●
59 DECAL; TAIL GATE
EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-440-0 01 1 0009-0009 ● ● ●
59 DECAL; TAIL GATE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-440-0 01 1 0009- ● ● ●
64 EMBLEM; TAIL GATE
SPECIAL PACKAGE<7BB> THA 		8-97919-811-0 01 1 0009- ●
64 EMBLEM; TAIL GATE
THA 		8-97919-811-0 01 1 0009- ● ●
64 EMBLEM; TAIL GATE
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-811-0 01 1 0009- ●
72 EMBLEM; SIDE
SPECIAL PACKAGE<7BB> THA 		8-97911-483-0 02 1 0009- ●
72 EMBLEM; SIDE
THA 		8-97911-483-0 02 1 0009- ●
73 DECAL; "4WD"
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-369-0 01 1 0009- ●
73 DECAL; "4WD"
THA 		8-97921-373-0 01 1 0009- ●
137 DECAL; DOOR
SPECIAL PACKAGE VAR 2<7SB> EXC. SPECIAL PACKAGE<7BB> (A) THA 		8-97920-915-0 02 1 0009- ●
137 DECAL; DOOR
EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR 2<7SB> (B) THA 		8-97920-429-0 02 1 0009- ●
137 DECAL; DOOR
SPECIAL PACKAGE VAR.2<7TB> (C) THA 		8-97920-438-0 02 1 0009- ●
137 DECAL; DOOR
(C) THA 		8-97920-438-0 02 1 0009- ●
137 DECAL; DOOR
EXC. SPECIAL PACKAGE VAR.2<7TB> (D) THA 		8-97920-430-0 02 1 0009- ●
137 DECAL; DOOR
(D) THA 		8-97920-430-0 02 1 0009- ●
253 DECAL; 2.5D
4JA1 ENG<RLE> EXC. SPECIAL PACKAGE<7BB> THA 		8-97920-433-1 01 1 0009-0009 ●
253 DECAL; 2.5D
THA 		8-97920-433-1 01 1 0009-0009 ●
253 DECAL; 2.5D
4JA1 ENG<RLE> EXC. SPECIAL PACKAGE<7BB> THA 		8-97920-433-1 01 1 0009- ●
253 DECAL; 2.5D
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97920-433-1 01 1 0009- ●
281 DECAL; AUTOMATIC
A/T AISIN<RMD> THA 		8-97920-918-0 01 1 0009- ● ●
326 EMBLEM; "2500 TURBO"
4JA1 ENG<RLE> SPECIAL PACKAGE<7BB> THA 		8-97920-437-0 01 1 0009- ●
339 EMBLEM; "3000 TURBO"
4JH1 ENG<RJX> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-438-0 01 1 0009- ● ● ● ●
340 DECAL; 3.0D TURBO
4JH1 ENG<RJX> SPECIAL PACKAGE VAR 2<7SB> THA 		8-97920-434-1 01 1 0009- ●
340 DECAL; 3.0D TURBO
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-434-1 01 1 0009- ●
340 DECAL; 3.0D TURBO
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-434-1 02 1 0009- ●
340 DECAL; 3.0D TURBO
THA 		8-97920-434-1 02 1 0009- ●
346 DECAL; POWER STEERING
THA 		8-97921-623-0 01 1 0009-0009 ●
346 DECAL; POWER STEERING
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97921-623-0 01 1 0010-0010 ●
346 DECAL; POWER STEERING
POWER STEERING<N40> RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97921-623-0 01 1 0010- ●
