6-86 — TRUNK OPENER AND FUEL LID (#44053) — 45 parça

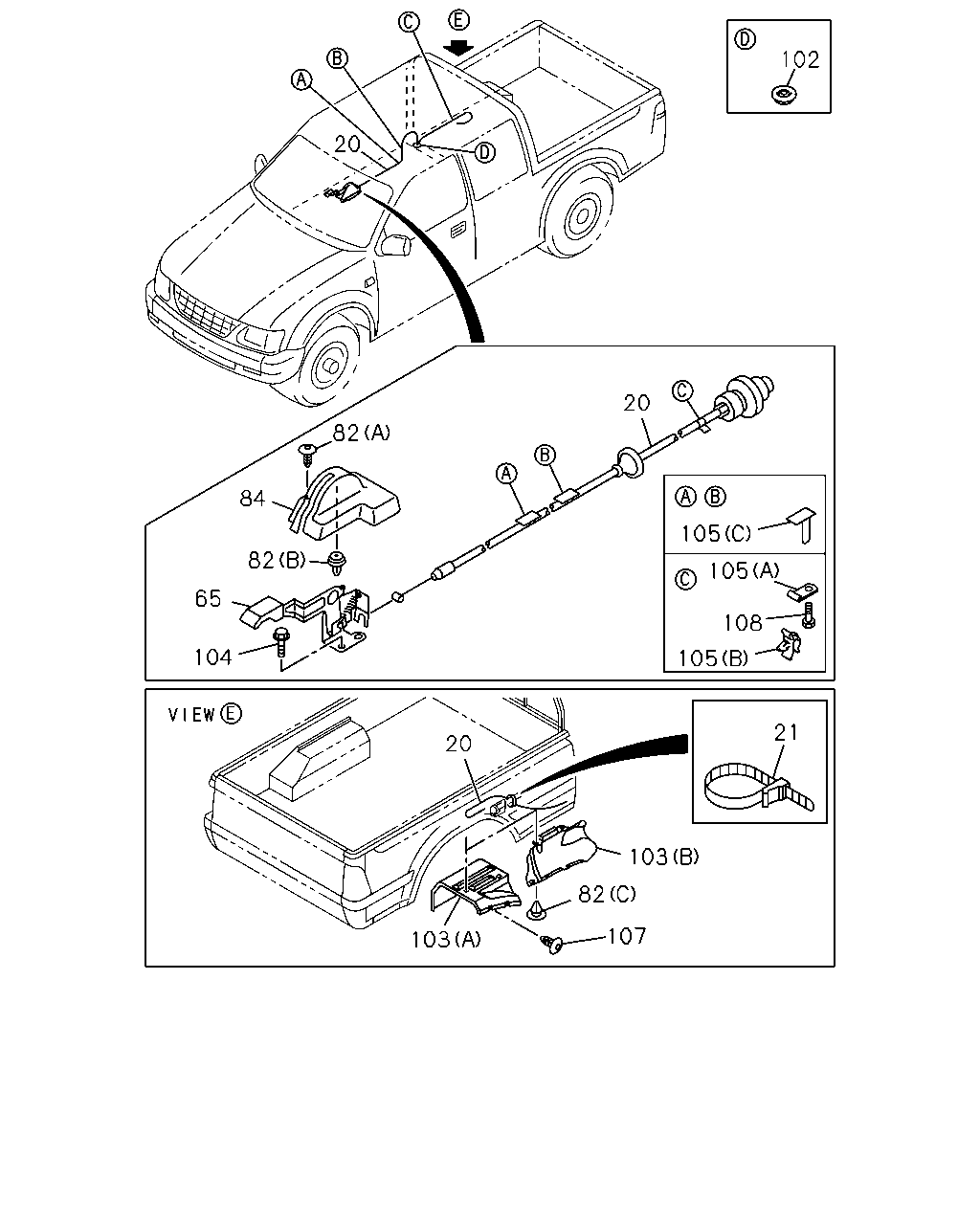

çizim 51109
102 20 20 82 84 105 82 105 65 108 104 105 20 21 103 82 103 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E
20 CABLE; TRUNK LID & FUEL FILLER
THA 		8-97920-446-2 01 1 0009- ●
20 CABLE; TRUNK LID & FUEL FILLER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97920-446-2 01 1 0009- ●
20 CABLE; TRUNK LID & FUEL FILLER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97920-445-2 01 1 0009- ●
20 CABLE; TRUNK LID & FUEL FILLER 8-97217-262-2 01 1 0009- ● ●
21 CLIP; CABLE,TAIL GATE
L=330 		5-09709-118-0 01 1 0009- ●
21 CLIP; CABLE,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> L=330 		5-09709-118-0 01 1 0009- ●
21 CLIP; CABLE,TAIL GATE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> L=330 		5-09709-118-0 01 1 0009- ●
21 CLIP; CABLE,TAIL GATE
L=250 THA 		5-09707-030-1 01 1 0009- ● ●
65 KNOB; FUEL FILLER DOOR
THA 		8-97920-444-0 01 1 0009- ● ● ●
65 KNOB; FUEL FILLER DOOR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97920-444-0 01 1 0009- ●
65 KNOB; FUEL FILLER DOOR
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97920-444-0 01 1 0009- ●
82 CLIP; COVER
(B) THA 		8-97913-584-0 01 1 0009- ● ● ●
82 CLIP; COVER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97913-584-0 01 1 0009- ●
82 CLIP; COVER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (B) THA 		8-97913-584-0 01 1 0009- ●
82 CLIP; COVER
(A) OD=16 L=11 		1-76378-155-0 01 1 0009- ● ● ●
82 CLIP; COVER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) OD=16 L=11 		1-76378-155-0 01 1 0009- ●
82 CLIP; COVER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (A) OD=16 L=11 		1-76378-155-0 01 1 0009- ●
82 CLIP; COVER
(C) 		1-09987-203-0 03 1 0009- ● ●
84 COVER; BRKT
GRAY 		8-97152-721-2 01 1 0009- ● ● ●
84 COVER; BRKT
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> GRAY 		8-97152-721-2 01 1 0009- ●
84 COVER; BRKT
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> GRAY 		8-97152-721-2 01 1 0009- ●
102 GROMMET
EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> OD=24 		8-94119-796-0 01 1 0009- ●
103 COVER; CABLE,FUEL LID OPENER
(A) THA 		8-97919-419-1 01 1 0009- ●
103 COVER; CABLE,FUEL LID OPENER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97919-419-1 01 1 0009- ●
103 COVER; CABLE,FUEL LID OPENER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (A) THA 		8-97919-419-1 01 1 0009- ●
103 COVER; CABLE,FUEL LID OPENER
(B) 		8-97221-217-3 01 1 0009- ● ●
104 BOLT; KNOB
M6X12 FLANGE 		0-28080-612-0 02 1 0009- ● ● ●
104 BOLT; KNOB
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X12 FLANGE 		0-28080-612-0 02 1 0009- ●
104 BOLT; KNOB
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> M6X12 FLANGE 		0-28080-612-0 02 1 0009- ●
105 CLIP; CABLE,FUEL LID OPENER
(A) THA 		8-97919-444-0 02 1 0009- ●
105 CLIP; CABLE,FUEL LID OPENER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97919-444-0 02 1 0009- ●
105 CLIP; CABLE,FUEL LID OPENER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (A) THA 		8-97919-444-0 02 1 0009- ●
105 CLIP; CABLE,FUEL LID OPENER
(B) THA 		8-97919-445-0 02 1 0009- ●
105 CLIP; CABLE,FUEL LID OPENER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97919-445-0 02 1 0009- ●
105 CLIP; CABLE,FUEL LID OPENER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (B) THA 		8-97919-445-0 02 1 0009- ●
105 CLIP; CABLE,FUEL LID OPENER
(C) 		8-94138-987-0 02 1 0009- ● ● ●
105 CLIP; CABLE,FUEL LID OPENER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) 		8-94138-987-0 02 1 0009- ●
105 CLIP; CABLE,FUEL LID OPENER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (C) 		8-94138-987-0 02 1 0009- ●
105 CLIP; CABLE,FUEL LID OPENER
(B) ID=4.8 		8-94128-483-0 01 1 0009- ● ●
107 CLIP; PROTECTOR
OD=20 L=12 		8-97292-298-0 06 1 0009- ●
107 CLIP; PROTECTOR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> OD=20 L=12 		8-97292-298-0 06 1 0009- ●
107 CLIP; PROTECTOR
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> OD=20 L=12 		8-97292-298-0 06 1 0009- ●
108 BOLT; CLIP
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 0009- ●
108 BOLT; CLIP
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 0009- ●
108 BOLT; CLIP
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 0009- ●
