◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#44052) — 16 parça

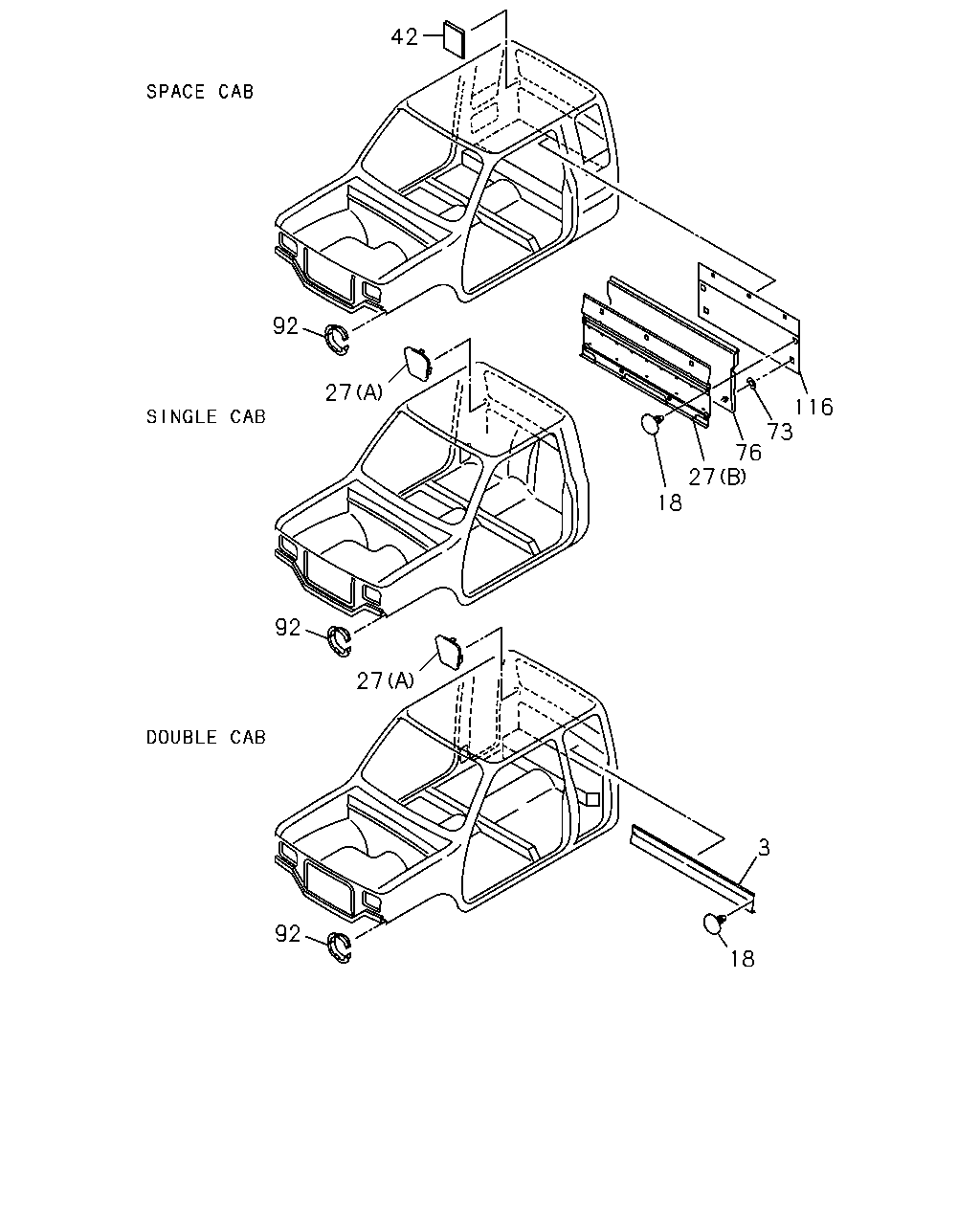

çizim 49712
42 92 27 116 73 76 27 18 92 27 3 92 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 TRIM; FULL,BACK UPR
GRAY 		8-97155-657-0 01 1 0009-0009 ● ●
3 TRIM; FULL,BACK UPR
GRAY 		8-97199-788-0 01 1 0009- ● ●
5 CLIP; BACK DOOR TRIM
THA 		8-97919-667-0 04 1 0009- ● ●
18 CLIP; TRIM COVER,CAB BACK
GRAY THA 		8-97153-648-0 05 1 0009- ● ● ● ●
27 COVER; TRIM,BACK
NOISE INSULATION PACK 2<7MW> (B) GRAY 		8-97156-051-0 01 1 0009- ● ●
27 COVER; TRIM,BACK
EXC. NOISE INSULATION PACK 2<7MW> (B) GRAY THA 		8-97154-636-4 01 1 0009- ● ●
27 COVER; TRIM,BACK
(A) THA 		8-97911-001-0 01 1 0009- ●
27 COVER; TRIM,BACK
NOISE INSULATION PACK 2<7MW> (A) THA 		8-97911-001-0 01 1 0009- ● ●
27 COVER; TRIM,BACK
(A) THA 		8-97911-002-0 01 1 0009- ●
27 COVER; TRIM,BACK
NOISE INSULATION PACK 2<7MW> (A) THA 		8-97911-002-0 01 1 0009- ● ●
42 SEAL; BACK OUTER PANEL
NOISE INSULATION PACK 2<7MW> 		8-94239-526-0 02 1 0009- ● ●
73 SPACER; TRIM BACK INNER
THA 		8-97920-443-0 02 1 0009- ● ●
76 PAD; TRIM,BACK PANEL
SAS THA 		8-97920-916-0 01 1 0009- ● ●
76 PAD; TRIM,BACK PANEL
NHK THA 		8-97920-917-1 01 1 0009- ● ●
92 PROTECTOR; BACK DOOR EDGE
THA 		8-94340-075-0 02 1 0009- ● ● ● ● ● ● ● ●
116 INSULATOR; BACK PANEL
THA 		8-97919-485-1 01 1 0009- ● ●
