◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#44047) — 228 parça

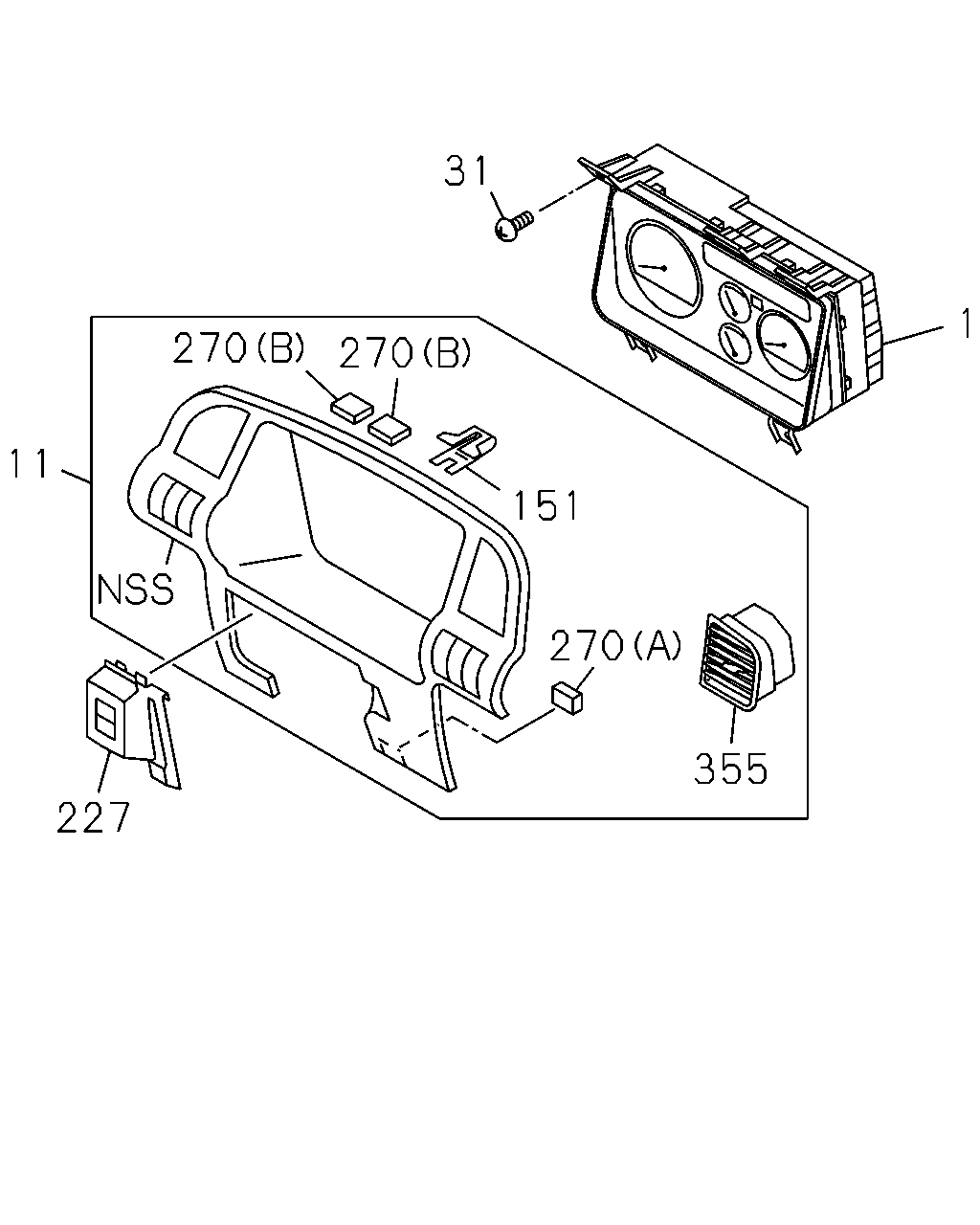

çizim 12386
31 1 270 270 11 151 270 355 227
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0502-0606 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0502-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-296-0 01 1 1207- ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-296-0 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0502-0606 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0502-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97381-295-0 01 1 1207- ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97381-295-0 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97170-585-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97381-293-0 01 1 0502-1206 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97381-293-0 01 1 1207- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97381-294-1 01 1 0502-1206 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2),SPEEDOMETER MILE<UC1> 		8-97381-294-1 01 1 1207- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97352-122-0 01 1 0211-0305 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97368-345-0 01 1 0306-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97381-297-0 01 1 0502-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97381-297-0 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97352-123-0 01 1 0211-0305 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97368-346-0 01 1 0306-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97381-298-0 01 1 0502-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-97381-298-0 01 1 1207- ● ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-964-2 01 1 0211-0501 ● ● ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-964-2 01 1 0502- ● ● ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0211- ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0211-1210 ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER 8-97217-066-0 07 1 0211- ● ● ● ● ● ●
227 09.743 BEZEL; METER
BLACK 		8-97307-066-0 01 1 0211- ● ● ●
270 09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0211- ● ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 0211-0312 ● ● ●
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 0401- ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0211- ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0211- ● ● ● ● ● ●

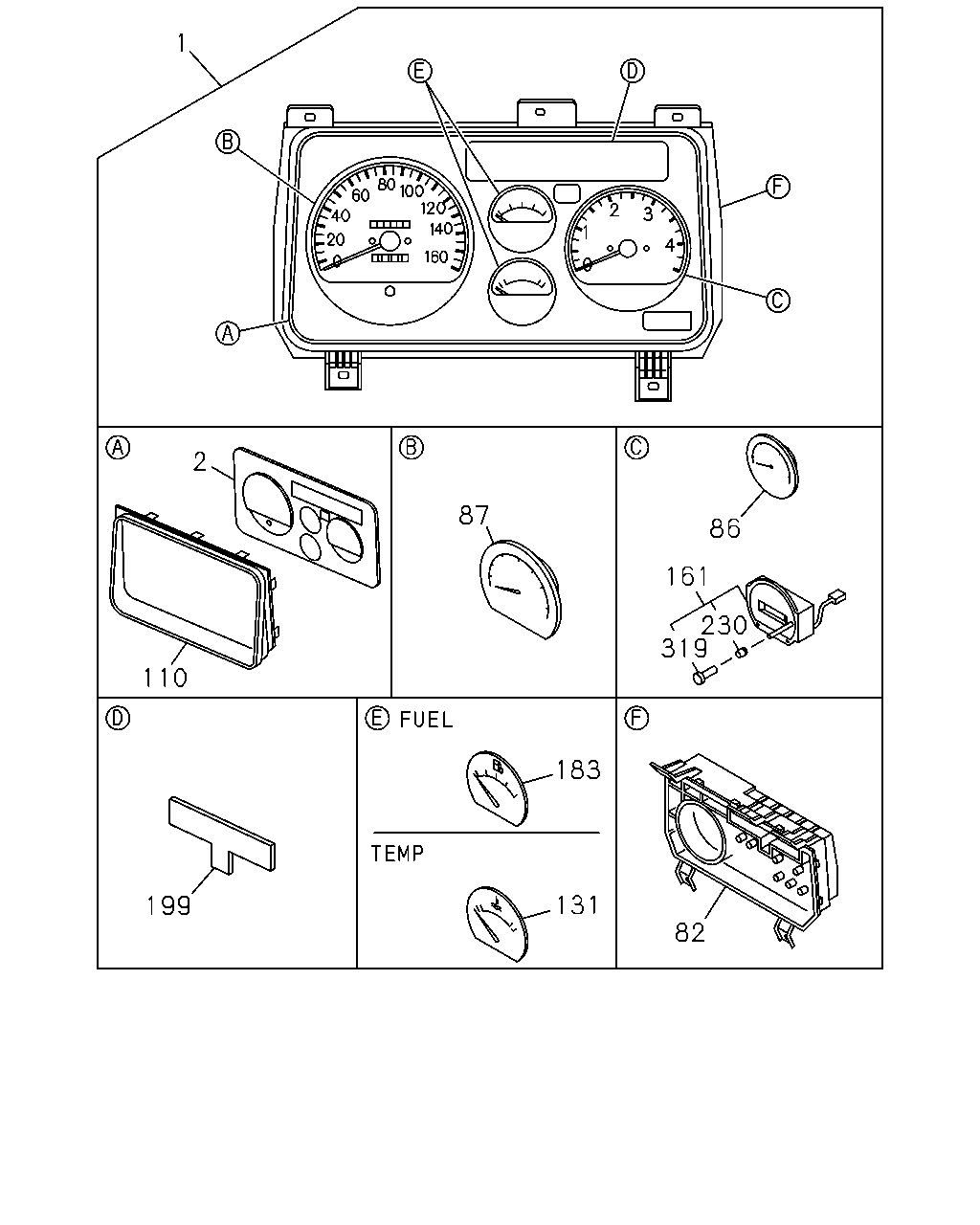

çizim 12992
1 2 87 86 161 230 319 110 183 131 199 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0502-0606 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0502-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-296-0 01 1 1207- ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-296-0 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0502-0606 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0502-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97381-295-0 01 1 1207- ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97381-295-0 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97170-585-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97381-293-0 01 1 0502-1206 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97381-293-0 01 1 1207- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97381-294-1 01 1 0502-1206 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2),SPEEDOMETER MILE<UC1> 		8-97381-294-1 01 1 1207- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97352-122-0 01 1 0211-0305 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97368-345-0 01 1 0306-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97381-297-0 01 1 0502-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97381-297-0 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97352-123-0 01 1 0211-0305 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97368-346-0 01 1 0306-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97381-298-0 01 1 0502-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-97381-298-0 01 1 1207- ● ●
2 09.735 PANEL; CLUSTER 8-97185-443-0 01 1 0211-1206 ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-443-0 01 1 1207- ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 0211-1206 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-448-0 01 1 1207- ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97185-467-0 01 1 0211-0501 ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> 		8-98002-111-0 01 1 0502-1206 ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-111-0 01 1 1207- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> 		8-97185-458-0 01 1 0211-0501 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> 		8-98002-109-0 01 1 0502-1206 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-109-0 01 1 1207- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 0211-0501 ● ● ● ●
87 09.761 SPEEDOMETER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 0211-0501 ● ●
87 09.761 SPEEDOMETER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-98002-108-0 01 1 0502-1206 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2),SPEEDOMETER MILE<UC1> 		8-98002-108-0 01 1 1207- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> 		8-97185-456-0 01 1 0211-0501 ● ●
87 09.761 SPEEDOMETER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> 		8-98002-107-0 01 1 0502-1206 ● ●
87 09.761 SPEEDOMETER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-98002-107-0 01 1 1207- ● ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98203-825-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-98203-825-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98203-825-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98203-825-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-98203-825-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97185-452-0 01 1 0211-0501 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> 		8-97185-452-0 01 1 0502-1206 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-452-0 01 1 1207- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-451-0 01 1 0211-0501 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. TACHOMETER<U16> 		8-97185-451-0 01 1 0502-1206 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-451-0 01 1 1207- ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER 8-97185-476-0 01 1 0211-0501 ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER 8-98002-122-0 01 1 0502-1206 ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-122-0 01 1 1207- ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 0211-0501 ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. TACHOMETER<U16> 		8-98002-110-0 01 1 0502-1206 ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-98002-110-0 01 1 1207- ● ● ● ● ● ●
183 03.107 GAUGE; FUEL 8-97185-473-0 01 1 0211-0501 ● ● ● ● ● ●
183 03.107 GAUGE; FUEL 8-98002-118-0 01 1 0502-1206 ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-118-0 01 1 1207- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP 8-97185-481-0 01 1 0211-0501 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP 8-98002-124-0 01 1 0502-1206 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-124-0 01 1 1207- ● ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0211-0501 ● ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0502-1206 ● ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-644-0 01 1 1207- ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0211-0501 ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0502-1206 ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-522-0 01 1 1207- ● ● ● ● ● ●

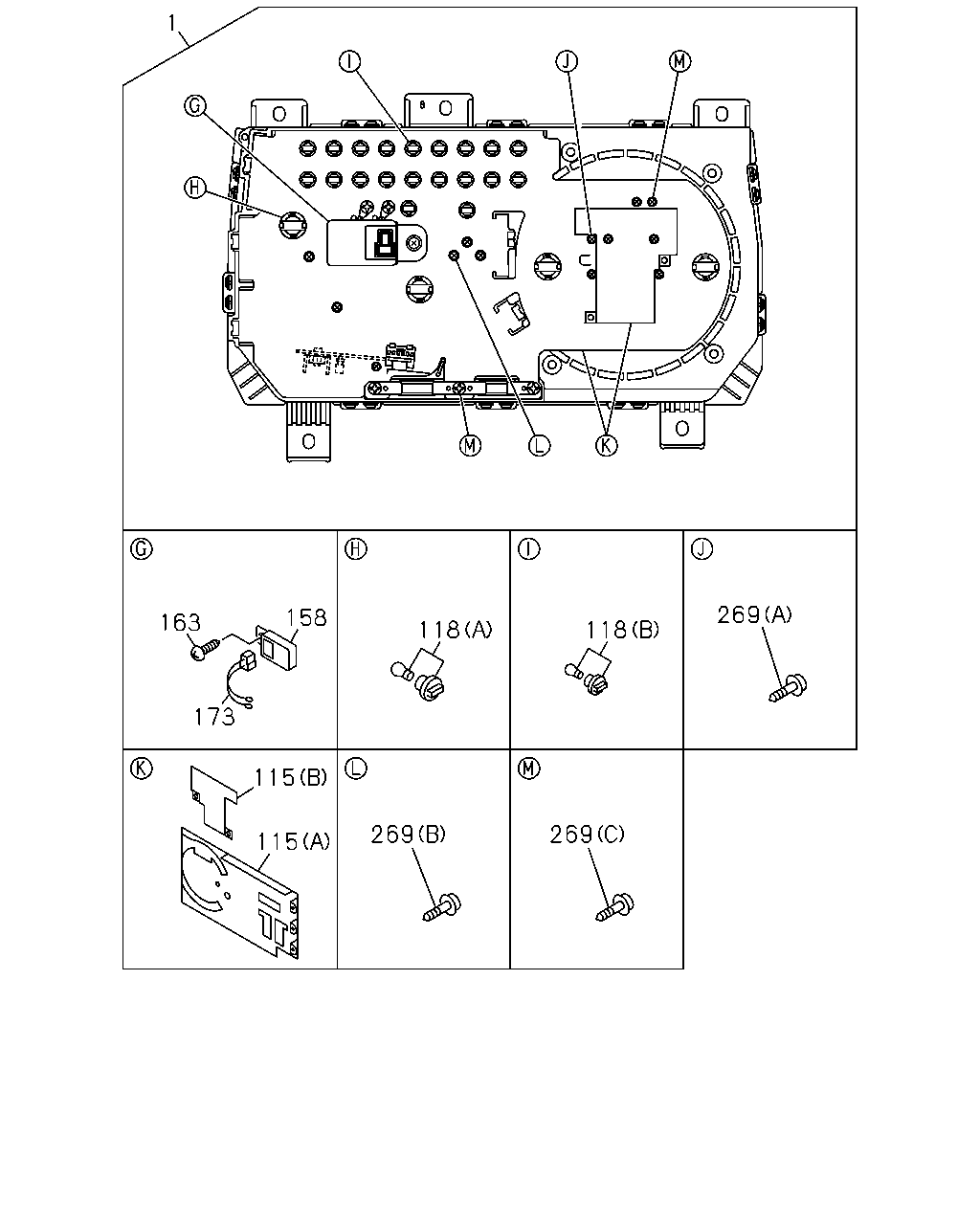

çizim 53461
1 269 158 163 118 118 173 115 269 269 115
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-98179-891-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0502-0606 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0502-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-296-0 01 1 1207- ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97381-296-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-296-0 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0502-0606 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0502-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 0607-1206 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97381-295-0 01 1 1207- ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97381-295-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97381-295-0 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97170-585-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97381-293-0 01 1 0502-1206 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97381-293-0 01 1 1207- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97381-294-1 01 1 0502-1206 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2),SPEEDOMETER MILE<UC1> 		8-97381-294-1 01 1 1207- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97352-122-0 01 1 0211-0305 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97368-345-0 01 1 0306-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97381-297-0 01 1 0502-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97381-297-0 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97352-123-0 01 1 0211-0305 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97368-346-0 01 1 0306-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97381-298-0 01 1 0502-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-97381-298-0 01 1 1207- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> (A) 		8-97185-506-0 01 1 0211-0501 ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97185-506-0 01 1 0211-0501 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97185-506-0 01 1 0502-1206 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97185-506-0 01 1 1207- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> (A) 		8-97185-499-0 01 1 0211-0501 ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> (A) 		8-97185-499-0 01 1 0211-0501 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> (A) 		8-97185-499-0 01 1 0502-1206 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> (A) 		8-97185-499-0 01 1 1207- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> (B) 		8-97185-534-0 01 1 0211-0305 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> (B) 		8-97368-341-0 01 1 0306-0501 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> (B) 		8-97368-341-0 01 1 0502-1206 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 		8-97368-341-0 01 1 1207- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97185-504-0 01 1 0211-0501 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97185-504-0 01 1 0502-1206 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97185-504-0 01 1 1207- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97185-505-0 01 1 0211-0501 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97185-505-0 01 1 0502-1206 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97185-505-0 01 1 1207- ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 0912-1206 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 0912-1206 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 0912-1206 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2),SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 1207- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 1207- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JB1 NA ENG(RLF) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 1207- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 0211-1206 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 1207- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 0211-0911 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 10 1 0912-1206 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2),SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 10 1 1207- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0211-0501 ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0211-0501 ● ●
118 08.991 BULB; CLUSTER METER
SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0211-0501 ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0502-1206 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 1207- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 03 1 0211-0501 ● ●
118 08.991 BULB; CLUSTER METER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 03 1 0502-1206 ● ●
118 08.991 BULB; CLUSTER METER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 03 1 1207- ● ●
158 09.765 BUZZER; VAC WARNING
12V 		8-97185-520-0 01 1 0211-1206 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
EXC. PROVISIONAL PACKAGE SPEC<BCC> 12V 		8-97185-520-0 01 1 1207- ● ● ● ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 0211-1206 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-527-0 01 1 1207- ● ● ● ● ● ●
173 09.744 WIRE; LEAD 8-97185-643-0 01 1 0211-1206 ● ● ● ● ● ●
173 09.744 WIRE; LEAD
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-643-0 01 1 1207- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(B) 		8-97185-525-0 06 1 0211-1206 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-525-0 06 1 1207- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (A) 		8-97185-524-0 08 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> (A) 		8-97185-524-0 08 1 0502-1206 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-524-0 08 1 1207- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (A) 		8-97185-524-0 07 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. TACHOMETER<U16> (A) 		8-97185-524-0 07 1 0502-1206 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97185-524-0 07 1 1207- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(C) 		8-97185-528-0 02 1 0211-0501 ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> (C) 		8-97185-528-0 02 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
SPEEDOMETER MILE<UC1> (C) 		8-97185-528-0 02 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97185-528-0 02 1 0502-1206 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97185-528-0 02 1 1207- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> (C) 		8-97185-528-0 04 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> (C) 		8-97185-528-0 04 1 0502-1206 ● ●
269 09.743 SCREW; METER CLUSTER
4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (C) 		8-97185-528-0 04 1 1207- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
