◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#44045) — 986 parça
çizim 12379
13 575 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 02.525 HARNESS; ENG
4JB1 NA ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97173-694-1 01 1 0211-0501 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 NA ENG(RLF) 		8-97173-694-2 01 1 0502- ● ● ● ● ● ●
13 02.525 HARNESS; ENG
TURBOCHARGER<K51> 		8-97218-750-0 01 1 0211-0501 ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) 		8-97218-750-1 01 1 0502-0606 ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) 		8-97218-750-1 01 1 0607- ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> EURO2 SPECIFICATION(NT2) 		8-97173-696-1 01 1 0211-0501 ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> EURO2 SPECIFICATION(NT2) SINGAPORE EQUIPMENT(S9Y) EXC. HEATER & DEFROSTER(C41) 		8-97173-696-2 01 1 0502- ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> LOW EMISSION VEHICLE PACKAGE<7VP> EXC. HEATER & DEFROSTER(C41) 		8-97204-771-2 01 1 0211- ●
329 02.480 CABLE; ENG TO FRAME 8-97260-486-1 01 1 0211- ● ● ● ● ● ●
575 02.525 HARNESS; GLOW PLUG
TURBOCHARGER<K51> 		8-97212-328-0 01 1 0211-0501 ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) 		8-97212-328-0 01 1 0211-0501 ●
575 02.525 HARNESS; GLOW PLUG
4JB1-TC ENG(RDT) 		8-97212-328-0 01 1 0502-0606 ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) 		8-97212-328-0 01 1 0502-0606 ●
575 02.525 HARNESS; GLOW PLUG
4JB1-TC ENG(RDT) 		8-97212-328-0 01 1 0607- ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) 		8-97212-328-0 01 1 0607- ●

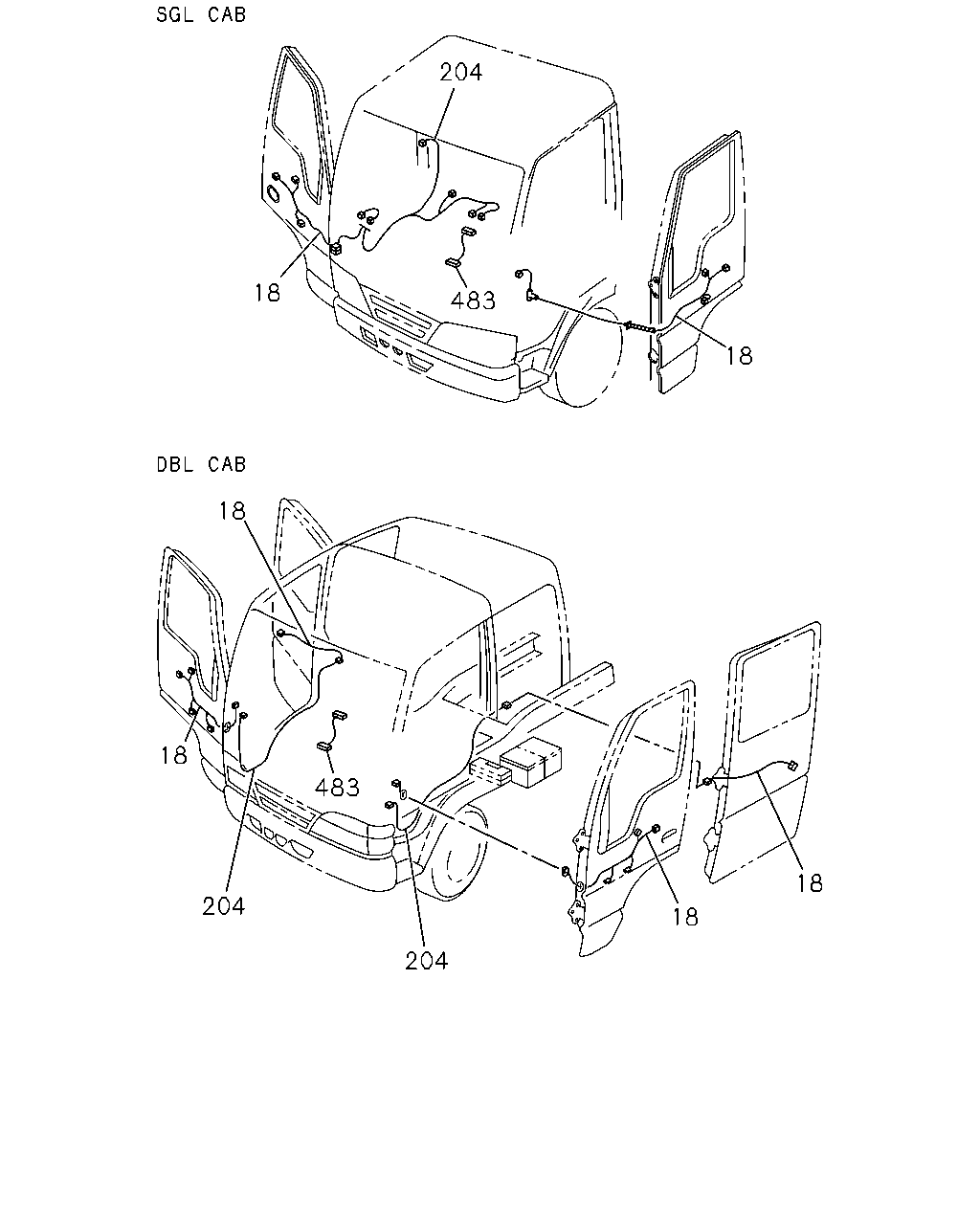

çizim 50025
204 18 483 18 18 18 483 18 204 18 204
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT DOOR PASSENGER SIDE 		8-97226-669-0 01 1 1011-1405 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-97226-669-0 01 1 1406- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) FRONT DOOR PASSENGER SIDE 		8-97226-671-1 01 1 1011-1405 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-97226-671-1 01 1 1406- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) FRONT DOOR PASSENGER SIDE 		8-97226-671-1 01 1 1406- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR DRIVER SIDE 		8-97105-571-1 01 1 0211- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) FRONT DOOR DRIVER SIDE 		8-97105-571-1 01 1 0211- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-97226-671-1 01 1 0211-1009 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) FRONT DOOR PASSENGER SIDE 		8-97226-671-1 01 1 0211-1009 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-98166-819-0 01 1 1010-1010 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) FRONT DOOR PASSENGER SIDE 		8-98166-819-0 01 1 1010-1010 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-98166-819-0 01 1 1011-1405 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR DRIVER SIDE 		8-97185-142-1 01 1 0211- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-97226-669-0 01 1 0211-1009 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-98166-820-0 01 1 1010-1010 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-98166-820-0 01 1 1011-1405 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0211- ● ●
204 02.559 HARNESS; CABLE,FLOOR
DRIVER SIDE 		8-97162-629-2 01 1 0211-0302 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
DRIVER SIDE 		8-97364-140-0 01 1 0303- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
DRIVER SIDE 		8-97162-626-4 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR
DRIVER SIDE 		8-97364-143-0 01 1 0303- ● ●
204 02.559 HARNESS; CABLE,FLOOR
PASSENGER SIDE 		8-97162-632-2 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR
PASSENGER SIDE 		8-97364-146-0 01 1 0303- ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308-0310 ● ● ● ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97373-419-0 01 1 0311- ● ● ● ● ● ●

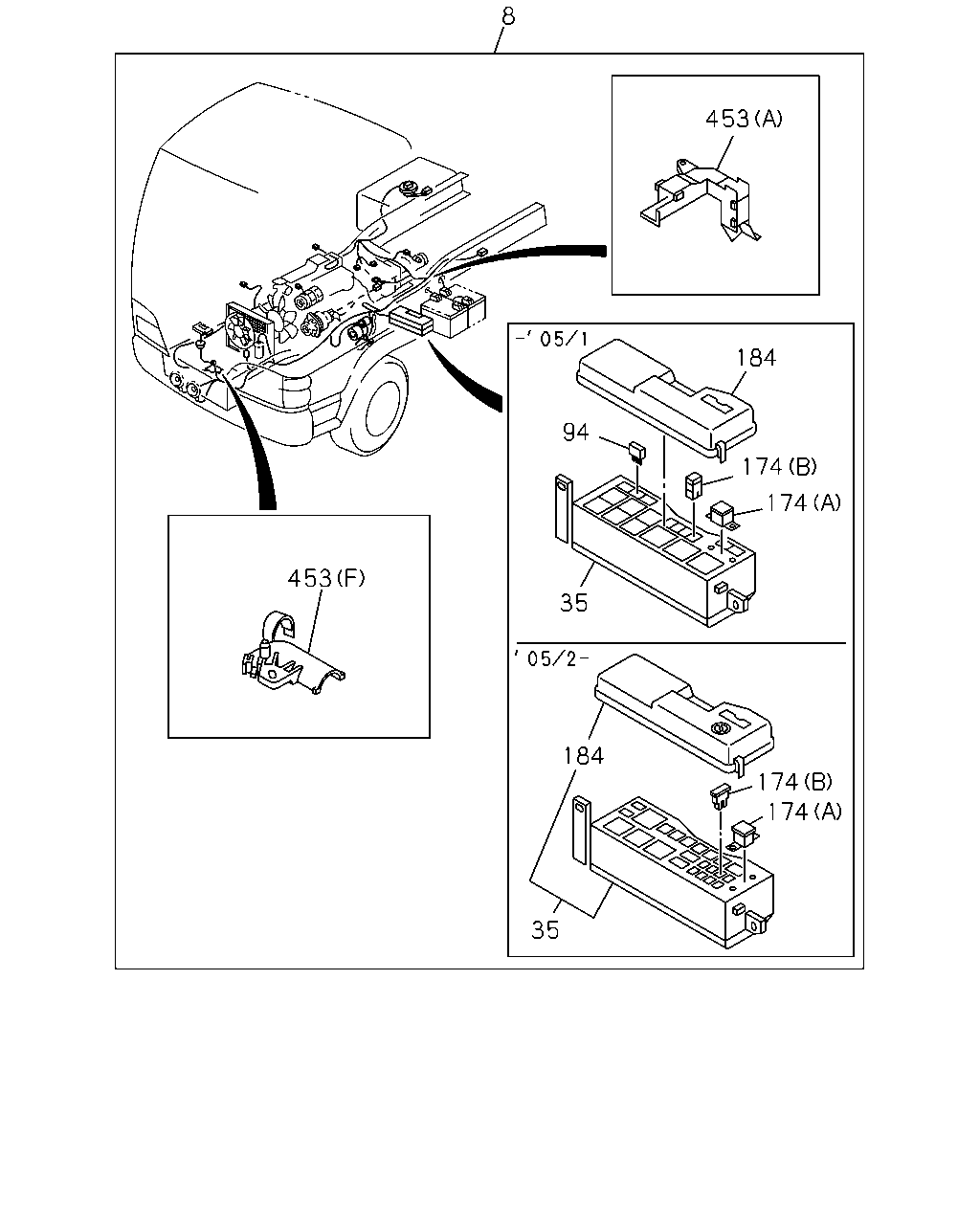

çizim 50026
8 453 184 94 174 174 453 35 184 174 174 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98005-344-0 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT 8-97350-730-1 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) 		8-97350-730-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT 8-97377-875-1 01 1 0502-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) 		8-97377-875-1 01 1 0502-0606 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) 		8-97377-875-1 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT 8-97377-875-1 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97260-495-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT 8-97260-495-2 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) 		8-97377-876-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT 8-97377-876-1 01 1 0502- ● ●
8 02.480 HARNESS; FRAME,FRT
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97260-390-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-97377-877-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97352-331-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97377-878-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97352-330-0 01 1 0211-0304 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97368-510-1 01 1 0305-0501 ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0211-0501 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 0502- ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> BLACK 3P-1.5A 		8-94422-640-1 01 1 0211-0501 ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-1 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 AR 1 0502- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 0502- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 0502- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0502- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0502-0506 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0607-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1207- ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0211- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0211- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0211-0405 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> (G) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0406-0409 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (G) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0502-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 1207- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 		8-97074-957-0 01 1 0502- ● ● ●

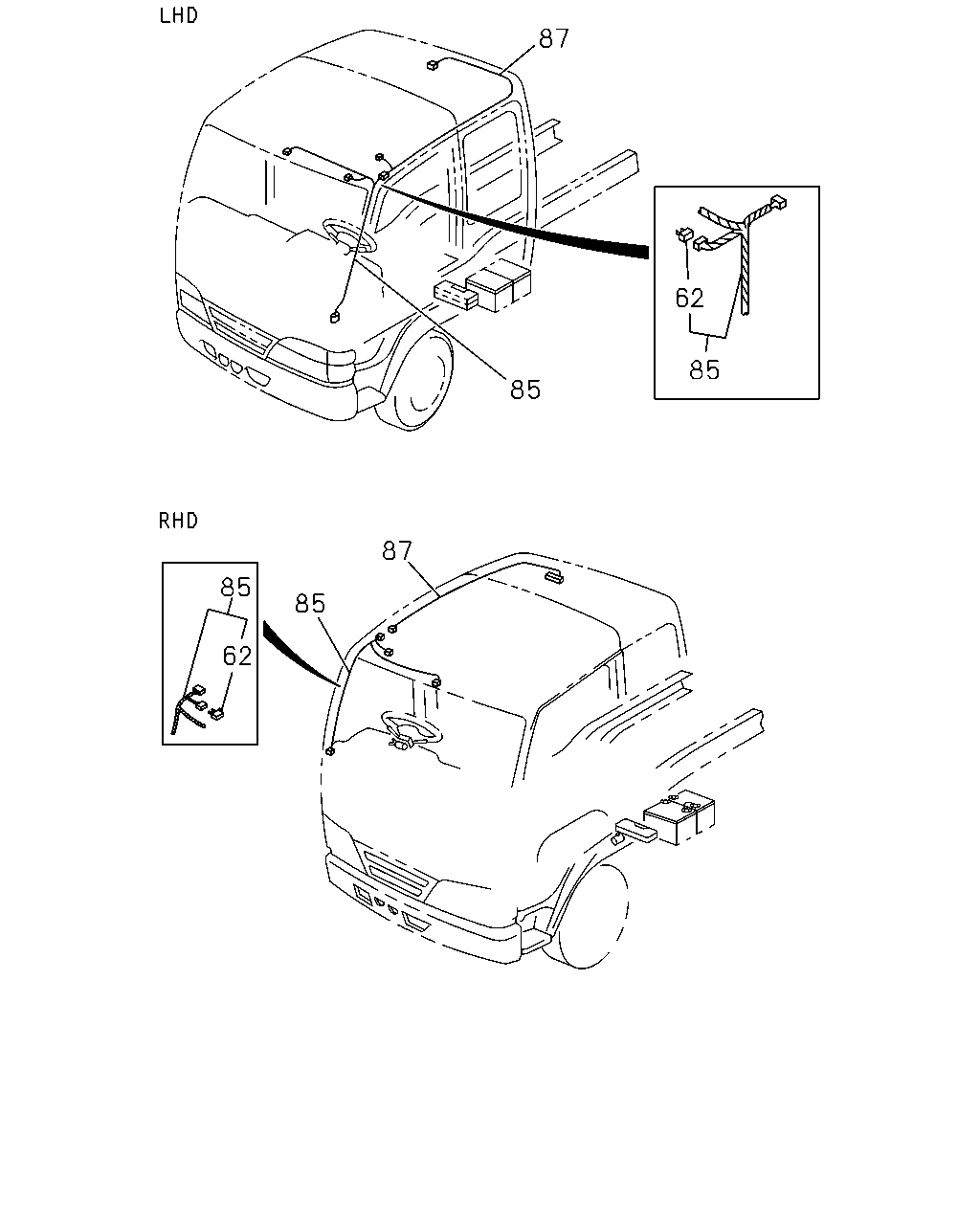

çizim 50594
87 62 85 85 87 85 85 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 0211- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0211-0302 ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97164-610-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0303- ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97364-158-0 01 1 0303- ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-3 01 1 0211-0302 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-155-0 01 1 0303- ● ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97164-609-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97364-157-0 01 1 0303- ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 0211- ● ●
çizim 51465
347 341 337 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 02.480 HARNESS; FRAME,RR 8-97381-162-1 01 1 0502- ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0211- ● ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0211-0501 ● ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0502- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97213-563-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-148-0 01 1 0303- ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97213-566-0 01 1 0211-0302 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5) 		8-97213-566-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97364-151-0 01 1 0303- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5) 		8-97364-151-0 01 1 0303- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97213-564-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97213-564-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97364-149-0 01 1 0303- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-149-0 01 1 0303- ● ●

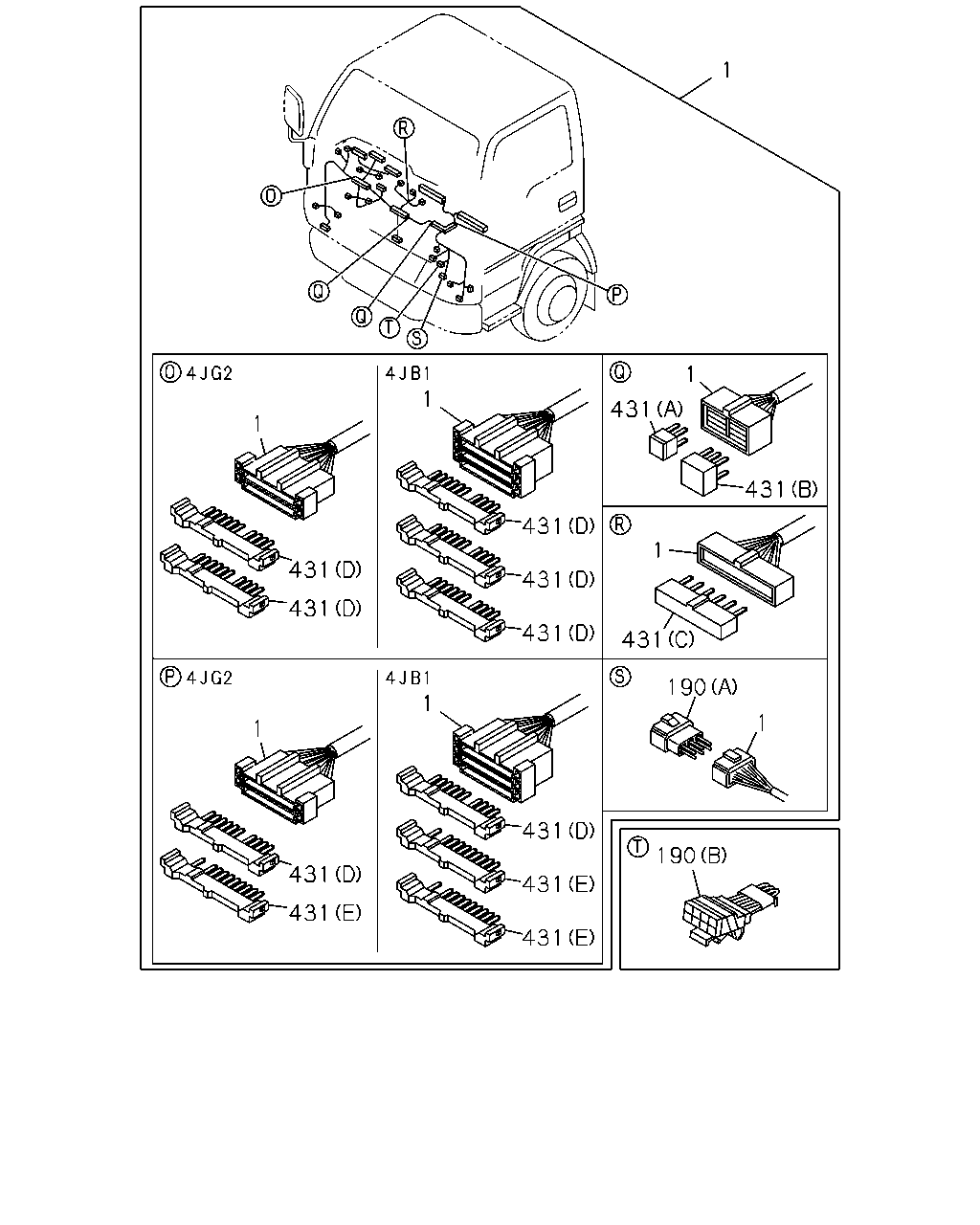

çizim 52151
1 1 1 431 1 431 431 1 431 431 431 431 431 1 190 1 1 431 190 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) 		8-98217-083-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. INDONESIA EQUIPMENT(S4S) 		8-98217-082-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-082-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-098-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207- ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98051-180-0 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98051-180-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98005-186-2 01 1 0607-0607 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(S4S) 		8-98005-186-3 01 1 0607- ●
1 02.480 HARNESS; CAB 8-97309-082-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97309-082-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
INDONESIA EQUIPMENT(S4S) 		8-97381-172-2 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) 		8-97381-172-2 01 1 0607- ●
1 02.480 HARNESS; CAB
CHARGE AIR COOLER<6PL> 		8-97230-668-3 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-169-4 01 1 0502-1206 ●
1 02.480 HARNESS; CAB 8-97381-169-4 01 1 0502-1206 ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1207- ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1207- ● ●
1 02.480 HARNESS; CAB
EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-3 01 1 0211-0501 ●
1 02.480 HARNESS; CAB 8-97185-292-3 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
EXC. INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-084-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-97381-170-4 01 1 0502-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-170-4 01 1 1207- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-083-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97381-173-2 01 1 0502- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0607-0607 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0608- ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) (A) 		5-82690-411-0 01 1 0502- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 3P & 3P 		1-82698-170-0 01 1 0502- ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 07 1 0502- ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 6P 		1-82691-206-0 01 1 0502-0508 ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0509-0511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 6P 		1-82691-206-0 01 1 0509-0511 ●
431 02.530 CONNECTOR; JOINT
(C) 6P 		1-82691-206-0 01 1 0509-0511 ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (C) 6P 		1-82691-206-0 01 1 0509-0511 ●
431 02.530 CONNECTOR; JOINT
(C) 6P 		1-82691-206-0 01 1 0512- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (F) 6P 		8-97381-428-0 01 1 0507- ●
431 02.530 CONNECTOR; JOINT
INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0607- ● ●
431 02.530 CONNECTOR; JOINT
INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0607- ● ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607- ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607- ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607- ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607- ●
431 02.530 CONNECTOR; JOINT
EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (D) 10P GREEN 		1-82699-599-0 03 1 0502- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (E) 10P BROWN 		1-82699-601-0 01 1 0502- ●

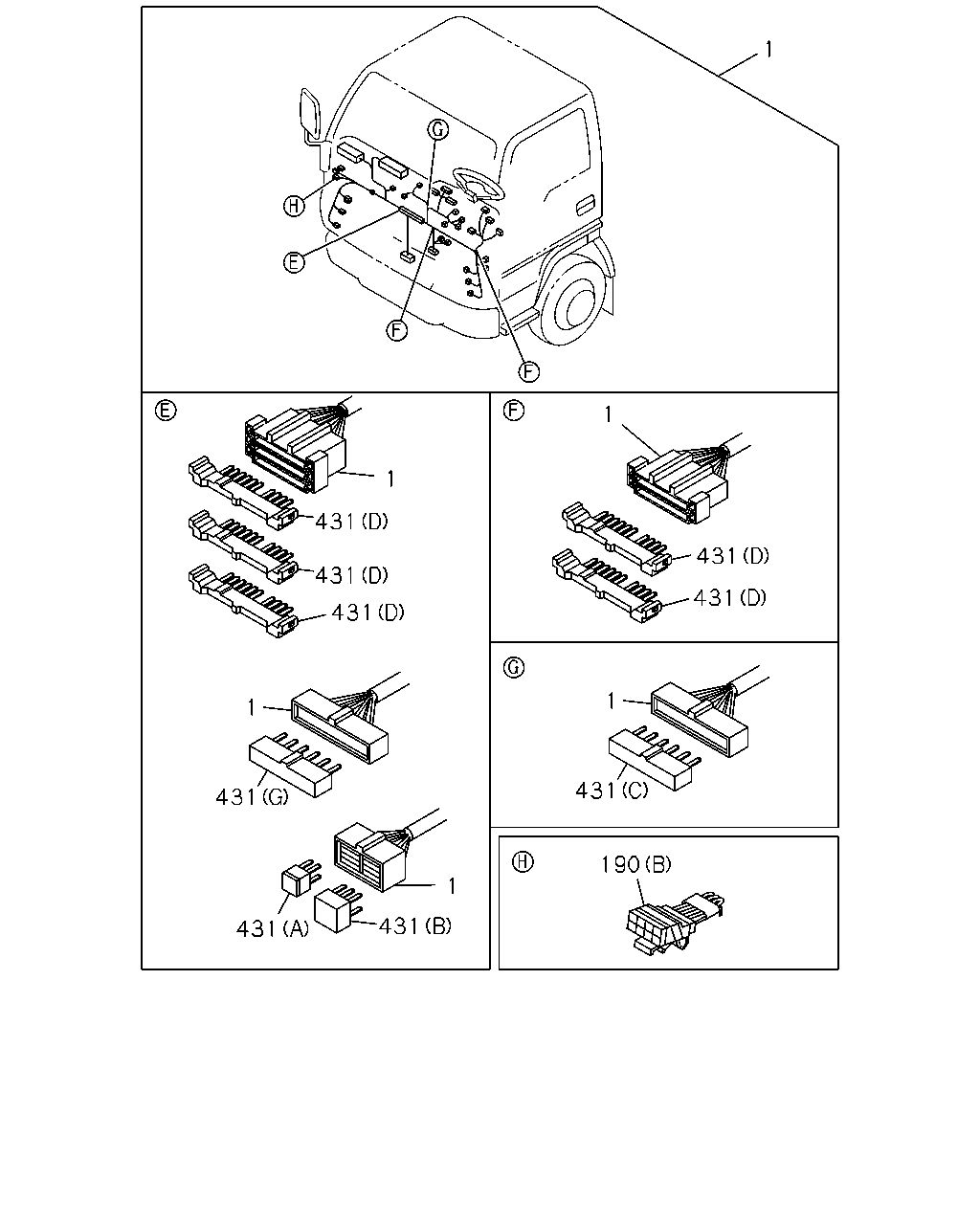

çizim 52240
1 1 1 431 431 431 431 431 1 1 431 431 190 1 431 431
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) 		8-98217-083-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. INDONESIA EQUIPMENT(S4S) 		8-98217-082-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-082-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-098-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207- ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98051-180-0 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98051-180-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98005-186-2 01 1 0607-0607 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(S4S) 		8-98005-186-3 01 1 0607- ●
1 02.480 HARNESS; CAB 8-97309-082-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97309-082-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
INDONESIA EQUIPMENT(S4S) 		8-97381-172-2 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) 		8-97381-172-2 01 1 0607- ●
1 02.480 HARNESS; CAB
CHARGE AIR COOLER<6PL> 		8-97230-668-3 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-169-4 01 1 0502-1206 ●
1 02.480 HARNESS; CAB 8-97381-169-4 01 1 0502-1206 ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1207- ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1207- ● ●
1 02.480 HARNESS; CAB
EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-3 01 1 0211-0501 ●
1 02.480 HARNESS; CAB 8-97185-292-3 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
EXC. INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-084-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-97381-170-4 01 1 0502-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-170-4 01 1 1207- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-083-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97381-173-2 01 1 0502- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0607-0607 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0608- ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) (A) 		5-82690-411-0 01 1 0502- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 3P & 3P 		1-82698-170-0 01 1 0502- ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 07 1 0502- ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 6P 		1-82691-206-0 01 1 0502-0508 ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0509-0511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 6P 		1-82691-206-0 01 1 0509-0511 ●
431 02.530 CONNECTOR; JOINT
(C) 6P 		1-82691-206-0 01 1 0509-0511 ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (C) 6P 		1-82691-206-0 01 1 0509-0511 ●
431 02.530 CONNECTOR; JOINT
(C) 6P 		1-82691-206-0 01 1 0512- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (F) 6P 		8-97381-428-0 01 1 0507- ●
431 02.530 CONNECTOR; JOINT
INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0607- ● ●
431 02.530 CONNECTOR; JOINT
INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0607- ● ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607- ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607- ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607- ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607- ●
431 02.530 CONNECTOR; JOINT
EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (D) 10P GREEN 		1-82699-599-0 03 1 0502- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (E) 10P BROWN 		1-82699-601-0 01 1 0502- ●

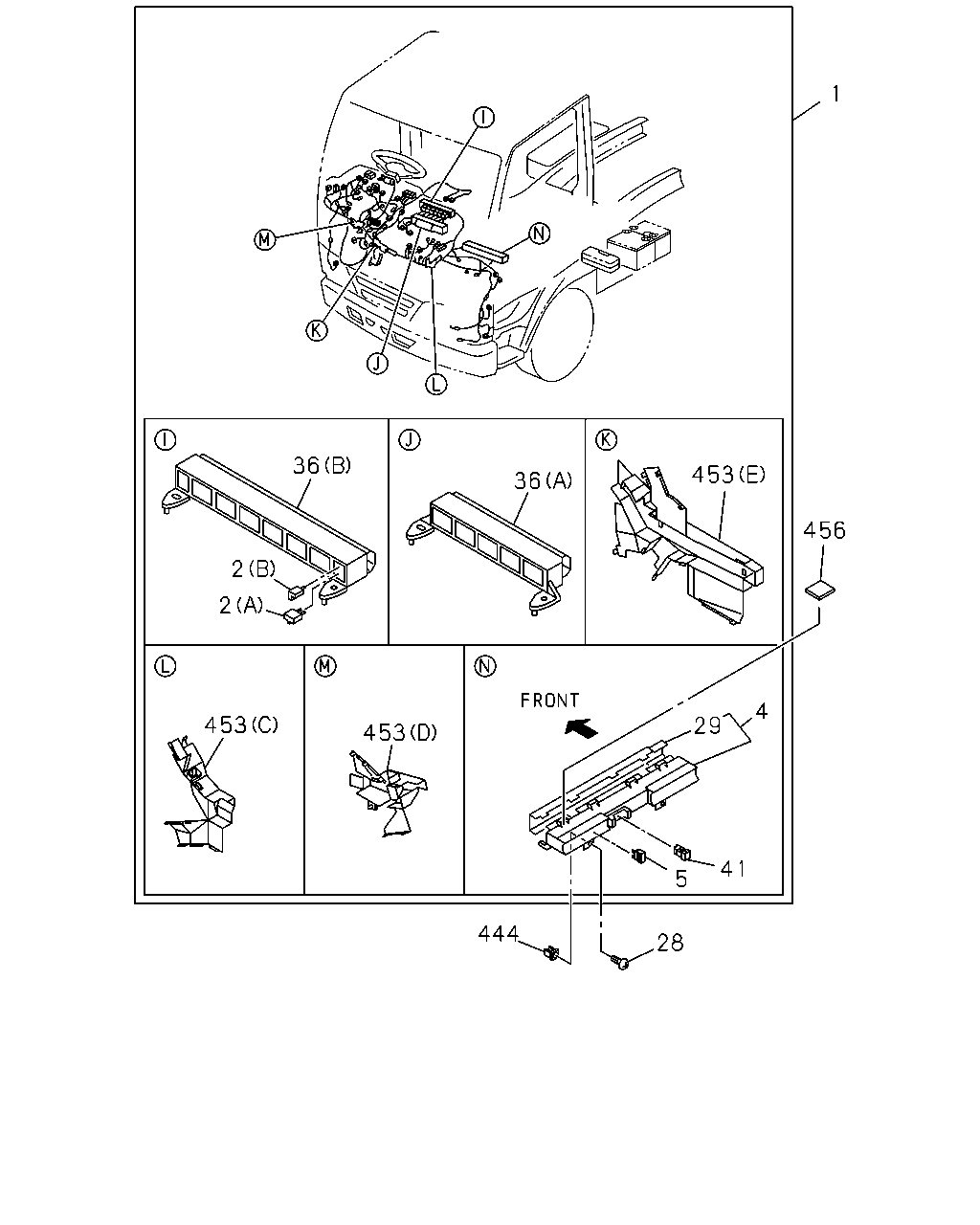

çizim 53018
1 36 453 36 456 2 2 29 4 453 453 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) 		8-98217-083-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. INDONESIA EQUIPMENT(S4S) 		8-98217-082-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-082-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-098-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207- ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98051-180-0 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98051-180-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98005-186-2 01 1 0607-0607 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(S4S) 		8-98005-186-3 01 1 0607- ●
1 02.480 HARNESS; CAB 8-97309-082-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97309-082-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
INDONESIA EQUIPMENT(S4S) 		8-97381-172-2 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) 		8-97381-172-2 01 1 0607- ●
1 02.480 HARNESS; CAB
CHARGE AIR COOLER<6PL> 		8-97230-668-3 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-169-4 01 1 0502-1206 ●
1 02.480 HARNESS; CAB 8-97381-169-4 01 1 0502-1206 ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1207- ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1207- ● ●
1 02.480 HARNESS; CAB
EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-3 01 1 0211-0501 ●
1 02.480 HARNESS; CAB 8-97185-292-3 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
EXC. INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-084-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-97381-170-4 01 1 0502-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-170-4 01 1 1207- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-083-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97381-173-2 01 1 0502- ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0211-0501 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0502-0508 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0604 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0502- ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0211-0501 ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0502- ● ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0211-0501 ● ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0502- ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0502-0506 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0607-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1207- ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0211- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0211- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0211-0405 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> (G) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0406-0409 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (G) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0502-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 1207- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 		8-97074-957-0 01 1 0502- ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211- ● ● ● ● ● ●
çizim 53090
8 453 184 174 453 174 453 35 431 184 174 174 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98005-344-0 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT 8-97350-730-1 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) 		8-97350-730-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT 8-97377-875-1 01 1 0502-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) 		8-97377-875-1 01 1 0502-0606 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) 		8-97377-875-1 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT 8-97377-875-1 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97260-495-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT 8-97260-495-2 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) 		8-97377-876-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT 8-97377-876-1 01 1 0502- ● ●
8 02.480 HARNESS; FRAME,FRT
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97260-390-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-97377-877-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97352-331-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97377-878-1 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97352-330-0 01 1 0211-0304 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97368-510-1 01 1 0305-0501 ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0211-0501 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 0502- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-1 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0211-0501 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 AR 1 0502- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 0502- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 0502- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0502- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0211-0501 ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 3P & 3P 		1-82698-170-0 01 1 0502- ● ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 07 1 0502- ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 6P 		1-82691-206-0 01 1 0502-0508 ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
INDONESIA EQUIPMENT(S4S) (C) 6P 		1-82691-206-0 01 1 0509-0511 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 6P 		1-82691-206-0 01 1 0509-0511 ●
431 02.530 CONNECTOR; JOINT
(C) 6P 		1-82691-206-0 01 1 0509-0511 ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (C) 6P 		1-82691-206-0 01 1 0509-0511 ●
431 02.530 CONNECTOR; JOINT
(C) 6P 		1-82691-206-0 01 1 0512- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (F) 6P 		8-97381-428-0 01 1 0507- ●
431 02.530 CONNECTOR; JOINT
INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0607- ● ●
431 02.530 CONNECTOR; JOINT
INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0607- ● ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607- ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (D) 10P GREEN 		1-82699-599-0 04 1 0607- ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0502-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607- ●
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN 		1-82699-601-0 02 1 0607- ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (E) 10P BROWN 		1-82699-601-0 02 1 0607- ●
431 02.530 CONNECTOR; JOINT
EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0502-0606 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-0607 ●
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 0607-1206 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 02 1 1207- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (D) 10P GREEN 		1-82699-599-0 03 1 0502- ●
431 02.530 CONNECTOR; JOINT
4JG2 ENG(RJC) (E) 10P BROWN 		1-82699-601-0 01 1 0502- ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0502-0506 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0607-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1207- ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0211- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0211- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0211-0405 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> (G) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0406-0409 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (G) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0502-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 1207- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 		8-97074-957-0 01 1 0502- ● ● ●
çizim 53829
1 453 36 36 456 2 2 29 4 453 41 5 28 444
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> INDONESIA EQUIPMENT(S4S) 		8-98217-083-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> EXC. INDONESIA EQUIPMENT(S4S) 		8-98217-082-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-082-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-098-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207- ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207- ● ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 		8-98051-180-0 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98051-180-0 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98005-186-2 01 1 0607-0607 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(S4S) 		8-98005-186-3 01 1 0607- ●
1 02.480 HARNESS; CAB 8-97309-082-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97309-082-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
INDONESIA EQUIPMENT(S4S) 		8-97381-172-2 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) 		8-97381-172-2 01 1 0607- ●
1 02.480 HARNESS; CAB
CHARGE AIR COOLER<6PL> 		8-97230-668-3 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-169-4 01 1 0502-1206 ●
1 02.480 HARNESS; CAB 8-97381-169-4 01 1 0502-1206 ● ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1207- ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1207- ● ●
1 02.480 HARNESS; CAB
EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-3 01 1 0211-0501 ●
1 02.480 HARNESS; CAB 8-97185-292-3 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
EXC. INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-171-3 01 1 0502-0606 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-171-3 01 1 0607-1206 ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, INDONESIA EQUIPMENT(S4S) 		8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB 8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-171-3 01 1 1207- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-084-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-97381-170-4 01 1 0502-1206 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-170-4 01 1 1207- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-083-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97381-173-2 01 1 0502- ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0211-0501 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 0211-0501 ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0502-0508 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0604 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0502- ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0211-0501 ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0502- ● ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0211-0501 ● ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0502- ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0502-0506 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0502-0506 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0607-1206 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1207- ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 1207- ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0211- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0211- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (E) 		8-97259-730-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (D) 		8-97259-731-2 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0502-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0502-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) INDONESIA EQUIPMENT(S4S) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) 		8-97262-956-3 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0211-0405 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> (G) 		8-94452-553-0 01 1 0211-0405 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0406-0409 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (G) 		8-94452-553-0 01 1 0406-0409 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (G) 		8-94452-553-0 01 1 0410-0501 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0502-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0607-0607 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 0607-0607 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (G) 		8-94452-553-0 01 1 0607-1206 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (G) 		8-94452-553-0 02 1 1207- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) 		8-97074-957-0 01 1 0502- ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
