Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#44042) — 463 parça

320 1 136 6 28 1 24 192 21 19 107 316 317 4 24 206 22 20 19 6 24 22 203 4 6 19 199 20 22 22 5 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

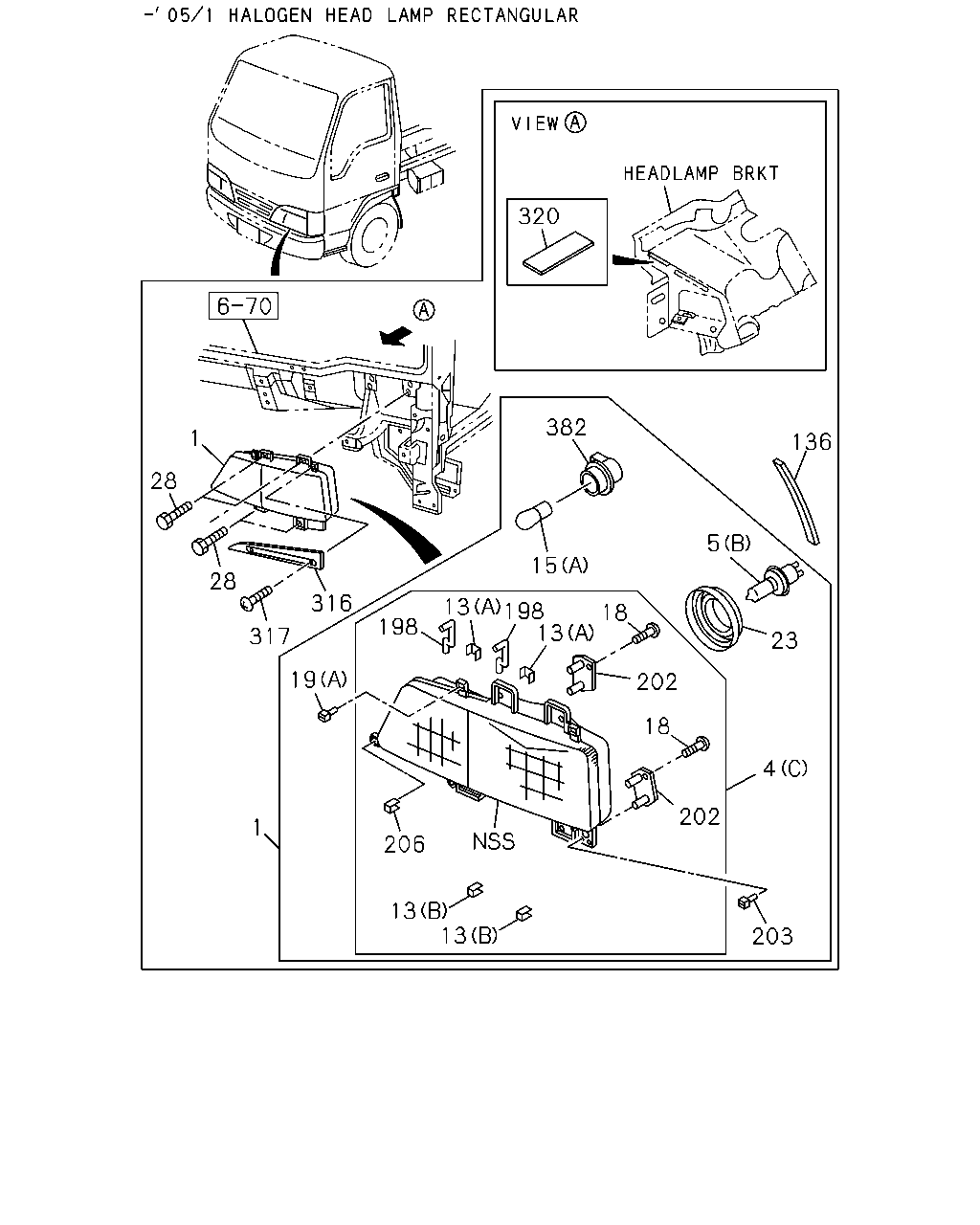

1	02.725 LAMP ASM; HEAD 12V 45/40W	8-97855-107-4	01	1	0211-0501	●	●
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 45/40W	8-97855-107-4	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD INDONESIA EQUIPMENT(S4S) 12V 45/40W	8-97855-107-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD 12V 45/40W	8-97855-106-4	01	1	0211-0501	●	●
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 45/40W	8-97855-106-4	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD INDONESIA EQUIPMENT(S4S) 12V 45/40W	8-97855-106-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD	8-97855-048-4	01	1	0211-0501				●	●	●
1	02.725 LAMP ASM; HEAD	8-97369-571-3	01	1	0502-0610				●	●	●
1	02.725 LAMP ASM; HEAD	8-98053-916-0	01	1	0611-				●	●	●
1	02.725 LAMP ASM; HEAD	8-97855-047-4	01	1	0211-0501				●	●	●
1	02.725 LAMP ASM; HEAD	8-97369-570-3	01	1	0502-0610				●	●	●
1	02.725 LAMP ASM; HEAD	8-98053-915-0	01	1	0611-				●	●	●

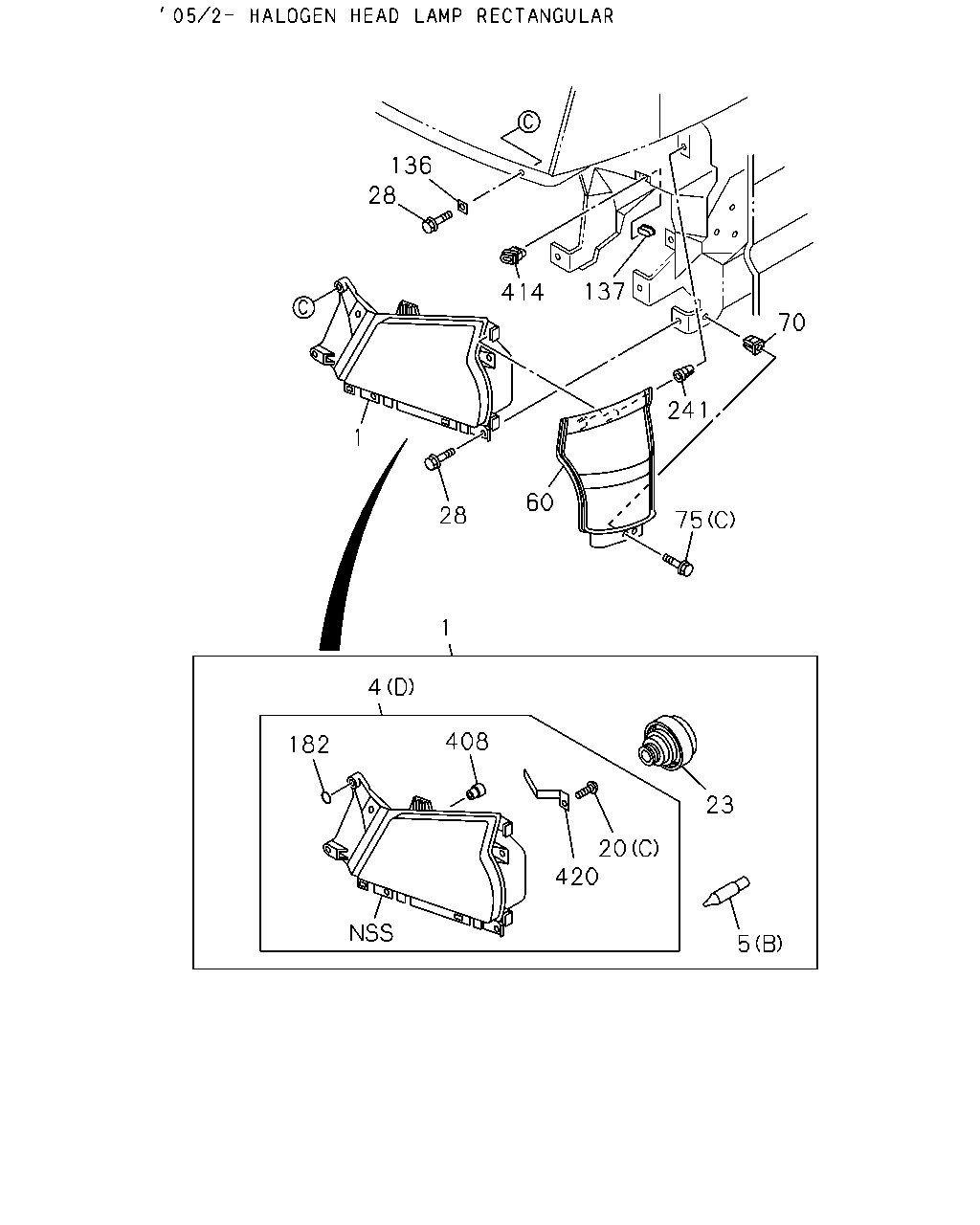

1	02.725 LAMP ASM; HEAD HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W	8-97207-126-2	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD EXC. INDONESIA EQUIPMENT(S4S) 12V 60/55W	8-97372-527-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD 12V 60/55W	8-97372-527-5	01	1	0502-		●	●
1	02.725 LAMP ASM; HEAD HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W	8-97207-125-2	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD EXC. INDONESIA EQUIPMENT(S4S) 12V 60/55W	8-97372-526-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD 12V 60/55W	8-97372-526-5	01	1	0502-		●	●
4	02.727 HEADLAMP UNIT (D)	8-98009-825-0	01	1	0502-				●	●	●
4	02.727 HEADLAMP UNIT (A) 12V 45/50W	8-94101-731-0	02	1	0211-0501	●	●
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 45/50W	8-94101-731-0	02	1	0211-0501			●
4	02.727 HEADLAMP UNIT INDONESIA EQUIPMENT(S4S) (A) 12V 45/50W	8-94101-731-0	02	1	0502-	●
4	02.727 HEADLAMP UNIT (B) 12V 45W	8-94101-739-0	02	1	0211-0501	●	●		●	●	●
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 45W	8-94101-739-0	02	1	0211-0501			●
4	02.727 HEADLAMP UNIT INDONESIA EQUIPMENT(S4S) (B) 12V 45W	8-94101-739-0	02	1	0502-	●
4	02.727 HEADLAMP UNIT (A) 12V 45/40W	8-94101-733-0	02	1	0211-0501				●	●	●
4	02.727 HEADLAMP UNIT (D)	8-98009-824-0	01	1	0502-				●	●	●
4	02.727 HEADLAMP UNIT HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97182-398-0	01	1	0211-0501			●
4	02.727 HEADLAMP UNIT EXC. INDONESIA EQUIPMENT(S4S) (D)	8-98009-821-0	01	1	0502-	●
4	02.727 HEADLAMP UNIT (D)	8-98009-821-0	01	1	0502-		●	●
4	02.727 HEADLAMP UNIT HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97182-397-0	01	1	0211-0501			●
4	02.727 HEADLAMP UNIT EXC. INDONESIA EQUIPMENT(S4S) (D)	8-98009-820-0	01	1	0502-	●
4	02.727 HEADLAMP UNIT (D)	8-98009-820-0	01	1	0502-		●	●
5	02.727 BULB; HEADLAMP 08.991 (A) 12V 45/50W	5-82193-001-0	04	1	0211-0501	●	●		●	●	●
5	02.727 BULB; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 08.991 (A) 12V 45/50W	5-82193-001-0	04	1	0211-0501			●
5	02.727 BULB; HEADLAMP INDONESIA EQUIPMENT(S4S) 08.991 (A) 12V 45/50W	5-82193-001-0	04	1	0502-	●
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W	8-97106-708-0	02	1	0211-0501			●
5	02.727 BULB; HEADLAMP EXC. INDONESIA EQUIPMENT(S4S) (B) 12V 60/55W	8-97106-708-0	02	1	0502-	●
5	02.727 BULB; HEADLAMP (B) 12V 60/55W	8-97106-708-0	02	1	0502-		●	●	●	●	●
6	02.728 RIM; HEADLAMP (C)	1-82114-016-0	02	1	0211-0501	●	●		●	●	●
6	02.728 RIM; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	1-82114-016-0	02	1	0211-0501			●
6	02.728 RIM; HEADLAMP INDONESIA EQUIPMENT(S4S) (C)	1-82114-016-0	02	1	0502-	●
6	02.728 RIM; HEADLAMP (B)	8-97855-211-0	02	1	0211-0501	●	●		●	●	●
6	02.728 RIM; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97855-211-0	02	1	0211-0501			●
6	02.728 RIM; HEADLAMP INDONESIA EQUIPMENT(S4S) (B)	8-97855-211-1	02	1	0502-	●
6	02.728 RIM; HEADLAMP (A)	8-97581-089-0	01	1	0211-0501	●	●		●	●	●
6	02.728 RIM; HEADLAMP EXC. SINGAPORE EQUIPMENT(S9Y), HALOGENHEAD LAMP RECTANGULAR<TR4> (A)	8-97581-089-0	01	1	0211-0501			●
6	02.728 RIM; HEADLAMP INDONESIA EQUIPMENT(S4S) (A)	8-97581-089-0	01	1	0502-	●
6	02.728 RIM; HEADLAMP (A)	8-97581-088-0	01	1	0211-0501	●	●		●	●	●
6	02.728 RIM; HEADLAMP EXC. SINGAPORE EQUIPMENT(S9Y), HALOGENHEAD LAMP RECTANGULAR<TR4> (A)	8-97581-088-0	01	1	0211-0501			●
6	02.728 RIM; HEADLAMP INDONESIA EQUIPMENT(S4S) (A)	8-97581-088-0	01	1	0502-	●
19	02.726 NUT; HEADLAMP (A)	8-97044-618-0	08	1	0211-0501	●	●		●	●	●
19	02.726 NUT; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97044-618-0	08	1	0211-0501			●
19	02.726 NUT; HEADLAMP INDONESIA EQUIPMENT(S4S) (A)	8-97044-618-0	08	1	0502-	●
19	02.726 NUT; HEADLAMP (B)	8-97044-623-0	08	1	0211-0501	●	●		●	●	●
19	02.726 NUT; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97044-623-0	08	1	0211-0501			●
19	02.726 NUT; HEADLAMP INDONESIA EQUIPMENT(S4S) (B)	8-97044-623-0	08	1	0502-	●
19	02.726 NUT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97044-618-0	04	1	0211-0501			●
20	02.736 SCREW; HEADLAMP EXC. INDONESIA EQUIPMENT(S4S) (C)	8-97378-871-0	02	1	0502-	●
20	02.736 SCREW; HEADLAMP (C)	8-97378-871-0	02	1	0502-		●	●	●	●	●
20	02.736 SCREW; HEADLAMP (A) M4X8	8-94165-886-0	08	1	0211-0501	●	●		●	●	●
20	02.736 SCREW; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) M4X8	8-94165-886-0	08	1	0211-0501			●
20	02.736 SCREW; HEADLAMP INDONESIA EQUIPMENT(S4S) (A) M4X8	8-94165-886-0	08	1	0502-	●
20	02.736 SCREW; HEADLAMP (B)	8-97228-675-0	08	1	0211-0501	●	●		●	●	●
20	02.736 SCREW; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97228-675-0	08	1	0211-0501			●
20	02.736 SCREW; HEADLAMP INDONESIA EQUIPMENT(S4S) (B)	8-97228-675-0	08	1	0502-	●
21	02.737 SPRING; ADJ HEADLAMP	1-82119-021-0	02	1	0211-0501	●	●		●	●	●
21	02.737 SPRING; ADJ HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>	1-82119-021-0	02	1	0211-0501			●
21	02.737 SPRING; ADJ HEADLAMP INDONESIA EQUIPMENT(S4S)	1-82119-021-0	02	1	0502-	●
22	02.726 SCREW; ADJ,HEADLAMP (A)	8-97855-205-0	04	1	0211-0501	●	●		●	●	●
22	02.726 SCREW; ADJ,HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97855-205-0	04	1	0211-0501			●
22	02.726 SCREW; ADJ,HEADLAMP INDONESIA EQUIPMENT(S4S) (A)	8-97855-205-0	04	1	0502-	●
22	02.726 SCREW; ADJ,HEADLAMP (B)	8-97855-206-0	02	1	0211-0501	●	●		●	●	●
22	02.726 SCREW; ADJ,HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97855-206-0	02	1	0211-0501			●
22	02.726 SCREW; ADJ,HEADLAMP INDONESIA EQUIPMENT(S4S) (B)	8-97855-206-0	02	1	0502-	●
22	02.726 SCREW; ADJ,HEADLAMP (C)	8-97855-207-0	02	1	0211-0501	●	●		●	●	●
22	02.726 SCREW; ADJ,HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97855-207-0	02	1	0211-0501			●
22	02.726 SCREW; ADJ,HEADLAMP INDONESIA EQUIPMENT(S4S) (C)	8-97855-207-0	02	1	0502-	●
24	02.737 MOUNTING; ADJ SCREW HD LAMP (B)	8-94387-097-0	06	1	0211-0501	●	●		●	●	●
24	02.737 MOUNTING; ADJ SCREW HD LAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-94387-097-0	06	1	0211-0501			●
24	02.737 MOUNTING; ADJ SCREW HD LAMP INDONESIA EQUIPMENT(S4S) (B)	8-94387-097-0	06	1	0502-	●
24	02.737 MOUNTING; ADJ SCREW HD LAMP (A)	8-97855-208-0	02	1	0211-0501	●	●		●	●	●
24	02.737 MOUNTING; ADJ SCREW HD LAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97855-208-0	02	1	0211-0501			●
24	02.737 MOUNTING; ADJ SCREW HD LAMP INDONESIA EQUIPMENT(S4S) (A)	8-97855-208-0	02	1	0502-	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0211-0607	●	●	●	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0608-1401	●	●	●	●	●	●
28	02.762 BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1402-	●	●	●	●	●	●
107	02.729 SCREW; RIM,HEADLAMP M4X20 TAPPING	8-97326-998-0	04	1	0211-0501	●	●		●	●	●
107	02.729 SCREW; RIM,HEADLAMP EXC. SINGAPORE EQUIPMENT(S9Y), HALOGENHEAD LAMP RECTANGULAR<TR4> M4X20 TAPPING	8-97326-998-0	04	1	0211-0501			●
107	02.729 SCREW; RIM,HEADLAMP INDONESIA EQUIPMENT(S4S) M4X20 TAPPING	8-97326-998-0	04	1	0502-	●
136	02.726 SEAL; HEADLAMP AIR INTAKE SYSTEM FRONT<6PC> 170X15	8-97853-541-0	01	1	0211-0501	●			●
136	02.726 SEAL; HEADLAMP 170X15	8-97853-541-0	01	1	0211-0501		●	●		●	●
136	02.726 SEAL; HEADLAMP EXC. INDONESIA EQUIPMENT(S4S) 03.602 25X25	8-94272-533-0	02	1	0502-	●
136	02.726 SEAL; HEADLAMP 03.602 25X25	8-94272-533-0	02	1	0502-		●	●	●	●	●
192	02.765 PIVOT; HEADLAMP 02.737	8-94381-595-0	02	1	0211-0501	●	●		●	●	●
192	02.765 PIVOT; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737	8-94381-595-0	02	1	0211-0501			●
192	02.765 PIVOT; HEADLAMP INDONESIA EQUIPMENT(S4S) 02.737	8-94381-595-0	02	1	0502-	●
199	02.737 BUSHING (A)	8-94381-605-0	04	1	0211-0501	●	●		●	●	●
199	02.737 BUSHING EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-94381-605-0	04	1	0211-0501			●
199	02.737 BUSHING INDONESIA EQUIPMENT(S4S) (A)	8-94381-605-0	04	1	0502-	●
199	02.737 BUSHING (B)	8-97855-212-0	02	1	0211-0501	●	●		●	●	●
199	02.737 BUSHING EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97855-212-0	02	1	0211-0501			●
199	02.737 BUSHING INDONESIA EQUIPMENT(S4S) (B)	8-97855-212-0	02	1	0502-	●
203	02.726 FASTENER; HEADLAMP	8-94382-231-0	04	1	0211-0501	●	●	●	●	●	●
203	02.726 FASTENER; HEADLAMP INDONESIA EQUIPMENT(S4S)	8-94382-231-0	04	1	0502-	●
206	02.727 HOLDER; HEADLAMP	8-97868-156-0	02	1	0211-0501	●	●	●	●	●	●
206	02.727 HOLDER; HEADLAMP INDONESIA EQUIPMENT(S4S)	8-97868-156-0	02	1	0502-	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE REAR VERTICAL<KJ3>	8-97867-863-0	01	1	0211-0303	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE REAR VERTICAL<KJ3> EXC. INDONESIA EQUIPMENT(S4S)	8-97867-863-0	01	1	0304-0501	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE REAR VERTICAL<KJ3> INDONESIA EQUIPMENT(S4S)	8-97859-500-0	01	1	0304-0305	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE REAR VERTICAL<KJ3> INDONESIA EQUIPMENT(S4S)	8-97582-966-0	01	1	0306-0501	●
316	02.726 ORNAMENT; HEAD LAMP INDONESIA EQUIPMENT(S4S)	8-97582-966-0	01	1	0502-	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE SYSTEM FRONT<6PC>	8-97867-862-0	01	1	0211-0306	●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-862-0	01	1	0211-0306		●	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE SYSTEM FRONT<6PC>	8-97582-907-0	01	1	0307-0501	●
316	02.726 ORNAMENT; HEAD LAMP	8-97582-907-0	01	1	0307-0501		●	●
316	02.726 ORNAMENT; HEAD LAMP INDONESIA EQUIPMENT(S4S)	8-97863-622-0	01	1	0304-0305	●
316	02.726 ORNAMENT; HEAD LAMP INDONESIA EQUIPMENT(S4S)	8-97582-965-0	01	1	0306-	●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-864-0	01	1	0211-0303	●	●	●
316	02.726 ORNAMENT; HEAD LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97867-864-0	01	1	0304-0501	●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-864-0	01	1	0304-0501		●	●
316	02.726 ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97580-592-0	01	1	0306-0406				●
316	02.726 ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97994-793-0	01	1	0407-0501				●
316	02.726 ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97580-591-0	01	1	0306-0501				●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-775-0	01	1	0211-0305				●	●	●
316	02.726 ORNAMENT; HEAD LAMP EXC. EXTERIOR ORNAMENTATION DELUXE<B57>	8-97867-775-0	01	1	0306-0501				●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-775-0	01	1	0306-0501					●	●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-774-0	01	1	0211-0305				●	●	●
316	02.726 ORNAMENT; HEAD LAMP EXC. EXTERIOR ORNAMENTATION DELUXE<B57>	8-97867-774-0	01	1	0306-0501				●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-774-0	01	1	0306-0501					●	●
317	02.726 SCREW; ORNAMENT 02.729 M4X20 TAPPING	8-97326-998-0	04	1	0211-0501	●	●	●	●	●	●
317	02.726 SCREW; ORNAMENT INDONESIA EQUIPMENT(S4S) 02.729 M4X20 TAPPING	8-97326-998-0	04	1	0502-	●
320	02.726 SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	0211-	●	●	●	●	●	●

32 32 49 57 248 36 15 53 54 55 58 57 52 42 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

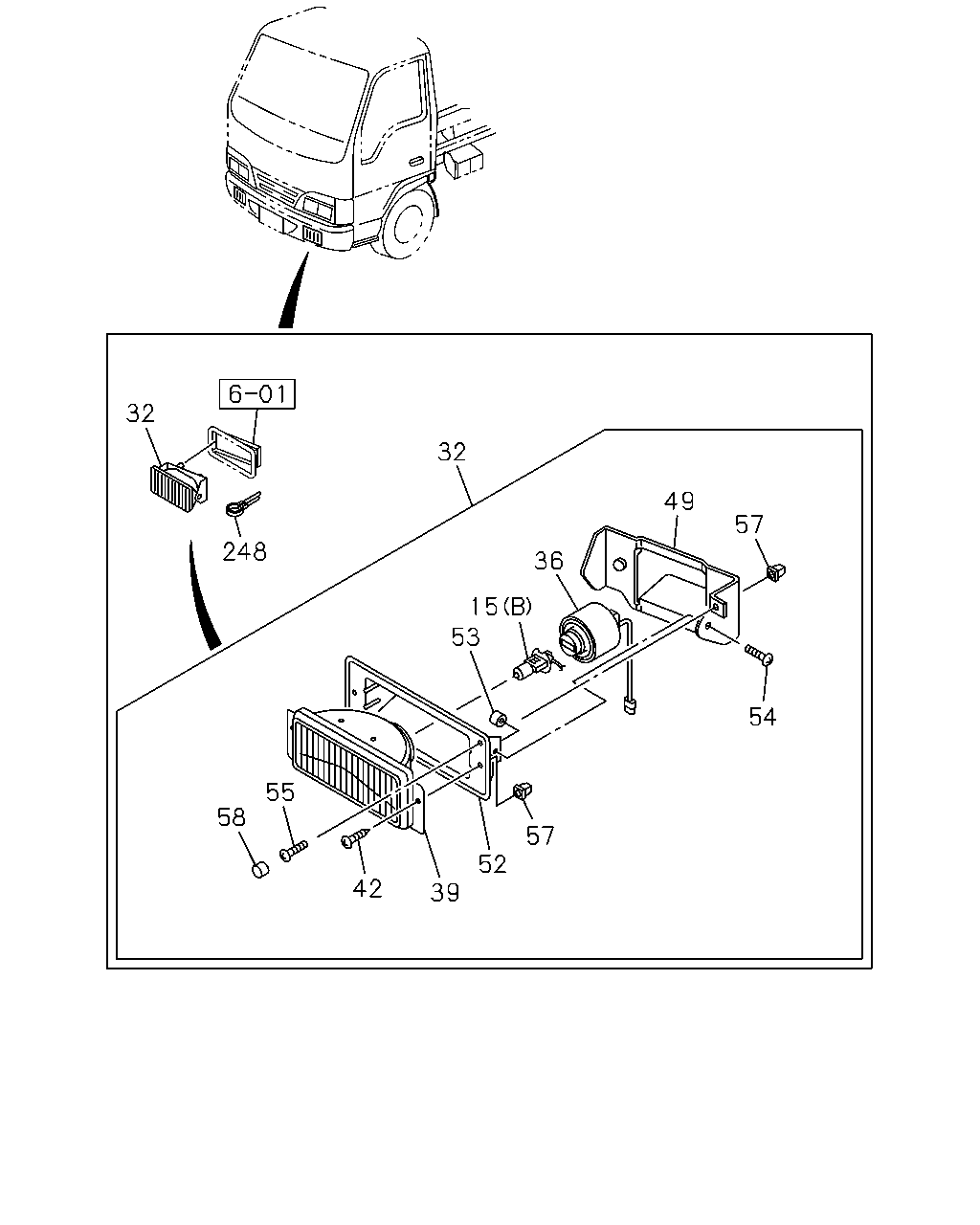

15	08.991 BULB; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) (B) 12V 55W	8-97093-859-0	02	1	0211-0504	●	●	●	●	●	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5> (B) 12V 55W	8-97093-859-0	02	1	0505-	●	●	●	●	●	●
15	08.991 BULB; FOG LAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 21W	8-97218-933-0	02	1	0211-0501			●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-97248-540-0	01	1	0211-0504	●	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-97248-540-0	01	1	0505-0612	●	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-98054-094-0	01	1	0701-	●	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-97248-539-0	01	1	0211-0504	●	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-97248-539-0	01	1	0505-0612	●	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-98054-093-0	01	1	0701-	●	●	●	●	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-97095-518-0	02	1	0211-0504	●	●	●	●	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-97095-518-0	02	1	0505-	●	●	●	●	●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-97119-300-0	01	1	0211-0504	●	●	●	●	●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-97119-300-0	01	1	0505-0612	●	●	●	●	●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-98063-679-0	01	1	0701-	●	●	●	●	●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-97104-060-0	01	1	0211-0504	●	●	●	●	●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-97104-060-0	01	1	0505-0612	●	●	●	●	●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-98063-678-0	01	1	0701-	●	●	●	●	●	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-97104-089-0	04	1	0211-0504	●	●	●	●	●	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-97104-089-0	04	1	0505-	●	●	●	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-97104-091-0	01	1	0211-0504	●	●	●	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-97104-091-0	01	1	0505-	●	●	●	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-97104-090-0	01	1	0211-0504	●	●	●	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-97104-090-0	01	1	0505-	●	●	●	●	●	●
52	02.726 RING; MTG,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-97104-062-0	02	1	0211-0504	●	●	●	●	●	●
52	02.726 RING; MTG,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-97104-062-0	02	1	0505-	●	●	●	●	●	●
53	02.726 NUT; MTG RING,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-94379-802-0	04	1	0211-0504	●	●	●	●	●	●
53	02.726 NUT; MTG RING,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-94379-802-0	04	1	0505-	●	●	●	●	●	●
54	02.726 BOLT; MTG RING,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) M5X12	8-94379-803-0	04	1	0211-0504	●	●	●	●	●	●
54	02.726 BOLT; MTG RING,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5> M5X12	8-94379-803-0	04	1	0505-	●	●	●	●	●	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-97104-087-0	02	1	0211-0504	●	●	●	●	●	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-97104-087-0	02	1	0505-	●	●	●	●	●	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-94379-806-0	06	1	0211-0504	●	●	●	●	●	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-94379-806-0	06	1	0505-	●	●	●	●	●	●
58	02.726 HOLDER; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S)	8-97104-088-0	02	1	0211-0504	●	●	●	●	●	●
58	02.726 HOLDER; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5>	8-97104-088-0	02	1	0505-	●	●	●	●	●	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 02.559 ID=20	5-09700-321-0	02	1	0211-0504	●	●	●	●	●	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5> 02.559 ID=20	5-09700-321-0	02	1	0505-	●	●	●	●	●	●

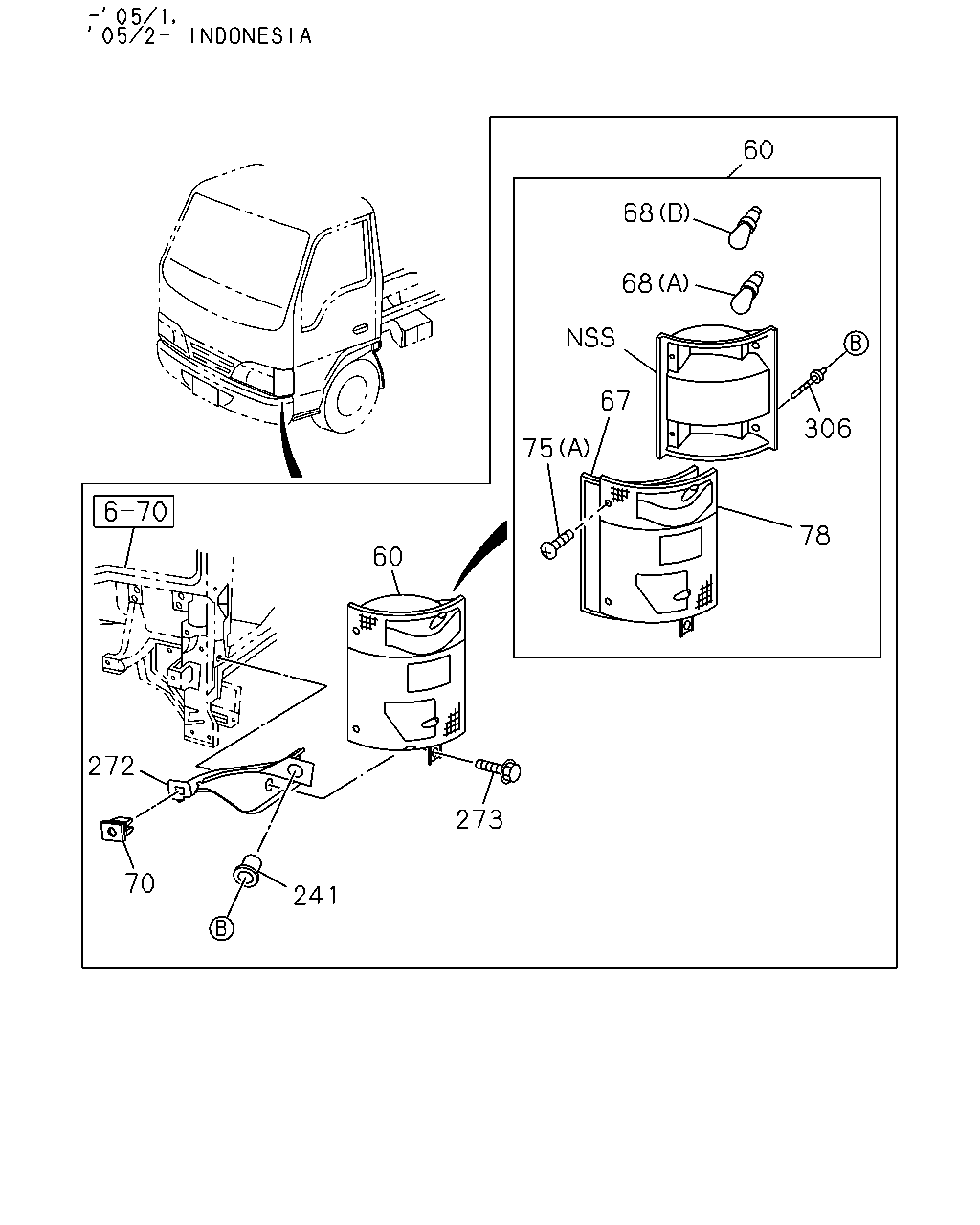

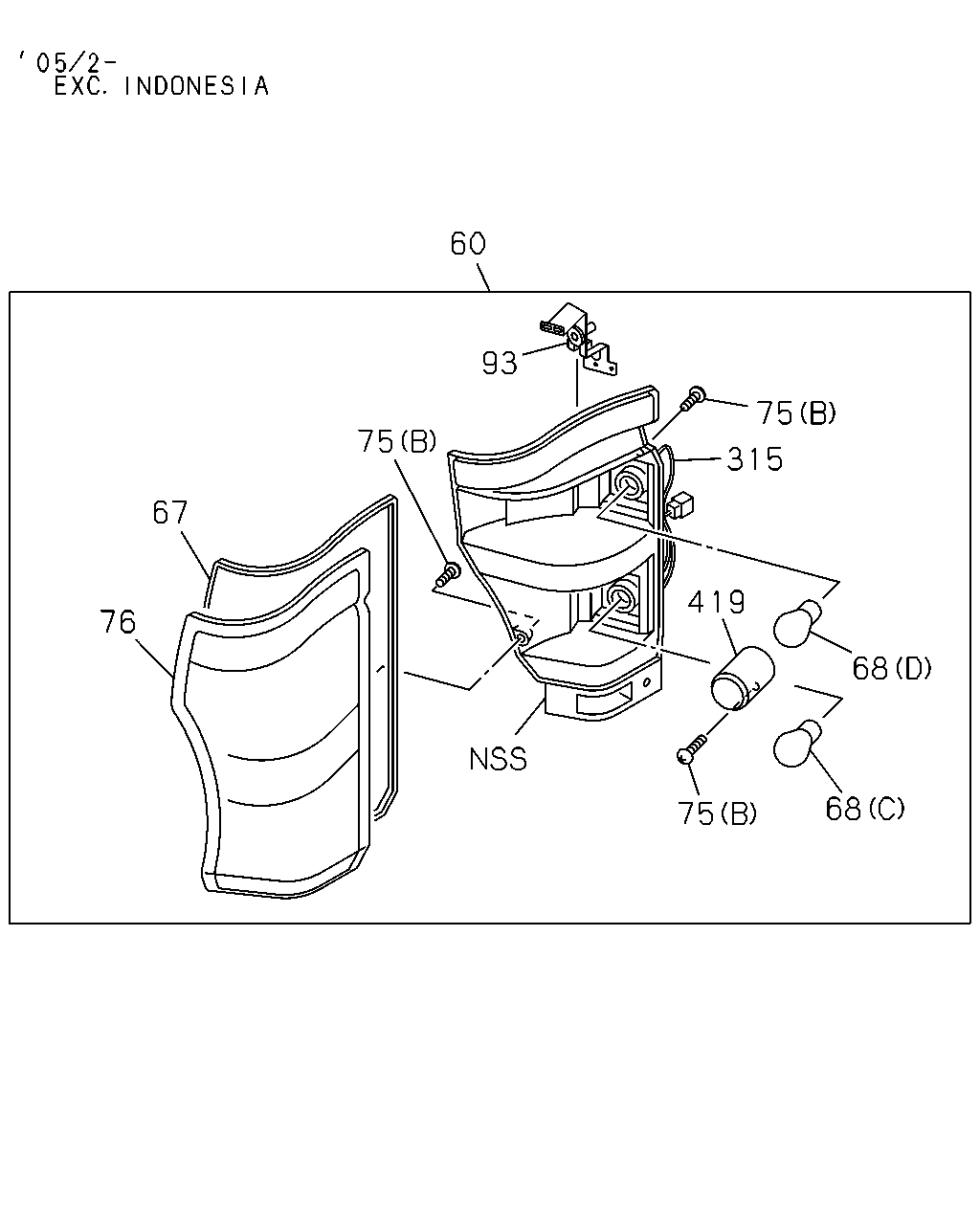

60 93 75 75 315 67 419 76 68 68 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-97376-908-1	01	1	0502-0502	●
60	02.585 LAMP ASM; FRT COMB	8-97376-908-1	01	1	0502-0502		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-98010-890-0	01	1	0503-	●
60	02.585 LAMP ASM; FRT COMB	8-98010-890-0	01	1	0503-		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-97376-907-1	01	1	0502-0502	●
60	02.585 LAMP ASM; FRT COMB	8-97376-907-1	01	1	0502-0502		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-98010-889-0	01	1	0503-	●
60	02.585 LAMP ASM; FRT COMB	8-98010-889-0	01	1	0503-		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-97855-006-2	01	1	0211-0501	●	●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-97855-006-2	01	1	0502-0701	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-98053-978-0	01	1	0702-	●
60	02.585 LAMP ASM; FRT COMB	8-97855-005-2	01	1	0211-0501	●	●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-97855-005-2	01	1	0502-0701	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-98053-977-0	01	1	0702-	●
67	02.590 GASKET; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-948-0	02	1	0502-	●
67	02.590 GASKET; FRT COMB LAMP	8-97378-948-0	02	1	0502-		●	●	●	●	●
67	02.590 GASKET; FRT COMB LAMP	8-97855-121-0	02	1	0211-0501	●	●	●	●	●	●
67	02.590 GASKET; FRT COMB LAMP INDONESIA EQUIPMENT(S4S)	8-97855-121-0	02	1	0502-	●
68	08.991 BULB; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) (C) 12V 21/5W	8-94125-959-0	02	1	0502-	●
68	08.991 BULB; FRT COMB LAMP (C) 12V 21/5W	8-94125-959-0	02	1	0502-		●	●	●	●	●
68	08.991 BULB; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) (D) 12V 21W	8-97304-590-0	02	1	0502-	●
68	08.991 BULB; FRT COMB LAMP (D) 12V 21W	8-97304-590-0	02	1	0502-		●	●	●	●	●
68	08.991 BULB; FRT COMB LAMP (B) 12V 21W	8-94124-074-0	02	1	0211-0501	●	●	●	●	●	●
68	08.991 BULB; FRT COMB LAMP INDONESIA EQUIPMENT(S4S) (B) 12V 21W	8-94124-074-0	02	1	0502-	●
68	08.991 BULB; FRT COMB LAMP (A) 12V 27/8W	8-97094-889-0	02	1	0211-0501	●	●	●	●	●	●
68	08.991 BULB; FRT COMB LAMP INDONESIA EQUIPMENT(S4S) (A) 12V 27/8W	8-97094-889-0	02	1	0502-	●
75	02.587 SCREW; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) (C) M6X16 TAPPING	8-97374-995-0	02	1	0502-	●
75	02.587 SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0502-		●	●	●	●	●
75	02.587 SCREW; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) (B) M4X12	8-97378-944-0	14	1	0502-	●
75	02.587 SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0502-		●	●	●	●	●
75	02.587 SCREW; FRT COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0211-0501	●	●	●	●	●	●
75	02.587 SCREW; FRT COMB LAMP INDONESIA EQUIPMENT(S4S) 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0502-	●
76	02.589 LENS; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-966-0	01	1	0502-	●
76	02.589 LENS; FRT COMB LAMP	8-97378-966-0	01	1	0502-		●	●	●	●	●
76	02.589 LENS; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-965-0	01	1	0502-	●
76	02.589 LENS; FRT COMB LAMP	8-97378-965-0	01	1	0502-		●	●	●	●	●
93	02.892 BRACKET; SIDE COMB LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-945-0	01	1	0502-	●
93	02.892 BRACKET; SIDE COMB LAMP	8-97378-945-0	01	1	0502-		●	●	●	●	●
93	02.892 BRACKET; SIDE COMB LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-943-0	01	1	0502-	●
93	02.892 BRACKET; SIDE COMB LAMP	8-97378-943-0	01	1	0502-		●	●	●	●	●
315	02.596 HARNESS; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-969-0	02	1	0502-0502	●
315	02.596 HARNESS; FRT COMB LAMP	8-97378-969-0	02	1	0502-0502		●	●	●	●	●
315	02.596 HARNESS; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-98010-916-0	02	1	0503-	●
315	02.596 HARNESS; FRT COMB LAMP	8-98010-916-0	02	1	0503-		●	●	●	●	●
419	02.589 LENS; INNER,FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-947-0	01	1	0502-	●
419	02.589 LENS; INNER,FRT COMB LAMP	8-97378-947-0	01	1	0502-		●	●	●	●	●
419	02.589 LENS; INNER,FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-946-0	01	1	0502-	●
419	02.589 LENS; INNER,FRT COMB LAMP	8-97378-946-0	01	1	0502-		●	●	●	●	●

136 28 137 414 70 241 1 60 28 75 1 4 408 182 23 20 420 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.725 LAMP ASM; HEAD 12V 45/40W	8-97855-107-4	01	1	0211-0501	●	●
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 45/40W	8-97855-107-4	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD INDONESIA EQUIPMENT(S4S) 12V 45/40W	8-97855-107-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD 12V 45/40W	8-97855-106-4	01	1	0211-0501	●	●
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 45/40W	8-97855-106-4	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD INDONESIA EQUIPMENT(S4S) 12V 45/40W	8-97855-106-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD	8-97855-048-4	01	1	0211-0501				●	●	●
1	02.725 LAMP ASM; HEAD	8-97369-571-3	01	1	0502-0610				●	●	●
1	02.725 LAMP ASM; HEAD	8-98053-916-0	01	1	0611-				●	●	●
1	02.725 LAMP ASM; HEAD	8-97855-047-4	01	1	0211-0501				●	●	●
1	02.725 LAMP ASM; HEAD	8-97369-570-3	01	1	0502-0610				●	●	●
1	02.725 LAMP ASM; HEAD	8-98053-915-0	01	1	0611-				●	●	●
1	02.725 LAMP ASM; HEAD HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W	8-97207-126-2	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD EXC. INDONESIA EQUIPMENT(S4S) 12V 60/55W	8-97372-527-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD 12V 60/55W	8-97372-527-5	01	1	0502-		●	●
1	02.725 LAMP ASM; HEAD HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W	8-97207-125-2	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD EXC. INDONESIA EQUIPMENT(S4S) 12V 60/55W	8-97372-526-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD 12V 60/55W	8-97372-526-5	01	1	0502-		●	●
4	02.727 HEADLAMP UNIT (D)	8-98009-825-0	01	1	0502-				●	●	●
4	02.727 HEADLAMP UNIT (A) 12V 45/50W	8-94101-731-0	02	1	0211-0501	●	●
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 45/50W	8-94101-731-0	02	1	0211-0501			●
4	02.727 HEADLAMP UNIT INDONESIA EQUIPMENT(S4S) (A) 12V 45/50W	8-94101-731-0	02	1	0502-	●
4	02.727 HEADLAMP UNIT (B) 12V 45W	8-94101-739-0	02	1	0211-0501	●	●		●	●	●
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 45W	8-94101-739-0	02	1	0211-0501			●
4	02.727 HEADLAMP UNIT INDONESIA EQUIPMENT(S4S) (B) 12V 45W	8-94101-739-0	02	1	0502-	●
4	02.727 HEADLAMP UNIT (A) 12V 45/40W	8-94101-733-0	02	1	0211-0501				●	●	●
4	02.727 HEADLAMP UNIT (D)	8-98009-824-0	01	1	0502-				●	●	●
4	02.727 HEADLAMP UNIT HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97182-398-0	01	1	0211-0501			●
4	02.727 HEADLAMP UNIT EXC. INDONESIA EQUIPMENT(S4S) (D)	8-98009-821-0	01	1	0502-	●
4	02.727 HEADLAMP UNIT (D)	8-98009-821-0	01	1	0502-		●	●
4	02.727 HEADLAMP UNIT HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97182-397-0	01	1	0211-0501			●
4	02.727 HEADLAMP UNIT EXC. INDONESIA EQUIPMENT(S4S) (D)	8-98009-820-0	01	1	0502-	●
4	02.727 HEADLAMP UNIT (D)	8-98009-820-0	01	1	0502-		●	●
5	02.727 BULB; HEADLAMP 08.991 (A) 12V 45/50W	5-82193-001-0	04	1	0211-0501	●	●		●	●	●
5	02.727 BULB; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 08.991 (A) 12V 45/50W	5-82193-001-0	04	1	0211-0501			●
5	02.727 BULB; HEADLAMP INDONESIA EQUIPMENT(S4S) 08.991 (A) 12V 45/50W	5-82193-001-0	04	1	0502-	●
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W	8-97106-708-0	02	1	0211-0501			●
5	02.727 BULB; HEADLAMP EXC. INDONESIA EQUIPMENT(S4S) (B) 12V 60/55W	8-97106-708-0	02	1	0502-	●
5	02.727 BULB; HEADLAMP (B) 12V 60/55W	8-97106-708-0	02	1	0502-		●	●	●	●	●
20	02.736 SCREW; HEADLAMP EXC. INDONESIA EQUIPMENT(S4S) (C)	8-97378-871-0	02	1	0502-	●
20	02.736 SCREW; HEADLAMP (C)	8-97378-871-0	02	1	0502-		●	●	●	●	●
20	02.736 SCREW; HEADLAMP (A) M4X8	8-94165-886-0	08	1	0211-0501	●	●		●	●	●
20	02.736 SCREW; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) M4X8	8-94165-886-0	08	1	0211-0501			●
20	02.736 SCREW; HEADLAMP INDONESIA EQUIPMENT(S4S) (A) M4X8	8-94165-886-0	08	1	0502-	●
20	02.736 SCREW; HEADLAMP (B)	8-97228-675-0	08	1	0211-0501	●	●		●	●	●
20	02.736 SCREW; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97228-675-0	08	1	0211-0501			●
20	02.736 SCREW; HEADLAMP INDONESIA EQUIPMENT(S4S) (B)	8-97228-675-0	08	1	0502-	●
23	02.727 COVER; BULB,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97855-080-0	02	1	0211-0501			●
23	02.727 COVER; BULB,HEADLAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97232-491-0	02	1	0502-	●
23	02.727 COVER; BULB,HEADLAMP	8-97232-491-0	02	1	0502-		●	●	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0211-0607	●	●	●	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0608-1401	●	●	●	●	●	●
28	02.762 BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1402-	●	●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-97376-908-1	01	1	0502-0502	●
60	02.585 LAMP ASM; FRT COMB	8-97376-908-1	01	1	0502-0502		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-98010-890-0	01	1	0503-	●
60	02.585 LAMP ASM; FRT COMB	8-98010-890-0	01	1	0503-		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-97376-907-1	01	1	0502-0502	●
60	02.585 LAMP ASM; FRT COMB	8-97376-907-1	01	1	0502-0502		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-98010-889-0	01	1	0503-	●
60	02.585 LAMP ASM; FRT COMB	8-98010-889-0	01	1	0503-		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-97855-006-2	01	1	0211-0501	●	●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-97855-006-2	01	1	0502-0701	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-98053-978-0	01	1	0702-	●
60	02.585 LAMP ASM; FRT COMB	8-97855-005-2	01	1	0211-0501	●	●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-97855-005-2	01	1	0502-0701	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-98053-977-0	01	1	0702-	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) 16.445	1-09983-081-0	02	1	0502-	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP 16.445	1-09983-081-0	02	1	0502-		●	●	●	●	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP	8-97030-792-0	04	1	0211-0501	●	●	●	●	●	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP INDONESIA EQUIPMENT(S4S)	8-97030-792-0	04	1	0502-	●
75	02.587 SCREW; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) (C) M6X16 TAPPING	8-97374-995-0	02	1	0502-	●
75	02.587 SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0502-		●	●	●	●	●
75	02.587 SCREW; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) (B) M4X12	8-97378-944-0	14	1	0502-	●
75	02.587 SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0502-		●	●	●	●	●
75	02.587 SCREW; FRT COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0211-0501	●	●	●	●	●	●
75	02.587 SCREW; FRT COMB LAMP INDONESIA EQUIPMENT(S4S) 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0502-	●
136	02.726 SEAL; HEADLAMP AIR INTAKE SYSTEM FRONT<6PC> 170X15	8-97853-541-0	01	1	0211-0501	●			●
136	02.726 SEAL; HEADLAMP 170X15	8-97853-541-0	01	1	0211-0501		●	●		●	●
136	02.726 SEAL; HEADLAMP EXC. INDONESIA EQUIPMENT(S4S) 03.602 25X25	8-94272-533-0	02	1	0502-	●
136	02.726 SEAL; HEADLAMP 03.602 25X25	8-94272-533-0	02	1	0502-		●	●	●	●	●
137	02.726 GROMMET; HEADLAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97581-666-0	02	1	0502-	●
137	02.726 GROMMET; HEADLAMP	8-97581-666-0	02	1	0502-		●	●	●	●	●
182	02.722 GASKET; HEADLAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-869-0	02	1	0502-	●
182	02.722 GASKET; HEADLAMP	8-97378-869-0	02	1	0502-		●	●	●	●	●
241	02.726 GROMMET; FRT LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97380-030-0	02	1	0502-	●
241	02.726 GROMMET; FRT LAMP	8-97380-030-0	02	1	0502-		●	●	●	●	●
241	02.726 GROMMET; FRT LAMP	8-94452-095-0	04	1	0211-0501	●	●	●	●	●	●
241	02.726 GROMMET; FRT LAMP INDONESIA EQUIPMENT(S4S)	8-94452-095-0	04	1	0502-	●
408	02.727 CAP; BREATHER,HEADLAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-874-0	02	1	0502-	●
408	02.727 CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	0502-		●	●	●	●	●
414	02.736 PIN; HEADLAMP,RIM EXC. INDONESIA EQUIPMENT(S4S)	8-97581-667-0	02	1	0502-	●
414	02.736 PIN; HEADLAMP,RIM	8-97581-667-0	02	1	0502-		●	●	●	●	●
420	02.737 SPRING; BULB,HEADLAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-875-0	02	1	0502-	●
420	02.737 SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	0502-		●	●	●	●	●

320 382 1 136 28 5 15 28 316 13 198 13 18 198 317 23 19 202 18 4 202 1 206 13 13 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.725 LAMP ASM; HEAD 12V 45/40W	8-97855-107-4	01	1	0211-0501	●	●
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 45/40W	8-97855-107-4	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD INDONESIA EQUIPMENT(S4S) 12V 45/40W	8-97855-107-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD 12V 45/40W	8-97855-106-4	01	1	0211-0501	●	●
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 45/40W	8-97855-106-4	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD INDONESIA EQUIPMENT(S4S) 12V 45/40W	8-97855-106-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD	8-97855-048-4	01	1	0211-0501				●	●	●
1	02.725 LAMP ASM; HEAD	8-97369-571-3	01	1	0502-0610				●	●	●
1	02.725 LAMP ASM; HEAD	8-98053-916-0	01	1	0611-				●	●	●
1	02.725 LAMP ASM; HEAD	8-97855-047-4	01	1	0211-0501				●	●	●
1	02.725 LAMP ASM; HEAD	8-97369-570-3	01	1	0502-0610				●	●	●
1	02.725 LAMP ASM; HEAD	8-98053-915-0	01	1	0611-				●	●	●
1	02.725 LAMP ASM; HEAD HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W	8-97207-126-2	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD EXC. INDONESIA EQUIPMENT(S4S) 12V 60/55W	8-97372-527-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD 12V 60/55W	8-97372-527-5	01	1	0502-		●	●
1	02.725 LAMP ASM; HEAD HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W	8-97207-125-2	01	1	0211-0501			●
1	02.725 LAMP ASM; HEAD EXC. INDONESIA EQUIPMENT(S4S) 12V 60/55W	8-97372-526-5	01	1	0502-	●
1	02.725 LAMP ASM; HEAD 12V 60/55W	8-97372-526-5	01	1	0502-		●	●
4	02.727 HEADLAMP UNIT (D)	8-98009-825-0	01	1	0502-				●	●	●
4	02.727 HEADLAMP UNIT (A) 12V 45/50W	8-94101-731-0	02	1	0211-0501	●	●
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 45/50W	8-94101-731-0	02	1	0211-0501			●
4	02.727 HEADLAMP UNIT INDONESIA EQUIPMENT(S4S) (A) 12V 45/50W	8-94101-731-0	02	1	0502-	●
4	02.727 HEADLAMP UNIT (B) 12V 45W	8-94101-739-0	02	1	0211-0501	●	●		●	●	●
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 45W	8-94101-739-0	02	1	0211-0501			●
4	02.727 HEADLAMP UNIT INDONESIA EQUIPMENT(S4S) (B) 12V 45W	8-94101-739-0	02	1	0502-	●
4	02.727 HEADLAMP UNIT (A) 12V 45/40W	8-94101-733-0	02	1	0211-0501				●	●	●
4	02.727 HEADLAMP UNIT (D)	8-98009-824-0	01	1	0502-				●	●	●
4	02.727 HEADLAMP UNIT HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97182-398-0	01	1	0211-0501			●
4	02.727 HEADLAMP UNIT EXC. INDONESIA EQUIPMENT(S4S) (D)	8-98009-821-0	01	1	0502-	●
4	02.727 HEADLAMP UNIT (D)	8-98009-821-0	01	1	0502-		●	●
4	02.727 HEADLAMP UNIT HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97182-397-0	01	1	0211-0501			●
4	02.727 HEADLAMP UNIT EXC. INDONESIA EQUIPMENT(S4S) (D)	8-98009-820-0	01	1	0502-	●
4	02.727 HEADLAMP UNIT (D)	8-98009-820-0	01	1	0502-		●	●
5	02.727 BULB; HEADLAMP 08.991 (A) 12V 45/50W	5-82193-001-0	04	1	0211-0501	●	●		●	●	●
5	02.727 BULB; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 08.991 (A) 12V 45/50W	5-82193-001-0	04	1	0211-0501			●
5	02.727 BULB; HEADLAMP INDONESIA EQUIPMENT(S4S) 08.991 (A) 12V 45/50W	5-82193-001-0	04	1	0502-	●
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W	8-97106-708-0	02	1	0211-0501			●
5	02.727 BULB; HEADLAMP EXC. INDONESIA EQUIPMENT(S4S) (B) 12V 60/55W	8-97106-708-0	02	1	0502-	●
5	02.727 BULB; HEADLAMP (B) 12V 60/55W	8-97106-708-0	02	1	0502-		●	●	●	●	●
13	02.736 CLIP; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (A)	1-82119-084-0	04	1	0211-0403			●
13	02.736 CLIP; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (A)	1-82119-084-0	02	1	0404-0501			●
13	02.736 CLIP; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (B)	8-94381-588-0	12	1	0211-0501			●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) (B) 12V 55W	8-97093-859-0	02	1	0211-0504	●	●	●	●	●	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),FRONT BUMPER PAINTED<VB5> (B) 12V 55W	8-97093-859-0	02	1	0505-	●	●	●	●	●	●
15	08.991 BULB; FOG LAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 21W	8-97218-933-0	02	1	0211-0501			●
18	02.726 SCREW; GEAR CASE HALOGEN HEAD LAMP RECTANGULAR<TR4>	1-82119-086-1	16	1	0211-0501			●
19	02.726 NUT; HEADLAMP (A)	8-97044-618-0	08	1	0211-0501	●	●		●	●	●
19	02.726 NUT; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97044-618-0	08	1	0211-0501			●
19	02.726 NUT; HEADLAMP INDONESIA EQUIPMENT(S4S) (A)	8-97044-618-0	08	1	0502-	●
19	02.726 NUT; HEADLAMP (B)	8-97044-623-0	08	1	0211-0501	●	●		●	●	●
19	02.726 NUT; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97044-623-0	08	1	0211-0501			●
19	02.726 NUT; HEADLAMP INDONESIA EQUIPMENT(S4S) (B)	8-97044-623-0	08	1	0502-	●
19	02.726 NUT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97044-618-0	04	1	0211-0501			●
23	02.727 COVER; BULB,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97855-080-0	02	1	0211-0501			●
23	02.727 COVER; BULB,HEADLAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97232-491-0	02	1	0502-	●
23	02.727 COVER; BULB,HEADLAMP	8-97232-491-0	02	1	0502-		●	●	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0211-0607	●	●	●	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0608-1401	●	●	●	●	●	●
28	02.762 BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1402-	●	●	●	●	●	●
136	02.726 SEAL; HEADLAMP AIR INTAKE SYSTEM FRONT<6PC> 170X15	8-97853-541-0	01	1	0211-0501	●			●
136	02.726 SEAL; HEADLAMP 170X15	8-97853-541-0	01	1	0211-0501		●	●		●	●
136	02.726 SEAL; HEADLAMP EXC. INDONESIA EQUIPMENT(S4S) 03.602 25X25	8-94272-533-0	02	1	0502-	●
136	02.726 SEAL; HEADLAMP 03.602 25X25	8-94272-533-0	02	1	0502-		●	●	●	●	●
198	02.722 TUBE; COVER,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97253-897-0	01	1	0211-0501			●
198	02.722 TUBE; COVER,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97253-896-0	01	1	0211-0501			●
202	02.726 GEAR UNIT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-94345-040-0	04	1	0211-0501			●
203	02.726 FASTENER; HEADLAMP	8-94382-231-0	04	1	0211-0501	●	●	●	●	●	●
203	02.726 FASTENER; HEADLAMP INDONESIA EQUIPMENT(S4S)	8-94382-231-0	04	1	0502-	●
206	02.727 HOLDER; HEADLAMP	8-97868-156-0	02	1	0211-0501	●	●	●	●	●	●
206	02.727 HOLDER; HEADLAMP INDONESIA EQUIPMENT(S4S)	8-97868-156-0	02	1	0502-	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE REAR VERTICAL<KJ3>	8-97867-863-0	01	1	0211-0303	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE REAR VERTICAL<KJ3> EXC. INDONESIA EQUIPMENT(S4S)	8-97867-863-0	01	1	0304-0501	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE REAR VERTICAL<KJ3> INDONESIA EQUIPMENT(S4S)	8-97859-500-0	01	1	0304-0305	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE REAR VERTICAL<KJ3> INDONESIA EQUIPMENT(S4S)	8-97582-966-0	01	1	0306-0501	●
316	02.726 ORNAMENT; HEAD LAMP INDONESIA EQUIPMENT(S4S)	8-97582-966-0	01	1	0502-	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE SYSTEM FRONT<6PC>	8-97867-862-0	01	1	0211-0306	●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-862-0	01	1	0211-0306		●	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE SYSTEM FRONT<6PC>	8-97582-907-0	01	1	0307-0501	●
316	02.726 ORNAMENT; HEAD LAMP	8-97582-907-0	01	1	0307-0501		●	●
316	02.726 ORNAMENT; HEAD LAMP INDONESIA EQUIPMENT(S4S)	8-97863-622-0	01	1	0304-0305	●
316	02.726 ORNAMENT; HEAD LAMP INDONESIA EQUIPMENT(S4S)	8-97582-965-0	01	1	0306-	●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-864-0	01	1	0211-0303	●	●	●
316	02.726 ORNAMENT; HEAD LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97867-864-0	01	1	0304-0501	●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-864-0	01	1	0304-0501		●	●
316	02.726 ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97580-592-0	01	1	0306-0406				●
316	02.726 ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97994-793-0	01	1	0407-0501				●
316	02.726 ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97580-591-0	01	1	0306-0501				●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-775-0	01	1	0211-0305				●	●	●
316	02.726 ORNAMENT; HEAD LAMP EXC. EXTERIOR ORNAMENTATION DELUXE<B57>	8-97867-775-0	01	1	0306-0501				●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-775-0	01	1	0306-0501					●	●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-774-0	01	1	0211-0305				●	●	●
316	02.726 ORNAMENT; HEAD LAMP EXC. EXTERIOR ORNAMENTATION DELUXE<B57>	8-97867-774-0	01	1	0306-0501				●
316	02.726 ORNAMENT; HEAD LAMP	8-97867-774-0	01	1	0306-0501					●	●
317	02.726 SCREW; ORNAMENT 02.729 M4X20 TAPPING	8-97326-998-0	04	1	0211-0501	●	●	●	●	●	●
317	02.726 SCREW; ORNAMENT INDONESIA EQUIPMENT(S4S) 02.729 M4X20 TAPPING	8-97326-998-0	04	1	0502-	●
320	02.726 SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	0211-	●	●	●	●	●	●
382	02.575 PLUG; SOCKET,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97172-959-0	02	1	0211-0501			●

60 68 68 67 306 75 78 60 272 273 70 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-97376-908-1	01	1	0502-0502	●
60	02.585 LAMP ASM; FRT COMB	8-97376-908-1	01	1	0502-0502		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-98010-890-0	01	1	0503-	●
60	02.585 LAMP ASM; FRT COMB	8-98010-890-0	01	1	0503-		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-97376-907-1	01	1	0502-0502	●
60	02.585 LAMP ASM; FRT COMB	8-97376-907-1	01	1	0502-0502		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB EXC. INDONESIA EQUIPMENT(S4S)	8-98010-889-0	01	1	0503-	●
60	02.585 LAMP ASM; FRT COMB	8-98010-889-0	01	1	0503-		●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-97855-006-2	01	1	0211-0501	●	●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-97855-006-2	01	1	0502-0701	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-98053-978-0	01	1	0702-	●
60	02.585 LAMP ASM; FRT COMB	8-97855-005-2	01	1	0211-0501	●	●	●	●	●	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-97855-005-2	01	1	0502-0701	●
60	02.585 LAMP ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-98053-977-0	01	1	0702-	●
67	02.590 GASKET; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97378-948-0	02	1	0502-	●
67	02.590 GASKET; FRT COMB LAMP	8-97378-948-0	02	1	0502-		●	●	●	●	●
67	02.590 GASKET; FRT COMB LAMP	8-97855-121-0	02	1	0211-0501	●	●	●	●	●	●
67	02.590 GASKET; FRT COMB LAMP INDONESIA EQUIPMENT(S4S)	8-97855-121-0	02	1	0502-	●
68	08.991 BULB; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) (C) 12V 21/5W	8-94125-959-0	02	1	0502-	●
68	08.991 BULB; FRT COMB LAMP (C) 12V 21/5W	8-94125-959-0	02	1	0502-		●	●	●	●	●
68	08.991 BULB; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) (D) 12V 21W	8-97304-590-0	02	1	0502-	●
68	08.991 BULB; FRT COMB LAMP (D) 12V 21W	8-97304-590-0	02	1	0502-		●	●	●	●	●
68	08.991 BULB; FRT COMB LAMP (B) 12V 21W	8-94124-074-0	02	1	0211-0501	●	●	●	●	●	●
68	08.991 BULB; FRT COMB LAMP INDONESIA EQUIPMENT(S4S) (B) 12V 21W	8-94124-074-0	02	1	0502-	●
68	08.991 BULB; FRT COMB LAMP (A) 12V 27/8W	8-97094-889-0	02	1	0211-0501	●	●	●	●	●	●
68	08.991 BULB; FRT COMB LAMP INDONESIA EQUIPMENT(S4S) (A) 12V 27/8W	8-97094-889-0	02	1	0502-	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) 16.445	1-09983-081-0	02	1	0502-	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP 16.445	1-09983-081-0	02	1	0502-		●	●	●	●	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP	8-97030-792-0	04	1	0211-0501	●	●	●	●	●	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP INDONESIA EQUIPMENT(S4S)	8-97030-792-0	04	1	0502-	●
75	02.587 SCREW; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) (C) M6X16 TAPPING	8-97374-995-0	02	1	0502-	●
75	02.587 SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0502-		●	●	●	●	●
75	02.587 SCREW; FRT COMB LAMP EXC. INDONESIA EQUIPMENT(S4S) (B) M4X12	8-97378-944-0	14	1	0502-	●
75	02.587 SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0502-		●	●	●	●	●
75	02.587 SCREW; FRT COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0211-0501	●	●	●	●	●	●
75	02.587 SCREW; FRT COMB LAMP INDONESIA EQUIPMENT(S4S) 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0502-	●
78	02.589 LENS ASM; FRT COMB	8-97855-131-0	01	1	0211-0501	●	●	●	●	●	●
78	02.589 LENS ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-97855-131-0	01	1	0502-	●
78	02.589 LENS ASM; FRT COMB	8-97855-128-0	01	1	0211-0501	●	●	●	●	●	●
78	02.589 LENS ASM; FRT COMB INDONESIA EQUIPMENT(S4S)	8-97855-128-0	01	1	0502-	●
241	02.726 GROMMET; FRT LAMP EXC. INDONESIA EQUIPMENT(S4S)	8-97380-030-0	02	1	0502-	●
241	02.726 GROMMET; FRT LAMP	8-97380-030-0	02	1	0502-		●	●	●	●	●
241	02.726 GROMMET; FRT LAMP	8-94452-095-0	04	1	0211-0501	●	●	●	●	●	●
241	02.726 GROMMET; FRT LAMP INDONESIA EQUIPMENT(S4S)	8-94452-095-0	04	1	0502-	●
272	02.726 BRACKET; FRT COMB LAMP	8-97853-237-2	01	1	0211-0501	●	●	●	●	●	●
272	02.726 BRACKET; FRT COMB LAMP INDONESIA EQUIPMENT(S4S)	8-97853-237-2	01	1	0502-	●
272	02.726 BRACKET; FRT COMB LAMP	8-97853-236-2	01	1	0211-0501	●	●	●	●	●	●
272	02.726 BRACKET; FRT COMB LAMP INDONESIA EQUIPMENT(S4S)	8-97853-236-2	01	1	0502-	●
273	02.726 BOLT; BRKT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-0501	●	●	●	●	●	●
273	02.726 BOLT; BRKT INDONESIA EQUIPMENT(S4S) 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0502-1210	●
273	02.726 BOLT; BRKT INDONESIA EQUIPMENT(S4S) 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●
306	02.587 PIVOT; FRT COMB LAMP	8-97219-053-0	04	1	0211-0501	●	●	●	●	●	●
306	02.587 PIVOT; FRT COMB LAMP INDONESIA EQUIPMENT(S4S)	8-97219-053-0	04	1	0502-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
