◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#44041) — 81 parça
çizim 9746
177 161 166 165 166
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-462-3 01 1 0211- ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-442-2 01 1 0211- ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 0211- ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 0211- ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0512 ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 0211-0805 ● ● ● ● ● ●
177 16.714 NUT
03.417 M8 W/LK WASHER 		8-97581-234-0 01 1 0806- ● ● ● ● ● ●

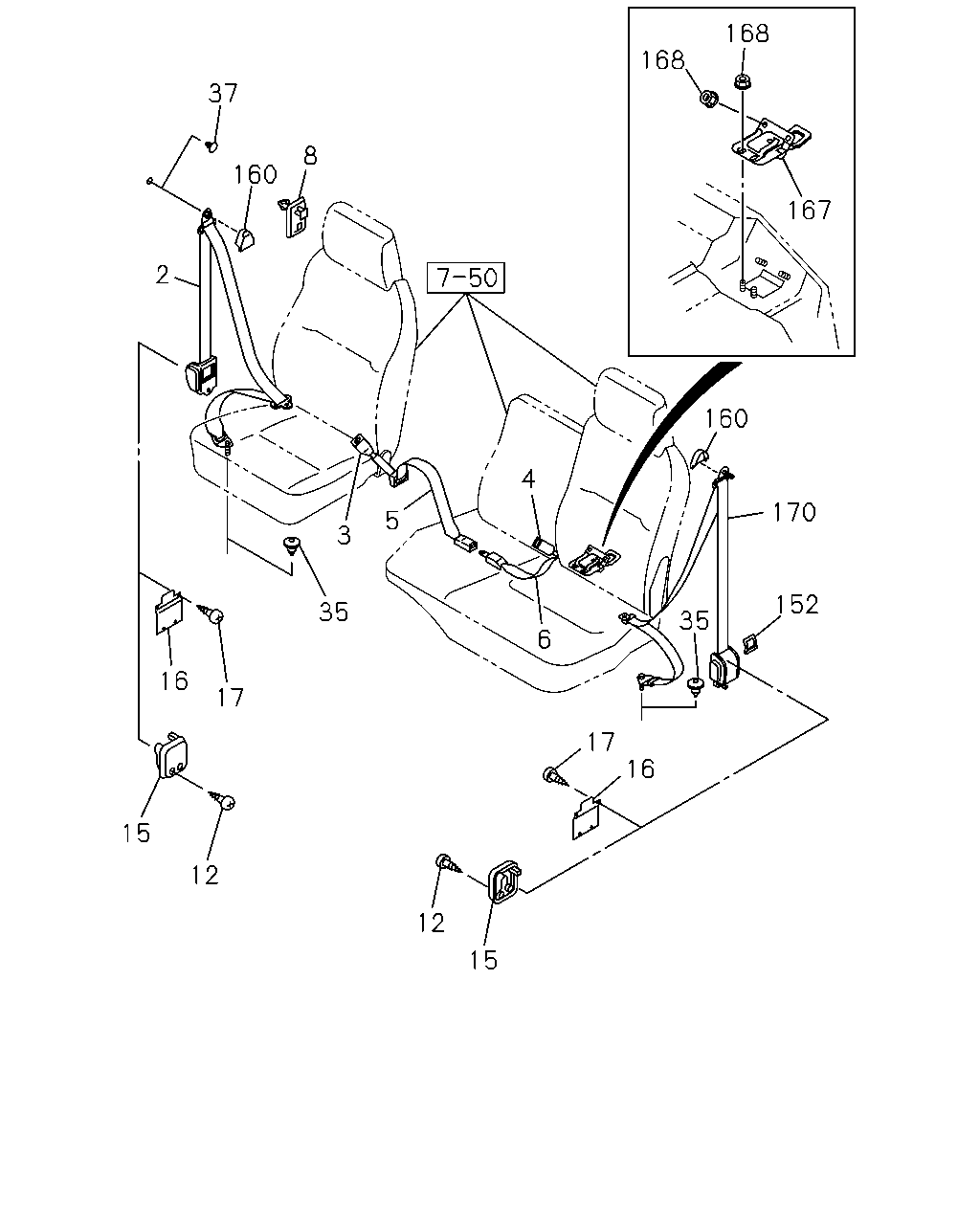

çizim 52200
168 168 37 8 160 167 2 160 4 170 5 3 152 35 35 6 16 17 17 16 15 12 12 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0502- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0502- ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0211-0501 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR GRAY(153) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-1 01 1 0502- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-0 01 1 0211-0501 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR GRAY(153) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-2 01 1 0502- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTO R<A49> EXC. SEAT BELT FRONT SEAT CENTER 2 PO INT<A38> GRAY 		8-97400-349-0 01 1 0502- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT CENTER 2 PO INT<A38> GRAY 		8-97400-349-0 01 1 0502- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTO R<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> GRAY 		8-97400-350-0 01 1 0502- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> GRAY 		8-97400-350-0 01 1 0502- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> DARK GRAY 		8-97394-701-0 01 1 0211-0501 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR GRAY(153) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTO R<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> DARK GRAY 		8-97394-701-0 01 1 0502- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT CENTER 2 PO INT<A38> DARK GRAY 		8-97394-509-0 01 1 0211-0501 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR GRAY(153) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTO R<A49> EXC. SEAT BELT FRONT SEAT CENTER 2 PO INT<A38> DARK GRAY 		8-97394-509-0 01 1 0502- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT CENTER 2 PO INT<A38> DARK GRAY 		8-97394-508-0 01 1 0211-0501 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT CENTER 2 PO INT<A38> GRAY 		8-97400-348-0 01 1 0502- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97394-702-0 01 1 0211-0501 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> DARK GRAY 		8-97394-702-0 01 1 0211-0501 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97400-351-0 01 1 0502- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> GRAY 		8-97400-351-0 01 1 0502- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97394-703-0 01 1 0211-0501 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97400-352-0 01 1 0502- ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTO R<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0502- ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0502- ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTO R<A49> EXC. SEAT BELT FRONT SEAT CENTER 2 PO INT<A38> GRAY 		8-97400-354-0 01 1 0502- ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT CENTER 2 PO INT<A38> GRAY 		8-97400-354-0 01 1 0502- ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> DARK GRAY 		8-97326-220-0 01 1 0211-0501 ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
INTERIOR COLOR GRAY(153) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTO R<A49> SEAT BELT FRONT SEAT CENTER 2 POINT<A38> DARK GRAY 		8-97326-220-0 01 1 0502- ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT CENTER 2 PO INT<A38> DARK GRAY 		8-97394-516-0 01 1 0211-0501 ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
INTERIOR COLOR GRAY(153) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTO R<A49> EXC. SEAT BELT FRONT SEAT CENTER 2 PO INT<A38> DARK GRAY 		8-97394-516-0 01 1 0502- ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT FRONT SEAT CENTER 2 POINT<A38> GRAY 		8-97401-516-0 01 1 0502-0512 ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRONT SEAT CENTER 2 POINT<A38> GRAY 		8-97401-516-0 01 1 0502-0512 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT FRONT SEAT CENTER 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0601- ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRONT SEAT CENTER 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0601- ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRONT SEAT CENTER 2 POINT<A38> DARK GRAY 		8-97326-221-0 01 1 0211-0409 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRONT SEAT CENTER 2 POINT<A38> DARK GRAY 		8-97401-281-0 01 1 0410-0501 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
INTERIOR COLOR GRAY(153) SEAT BELT FRONT SEAT CENTER 2 POINT<A38> DARK GRAY 		8-97401-501-0 01 1 0502-0512 ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
INTERIOR COLOR GRAY(153) SEAT BELT FRONT SEAT CENTER 2 POINT<A38> DARK GRAY 		8-97406-749-0 01 1 0601- ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT FRONT SEAT CENTER 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0502- ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRONT SEAT CENTER 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0502- ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRONT SEAT CENTER 2 POINT<A38> DARK GRAY 		8-97326-224-0 01 1 0211-0501 ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
INTERIOR COLOR GRAY(153) SEAT BELT FRONT SEAT CENTER 2 POINT<A38> DARK GRAY 		8-97326-224-1 01 1 0502- ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> 		8-94276-268-1 02 1 0211- ● ● ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 0211-0611 ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M4X14 TAPPING 		0-74360-414-0 04 1 0612- ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 0211-0501 ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-955-3 02 1 0502-0708 ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.578 GRAY 		8-97405-192-3 02 1 0709- ● ●
16 16.714 COVER; HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 		8-97854-868-1 02 1 0211- ● ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 16.584 M6X13 		5-09981-074-0 08 1 0211-0611 ● ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> M4X14 TAPPING 		0-74360-414-0 08 1 0612- ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 P OINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 0211- ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 04 1 0211- ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 P OINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0211- ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 0211- ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0211- ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0502- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0502- ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0211-0501 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
INTERIOR COLOR GRAY(153) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0502- ●
167 16.714 PLATE; ANCHOR 8-97869-412-2 01 1 0211- ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0211-0712 ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
INTERIOR COLOR BLUISH GRAY(158) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0502- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0502- ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0211-0501 ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
INTERIOR COLOR GRAY(153) SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-1 01 1 0502- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-0 01 1 0211-0501 ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
INTERIOR COLOR GRAY(153) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-2 01 1 0502- ●
