Isuzu WW
▶
TRUCKS
▶
NHR
▶
50942 - NHR
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

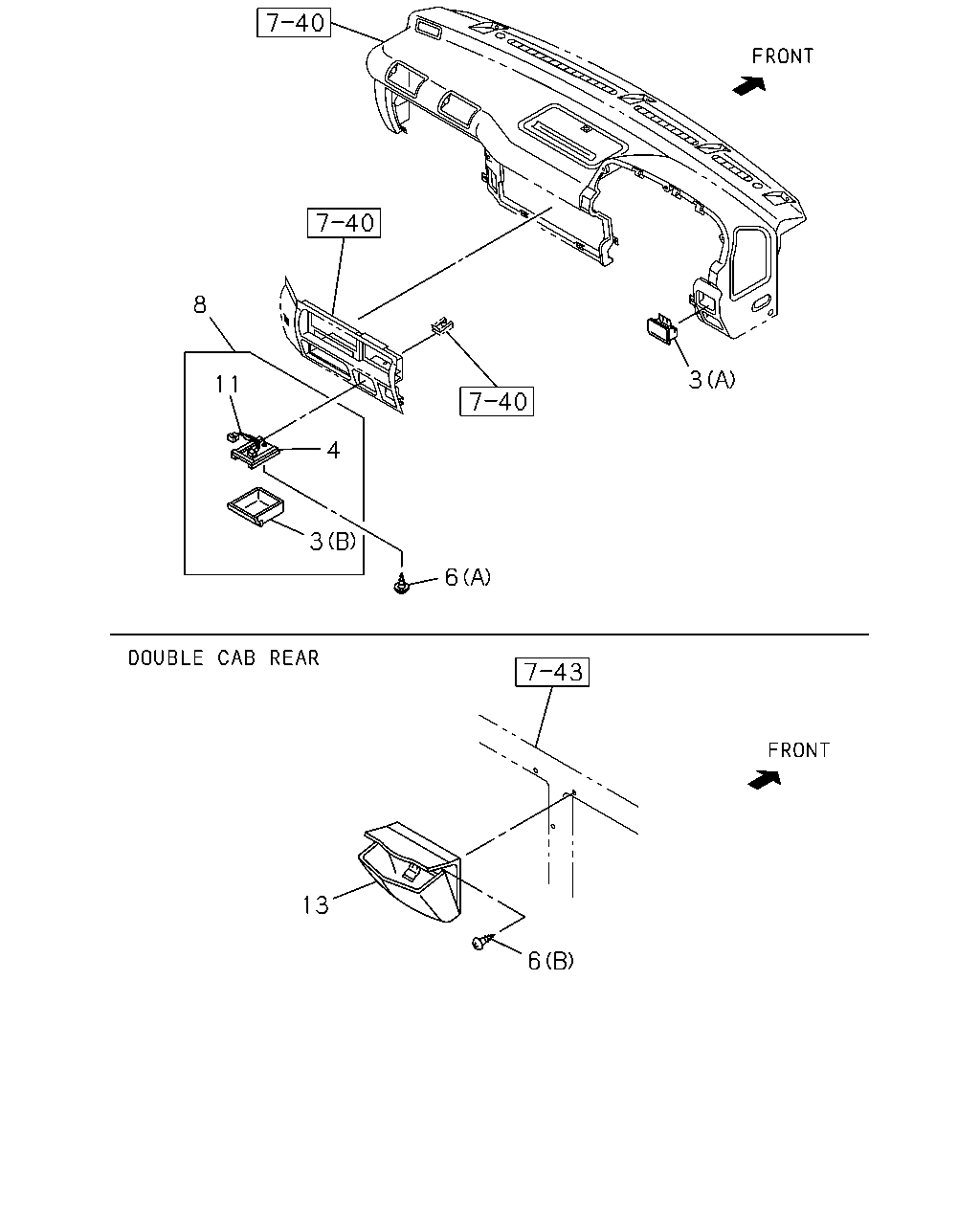

7-42 - ASH TRAY
▶
7-42 — ASH TRAY
(#44037) — 23 parça
Tümü
A - NHB5SF
B - NHB5WF
C - NHB6SF
D - NHB6WF
E - NHN5SF
F - NHN6SF
8
3
11
4
3
6
13
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
3
16.120 CASE ASM; ASH TRAY INNER
INDONESIA EQUIPMENT(S4S) (B) DARK GRAY
8-97898-280-0
01
1
0306-
●
3
16.120 CASE ASM; ASH TRAY INNER
INTERIOR COLOR BLUISH GRAY(158) ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY
8-97582-213-0
01
1
0502-
●
3
16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY
8-97582-213-0
01
1
0502-
●
●
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY
8-97993-294-0
01
1
0211-0305
●
●
●
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
EXC. INDONESIA EQUIPMENT(S4S) (B) DARK GRAY
8-97993-294-0
01
1
0306-
●
3
16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY
8-97993-294-0
01
1
0306-
●
●
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY
8-97198-913-0
01
1
0211-0501
●
●
●
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
INTERIOR COLOR GRAY(153) ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY
8-97198-913-0
01
1
0502-
●
4
16.120 CASE ASM; ASH TRAY OUTER
INDONESIA EQUIPMENT(S4S)
8-97583-031-0
01
1
0306-
●
4
16.120 CASE ASM; ASH TRAY OUTER
8-97898-279-0
01
1
0211-0305
●
●
●
●
●
●
4
16.120 CASE ASM; ASH TRAY OUTER
EXC. INDONESIA EQUIPMENT(S4S)
8-97898-279-0
01
1
0306-
●
4
16.120 CASE ASM; ASH TRAY OUTER
8-97898-279-0
01
1
0306-
●
●
●
●
●
6
16.120 SCREW; ASH TRAY
07.874 (A) M6X16 TRUSS-HEAD
8-94318-980-0
01
1
0211-
●
●
●
●
●
●
6
16.120 SCREW; ASH TRAY
16.345 (B) M4X10 TAPPING OVAL-HEAD
0-70680-410-0
03
1
0211-0603
●
●
6
16.120 SCREW; ASH TRAY
(B) M4X10 TAPPING OVAL-HEAD
0-70640-410-0
03
1
0604-
●
●
8
16.120 TRAY ASM; ASH
INDONESIA EQUIPMENT(S4S)
8-97583-030-0
01
1
0306-
●
8
16.120 TRAY ASM; ASH
8-97898-282-0
01
1
0211-0305
●
●
●
●
●
●
8
16.120 TRAY ASM; ASH
EXC. INDONESIA EQUIPMENT(S4S)
8-97898-282-0
01
1
0306-
●
8
16.120 TRAY ASM; ASH
8-97898-282-0
01
1
0306-
●
●
●
●
●
11
08.991 BULB; ASH TRAY
8-97898-283-0
01
1
0211-0305
●
●
●
●
●
●
11
08.991 BULB; ASH TRAY
EXC. INDONESIA EQUIPMENT(S4S)
8-97898-283-0
01
1
0306-
●
11
08.991 BULB; ASH TRAY
8-97898-283-0
01
1
0306-
●
●
●
●
●
13
16.120 TRAY ASM; ASH,RR
5-76457-001-0
01
1
0211-
●
●
