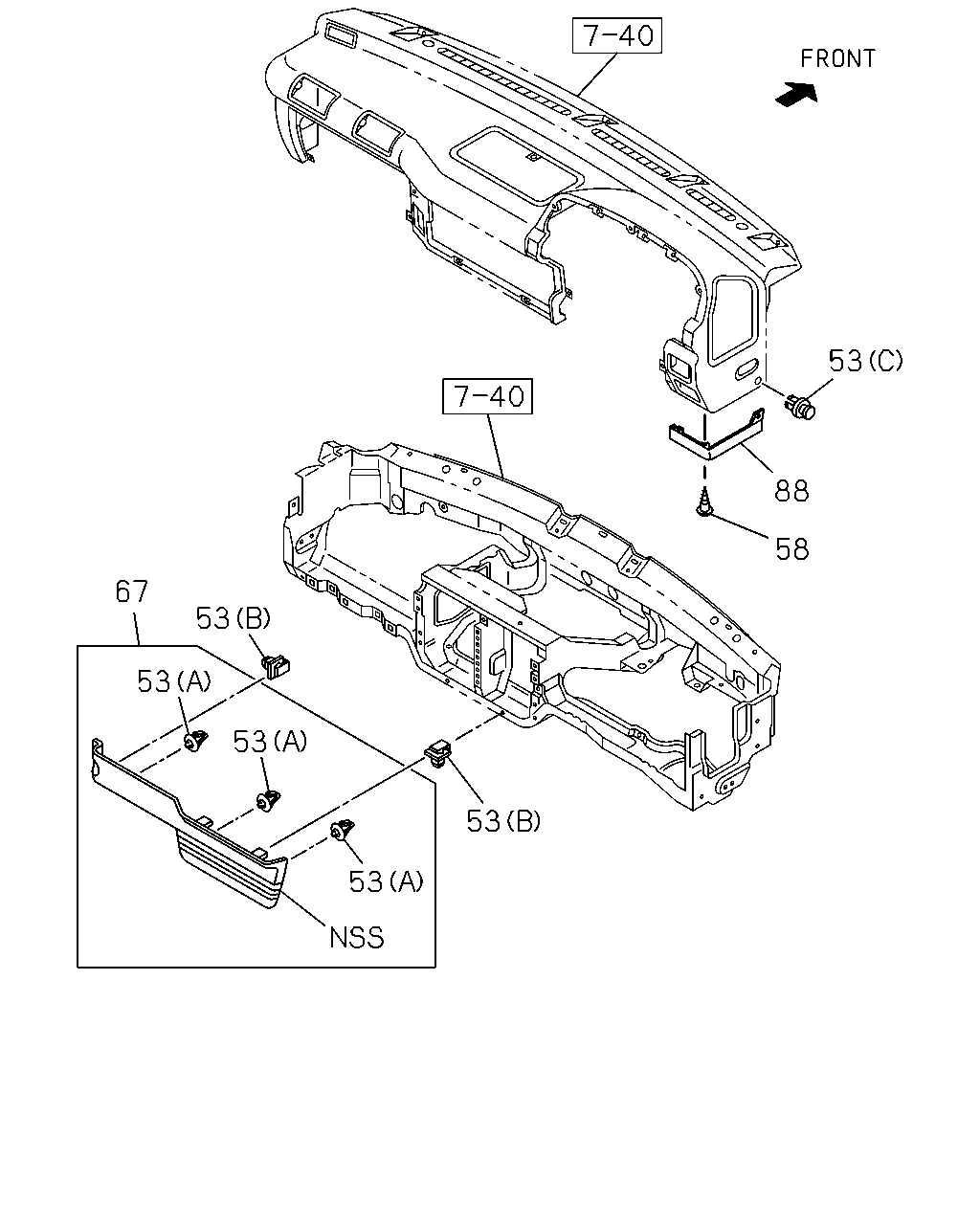

7-41 — UNDER COVER; INSTRUMENT (#44036) — 18 parça

53 88 58 67 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	16.085 CLIP; UNDER COVER INTERIOR COLOR BLUISH GRAY(158) 06.521 (C) DARK GRAY	8-97582-246-0	01	1	0502-0603	●
53	16.085 CLIP; UNDER COVER 06.521 (C) DARK GRAY	8-97582-246-0	01	1	0502-0603		●	●	●	●	●
53	16.085 CLIP; UNDER COVER 06.521 (C) DARK GRAY	8-97582-246-0	01	1	0604-	●	●	●	●	●	●
53	16.085 CLIP; UNDER COVER (B)	8-97853-249-5	03	1	0211-	●	●	●	●	●	●
53	16.085 CLIP; UNDER COVER 06.521 (C) DARK GRAY	8-97857-542-0	01	1	0211-0501	●	●	●	●	●	●
53	16.085 CLIP; UNDER COVER INTERIOR COLOR GRAY(153) 06.521 (C) DARK GRAY	8-97857-542-0	01	1	0502-0603	●
53	16.085 CLIP; UNDER COVER 16.100 (A)	8-97853-169-0	03	1	0211-	●	●			●
53	16.085 CLIP; UNDER COVER 16.100 (A)	8-97853-169-0	06	1	0211-			●	●		●
58	09.264 SCREW; UNDER COVER 16.067 M5X14	8-94279-325-0	02	1	0211-0612	●	●	●	●	●	●
58	09.264 SCREW; UNDER COVER 09.655 M5X14 TAPPING W/TORQUES	8-98061-856-0	02	1	0701-	●	●	●	●	●	●
67	16.081 COVER; UNDER,INST PNL	8-97856-660-4	01	1	0211-	●	●			●
67	16.081 COVER; UNDER,INST PNL	8-97857-187-1	01	1	0211-			●	●		●
88	16.081 COVER; UNDER,INST PNL SIDE INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-201-2	01	1	0502-	●
88	16.081 COVER; UNDER,INST PNL SIDE DARK GRAY	8-97582-201-2	01	1	0502-		●			●
88	16.081 COVER; UNDER,INST PNL SIDE DARK GRAY	8-97859-801-2	01	1	0211-0501	●	●			●
88	16.081 COVER; UNDER,INST PNL SIDE INTERIOR COLOR GRAY(153) DARK GRAY	8-97859-801-2	01	1	0502-	●
88	16.081 COVER; UNDER,INST PNL SIDE DARK GRAY	8-97857-539-1	01	1	0211-0501			●	●		●
88	16.081 COVER; UNDER,INST PNL SIDE DARK GRAY	8-97585-432-1	01	1	0502-			●	●		●
