Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#44035) — 312 parça

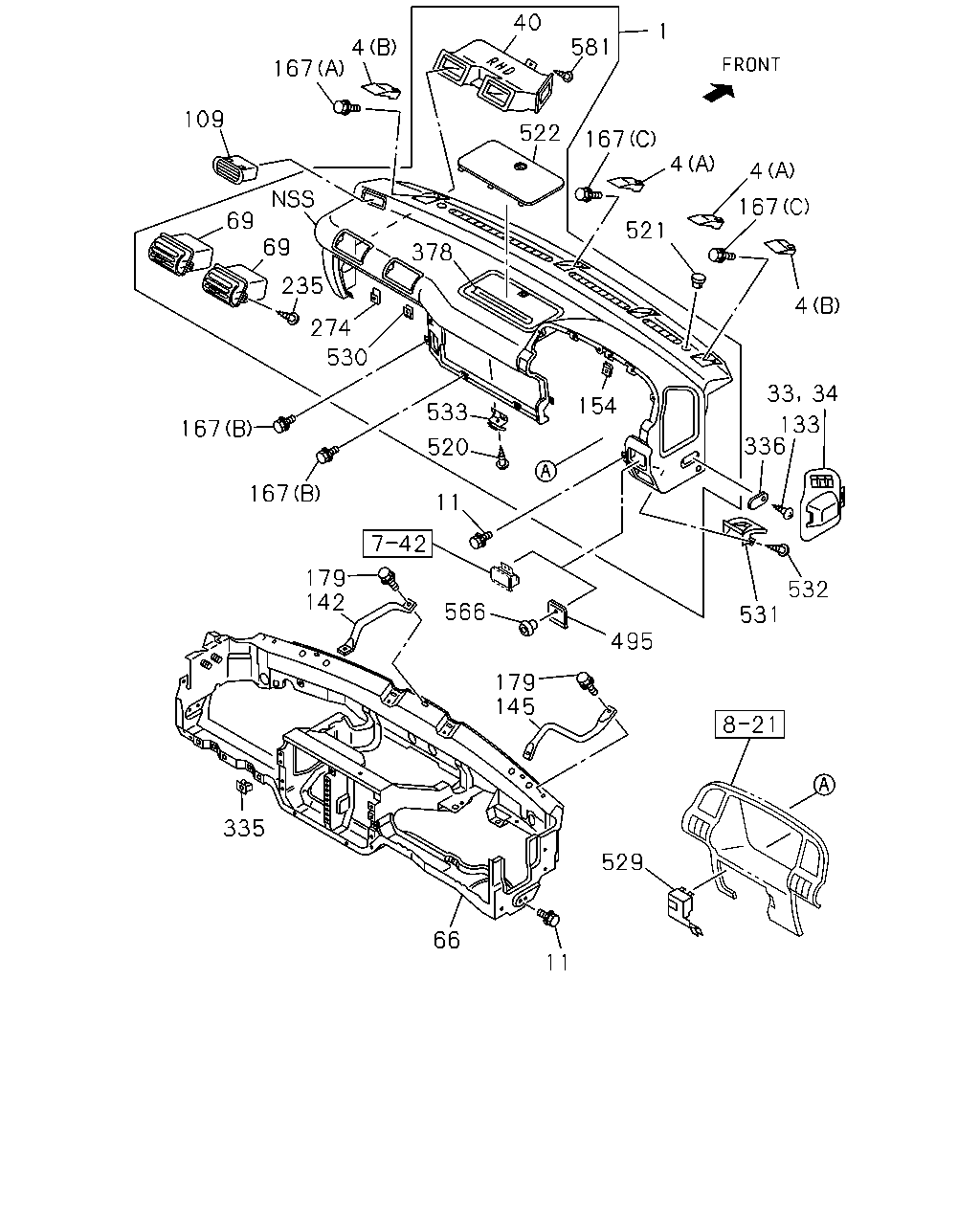

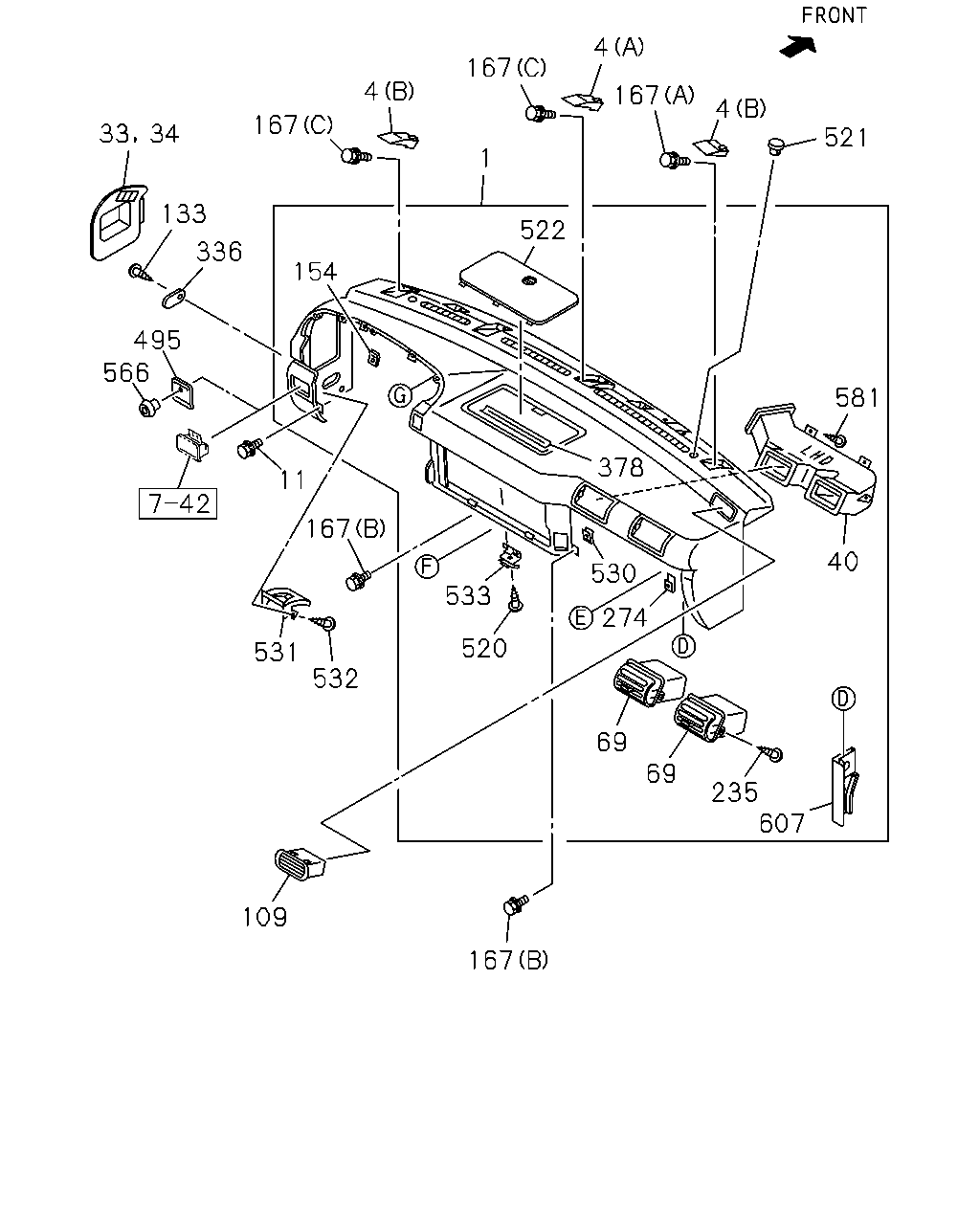

40 1 581 4 167 109 522 167 4 4 167 69 521 69 378 235 4 274 530 33 34 154 533 133 336 167 520 167 11 179 142 532 566 531 495 179 145 335 529 66 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.080 PANEL; INST INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-211-1	01	1	0502-	●
1	16.080 PANEL; INST DARK GRAY	8-97582-211-1	01	1	0502-		●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-958-1	01	1	0211-0501	●	●	●
1	16.080 PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97195-958-1	01	1	0502-	●
1	16.080 PANEL; INST SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97896-997-1	01	1	0211-0501				●	●
1	16.080 PANEL; INST SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97587-477-1	01	1	0502-				●	●
1	16.080 PANEL; INST EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97195-961-2	01	1	0211-0501				●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-961-2	01	1	0211-0501						●
1	16.080 PANEL; INST EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97587-476-2	01	1	0502-				●	●
1	16.080 PANEL; INST DARK GRAY	8-97587-476-2	01	1	0502-						●
4	16.080 COVER; INST PNL INTERIOR COLOR BLUISH GRAY(158) (A) DARK GRAY	8-97582-215-3	02	1	0502-	●
4	16.080 COVER; INST PNL (A) DARK GRAY	8-97582-215-3	02	1	0502-		●	●	●	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR BLUISH GRAY(158) (B) DARK GRAY	8-97582-217-3	01	1	0502-	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97582-217-3	01	1	0502-		●	●	●	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR BLUISH GRAY(158) (B) DARK GRAY	8-97582-216-3	01	1	0502-	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97582-216-3	01	1	0502-		●	●	●	●	●
4	16.080 COVER; INST PNL (A) DARK GRAY	8-97857-523-3	02	1	0211-0501	●	●	●	●	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97857-523-3	02	1	0502-	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-525-3	01	1	0211-0501	●	●	●	●	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97857-525-3	01	1	0502-	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-524-3	01	1	0211-0501	●	●	●	●	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97857-524-3	01	1	0502-	●
11	16.090 BOLT; INST PNL M8X23 FLANGE	8-97264-766-0	04	1	0211-	●	●	●	●	●	●
33	16.081 LID; CHECK HOLE,CLU FLUID INTERIOR COLOR BLUISH GRAY(158) FORGED AIR VENTILATION(C39) DARK GRAY	8-97582-488-5	01	1	0502-	●
33	16.081 LID; CHECK HOLE,CLU FLUID FORGED AIR VENTILATION(C39) DARK GRAY	8-97582-488-5	01	1	0502-		●	●
33	16.081 LID; CHECK HOLE,CLU FLUID INTERIOR COLOR GRAY(153) FORGED AIR VENTILATION(C39) DARK GRAY	8-97859-824-5	01	1	0502-	●
33	16.081 LID; CHECK HOLE,CLU FLUID FORGED AIR VENTILATION(C39) DARK GRAY	8-97585-448-4	01	1	0502-				●	●	●
34	16.085 LID; OIL TANK INTERIOR COLOR BLUISH GRAY(158) EXC. FORGED AIR VENTILATION(C39) DARK GRAY	8-97582-207-7	01	1	0502-	●
34	16.085 LID; OIL TANK EXC. FORGED AIR VENTILATION(C39) DARK GRAY	8-97582-207-7	01	1	0502-		●	●
34	16.085 LID; OIL TANK DARK GRAY	8-97859-800-7	01	1	0211-0501	●	●	●
34	16.085 LID; OIL TANK INTERIOR COLOR GRAY(153) EXC. FORGED AIR VENTILATION(C39) DARK GRAY	8-97859-800-7	01	1	0502-	●
34	16.085 LID; OIL TANK DARK GRAY	8-97857-499-5	01	1	0211-0501				●	●	●
34	16.085 LID; OIL TANK EXC. FORGED AIR VENTILATION(C39) DARK GRAY	8-97585-433-5	01	1	0502-				●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL 09.262	8-97262-688-0	01	1	0211-0501	●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL 09.262	8-97262-688-0	01	1	0502-	●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL	8-97262-698-0	01	1	0211-				●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97898-461-4	01	1	0211-0505	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-98013-756-1	01	1	0506-	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97898-464-7	01	1	0211-				●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-612-0	02	1	0502-	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97582-612-0	02	1	0502-		●	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97890-631-0	02	1	0211-0301	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97890-631-0	02	1	0211-0301				●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97890-631-0	02	1	0302-0501	●	●	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) DARK GRAY	8-97890-631-0	02	1	0502-	●
69	09.264 GRILLE; SIDE,AIR OUTLET EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97857-519-2	02	1	0211-0301				●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97857-519-2	02	1	0211-0301						●
109	16.081 GRILLE; INST PNL SIDE,UPR INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-222-0	01	1	0502-	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97582-222-0	01	1	0502-		●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97859-795-0	01	1	0211-0501	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR INTERIOR COLOR GRAY(153) DARK GRAY	8-97859-795-0	01	1	0502-	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97857-530-0	01	1	0211-0501				●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97585-436-0	01	1	0502-				●	●	●
133	16.081 SCREW; COVER,INST PNL 09.744 M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	0211-0604	●	●	●	●	●	●
133	16.081 SCREW; COVER,INST PNL M5X20 TAPPING W/PL WASHER	0-74160-520-0	02	1	0605-0612	●	●	●	●	●	●
133	16.081 SCREW; COVER,INST PNL 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-	●	●	●	●	●	●
142	16.085 STAY; INST PANEL	8-97853-637-2	01	1	0211-	●	●	●
142	16.085 STAY; INST PANEL	8-97856-196-2	01	1	0211-				●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97853-638-3	01	1	0211-	●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97856-197-2	01	1	0211-				●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	04	1	0211-0501	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	04	1	0502-	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	01	1	0211-				●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	0211-				●	●	●
167	16.085 BOLT; REINF TO INST 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0211-1210	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 02.587 (B) M6X19.5 W/LK&PL WASHER	8-97360-226-0	06	1	1211-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (C) M6X25	8-94279-204-0	02	1	0211-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST (A) M6X24 FLANGE	8-94279-231-1	02	1	0211-	●	●	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 16.350 M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0211-0307	●	●	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	0308-0512	●	●	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL M6X12 W/LK&PL WASHER	0-50640-612-0	02	1	0601-	●	●	●	●	●	●
235	16.081 SCREW; GRILLE 16.067 M5X14	8-94279-325-0	04	1	0211-	●	●	●	●	●	●
274	16.100 NUT; GLOVE BOX 16.081 M5 SPIRE NUT	8-94279-051-0	02	1	0211-	●	●	●	●	●	●
335	16.115 GROMMET; GLOVE BOX LK 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0211-	●	●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-218-4	02	1	0502-	●
336	16.081 COVER; INST PANEL SIDE DARK GRAY	8-97582-218-4	02	1	0502-		●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE DARK GRAY	8-97857-528-4	02	1	0211-0501	●	●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-528-4	02	1	0502-	●
378	09.743 SEAL; INST PANEL	8-97209-399-0	01	1	0211-	●	●	●	●	●	●
495	09.743 BEZEL; SW INTERIOR COLOR BLUISH GRAY(158) EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-214-4	01	1	0502-	●
495	09.743 BEZEL; SW EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-214-4	01	1	0502-		●	●	●	●	●
495	09.743 BEZEL; SW EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97857-548-4	01	1	0211-0501	●	●	●	●	●	●
495	09.743 BEZEL; SW INTERIOR COLOR GRAY(153) EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97857-548-4	01	1	0502-	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	02	1	0211-0501	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	02	1	0502-	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	03	1	0211-				●	●	●
521	16.081 COVER; SUN SENSOR INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-334-2	01	1	0502-	●
521	16.081 COVER; SUN SENSOR DARK GRAY	8-97582-334-2	01	1	0502-		●	●	●	●	●
521	16.081 COVER; SUN SENSOR DARK GRAY	8-97857-529-2	01	1	0211-0501	●	●	●	●	●	●
521	16.081 COVER; SUN SENSOR INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-529-2	01	1	0502-	●
522	16.085 LID; RELAY BOX INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-494-6	01	1	0502-	●
522	16.085 LID; RELAY BOX DARK GRAY	8-97582-494-6	01	1	0502-		●	●	●	●	●
522	16.085 LID; RELAY BOX DARK GRAY	8-97857-520-6	01	1	0211-0501	●	●	●	●	●	●
522	16.085 LID; RELAY BOX INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-520-6	01	1	0502-	●
529	16.100 POCKET; COIN BLACK	8-97867-074-5	01	1	0211-0501	●	●	●
529	16.100 POCKET; COIN BLACK	8-97867-074-5	01	1	0502-	●	●	●
530	16.100 CLIP; GLOVE BOX	8-97856-135-0	01	1	0211-	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU>	8-97853-130-0	01	1	0211-	●	●	●	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14	8-94279-325-0	02	1	0211-0612	●	●	●	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 09.655 M5X14 TAPPING W/TORQUES	8-98061-856-0	02	1	0701-	●	●	●	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-5	02	1	0211-	●	●	●	●	●	●
566	16.085 PLUG; HOLE INTERIOR COLOR BLUISH GRAY(158) EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-247-0	01	1	0502-	●
566	16.085 PLUG; HOLE EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-247-0	01	1	0502-		●	●	●	●	●
566	16.085 PLUG; HOLE EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-413-0	01	1	0211-0501	●	●	●	●	●	●
566	16.085 PLUG; HOLE INTERIOR COLOR GRAY(153) EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-413-0	01	1	0502-	●
581	09.744 SCREW 16.067 M5X14	8-94279-325-0	02	1	0211-	●	●	●	●	●	●

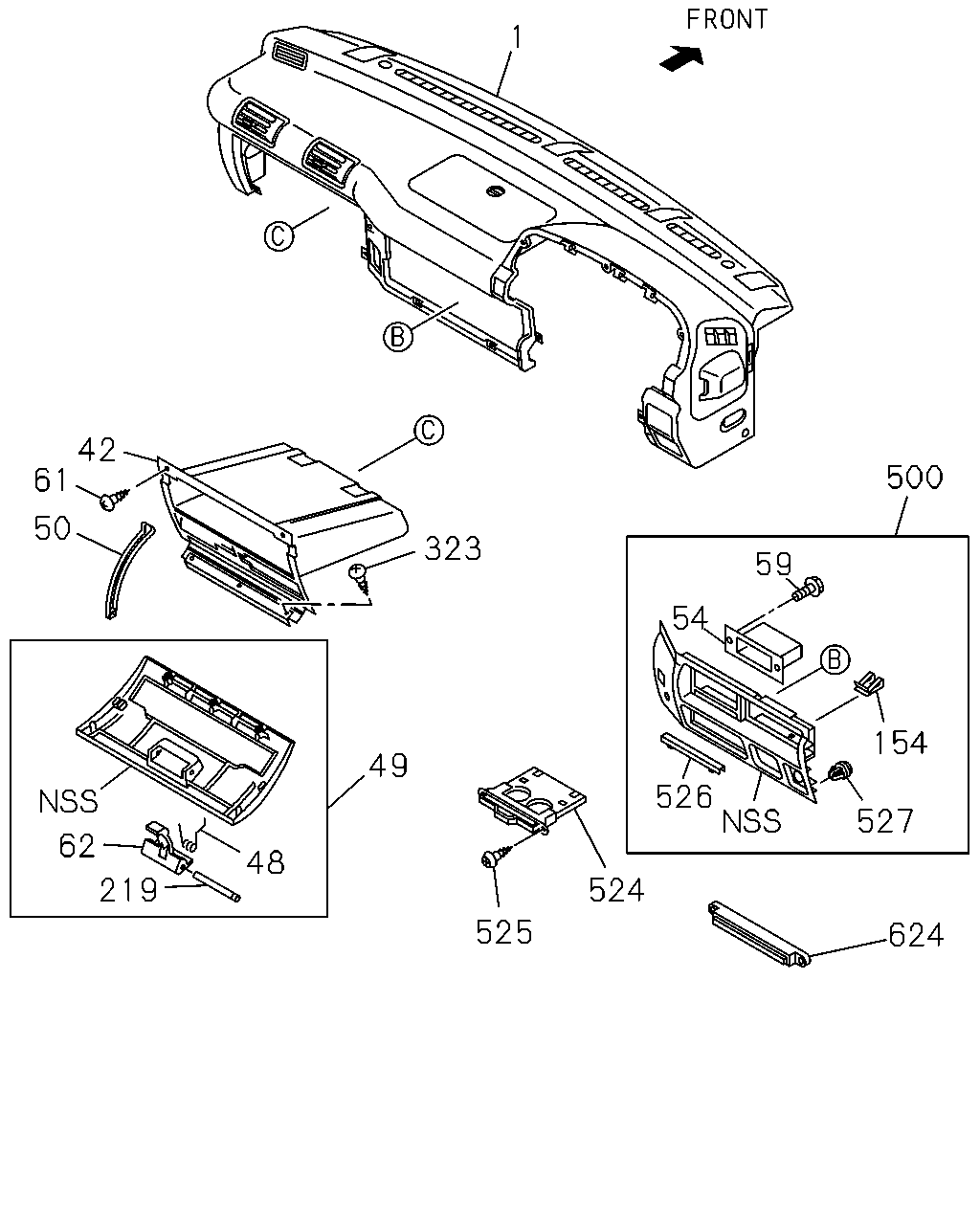

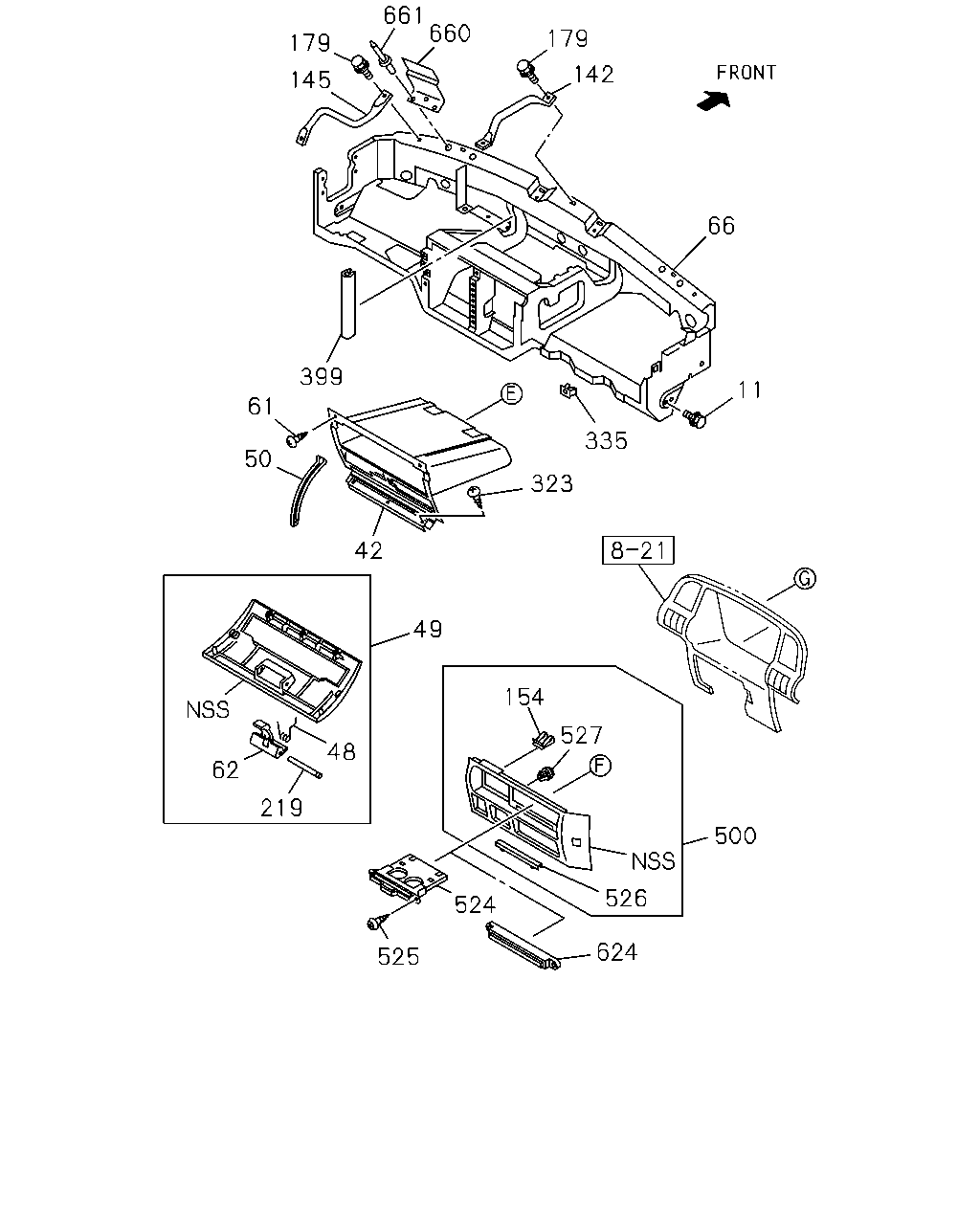

1 42 61 500 50 323 59 54 154 49 526 527 62 48 219 524 525 624

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.080 PANEL; INST INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-211-1	01	1	0502-	●
1	16.080 PANEL; INST DARK GRAY	8-97582-211-1	01	1	0502-		●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-958-1	01	1	0211-0501	●	●	●
1	16.080 PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97195-958-1	01	1	0502-	●
1	16.080 PANEL; INST SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97896-997-1	01	1	0211-0501				●	●
1	16.080 PANEL; INST SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97587-477-1	01	1	0502-				●	●
1	16.080 PANEL; INST EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97195-961-2	01	1	0211-0501				●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-961-2	01	1	0211-0501						●
1	16.080 PANEL; INST EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97587-476-2	01	1	0502-				●	●
1	16.080 PANEL; INST DARK GRAY	8-97587-476-2	01	1	0502-						●
42	16.100 BOX; GLOVE,INST PNL	8-97853-150-5	01	1	0211-	●	●	●	●	●	●
48	16.110 SPRING; GLOVE BOX LID	8-97853-750-1	01	1	0211-	●	●	●	●	●	●
49	16.110 LID; GLOVE BOX INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-199-5	01	1	0502-	●
49	16.110 LID; GLOVE BOX DARK GRAY	8-97582-199-5	01	1	0502-		●	●	●	●	●
49	16.110 LID; GLOVE BOX DARK GRAY	8-97859-798-5	01	1	0211-0501	●	●	●	●	●	●
49	16.110 LID; GLOVE BOX INTERIOR COLOR GRAY(153) DARK GRAY	8-97859-798-5	01	1	0502-	●
50	16.110 STOPPER; LID,GLOVE BOX,INST CLUS	8-97853-152-0	02	1	0211-	●	●	●	●	●	●
54	16.100 POCKET; CENTER CLUSTER INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-491-2	01	1	0502-	●
54	16.100 POCKET; CENTER CLUSTER DARK GRAY	8-97582-491-2	01	1	0502-		●	●
54	16.100 POCKET; CENTER CLUSTER DARK GRAY	8-97196-294-2	01	1	0211-0501	●	●	●
54	16.100 POCKET; CENTER CLUSTER INTERIOR COLOR GRAY(153) DARK GRAY	8-97196-294-2	01	1	0502-	●
59	16.100 SCREW; CLUSTER POCKET 01.269 M5X14	8-94148-576-1	02	1	0211-0401	●	●	●
59	16.100 SCREW; CLUSTER POCKET 16.067 M5X14	8-94279-325-0	02	1	0402-0501	●	●	●
59	16.100 SCREW; CLUSTER POCKET 16.067 M5X14	8-94279-325-0	02	1	0502-	●	●	●
61	16.100 SCREW; GLOVE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0211-0604	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0605-0612	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-1101	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-487-1	01	1	0502-	●
62	16.110 KNOB; GLOVE BOX LID DARK GRAY	8-97582-487-1	01	1	0502-		●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID DARK GRAY	8-97857-498-1	01	1	0211-0501	●	●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-498-1	01	1	0502-	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	04	1	0211-0501	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	04	1	0502-	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	01	1	0211-				●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	0211-				●	●	●
219	09.744 SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	0211-	●	●	●	●	●	●
323	16.110 SCREW; GLOVE BOX LK 16.067 M5X14	8-94279-325-0	03	1	0211-0612	●	●	●	●	●	●
323	16.110 SCREW; GLOVE BOX LK 09.655 M5X14 TAPPING W/TORQUES	8-98061-856-0	03	1	0701-	●	●	●	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-208-5	01	1	0502-	●
500	16.081 CLUSTER; INST CENTER DARK GRAY	8-97582-208-5	01	1	0502-		●	●
500	16.081 CLUSTER; INST CENTER DARK GRAY	8-97892-187-5	01	1	0211-0501	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR COLOR GRAY(153) DARK GRAY	8-97892-187-5	01	1	0502-	●
500	16.081 CLUSTER; INST CENTER DARK GRAY	8-97868-656-7	01	1	0211-0501				●	●	●
500	16.081 CLUSTER; INST CENTER DARK GRAY	8-97587-475-7	01	1	0502-				●	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-97853-172-8	01	1	0211-	●	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.067 M5X14	8-94279-325-0	02	1	0211-0612	●	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-1101	●	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-490-1	01	1	0502-	●
526	16.100 GUIDE; POCKET,INST CLUSTER DARK GRAY	8-97582-490-1	01	1	0502-		●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER DARK GRAY	8-97857-503-1	01	1	0211-0501	●	●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-503-1	01	1	0502-	●
527	16.100 CLIP; INST CLUSTER	8-97853-169-0	04	1	0211-	●	●	●	●	●	●
624	16.085 COVER; CUP STAND EXC. CUP HOLDER<7KZ>	1-72438-139-1	01	1	0211-	●	●	●	●	●	●

4 167 4 167 4 167 33 34 521 1 133 522 336 154 495 566 581 378 11 167 40 530 533 274 520 531 532 69 69 235 607 109 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.080 PANEL; INST INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-211-1	01	1	0502-	●
1	16.080 PANEL; INST DARK GRAY	8-97582-211-1	01	1	0502-		●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-958-1	01	1	0211-0501	●	●	●
1	16.080 PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97195-958-1	01	1	0502-	●
1	16.080 PANEL; INST SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97896-997-1	01	1	0211-0501				●	●
1	16.080 PANEL; INST SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97587-477-1	01	1	0502-				●	●
1	16.080 PANEL; INST EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97195-961-2	01	1	0211-0501				●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-961-2	01	1	0211-0501						●
1	16.080 PANEL; INST EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97587-476-2	01	1	0502-				●	●
1	16.080 PANEL; INST DARK GRAY	8-97587-476-2	01	1	0502-						●
4	16.080 COVER; INST PNL INTERIOR COLOR BLUISH GRAY(158) (A) DARK GRAY	8-97582-215-3	02	1	0502-	●
4	16.080 COVER; INST PNL (A) DARK GRAY	8-97582-215-3	02	1	0502-		●	●	●	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR BLUISH GRAY(158) (B) DARK GRAY	8-97582-217-3	01	1	0502-	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97582-217-3	01	1	0502-		●	●	●	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR BLUISH GRAY(158) (B) DARK GRAY	8-97582-216-3	01	1	0502-	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97582-216-3	01	1	0502-		●	●	●	●	●
4	16.080 COVER; INST PNL (A) DARK GRAY	8-97857-523-3	02	1	0211-0501	●	●	●	●	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97857-523-3	02	1	0502-	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-525-3	01	1	0211-0501	●	●	●	●	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97857-525-3	01	1	0502-	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-524-3	01	1	0211-0501	●	●	●	●	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97857-524-3	01	1	0502-	●
11	16.090 BOLT; INST PNL M8X23 FLANGE	8-97264-766-0	04	1	0211-	●	●	●	●	●	●
33	16.081 LID; CHECK HOLE,CLU FLUID INTERIOR COLOR BLUISH GRAY(158) FORGED AIR VENTILATION(C39) DARK GRAY	8-97582-488-5	01	1	0502-	●
33	16.081 LID; CHECK HOLE,CLU FLUID FORGED AIR VENTILATION(C39) DARK GRAY	8-97582-488-5	01	1	0502-		●	●
33	16.081 LID; CHECK HOLE,CLU FLUID INTERIOR COLOR GRAY(153) FORGED AIR VENTILATION(C39) DARK GRAY	8-97859-824-5	01	1	0502-	●
33	16.081 LID; CHECK HOLE,CLU FLUID FORGED AIR VENTILATION(C39) DARK GRAY	8-97585-448-4	01	1	0502-				●	●	●
34	16.085 LID; OIL TANK INTERIOR COLOR BLUISH GRAY(158) EXC. FORGED AIR VENTILATION(C39) DARK GRAY	8-97582-207-7	01	1	0502-	●
34	16.085 LID; OIL TANK EXC. FORGED AIR VENTILATION(C39) DARK GRAY	8-97582-207-7	01	1	0502-		●	●
34	16.085 LID; OIL TANK DARK GRAY	8-97859-800-7	01	1	0211-0501	●	●	●
34	16.085 LID; OIL TANK INTERIOR COLOR GRAY(153) EXC. FORGED AIR VENTILATION(C39) DARK GRAY	8-97859-800-7	01	1	0502-	●
34	16.085 LID; OIL TANK DARK GRAY	8-97857-499-5	01	1	0211-0501				●	●	●
34	16.085 LID; OIL TANK EXC. FORGED AIR VENTILATION(C39) DARK GRAY	8-97585-433-5	01	1	0502-				●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL 09.262	8-97262-688-0	01	1	0211-0501	●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL 09.262	8-97262-688-0	01	1	0502-	●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL	8-97262-698-0	01	1	0211-				●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-612-0	02	1	0502-	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97582-612-0	02	1	0502-		●	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97890-631-0	02	1	0211-0301	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97890-631-0	02	1	0211-0301				●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97890-631-0	02	1	0302-0501	●	●	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) DARK GRAY	8-97890-631-0	02	1	0502-	●
69	09.264 GRILLE; SIDE,AIR OUTLET EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97857-519-2	02	1	0211-0301				●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97857-519-2	02	1	0211-0301						●
109	16.081 GRILLE; INST PNL SIDE,UPR INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-222-0	01	1	0502-	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97582-222-0	01	1	0502-		●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97859-795-0	01	1	0211-0501	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR INTERIOR COLOR GRAY(153) DARK GRAY	8-97859-795-0	01	1	0502-	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97857-530-0	01	1	0211-0501				●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97585-436-0	01	1	0502-				●	●	●
133	16.081 SCREW; COVER,INST PNL 09.744 M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	0211-0604	●	●	●	●	●	●
133	16.081 SCREW; COVER,INST PNL M5X20 TAPPING W/PL WASHER	0-74160-520-0	02	1	0605-0612	●	●	●	●	●	●
133	16.081 SCREW; COVER,INST PNL 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-	●	●	●	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	04	1	0211-0501	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	04	1	0502-	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	01	1	0211-				●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	0211-				●	●	●
167	16.085 BOLT; REINF TO INST 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0211-1210	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 02.587 (B) M6X19.5 W/LK&PL WASHER	8-97360-226-0	06	1	1211-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (C) M6X25	8-94279-204-0	02	1	0211-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST (A) M6X24 FLANGE	8-94279-231-1	02	1	0211-	●	●	●	●	●	●
235	16.081 SCREW; GRILLE 16.067 M5X14	8-94279-325-0	04	1	0211-	●	●	●	●	●	●
274	16.100 NUT; GLOVE BOX 16.081 M5 SPIRE NUT	8-94279-051-0	02	1	0211-	●	●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-218-4	02	1	0502-	●
336	16.081 COVER; INST PANEL SIDE DARK GRAY	8-97582-218-4	02	1	0502-		●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE DARK GRAY	8-97857-528-4	02	1	0211-0501	●	●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-528-4	02	1	0502-	●
378	09.743 SEAL; INST PANEL	8-97209-399-0	01	1	0211-	●	●	●	●	●	●
495	09.743 BEZEL; SW INTERIOR COLOR BLUISH GRAY(158) EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-214-4	01	1	0502-	●
495	09.743 BEZEL; SW EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-214-4	01	1	0502-		●	●	●	●	●
495	09.743 BEZEL; SW EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97857-548-4	01	1	0211-0501	●	●	●	●	●	●
495	09.743 BEZEL; SW INTERIOR COLOR GRAY(153) EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97857-548-4	01	1	0502-	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	02	1	0211-0501	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	02	1	0502-	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	03	1	0211-				●	●	●
521	16.081 COVER; SUN SENSOR INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-334-2	01	1	0502-	●
521	16.081 COVER; SUN SENSOR DARK GRAY	8-97582-334-2	01	1	0502-		●	●	●	●	●
521	16.081 COVER; SUN SENSOR DARK GRAY	8-97857-529-2	01	1	0211-0501	●	●	●	●	●	●
521	16.081 COVER; SUN SENSOR INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-529-2	01	1	0502-	●
522	16.085 LID; RELAY BOX INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-494-6	01	1	0502-	●
522	16.085 LID; RELAY BOX DARK GRAY	8-97582-494-6	01	1	0502-		●	●	●	●	●
522	16.085 LID; RELAY BOX DARK GRAY	8-97857-520-6	01	1	0211-0501	●	●	●	●	●	●
522	16.085 LID; RELAY BOX INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-520-6	01	1	0502-	●
530	16.100 CLIP; GLOVE BOX	8-97856-135-0	01	1	0211-	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU>	8-97853-130-0	01	1	0211-	●	●	●	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14	8-94279-325-0	02	1	0211-0612	●	●	●	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 09.655 M5X14 TAPPING W/TORQUES	8-98061-856-0	02	1	0701-	●	●	●	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-5	02	1	0211-	●	●	●	●	●	●
566	16.085 PLUG; HOLE INTERIOR COLOR BLUISH GRAY(158) EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-247-0	01	1	0502-	●
566	16.085 PLUG; HOLE EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-247-0	01	1	0502-		●	●	●	●	●
566	16.085 PLUG; HOLE EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-413-0	01	1	0211-0501	●	●	●	●	●	●
566	16.085 PLUG; HOLE INTERIOR COLOR GRAY(153) EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-413-0	01	1	0502-	●
581	09.744 SCREW 16.067 M5X14	8-94279-325-0	02	1	0211-	●	●	●	●	●	●
607	16.085 FIXING ASM; CLIP INST TO M/CSTR	8-97857-893-2	01	1	0211-				●	●	●

661 660 179 179 142 145 66 399 11 61 335 50 323 42 49 154 527 48 62 219 500 524 526 624 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	16.090 BOLT; INST PNL M8X23 FLANGE	8-97264-766-0	04	1	0211-	●	●	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL	8-97853-150-5	01	1	0211-	●	●	●	●	●	●
48	16.110 SPRING; GLOVE BOX LID	8-97853-750-1	01	1	0211-	●	●	●	●	●	●
49	16.110 LID; GLOVE BOX INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-199-5	01	1	0502-	●
49	16.110 LID; GLOVE BOX DARK GRAY	8-97582-199-5	01	1	0502-		●	●	●	●	●
49	16.110 LID; GLOVE BOX DARK GRAY	8-97859-798-5	01	1	0211-0501	●	●	●	●	●	●
49	16.110 LID; GLOVE BOX INTERIOR COLOR GRAY(153) DARK GRAY	8-97859-798-5	01	1	0502-	●
50	16.110 STOPPER; LID,GLOVE BOX,INST CLUS	8-97853-152-0	02	1	0211-	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0211-0604	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0605-0612	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-1101	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-487-1	01	1	0502-	●
62	16.110 KNOB; GLOVE BOX LID DARK GRAY	8-97582-487-1	01	1	0502-		●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID DARK GRAY	8-97857-498-1	01	1	0211-0501	●	●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-498-1	01	1	0502-	●
66	16.085 REINFORCEMENT; INST PANEL	8-97898-461-4	01	1	0211-0505	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-98013-756-1	01	1	0506-	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97898-464-7	01	1	0211-				●	●	●
142	16.085 STAY; INST PANEL	8-97853-637-2	01	1	0211-	●	●	●
142	16.085 STAY; INST PANEL	8-97856-196-2	01	1	0211-				●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97853-638-3	01	1	0211-	●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97856-197-2	01	1	0211-				●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	04	1	0211-0501	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	04	1	0502-	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	01	1	0211-				●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	0211-				●	●	●
179	16.085 BOLT; STAY,INST PANEL 16.350 M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0211-0307	●	●	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	0308-0512	●	●	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL M6X12 W/LK&PL WASHER	0-50640-612-0	02	1	0601-	●	●	●	●	●	●
219	09.744 SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	0211-	●	●	●	●	●	●
323	16.110 SCREW; GLOVE BOX LK 16.067 M5X14	8-94279-325-0	03	1	0211-0612	●	●	●	●	●	●
323	16.110 SCREW; GLOVE BOX LK 09.655 M5X14 TAPPING W/TORQUES	8-98061-856-0	03	1	0701-	●	●	●	●	●	●
335	16.115 GROMMET; GLOVE BOX LK 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0211-	●	●	●	●	●	●
399	16.085 FINISHER; HARNESS 03.885 L=50	8-94270-377-1	01	1	0211-				●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-208-5	01	1	0502-	●
500	16.081 CLUSTER; INST CENTER DARK GRAY	8-97582-208-5	01	1	0502-		●	●
500	16.081 CLUSTER; INST CENTER DARK GRAY	8-97892-187-5	01	1	0211-0501	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR COLOR GRAY(153) DARK GRAY	8-97892-187-5	01	1	0502-	●
500	16.081 CLUSTER; INST CENTER DARK GRAY	8-97868-656-7	01	1	0211-0501				●	●	●
500	16.081 CLUSTER; INST CENTER DARK GRAY	8-97587-475-7	01	1	0502-				●	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-97853-172-8	01	1	0211-	●	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.067 M5X14	8-94279-325-0	02	1	0211-0612	●	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-1101	●	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER INTERIOR COLOR BLUISH GRAY(158) DARK GRAY	8-97582-490-1	01	1	0502-	●
526	16.100 GUIDE; POCKET,INST CLUSTER DARK GRAY	8-97582-490-1	01	1	0502-		●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER DARK GRAY	8-97857-503-1	01	1	0211-0501	●	●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-503-1	01	1	0502-	●
527	16.100 CLIP; INST CLUSTER	8-97853-169-0	04	1	0211-	●	●	●	●	●	●
624	16.085 COVER; CUP STAND EXC. CUP HOLDER<7KZ>	1-72438-139-1	01	1	0211-	●	●	●	●	●	●
660	16.085 BRACKET; VIN PLATE SAUDI ARABIA EQUIPMENT(EU2)	8-97896-985-0	01	1	0211-				●	●
661	16.085 RIVET; BRKT,VIN PLATE SAUDI ARABIA EQUIPMENT(EU2) 10.688	5-09730-002-0	03	1	0211-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
