2-07A — CLUTCH BOOSTER; MINIPACK (#4403) — 82 parça

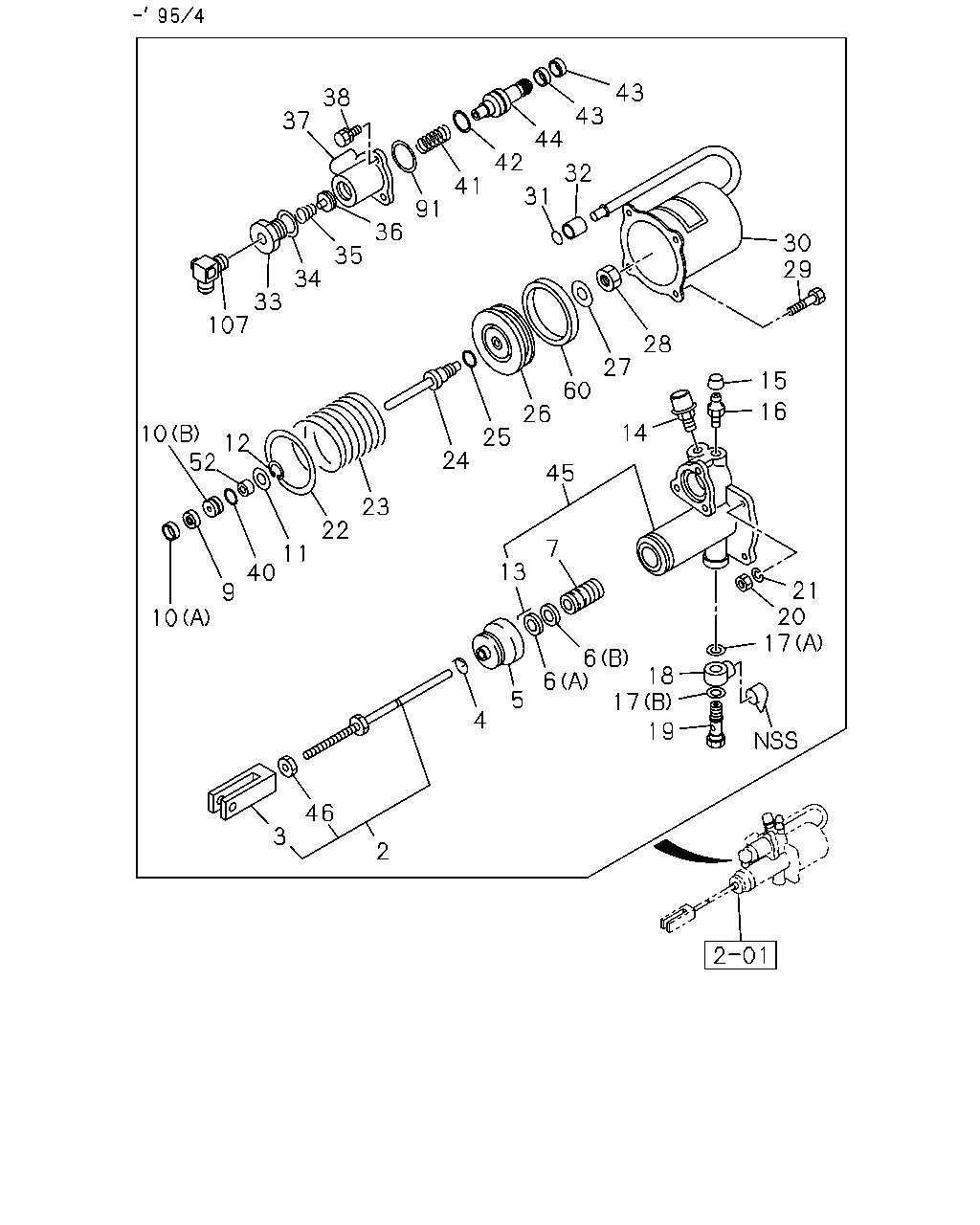

43 38 43 37 44 42 32 41 31 91 36 30 29 35 34 33 107 28 27 15 60 16 26 14 10 12 52 25 24 45 23 22 7 11 40 13 21 20 17 9 10 6 18 17 19 6 5 4 46 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	ROD; PUSH,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-31824-064-0	01	1	9101-9504	●	●	●
2	ROD; PUSH,CLU BOOSTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31824-138-0	01	1	9101-9504	●	●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-31829-188-0	01	1	9101-9504	●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31829-186-0	01	1	9101-9106	●	●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31829-186-0	01	1	9107-9504	●	●	●	●
4	CLAMP; BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-168-0	01	1	9101-9504	●	●	●	●
5	GUARD; PISTON,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-174-0	01	1	9101-9504	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (A)	1-31829-055-0	01	1	9101-9504	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (B)	1-31829-056-0	01	1	9101-9504	●	●	●	●
7	PISTON; CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31821-013-0	01	1	9101-9504	●	●	●	●
9	GASKET; PISTON CUP,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-003-0	01	1	9101-9504	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (B)	1-31829-107-0	01	1	9101-9504	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (A)	1-31829-108-0	01	1	9101-9504	●	●	●	●
11	WASHER; PISTON,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-105-0	01	1	9101-9504	●	●	●	●
12	RING; RET,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	9-83315-315-0	01	1	9101-9504	●	●	●	●
13	PIN; SPR	1-31829-109-0	01	1	9101-9504	●	●	●	●
14	COVER; EXH,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-102-0	01	1	9101-9504	●	●	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	9-83335-044-0	01	1	9101-9504	●	●	●	●
16	PLUG; END PLATE,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	9-83331-704-0	01	1	9101-9504	●	●	●	●
17	GASKET; CONN,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (A)	9-09920-267-0	01	1	9101-9504	●	●	●	●
17	GASKET; CONN,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (B)	9-09920-268-0	01	1	9101-9504	●	●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-31829-182-0	01	1	9101-9504	●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31829-248-0	01	1	9101-9504	●	●	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	9-83315-047-0	01	1	9101-9504	●	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	9-83315-085-0	04	1	9101-9504	●	●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-508-0	04	1	9101-9504	●	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-09623-327-0	01	1	9101-9504	●	●	●	●
23	SPRING; SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-110-0	01	1	9101-9504	●	●	●	●
24	ROD; PUSH,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-112-0	01	1	9101-9504	●	●	●	●
25	GASKET; PUSH ROD,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-09623-321-0	01	1	9101-9504	●	●	●	●
26	PISTON; SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31821-057-0	01	1	9101-9504	●	●	●	●
27	SPRING; CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-111-0	01	1	9101-9504	●	●	●	●
28	NUT; PUSH ROD,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	9-88510-365-0	01	1	9101-9504	●	●	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-015-0	04	1	9101-9504	●	●	●	●
30	SHELL; CYL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31811-026-0	01	1	9101-9504	●	●	●	●
31	GASKET; SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-113-0	01	1	9101-9504	●	●	●	●
32	BUSHING; SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-114-0	01	1	9101-9504	●	●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-31829-214-0	01	1	9101-9504	●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31829-212-0	01	1	9101-9504	●	●	●	●
34	GASKET; CONN,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-053-0	01	1	9101-9504	●	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-077-0	01	1	9101-9504	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-016-0	01	1	9101-9504	●	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-31811-014-0	01	1	9101-9504	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31811-018-0	01	1	9101-9504	●	●	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE CLU SYSTEM MINIPACK(B1Z)	1-44519-022-0	03	1	9101-9504	●	●	●	●
40	GASKET; PISTON,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-037-0	01	1	9101-9504	●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-104-0	01	1	9101-9504	●	●	●	●
42	GASKET; FITTING,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-123-0	01	1	9101-9504	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-060-0	02	1	9101-9504	●	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-31821-015-0	01	1	9101-9504	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31821-019-0	01	1	9101-9504	●	●	●	●
45	PLATE; END,CLU BOOSTER	1-31811-062-0	01	1	9101-9504	●	●	●	●
46	NUT; PUSH ROD,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>	1-31824-126-0	01	1	9101-9202	●	●	●	●
46	NUT; PUSH ROD,CLU BOOSTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31824-126-0	01	1	9203-9504	●	●	●	●
52	SEAL; OIL,END PLATE,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-83315-118-0	01	1	9101-9504	●	●	●
60	GASKET; SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-066-0	01	1	9101-9504	●	●	●	●
91	GASKET; CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-103-0	01	1	9101-9504	●	●	●	●
107	CONNECTOR; ELBOW BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9101-9504	●	●	●	●

1 32 31 25 12 10 43 43 42 91 15 27 60 52 40 9 22 6 6 17 17 36 34 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	REPAIR KIT; CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-183-0	01	1	9101-9504	●	●	●	●
5	GUARD; PISTON,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-174-0	01	1	9101-9504	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (A)	1-31829-055-0	01	1	9101-9504	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (B)	1-31829-056-0	01	1	9101-9504	●	●	●	●
9	GASKET; PISTON CUP,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-003-0	01	1	9101-9504	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (B)	1-31829-107-0	01	1	9101-9504	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (A)	1-31829-108-0	01	1	9101-9504	●	●	●	●
12	RING; RET,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	9-83315-315-0	01	1	9101-9504	●	●	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	9-83335-044-0	01	1	9101-9504	●	●	●	●
17	GASKET; CONN,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (A)	9-09920-267-0	01	1	9101-9504	●	●	●	●
17	GASKET; CONN,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) (B)	9-09920-268-0	01	1	9101-9504	●	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-09623-327-0	01	1	9101-9504	●	●	●	●
25	GASKET; PUSH ROD,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-09623-321-0	01	1	9101-9504	●	●	●	●
27	SPRING; CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-111-0	01	1	9101-9504	●	●	●	●
31	GASKET; SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-113-0	01	1	9101-9504	●	●	●	●
32	BUSHING; SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-114-0	01	1	9101-9504	●	●	●	●
34	GASKET; CONN,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-053-0	01	1	9101-9504	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-016-0	01	1	9101-9504	●	●	●	●
40	GASKET; PISTON,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-037-0	01	1	9101-9504	●	●	●	●
42	GASKET; FITTING,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-123-0	01	1	9101-9504	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-060-0	02	1	9101-9504	●	●	●	●
52	SEAL; OIL,END PLATE,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-83315-118-0	01	1	9101-9504	●	●	●
60	GASKET; SHELL,CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-066-0	01	1	9101-9504	●	●	●	●
91	GASKET; CLU BOOSTER CLU SYSTEM MINIPACK(B1Z)	1-31829-103-0	01	1	9101-9504	●	●	●	●
