6-75 — MAT AND CARPET (#44024) — 121 parça

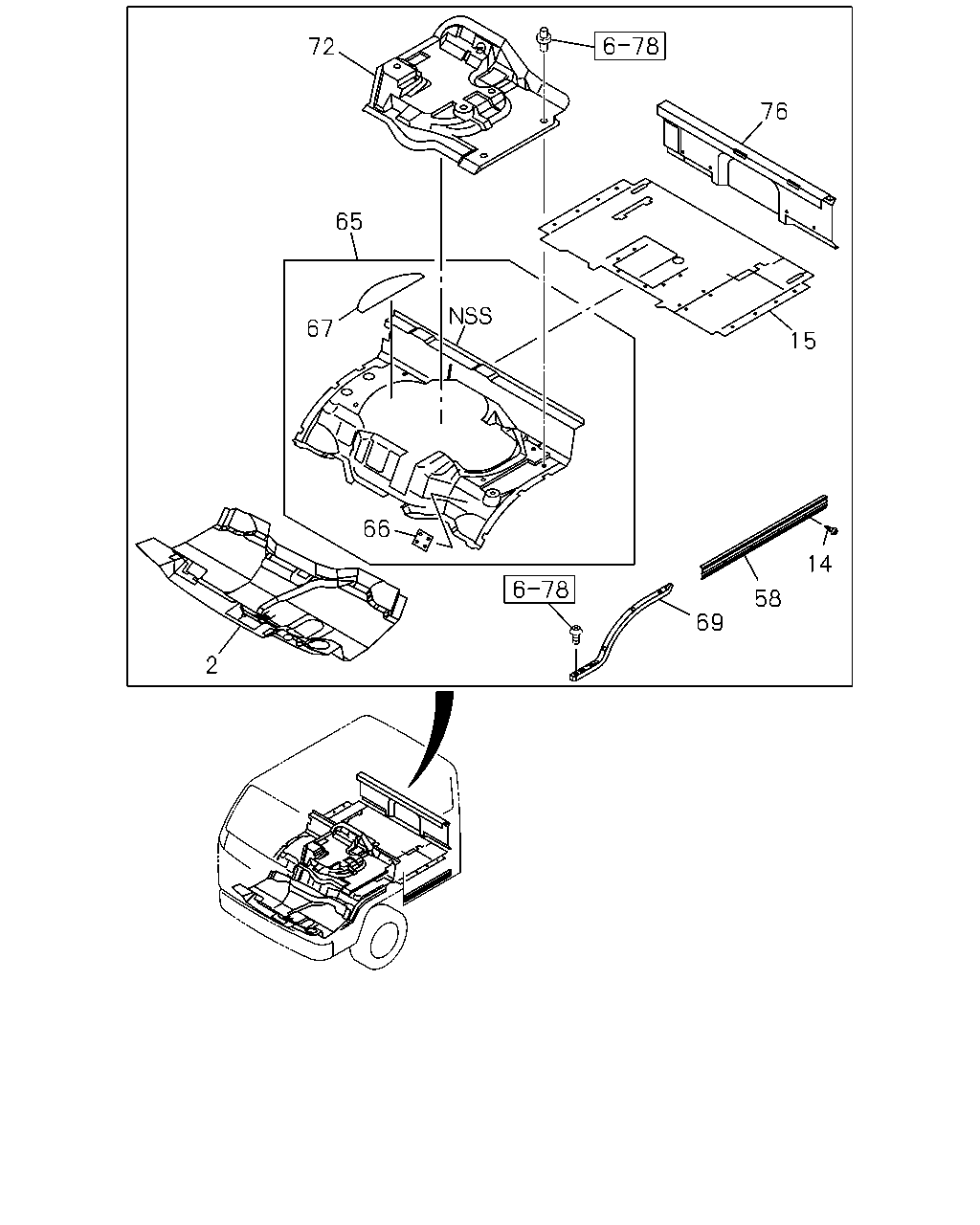

72 76 65 67 15 66 14 58 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR INTERIOR COLOR BLUISH GRAY(158) AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97582-920-4	01	1	0502-	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97582-920-4	01	1	0502-		●	●
2	16.800 MAT; FLOOR INTERIOR COLOR BLUISH GRAY(158) EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97582-919-4	01	1	0502-	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97582-919-4	01	1	0502-		●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-652-2	01	1	0211-0501	●	●	●
2	16.800 MAT; FLOOR INTERIOR COLOR GRAY(153) AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-652-4	01	1	0502-	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-650-2	01	1	0211-0501	●	●	●
2	16.800 MAT; FLOOR INTERIOR COLOR GRAY(153) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-650-4	01	1	0502-	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-632-2	01	1	0211-0501				●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97587-424-4	01	1	0502-				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-630-2	01	1	0211-0501				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97587-423-4	01	1	0502-				●	●	●
14	16.870 SCREW; PLATE 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	0211-0612		●			●
14	16.870 SCREW; PLATE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	0701-		●			●
15	16.800 MAT; FLOOR REAR DARK GRAY	8-97996-668-1	01	1	0211-0501		●			●
15	16.800 MAT; FLOOR REAR GRAY	8-97587-425-2	01	1	0502-		●			●
58	08.153 PLATE; GUARD,RR FLOOR MAT	8-97081-344-3	02	1	0211-		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97587-470-1	01	1	0502-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-470-1	01	1	0502-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-696-0	01	1	0211-0501	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INTERIOR COLOR GRAY(153) DARK GRAY	8-97996-696-1	01	1	0502-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-775-0	01	1	0211-0501		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-471-1	01	1	0502-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-698-0	01	1	0211-0501				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-434-1	01	1	0502-				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-777-0	01	1	0211-0501					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-439-1	01	1	0502-					●
66	16.549 HOOK; COVER INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97583-948-0	02	1	0502-	●
66	16.549 HOOK; COVER GRAY	8-97583-948-0	02	1	0502-		●	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0211-0501	●	●	●	●	●	●
66	16.549 HOOK; COVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97997-582-0	02	1	0502-	●
67	16.549 LID; COVER INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97583-947-0	01	1	0502-	●
67	16.549 LID; COVER GRAY	8-97583-947-0	01	1	0502-		●	●
67	16.549 LID; COVER DARK GRAY	8-97997-586-0	01	1	0211-0501	●	●	●
67	16.549 LID; COVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97997-586-0	01	1	0502-	●
67	16.549 LID; COVER DARK GRAY	8-97997-588-0	01	1	0211-0501				●	●	●
67	16.549 LID; COVER GRAY	8-97587-505-0	01	1	0502-				●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97582-229-1	01	1	0502-0702	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-229-1	01	1	0502-0702		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97409-479-0	01	1	0703-0709	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-479-0	01	1	0703-0709		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY	8-97409-479-0	01	1	0710-	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-479-0	01	1	0710-		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97582-228-1	01	1	0502-0702	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-228-1	01	1	0502-0702		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97409-478-0	01	1	0703-0709	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-478-0	01	1	0703-0709		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY	8-97409-478-0	01	1	0710-	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-478-0	01	1	0710-		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	0211-0501	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-552-1	01	1	0502-0709	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY	8-97857-552-1	01	1	0710-	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	0211-0501	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-551-1	01	1	0502-0709	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY	8-97857-551-1	01	1	0710-	●
72	16.800 MAT; SILENCER,ENG COVER INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97587-473-1	01	1	0502-	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97587-473-1	01	1	0502-		●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-720-0	01	1	0211-0501	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97996-720-1	01	1	0502-	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-765-0	01	1	0211-0501				●	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97587-474-1	01	1	0502-				●	●	●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97985-065-0	01	1	0211-0501		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97582-190-2	01	1	0502-		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97985-086-0	01	1	0211-0501					●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97587-472-2	01	1	0502-					●

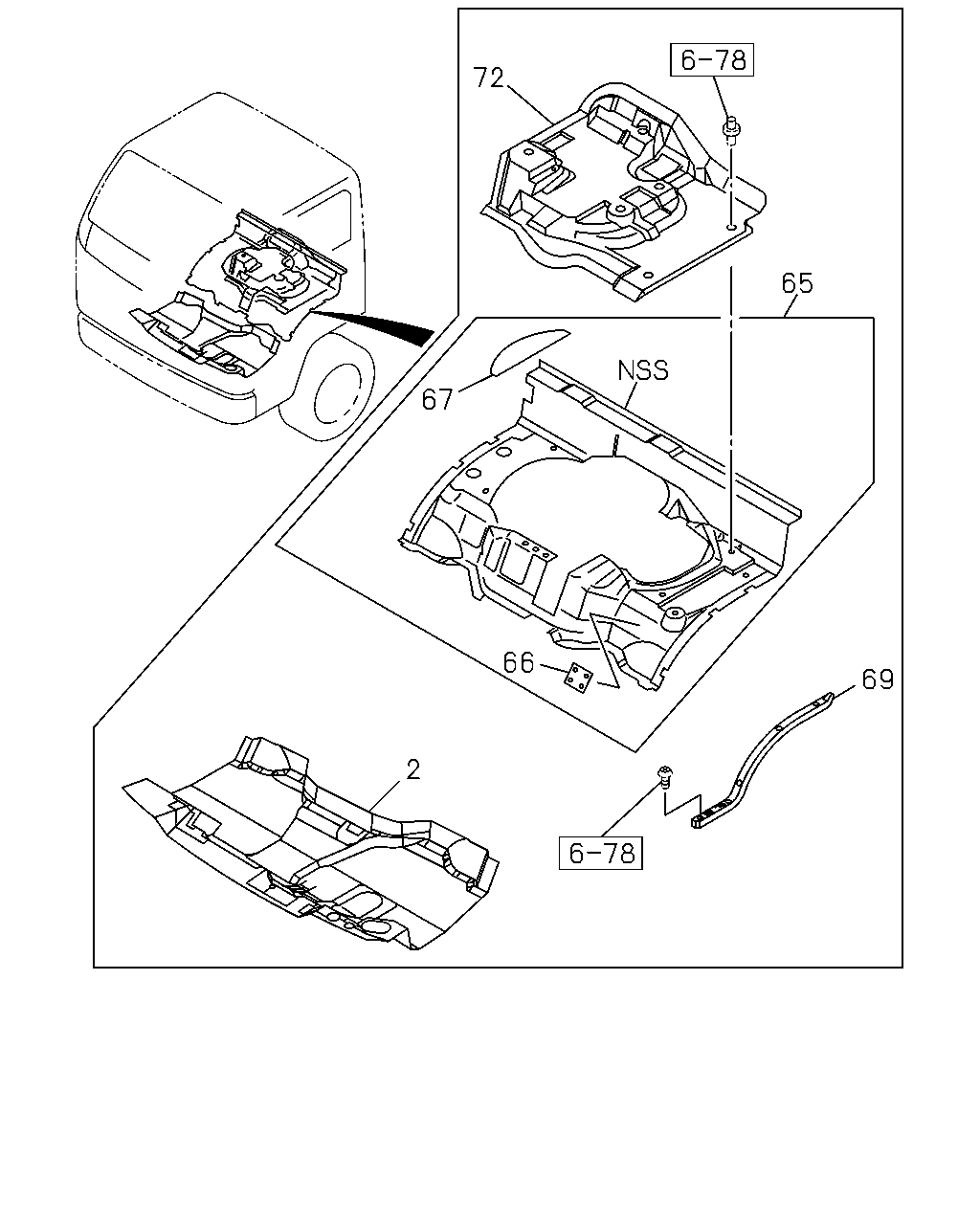

72 65 67 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR INTERIOR COLOR BLUISH GRAY(158) AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97582-920-4	01	1	0502-	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97582-920-4	01	1	0502-		●	●
2	16.800 MAT; FLOOR INTERIOR COLOR BLUISH GRAY(158) EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97582-919-4	01	1	0502-	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97582-919-4	01	1	0502-		●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-652-2	01	1	0211-0501	●	●	●
2	16.800 MAT; FLOOR INTERIOR COLOR GRAY(153) AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-652-4	01	1	0502-	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-650-2	01	1	0211-0501	●	●	●
2	16.800 MAT; FLOOR INTERIOR COLOR GRAY(153) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-650-4	01	1	0502-	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-632-2	01	1	0211-0501				●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97587-424-4	01	1	0502-				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-630-2	01	1	0211-0501				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97587-423-4	01	1	0502-				●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97587-470-1	01	1	0502-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-470-1	01	1	0502-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-696-0	01	1	0211-0501	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INTERIOR COLOR GRAY(153) DARK GRAY	8-97996-696-1	01	1	0502-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-775-0	01	1	0211-0501		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-471-1	01	1	0502-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-698-0	01	1	0211-0501				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-434-1	01	1	0502-				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-777-0	01	1	0211-0501					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97587-439-1	01	1	0502-					●
66	16.549 HOOK; COVER INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97583-948-0	02	1	0502-	●
66	16.549 HOOK; COVER GRAY	8-97583-948-0	02	1	0502-		●	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0211-0501	●	●	●	●	●	●
66	16.549 HOOK; COVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97997-582-0	02	1	0502-	●
67	16.549 LID; COVER INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97583-947-0	01	1	0502-	●
67	16.549 LID; COVER GRAY	8-97583-947-0	01	1	0502-		●	●
67	16.549 LID; COVER DARK GRAY	8-97997-586-0	01	1	0211-0501	●	●	●
67	16.549 LID; COVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97997-586-0	01	1	0502-	●
67	16.549 LID; COVER DARK GRAY	8-97997-588-0	01	1	0211-0501				●	●	●
67	16.549 LID; COVER GRAY	8-97587-505-0	01	1	0502-				●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97582-229-1	01	1	0502-0702	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-229-1	01	1	0502-0702		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97409-479-0	01	1	0703-0709	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-479-0	01	1	0703-0709		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY	8-97409-479-0	01	1	0710-	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-479-0	01	1	0710-		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97582-228-1	01	1	0502-0702	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-228-1	01	1	0502-0702		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97409-478-0	01	1	0703-0709	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-478-0	01	1	0703-0709		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY	8-97409-478-0	01	1	0710-	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-478-0	01	1	0710-		●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	0211-0501	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-552-1	01	1	0502-0709	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY	8-97857-552-1	01	1	0710-	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	0211-0501	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR GRAY(153) DARK GRAY	8-97857-551-1	01	1	0502-0709	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY	8-97857-551-1	01	1	0710-	●
72	16.800 MAT; SILENCER,ENG COVER INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97587-473-1	01	1	0502-	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97587-473-1	01	1	0502-		●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-720-0	01	1	0211-0501	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97996-720-1	01	1	0502-	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-765-0	01	1	0211-0501				●	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97587-474-1	01	1	0502-				●	●	●
