Sayfa 6-66 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶

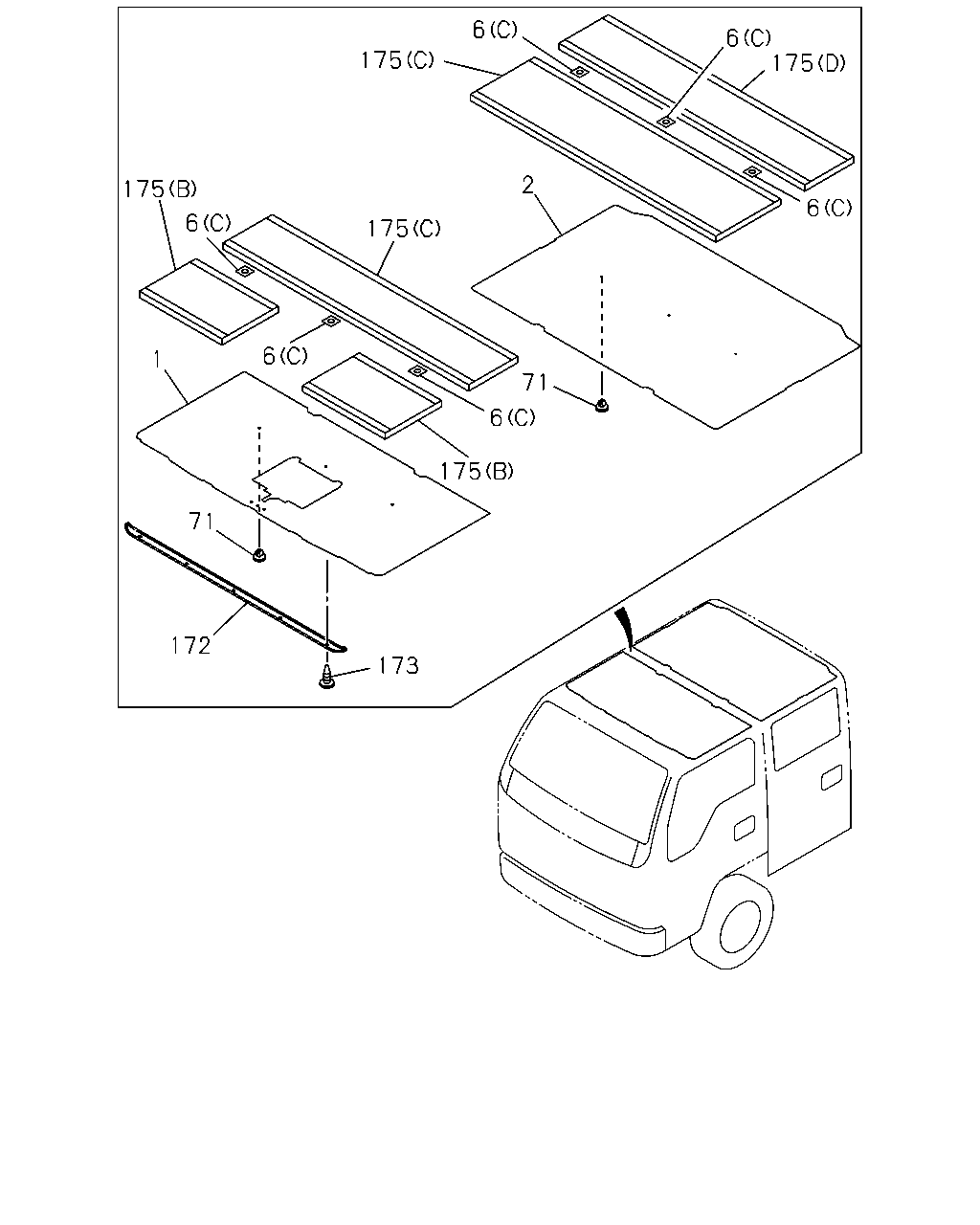

6-66 — HEAD LINING AND TRIM (#44021) — 79 parça

175 6 175 6 1 6 175 71 215 6 215 172 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-646-3	01	1	0211-	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97868-646-3	01	1	0211-				●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-645-3	01	1	0211-	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-645-3	01	1	0211-				●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-644-3	01	1	0211-	●	●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-644-3	01	1	0211-				●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97859-861-4	01	1	0211-	●	●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97859-861-4	01	1	0211-				●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-651-3	01	1	0211-					●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-650-3	01	1	0211-					●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-648-3	01	1	0211-					●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97868-649-4	01	1	0211-					●	●
1	16.742 LINING; HD CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97859-862-2	01	1	0211-				●
6	16.742 SPACER; HD LINING (A)	8-94353-014-0	03	1	0211-	●	●	●	●
6	16.742 SPACER; HD LINING 16.588 (B) H=10 L=55	8-97857-444-0	02	1	0211-0410	●	●	●	●
6	16.742 SPACER; HD LINING 16.588 (B) H=10 L=55	8-97410-832-0	02	1	0411-	●	●	●	●
6	16.742 SPACER; HD LINING (C)	8-94353-014-0	06	1	0211-					●	●
71	16.742 FASTENER; HD LINING LIGHT GRAY	8-97867-230-2	03	1	0211-0610	●	●	●	●
71	16.742 FASTENER; HD LINING DARK GRAY	8-97405-301-2	03	1	0611-	●	●	●	●
71	16.742 FASTENER; HD LINING LIGHT GRAY	8-97867-230-2	06	1	0211-0610					●	●
71	16.742 FASTENER; HD LINING DARK GRAY	8-97405-301-2	06	1	0611-					●	●
172	16.742 RETAINER; HEAD LINING LIGHT GRAY	8-97867-191-4	01	1	0211-	●	●	●		●	●
172	16.742 RETAINER; HEAD LINING EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-191-4	01	1	0211-				●
172	16.742 RETAINER; HEAD LINING CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-190-6	01	1	0211-0708				●
172	16.742 RETAINER; HEAD LINING CAB-LOW ROOF<6XQ> DARK GRAY	8-97406-297-6	01	1	0709-				●
173	16.742 CLIP; RETAINER,HEAD LINING LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	04	1	0211-0708	●	●	●		●	●
173	16.742 CLIP; RETAINER,HEAD LINING EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	04	1	0211-0708				●
173	16.742 CLIP; RETAINER,HEAD LINING DARK GRAY	8-97406-299-0	04	1	0709-	●	●	●		●	●
173	16.742 CLIP; RETAINER,HEAD LINING EXC. CAB-LOW ROOF<6XQ> DARK GRAY	8-97406-299-0	04	1	0709-				●
173	16.742 CLIP; RETAINER,HEAD LINING CAB-LOW ROOF<6XQ> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	0211-0708				●
173	16.742 CLIP; RETAINER,HEAD LINING CAB-LOW ROOF<6XQ> DARK GRAY	8-97406-299-0	05	1	0709-				●
175	16.742 CUSHION; HEAD LINING (B)	8-97856-791-4	02	1	0211-	●	●	●		●	●
175	16.742 CUSHION; HEAD LINING EXC. CAB-LOW ROOF<6XQ> (B)	8-97856-791-4	02	1	0211-				●
175	16.742 CUSHION; HEAD LINING (A)	8-97856-792-4	01	1	0211-	●	●	●
175	16.742 CUSHION; HEAD LINING EXC. CAB-LOW ROOF<6XQ> (A)	8-97856-792-4	01	1	0211-				●
175	16.742 CUSHION; HEAD LINING (C)	8-97856-793-4	02	1	0211-					●	●
175	16.742 CUSHION; HEAD LINING (D)	8-97857-294-3	01	1	0211-					●	●
175	16.742 CUSHION; HEAD LINING CAB-LOW ROOF<6XQ> (B)	8-97856-485-5	02	1	0211-				●
215	16.592 CUSHION; TRAY BACK PANEL ROOF VENTILATOR<C55> 16.587 L=100	8-97866-625-0	02	1	0211-	●	●	●
215	16.592 CUSHION; TRAY BACK PANEL ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ> 16.587 L=100	8-97866-625-0	02	1	0211-				●

6 6 175 175 2 175 6 6 175 6 1 71 6 175 71 172 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-646-3	01	1	0211-	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97868-646-3	01	1	0211-				●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-645-3	01	1	0211-	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-645-3	01	1	0211-				●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-644-3	01	1	0211-	●	●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-644-3	01	1	0211-				●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97859-861-4	01	1	0211-	●	●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97859-861-4	01	1	0211-				●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-651-3	01	1	0211-					●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-650-3	01	1	0211-					●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-648-3	01	1	0211-					●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97868-649-4	01	1	0211-					●	●
1	16.742 LINING; HD CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97859-862-2	01	1	0211-				●
2	16.742 LINING; HD,ROOF RR LIGHT GRAY	8-97868-652-3	01	1	0211-					●	●
6	16.742 SPACER; HD LINING (A)	8-94353-014-0	03	1	0211-	●	●	●	●
6	16.742 SPACER; HD LINING 16.588 (B) H=10 L=55	8-97857-444-0	02	1	0211-0410	●	●	●	●
6	16.742 SPACER; HD LINING 16.588 (B) H=10 L=55	8-97410-832-0	02	1	0411-	●	●	●	●
6	16.742 SPACER; HD LINING (C)	8-94353-014-0	06	1	0211-					●	●
71	16.742 FASTENER; HD LINING LIGHT GRAY	8-97867-230-2	03	1	0211-0610	●	●	●	●
71	16.742 FASTENER; HD LINING DARK GRAY	8-97405-301-2	03	1	0611-	●	●	●	●
71	16.742 FASTENER; HD LINING LIGHT GRAY	8-97867-230-2	06	1	0211-0610					●	●
71	16.742 FASTENER; HD LINING DARK GRAY	8-97405-301-2	06	1	0611-					●	●
172	16.742 RETAINER; HEAD LINING LIGHT GRAY	8-97867-191-4	01	1	0211-	●	●	●		●	●
172	16.742 RETAINER; HEAD LINING EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-191-4	01	1	0211-				●
172	16.742 RETAINER; HEAD LINING CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-190-6	01	1	0211-0708				●
172	16.742 RETAINER; HEAD LINING CAB-LOW ROOF<6XQ> DARK GRAY	8-97406-297-6	01	1	0709-				●
173	16.742 CLIP; RETAINER,HEAD LINING LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	04	1	0211-0708	●	●	●		●	●
173	16.742 CLIP; RETAINER,HEAD LINING EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	04	1	0211-0708				●
173	16.742 CLIP; RETAINER,HEAD LINING DARK GRAY	8-97406-299-0	04	1	0709-	●	●	●		●	●
173	16.742 CLIP; RETAINER,HEAD LINING EXC. CAB-LOW ROOF<6XQ> DARK GRAY	8-97406-299-0	04	1	0709-				●
173	16.742 CLIP; RETAINER,HEAD LINING CAB-LOW ROOF<6XQ> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	0211-0708				●
173	16.742 CLIP; RETAINER,HEAD LINING CAB-LOW ROOF<6XQ> DARK GRAY	8-97406-299-0	05	1	0709-				●
175	16.742 CUSHION; HEAD LINING (B)	8-97856-791-4	02	1	0211-	●	●	●		●	●
175	16.742 CUSHION; HEAD LINING EXC. CAB-LOW ROOF<6XQ> (B)	8-97856-791-4	02	1	0211-				●
175	16.742 CUSHION; HEAD LINING (A)	8-97856-792-4	01	1	0211-	●	●	●
175	16.742 CUSHION; HEAD LINING EXC. CAB-LOW ROOF<6XQ> (A)	8-97856-792-4	01	1	0211-				●
175	16.742 CUSHION; HEAD LINING (C)	8-97856-793-4	02	1	0211-					●	●
175	16.742 CUSHION; HEAD LINING (D)	8-97857-294-3	01	1	0211-					●	●
175	16.742 CUSHION; HEAD LINING CAB-LOW ROOF<6XQ> (B)	8-97856-485-5	02	1	0211-				●
