◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06B - CLUTCH SLAVE CYLINDER ▶
2-06B — CLUTCH SLAVE CYLINDER (#4402) — 59 parça

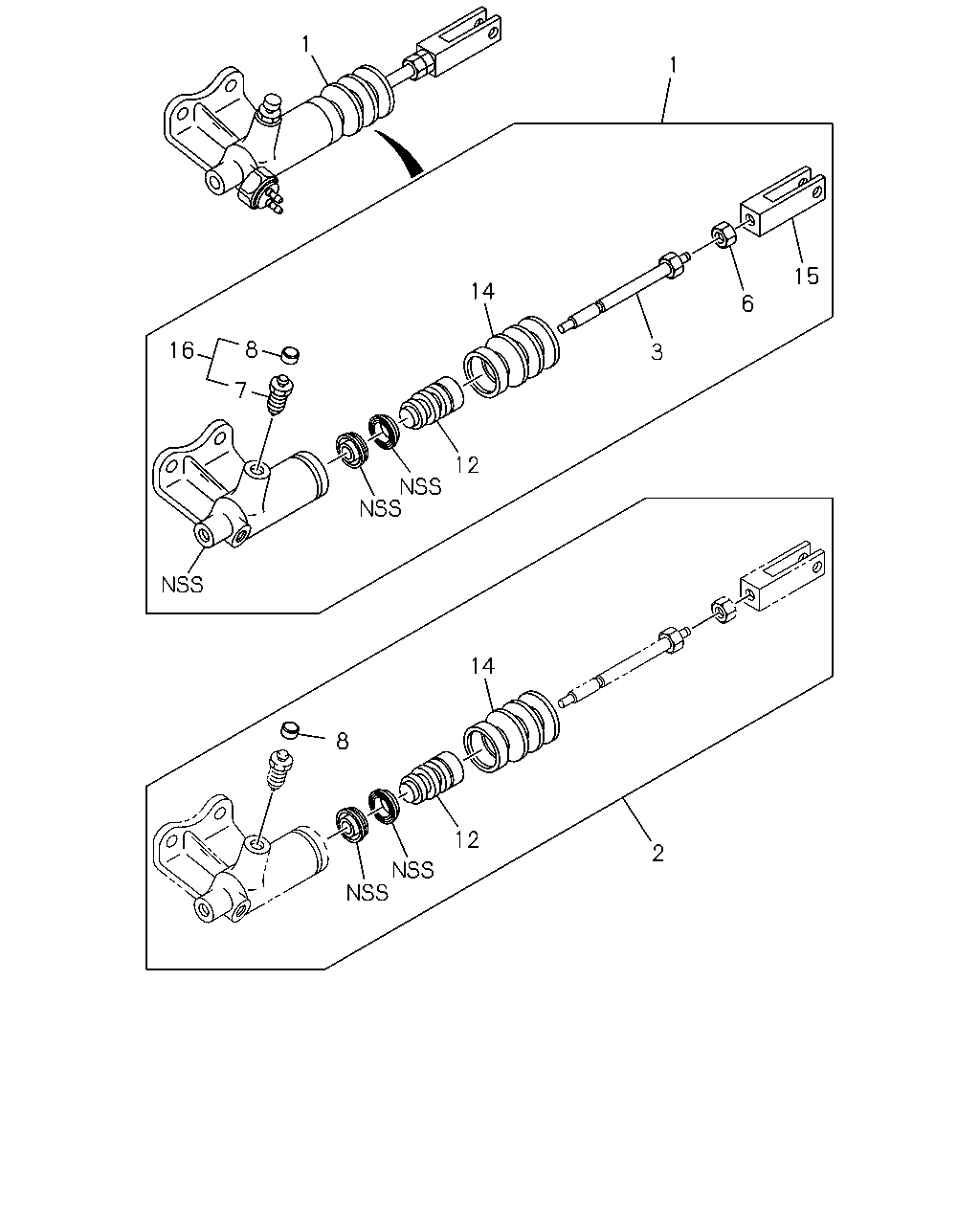

çizim 37202
1 1 15 14 6 8 16 3 7 12 14 8 12 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CYLINDER; SLAVE,CLU
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47570-050-1 01 1 9202-9202 ●
1 CYLINDER; SLAVE,CLU
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47570-050-2 01 1 9203-9504 ● ● ●
1 CYLINDER; SLAVE,CLU
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47570-050-2 01 1 9505-9701 ● ● ●
1 CYLINDER; SLAVE,CLU
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47570-050-2 01 1 9702-0203 ● ● ● ●
1 CYLINDER; SLAVE,CLU
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47570-050-3 01 1 0204- ● ● ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-87830-533-0 01 1 9202-9202 ●
2 REPAIR KIT; CLU SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-87830-533-0 01 1 9203-9306 ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-87830-533-0 01 1 9307-9504 ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-87830-533-0 01 1 9505-9701 ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-87830-533-0 01 1 9702-0203 ● ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-87830-533-1 01 1 0204- ● ● ● ● ●
3 ROD; PUSH,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47573-005-0 01 1 9202-9202 ●
3 ROD; PUSH,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47573-005-0 01 1 9203-9504 ● ● ●
3 ROD; PUSH,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47573-005-0 01 1 9505-9701 ● ● ●
3 ROD; PUSH,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47573-005-0 01 1 9702-0203 ● ● ● ●
3 ROD; PUSH,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47573-005-0 01 1 0204- ● ● ● ● ●
6 NUT; LK,ROD END
EXC. CLU SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 9202-9202 ●
6 NUT; LK,ROD END
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 9203-9306 ● ● ●
6 NUT; LK,ROD END
EXC. CLU SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 9307-9504 ● ● ●
6 NUT; LK,ROD END
EXC. CLU SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 9505-9701 ● ● ●
6 NUT; LK,ROD END
EXC. CLU SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 9702-0203 ● ● ● ●
6 NUT; LK,ROD END
EXC. CLU SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 0204-0512 ● ● ● ● ●
6 NUT; LK,ROD END
EXC. CLU SYSTEM MINIPACK(B1Z) M10 		0-91111-510-0 01 1 0601- ● ● ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		9-47615-008-1 01 1 9202-9202 ●
7 SCREW; BLEEDER,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		9-47615-008-1 01 1 9203-9302 ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47615-019-0 01 1 9303-9504 ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47615-019-0 01 1 9505-9701 ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47615-019-0 01 1 9702-0203 ● ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47615-019-0 01 1 0204- ● ● ● ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 9202-9202 ●
8 CAP; BLEEDER,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 9203-9306 ● ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 9307-9504 ● ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 9505-9701 ● ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 9702-0203 ● ● ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 0204-1209 ● ● ● ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) OD=10 		8-97940-638-0 01 1 1210- ● ● ● ● ●
12 PISTON; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 9202-9202 ●
12 PISTON; SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 9203-9306 ● ● ●
12 PISTON; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 9307-9504 ● ● ●
12 PISTON; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 9505-9701 ● ● ●
12 PISTON; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 9702-0203 ● ● ● ●
12 PISTON; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 0204- ● ● ● ● ●
14 BOOT; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 9202-9202 ●
14 BOOT; SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 9203-9306 ● ● ●
14 BOOT; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 9307-9504 ● ● ●
14 BOOT; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 9505-9701 ● ● ●
14 BOOT; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 9702-0203 ● ● ● ●
14 BOOT; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 0204- ● ● ● ● ●
15 JOINT; JAW,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-014-1 01 1 9202-9202 ●
15 JOINT; JAW,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-014-1 01 1 9203-9504 ● ● ●
15 JOINT; JAW,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-014-1 01 1 9505-9701 ● ● ●
15 JOINT; JAW,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-014-1 01 1 9702-0203 ● ● ● ●
15 JOINT; JAW,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-014-1 01 1 0204- ● ● ● ● ●
16 VALVE; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 9202-9202 ●
16 VALVE; SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 9203-9306 ● ● ●
16 VALVE; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 9307-9504 ● ● ●
16 VALVE; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 9505-9701 ● ● ●
16 VALVE; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 9702-0203 ● ● ● ●
16 VALVE; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 0204- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
