6-47 — MUD GUARD AND INSULATOR (#44015) — 105 parça

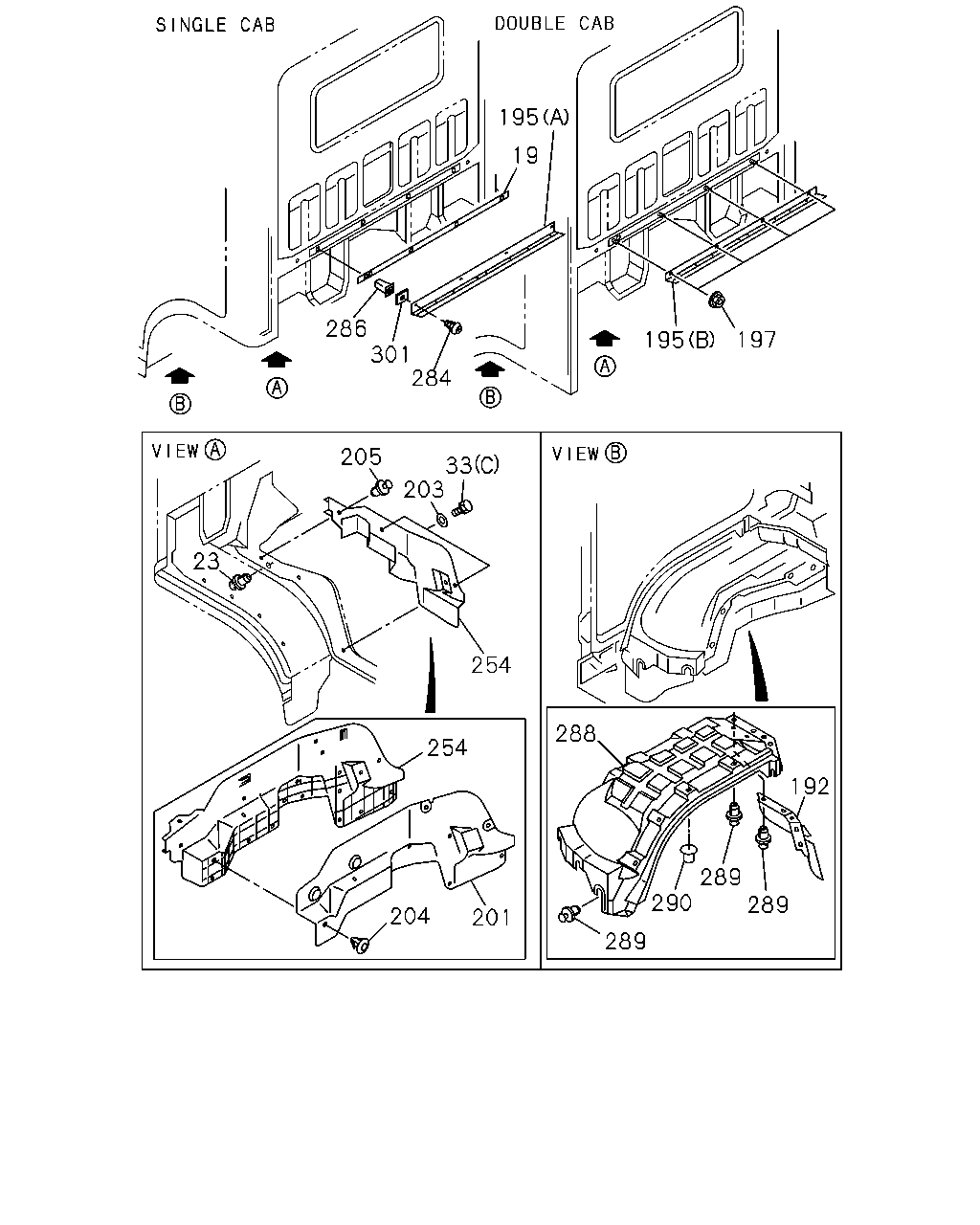

195 19 286 301 284 197 195 205 33 203 23 254 288 254 192 289 290 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ>	8-98191-582-0	01	1	1106-	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	0211-0211	●	●	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6)	8-97856-016-0	01	1	0212-1105	●	●	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6)	8-97856-016-0	01	1	1106-		●	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ>	8-97856-016-0	01	1	1106-	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0211-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0512	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0512	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0512	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0805	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER	8-97857-297-4	02	1	0211-1106	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER	8-98192-031-0	02	1	1107-	●	●	●	●	●	●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6) (A)	8-97094-833-2	01	1	0211-	●	●	●	●
195	03.602 PROTECTOR; HEAT (B)	8-94462-569-1	01	1	0211-					●	●
197	03.602 NUT; HEAT PROTECTOR,CAB BACK 03.417 M6 FLANGE	8-94279-514-0	03	1	0211-					●	●
201	08.155 INSULATOR; VALANCE	8-97853-117-3	01	1	0211-	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE	8-97853-116-3	01	1	0211-	●	●	●	●	●	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0211-0604	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0211-0308	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	10	1	0309-	●	●	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0211-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-072-4	01	1	0211-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-071-4	01	1	0211-	●	●	●	●	●	●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0211-0612	●	●	●	●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-	●	●	●	●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0211-	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-579-1	01	1	0211-0212	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-578-1	01	1	0211-0212	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	0211-0212	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0301-	●	●	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0211-	●	●	●	●	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0211-	●	●	●	●

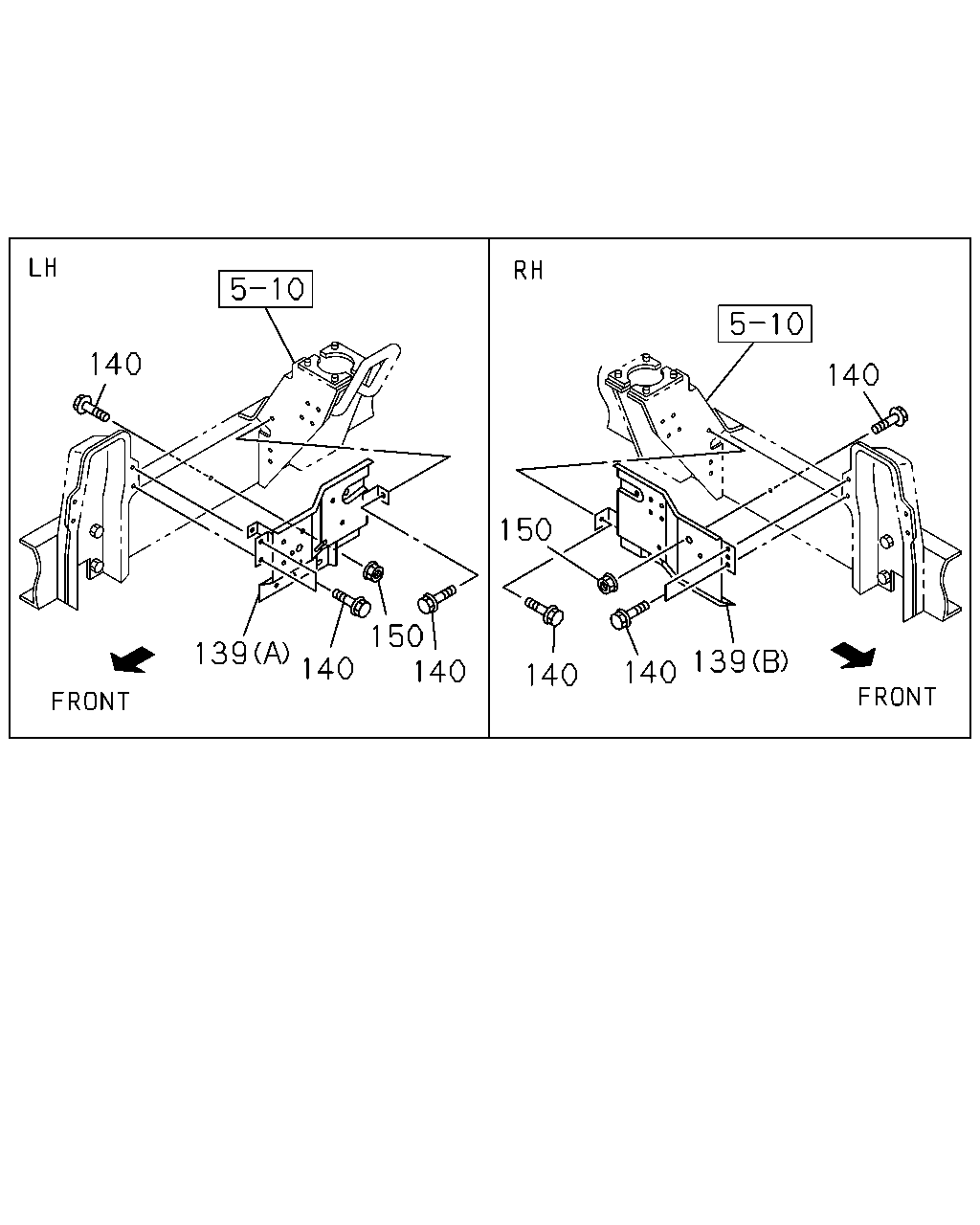

140 140 150 150 140 139 140 139 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
139	08.153 PANEL; SIDE AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97083-093-1	01	1	0211-0501		●
139	08.153 PANEL; SIDE AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97083-093-1	01	1	0211-0501			●
139	08.153 PANEL; SIDE AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97083-093-1	01	1	0502-0606		●
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97083-093-1	01	1	0502-0606			●
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97083-093-1	01	1	0607-		●	●
139	08.153 PANEL; SIDE (B)	8-97078-381-1	01	1	0211-	●	●	●	●	●	●
139	08.153 PANEL; SIDE AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-774-3	01	1	0211-0501		●	●
139	08.153 PANEL; SIDE (A)	8-97035-774-3	01	1	0211-0501	●			●	●	●
139	08.153 PANEL; SIDE AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97035-774-3	01	1	0211-0501			●
139	08.153 PANEL; SIDE AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-774-3	01	1	0502-0606		●
139	08.153 PANEL; SIDE (A)	8-97035-774-3	01	1	0502-0606				●	●	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97035-774-3	01	1	0502-0606			●
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-774-3	01	1	0502-0606			●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97035-774-3	01	1	0502-0606	●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97035-774-3	01	1	0607-		●	●
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-774-3	01	1	0607-		●	●
139	08.153 PANEL; SIDE (A)	8-97035-774-3	01	1	0607-				●	●	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97035-774-3	01	1	0607-	●
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE	0-28680-825-0	07	1	0211-0512	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0601-	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	03	1	0211-0602	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●	●	●

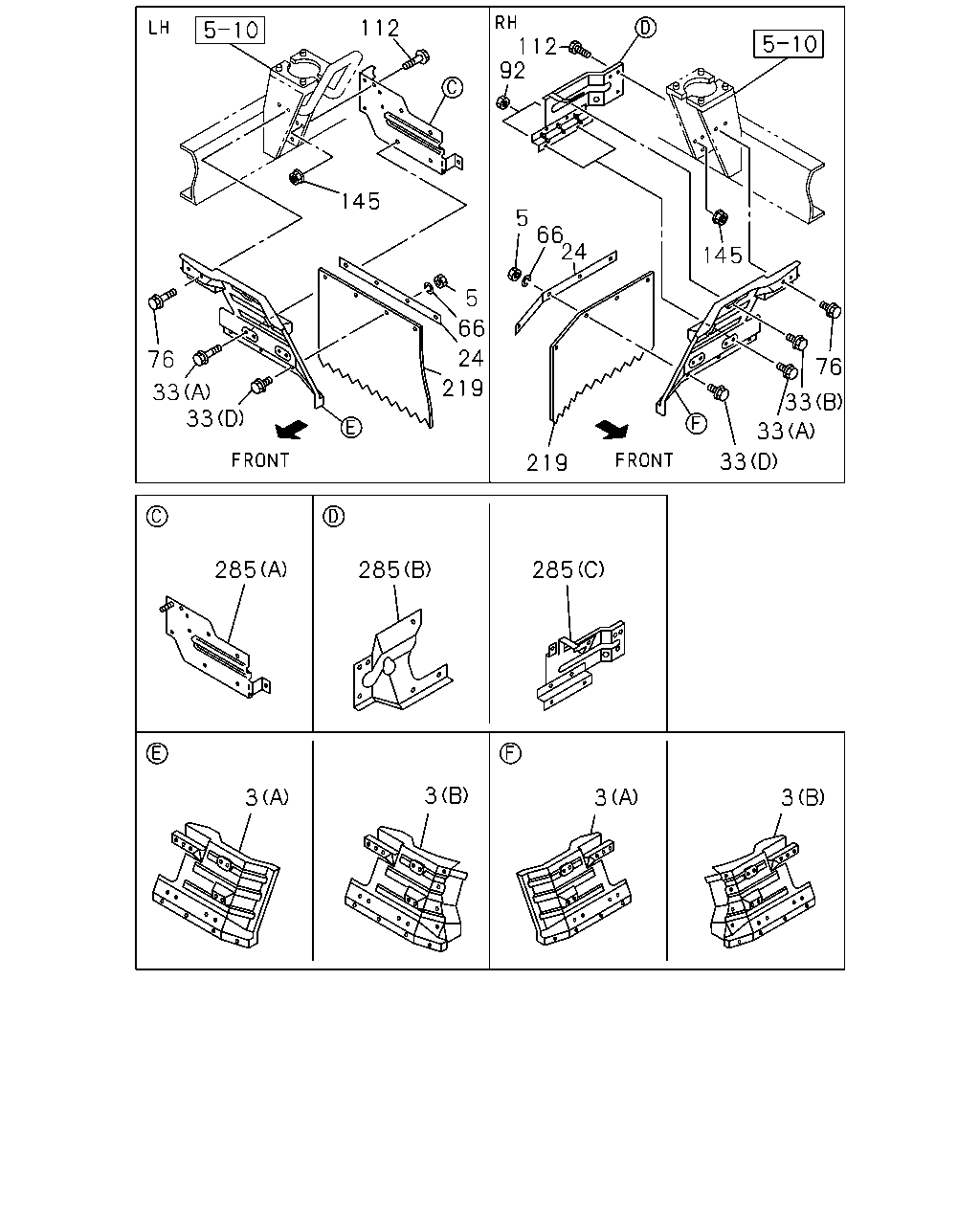

112 92 112 145 5 66 24 145 5 66 24 76 76 219 33 33 33 33 33 219 285 285 285 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	08.153 GUARD; MUD,RR (A)	8-97048-729-1	01	1	0211-0312	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	0401-	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0211-	●	●	●	●
3	08.153 GUARD; MUD,RR (B)	8-97081-735-3	01	1	0211-0312					●	●
3	08.153 GUARD; MUD,RR (B)	8-97366-989-1	01	1	0401-					●	●
3	08.153 GUARD; MUD,RR (B)	8-97081-734-5	01	1	0211-					●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0211-0512	●	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	0211-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0512	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0512	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0512	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0805	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0211-0603	●	●	●	●	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-	●	●	●	●	●	●
76	08.155 BOLT; MUD GUARD 04.595 M8X20 FLANGE	0-28480-820-0	02	1	0211-0512	●	●	●	●	●	●
76	08.155 BOLT; MUD GUARD 07.242 M8X20 FLANGE	0-28450-820-0	02	1	0601-	●	●	●	●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●	●	●	●
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0211-0512	●	●	●	●	●	●
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●	●	●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0211-0602	●	●	●	●	●	●
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-078-0	02	1	0211-	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0211-0501	●	●		●	●	●
285	08.155 BRACKET; MUD COVER EXC. CHARGE AIR COOLER<6PL> (A)	8-97035-780-4	01	1	0211-0501			●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0502-0606		●		●	●	●
285	08.155 BRACKET; MUD COVER 4JB1 NA ENG(RLF) (A)	8-97035-780-4	01	1	0502-0606			●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97035-780-4	01	1	0502-0606	●
285	08.155 BRACKET; MUD COVER 4JB1 NA ENG(RLF) (A)	8-97035-780-4	01	1	0607-		●	●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0607-				●	●	●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97035-780-4	01	1	0607-	●
285	08.155 BRACKET; MUD COVER AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97089-653-2	01	1	0211-		●	●
285	08.155 BRACKET; MUD COVER AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	0211-		●	●
285	08.155 BRACKET; MUD COVER (C)	8-97035-778-4	01	1	0211-	●			●
285	08.155 BRACKET; MUD COVER (C)	8-97103-463-0	01	1	0211-					●	●
285	08.155 BRACKET; MUD COVER CHARGE AIR COOLER<6PL> (A)	8-97225-272-1	01	1	0211-0501			●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT) (A)	8-97225-272-1	01	1	0502-0606			●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT) (A)	8-97225-272-1	01	1	0607-		●	●
