◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06A - CLUTCH SLAVE CYLINDER ▶
2-06A — CLUTCH SLAVE CYLINDER (#4401) — 44 parça

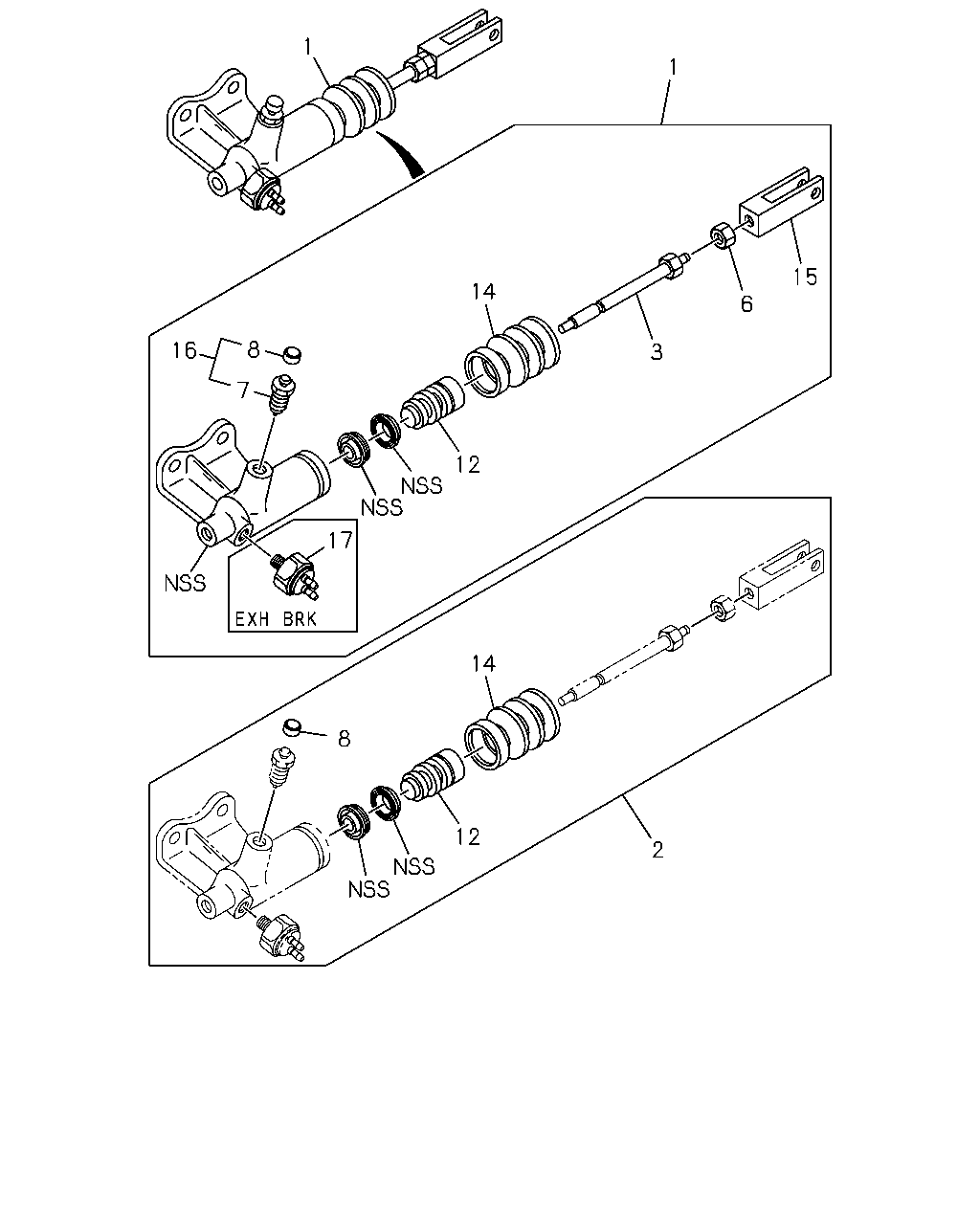

çizim 39001
1 1 15 14 6 8 16 3 7 12 17 14 8 12 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER; SLAVE,CLU
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B>,EXH BRK<NF8> 		1-47570-039-0 01 1 9101-9504 ● ● ●
1 CYLINDER; SLAVE,CLU
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> 		1-47570-041-1 01 1 9101-9504 ● ● ●
1 CYLINDER; SLAVE,CLU
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47570-050-1 01 1 9101-9201 ● ● ●
1 CYLINDER; SLAVE,CLU
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47570-050-1 01 1 9202-9202 ● ● ●
1 CYLINDER; SLAVE,CLU
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47570-050-2 01 1 9203-9504 ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-87830-533-0 01 1 9101-9201 ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-87830-533-0 01 1 9202-9202 ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-87830-533-0 01 1 9203-9306 ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-87830-533-0 01 1 9307-9504 ● ● ● ●
3 ROD; PUSH,SLAVE CYL
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> 		1-47541-021-0 01 1 9101-9504 ● ● ●
3 ROD; PUSH,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47573-005-0 01 1 9101-9201 ● ● ●
3 ROD; PUSH,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47573-005-0 01 1 9202-9202 ● ● ●
3 ROD; PUSH,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47573-005-0 01 1 9203-9504 ● ● ●
6 NUT; LK,ROD END
EXC. CLU SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 9101-9201 ● ● ●
6 NUT; LK,ROD END
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 9202-9202 ● ● ●
6 NUT; LK,ROD END
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 9203-9306 ● ● ●
6 NUT; LK,ROD END
EXC. CLU SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 9307-9504 ● ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		9-47615-008-1 01 1 9101-9201 ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		9-47615-008-1 01 1 9202-9202 ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		9-47615-008-1 01 1 9203-9302 ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B>,EXH BRK<NF8> 		9-47615-008-1 01 1 9303-9504 ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47615-019-0 01 1 9303-9504 ● ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> 		1-47615-019-0 01 1 9303-9504 ● ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 9101-9201 ● ● ●
8 CAP; BLEEDER,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 9202-9202 ● ● ●
8 CAP; BLEEDER,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 9203-9306 ● ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 9307-9504 ● ● ● ●
12 PISTON; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 9101-9201 ● ● ●
12 PISTON; SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 9202-9202 ● ● ●
12 PISTON; SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 9203-9306 ● ● ●
12 PISTON; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 9307-9504 ● ● ● ●
14 BOOT; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 9101-9201 ● ● ●
14 BOOT; SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 9202-9202 ● ● ●
14 BOOT; SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 9203-9306 ● ● ●
14 BOOT; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 9307-9504 ● ● ● ●
15 JOINT; JAW,SLAVE CYL
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> 		9-09512-410-0 01 1 9101-9504 ● ● ●
15 JOINT; JAW,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-014-1 01 1 9101-9201 ● ● ●
15 JOINT; JAW,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-014-1 01 1 9202-9202 ● ● ●
15 JOINT; JAW,SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-014-1 01 1 9203-9504 ● ● ●
16 VALVE; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 9101-9201 ● ● ●
16 VALVE; SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 9202-9202 ● ● ●
16 VALVE; SLAVE CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 9203-9306 ● ● ●
16 VALVE; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 9307-9504 ● ● ● ●
17 SWITCH; EXH BRAKE,SLAVE CYL
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> 		1-82410-024-0 01 1 9101-9504 ● ● ●
