◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#44007) — 194 parça

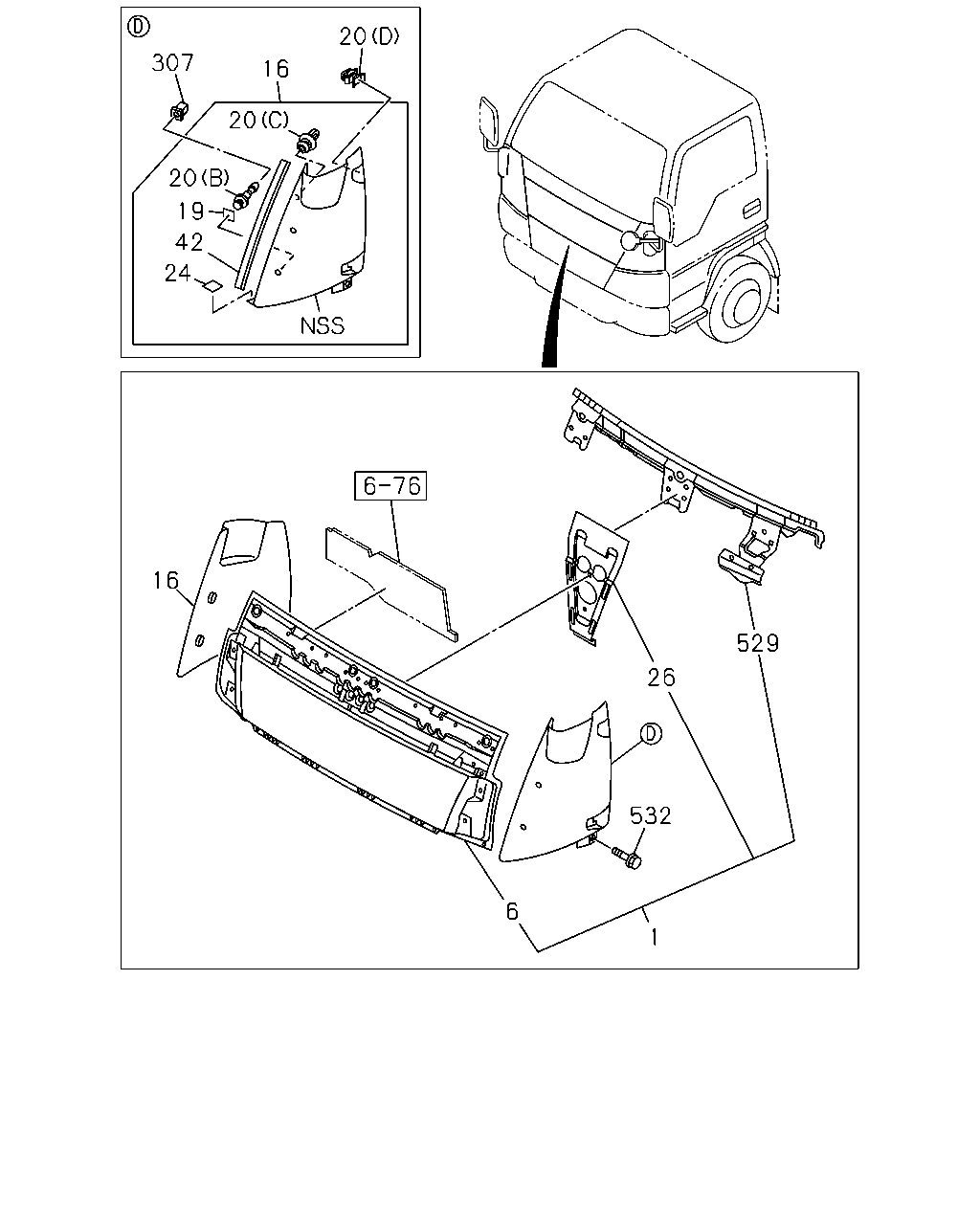

çizim 50574
20 307 16 20 20 19 42 24 16 529 26 532 6 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.550 PANEL ASM; FRT
EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-815-0 01 1 0502- ●
1 16.550 PANEL ASM; FRT 8-97581-815-0 01 1 0502- ● ●
1 16.550 PANEL ASM; FRT 8-97859-424-0 01 1 0211-0501 ● ● ●
1 16.550 PANEL ASM; FRT
INDONESIA EQUIPMENT(S4S) 		8-97859-424-0 01 1 0502- ●
1 16.550 PANEL ASM; FRT 8-97869-030-1 01 1 0211-0501 ● ● ●
1 16.550 PANEL ASM; FRT 8-97582-868-0 01 1 0502- ● ● ●
6 16.570 PANEL; FRONT
EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-637-3 01 1 0502- ●
6 16.570 PANEL; FRONT 8-97581-637-3 01 1 0502- ● ●
6 16.570 PANEL; FRONT 8-97859-423-3 01 1 0211-0501 ● ● ●
6 16.570 PANEL; FRONT
INDONESIA EQUIPMENT(S4S) 		8-97859-423-3 01 1 0502- ●
6 16.570 PANEL; FRONT 8-97869-031-2 01 1 0211-0501 ● ● ●
6 16.570 PANEL; FRONT 8-97582-871-2 01 1 0502- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. INDONESIA EQUIPMENT(S4S) SILVER 		8-97582-451-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> SILVER 		8-97582-451-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-451-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. INDONESIA EQUIPMENT(S4S) SILVER 		8-97582-467-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> SILVER 		8-97582-467-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-467-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. INDONESIA EQUIPMENT(S4S) WHITE 		8-97582-455-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 0502- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> WHITE 		8-97582-455-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. INDONESIA EQUIPMENT(S4S) WHITE 		8-97582-471-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 0502- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> WHITE 		8-97582-471-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. INDONESIA EQUIPMENT(S4S) BLUE 		8-97582-459-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 0502- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> BLUE 		8-97582-459-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. INDONESIA EQUIPMENT(S4S) BLUE 		8-97582-475-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 0502- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> BLUE 		8-97582-475-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0211-0501 ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
INDONESIA EQUIPMENT(S4S) PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0211-0501 ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
INDONESIA EQUIPMENT(S4S) PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-788-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-785-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-430-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-428-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-789-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-786-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-431-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-429-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-790-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-787-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-711-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-710-6 01 1 0502- ● ●
19 16.588 SEAL; FRT SIDE PANEL
EXC. INDONESIA EQUIPMENT(S4S) 08.131 		8-97581-676-0 04 1 0502-1008 ●
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 08.131 		8-97581-676-0 04 1 0502-1008 ● ●
19 16.588 SEAL; FRT SIDE PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37>,DOOR MIRROR<6VE> 08.131 		8-97581-676-0 04 1 0502-1008 ● ●
19 16.588 SEAL; FRT SIDE PANEL
08.131 		8-97581-676-0 04 1 0502-1008 ●
20 16.588 CLIP; FRT PANEL SIDE
EXC. INDONESIA EQUIPMENT(S4S) 16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502- ●
20 16.588 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502- ● ●
20 16.588 CLIP; FRT PANEL SIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37>,DOOR MIRROR<6VE> 16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502- ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502- ●
20 16.588 CLIP; FRT PANEL SIDE
EXC. INDONESIA EQUIPMENT(S4S) (D) 		8-97581-632-1 04 1 0502- ●
20 16.588 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0502- ● ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
EXC. INDONESIA EQUIPMENT(S4S) 16.165 (C) H=11.2 		8-97807-381-0 02 1 0502-0503 ●
20 16.588 CLIP; FRT PANEL SIDE
16.165 (C) H=11.2 		8-97807-381-0 02 1 0502-0503 ● ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
EXC. INDONESIA EQUIPMENT(S4S) (C) H=11.6 		8-98013-823-0 02 1 0504- ●
20 16.588 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (C) H=11.6 		8-98013-823-0 02 1 0504- ● ●
20 16.588 CLIP; FRT PANEL SIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37>,DOOR MIRROR<6VE> (C) H=11.6 		8-98013-823-0 02 1 0504- ● ●
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0504- ●
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 0211-0501 ● ● ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
INDONESIA EQUIPMENT(S4S) (A) 		8-94279-814-0 04 1 0502- ●
24 08.131 SEAL; FRT PANEL LWR
EXC. INDONESIA EQUIPMENT(S4S) 		8-97583-672-0 02 1 0502-0807 ●
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0502-0807 ● ● ● ● ●
24 08.131 SEAL; FRT PANEL LWR
IDENTIFICATION LABEL FOR KD<6UT> EXC. INDONESIA EQUIPMENT(S4S) 		8-97583-672-0 02 1 0808-0809 ●
24 08.131 SEAL; FRT PANEL LWR
IDENTIFICATION LABEL FOR KD<6UT> 		8-97583-672-0 02 1 0808-0809 ● ● ● ● ●
24 08.131 SEAL; FRT PANEL LWR
KD PREPARATORY PACK VAR.4<7TV> EXC. INDONESIA EQUIPMENT(S4S) 		8-97583-672-0 02 1 0810- ●
24 08.131 SEAL; FRT PANEL LWR
KD PREPARATORY PACK VAR.4<7TV> 		8-97583-672-0 02 1 0810- ● ● ● ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 0211- ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-043-0 01 1 0502- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-044-0 01 1 0502- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-613-3 01 1 0502-0807 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0502-0807 ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-613-3 01 1 0808-0809 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0808-0809 ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-613-3 01 1 0810- ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0810- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-614-3 01 1 0502-0807 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0502-0807 ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-614-3 01 1 0808-0809 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0808-0809 ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-614-3 01 1 0810- ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0810- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0211-0501 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
INDONESIA EQUIPMENT(S4S) 		8-97857-413-0 02 1 0502- ●
307 16.125 GROMMET; FRT PANEL
EXC. INDONESIA EQUIPMENT(S4S) 		8-97583-397-0 04 1 0502- ●
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0502- ● ● ● ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-044-3 01 1 0211- ● ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-373-2 01 1 0211- ● ● ●
532 08.143 BOLT; FRT PANEL
EXC. INDONESIA EQUIPMENT(S4S) 02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 0502- ●
532 08.143 BOLT; FRT PANEL
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 0502- ● ● ● ● ●

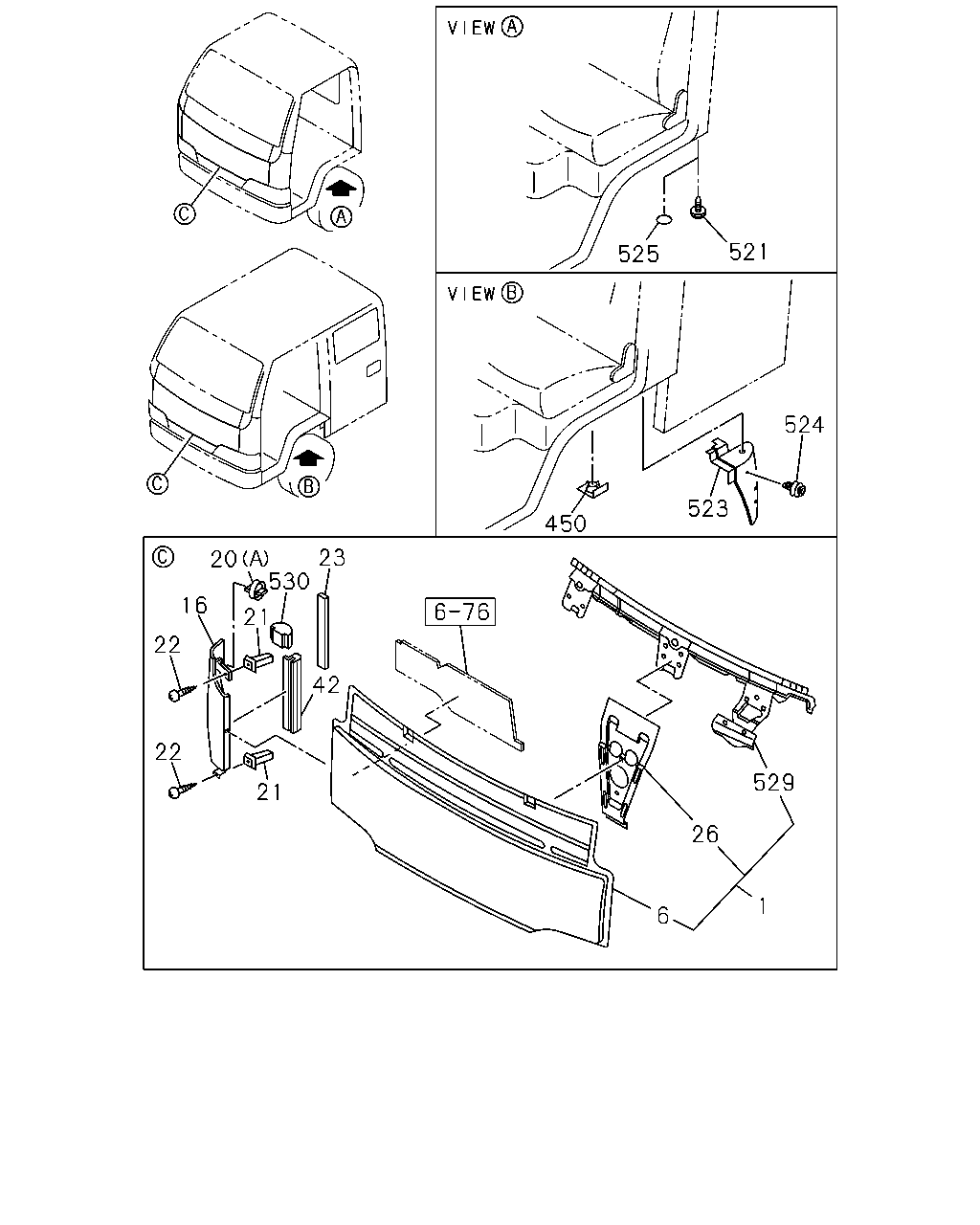

çizim 53241
521 525 524 523 450 23 530 20 16 21 22 42 22 529 21 26 1 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.550 PANEL ASM; FRT
EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-815-0 01 1 0502- ●
1 16.550 PANEL ASM; FRT 8-97581-815-0 01 1 0502- ● ●
1 16.550 PANEL ASM; FRT 8-97859-424-0 01 1 0211-0501 ● ● ●
1 16.550 PANEL ASM; FRT
INDONESIA EQUIPMENT(S4S) 		8-97859-424-0 01 1 0502- ●
1 16.550 PANEL ASM; FRT 8-97869-030-1 01 1 0211-0501 ● ● ●
1 16.550 PANEL ASM; FRT 8-97582-868-0 01 1 0502- ● ● ●
6 16.570 PANEL; FRONT
EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-637-3 01 1 0502- ●
6 16.570 PANEL; FRONT 8-97581-637-3 01 1 0502- ● ●
6 16.570 PANEL; FRONT 8-97859-423-3 01 1 0211-0501 ● ● ●
6 16.570 PANEL; FRONT
INDONESIA EQUIPMENT(S4S) 		8-97859-423-3 01 1 0502- ●
6 16.570 PANEL; FRONT 8-97869-031-2 01 1 0211-0501 ● ● ●
6 16.570 PANEL; FRONT 8-97582-871-2 01 1 0502- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. INDONESIA EQUIPMENT(S4S) SILVER 		8-97582-451-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> SILVER 		8-97582-451-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-451-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. INDONESIA EQUIPMENT(S4S) SILVER 		8-97582-467-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> SILVER 		8-97582-467-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-467-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. INDONESIA EQUIPMENT(S4S) WHITE 		8-97582-455-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 0502- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> WHITE 		8-97582-455-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. INDONESIA EQUIPMENT(S4S) WHITE 		8-97582-471-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 0502- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> WHITE 		8-97582-471-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. INDONESIA EQUIPMENT(S4S) BLUE 		8-97582-459-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 0502- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> BLUE 		8-97582-459-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. INDONESIA EQUIPMENT(S4S) BLUE 		8-97582-475-5 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 0502- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> BLUE 		8-97582-475-5 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0211-0501 ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
INDONESIA EQUIPMENT(S4S) PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0211-0501 ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
INDONESIA EQUIPMENT(S4S) PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0502- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-788-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-785-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-430-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-428-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-789-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-786-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-431-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-429-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-790-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-787-3 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-711-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-710-6 01 1 0502- ● ●
20 16.588 CLIP; FRT PANEL SIDE
EXC. INDONESIA EQUIPMENT(S4S) 16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502- ●
20 16.588 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502- ● ●
20 16.588 CLIP; FRT PANEL SIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37>,DOOR MIRROR<6VE> 16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502- ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502- ●
20 16.588 CLIP; FRT PANEL SIDE
EXC. INDONESIA EQUIPMENT(S4S) (D) 		8-97581-632-1 04 1 0502- ●
20 16.588 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0502- ● ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
EXC. INDONESIA EQUIPMENT(S4S) 16.165 (C) H=11.2 		8-97807-381-0 02 1 0502-0503 ●
20 16.588 CLIP; FRT PANEL SIDE
16.165 (C) H=11.2 		8-97807-381-0 02 1 0502-0503 ● ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
EXC. INDONESIA EQUIPMENT(S4S) (C) H=11.6 		8-98013-823-0 02 1 0504- ●
20 16.588 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (C) H=11.6 		8-98013-823-0 02 1 0504- ● ●
20 16.588 CLIP; FRT PANEL SIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37>,DOOR MIRROR<6VE> (C) H=11.6 		8-98013-823-0 02 1 0504- ● ●
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0504- ●
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 0211-0501 ● ● ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
INDONESIA EQUIPMENT(S4S) (A) 		8-94279-814-0 04 1 0502- ●
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0211- ● ● ● ● ● ●
22 16.588 SCREW; FRT PANEL SIDE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0211-0501 ● ● ● ● ● ●
22 16.588 SCREW; FRT PANEL SIDE
INDONESIA EQUIPMENT(S4S) 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0502-0612 ●
22 16.588 SCREW; FRT PANEL SIDE
INDONESIA EQUIPMENT(S4S) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0701-1101 ●
22 16.588 SCREW; FRT PANEL SIDE
INDONESIA EQUIPMENT(S4S) 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 06 1 1102-1212 ●
22 16.588 SCREW; FRT PANEL SIDE
INDONESIA EQUIPMENT(S4S) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1301- ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97857-444-0 02 1 0211-0410 ● ● ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97410-832-0 02 1 0411-0501 ● ● ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
INDONESIA EQUIPMENT(S4S) H=10 L=55 		8-97410-832-0 02 1 0502- ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
L=55 		8-94272-463-0 02 1 0211-0501 ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 0211- ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-043-0 01 1 0502- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-044-0 01 1 0502- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-613-3 01 1 0502-0807 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0502-0807 ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-613-3 01 1 0808-0809 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0808-0809 ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-613-3 01 1 0810- ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0810- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-614-3 01 1 0502-0807 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0502-0807 ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-614-3 01 1 0808-0809 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0808-0809 ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> O/SIDE MIRROR ASSIST SIDE MANUAL SHOR T STAY<D37> EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-614-3 01 1 0810- ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0810- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0211-0501 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
INDONESIA EQUIPMENT(S4S) 		8-97857-413-0 02 1 0502- ●
450 16.125 SPACER 8-97857-369-0 02 1 0211-0402 ● ●
521 08.153 PLUG; HOLE,FENDER
04.931 OD=15 L=14.5 		1-76378-157-0 06 1 0211-0304 ● ● ●
521 08.153 PLUG; HOLE,FENDER
EXC. MANUAL TILT CAB<RWZ> 04.931 OD=15 L=14.5 		1-76378-157-0 06 1 0211-0304 ●
521 08.153 PLUG; HOLE,FENDER
MANUAL TILT CAB<RWZ> 04.931 OD=15 L=14.5 		1-76378-157-0 03 1 0211-0304 ●
523 08.212 COVER; FENDER RR 8-97853-439-4 01 1 0211- ● ●
523 08.212 COVER; FENDER RR 8-97853-438-4 01 1 0211- ● ●
524 08.212 CLIP; FENDER COVER
OD=8.5 GRAY 		8-97893-482-0 06 1 0211- ● ●
525 08.131 SEAL; FENDER
16.165 OD=25 BLACK 		1-76798-019-0 06 1 0305- ● ● ●
525 08.131 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 06 1 0305- ●
525 08.131 SEAL; FENDER
MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 0305- ●
529 16.578 REINFORCEMENT; PANEL 8-97851-044-3 01 1 0211- ● ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-373-2 01 1 0211- ● ● ●
530 01.303 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 0211-0501 ● ● ● ● ● ●
530 01.303 STOPPER; FRT PANEL,SIDE
INDONESIA EQUIPMENT(S4S) 		8-97856-589-0 02 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
