◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#44002) — 34 parça

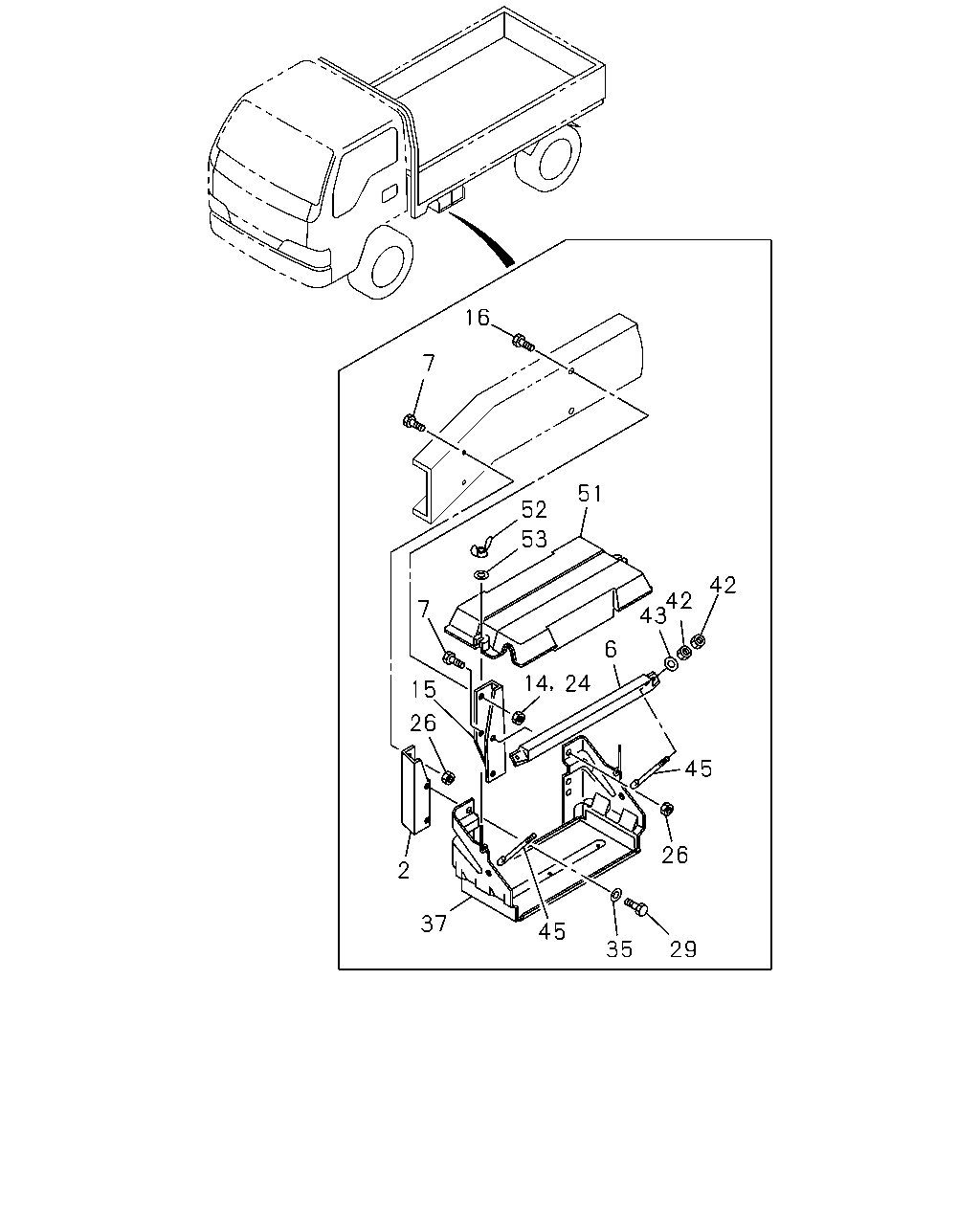

çizim 50999
16 7 51 52 53 42 42 43 7 6 24 14 15 26 45 26 2 37 45 35 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.333 BRACKET; BATTERY 8-97107-605-0 01 1 0211- ● ● ● ●
6 02.333 BRACKET; BATTERY CARRIER
BATTERY NX200-10<S9C> 		9-53616-153-0 01 1 0211- ● ● ● ● ● ●
6 02.333 BRACKET; BATTERY CARRIER
BATTERY 95D31R<6DN> 		8-94108-314-0 01 1 0211- ● ● ● ● ● ●
7 02.333 BOLT; BRKT TO FRAME
03.417 M10X25 FLANGE 		0-28081-025-0 02 1 0211-0512 ● ● ● ●
7 02.333 BOLT; BRKT TO FRAME
09.171 M10X25 FLANGE 		0-28051-025-0 02 1 0601- ● ● ● ●
14 02.333 NUT; BRKT TO FRAME
08.917 M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ● ● ●
14 02.333 NUT; BRKT TO FRAME
04.085 M10 FLANGE 		0-91180-210-0 02 1 0603-1409 ● ● ● ●
14 02.333 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 02 1 1410- ● ● ● ●
15 02.333 BRACKET; BATTERY 8-97107-606-0 01 1 0211- ● ● ● ●
16 02.334 BOLT; BRKT TO FRAME
03.417 M10X25 FLANGE 		0-28081-025-0 02 1 0211-0512 ● ● ● ●
16 02.334 BOLT; BRKT TO FRAME
09.171 M10X25 FLANGE 		0-28051-025-0 02 1 0601- ● ● ● ●
24 02.334 NUT; BRKT TO FRAME
09.011 M10 		9-09110-410-0 01 1 0211-0512 ● ● ● ●
24 02.334 NUT; BRKT TO FRAME
00.833 M10 		0-91110-510-0 01 1 0601- ● ● ● ●
26 02.334 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ●
26 02.334 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
26 02.334 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0602 ● ● ● ●
26 02.334 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ● ●
29 02.334 BOLT; BRKT TO FRAME
09.171 M10X30 W/LK WASHER 		0-50041-030-0 04 1 0211-0512 ● ● ● ● ● ●
29 02.334 BOLT; BRKT TO FRAME
04.439 M10X30 W/LK WASHER 		0-50541-030-0 04 1 0601- ● ● ● ● ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
16.682 ID=10.5 OD=22 		9-09160-610-0 04 1 0211-0605 ● ● ● ● ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 0606- ● ● ● ● ● ●
37 02.333 BRACKET; BATTERY
BATTERY NX200-10<S9C> 		5-53613-024-3 01 1 0211- ● ● ● ● ● ●
37 02.333 BRACKET; BATTERY
BATTERY 95D31R<6DN> 		8-97072-544-0 01 1 0211- ● ● ● ● ● ●
42 02.334 NUT; CLAMP
02.559 M8 		9-09110-408-0 04 1 0211-0512 ● ● ● ● ● ●
42 02.334 NUT; CLAMP
M8 		0-91110-508-0 04 1 0601- ● ● ● ● ● ●
43 02.334 WASHER; PL,CLAMP
16.674 ID=8.4 		9-09160-508-0 02 1 0211-0605 ● ● ● ● ● ●
43 02.334 WASHER; PL,CLAMP
03.417 ID=8.4 OD=16 		0-91610-508-0 02 1 0606- ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
L=120 		9-53616-615-0 02 1 0211- ● ● ● ● ● ●
51 02.335 COVER; BATTERY
BATTERY NX200-10<S9C> 02.345 		9-53612-046-2 01 1 0211- ● ● ● ● ● ●
51 02.335 COVER; BATTERY
BATTERY 95D31R<6DN> 		8-97313-780-0 01 1 0211- ● ● ● ● ● ●
52 02.335 NUT; WING,COVER FIX
BATTERY NX200-10<S9C> 08.920 M5 WING NUT 		9-99118-405-0 02 1 0211-0603 ● ● ● ● ● ●
52 02.335 NUT; WING,COVER FIX
BATTERY NX200-10<S9C> M5 WING NUT 		0-91118-405-0 02 1 0604- ● ● ● ● ● ●
53 02.335 WASHER; PL,COVER FIX
BATTERY NX200-10<S9C> ID=5.3 OD=16 		9-09164-705-0 02 1 0211-0605 ● ● ● ● ● ●
53 02.335 WASHER; PL,COVER FIX
BATTERY NX200-10<S9C> ID=5.3 OD=16 		0-91614-705-0 02 1 0606- ● ● ● ● ● ●
