◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#43998) — 121 parça

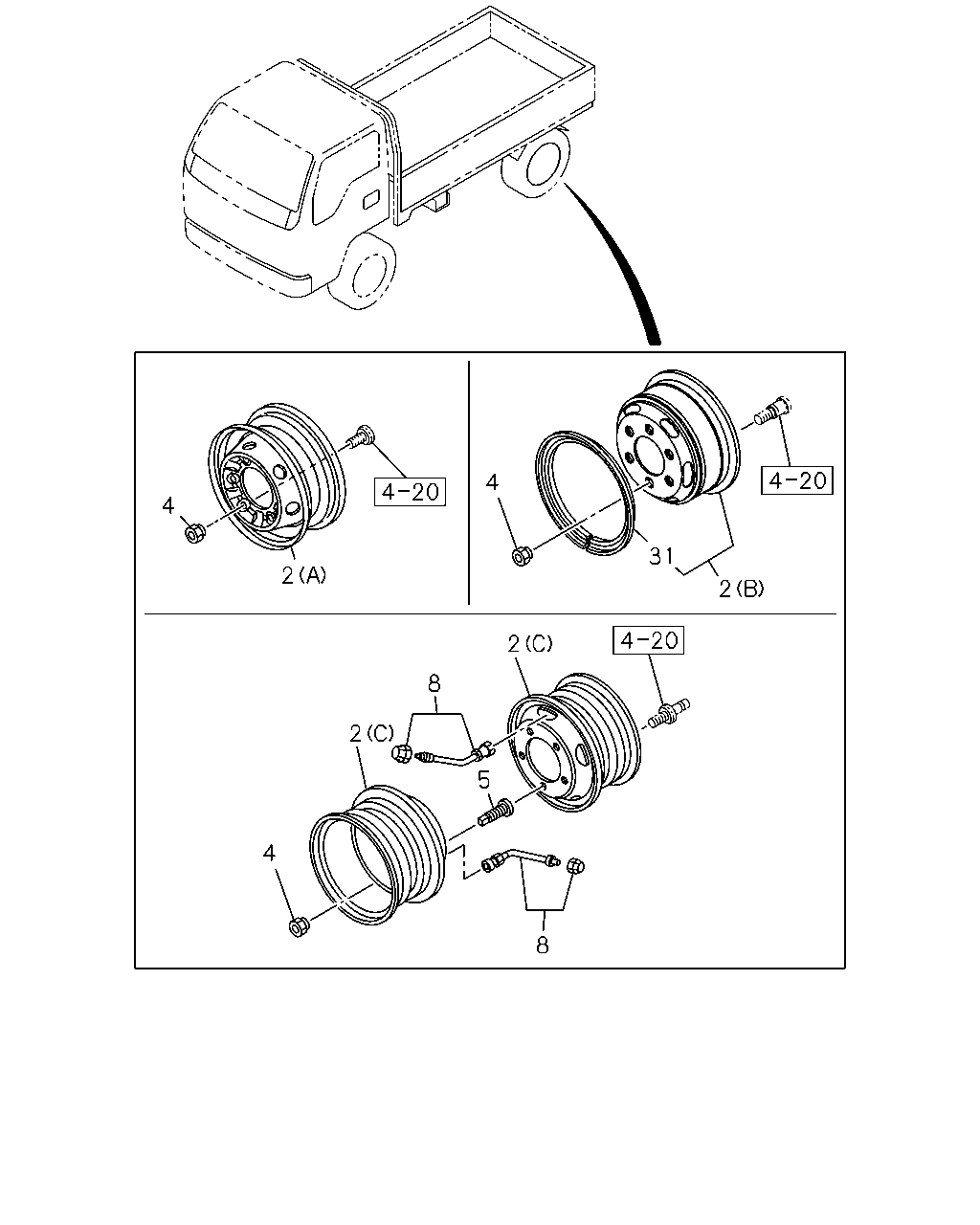

çizim 10671
4 2 4 31 2 8 8 5 2 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 04 1 0506-0606 ●
2 05.803 WHEEL; DISC
(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 04 1 0607- ● ●
2 05.803 WHEEL; DISC
(CRY) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0506-0606 ●
2 05.803 WHEEL; DISC
(CRZ) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0506-0606 ●
2 05.803 WHEEL; DISC
(CRY) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0607- ● ●
2 05.803 WHEEL; DISC
(CRZ) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0607- ●
2 05.803 WHEEL; DISC
(CRZ) (C) SPARE-REAR 13X4J OFFSET=98 SILVER 6-HOLE 		8-97145-127-0 01 1 0506- ●
2 05.803 WHEEL; DISC
(CRZ) (C) REAR 13X4J OFFSET=98 SILVER 6-HOLE 		8-97145-127-0 04 1 0506- ●
2 05.803 WHEEL; DISC
(CRZ) (A) FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 02 1 0506- ●
2 05.803 WHEEL; DISC
(BVT),(35V),(36V),(37V),(43V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 0211-0811 ● ● ● ●
2 05.803 WHEEL; DISC
(BVT),(35V),(36V),(37V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 0812- ● ●
2 05.803 WHEEL; DISC
(B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 0812- ● ●
2 05.803 WHEEL; DISC
(37V),(43V) (B) REAR,SGL CAB FRONT 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 02 1 0211- ● ● ● ●
2 05.803 WHEEL; DISC
(37V) (B) REAR,SGL CAB FRONT 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 02 1 0211- ● ●
2 05.803 WHEEL; DISC
(BVT),(35V),(36V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 04 1 0211- ● ●
2 05.803 WHEEL; DISC
(A) FRONT 5.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-016-1 02 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (C) SPARE-REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (C) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (A) SPARE-FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 01 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 02 1 0211- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0211-0610 ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		8-98007-906-0 06 1 0611- ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0211-0610 ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		8-98007-905-0 06 1 0611- ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 0211-0610 ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		8-98007-831-0 06 1 0611- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 0211-0610 ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		8-98007-830-0 06 1 0611- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		5-42336-001-1 06 1 0211-0610 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		8-98007-829-0 06 1 0611- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		5-42335-001-1 06 1 0211-0610 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		8-98007-828-0 06 1 0611- ● ●
8 05.875 VALVE; TIRE
(CRY) 		8-98221-109-0 04 1 0506- ● ●
8 05.875 VALVE; TIRE
(CRY) 		8-98221-109-0 01 1 0506- ● ●
8 05.875 VALVE; TIRE
(CRZ) 		8-98221-109-0 01 1 0506- ●
8 05.875 VALVE; TIRE 8-98221-109-0 02 1 0506- ● ●
8 05.875 VALVE; TIRE
(CRZ) 		8-98221-109-0 02 1 0506- ●
8 05.875 VALVE; TIRE
(BYZ),(22V),(9ZX) 		8-98221-108-0 01 1 0506- ●
8 05.875 VALVE; TIRE
(BQL),(CRZ),(22V),(9ZX) 		8-98221-108-0 01 1 0506- ●
8 05.875 VALVE; TIRE
(BYZ),(22V),(9ZX) 		8-98221-108-0 04 1 0506- ●
8 05.875 VALVE; TIRE
(BQL),(CRZ),(22V),(9ZX) 		8-98221-108-0 04 1 0506- ●
31 05.839 RING; SIDE,DISC WHEEL
(BVT),(35V),(36V),(37V),(43V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0811 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BVT),(35V),(36V),(37V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37V),(43V) REAR,SGL CAB FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37V) REAR,SGL CAB FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BVT),(35V),(36V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0211- ● ●

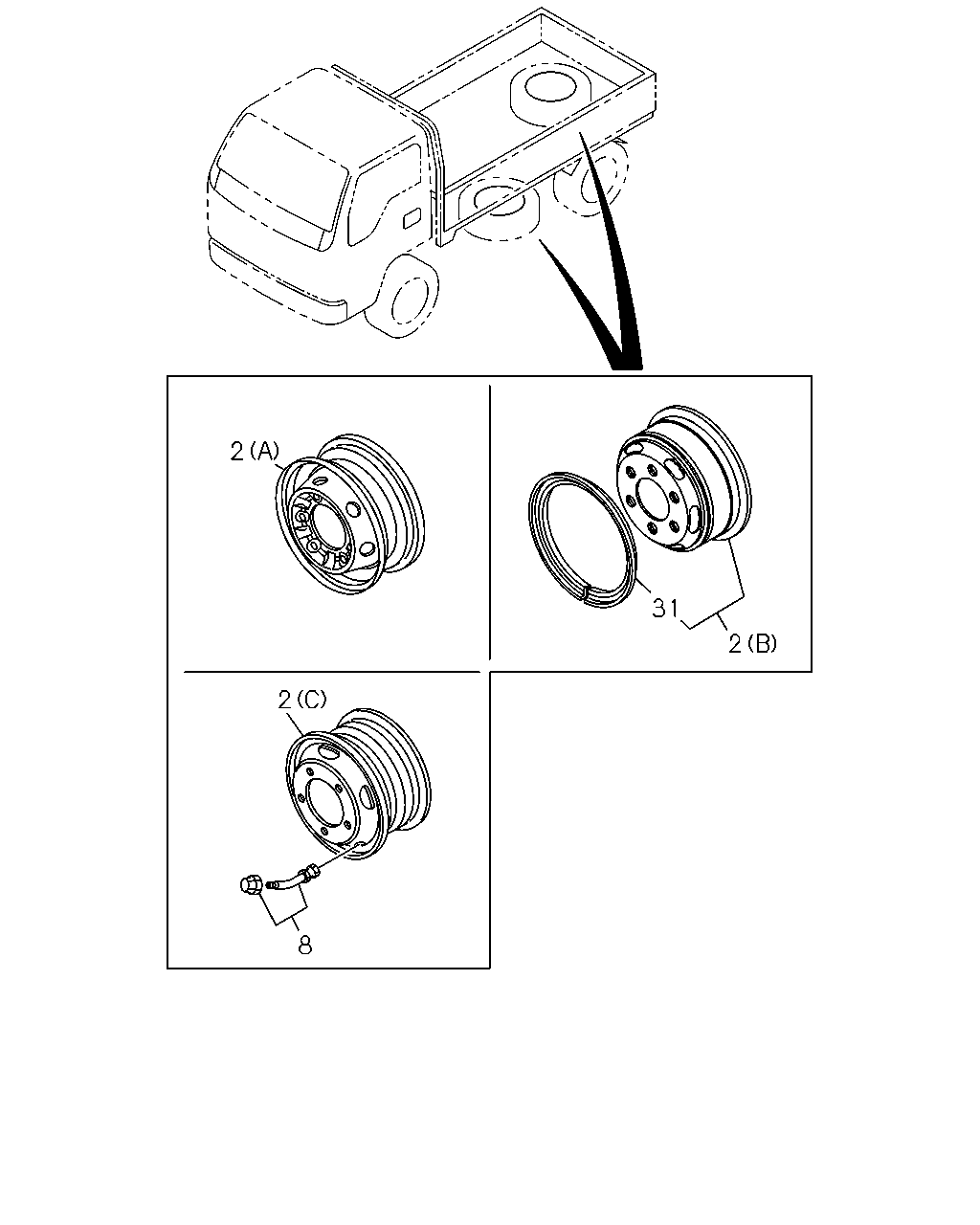

çizim 11739
2 31 2 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 04 1 0506-0606 ●
2 05.803 WHEEL; DISC
(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 04 1 0607- ● ●
2 05.803 WHEEL; DISC
(CRY) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0506-0606 ●
2 05.803 WHEEL; DISC
(CRZ) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0506-0606 ●
2 05.803 WHEEL; DISC
(CRY) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0607- ● ●
2 05.803 WHEEL; DISC
(CRZ) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0607- ●
2 05.803 WHEEL; DISC
(CRZ) (C) SPARE-REAR 13X4J OFFSET=98 SILVER 6-HOLE 		8-97145-127-0 01 1 0506- ●
2 05.803 WHEEL; DISC
(CRZ) (C) REAR 13X4J OFFSET=98 SILVER 6-HOLE 		8-97145-127-0 04 1 0506- ●
2 05.803 WHEEL; DISC
(CRZ) (A) FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 02 1 0506- ●
2 05.803 WHEEL; DISC
(BVT),(35V),(36V),(37V),(43V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 0211-0811 ● ● ● ●
2 05.803 WHEEL; DISC
(BVT),(35V),(36V),(37V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 0812- ● ●
2 05.803 WHEEL; DISC
(B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 0812- ● ●
2 05.803 WHEEL; DISC
(37V),(43V) (B) REAR,SGL CAB FRONT 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 02 1 0211- ● ● ● ●
2 05.803 WHEEL; DISC
(37V) (B) REAR,SGL CAB FRONT 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 02 1 0211- ● ●
2 05.803 WHEEL; DISC
(BVT),(35V),(36V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 04 1 0211- ● ●
2 05.803 WHEEL; DISC
(A) FRONT 5.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-016-1 02 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (C) SPARE-REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (C) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (A) SPARE-FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 01 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 02 1 0211- ● ●
8 05.875 VALVE; TIRE
(CRY) 		8-98221-109-0 04 1 0506- ● ●
8 05.875 VALVE; TIRE
(CRY) 		8-98221-109-0 01 1 0506- ● ●
8 05.875 VALVE; TIRE
(CRZ) 		8-98221-109-0 01 1 0506- ●
8 05.875 VALVE; TIRE 8-98221-109-0 02 1 0506- ● ●
8 05.875 VALVE; TIRE
(CRZ) 		8-98221-109-0 02 1 0506- ●
8 05.875 VALVE; TIRE
(BYZ),(22V),(9ZX) 		8-98221-108-0 01 1 0506- ●
8 05.875 VALVE; TIRE
(BQL),(CRZ),(22V),(9ZX) 		8-98221-108-0 01 1 0506- ●
8 05.875 VALVE; TIRE
(BYZ),(22V),(9ZX) 		8-98221-108-0 04 1 0506- ●
8 05.875 VALVE; TIRE
(BQL),(CRZ),(22V),(9ZX) 		8-98221-108-0 04 1 0506- ●
31 05.839 RING; SIDE,DISC WHEEL
(BVT),(35V),(36V),(37V),(43V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0811 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BVT),(35V),(36V),(37V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37V),(43V) REAR,SGL CAB FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37V) REAR,SGL CAB FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BVT),(35V),(36V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0211- ● ●

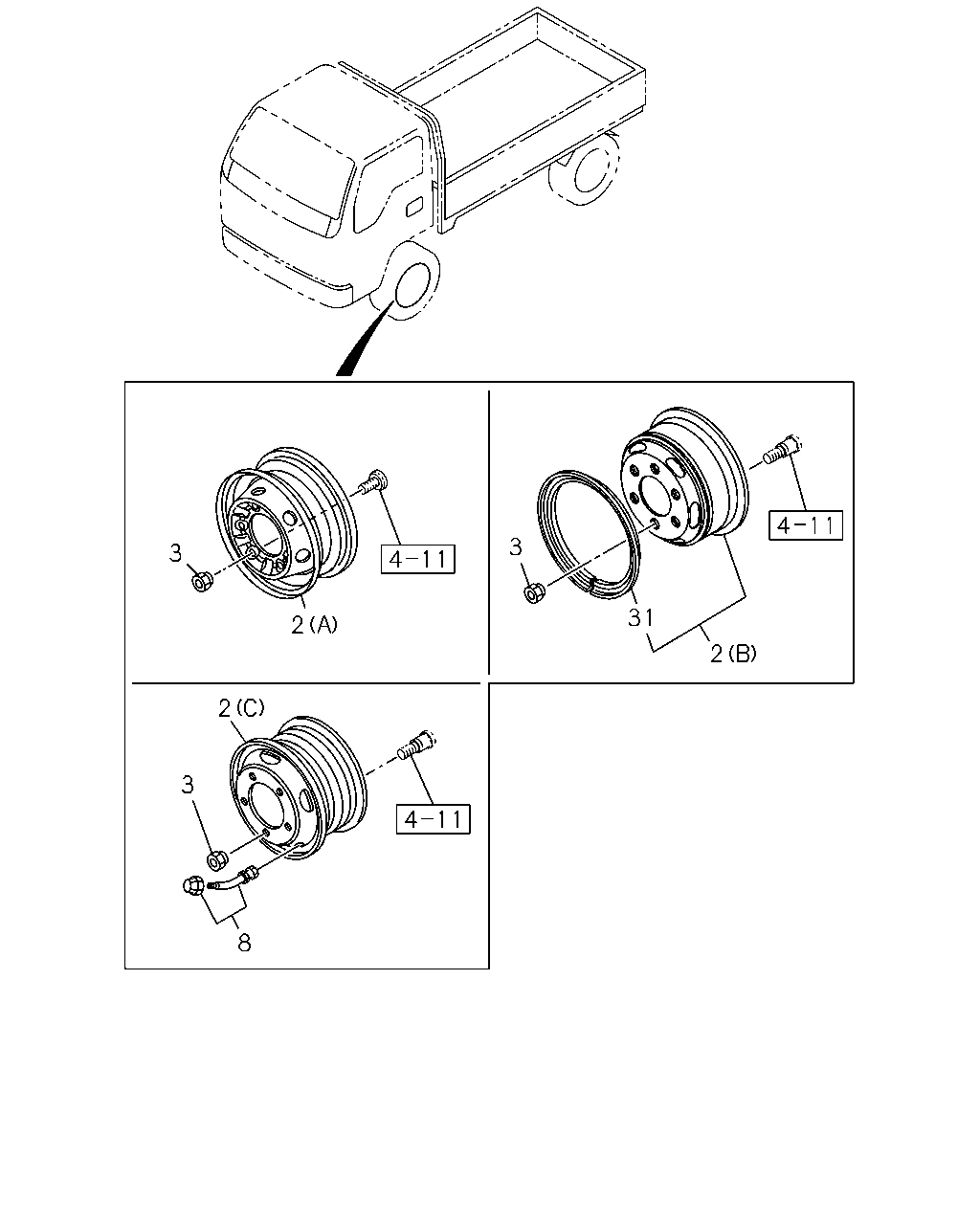

çizim 52630
2 31 3 2 3 2 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 04 1 0506-0606 ●
2 05.803 WHEEL; DISC
(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 04 1 0607- ● ●
2 05.803 WHEEL; DISC
(CRY) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0506-0606 ●
2 05.803 WHEEL; DISC
(CRZ) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0506-0606 ●
2 05.803 WHEEL; DISC
(CRY) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0607- ● ●
2 05.803 WHEEL; DISC
(CRZ) (A) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 0607- ●
2 05.803 WHEEL; DISC
(CRZ) (C) SPARE-REAR 13X4J OFFSET=98 SILVER 6-HOLE 		8-97145-127-0 01 1 0506- ●
2 05.803 WHEEL; DISC
(CRZ) (C) REAR 13X4J OFFSET=98 SILVER 6-HOLE 		8-97145-127-0 04 1 0506- ●
2 05.803 WHEEL; DISC
(CRZ) (A) FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 02 1 0506- ●
2 05.803 WHEEL; DISC
(BVT),(35V),(36V),(37V),(43V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 0211-0811 ● ● ● ●
2 05.803 WHEEL; DISC
(BVT),(35V),(36V),(37V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 0812- ● ●
2 05.803 WHEEL; DISC
(B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 0812- ● ●
2 05.803 WHEEL; DISC
(37V),(43V) (B) REAR,SGL CAB FRONT 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 02 1 0211- ● ● ● ●
2 05.803 WHEEL; DISC
(37V) (B) REAR,SGL CAB FRONT 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 02 1 0211- ● ●
2 05.803 WHEEL; DISC
(BVT),(35V),(36V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 04 1 0211- ● ●
2 05.803 WHEEL; DISC
(A) FRONT 5.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-016-1 02 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (C) SPARE-REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (C) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (A) SPARE-FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 01 1 0211- ● ●
2 05.803 WHEEL; DISC
(BQL),(BYZ),(BYZ),(9ZX) (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 02 1 0211- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0211-0610 ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		8-98007-906-0 06 1 0611- ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0211-0610 ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		8-98007-905-0 06 1 0611- ● ● ● ● ● ●
8 05.875 VALVE; TIRE
(CRY) 		8-98221-109-0 04 1 0506- ● ●
8 05.875 VALVE; TIRE
(CRY) 		8-98221-109-0 01 1 0506- ● ●
8 05.875 VALVE; TIRE
(CRZ) 		8-98221-109-0 01 1 0506- ●
8 05.875 VALVE; TIRE 8-98221-109-0 02 1 0506- ● ●
8 05.875 VALVE; TIRE
(CRZ) 		8-98221-109-0 02 1 0506- ●
8 05.875 VALVE; TIRE
(BYZ),(22V),(9ZX) 		8-98221-108-0 01 1 0506- ●
8 05.875 VALVE; TIRE
(BQL),(CRZ),(22V),(9ZX) 		8-98221-108-0 01 1 0506- ●
8 05.875 VALVE; TIRE
(BYZ),(22V),(9ZX) 		8-98221-108-0 04 1 0506- ●
8 05.875 VALVE; TIRE
(BQL),(CRZ),(22V),(9ZX) 		8-98221-108-0 04 1 0506- ●
31 05.839 RING; SIDE,DISC WHEEL
(BVT),(35V),(36V),(37V),(43V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0211-0811 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BVT),(35V),(36V),(37V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37V),(43V) REAR,SGL CAB FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37V) REAR,SGL CAB FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0211- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BVT),(35V),(36V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0211- ● ●
