◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#43990) — 358 parça

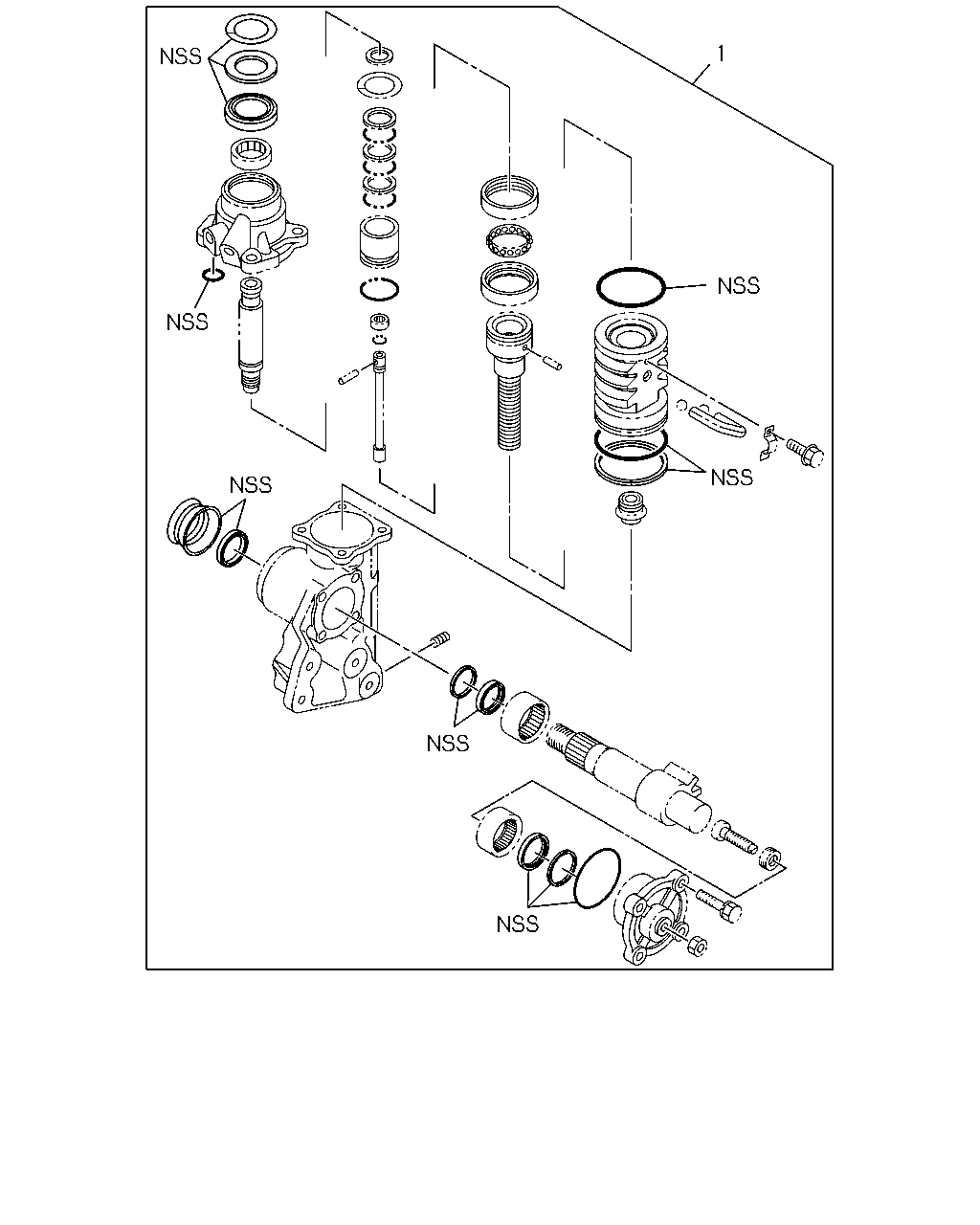

çizim 10998
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97218-602-1 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97356-138-0 01 1 -0501
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98171-736-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98171-736-0 01 1 0502-
132 06.822 COVER; DUST,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -

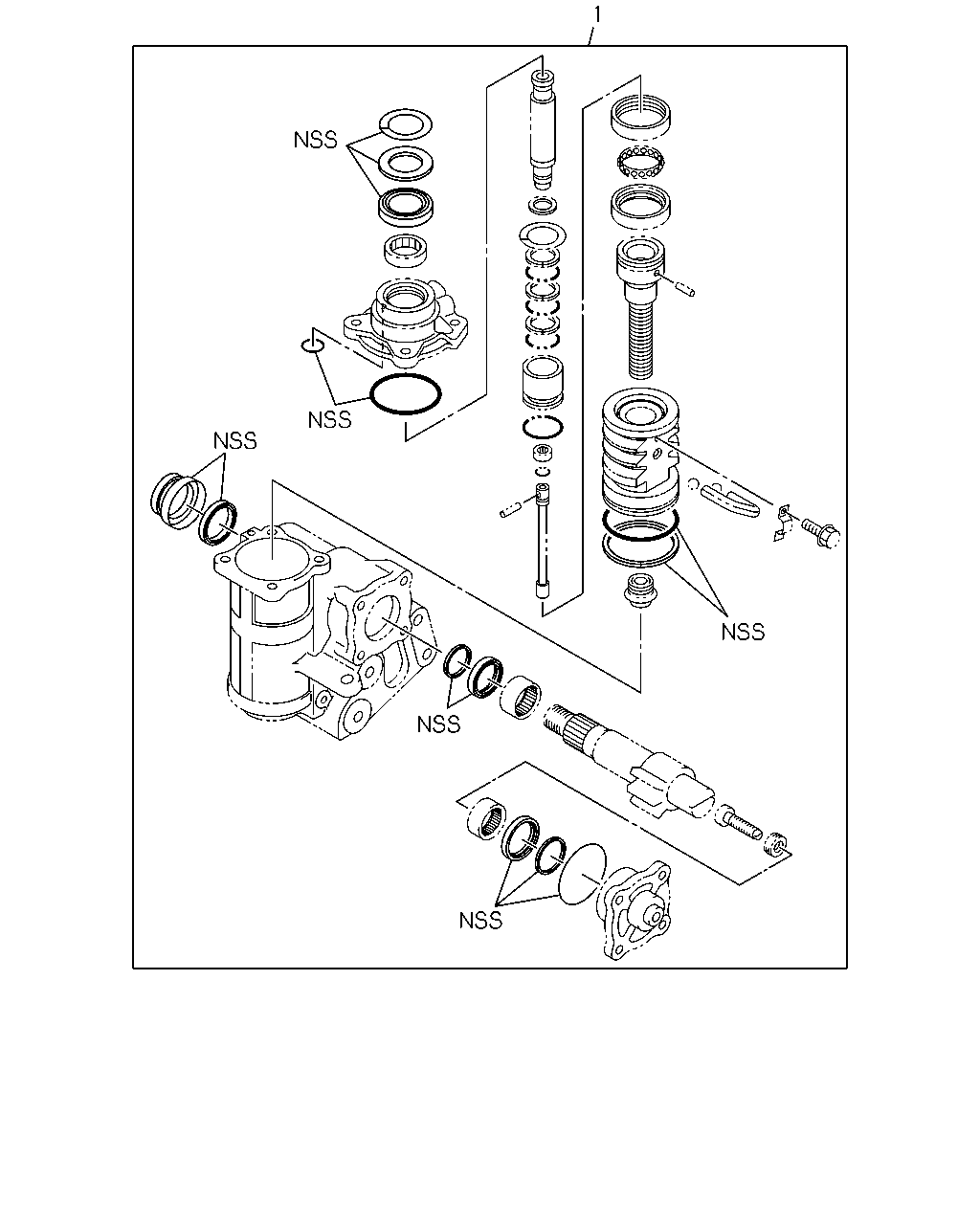

çizim 11820
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97218-602-1 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97356-138-0 01 1 -0501
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98171-736-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98171-736-0 01 1 0502-
132 06.822 COVER; DUST,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -

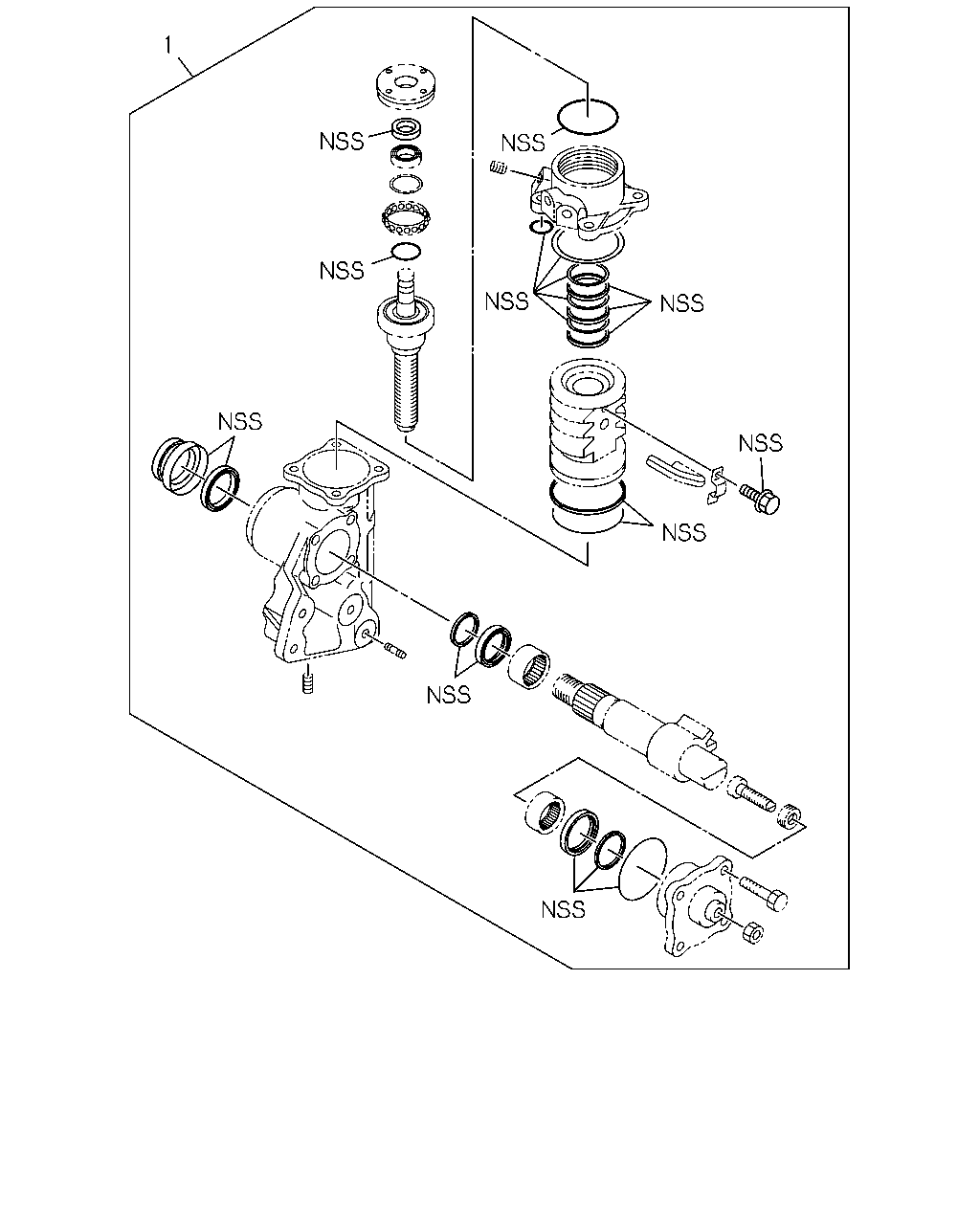

çizim 12189
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97218-602-1 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97356-138-0 01 1 -0501
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98171-736-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98171-736-0 01 1 0502-
132 06.822 COVER; DUST,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -
çizim 47962
59 66 67 44 43 55 9 43 7 14 22 22 8 30 23 25 32 26 19
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97202-838-2 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97261-061-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945 		8-97356-125-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-126-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-97356-128-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 02 1 0502-
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-820-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-820-0 02 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 01 1 -0501
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97300-350-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97306-555-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, G = 8-98251-945-0, 98251945 		8-97356-136-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-137-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-933-1 01 1 -0501
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-333-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-333-0 01 1 0502-
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		5-09811-039-0 02 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046, E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.515-1.535 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44279-008-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.545-1.565 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44279-009-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.575-1.595 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44279-010-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.605-1.625 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44279-011-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.635-1.655 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44279-012-0 AR 1 -
26 06.521 GASKET; COVER,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-737-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-836-0 04 1 -0501
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
30 06.809 BOLT; COVER STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-834-0 01 1 -0501
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-337-0 01 1 0502-
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-337-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-94128-202-0 02 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		5-09625-070-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97108-218-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97108-219-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-94128-207-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-735-0 01 1 -
67 06.825 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-738-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -

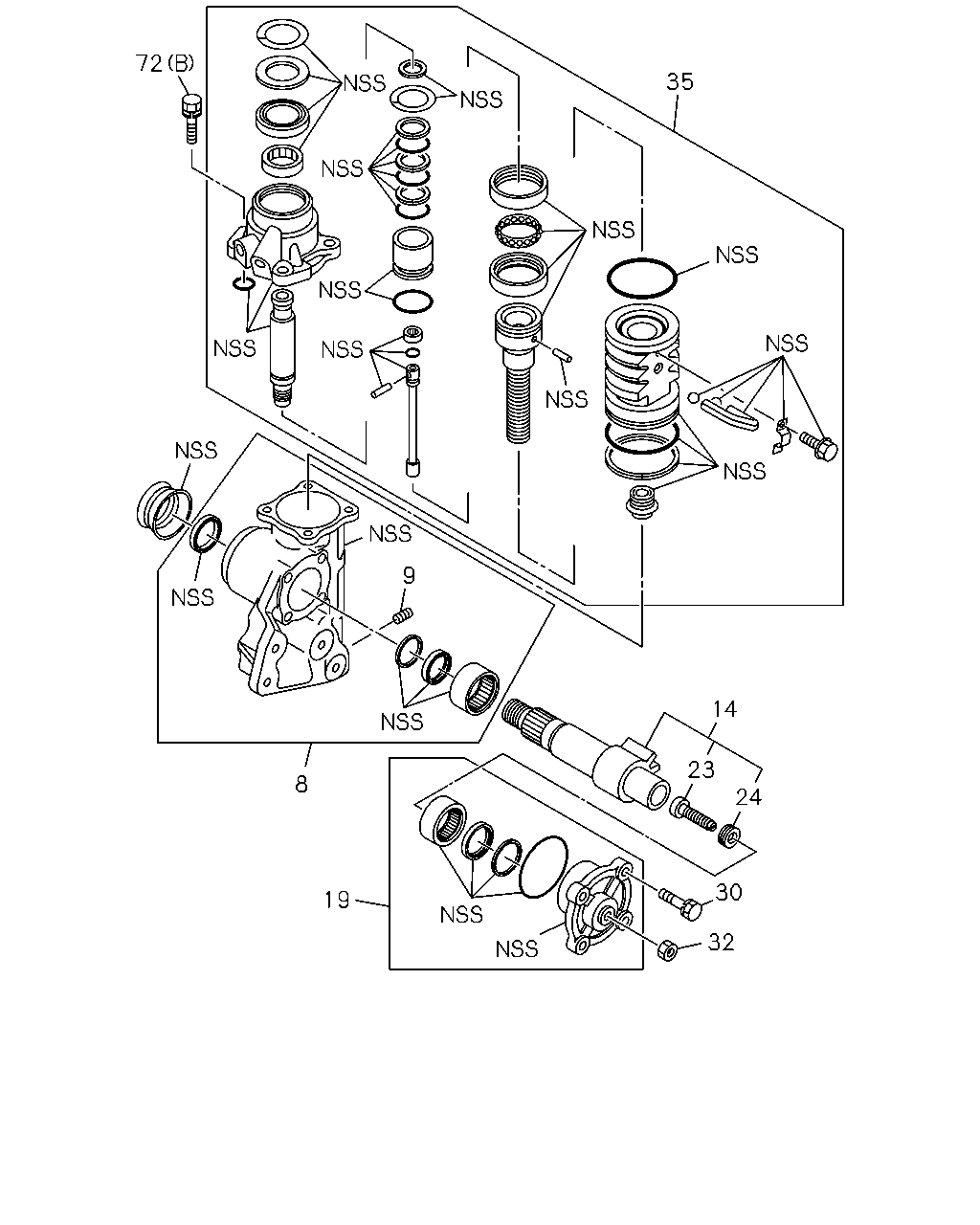

çizim 48077
72 35 9 14 23 8 24 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97202-838-2 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97261-061-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945 		8-97356-125-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-126-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-97356-128-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 02 1 0502-
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-820-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-820-0 02 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 01 1 -0501
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97300-350-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97306-555-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, G = 8-98251-945-0, 98251945 		8-97356-136-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-137-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-933-1 01 1 -0501
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-333-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-333-0 01 1 0502-
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046, E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046, E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-836-0 04 1 -0501
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
30 06.809 BOLT; COVER STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-834-0 01 1 -0501
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-337-0 01 1 0502-
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-337-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97300-352-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97306-554-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-97356-134-1 01 1 -0501
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105 		8-97356-135-1 01 1 -0501
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945 		8-98112-931-3 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-98112-931-3 01 1 0502-
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105 		8-98112-932-3 01 1 0502-
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: H = 8-98251-947-0, 98251947 		8-98112-932-3 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: F = 8-97356-105-8, 97356105 		1-44519-110-0 04 1 -0501
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: C = 8-97300-420-0, 97300420, E = 8-97356-103-8, 97356103, G = 8-98251-945-0, 98251945 		8-97014-835-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97356-103-8, 97356103 		8-97014-836-0 03 1 -0501
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: D = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: H = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: F = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97356-103-8, 97356103 		8-98036-336-0 03 1 0502-
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945 		8-98036-336-0 03 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -

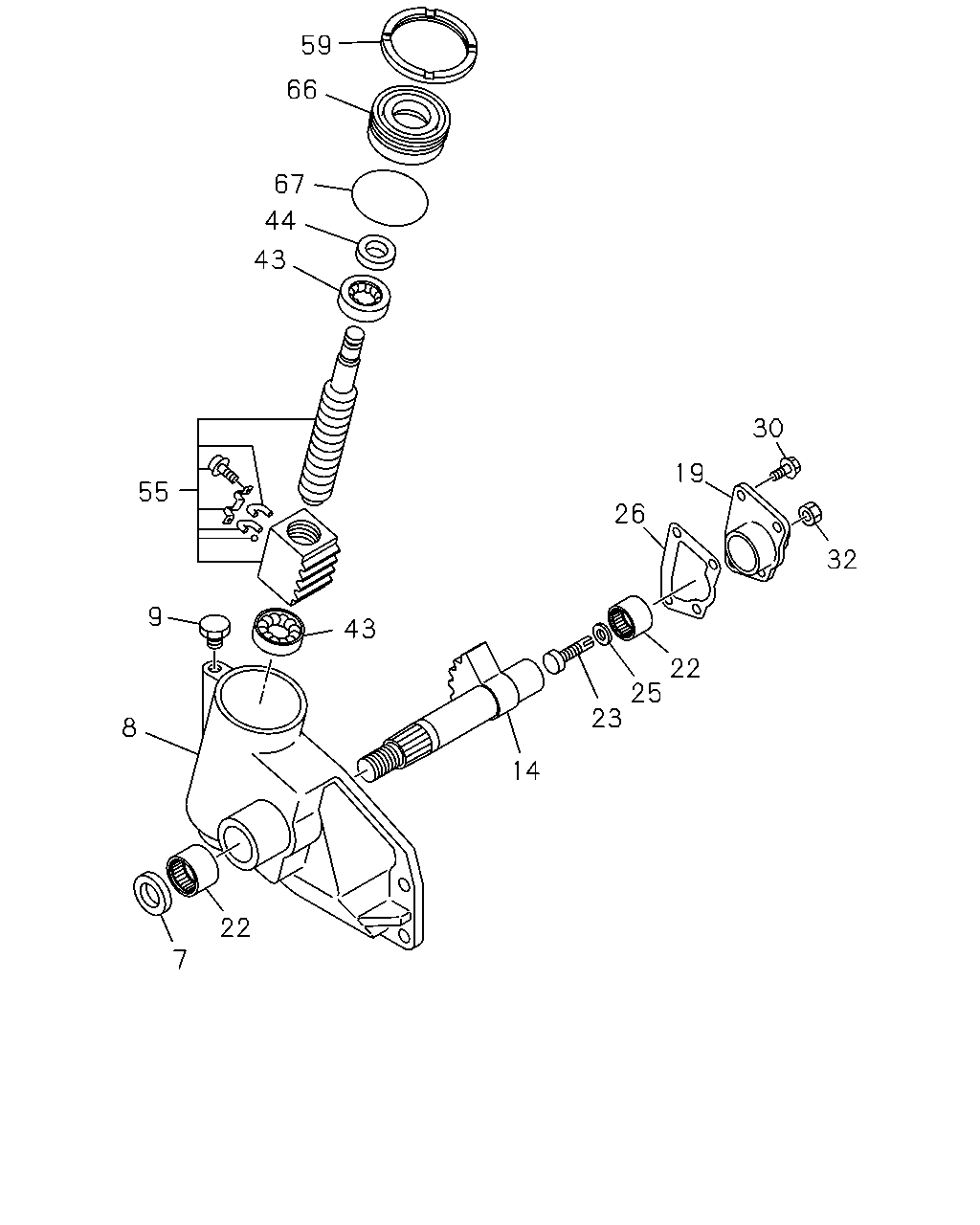

çizim 48393
59 66 67 44 43 30 19 55 26 32 9 43 22 25 23 8 14 22 7
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97202-838-2 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97261-061-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945 		8-97356-125-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-126-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-97356-128-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 02 1 0502-
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-820-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-820-0 02 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 01 1 -0501
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97300-350-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97306-555-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, G = 8-98251-945-0, 98251945 		8-97356-136-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-137-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-933-1 01 1 -0501
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-333-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-333-0 01 1 0502-
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		5-09811-039-0 02 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046, E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.515-1.535 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44279-008-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.545-1.565 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44279-009-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.575-1.595 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44279-010-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.605-1.625 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44279-011-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.635-1.655 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44279-012-0 AR 1 -
26 06.521 GASKET; COVER,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-737-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-836-0 04 1 -0501
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
30 06.809 BOLT; COVER STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-834-0 01 1 -0501
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-337-0 01 1 0502-
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-337-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-94128-202-0 02 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		5-09625-070-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97108-218-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97108-219-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-94128-207-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-735-0 01 1 -
67 06.825 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-738-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -

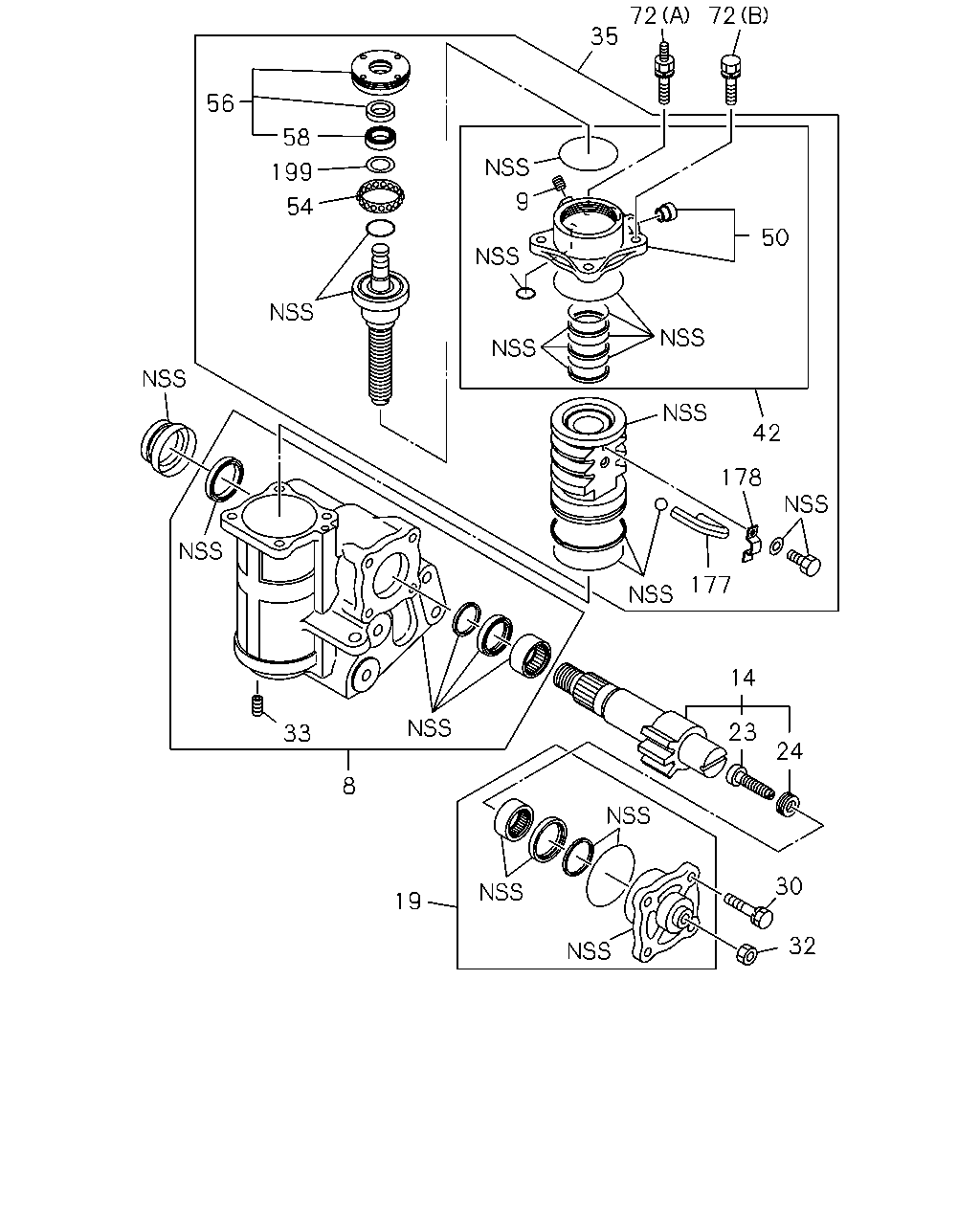

çizim 49981
72 72 35 56 58 199 9 54 50 42 178 177 14 23 33 24 8 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97202-838-2 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97261-061-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945 		8-97356-125-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-126-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-97356-128-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 02 1 0502-
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-820-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-820-0 02 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 01 1 -0501
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97300-350-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97306-555-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, G = 8-98251-945-0, 98251945 		8-97356-136-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-137-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-933-1 01 1 -0501
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-333-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-333-0 01 1 0502-
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046, E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046, E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-836-0 04 1 -0501
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
30 06.809 BOLT; COVER STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-834-0 01 1 -0501
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-337-0 01 1 0502-
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-337-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
33 06.806 PLUG; DRAIN,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-820-0 02 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97300-352-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97306-554-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-97356-134-1 01 1 -0501
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105 		8-97356-135-1 01 1 -0501
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945 		8-98112-931-3 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-98112-931-3 01 1 0502-
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105 		8-98112-932-3 01 1 0502-
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: H = 8-98251-947-0, 98251947 		8-98112-932-3 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-822-0 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97076-366-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-821-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97076-365-0 01 1 -
54 06.835 CASE; BEARING STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-810-0 01 1 -
56 06.560 PLUG & SEAL ASM; STRG UNIT
06.850 ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97076-364-1 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-812-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: F = 8-97356-105-8, 97356105 		1-44519-110-0 04 1 -0501
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: C = 8-97300-420-0, 97300420, E = 8-97356-103-8, 97356103, G = 8-98251-945-0, 98251945 		8-97014-835-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97356-103-8, 97356103 		8-97014-836-0 03 1 -0501
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: D = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: H = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: F = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97356-103-8, 97356103 		8-98036-336-0 03 1 0502-
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945 		8-98036-336-0 03 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-809-0 02 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97077-537-0 02 1 -
178 06.822 CLIP; BALL TUBE STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-808-0 01 1 -
199 06.521 WASHER; WAVE,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97201-812-0 01 1 -

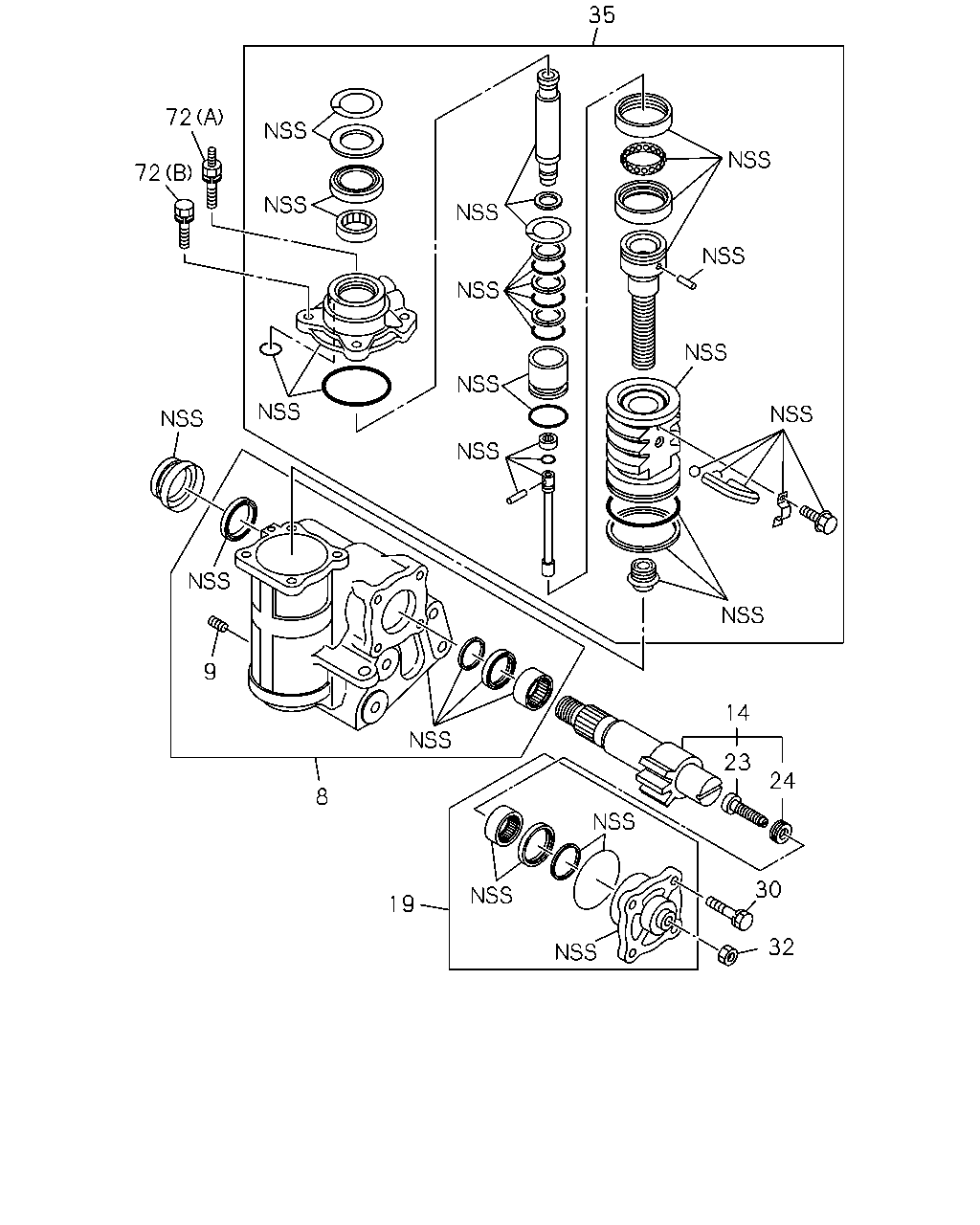

çizim 50267
35 72 72 9 14 23 24 8 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97202-838-2 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97261-061-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945 		8-97356-125-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-126-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-97356-128-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 02 1 0502-
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-820-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-820-0 02 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 01 1 -0501
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97300-350-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97306-555-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, G = 8-98251-945-0, 98251945 		8-97356-136-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-137-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-933-1 01 1 -0501
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-333-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-333-0 01 1 0502-
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046, E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046, E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-836-0 04 1 -0501
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
30 06.809 BOLT; COVER STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-834-0 01 1 -0501
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-337-0 01 1 0502-
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-337-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97300-352-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97306-554-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-97356-134-1 01 1 -0501
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105 		8-97356-135-1 01 1 -0501
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945 		8-98112-931-3 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-98112-931-3 01 1 0502-
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105 		8-98112-932-3 01 1 0502-
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: H = 8-98251-947-0, 98251947 		8-98112-932-3 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: F = 8-97356-105-8, 97356105 		1-44519-110-0 04 1 -0501
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: C = 8-97300-420-0, 97300420, E = 8-97356-103-8, 97356103, G = 8-98251-945-0, 98251945 		8-97014-835-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97356-103-8, 97356103 		8-97014-836-0 03 1 -0501
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: D = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: H = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: F = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97356-103-8, 97356103 		8-98036-336-0 03 1 0502-
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945 		8-98036-336-0 03 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -

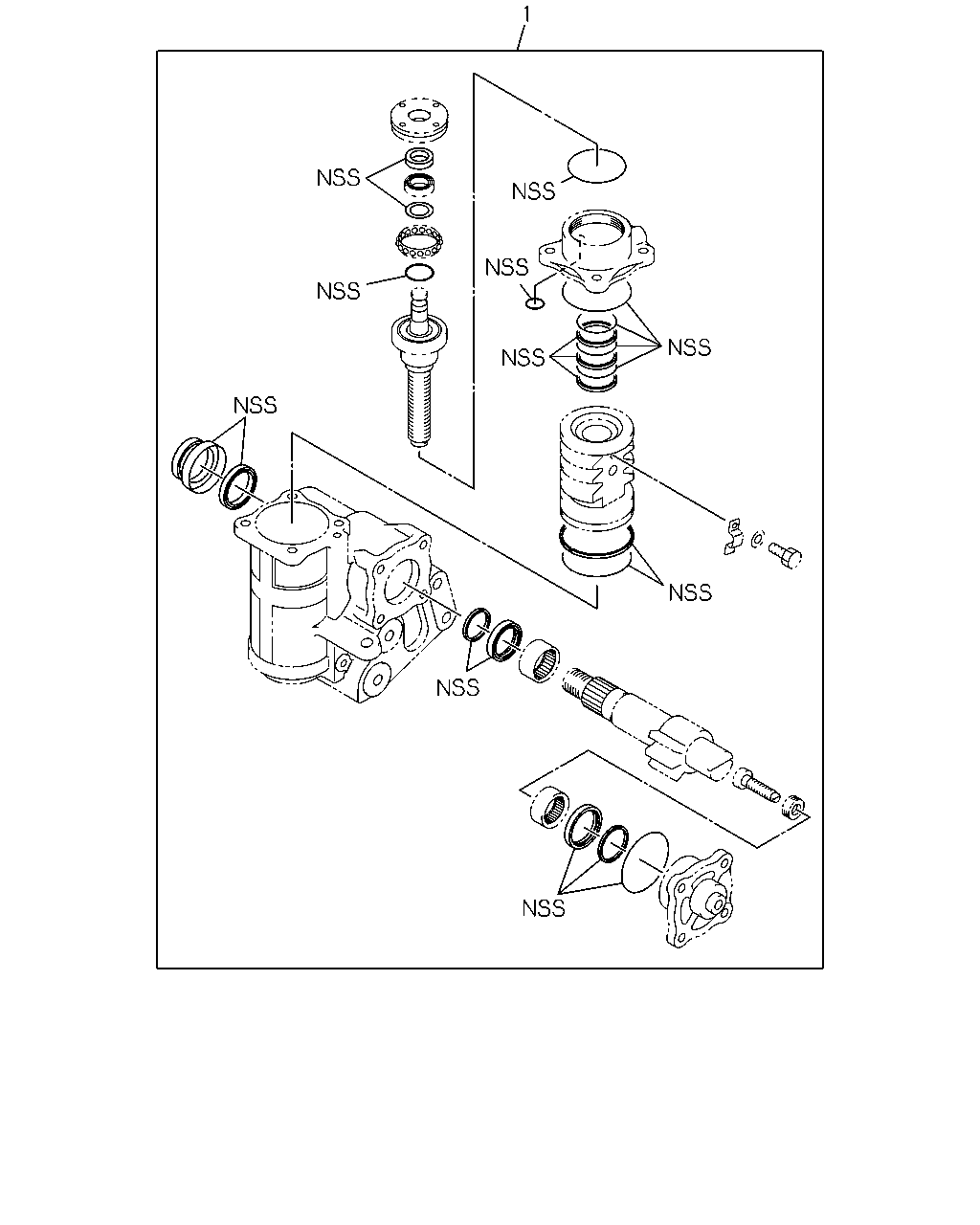

çizim 50478
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97218-602-1 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97356-138-0 01 1 -0501
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98171-736-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98171-736-0 01 1 0502-
132 06.822 COVER; DUST,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -

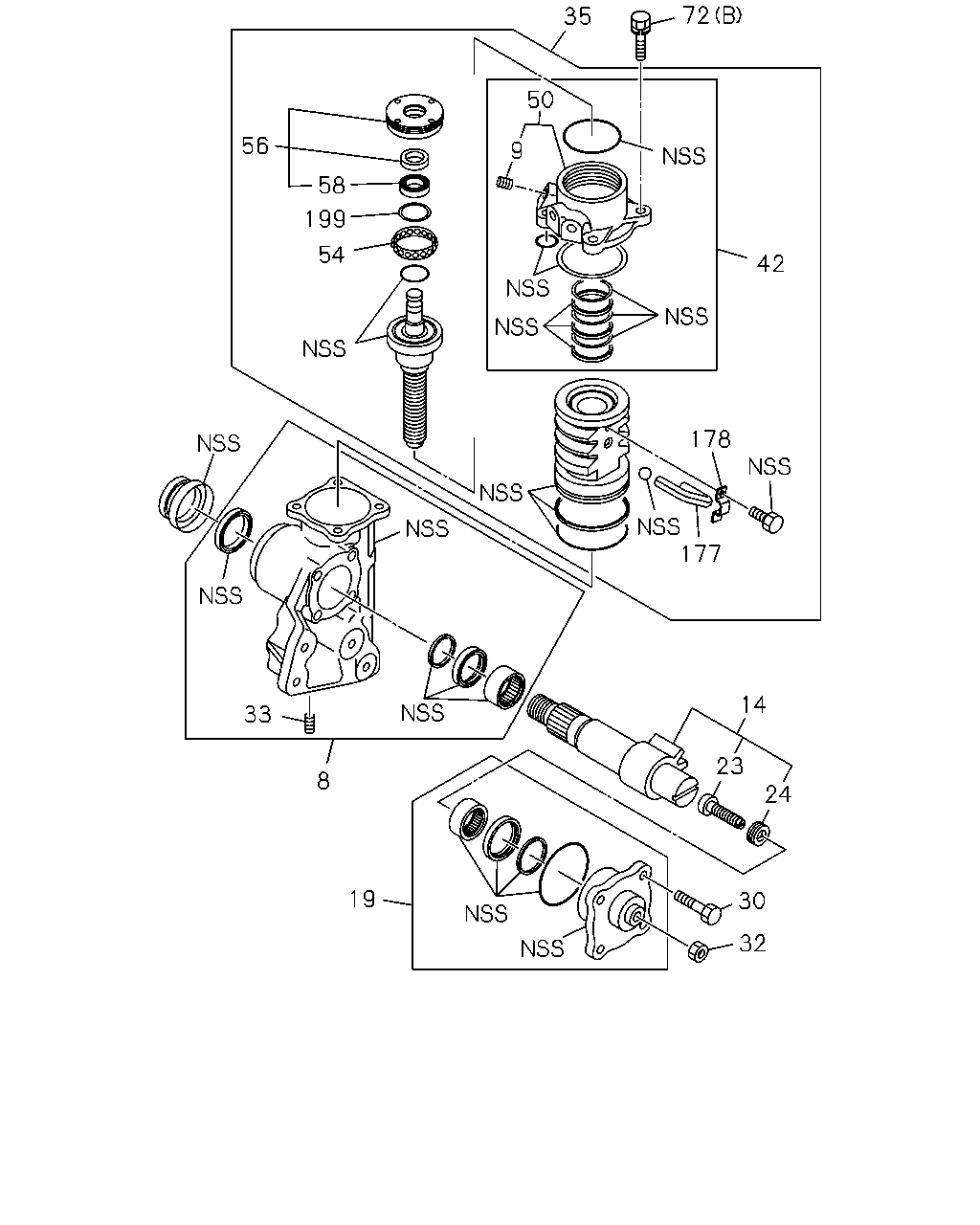

çizim 52167
72 35 50 56 9 58 199 54 42 178 177 14 33 23 8 24 19 30 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97202-838-2 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97261-061-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945 		8-97356-125-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-126-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-97356-128-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 02 1 0502-
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-820-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-820-0 02 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-820-0 01 1 -0501
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97300-350-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97306-555-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, G = 8-98251-945-0, 98251945 		8-97356-136-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105, H = 8-98251-947-0, 98251947 		8-97356-137-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-933-1 01 1 -0501
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-333-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-333-0 01 1 0502-
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046, E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046, E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-836-0 04 1 -0501
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
30 06.809 BOLT; COVER STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-97014-834-0 01 1 -0501
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103, F = 8-97356-105-8, 97356105 		8-98036-337-0 01 1 0502-
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-98036-337-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-706-0, 97069706, B = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
33 06.806 PLUG; DRAIN,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-820-0 02 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97300-352-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97306-554-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-97356-134-1 01 1 -0501
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105 		8-97356-135-1 01 1 -0501
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945 		8-98112-931-3 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97356-103-8, 97356103 		8-98112-931-3 01 1 0502-
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97356-105-8, 97356105 		8-98112-932-3 01 1 0502-
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: H = 8-98251-947-0, 98251947 		8-98112-932-3 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-822-0 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97076-366-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-821-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97076-365-0 01 1 -
54 06.835 CASE; BEARING STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-810-0 01 1 -
56 06.560 PLUG & SEAL ASM; STRG UNIT
06.850 ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97076-364-1 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-812-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: F = 8-97356-105-8, 97356105 		1-44519-110-0 04 1 -0501
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: C = 8-97300-420-0, 97300420, E = 8-97356-103-8, 97356103, G = 8-98251-945-0, 98251945 		8-97014-835-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97356-103-8, 97356103 		8-97014-836-0 03 1 -0501
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: D = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: H = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: F = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97356-103-8, 97356103 		8-98036-336-0 03 1 0502-
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: C = 8-97300-420-0, 97300420, G = 8-98251-945-0, 98251945 		8-98036-336-0 03 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: G = 8-98251-945-0, 98251945, H = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: D = 8-97305-046-0, 97305046 		8-97014-809-0 02 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420 		8-97077-537-0 02 1 -
178 06.822 CLIP; BALL TUBE STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97014-808-0 01 1 -
199 06.521 WASHER; WAVE,STRG UNIT
ASM PART: C = 8-97300-420-0, 97300420, D = 8-97305-046-0, 97305046 		8-97201-812-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
