Sayfa 2-05B - Isuzu EPC

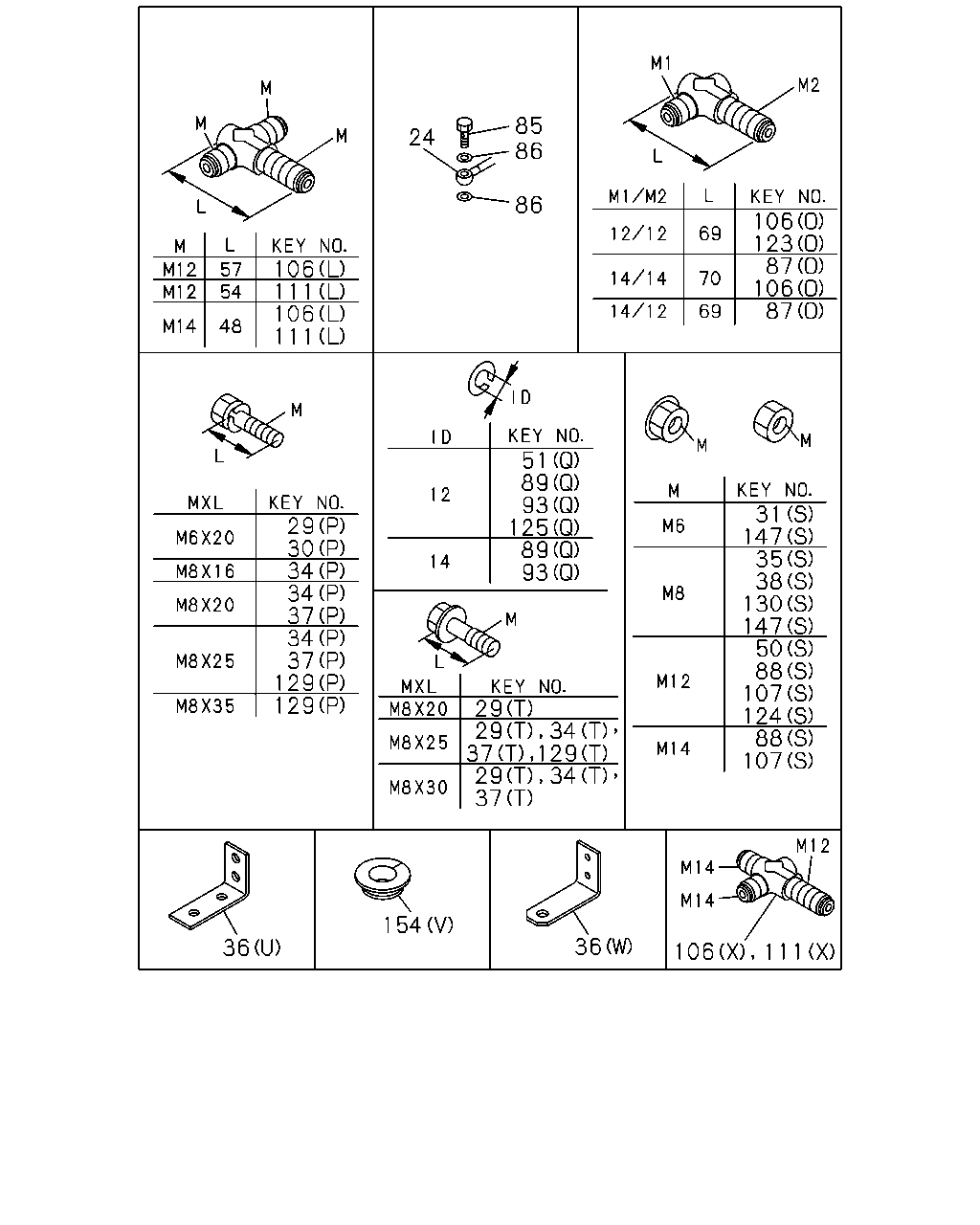

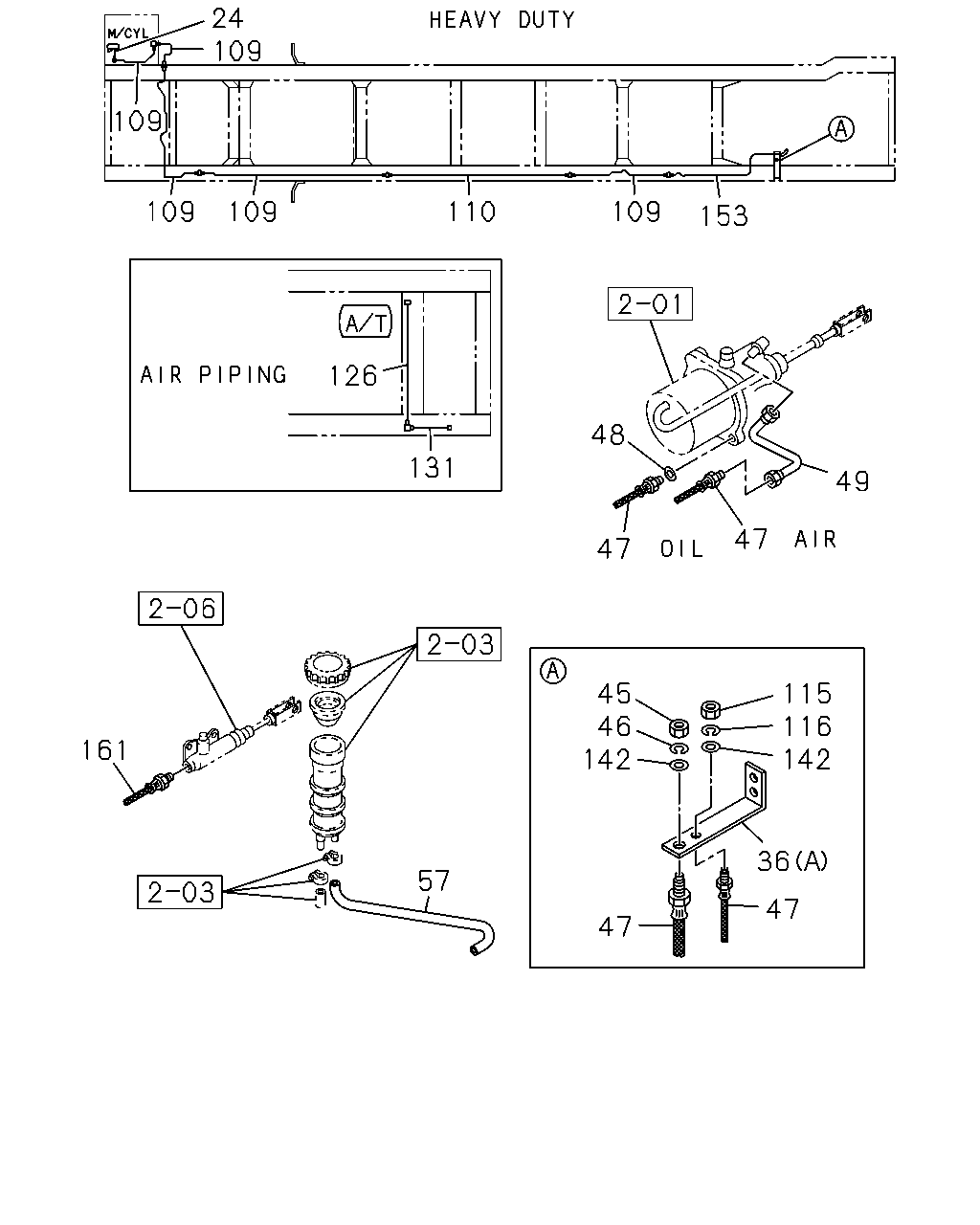

2-05B — CLUTCH PIPING (#4399) — 527 parça

85 86 24 106 123 87 106 87 86 106 111 106 111 51 89 93 125 89 93 31 147 35 38 130 147 50 88 107 124 88 107 29 30 34 34 37 34 37 129 129 29 37 129 37 154 36 36 106 111 29 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
24	PIPE ASM; CLU,M/CYL TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47417-115-0	01	1	9101-9212	●
24	PIPE ASM; CLU,M/CYL TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47425-345-0	01	1	9301-9504	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-47426-872-0	01	1	9505-9805	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-47426-872-0	01	1	9806-	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE (T) M8X20 FLANGE	0-28080-820-0	01	1	9505-9606	●	●	●	●
29	BOLT; CLIP,OIL PIPE (T) M8X25 FLANGE	0-28680-825-0	01	1	9607-9805	●	●	●	●
29	BOLT; CLIP,OIL PIPE (T) M8X25 FLANGE	0-28680-825-0	01	1	9806-0512	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE (T) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	9-01900-620-0	01	1	9101-9204	●
29	BOLT; CLIP,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9504	●	●	●
29	BOLT; CLIP,OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28680-830-0	02	1	9706-9805	●	●	●	●
29	BOLT; CLIP,OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28680-830-0	02	1	9806-0512	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●	●
30	BOLT; BRKT RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	9-01900-620-0	01	1	9101-9204	●
30	BOLT; BRKT RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9504	●	●	●
31	NUT; BRKT RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M6	9-09110-406-0	01	1	9101-9504	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (T) M8X25 FLANGE	0-28080-825-0	04	1	9505-9603	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X25 FLANGE	0-28080-825-0	05	1	9604-9606	●	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (T) M8X25 FLANGE	0-28080-825-0	05	1	9604-9606	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X30 FLANGE	0-28680-830-0	05	1	9607-9705	●	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (T) M8X30 FLANGE	0-28680-830-0	05	1	9607-9705	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28680-830-0	05	1	9706-9805	●	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (T) M8X30 FLANGE	0-28680-830-0	05	1	9706-9805	●	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28680-830-0	05	1	9706-9805	●	●	●	●
34	BOLT; PIPE CLIP EXC. CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28680-830-0	05	1	9806-0203	●	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28680-830-0	05	1	9806-0203	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28680-830-0	05	1	0204-0512	●	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28680-830-0	05	1	0204-0512	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28650-830-0	05	1	0601-	●	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28650-830-0	05	1	0601-	●	●	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●
34	BOLT; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X25 FLANGE	0-28080-825-0	03	1	9505-9606	●	●	●	●
34	BOLT; PIPE CLIP (T) M8X25 FLANGE	0-28080-825-0	03	1	9505-9606	●	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (T) M8X25 FLANGE	0-28080-825-0	03	1	9505-9606	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X30 FLANGE	0-28680-830-0	03	1	9607-9705	●	●	●	●
34	BOLT; PIPE CLIP (T) M8X30 FLANGE	0-28680-830-0	03	1	9607-9705	●	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (T) M8X30 FLANGE	0-28680-830-0	03	1	9607-9705	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28680-830-0	07	1	9706-9805	●	●	●	●
34	BOLT; PIPE CLIP CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28680-830-0	07	1	9806-0203	●	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28680-830-0	07	1	0204-0512	●	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> (T) M8X30 FLANGE	0-28650-830-0	07	1	0601-	●	●	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) (T) M8X25 FLANGE	0-28080-825-0	01	1	9505-9606	●	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) (T) M8X30 FLANGE	0-28680-830-0	01	1	9607-9805	●	●	●	●
34	BOLT; PIPE CLIP (T) M8X30 FLANGE	0-28680-830-0	03	1	9806-0203	●	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X30 FLANGE	0-28680-830-0	03	1	9806-0203	●	●	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X30 FLANGE	0-28680-830-0	03	1	9806-0203	●	●	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (T) M8X30 FLANGE	0-28680-830-0	03	1	9806-0203	●	●	●	●	●
34	BOLT; PIPE CLIP (T) M8X30 FLANGE	0-28680-830-0	03	1	0204-0512	●	●	●	●	●
34	BOLT; PIPE CLIP (T) M8X30 FLANGE	0-28680-830-0	03	1	0204-0512	●	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) (T) M8X30 FLANGE	0-28680-830-0	03	1	0204-0512	●	●	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (T) M8X30 FLANGE	0-28680-830-0	03	1	0204-0512	●	●	●	●	●
34	BOLT; PIPE CLIP (T) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●	●	●	●
34	BOLT; PIPE CLIP (T) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) (T) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (T) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	9-01900-825-0	23	1	9101-9204	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	0-50040-825-0	23	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X20 W/LK WASHER	9-01900-820-0	02	1	9111-9204	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X25 FLANGE	0-28080-825-0	05	1	9505-9603	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X25 FLANGE	0-28080-825-0	05	1	9505-9603	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X25 FLANGE	0-28080-825-0	08	1	9604-9606	●	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X30 FLANGE	0-28680-830-0	08	1	9607-9705	●	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X30 FLANGE	0-28680-830-0	03	1	9706-9805	●	●	●	●
34	BOLT; PIPE CLIP (T) M8X30 FLANGE	0-28680-830-0	03	1	9706-9805	●	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (T) M8X30 FLANGE	0-28680-830-0	03	1	9706-9805	●	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X30 FLANGE	0-28680-830-0	03	1	9706-9805	●	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) (T) M8X30 FLANGE	0-28680-830-0	01	1	9806-0512	●	●	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) (T) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●	●	●
35	NUT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	05	1	9101-9110	●
35	NUT; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8	9-09110-508-0	06	1	9111-9504	●	●	●
35	NUT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	06	1	9111-9504	●	●	●
35	NUT; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8	9-09110-508-0	04	1	9101-9504	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8	9-09110-508-0	04	1	9505-9603	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-408-0	05	1	9604-9606	●	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8	9-09110-408-0	05	1	9604-9606	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8 FLANGE	0-91150-108-0	05	1	9607-9705	●	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8 FLANGE	0-91150-108-0	05	1	9607-9705	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91150-108-0	05	1	9706-9805	●	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8 FLANGE	0-91150-108-0	05	1	9706-9805	●	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91150-108-0	05	1	9706-9805	●	●	●	●
35	NUT; PIPE CLIP EXC. CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91150-108-0	05	1	9806-0203	●	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91150-108-0	05	1	9806-0203	●	●	●	●	●
35	NUT; PIPE CLIP EXC. CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●	●	●
35	NUT; PIPE CLIP EXC. CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	03	1	9505-9603	●	●	●	●
35	NUT; PIPE CLIP (S) M8	9-09110-508-0	03	1	9505-9603	●	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (S) M8	9-09110-508-0	03	1	9505-9603	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-408-0	03	1	9604-9606	●	●	●	●
35	NUT; PIPE CLIP (S) M8	9-09110-408-0	03	1	9604-9606	●	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (S) M8	9-09110-408-0	03	1	9604-9606	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8 FLANGE	0-91150-108-0	03	1	9607-9705	●	●	●	●
35	NUT; PIPE CLIP (S) M8 FLANGE	0-91150-108-0	03	1	9607-9705	●	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (S) M8 FLANGE	0-91150-108-0	03	1	9607-9705	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91150-108-0	07	1	9706-9805	●	●	●	●
35	NUT; PIPE CLIP CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91150-108-0	07	1	9806-0203	●	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91150-108-0	07	1	0204-0602	●	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91180-108-0	07	1	0603-	●	●	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (S) M8	9-09110-508-0	02	1	9101-9504	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	21	1	9101-9504	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-508-0	01	1	9101-9504	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	01	1	9101-9504	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	05	1	9505-9603	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	05	1	9505-9603	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-408-0	08	1	9604-9606	●	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8 FLANGE	0-91150-108-0	08	1	9607-9705	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8 FLANGE	0-91150-108-0	03	1	9706-9805	●	●	●	●
35	NUT; PIPE CLIP (S) M8 FLANGE	0-91150-108-0	03	1	9706-9805	●	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (S) M8 FLANGE	0-91150-108-0	03	1	9706-9805	●	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8 FLANGE	0-91150-108-0	03	1	9706-9805	●	●	●	●
35	NUT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) (S) M8 FLANGE	0-91150-108-0	01	1	9806-0602	●	●	●	●	●
35	NUT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) (S) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
35	NUT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) (S) M8 FLANGE	0-91150-108-0	01	1	9707-9805	●	●	●	●
35	NUT; PIPE CLIP (S) M8 FLANGE	0-91150-108-0	03	1	9806-0203	●	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8 FLANGE	0-91150-108-0	03	1	9806-0203	●	●	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8 FLANGE	0-91150-108-0	03	1	9806-0203	●	●	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (S) M8 FLANGE	0-91150-108-0	03	1	9806-0203	●	●	●	●	●
35	NUT; PIPE CLIP (S) M8 FLANGE	0-91150-108-0	03	1	0204-0602	●	●	●	●	●
35	NUT; PIPE CLIP (S) M8 FLANGE	0-91150-108-0	03	1	0204-0602	●	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) (S) M8 FLANGE	0-91150-108-0	03	1	0204-0602	●	●	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (S) M8 FLANGE	0-91150-108-0	03	1	0204-0602	●	●	●	●	●
35	NUT; PIPE CLIP (S) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●	●
35	NUT; PIPE CLIP (S) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●	●
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) (S) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (S) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●	●
36	BRACKET; CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-939-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-939-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP (U)	1-47475-570-0	01	1	9505-9701	●	●	●	●
36	BRACKET; CLIP LEFT HAND DRIVE(LTR6FB) 6HH1 STD ENG(65L) (U)	1-47475-570-0	01	1	9702-9805	●	●	●
36	BRACKET; CLIP 6HH1 STD ENG(65L) (U)	1-47475-570-0	01	1	9806-	●	●	●		●
36	BRACKET; CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47465-068-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	05	1	9101-9504	●	●	●
36	BRACKET; CLIP LEFT HAND DRIVE(LTR6FB) 6HE1 TCC ENG(76L) (W)	1-47477-865-0	01	1	9702-9709				●
36	BRACKET; CLIP (W)	1-47477-865-0	01	1	9710-9805				●
36	BRACKET; CLIP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (W)	1-47477-865-0	01	1	9806-				●	●
37	BOLT; CLIP BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9504	●	●	●
37	BOLT; CLIP BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204	●
37	BOLT; CLIP BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9504	●	●	●
37	BOLT; CLIP BRKT (T) M8X25 FLANGE	0-28080-825-0	02	1	9505-9606	●	●	●	●
37	BOLT; CLIP BRKT (T) M8X30 FLANGE	0-28680-830-0	02	1	9607-9805	●	●	●	●
37	BOLT; CLIP BRKT (T) M8X30 FLANGE	0-28680-830-0	02	1	9806-0512	●	●	●	●	●
37	BOLT; CLIP BRKT (T) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●	●
38	NUT; CLIP BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8	9-09110-408-0	01	1	9101-9504	●	●	●
38	NUT; CLIP BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-408-0	02	1	9101-9504	●	●	●
38	NUT; CLIP BRKT (S) M8	9-09110-508-0	02	1	9505-9606	●	●	●	●
38	NUT; CLIP BRKT (S) M8 FLANGE	0-91150-108-0	02	1	9607-9805	●	●	●	●
38	NUT; CLIP BRKT (S) M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●	●	●	●
38	NUT; CLIP BRKT (S) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
50	NUT; UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-99110-412-0	02	1	9101-9504	●	●	●
50	NUT; UNION (S) M12	9-99110-412-0	01	1	9505-9603	●	●	●	●
50	NUT; UNION (S) M12	9-99111-412-0	01	1	9604-9606	●	●	●	●
50	NUT; UNION (S) M12 FLANGE	0-91150-212-0	01	1	9607-9805	●	●	●	●
50	NUT; UNION (S) M12 FLANGE	0-91150-212-0	01	1	9806-0602	●	●	●	●	●
50	NUT; UNION (S) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●	●	●	●
51	WASHER; LK RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=12.2	9-09150-512-0	02	1	9101-9312	●	●	●
85	BOLT; EYE JOINT,CLU M/CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14X29 EYE-BOLT	9-09906-325-1	01	1	9101-9504	●	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	9505-9805	●	●	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	9806-	●	●	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 OD=20.0	9-09571-414-0	02	1	9101-9504	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9505-9805	●	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9806-	●	●	●	●	●
87	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE (O) M14 & M14 L=70	9-09225-108-1	01	1	9505-9805	●	●	●	●
87	UNION; OIL PIPE (O) M14 & M14 L=70	9-09225-108-1	01	1	9806-0607	●	●	●	●	●
87	UNION; OIL PIPE (O) M14 & M14 L=70	0-92125-108-0	01	1	0608-	●	●	●	●	●
87	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M12 L=69	1-09654-105-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (K) M14 L=40	9-09223-008-1	01	1	9706-9805	●	●	●	●
87	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (K) M14 L=40	9-09223-008-1	01	1	9806-0607	●	●	●	●	●
87	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (K) M14 L=40	0-92113-008-0	01	1	0608-	●	●	●	●	●
88	NUT; PIPE UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M14	9-99111-414-0	01	1	9101-9504	●	●	●
88	NUT; PIPE UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M14	9-99111-414-0	01	1	9101-9504	●	●	●
88	NUT; PIPE UNION (S) M14	9-99111-414-0	01	1	9505-9805	●	●	●	●
88	NUT; PIPE UNION (S) M14	9-99111-414-0	01	1	9806-0512	●	●	●	●	●
88	NUT; PIPE UNION (S) M14	0-91111-514-0	01	1	0601-	●	●	●	●	●
88	NUT; PIPE UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-09840-280-0	01	1	9101-9504	●	●	●
89	WASHER; LK,PIPE UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (Q) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●
89	WASHER; LK,PIPE UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●
89	WASHER; LK,PIPE UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=12.2	9-09150-512-0	01	1	9101-9312	●	●	●
93	WASHER; LK,UNION,OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (Q) ID=14.2	9-09150-514-0	02	1	9101-9312	●	●	●
93	WASHER; LK,UNION,OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=14.2	9-09150-514-0	02	1	9101-9312	●	●	●
93	WASHER; LK,UNION,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=12.2	9-09150-512-0	03	1	9101-9312	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M12 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M12 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=64.5	9-09223-208-1	01	1	9111-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=64.5	9-09223-208-1	01	1	9111-9504	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE (O) M14 & M14 L=70	9-09225-108-1	01	1	9505-9805	●	●	●	●
106	UNION; OIL PIPE (O) M14 & M14 L=70	9-09225-108-1	01	1	9806-0607	●	●	●	●	●
106	UNION; OIL PIPE (O) M14 & M14 L=70	0-92125-108-0	01	1	0608-	●	●	●	●	●
106	UNION; OIL PIPE (L) L=48 M14 2WAY	1-09654-176-2	02	1	9505-9705	●	●	●	●
106	UNION; OIL PIPE (L) L=48 M14 2WAY	1-09654-176-2	01	1	9706-9805	●	●	●	●
106	UNION; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (L) L=48 M14 2WAY	1-09654-176-2	01	1	9706-9805	●	●	●	●
106	UNION; OIL PIPE (L) L=48 M14 2WAY	1-09654-176-2	01	1	9806-	●	●	●	●	●
106	UNION; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (L) L=48 M14 2WAY	1-09654-176-2	01	1	9806-	●	●	●	●	●
106	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 L=57	1-09654-137-2	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M12 & M12 L=69	9-09225-106-1	02	1	9101-9504	●	●	●
106	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (X) M14 2WAY	1-09654-034-2	01	1	9706-9805	●	●	●	●
106	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (X) M14 2WAY	1-09654-034-2	01	1	9806-	●	●	●	●	●
107	NUT; UNION,OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M14	9-99111-414-0	02	1	9101-9504	●	●	●
107	NUT; UNION,OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M14	9-99111-414-0	02	1	9101-9504	●	●	●
107	NUT; UNION,OIL PIPE (S) M14	9-99111-414-0	01	1	9505-9805	●	●	●	●
107	NUT; UNION,OIL PIPE (S) M14	9-99111-414-0	01	1	9806-0512	●	●	●	●	●
107	NUT; UNION,OIL PIPE (S) M14	0-91111-514-0	01	1	0601-	●	●	●	●	●
107	NUT; UNION,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-09840-280-0	02	1	9101-9504	●	●	●
107	NUT; UNION,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-99110-412-0	01	1	9101-9307	●	●	●
107	NUT; UNION,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-99110-512-0	01	1	9308-9504	●	●	●
107	NUT; UNION,OIL PIPE (S) M12	9-99110-412-0	02	1	9505-9603	●	●	●
107	NUT; UNION,OIL PIPE (S) M12	9-99111-412-0	02	1	9604-9606	●	●	●
107	NUT; UNION,OIL PIPE (S) M12 FLANGE	0-91150-212-0	02	1	9607-9805	●	●	●	●
107	NUT; UNION,OIL PIPE (S) M12 FLANGE	0-91150-212-0	02	1	9806-0602	●	●	●	●	●
107	NUT; UNION,OIL PIPE (S) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●	●
111	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=40	9-09223-008-1	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=40	9-09223-008-1	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE (L) L=48 M14 2WAY	1-09654-176-2	01	1	9505-9705	●	●	●	●
111	UNION; OIL PIPE (K) M14 L=40	9-09223-008-1	01	1	9706-9805	●	●	●	●
111	UNION; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (L) L=48 M14 2WAY	1-09654-176-2	01	1	9806-	●	●	●	●	●
111	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 3WAY	1-09654-137-2	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE (K) M14 L=40	9-09223-008-1	01	1	9604-9705	●	●	●	●
111	UNION; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (K) M14 L=40	9-09223-008-1	01	1	9706-9706	●	●	●	●
111	UNION; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (L) L=48 M14 2WAY	1-09654-176-2	01	1	9706-9805	●	●	●	●
111	UNION; OIL PIPE (K) M14 L=40	9-09223-008-1	01	1	9806-0607	●	●	●	●	●
111	UNION; OIL PIPE (K) M14 L=40	0-92113-008-0	01	1	0608-	●	●	●	●	●
111	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (X) M14 2WAY	1-09654-034-2	01	1	9706-9805	●	●	●	●
111	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (X) M14 2WAY	1-09654-034-2	01	1	9806-	●	●	●	●	●
123	UNION; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE (K) M14 L=40	9-09223-008-1	01	1	9505-9603	●	●	●	●
123	UNION; AIR PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (O) M12 & M12 L=69	9-09225-106-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M12 L=40	9-09223-006-1	01	1	9101-9504	●	●	●
124	NUT; PIPE UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (S) M12	9-09840-280-0	01	1	9101-9504	●	●	●
125	WASHER; LK,PIPE UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (Q) ID=12.2	9-09150-512-0	01	1	9101-9312	●	●	●
129	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●
129	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9504	●	●	●
129	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9504	●	●	●
129	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X25 FLANGE	0-28080-825-0	02	1	9505-9506	●	●	●
129	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (T) M8X25 FLANGE	0-28080-825-0	03	1	9507-9603	●	●	●
129	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X25 W/LK WASHER	0-50040-825-0	05	1	9205-9504	●	●	●
129	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X35 W/LK WASHER	9-01900-835-0	01	1	9101-9204	●
129	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X35 W/LK WASHER	0-50040-835-0	01	1	9205-9504	●	●	●
129	BOLT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (T) M8X25 FLANGE	0-28080-825-0	01	1	9507-9603	●	●	●
130	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-508-0	03	1	9101-9504	●	●	●
130	NUT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	03	1	9101-9504	●	●	●
130	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	02	1	9505-9506	●	●	●
130	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	03	1	9507-9603	●	●	●
130	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	01	1	9101-9504	●	●	●
130	NUT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8	9-09110-508-0	01	1	9507-9603	●	●	●
147	NUT; CLIP FIX (S) M8	9-09110-508-0	01	1	9505-9603	●	●	●
147	NUT; CLIP FIX (S) M8	9-09110-408-0	01	1	9604-9606	●	●	●
147	NUT; CLIP FIX (S) M8 FLANGE	0-91150-108-0	01	1	9607-9805	●	●	●	●
147	NUT; CLIP FIX CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91150-108-0	02	1	9706-9805	●	●	●	●
147	NUT; CLIP FIX CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●	●	●	●
147	NUT; CLIP FIX CENTER SPLIT TYPE FRAME<TLW> (S) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
147	NUT; CLIP FIX (S) M8 FLANGE	0-91150-108-0	01	1	9806-0602	●	●	●	●	●
147	NUT; CLIP FIX (S) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
154	GROMMET; CLU OIL PIPE (V)	1-09333-026-2	01	1	9505-9805	●	●	●	●
154	GROMMET; CLU OIL PIPE (V)	1-09333-026-2	01	1	9806-	●	●	●	●	●

24 109 109 109 109 110 109 153 126 48 131 49 47 47 45 46 142 115 116 142 161 36 57 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
24	PIPE ASM; CLU,M/CYL TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47417-115-0	01	1	9101-9212	●
24	PIPE ASM; CLU,M/CYL TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47425-345-0	01	1	9301-9504	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-47426-872-0	01	1	9505-9805	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-47426-872-0	01	1	9806-	●	●	●	●	●
36	BRACKET; CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-939-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-939-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP (U)	1-47475-570-0	01	1	9505-9701	●	●	●	●
36	BRACKET; CLIP LEFT HAND DRIVE(LTR6FB) 6HH1 STD ENG(65L) (U)	1-47475-570-0	01	1	9702-9805	●	●	●
36	BRACKET; CLIP 6HH1 STD ENG(65L) (U)	1-47475-570-0	01	1	9806-	●	●	●		●
36	BRACKET; CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47465-068-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	05	1	9101-9504	●	●	●
36	BRACKET; CLIP LEFT HAND DRIVE(LTR6FB) 6HE1 TCC ENG(76L) (W)	1-47477-865-0	01	1	9702-9709				●
36	BRACKET; CLIP (W)	1-47477-865-0	01	1	9710-9805				●
36	BRACKET; CLIP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (W)	1-47477-865-0	01	1	9806-				●	●
45	NUT; FLEX HOSE,CLU CONT CLU SYSTEM MINIPACK(B1Z) M12	9-09840-280-0	02	1	9101-9307	●	●	●
45	NUT; FLEX HOSE,CLU CONT 6BD1 TC ENG(L29) EXC. CLU SYSTEM MINIPACK(B1Z) M12	9-09840-280-0	02	1	9101-9307	●	●	●
45	NUT; FLEX HOSE,CLU CONT CLU SYSTEM MINIPACK(B1Z) M12	9-09840-280-0	02	1	9308-9504	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT CLU SYSTEM MINIPACK(B1Z) ID=12.2	9-09150-512-0	02	1	9101-9307	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT 6BD1 TC ENG(L29) EXC. CLU SYSTEM MINIPACK(B1Z) ID=12.2	9-09150-512-0	02	1	9101-9307	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT CLU SYSTEM MINIPACK(B1Z) ID=12.2	9-09150-512-0	02	1	9308-9312	●	●	●
47	HOSE; FLEX,CLU CONT RIGHT HAND DRIVE(LTR5FB) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) OIL HOSE L=460	1-09364-264-0	01	1	9101-9204	●
47	HOSE; FLEX,CLU CONT RIGHT HAND DRIVE(LTR5FB) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> OIL HOSE L=460	1-09364-264-0	01	1	9205-9504	●	●	●
47	HOSE; FLEX,CLU CONT OIL HOSE L=500	1-09364-329-0	01	1	9505-9701	●	●	●	●
47	HOSE; FLEX,CLU CONT LEFT HAND DRIVE(LTR6FB) 6HH1 STD ENG(65L) OIL HOSE L=500	1-09364-329-0	01	1	9702-9805	●	●	●
47	HOSE; FLEX,CLU CONT 6HH1 STD ENG(65L) OIL HOSE L=500	1-09364-329-0	01	1	9806-	●	●	●		●
47	HOSE; FLEX,CLU CONT CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> OIL HOSE L=415	1-09364-490-0	01	1	9101-9504	●	●	●
47	HOSE; FLEX,CLU CONT CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HOSE L=390	0-07030-390-0	01	1	9101-9504	●	●	●
47	HOSE; FLEX,CLU CONT LEFT HAND DRIVE(LTR6FB) 6HE1 TCC ENG(76L) OIL HOSE L=450	1-09364-369-0	01	1	9702-9707				●
47	HOSE; FLEX,CLU CONT LEFT HAND DRIVE(LTR6FB) 6HE1 TCC ENG(76L) OIL HOSE L=475	1-09364-985-0	01	1	9708-9709				●
47	HOSE; FLEX,CLU CONT OIL HOSE L=475	1-09364-985-0	01	1	9710-9805				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) OIL HOSE L=475	1-09364-985-0	01	1	9806-9810				●	●
47	HOSE; FLEX,CLU CONT OIL HOSE L=475	1-09364-985-0	01	1	9811-0203				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=475	1-09364-985-0	01	1	0204-				●	●
48	GASKET; FLEX HOSE,CLU CONT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 OD=16.0	9-09571-410-0	01	1	9101-9307	●	●	●
48	GASKET; FLEX HOSE,CLU CONT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 OD=16.0	9-09571-410-0	01	1	9308-9504	●	●	●
48	GASKET; FLEX HOSE,CLU CONT CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 OD=16.0	9-09571-410-0	01	1	9308-9504	●	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9505-9805	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9806-	●	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6BD1 STD ENG(L21),6BG1 STD ENG(16L) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=211	1-47449-064-0	01	1	9101-9307	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6BD1 TC ENG(L29) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=211	1-47449-064-0	01	1	9101-9307	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=211	1-47449-064-0	01	1	9308-9504	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	9101-9504	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	9505-9805	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	9806-	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION AIR DRYER<PS7> L=1696 SERVICED BY L=1700	1-47434-412-0	01	1	9106-9212	●
109	PIPE; AIR,UNION TO UNION AIR DRYER<PS7> L=1696 SERVICED BY L=1700	1-47426-391-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> L=1126 SERVICED BY L=1250	1-47426-388-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) L=2132 SERVICED BY L=2150	1-47426-394-0	01	1	9505-9705	●	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> L=2132 SERVICED BY L=2150	1-47426-394-0	01	1	9706-9805	●	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> L=2132 SERVICED BY L=2150	1-47426-394-0	01	1	9806-0306	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> L=2050 SERVICED BY L=2150	1-47426-394-0	01	1	0307-0308	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> L=2053 SERVICED BY L=2150	1-47426-394-0	01	1	0309-	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1320 SERVICED BY L=1400	1-47426-389-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=323 SERVICED BY L=350	1-47426-373-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610 SERVICED BY L=620	1-47426-380-0	01	1	9101-9212	●
109	PIPE; AIR,UNION TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610 SERVICED BY L=620	1-47426-380-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610 SERVICED BY L=620	1-47426-380-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) L=1423 SERVICED BY L=1550	1-47426-390-0	01	1	9505-9805	●	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) L=1423 SERVICED BY L=1550	1-47426-390-0	01	1	9806-0306	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) L=1348 SERVICED BY L=1400	1-47426-389-0	01	1	0307-	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION L=653 SERVICED BY L=660	1-47426-381-0	01	1	9505-9506	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) L=653 SERVICED BY L=660	1-47426-381-0	01	1	9507-9805	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) L=653 SERVICED BY L=660	1-47426-381-0	01	1	9806-	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) L=1567 SERVICED BY L=1700	1-47426-391-0	01	1	9505-9506	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) L=1523 SERVICED BY L=1550	1-47426-390-0	01	1	9507-9805	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) L=1523 SERVICED BY L=1550	1-47426-390-0	01	1	9806-0306	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) L=1593 SERVICED BY L=1700	1-47426-391-0	01	1	0307-	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2037 SERVICED BY L=2200	1-47434-396-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2469 SERVICED BY L=2500	1-47434-398-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=392 SERVICED BY L=460	9-47415-349-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=647 SERVICED BY L=650	9-47415-353-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) L=795	1-47429-112-0	01	1	9505-9805	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1319 SERVICED BY L=1400	1-47434-411-0	01	1	9101-9212	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1229 SERVICED BY L=1400	1-47426-389-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) L=795	1-47429-112-0	01	1	9806-0203	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) L=795 SERVICED BY L=800	1-47426-383-0	01	1	0204-0306	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) L=864	1-49166-645-0	01	1	0307-	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=469 SERVICED BY L=500	9-47415-380-0	01	1	9101-9212	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=469 SERVICED BY L=500	1-47426-376-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=469 SERVICED BY L=500	1-47426-376-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION L=455 SERVICED BY L=500	1-47426-376-0	01	1	9505-9506	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) L=455 SERVICED BY L=500	1-47426-376-0	01	1	9507-9805	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) L=455 SERVICED BY L=500	1-47426-376-0	01	1	9806-	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=564 SERVICED BY L=600	9-47415-382-0	01	1	9101-9212	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=564 SERVICED BY L=570	1-47426-378-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=564 SERVICED BY L=570	1-47426-378-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> L=2217 SERVICED BY L=2400	1-47426-395-0	01	1	9706-9707	●	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> L=2212 SERVICED BY L=2400	1-47426-395-0	01	1	9708-9805	●	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> L=2212 SERVICED BY L=2400	1-47426-395-0	01	1	9806-0306	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> L=2143 SERVICED BY L=2150	1-47426-394-0	01	1	0307-	●	●	●	●	●
110	PIPE; OIL,UNION TO UNION AIR DRYER<PS7> L=2751 SERVICED BY L=3000	1-47437-960-0	01	1	9101-9212	●
110	PIPE; OIL,UNION TO UNION AIR DRYER<PS7> L=2751 SERVICED BY L=3000	1-47426-397-0	01	1	9301-9504	●	●	●
110	PIPE; OIL,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2113 SERVICED BY L=2150	1-47437-958-0	01	1	9101-9212	●
110	PIPE; OIL,UNION TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2114 SERVICED BY L=2150	1-47426-394-0	01	1	9301-9504	●	●	●
110	PIPE; OIL,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2114 SERVICED BY L=2150	1-47426-394-0	01	1	9301-9504	●	●	●
110	PIPE; OIL,UNION TO UNION L=1934 SERVICED BY L=2150	1-47426-394-0	01	1	9505-9705	●	●	●	●
110	PIPE; OIL,UNION TO UNION EXC. CENTER SPLIT TYPE FRAME<TLW> L=1934 SERVICED BY L=2150	1-47426-394-0	01	1	9706-9805	●	●	●	●
110	PIPE; OIL,UNION TO UNION EXC. CENTER SPLIT TYPE FRAME<TLW> L=1934 SERVICED BY L=2150	1-47426-394-0	01	1	9806-	●	●	●	●	●
110	PIPE; OIL,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2460 SERVICED BY L=2700	1-47434-415-0	01	1	9101-9212	●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2460 SERVICED BY L=2700	1-47426-396-0	01	1	9301-9504	●	●	●
110	PIPE; OIL,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2460 SERVICED BY L=2700	1-47426-396-0	01	1	9301-9504	●	●	●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. AIR DRYER<PS7> L=3160 SERVICED BY L=3300	1-47434-416-0	01	1	9101-9212	●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. AIR DRYER<PS7> L=3160 SERVICED BY L=3300	1-47426-398-0	01	1	9301-9504	●	●	●
110	PIPE; OIL,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2315 SERVICED BY L=2350	1-47434-397-0	01	1	9101-9504	●	●	●
110	PIPE; OIL,UNION TO UNION L=1546 SERVICED BY L=1700	1-47426-391-0	01	1	9505-9705	●	●	●	●
110	PIPE; OIL,UNION TO UNION EXC. CENTER SPLIT TYPE FRAME<TLW> L=1546 SERVICED BY L=1700	1-47426-391-0	01	1	9706-9805	●	●	●	●
110	PIPE; OIL,UNION TO UNION EXC. CENTER SPLIT TYPE FRAME<TLW> L=1546 SERVICED BY L=1700	1-47426-391-0	01	1	9806-0104	●	●	●	●	●
110	PIPE; OIL,UNION TO UNION EXC. CENTER SPLIT TYPE FRAME<TLW> L=1546 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●	●	●	●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=703 SERVICED BY L=800	1-47434-384-0	01	1	9101-9504	●	●	●
110	PIPE; OIL,UNION TO UNION CENTER SPLIT TYPE FRAME<TLW> L=1230 SERVICED BY L=1250	1-47426-388-0	01	1	9706-9805	●	●	●	●
110	PIPE; OIL,UNION TO UNION CENTER SPLIT TYPE FRAME<TLW> L=1230 SERVICED BY L=1250	1-47426-388-0	01	1	9806-	●	●	●	●	●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> L=1654 SERVICED BY L=1700	1-47426-391-0	02	1	9706-9707	●	●	●	●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> L=1625 SERVICED BY L=1700	1-47426-391-0	02	1	9708-9805	●	●	●	●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> L=1625 SERVICED BY L=1700	1-47426-391-0	02	1	9806-	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14	9-99111-414-0	01	1	9101-9504	●	●	●
115	NUT; FLEX HOSE,CLU CONT LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	01	1	9101-9504	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9505-9805	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9806-0512	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-09840-280-0	01	1	9101-9504	●	●	●
116	WASHER; FLEX HOSE,CLU CONT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●
116	WASHER; FLEX HOSE,CLU CONT LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●
116	WASHER; FLEX HOSE,CLU CONT RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	9101-9312	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9505-9805	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9806-0603	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●	●	●	●
126	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) L=484 SERVICED BY L=500	9-47415-350-0	01	1	9101-9504	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> L=678 SERVICED BY L=700	1-47434-466-0	01	1	9111-9504	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE RIGHT HAND DRIVE(LTR5FB) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> L=568 SERVICED BY L=600	9-47415-352-0	01	1	9111-9504	●	●	●
142	WASHER; PL,FLEX HOSE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) ID=12.5 OD=32	9-09160-712-0	02	1	9101-9504	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1553 SERVICED BY L=1700	1-47434-412-0	01	1	9101-9212	●
153	PIPE ASM; CLU,UNION TO FLEX BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1553 SERVICED BY L=1700	1-47426-391-0	01	1	9301-9504	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1553 SERVICED BY L=1700	1-47426-391-0	01	1	9301-9504	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1794 SERVICED BY L=1800	1-47426-392-0	01	1	9505-9506	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1787 SERVICED BY L=1800	1-47426-392-0	01	1	9507-9701	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX LEFT HAND DRIVE(LTR6FB) 6HH1 STD ENG(65L) L=1787 SERVICED BY L=1800	1-47426-392-0	01	1	9702-9805	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6HH1 STD ENG(65L) L=1787 SERVICED BY L=1800	1-47426-392-0	01	1	9806-0401	●	●	●		●
153	PIPE ASM; CLU,UNION TO FLEX 6HH1 STD ENG(65L) L=1795 SERVICED BY L=1800	1-47426-392-0	01	1	0402-	●	●	●		●
153	PIPE ASM; CLU,UNION TO FLEX RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1814 SERVICED BY L=1820	1-47434-394-0	01	1	9101-9504	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX LEFT HAND DRIVE(LTR6FB) 6HE1 TCC ENG(76L) L=1731 SERVICED BY L=1800	1-47426-392-0	01	1	9702-9709				●
153	PIPE ASM; CLU,UNION TO FLEX L=1731 SERVICED BY L=1800	1-47426-392-0	01	1	9710-9805				●
153	PIPE ASM; CLU,UNION TO FLEX 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1731 SERVICED BY L=1800	1-47426-392-0	01	1	9806-0012				●	●
153	PIPE ASM; CLU,UNION TO FLEX 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1731 SERVICED BY L=1800	1-47426-392-0	01	1	0101-0401				●	●
153	PIPE ASM; CLU,UNION TO FLEX 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1740 SERVICED BY L=1800	1-47426-392-0	01	1	0402-				●	●
161	HOSE; FLEX,SLAVE CYL EXC. CLU SYSTEM MINIPACK(B1Z) L=330	1-09364-607-0	01	1	9205-9504	●	●	●

33 128 33 28 33 33 128 32 32 36 106 87 111 123 106 138 32 33 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
28	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=7 & 7 L=30	1-09700-059-0	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT (Z05) (F)	1-47475-304-0	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	1-47465-866-1	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	04	1	9101-9504	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9505-9603	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9505-9603	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	08	1	9604-9705	●	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9706-9805	●	●	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9706-9805	●	●	●	●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9706-9805	●	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9706-9805	●	●	●	●
33	CLIP; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9806-0203	●	●	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9806-0203	●	●	●	●	●
33	CLIP; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0204-	●	●	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0204-	●	●	●	●	●
33	CLIP; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	06	1	9111-9504	●	●	●
33	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	06	1	9111-9504	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9505-9705	●	●	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9505-9705	●	●	●	●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9505-9705	●	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CENTER SPLIT TYPE FRAME<TLW> (B) ID=8 H=20 L=20	1-09700-604-0	07	1	9706-9805	●	●	●	●
33	CLIP; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (B) ID=8 H=20 L=20	1-09700-604-0	07	1	9806-0203	●	●	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) CENTER SPLIT TYPE FRAME<TLW> (B) ID=8 H=20 L=20	1-09700-604-0	07	1	0204-	●	●	●	●	●
33	CLIP; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9101-9504	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	04	1	9505-9603	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9604-9705	●	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9604-9705	●	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9706-9805	●	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9706-9805	●	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CENTER SPLIT TYPE FRAME<TLW> (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9706-9805	●	●	●	●
33	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9806-	●	●	●	●	●
33	CLIP; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=9 & 7 L=30	1-09700-653-0	01	1	9101-9504	●	●	●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=6 H=20 L=20	1-09700-603-0	05	1	9101-9504	●	●	●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=7 & 9 L=35	1-09700-746-0	01	1	9101-9504	●	●	●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=7 & 11	1-09700-790-0	09	1	9101-9504	●	●	●
33	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9505-9805	●	●	●	●
33	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9101-9504	●	●	●
33	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9101-9504	●	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9806-0203	●	●	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9806-0203	●	●	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9806-0203	●	●	●	●	●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9806-0203	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0204-	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0204-	●	●	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0204-	●	●	●	●	●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0204-	●	●	●	●	●
36	BRACKET; CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-939-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-939-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP (U)	1-47475-570-0	01	1	9505-9701	●	●	●	●
36	BRACKET; CLIP LEFT HAND DRIVE(LTR6FB) 6HH1 STD ENG(65L) (U)	1-47475-570-0	01	1	9702-9805	●	●	●
36	BRACKET; CLIP 6HH1 STD ENG(65L) (U)	1-47475-570-0	01	1	9806-	●	●	●		●
36	BRACKET; CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47465-068-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	05	1	9101-9504	●	●	●
36	BRACKET; CLIP LEFT HAND DRIVE(LTR6FB) 6HE1 TCC ENG(76L) (W)	1-47477-865-0	01	1	9702-9709				●
36	BRACKET; CLIP (W)	1-47477-865-0	01	1	9710-9805				●
36	BRACKET; CLIP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (W)	1-47477-865-0	01	1	9806-				●	●
87	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE (O) M14 & M14 L=70	9-09225-108-1	01	1	9505-9805	●	●	●	●
87	UNION; OIL PIPE (O) M14 & M14 L=70	9-09225-108-1	01	1	9806-0607	●	●	●	●	●
87	UNION; OIL PIPE (O) M14 & M14 L=70	0-92125-108-0	01	1	0608-	●	●	●	●	●
87	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M12 L=69	1-09654-105-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (K) M14 L=40	9-09223-008-1	01	1	9706-9805	●	●	●	●
87	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (K) M14 L=40	9-09223-008-1	01	1	9806-0607	●	●	●	●	●
87	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (K) M14 L=40	0-92113-008-0	01	1	0608-	●	●	●	●	●
92	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9505-9805	●	●	●	●
92	CLIP; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9706-9805	●	●	●	●
92	CLIP; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9806-	●	●	●	●	●
92	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9806-	●	●	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M12 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M12 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=64.5	9-09223-208-1	01	1	9111-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=64.5	9-09223-208-1	01	1	9111-9504	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE (O) M14 & M14 L=70	9-09225-108-1	01	1	9505-9805	●	●	●	●
106	UNION; OIL PIPE (O) M14 & M14 L=70	9-09225-108-1	01	1	9806-0607	●	●	●	●	●
106	UNION; OIL PIPE (O) M14 & M14 L=70	0-92125-108-0	01	1	0608-	●	●	●	●	●
106	UNION; OIL PIPE (L) L=48 M14 2WAY	1-09654-176-2	02	1	9505-9705	●	●	●	●
106	UNION; OIL PIPE (L) L=48 M14 2WAY	1-09654-176-2	01	1	9706-9805	●	●	●	●
106	UNION; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (L) L=48 M14 2WAY	1-09654-176-2	01	1	9706-9805	●	●	●	●
106	UNION; OIL PIPE (L) L=48 M14 2WAY	1-09654-176-2	01	1	9806-	●	●	●	●	●
106	UNION; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (L) L=48 M14 2WAY	1-09654-176-2	01	1	9806-	●	●	●	●	●
106	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 L=57	1-09654-137-2	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M12 & M12 L=69	9-09225-106-1	02	1	9101-9504	●	●	●
106	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (X) M14 2WAY	1-09654-034-2	01	1	9706-9805	●	●	●	●
106	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (X) M14 2WAY	1-09654-034-2	01	1	9806-	●	●	●	●	●
111	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=40	9-09223-008-1	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=40	9-09223-008-1	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE (L) L=48 M14 2WAY	1-09654-176-2	01	1	9505-9705	●	●	●	●
111	UNION; OIL PIPE (K) M14 L=40	9-09223-008-1	01	1	9706-9805	●	●	●	●
111	UNION; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (L) L=48 M14 2WAY	1-09654-176-2	01	1	9806-	●	●	●	●	●
111	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 3WAY	1-09654-137-2	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE (K) M14 L=40	9-09223-008-1	01	1	9604-9705	●	●	●	●
111	UNION; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (K) M14 L=40	9-09223-008-1	01	1	9706-9706	●	●	●	●
111	UNION; OIL PIPE EXC. CENTER SPLIT TYPE FRAME<TLW> (L) L=48 M14 2WAY	1-09654-176-2	01	1	9706-9805	●	●	●	●
111	UNION; OIL PIPE (K) M14 L=40	9-09223-008-1	01	1	9806-0607	●	●	●	●	●
111	UNION; OIL PIPE (K) M14 L=40	0-92113-008-0	01	1	0608-	●	●	●	●	●
111	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (X) M14 2WAY	1-09654-034-2	01	1	9706-9805	●	●	●	●
111	UNION; OIL PIPE CENTER SPLIT TYPE FRAME<TLW> (X) M14 2WAY	1-09654-034-2	01	1	9806-	●	●	●	●	●
123	UNION; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE (K) M14 L=40	9-09223-008-1	01	1	9505-9603	●	●	●	●
123	UNION; AIR PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (O) M12 & M12 L=69	9-09225-106-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M12 L=40	9-09223-006-1	01	1	9101-9504	●	●	●
128	CLIP; AIR PIPE WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9101-9504	●	●	●
128	CLIP; AIR PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9101-9504	●	●	●
128	CLIP; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9505-9506	●	●	●	●
128	CLIP; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9507-9603	●	●	●	●
128	CLIP; AIR PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 & 7 L=35	1-09700-740-0	01	1	9101-9504	●	●	●
128	CLIP; AIR PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9507-9603	●	●	●
138	BRACKET; AIR PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	1-47475-427-1	01	1	9101-9504	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
