Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#43988) — 208 parça

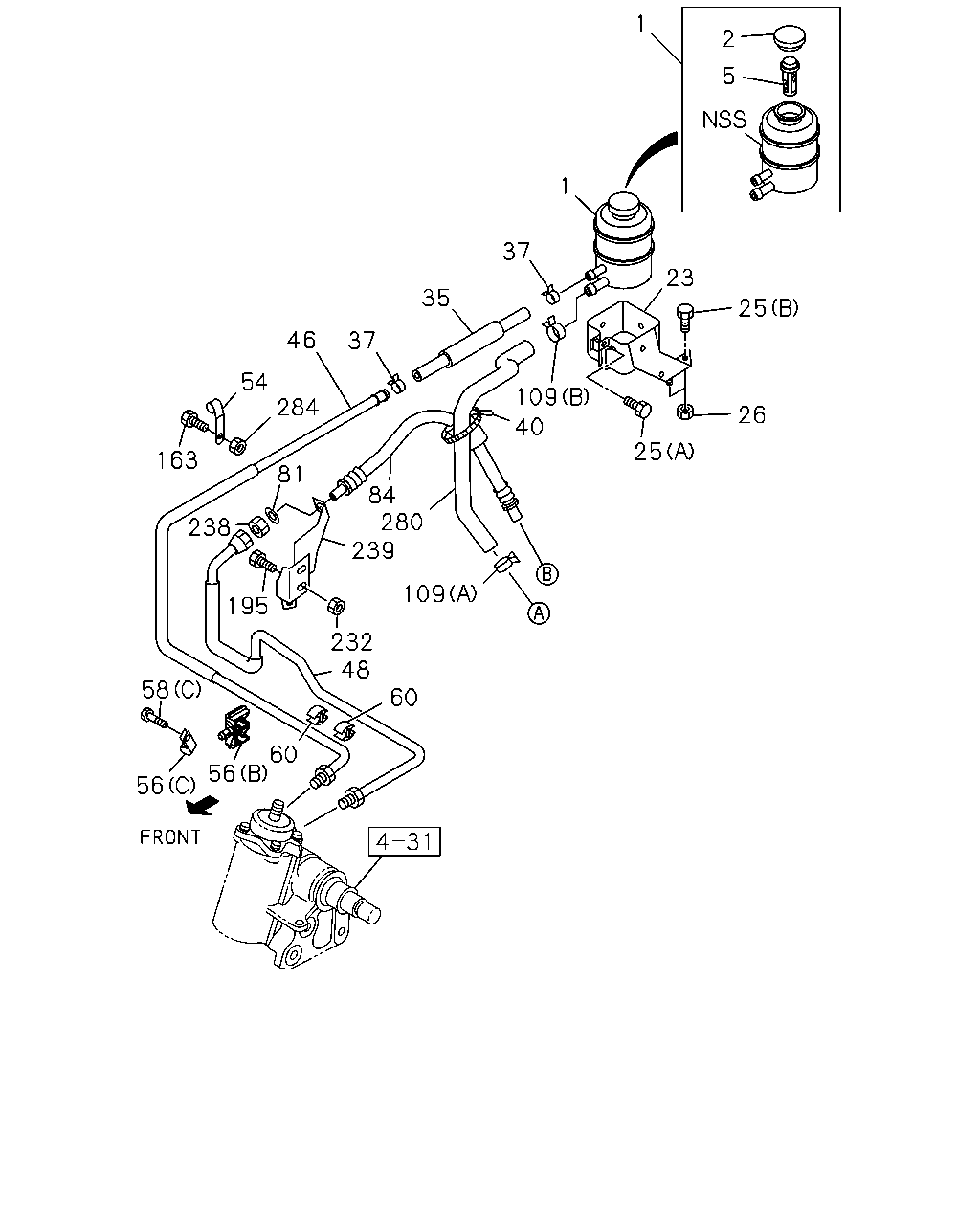

1 2 5 1 37 23 35 25 46 37 54 284 109 26 40 25 163 81 84 280 239 238 109 195 232 48 58 60 60 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0211-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94146-153-2	01	1	0211-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0211-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0211-0501	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0502-0606	●	●		●		●
23	06.672 BRACKET; OIL TANK,P/S 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0502-0606			●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0502-0606					●
23	06.672 BRACKET; OIL TANK,P/S 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0607-1211	●		●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0607-1211		●		●		●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0607-1211					●
23	06.672 BRACKET; OIL TANK,P/S 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-98215-043-0	01	1	1212-	●		●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-98215-043-0	01	1	1212-		●		●		●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-98215-043-0	01	1	1212-					●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	0211-0512	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	0211-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 ID=16	8-94238-568-0	02	1	0211-0911	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●	●	●	●	●
40	06.672 CLIP; BAND POWER STEERING<N40> 02.559 L=250	5-09707-030-1	01	1	0211-	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97262-186-0	01	1	0211-0302	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-358-0	01	1	0303-	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97211-311-0	01	1	0211-0302			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97356-185-0	01	1	0303-0501			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1-TC ENG(RDT) POWER STEERING<N40>	8-97356-185-0	01	1	0502-			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97192-791-0	01	1	0211-0302			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97192-791-0	01	1	0211-0302				●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97364-355-0	01	1	0303-0501			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-355-0	01	1	0303-0501				●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97364-355-0	01	1	0502-			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-355-0	01	1	0502-				●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97261-623-0	01	1	0211-0302	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-352-0	01	1	0303-	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97211-310-0	01	1	0211-0302			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97356-184-0	01	1	0303-0501			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) POWER STEERING<N40>	8-97356-184-0	01	1	0502-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97192-785-0	01	1	0211-0302			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97192-785-0	01	1	0211-0302				●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97364-349-0	01	1	0303-0501			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-349-0	01	1	0303-0501				●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97364-349-0	01	1	0502-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-349-0	01	1	0502-				●		●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94259-342-0	01	1	0211-	●	●	●	●	●	●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> (A) ID=11 L=40	8-94123-171-1	01	1	0211-	●	●			●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0211-			●	●		●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 03.302 (C) ID=11 L=16	9-09525-022-0	01	1	0211-0606			●	●		●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> (C) ID=11 L=16	0-95235-022-0	01	1	0607-			●	●		●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0211-0512	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	0211-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	02	1	0211-			●	●		●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	0211-0603	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0604-	●	●	●	●	●	●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	0211-0301	●	●			●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-326-0	01	1	0302-	●	●			●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97078-368-4	01	1	0211-0301			●	●		●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-328-0	01	1	0302-			●	●		●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0211-0911	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (B) ID=22	8-94382-401-0	01	1	0211-1003	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●	●
195	06.635 BOLT; BRKT POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●			●
195	06.635 BOLT; BRKT POWER STEERING<N40> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●			●
195	06.635 BOLT; BRKT POWER STEERING<N40> 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0211-0512			●	●		●
195	06.635 BOLT; BRKT POWER STEERING<N40> 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0601-			●	●		●
232	06.672 NUT; BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●			●
232	06.672 NUT; BRKT POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●			●
232	06.672 NUT; BRKT POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0602			●	●		●
232	06.672 NUT; BRKT POWER STEERING<N40> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-			●	●		●
238	06.670 NUT; FLEX HOSE POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0211-	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	0211-	●	●			●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97092-085-1	01	1	0211-			●	●		●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	0211-0501	●	●		●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97062-797-1	01	1	0211-0501			●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	0502-0606	●	●		●		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	0502-0606			●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	0502-0606					●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	0607-	●		●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	0607-		●		●		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	0607-					●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97205-635-0	01	1	0211-0501			●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1-TC ENG(RDT) POWER STEERING<N40>	8-97205-635-0	01	1	0502-0606			●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1-TC ENG(RDT) POWER STEERING<N40>	8-97205-635-0	01	1	0607-	●		●
284	06.670 NUT; PIPE POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●	●	●
284	06.670 NUT; PIPE POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●	●

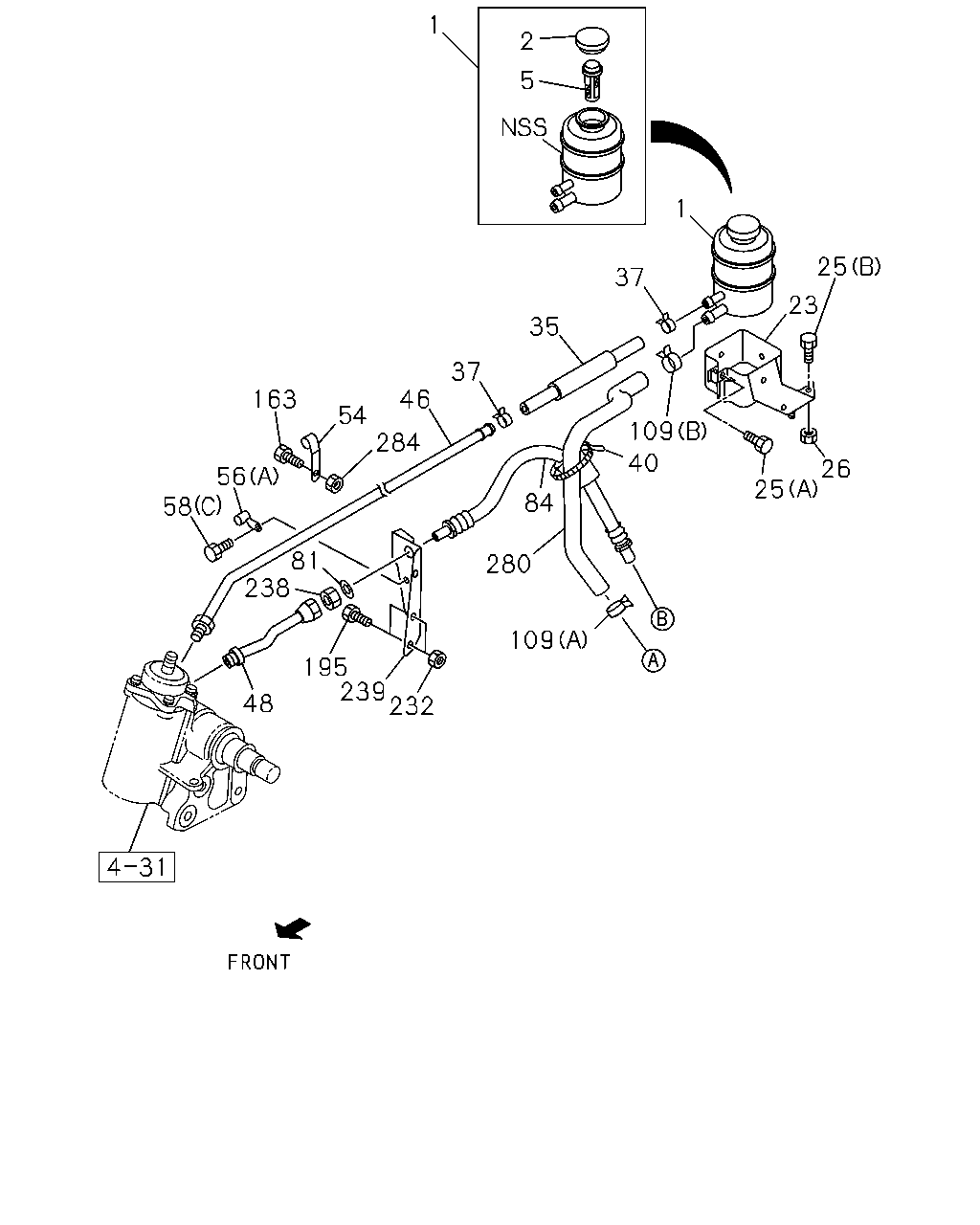

1 2 5 1 25 37 23 35 37 163 46 54 284 109 40 26 56 58 25 84 81 238 280 195 239 232 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0211-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94146-153-2	01	1	0211-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0211-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0211-0501	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0502-0606	●	●		●		●
23	06.672 BRACKET; OIL TANK,P/S 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0502-0606			●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0502-0606					●
23	06.672 BRACKET; OIL TANK,P/S 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0607-1211	●		●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0607-1211		●		●		●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0607-1211					●
23	06.672 BRACKET; OIL TANK,P/S 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-98215-043-0	01	1	1212-	●		●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-98215-043-0	01	1	1212-		●		●		●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-98215-043-0	01	1	1212-					●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	0211-0512	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	0211-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 ID=16	8-94238-568-0	02	1	0211-0911	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●	●	●	●	●
40	06.672 CLIP; BAND POWER STEERING<N40> 02.559 L=250	5-09707-030-1	01	1	0211-	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97262-186-0	01	1	0211-0302	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-358-0	01	1	0303-	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97211-311-0	01	1	0211-0302			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97356-185-0	01	1	0303-0501			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1-TC ENG(RDT) POWER STEERING<N40>	8-97356-185-0	01	1	0502-			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97192-791-0	01	1	0211-0302			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97192-791-0	01	1	0211-0302				●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97364-355-0	01	1	0303-0501			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-355-0	01	1	0303-0501				●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97364-355-0	01	1	0502-			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-355-0	01	1	0502-				●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97261-623-0	01	1	0211-0302	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-352-0	01	1	0303-	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97211-310-0	01	1	0211-0302			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97356-184-0	01	1	0303-0501			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) POWER STEERING<N40>	8-97356-184-0	01	1	0502-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97192-785-0	01	1	0211-0302			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97192-785-0	01	1	0211-0302				●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97364-349-0	01	1	0303-0501			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-349-0	01	1	0303-0501				●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97364-349-0	01	1	0502-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-349-0	01	1	0502-				●		●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94259-342-0	01	1	0211-	●	●	●	●	●	●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> (A) ID=11 L=40	8-94123-171-1	01	1	0211-	●	●			●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0211-			●	●		●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 03.302 (C) ID=11 L=16	9-09525-022-0	01	1	0211-0606			●	●		●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> (C) ID=11 L=16	0-95235-022-0	01	1	0607-			●	●		●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0211-0512	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	0211-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	0211-0603	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0604-	●	●	●	●	●	●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	0211-0301	●	●			●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-326-0	01	1	0302-	●	●			●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97078-368-4	01	1	0211-0301			●	●		●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-328-0	01	1	0302-			●	●		●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0211-0911	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (B) ID=22	8-94382-401-0	01	1	0211-1003	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●	●
195	06.635 BOLT; BRKT POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●			●
195	06.635 BOLT; BRKT POWER STEERING<N40> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●			●
195	06.635 BOLT; BRKT POWER STEERING<N40> 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0211-0512			●	●		●
195	06.635 BOLT; BRKT POWER STEERING<N40> 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0601-			●	●		●
232	06.672 NUT; BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●			●
232	06.672 NUT; BRKT POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●			●
232	06.672 NUT; BRKT POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0602			●	●		●
232	06.672 NUT; BRKT POWER STEERING<N40> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-			●	●		●
238	06.670 NUT; FLEX HOSE POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0211-	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	0211-	●	●			●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97092-085-1	01	1	0211-			●	●		●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	0211-0501	●	●		●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97062-797-1	01	1	0211-0501			●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	0502-0606	●	●		●		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	0502-0606			●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	0502-0606					●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	0607-	●		●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	0607-		●		●		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	0607-					●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97205-635-0	01	1	0211-0501			●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1-TC ENG(RDT) POWER STEERING<N40>	8-97205-635-0	01	1	0502-0606			●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1-TC ENG(RDT) POWER STEERING<N40>	8-97205-635-0	01	1	0607-	●		●
284	06.670 NUT; PIPE POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●	●	●
284	06.670 NUT; PIPE POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●	●

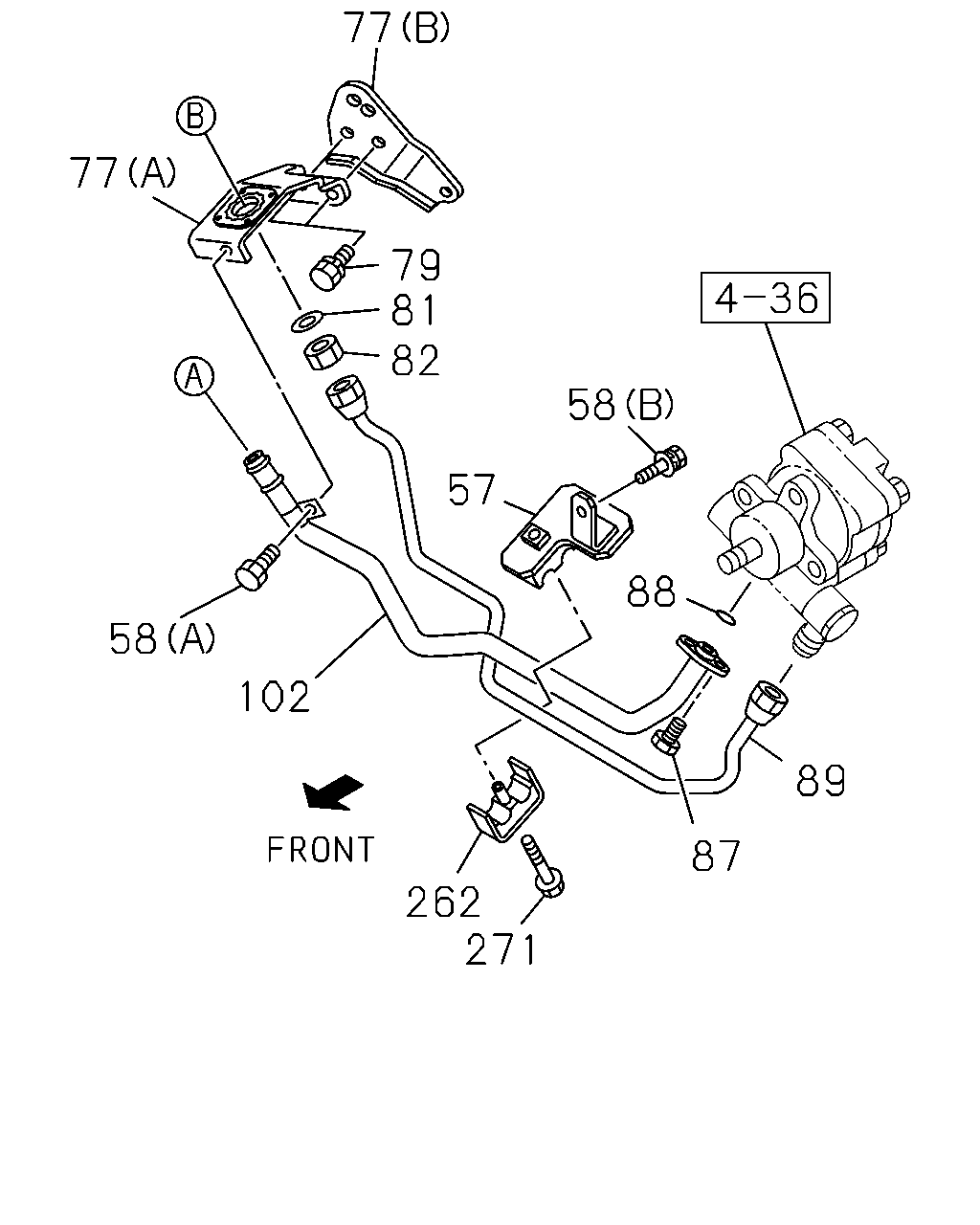

77 77 79 81 82 58 57 88 58 102 89 87 262 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
57	06.672 BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97312-558-3	01	1	0211-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0211-0512	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	0211-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 NA ENG(RLF) POWER STEERING<N40> (B)	8-97075-615-0	01	1	0211-0501	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) POWER STEERING<N40> (B)	8-97075-615-0	01	1	0502-	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40> (A)	8-97208-424-0	01	1	0211-0501	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40> (A)	8-97208-424-0	01	1	0502-	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) POWER STEERING<N40> (B)	8-97073-947-0	01	1	0211-					●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0211-0501	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0502-0909	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) POWER STEERING<N40> 00.206 M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	0211-0603	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0604-	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0211-	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE POWER STEERING<N40> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0512	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-1303	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE POWER STEERING<N40> M8X14 FLANGE	8-98219-171-0	02	1	1304-	●	●	●	●	●	●
88	06.673 RING; OIL PIPE POWER STEERING<N40> 06.609 ID=11.0	9-09561-111-0	01	1	0211-	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40>	8-97312-556-0	01	1	0211-1303	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40>	8-98218-675-0	01	1	1304-	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S POWER STEERING<N40>	8-97312-557-1	01	1	0211-1303	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S POWER STEERING<N40>	8-98218-669-0	01	1	1304-	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE POWER STEERING<N40>	8-97300-961-1	01	1	0211-	●	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX POWER STEERING<N40> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0211-0512	●	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX POWER STEERING<N40> 00.685 M8X40 FLANGE	0-28650-840-0	01	1	0601-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
