4-11 — FRONT HUB AND DRUM OR ROTOR (#43982) — 19 parça

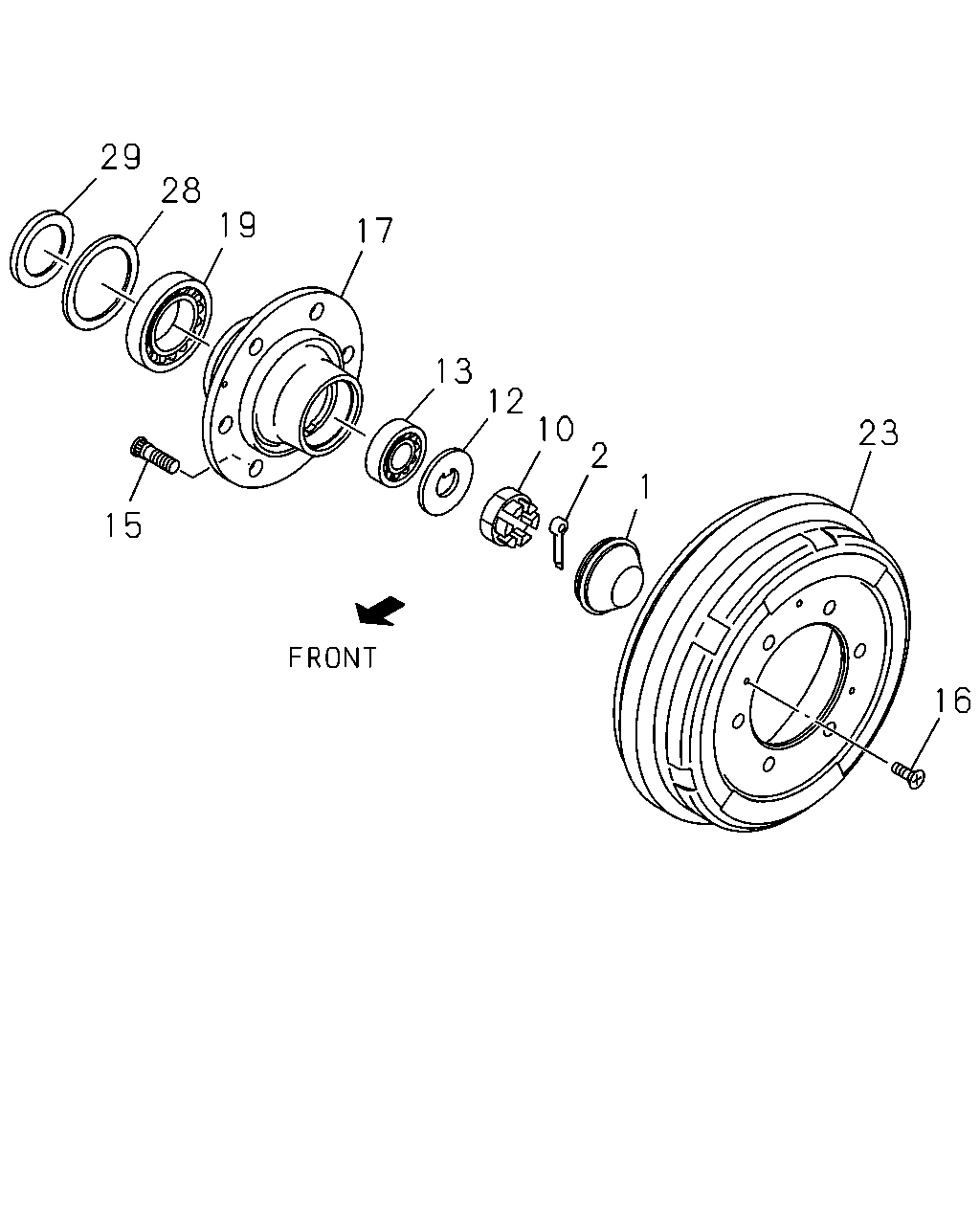

çizim 52882
29 28 19 17 13 12 10 23 2 1 15 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.330 CAP; HUB,FRT AXLE 8-97012-620-0 02 1 0211- ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0606 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211- ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0211-1502 ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
JTEKT 		8-97219-066-0 02 1 0211- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		9-00032-206-0 02 1 0211- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-175-0 02 1 0211- ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M14X40 LH THREAD 		8-97126-487-1 06 1 0211- ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M14X40 RH THREAD 		8-97126-486-1 06 1 0211- ● ● ● ● ● ●
16 05.812 SCREW; DRUM TO HUB
M6X16 CK-HEAD 		9-03090-616-0 02 1 0211- ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE 8-97034-769-0 02 1 0211- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94248-077-0 02 1 0211- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-97219-065-0 02 1 0211- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		5-87610-177-0 02 1 0211- ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT 8-97034-798-2 02 1 0211- ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-116-1 02 1 0211- ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-512-0 02 1 0211- ● ● ● ● ● ●
