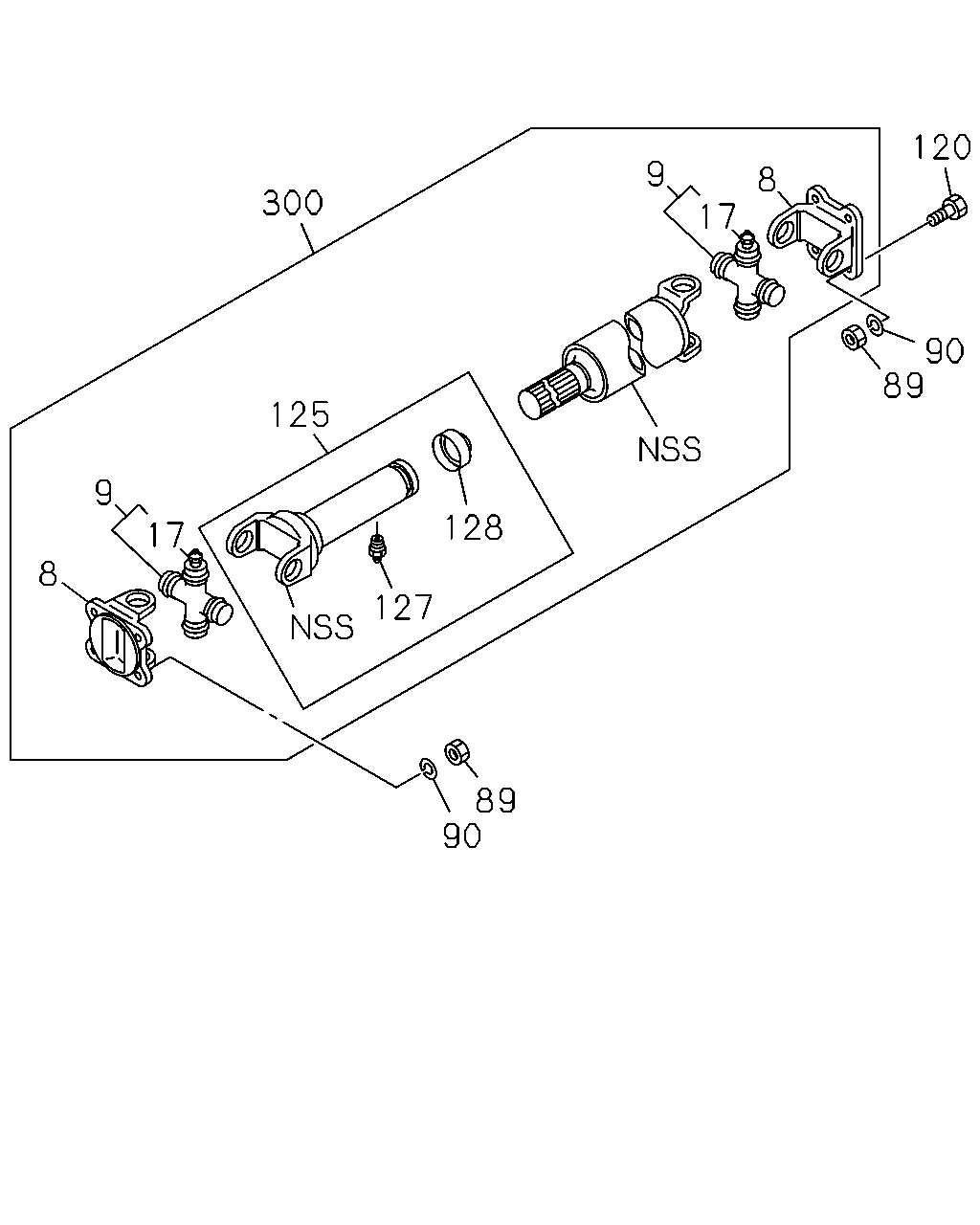

4-01 — PROPELLER SHAFT (#43980) — 86 parça

120 9 8 300 17 90 89 125 9 128 17 8 127 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97211-116-0	02	1	0211-0501	●	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97211-116-0	02	1	0502-0606	●	●		●		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97211-116-0	02	1	0502-0606			●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97211-116-0	02	1	0502-0606					●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97211-116-0	02	1	0607-	●		●
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97211-116-0	02	1	0607-		●		●		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97211-116-0	02	1	0607-					●
9	05.548 JOURNAL ASM; PROP SHAFT	8-97211-135-0	02	1	0211-0501	●	●	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-97211-135-0	02	1	0502-0606	●	●		●		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97211-135-0	02	1	0502-0606			●
9	05.548 JOURNAL ASM; PROP SHAFT 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97211-135-0	02	1	0502-0606					●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97211-135-0	02	1	0607-	●		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-97211-135-0	02	1	0607-		●		●		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97211-135-0	02	1	0607-					●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-0501	●	●	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0502-0606	●	●		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0502-0606			●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0502-0606					●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0607-0607	●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0607-0607		●		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0607-0607					●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) M6 STRAIGHT	0-90301-406-0	02	1	0608-	●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	0608-		●		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) M6 STRAIGHT	0-90301-406-0	02	1	0608-					●
89	05.586 NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	0211-0501	●	●	●	●	●	●
89	05.586 NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	0502-0606	●	●		●		●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) M10	8-94159-009-1	08	1	0502-0606			●
89	05.586 NUT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) M10	8-94159-009-1	08	1	0502-0606					●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) M10	8-94159-009-1	08	1	0607-0610	●		●
89	05.586 NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	0607-0610		●		●		●
89	05.586 NUT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) M10	8-94159-009-1	08	1	0607-0610					●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) M10	8-98056-949-0	08	1	0611-	●		●
89	05.586 NUT; YOKE TO RR AXLE M10	8-98056-949-0	08	1	0611-		●		●		●
89	05.586 NUT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) M10	8-98056-949-0	08	1	0611-					●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	9-09150-610-0	08	1	0211-0501	●	●	●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	9-09150-610-0	08	1	0502-0603	●	●		●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 00.002 ID=10.2	9-09150-610-0	08	1	0502-0603			●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.002 ID=10.2	9-09150-610-0	08	1	0502-0603					●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	0-91510-610-0	08	1	0604-0606	●	●		●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 00.002 ID=10.2	0-91510-610-0	08	1	0604-0606			●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.002 ID=10.2	0-91510-610-0	08	1	0604-0606					●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 00.002 ID=10.2	0-91510-610-0	08	1	0607-	●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	0-91510-610-0	08	1	0607-		●		●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.002 ID=10.2	0-91510-610-0	08	1	0607-					●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	0211-0501	●	●	●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	0502-0606	●	●		●		●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) M10X29	8-97168-458-1	04	1	0502-0606			●
120	05.586 BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) M10X29	8-97168-458-1	04	1	0502-0606					●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) M10X29	8-97168-458-1	04	1	0607-0610	●		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	0607-0610		●		●		●
120	05.586 BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) M10X29	8-97168-458-1	04	1	0607-0610					●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) M10X29	8-98056-948-0	04	1	0611-	●		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	0611-		●		●		●
120	05.586 BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) M10X29	8-98056-948-0	04	1	0611-					●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=177	8-97211-131-0	01	1	0211-0501	●	●	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=177	8-97211-131-0	01	1	0502-0606	●	●		●		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) L=177	8-97211-131-0	01	1	0502-0606			●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=177	8-97211-131-0	01	1	0502-0606					●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) L=177	8-97211-131-0	01	1	0607-	●		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=177	8-97211-131-0	01	1	0607-		●		●		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=177	8-97211-131-0	01	1	0607-					●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-0501	●	●	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0502-0606	●	●		●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0502-0606			●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0502-0606					●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0607-0607	●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0607-0607		●		●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0607-0607					●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-	●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-		●		●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-					●
128	05.586 SEAL; SLEEVE 05.545	8-97020-597-1	01	1	0211-0501	●	●	●	●	●	●
128	05.586 SEAL; SLEEVE 05.545	8-97020-597-1	01	1	0502-0606	●	●		●		●
128	05.586 SEAL; SLEEVE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 05.545	8-97020-597-1	01	1	0502-0606			●
128	05.586 SEAL; SLEEVE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 05.545	8-97020-597-1	01	1	0502-0606					●
128	05.586 SEAL; SLEEVE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 05.545	8-97020-597-1	01	1	0607-	●		●
128	05.586 SEAL; SLEEVE 05.545	8-97020-597-1	01	1	0607-		●		●		●
128	05.586 SEAL; SLEEVE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 05.545	8-97020-597-1	01	1	0607-					●
300	05.544 SHAFT ASM; PROP,RR L=1122	8-97211-661-0	01	1	0211-0411	●	●	●	●	●	●
300	05.544 SHAFT ASM; PROP,RR L=1122	8-98002-492-0	01	1	0412-0501	●	●	●	●	●	●
300	05.544 SHAFT ASM; PROP,RR L=1122	8-98002-492-0	01	1	0502-0606	●	●		●		●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) L=1122	8-98002-492-0	01	1	0502-0606			●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=1122	8-98002-492-0	01	1	0502-0606					●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) L=1122	8-98002-492-0	01	1	0607-	●		●
300	05.544 SHAFT ASM; PROP,RR L=1122	8-98002-492-0	01	1	0607-		●		●		●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=1122	8-98002-492-0	01	1	0607-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
