Sayfa 2-05A - Isuzu EPC

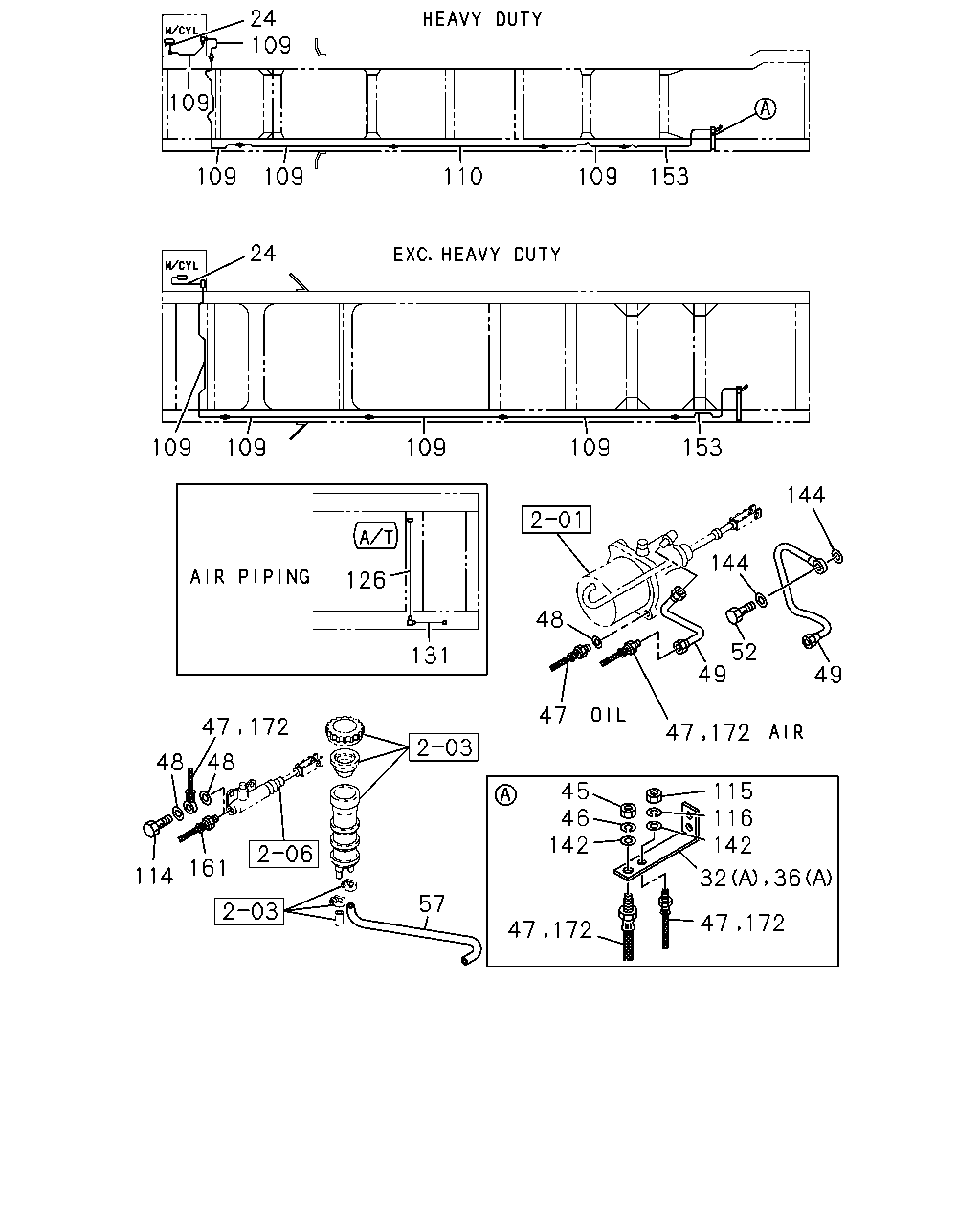

2-05A — CLUTCH PIPING (#4398) — 393 parça

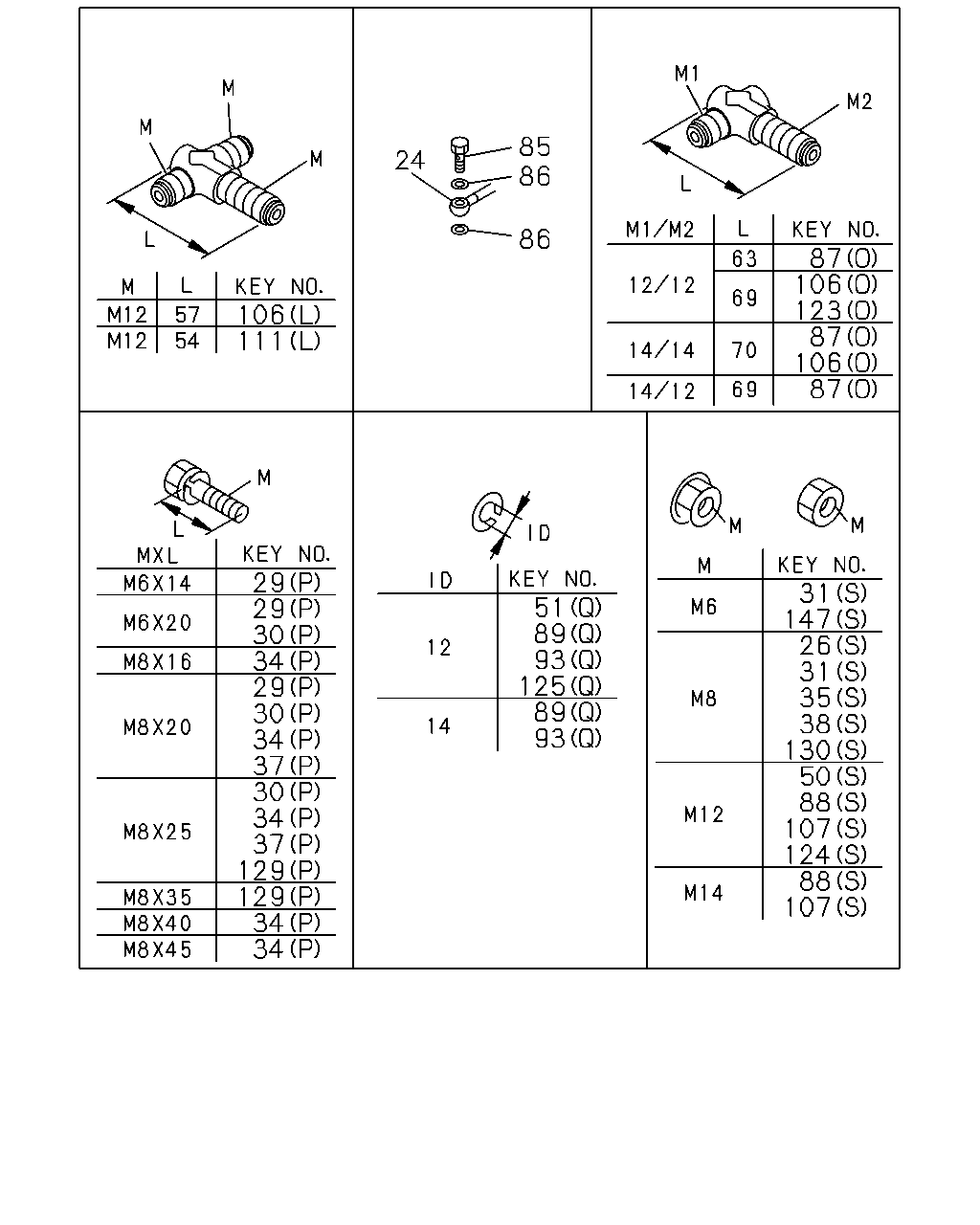

85 86 24 87 106 123 87 106 87 86 106 111 29 29 30 34 29 30 34 37 30 34 37 129 129 34 34 31 147 26 31 35 38 130 50 88 107 124 88 107 51 89 93 125 89 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	PIPE ASM; CLU,M/CYL TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47416-039-1	01	1	9101-9504	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47417-115-0	01	1	9101-9212	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47425-345-0	01	1	9301-9504	●	●	●	●
26	NUT; CLIP,OIL PIPE RIGHT HAND DRIVE(LTR5FB) (S) M8	9-09110-408-0	02	1	9101-9504	●	●	●
26	NUT; CLIP,OIL PIPE LEFT HAND DRIVE(LTR6FB) (S) M8	9-09110-408-0	01	1	9101-9504	●	●	●
29	BOLT; CLIP,OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M6X14 W/LK WASHER	9-01900-614-0	01	1	9101-9204	●	●	●
29	BOLT; CLIP,OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M6X14 W/LK WASHER	0-50040-614-0	01	1	9205-9504	●	●	●
29	BOLT; CLIP,OIL PIPE RIGHT HAND DRIVE(LTR5FB) (P) M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9204	●	●	●
29	BOLT; CLIP,OIL PIPE RIGHT HAND DRIVE(LTR5FB) (P) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●	●
29	BOLT; CLIP,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	9-01900-620-0	01	1	9101-9204	●	●	●
29	BOLT; CLIP,OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	9-01900-620-0	01	1	9101-9204				●
29	BOLT; CLIP,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9504	●	●	●
29	BOLT; CLIP,OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9504				●
29	BOLT; CLIP,OIL PIPE LEFT HAND DRIVE(LTR6FB) (P) M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204	●	●	●
29	BOLT; CLIP,OIL PIPE LEFT HAND DRIVE(LTR6FB) (P) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9504	●	●	●
30	BOLT; BRKT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9204	●	●	●
30	BOLT; BRKT LEFT HAND DRIVE(LTR6FB) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9204	●	●	●
30	BOLT; BRKT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●	●
30	BOLT; BRKT LEFT HAND DRIVE(LTR6FB) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●	●
30	BOLT; BRKT RIGHT HAND DRIVE(LTR5FB) (P) M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●	●	●
30	BOLT; BRKT RIGHT HAND DRIVE(LTR5FB) (P) M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9504	●	●	●
30	BOLT; BRKT RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	9-01900-620-0	01	1	9101-9204	●	●	●
30	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	9-01900-620-0	01	1	9101-9204				●
30	BOLT; BRKT RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9504	●	●	●
30	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9504				●
30	BOLT; BRKT LEFT HAND DRIVE(LTR6FB) (P) M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●	●
30	BOLT; BRKT LEFT HAND DRIVE(LTR6FB) (P) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●	●	●
31	NUT; BRKT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-408-0	02	1	9101-9504	●	●	●
31	NUT; BRKT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-408-0	03	1	9101-9504	●	●	●
31	NUT; BRKT RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M6	9-09110-406-0	01	1	9101-9504	●	●	●
31	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M6	9-09110-406-0	01	1	9101-9504				●
34	BOLT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	9-01900-820-0	04	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X40 W/LK WASHER	9-01900-840-0	06	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X40 W/LK WASHER	0-50040-840-0	06	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X45 W/LK WASHER	9-01900-845-0	01	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204				●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9504				●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	9-01900-825-0	23	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	9-01900-825-0	23	1	9101-9204				●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	0-50040-825-0	23	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	0-50040-825-0	23	1	9205-9504				●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9110	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9110	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	9-01900-820-0	02	1	9111-9204	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X20 W/LK WASHER	9-01900-820-0	02	1	9111-9204	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X20 W/LK WASHER	9-01900-820-0	02	1	9111-9204	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●	●	●
34	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9504	●	●	●
35	NUT; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8	9-09110-508-0	05	1	9101-9110	●	●	●
35	NUT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	05	1	9101-9110	●	●	●
35	NUT; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8	9-09110-508-0	06	1	9111-9504	●	●	●
35	NUT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	06	1	9111-9504	●	●	●
35	NUT; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8	9-09110-508-0	04	1	9101-9504	●	●	●
35	NUT; PIPE CLIP EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-508-0	09	1	9101-9504	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) (S) M8	9-09110-508-0	02	1	9101-9504	●	●	●
35	NUT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-508-0	02	1	9101-9504	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-508-0	02	1	9101-9504	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	21	1	9101-9504	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	21	1	9101-9504				●
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-508-0	01	1	9101-9504	●	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	01	1	9101-9504	●	●	●
35	NUT; PIPE CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-508-0	01	1	9101-9504	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	01	1	9101-9504				●
37	BOLT; CLIP BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204	●	●	●
37	BOLT; CLIP BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9504	●	●	●
37	BOLT; CLIP BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204	●	●	●	●
37	BOLT; CLIP BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9504	●	●	●	●
38	NUT; CLIP BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8	9-09110-408-0	01	1	9101-9504	●	●	●
38	NUT; CLIP BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-408-0	02	1	9101-9504	●	●	●	●
50	NUT; UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-99110-412-0	02	1	9101-9504	●	●	●
50	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-99110-412-0	02	1	9101-9504				●
51	WASHER; LK RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=12.2	9-09150-512-0	02	1	9101-9312	●	●	●
51	WASHER; LK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=12.2	9-09150-512-0	02	1	9101-9312				●
85	BOLT; EYE JOINT,CLU M/CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14X29 EYE-BOLT	9-09906-325-1	01	1	9101-9504	●	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 OD=20.0	9-09571-414-0	02	1	9101-9504	●	●	●	●
87	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) (O) M12 & M12 L=63	9-09225-006-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M12 L=69	1-09654-105-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M12 L=69	1-09654-105-1	01	1	9101-9504				●
87	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) (K) M12 L=56.5	9-09223-106-1	01	1	9101-9504	●	●	●
88	NUT; PIPE UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M14	9-99111-414-0	01	1	9101-9504	●	●	●
88	NUT; PIPE UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M14	9-99111-414-0	01	1	9101-9504	●	●	●
88	NUT; PIPE UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-09840-280-0	01	1	9101-9504	●	●	●
88	NUT; PIPE UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M12	9-09840-280-0	01	1	9101-9504	●	●	●
88	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-09840-280-0	01	1	9101-9504				●
89	WASHER; LK,PIPE UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (Q) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●
89	WASHER; LK,PIPE UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●
89	WASHER; LK,PIPE UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=12.2	9-09150-512-0	01	1	9101-9312	●	●	●
89	WASHER; LK,PIPE UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (Q) ID=12.2	9-09150-512-0	01	1	9101-9312	●	●	●
89	WASHER; LK,PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=12.2	9-09150-512-0	01	1	9101-9312				●
93	WASHER; LK,UNION,OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (Q) ID=14.2	9-09150-514-0	02	1	9101-9312	●	●	●
93	WASHER; LK,UNION,OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=14.2	9-09150-514-0	02	1	9101-9312	●	●	●
93	WASHER; LK,UNION,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=12.2	9-09150-512-0	03	1	9101-9312	●	●	●
93	WASHER; LK,UNION,OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (Q) ID=12.2	9-09150-512-0	03	1	9101-9312				●
93	WASHER; LK,UNION,OIL PIPE LEFT HAND DRIVE(LTR6FB) (Q) ID=12.2	9-09150-512-0	01	1	9101-9312	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M12 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M12 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=64.5	9-09223-208-0	01	1	9101-9110	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=64.5	9-09223-208-1	01	1	9111-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=64.5	9-09223-208-1	01	1	9111-9504	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (K) M12 L=40	9-09223-006-1	02	1	9101-9504	●	●	●
106	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) (K) M12 L=40	9-09223-006-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 L=57	1-09654-137-2	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 L=57	1-09654-137-2	01	1	9101-9504				●
106	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M12 & M12 L=69	9-09225-106-1	02	1	9101-9504	●	●	●
106	UNION; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M12 & M12 L=69	9-09225-106-1	02	1	9101-9504				●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) (K) M12 L=56.5	9-09223-106-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M12 L=62.5	9-09223-206-0	01	1	9101-9110	●	●	●
107	NUT; UNION,OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M14	9-99111-414-0	02	1	9101-9504	●	●	●
107	NUT; UNION,OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M14	9-99111-414-0	02	1	9101-9504	●	●	●
107	NUT; UNION,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-09840-280-0	02	1	9101-9504	●	●	●
107	NUT; UNION,OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-09840-280-0	02	1	9101-9504				●
107	NUT; UNION,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-99110-412-0	01	1	9101-9307	●	●	●
107	NUT; UNION,OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-99110-412-0	01	1	9101-9307				●
107	NUT; UNION,OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-99110-512-0	01	1	9308-9504	●	●	●
107	NUT; UNION,OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M12	9-99110-512-0	01	1	9308-9504				●
107	NUT; UNION,OIL PIPE LEFT HAND DRIVE(LTR6FB) (S) M12	9-09840-280-0	01	1	9101-9504	●	●	●
111	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=40	9-09223-008-1	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=40	9-09223-008-1	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (K) M12 L=40	9-09223-006-1	01	1	9101-9504	●	●	●
111	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 3WAY	1-09654-137-2	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 3WAY	1-09654-137-2	02	1	9101-9504				●
123	UNION; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (O) M12 & M12 L=69	9-09225-106-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (O) M12 & M12 L=69	9-09225-106-1	01	1	9101-9504				●
123	UNION; AIR PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M12 L=40	9-09223-006-1	01	1	9101-9504	●	●	●	●
124	NUT; PIPE UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (S) M12	9-09840-280-0	01	1	9101-9504	●	●	●
124	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (S) M12	9-09840-280-0	01	1	9101-9504				●
125	WASHER; LK,PIPE UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (Q) ID=12.2	9-09150-512-0	01	1	9101-9312	●	●	●
125	WASHER; LK,PIPE UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (Q) ID=12.2	9-09150-512-0	01	1	9101-9312				●
129	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●	●	●
129	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●	●	●
129	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9504	●	●	●
129	BOLT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9504	●	●	●
129	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (P) M8X25 W/LK WASHER	9-01900-825-0	05	1	9101-9204	●	●	●
129	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (P) M8X25 W/LK WASHER	0-50040-825-0	05	1	9205-9504	●	●	●
129	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X35 W/LK WASHER	9-01900-835-0	01	1	9101-9204	●	●	●	●
129	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (P) M8X35 W/LK WASHER	0-50040-835-0	01	1	9205-9504	●	●	●	●
130	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M8	9-09110-508-0	03	1	9101-9504	●	●	●
130	NUT; PIPE CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	03	1	9101-9504	●	●	●
130	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (S) M8	9-09110-508-0	05	1	9101-9504	●	●	●
130	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (S) M8	9-09110-508-0	01	1	9101-9504	●	●	●	●
147	NUT; CLIP FIX EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (S) M6	9-09110-406-0	01	1	9101-9504	●	●	●

24 109 109 109 109 109 153 110 24 109 109 109 109 153 144 144 126 48 52 49 131 49 47 47 172 47 172 48 48 115 116 142 45 46 142 161 114 57 47 172 47 172 32 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	PIPE ASM; CLU,M/CYL TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47416-039-1	01	1	9101-9504	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47417-115-0	01	1	9101-9212	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47425-345-0	01	1	9301-9504	●	●	●	●
32	BRACKET; CLIP OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F)	1-47475-304-0	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-47465-068-0	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE RIGHT HAND DRIVE(LTR5FB) (G)	1-47475-668-0	03	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	1-47465-866-1	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	1-47465-866-1	01	1	9101-9504				●
32	BRACKET; CLIP OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	04	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	04	1	9101-9504				●
32	BRACKET; CLIP OIL PIPE LEFT HAND DRIVE(LTR6FB) (J)	1-47465-231-0	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE LEFT HAND DRIVE(LTR6FB) (G)	1-47475-668-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-939-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-939-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (I)	1-47475-427-1	07	1	9101-9504	●	●	●
36	BRACKET; CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47465-068-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47465-068-0	01	1	9101-9504				●
36	BRACKET; CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	05	1	9101-9504	●	●	●
36	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	05	1	9101-9504				●
45	NUT; FLEX HOSE,CLU CONT CLU SYSTEM MINIPACK(B1Z) M12	9-09840-280-0	02	1	9101-9307	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT 6BD1 TC ENG(L29) EXC. CLU SYSTEM MINIPACK(B1Z) M12	9-09840-280-0	02	1	9101-9307	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT CLU SYSTEM MINIPACK(B1Z) M12	9-09840-280-0	02	1	9308-9504	●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT CLU SYSTEM MINIPACK(B1Z) ID=12.2	9-09150-512-0	02	1	9101-9307	●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT 6BD1 TC ENG(L29) EXC. CLU SYSTEM MINIPACK(B1Z) ID=12.2	9-09150-512-0	02	1	9101-9307	●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT CLU SYSTEM MINIPACK(B1Z) ID=12.2	9-09150-512-0	02	1	9308-9312	●	●	●	●
47	HOSE; FLEX,CLU CONT CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> OIL HOSE L=400	1-09364-262-0	01	1	9205-9504	●	●	●
47	HOSE; FLEX,CLU CONT 6BD1 STD ENG(L21),6BG1 STD ENG(16L) CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HOSE L=410	0-07030-410-0	01	1	9101-9307	●	●	●
47	HOSE; FLEX,CLU CONT 6BD1 TC ENG(L29) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HOSE L=410	0-07030-410-0	01	1	9101-9307	●	●	●
47	HOSE; FLEX,CLU CONT CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HOSE L=410	0-07030-410-0	01	1	9308-9504	●	●	●
47	HOSE; FLEX,CLU CONT RIGHT HAND DRIVE(LTR5FB) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) OIL HOSE L=460	1-09364-264-0	01	1	9101-9204	●	●	●
47	HOSE; FLEX,CLU CONT CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) OIL HOSE L=460	1-09364-264-0	01	1	9101-9204				●
47	HOSE; FLEX,CLU CONT RIGHT HAND DRIVE(LTR5FB) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> OIL HOSE L=460	1-09364-264-0	01	1	9205-9504	●	●	●
47	HOSE; FLEX,CLU CONT CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> OIL HOSE L=460	1-09364-264-0	01	1	9205-9504				●
47	HOSE; FLEX,CLU CONT CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> OIL HOSE L=415	1-09364-490-0	01	1	9101-9504	●	●	●	●
47	HOSE; FLEX,CLU CONT CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HOSE L=390	0-07030-390-0	01	1	9101-9504	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT 6BD1 STD ENG(L21),6BG1 STD ENG(16L) EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> ID=10.5 OD=20	1-09630-074-1	01	1	9101-9504	●	●	●
48	GASKET; FLEX HOSE,CLU CONT 6BD1 STD ENG(L21),6BG1 STD ENG(16L) EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> ID=14.2 OD=20	9-09851-004-0	01	1	9101-9504	●	●	●
48	GASKET; FLEX HOSE,CLU CONT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 OD=16.0	9-09571-410-0	01	1	9101-9307	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT 6BD1 STD ENG(L21),6BG1 STD ENG(16L) CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 OD=16.0	9-09571-410-0	01	1	9101-9307	●	●	●
48	GASKET; FLEX HOSE,CLU CONT 6BD1 TC ENG(L29) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 OD=16.0	9-09571-410-0	01	1	9101-9307	●	●	●
48	GASKET; FLEX HOSE,CLU CONT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 OD=16.0	9-09571-410-0	01	1	9308-9504	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 OD=16.0	9-09571-410-0	01	1	9308-9504	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6BD1 STD ENG(L21),6BG1 STD ENG(16L) CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> W/EYE JIONT	1-47443-245-0	01	1	9101-9307	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6BD1 TC ENG(L29) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> W/EYE JIONT	1-47443-245-0	01	1	9101-9307	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> W/EYE JIONT	1-47443-245-0	01	1	9308-9504	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6BD1 STD ENG(L21),6BG1 STD ENG(16L) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=211	1-47449-064-0	01	1	9101-9307	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6BD1 TC ENG(L29) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=211	1-47449-064-0	01	1	9101-9307	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=211	1-47449-064-0	01	1	9308-9504	●	●	●	●
52	BOLT; EYE,AIR PIPE 6BD1 STD ENG(L21),6BG1 STD ENG(16L) CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14X27 FLANGE	1-09675-086-0	01	1	9101-9307	●	●	●
52	BOLT; EYE,AIR PIPE 6BD1 TC ENG(L29) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14X27 FLANGE	1-09675-086-0	01	1	9101-9307	●	●	●
52	BOLT; EYE,AIR PIPE CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14X27 FLANGE	1-09675-086-0	01	1	9308-9504	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	9101-9504	●	●	●	●
109	PIPE; AIR,UNION TO UNION AIR DRYER<PS7> L=1697 SERVICED BY L=1800	1-47434-413-0	01	1	9101-9105	●	●	●
109	PIPE; AIR,UNION TO UNION AIR DRYER<PS7> L=1696 SERVICED BY L=1700	1-47434-412-0	01	1	9106-9212	●	●	●	●
109	PIPE; AIR,UNION TO UNION AIR DRYER<PS7> L=1696 SERVICED BY L=1700	1-47426-391-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> L=1226 SERVICED BY L=1250	1-47434-410-0	01	1	9101-9212	●	●	●
109	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> L=1126 SERVICED BY L=1250	1-47426-388-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1320 SERVICED BY L=1400	1-47434-411-0	01	1	9101-9212	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1320 SERVICED BY L=1400	1-47426-389-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=323 SERVICED BY L=350	9-47415-377-0	01	1	9101-9212	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=323 SERVICED BY L=350	1-47426-373-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610 SERVICED BY L=620	1-47426-380-0	01	1	9101-9212	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610 SERVICED BY L=620	1-47426-380-0	01	1	9101-9212	●	●	●
109	PIPE; AIR,UNION TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610 SERVICED BY L=620	1-47426-380-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610 SERVICED BY L=620	1-47426-380-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2861 SERVICED BY L=2900	1-47434-400-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) L=1126 SERVICED BY L=1200	1-47434-388-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) L=2217 SERVICED BY L=2350	1-47434-397-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2037 SERVICED BY L=2200	1-47434-396-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2037 SERVICED BY L=2200	1-47434-396-0	01	1	9101-9504				●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2469 SERVICED BY L=2500	1-47434-398-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2469 SERVICED BY L=2500	1-47434-398-0	01	1	9101-9504				●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=392 SERVICED BY L=460	9-47415-349-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=392 SERVICED BY L=460	9-47415-349-0	01	1	9101-9504				●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=647 SERVICED BY L=650	9-47415-353-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=647 SERVICED BY L=650	9-47415-353-0	01	1	9101-9504				●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=810 SERVICED BY L=900	1-47434-385-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1310 SERVICED BY L=1370	1-47434-390-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) L=2400 SERVICED BY L=2500	1-47434-398-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) L=647 SERVICED BY L=650	9-47415-353-0	01	1	9101-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1319 SERVICED BY L=1400	1-47434-411-0	01	1	9101-9212	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1229 SERVICED BY L=1400	1-47426-389-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=469 SERVICED BY L=500	9-47415-380-0	01	1	9101-9212	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=469 SERVICED BY L=500	9-47415-380-0	01	1	9101-9212	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=469 SERVICED BY L=500	1-47426-376-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=469 SERVICED BY L=500	1-47426-376-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=564 SERVICED BY L=600	9-47415-382-0	01	1	9101-9212	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=564 SERVICED BY L=600	9-47415-382-0	01	1	9101-9212	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=564 SERVICED BY L=570	1-47426-378-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=564 SERVICED BY L=570	1-47426-378-0	01	1	9301-9504	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(LTR6FB) WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1310 SERVICED BY L=1370	1-47434-390-0	01	1	9101-9504	●	●	●
110	PIPE; OIL,UNION TO UNION AIR DRYER<PS7> L=2751 SERVICED BY L=3000	1-47437-960-0	01	1	9101-9212	●	●	●
110	PIPE; OIL,UNION TO UNION AIR DRYER<PS7> L=2751 SERVICED BY L=3000	1-47426-397-0	01	1	9301-9504	●	●	●
110	PIPE; OIL,UNION TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2113 SERVICED BY L=2150	1-47437-958-0	01	1	9101-9212	●	●	●
110	PIPE; OIL,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2113 SERVICED BY L=2150	1-47437-958-0	01	1	9101-9212	●	●	●
110	PIPE; OIL,UNION TO UNION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2114 SERVICED BY L=2150	1-47426-394-0	01	1	9301-9504	●	●	●
110	PIPE; OIL,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2114 SERVICED BY L=2150	1-47426-394-0	01	1	9301-9504	●	●	●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2460 SERVICED BY L=2700	1-47434-415-0	01	1	9101-9212	●	●	●
110	PIPE; OIL,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2460 SERVICED BY L=2700	1-47434-415-0	01	1	9101-9212	●	●	●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=2460 SERVICED BY L=2700	1-47426-396-0	01	1	9301-9504	●	●	●
110	PIPE; OIL,UNION TO UNION LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2460 SERVICED BY L=2700	1-47426-396-0	01	1	9301-9504	●	●	●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. AIR DRYER<PS7> L=3160 SERVICED BY L=3300	1-47434-416-0	01	1	9101-9212	●	●	●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. AIR DRYER<PS7> L=3160 SERVICED BY L=3300	1-47426-398-0	01	1	9301-9504	●	●	●	●
110	PIPE; OIL,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2315 SERVICED BY L=2350	1-47434-397-0	01	1	9101-9504	●	●	●
110	PIPE; OIL,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2315 SERVICED BY L=2350	1-47434-397-0	01	1	9101-9504				●
110	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=703 SERVICED BY L=800	1-47434-384-0	01	1	9101-9504	●	●	●	●
114	BOLT; EYE,FLEX HOSE 6BD1 STD ENG(L21),6BG1 STD ENG(16L) EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B>	1-09675-158-0	01	1	9101-9504	●	●	●
115	NUT; FLEX HOSE,CLU CONT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14	9-99111-414-0	01	1	9101-9504	●	●	●
115	NUT; FLEX HOSE,CLU CONT LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	01	1	9101-9504	●	●	●
115	NUT; FLEX HOSE,CLU CONT RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-09840-280-0	01	1	9101-9504	●	●	●
115	NUT; FLEX HOSE,CLU CONT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12	9-09840-280-0	01	1	9101-9504	●	●	●
115	NUT; FLEX HOSE,CLU CONT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-09840-280-0	01	1	9101-9504				●
116	WASHER; FLEX HOSE,CLU CONT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●
116	WASHER; FLEX HOSE,CLU CONT LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●
116	WASHER; FLEX HOSE,CLU CONT RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	9101-9312	●	●	●
116	WASHER; FLEX HOSE,CLU CONT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=12.2	9-09150-512-0	01	1	9101-9312	●	●	●
116	WASHER; FLEX HOSE,CLU CONT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	9101-9312				●
126	PIPE; AIR,UNION TO UNION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) L=484 SERVICED BY L=500	9-47415-350-0	01	1	9101-9504	●	●	●
126	PIPE; AIR,UNION TO UNION BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) L=484 SERVICED BY L=500	9-47415-350-0	01	1	9101-9504				●
131	PIPE; AIR,UNION TO FLEX HOSE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) L=678 SERVICED BY L=700	1-47434-466-0	01	1	9101-9110	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE LEFT HAND DRIVE(LTR6FB) WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=678 SERVICED BY L=700	1-47434-466-0	01	1	9101-9110	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> L=678 SERVICED BY L=700	1-47434-466-0	01	1	9111-9504	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 6BD1 STD ENG(L21),6BG1 STD ENG(16L) CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=601 SERVICED BY L=650	9-47415-353-0	01	1	9101-9110	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 6BD1 TC ENG(L29) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=601 SERVICED BY L=650	9-47415-353-0	01	1	9101-9110	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=601 SERVICED BY L=650	9-47415-353-0	01	1	9111-9504	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40) L=568 SERVICED BY L=600	9-47415-352-0	01	1	9101-9110	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40) L=568 SERVICED BY L=600	9-47415-352-0	01	1	9101-9110				●
131	PIPE; AIR,UNION TO FLEX HOSE RIGHT HAND DRIVE(LTR5FB) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> L=568 SERVICED BY L=600	9-47415-352-0	01	1	9111-9504	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> L=568 SERVICED BY L=600	9-47415-352-0	01	1	9111-9504				●
142	WASHER; PL,FLEX HOSE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) ID=12.5 OD=32	9-09160-712-0	02	1	9101-9504	●	●	●
142	WASHER; PL,FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) ID=12.5 OD=32	9-09160-712-0	02	1	9101-9504				●
144	GASKET; AIR PIPE 6BD1 STD ENG(L21),6BG1 STD ENG(16L) CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9307	●	●	●
144	GASKET; AIR PIPE 6BD1 TC ENG(L29) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9307	●	●	●
144	GASKET; AIR PIPE CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 OD=19.2	1-09630-085-0	02	1	9308-9504	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1553 SERVICED BY L=1700	1-47434-412-0	01	1	9101-9212	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1553 SERVICED BY L=1700	1-47434-412-0	01	1	9101-9212	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1553 SERVICED BY L=1700	1-47426-391-0	01	1	9301-9504	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1553 SERVICED BY L=1700	1-47426-391-0	01	1	9301-9504	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=1091 SERVICED BY L=1100	1-47434-387-0	01	1	9101-9504	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1814 SERVICED BY L=1820	1-47434-394-0	01	1	9101-9504	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1814 SERVICED BY L=1820	1-47434-394-0	01	1	9101-9504				●
161	HOSE; FLEX,SLAVE CYL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CLU SYSTEM MINIPACK(B1Z) L=300	1-09364-547-0	01	1	9101-9204	●	●	●
161	HOSE; FLEX,SLAVE CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CLU SYSTEM MINIPACK(B1Z) L=300	1-09364-547-0	01	1	9205-9504	●	●	●	●
161	HOSE; FLEX,SLAVE CYL EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> L=280	1-09364-367-0	01	1	9205-9504	●	●	●
172	HOSE; FLEX,CLU BOOSTER 6BD1 STD ENG(L21),6BG1 STD ENG(16L) CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> OIL HOSE L=400	1-09364-262-0	01	1	9101-9204	●	●	●
172	HOSE; FLEX,CLU BOOSTER 6BD1 TC ENG(L29) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> OIL HOSE L=400	1-09364-262-0	01	1	9101-9204	●	●	●
172	HOSE; FLEX,CLU BOOSTER 6BD1 STD ENG(L21),6BG1 STD ENG(16L) EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> OIL HOSE L=280	1-09364-367-0	01	1	9101-9204	●	●	●

92 33 128 33 33 28 33 33 33 128 33 32 32 36 28 106 111 123 87 106 106 111 123 106 32 36 138 32 28 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
28	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9101-9504	●	●	●
28	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=7 & 7 L=30	1-09700-059-0	01	1	9101-9504	●	●	●
28	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=7 & 7 L=30	1-09700-059-0	01	1	9101-9504				●
28	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) (D) ID=7 & 7 L=30	1-09700-652-0	01	1	9101-9504	●	●	●
28	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) (E)	1-47475-299-2	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F)	1-47475-304-0	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-47465-068-0	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE RIGHT HAND DRIVE(LTR5FB) (G)	1-47475-668-0	03	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	1-47465-866-1	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	1-47465-866-1	01	1	9101-9504				●
32	BRACKET; CLIP OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	04	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	04	1	9101-9504				●
32	BRACKET; CLIP OIL PIPE LEFT HAND DRIVE(LTR6FB) (J)	1-47465-231-0	01	1	9101-9504	●	●	●
32	BRACKET; CLIP OIL PIPE LEFT HAND DRIVE(LTR6FB) (G)	1-47475-668-0	01	1	9101-9504	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9101-9504	●	●	●
33	CLIP; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9101-9110	●	●	●
33	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9101-9110	●	●	●
33	CLIP; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	06	1	9111-9504	●	●	●
33	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	06	1	9111-9504	●	●	●
33	CLIP; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9101-9504	●	●	●
33	CLIP; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=9 & 7 L=30	1-09700-653-0	01	1	9101-9504	●	●	●
33	CLIP; OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9101-9504	●	●	●
33	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9101-9504	●	●	●
33	CLIP; OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) ID=7 & 7 L=30	1-09700-652-0	03	1	9101-9504	●	●	●
33	CLIP; OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) ID=13 & 7 L=30	1-09700-665-0	04	1	9101-9504	●	●	●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) (C) ID=7 & 13	1-09700-857-0	03	1	9101-9504	●	●	●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=6 H=20 L=20	1-09700-603-0	05	1	9101-9504	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=6 H=20 L=20	1-09700-603-0	05	1	9101-9504				●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=7 & 9 L=35	1-09700-746-0	01	1	9101-9504	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=7 & 9 L=35	1-09700-746-0	01	1	9101-9504				●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=7 & 11	1-09700-790-0	09	1	9101-9504	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=7 & 11	1-09700-790-0	09	1	9101-9504				●
33	CLIP; OIL PIPE RIGHT HAND DRIVE(LTR5FB) WHEEL BASE 4500MM(45W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9101-9504	●	●	●
33	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) (C) ID=7 & 13	1-09700-857-0	01	1	9101-9504	●	●	●
33	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9101-9504	●	●	●
33	CLIP; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-939-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-939-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (I)	1-47475-427-1	07	1	9101-9504	●	●	●
36	BRACKET; CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47465-068-0	01	1	9101-9504	●	●	●
36	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47465-068-0	01	1	9101-9504				●
36	BRACKET; CLIP RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	05	1	9101-9504	●	●	●
36	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	1-47475-668-0	05	1	9101-9504				●
87	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) (O) M12 & M12 L=63	9-09225-006-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M12 L=69	1-09654-105-1	01	1	9101-9504	●	●	●
87	UNION; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M12 L=69	1-09654-105-1	01	1	9101-9504				●
87	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) (K) M12 L=56.5	9-09223-106-1	01	1	9101-9504	●	●	●
92	CLIP; OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=7 H=20 L=20	9-09527-006-0	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M12 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M12 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=64.5	9-09223-208-0	01	1	9101-9110	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=64.5	9-09223-208-1	01	1	9111-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=64.5	9-09223-208-1	01	1	9111-9504	●	●	●
106	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M14 & M14 L=70	9-09225-108-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (K) M12 L=40	9-09223-006-1	02	1	9101-9504	●	●	●
106	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) (K) M12 L=40	9-09223-006-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 L=57	1-09654-137-2	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 L=57	1-09654-137-2	01	1	9101-9504				●
106	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M12 & M12 L=69	9-09225-106-1	02	1	9101-9504	●	●	●
106	UNION; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (O) M12 & M12 L=69	9-09225-106-1	02	1	9101-9504				●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) (K) M12 L=56.5	9-09223-106-1	01	1	9101-9504	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M12 L=62.5	9-09223-206-0	01	1	9101-9110	●	●	●
111	UNION; OIL PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=40	9-09223-008-1	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=40	9-09223-008-1	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (K) M12 L=40	9-09223-006-1	01	1	9101-9504	●	●	●
111	UNION; OIL PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 3WAY	1-09654-137-2	02	1	9101-9504	●	●	●
111	UNION; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) M12 3WAY	1-09654-137-2	02	1	9101-9504				●
123	UNION; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (K) M14 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M14 L=40	9-09223-008-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (O) M12 & M12 L=69	9-09225-106-1	01	1	9101-9504	●	●	●
123	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (O) M12 & M12 L=69	9-09225-106-1	01	1	9101-9504				●
123	UNION; AIR PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) M12 L=40	9-09223-006-1	01	1	9101-9504	●	●	●	●
128	CLIP; AIR PIPE WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9101-9504	●	●	●
128	CLIP; AIR PIPE LEFT HAND DRIVE(LTR6FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9101-9504	●	●	●
128	CLIP; AIR PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	9101-9504	●	●	●
128	CLIP; AIR PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=11 & 7 L=35	1-09700-740-0	01	1	9101-9504	●	●	●	●
138	BRACKET; AIR PIPE WHEEL BASE 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	1-47475-427-1	01	1	9101-9504	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
