Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#43979) — 399 parça

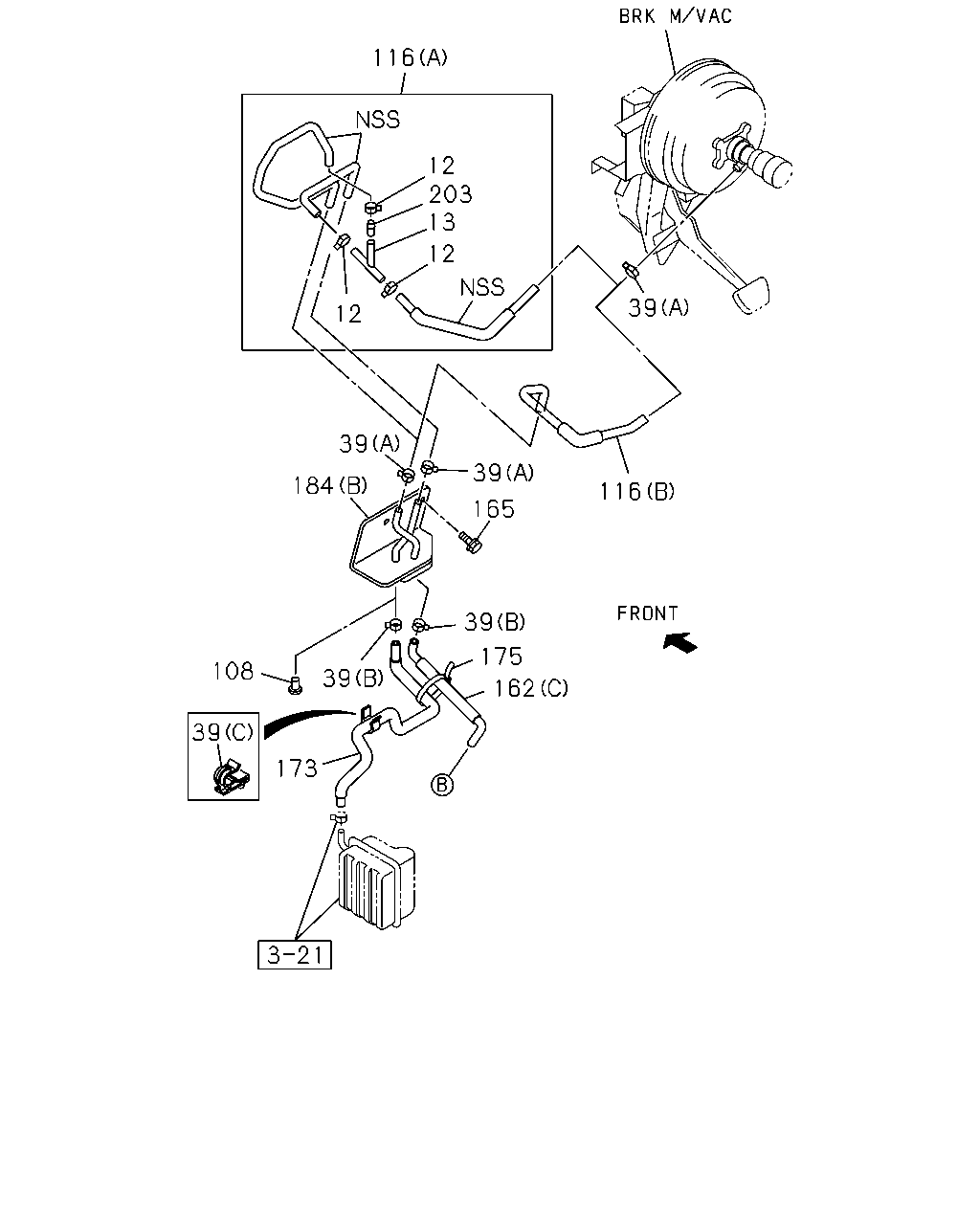

201 184 200 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
184	04.685 BRACKET; UNION FIX EXC. EXHAUST BRAKE<NF8> (B)	8-98251-817-0	01	1	1401-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. EXHAUST BRAKE<NF8> (B)	8-98251-818-1	01	1	1401-				●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97035-967-3	01	1	0211-1312	●	●	●
184	04.685 BRACKET; UNION FIX EXHAUST BRAKE<NF8> (B)	8-97035-967-3	01	1	1401-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	0211-				●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0211-1312				●	●	●
184	04.685 BRACKET; UNION FIX EXHAUST BRAKE<NF8> (B)	8-97094-377-4	01	1	1401-				●	●	●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0211-				●	●	●
201	04.686 SCREW; BRKT 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0211-0604				●	●	●
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-				●	●	●
202	04.686 SEAL EXC. EXHAUST BRAKE<NF8> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0211-				●	●	●

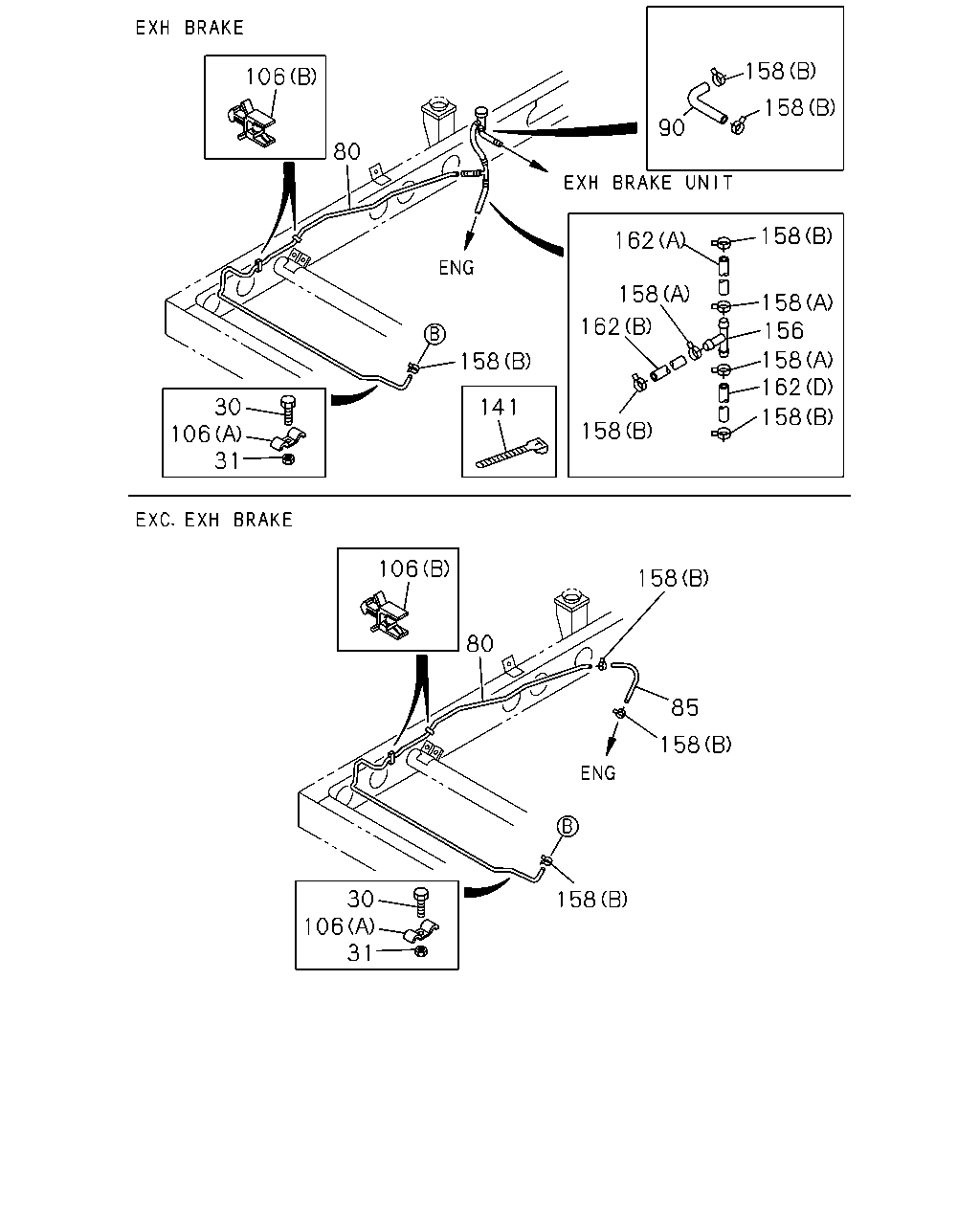

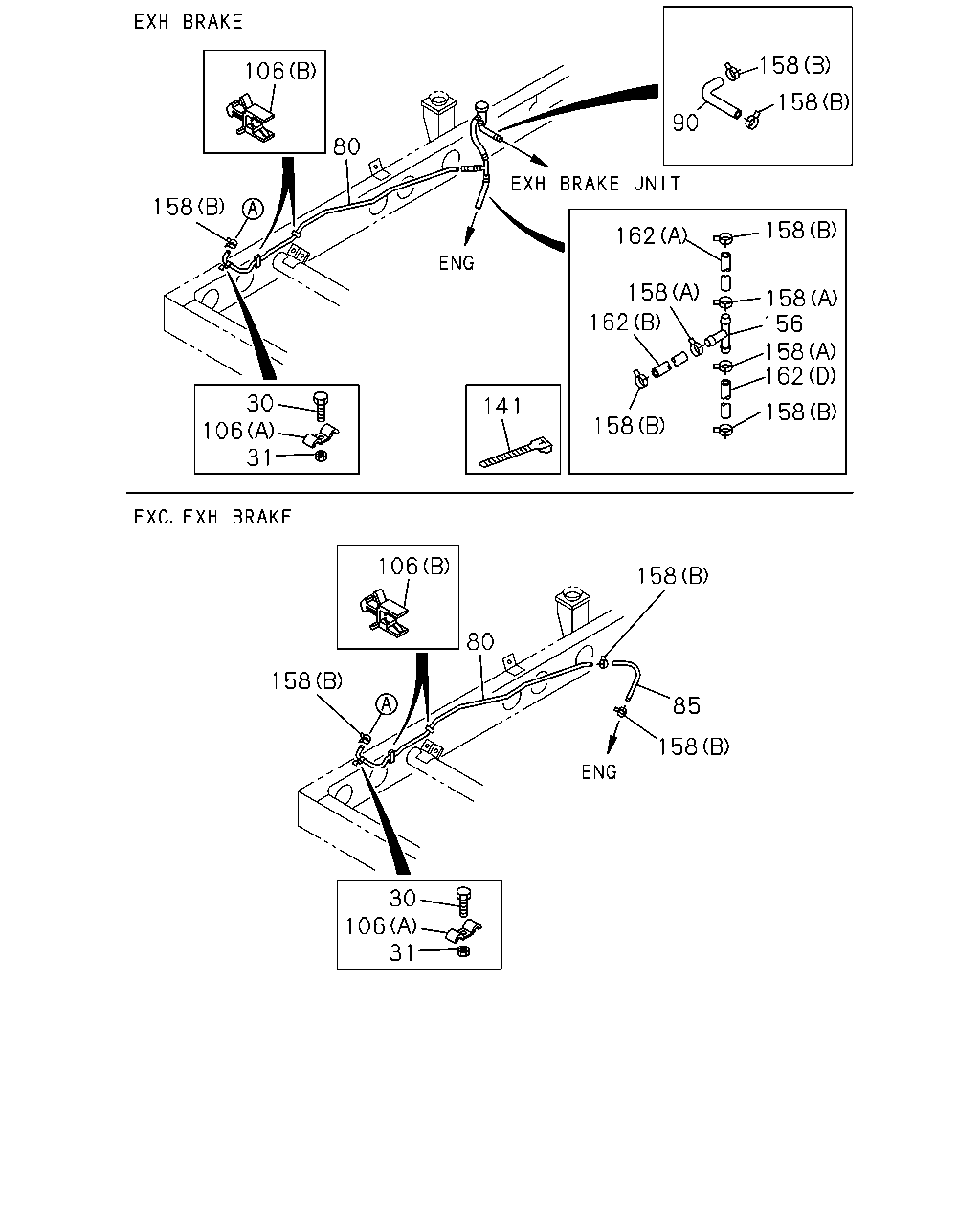

158 106 158 90 80 158 158 162 158 158 156 158 162 162 30 106 31 141 158 158 106 158 80 158 85 158 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●	●	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97301-513-0	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0211-0501	●	●	●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0502-0606	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0502-0606			●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0607-		●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0607-			●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97161-684-0	01	1	0211-0501				●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97161-684-0	01	1	0502-				●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97178-175-0	01	1	0211-0501				●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	0211-0501				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	0211-0501					●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	0502-				●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 NA ENG(RLF)	8-97178-175-0	01	1	0502-				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	0502-					●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0211-0501	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> L=130	8-94438-246-0	01	1	0211-0501				●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0502-0606	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0502-0606				●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0607-	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0607-	●			●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0501	●	●	●		●	●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0501				●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-0606	●	●			●	●
90	04.931 HOSE; VAC,MAG VLV 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-0606				●
90	04.931 HOSE; VAC,MAG VLV 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-0606			●
90	04.931 HOSE; VAC,MAG VLV 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●			●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0607-		●			●	●
90	04.931 HOSE; VAC,MAG VLV 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0607-			●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0211-	●	●	●	●	●	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	0211-	●	●	●	●	●	●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0211-0501	●	●	●		●	●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 02.559 L=250	5-09707-030-1	01	1	0211-0501				●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0502-0606	●	●			●	●
141	04.686 CLIP; 3 WAY JOINT 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0502-0606				●
141	04.686 CLIP; 3 WAY JOINT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0502-0606			●
141	04.686 CLIP; 3 WAY JOINT 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0607-	●			●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0607-		●			●	●
141	04.686 CLIP; 3 WAY JOINT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0607-			●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0211-0501	●	●	●		●	●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> L=430	8-94467-387-0	01	1	0211-0501				●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0502-0606	●	●			●	●
156	04.931 JOINT; 3 WAY 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0502-0606				●
156	04.931 JOINT; 3 WAY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0502-0606			●
156	04.931 JOINT; 3 WAY 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0607-	●			●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0607-		●			●	●
156	04.931 JOINT; 3 WAY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0607-			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	0211-0501	●	●	●	●	●	●
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	0502-0606				●
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	0607-0911	●			●
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	05	1	0912-	●			●
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	03	1	0211-0911	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	03	1	0912-	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-0501	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-0501				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0502-0606	●	●			●	●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0502-0606				●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0502-0606			●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0607-	●			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0607-		●			●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0607-			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0502-0606	●	●			●	●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0502-0606				●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0502-0606			●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0607-0911	●			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0607-0911		●			●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0607-0911			●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-		●			●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (D)	8-97100-393-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B)	8-97100-402-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-			●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	0211-	●	●	●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	0211-				●	●	●

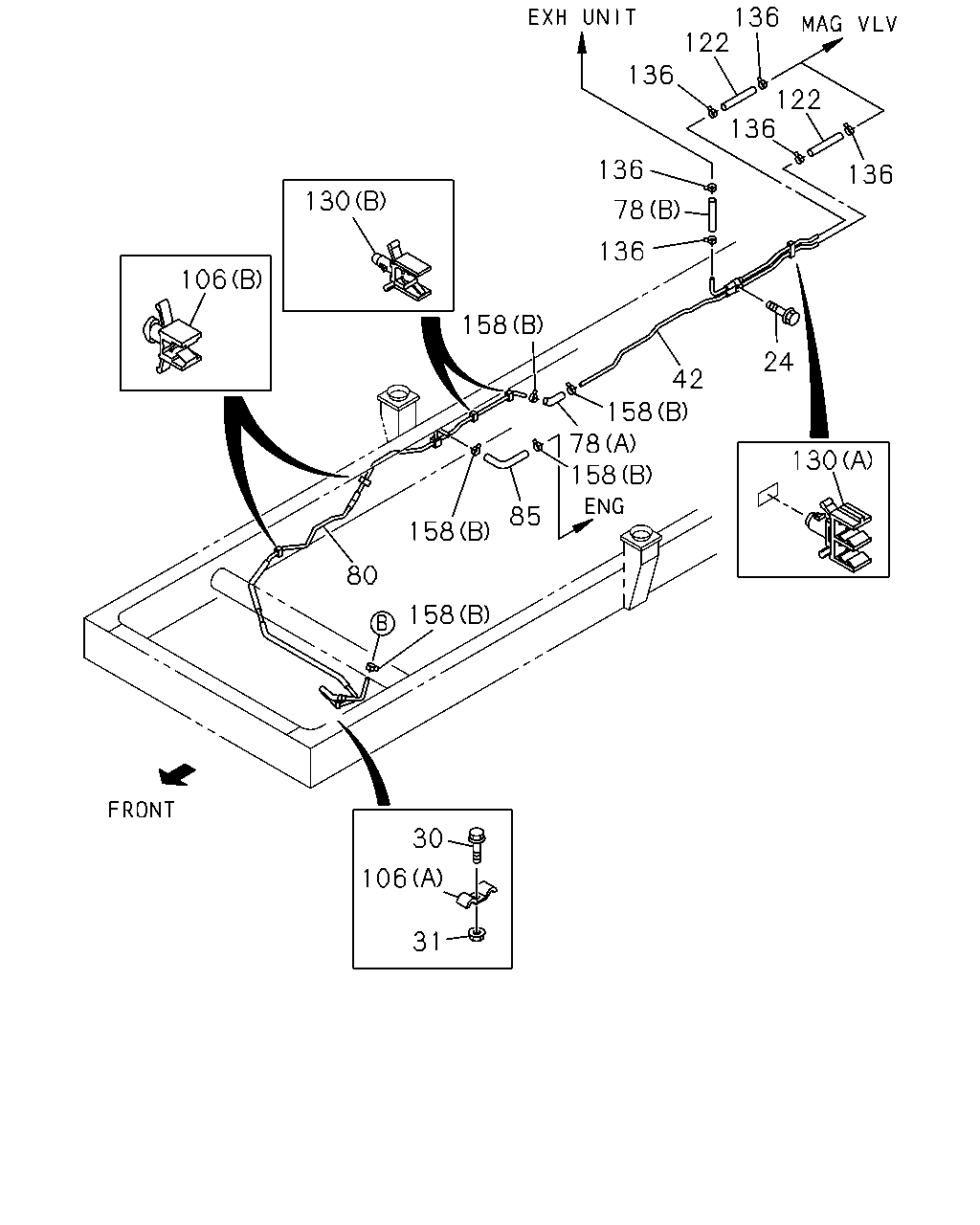

136 122 136 122 136 136 136 130 78 136 106 158 24 42 158 78 158 130 85 158 80 158 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501				●
24	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512				●
24	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606				●
24	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●			●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●	●	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 06.671	8-97258-369-0	01	1	0211-0501				●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.671	8-97258-369-0	01	1	0502-0606				●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.671	8-97258-369-0	01	1	0607-	●			●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 03.630 (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0501				●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0502-0606				●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●			●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0501				●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0502-0606				●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●			●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97301-513-0	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0211-0501	●	●	●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0502-0606	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0502-0606			●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0607-		●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0607-			●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97161-684-0	01	1	0211-0501				●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97161-684-0	01	1	0502-				●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97178-175-0	01	1	0211-0501				●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	0211-0501				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	0211-0501					●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	0502-				●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 NA ENG(RLF)	8-97178-175-0	01	1	0502-				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	0502-					●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0211-0501	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> L=130	8-94438-246-0	01	1	0211-0501				●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0502-0606	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0502-0606				●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0607-	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0607-	●			●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0211-	●	●	●	●	●	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	0211-	●	●	●	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0911-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0911-				●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0211-0501				●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0502-0606				●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0607-0910	●			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0911-0911	●			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) PHILIPPINE ISLANDS EQUIPMENT(B15) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0911-				●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> (B) ID=10 H=40	8-94462-219-0	01	1	0211-0501				●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10 H=40	8-94462-219-0	01	1	0502-0606				●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10 H=40	8-94462-219-0	01	1	0607-	●			●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0211-0501				●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0502-0606				●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0607-	●			●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> 04.930 ID=16	8-94238-568-0	06	1	0211-0501				●
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.930 ID=16	8-94238-568-0	06	1	0502-0606				●
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.930 ID=16	8-94238-568-0	06	1	0607-0911	●			●
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	0912-	●			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	0211-0501	●	●	●	●	●	●
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	0502-0606				●
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	0607-0911	●			●
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	05	1	0912-	●			●
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	03	1	0211-0911	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	03	1	0912-	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-0501	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-0501				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0502-0606	●	●			●	●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0502-0606				●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0502-0606			●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0607-	●			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0607-		●			●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0607-			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0502-0606	●	●			●	●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0502-0606				●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0502-0606			●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0607-0911	●			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0607-0911		●			●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0607-0911			●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-		●			●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-			●

116 12 203 12 12 13 116 39 39 39 39 165 184 108 39 173 39 39 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 ID=14.5	8-94167-480-0	03	1	0211-	●	●	●	●	●	●
13	04.681 JOINT; HOSE,VAC EXHAUST BRAKE<NF8> 04.686 3WAY	8-94441-184-0	01	1	0211-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	02	1	0211-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	03	1	0211-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	01	1	0211-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	02	1	0211-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> (C) ID=25.5	8-97077-492-0	01	1	0211-				●	●	●
108	04.931 GROMMET; PIPE EXC. EXHAUST BRAKE<NF8>	9-09956-353-0	01	1	0211-1312	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (A)	8-97035-969-2	01	1	0211-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (B)	8-97035-980-2	01	1	0211-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (D)	8-97100-393-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B)	8-97100-402-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-			●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	0211-	●	●	●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	0211-				●	●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512	●	●	●	●	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-875-0	01	1	0211-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-872-0	01	1	0211-				●	●	●
184	04.685 BRACKET; UNION FIX EXC. EXHAUST BRAKE<NF8> (B)	8-98251-817-0	01	1	1401-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. EXHAUST BRAKE<NF8> (B)	8-98251-818-1	01	1	1401-				●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97035-967-3	01	1	0211-1312	●	●	●
184	04.685 BRACKET; UNION FIX EXHAUST BRAKE<NF8> (B)	8-97035-967-3	01	1	1401-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	0211-				●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0211-1312				●	●	●
184	04.685 BRACKET; UNION FIX EXHAUST BRAKE<NF8> (B)	8-97094-377-4	01	1	1401-				●	●	●
203	04.690 VALVE; CHECK EXHAUST BRAKE<NF8>	8-94386-540-0	01	1	0501-	●	●	●	●	●	●

158 106 158 90 80 158 162 158 158 156 162 158 162 158 30 106 31 141 158 158 106 158 80 85 158 30 106 31 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●	●	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97301-513-0	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0211-0501	●	●	●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0502-0606	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0502-0606			●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0607-		●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0607-			●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97161-684-0	01	1	0211-0501				●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97161-684-0	01	1	0502-				●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97178-175-0	01	1	0211-0501				●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	0211-0501				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	0211-0501					●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	0502-				●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 NA ENG(RLF)	8-97178-175-0	01	1	0502-				●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	0502-					●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0211-0501	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> L=130	8-94438-246-0	01	1	0211-0501				●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0502-0606	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0502-0606				●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0607-	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0607-	●			●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0501	●	●	●		●	●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0501				●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-0606	●	●			●	●
90	04.931 HOSE; VAC,MAG VLV 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-0606				●
90	04.931 HOSE; VAC,MAG VLV 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-0606			●
90	04.931 HOSE; VAC,MAG VLV 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●			●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0607-		●			●	●
90	04.931 HOSE; VAC,MAG VLV 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0607-			●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0211-	●	●	●	●	●	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	0211-	●	●	●	●	●	●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0211-0501	●	●	●		●	●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 02.559 L=250	5-09707-030-1	01	1	0211-0501				●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0502-0606	●	●			●	●
141	04.686 CLIP; 3 WAY JOINT 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0502-0606				●
141	04.686 CLIP; 3 WAY JOINT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0502-0606			●
141	04.686 CLIP; 3 WAY JOINT 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0607-	●			●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0607-		●			●	●
141	04.686 CLIP; 3 WAY JOINT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0607-			●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0211-0501	●	●	●		●	●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> L=430	8-94467-387-0	01	1	0211-0501				●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0502-0606	●	●			●	●
156	04.931 JOINT; 3 WAY 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0502-0606				●
156	04.931 JOINT; 3 WAY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0502-0606			●
156	04.931 JOINT; 3 WAY 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0607-	●			●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0607-		●			●	●
156	04.931 JOINT; 3 WAY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0607-			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	0211-0501	●	●	●	●	●	●
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	0502-0606				●
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	0607-0911	●			●
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	05	1	0912-	●			●
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	03	1	0211-0911	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	03	1	0912-	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-0501	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-0501				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0502-0606	●	●			●	●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0502-0606				●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0502-0606			●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0607-	●			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0607-		●			●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0607-			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501	●	●	●		●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501				●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0502-0606	●	●			●	●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0502-0606				●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0502-0606			●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0607-0911	●			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0607-0911		●			●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0607-0911			●
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-		●			●	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (D)	8-97100-393-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B)	8-97100-402-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-			●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	0211-	●	●	●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	0211-				●	●	●

116 12 203 13 12 39 12 39 39 184 116 165 39 175 108 39 162 39 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 ID=14.5	8-94167-480-0	03	1	0211-	●	●	●	●	●	●
13	04.681 JOINT; HOSE,VAC EXHAUST BRAKE<NF8> 04.686 3WAY	8-94441-184-0	01	1	0211-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	02	1	0211-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	03	1	0211-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	01	1	0211-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	02	1	0211-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> (C) ID=25.5	8-97077-492-0	01	1	0211-				●	●	●
108	04.931 GROMMET; PIPE EXC. EXHAUST BRAKE<NF8>	9-09956-353-0	01	1	0211-1312	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (A)	8-97035-969-2	01	1	0211-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (B)	8-97035-980-2	01	1	0211-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0607-			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (D)	8-97100-393-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0607-			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0211-0501	●	●	●		●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B)	8-97100-402-0	01	1	0211-0501				●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606	●	●			●	●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606				●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-0606			●
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-	●			●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-		●			●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0607-			●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	0211-	●	●	●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	0211-				●	●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512	●	●	●	●	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-875-0	01	1	0211-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-872-0	01	1	0211-				●	●	●
175	04.930 CLIP; BAND,VAC HOSE EXHAUST BRAKE<NF8> 02.559 L=219.5	1-09987-136-0	01	1	0211-				●	●	●
184	04.685 BRACKET; UNION FIX EXC. EXHAUST BRAKE<NF8> (B)	8-98251-817-0	01	1	1401-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. EXHAUST BRAKE<NF8> (B)	8-98251-818-1	01	1	1401-				●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97035-967-3	01	1	0211-1312	●	●	●
184	04.685 BRACKET; UNION FIX EXHAUST BRAKE<NF8> (B)	8-97035-967-3	01	1	1401-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	0211-				●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0211-1312				●	●	●
184	04.685 BRACKET; UNION FIX EXHAUST BRAKE<NF8> (B)	8-97094-377-4	01	1	1401-				●	●	●
203	04.690 VALVE; CHECK EXHAUST BRAKE<NF8>	8-94386-540-0	01	1	0501-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
