3-58 — FIXING PARTS; OIL PIPING (#43978) — 77 parça

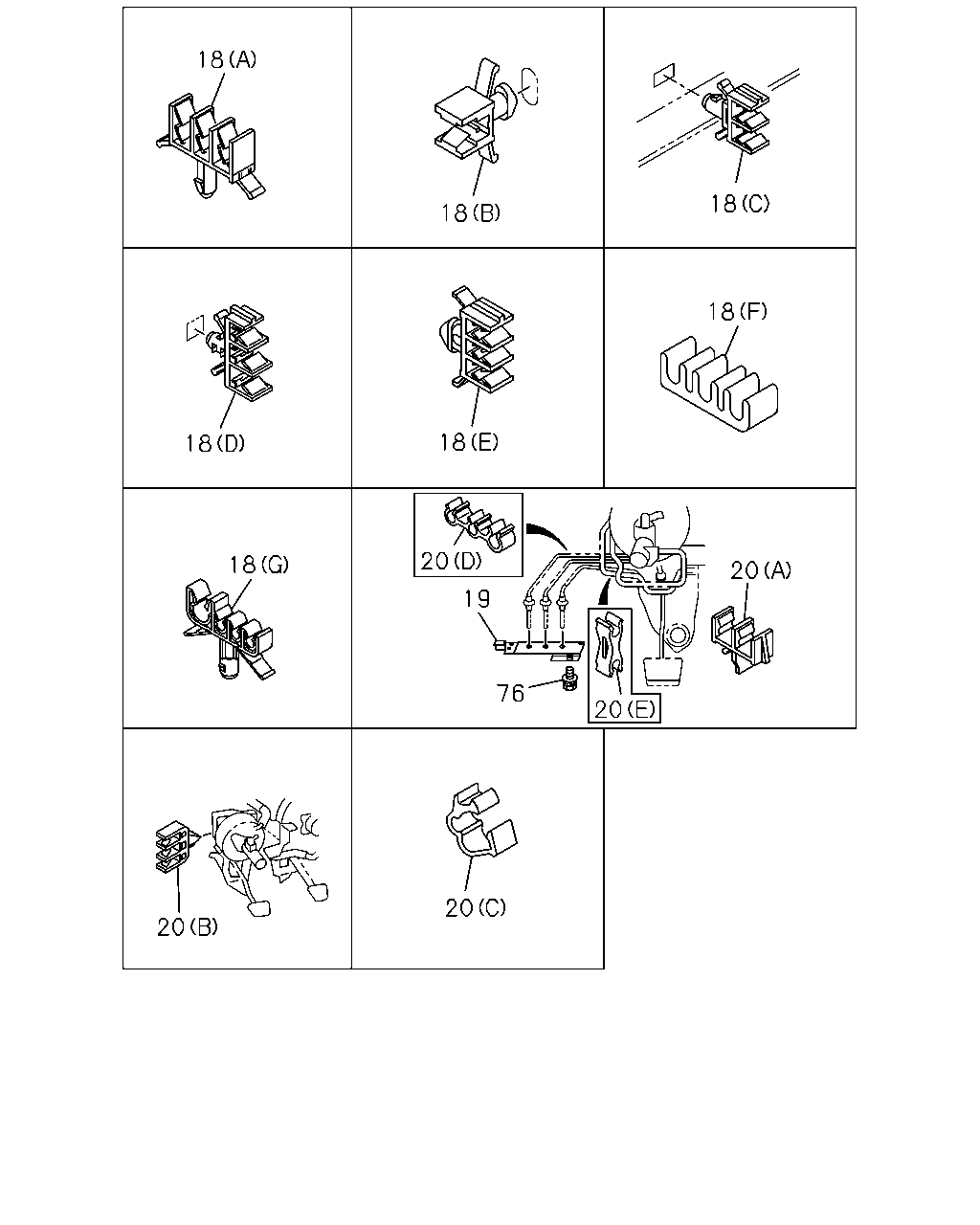

çizim 52164
18 18 18 18 18 18 20 18 20 19 76 20 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (G) ID=10 & 4.76X3 		8-97168-820-0 02 1 0607-0910 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (G) ID=10 & 4.76X3 		8-97168-820-0 02 1 0911- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT LSPV<6PH> (G) ID=10 & 4.76X3 		8-97168-820-0 02 1 0911- ●
18 04.686 CLIP; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (C) ID=4.8X2 		8-94316-410-0 01 1 0607- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) BRK WHL LK CONT LSPV<6PH> (C) ID=4.8X2 		8-94316-410-0 01 1 0607- ●
18 04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26 		8-94249-685-0 02 1 0211-0501 ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26 		8-94249-685-0 02 1 0211-0501 ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26 		8-94249-685-0 02 1 0211-0501 ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=26 		8-94249-685-0 02 1 0211-0501 ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=26 		8-94249-685-0 02 1 0211-0501 ●
18 04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26 		8-94249-685-0 02 1 0502- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0211-0312 ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0211-0312 ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0401-0501 ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0401-0501 ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0502-0606 ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0502-0606 ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0502-0606 ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0607-1308 ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0607-1308 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0607-1308 ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0607-1308 ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1309- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1309- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1309- ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1309- ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0211- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0211-0501 ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0502-0910 ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0502-0910 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0911-0911 ●
18 04.686 CLIP; BRK PIPE
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0911- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) PHILIPPINE ISLANDS EQUIPMENT(B15) (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0911- ●
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0911- ●
18 04.686 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94316-410-0 01 1 0211-0606 ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (C) ID=4.8X2 		8-94316-410-0 02 1 0607-0910 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (C) ID=4.8X2 		8-94316-410-0 02 1 0911- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT LSPV<6PH> (C) ID=4.8X2 		8-94316-410-0 02 1 0911- ●
18 04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26 		8-94249-685-0 01 1 0211-0501 ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=26 		8-94249-685-0 01 1 0211-0501 ●
18 04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26 		8-94249-685-0 05 1 0502-0606 ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=26 		8-94249-685-0 05 1 0502-0606 ●
18 04.686 CLIP; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=4.8 H=26 		8-94249-685-0 05 1 0607-0607 ● ● ●
18 04.686 CLIP; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=26 		8-94249-685-0 05 1 0608- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0211-0501 ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0502-0606 ● ●
18 04.686 CLIP; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0502-0606 ●
18 04.686 CLIP; BRK PIPE
4JB1 NA ENG(RLF) 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0607-1308 ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0607-1308 ●
18 04.686 CLIP; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0607-1308 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1309- ●
18 04.686 CLIP; BRK PIPE
4JB1 NA ENG(RLF) 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1309- ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1309- ●
18 04.686 CLIP; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1309- ●
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-94122-333-0 01 1 0211-0910 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT DSPV<JL8> 04.685 (F) ID=4.76X3 		8-94122-333-0 01 1 0911- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-94122-333-0 01 1 0911- ●
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-94122-333-0 01 1 0911- ●
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 0211-0501 ●
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0502-0606 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0607-0910 ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0911-0911 ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0911-0911 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0911-0911 ●
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0911-0911 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0911- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0911- ●
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 03.162 (D) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0211- ●
19 04.686 BRACKET; OIL PIPE 8-97042-258-4 01 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (E) ID=4.6X2 		8-94241-454-0 01 1 0211- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0211- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 0211- ● ● ●
76 04.686 BOLT; BRKT,OIL PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ● ● ●
76 04.686 BOLT; BRKT,OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
