◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#43976) — 104 parça

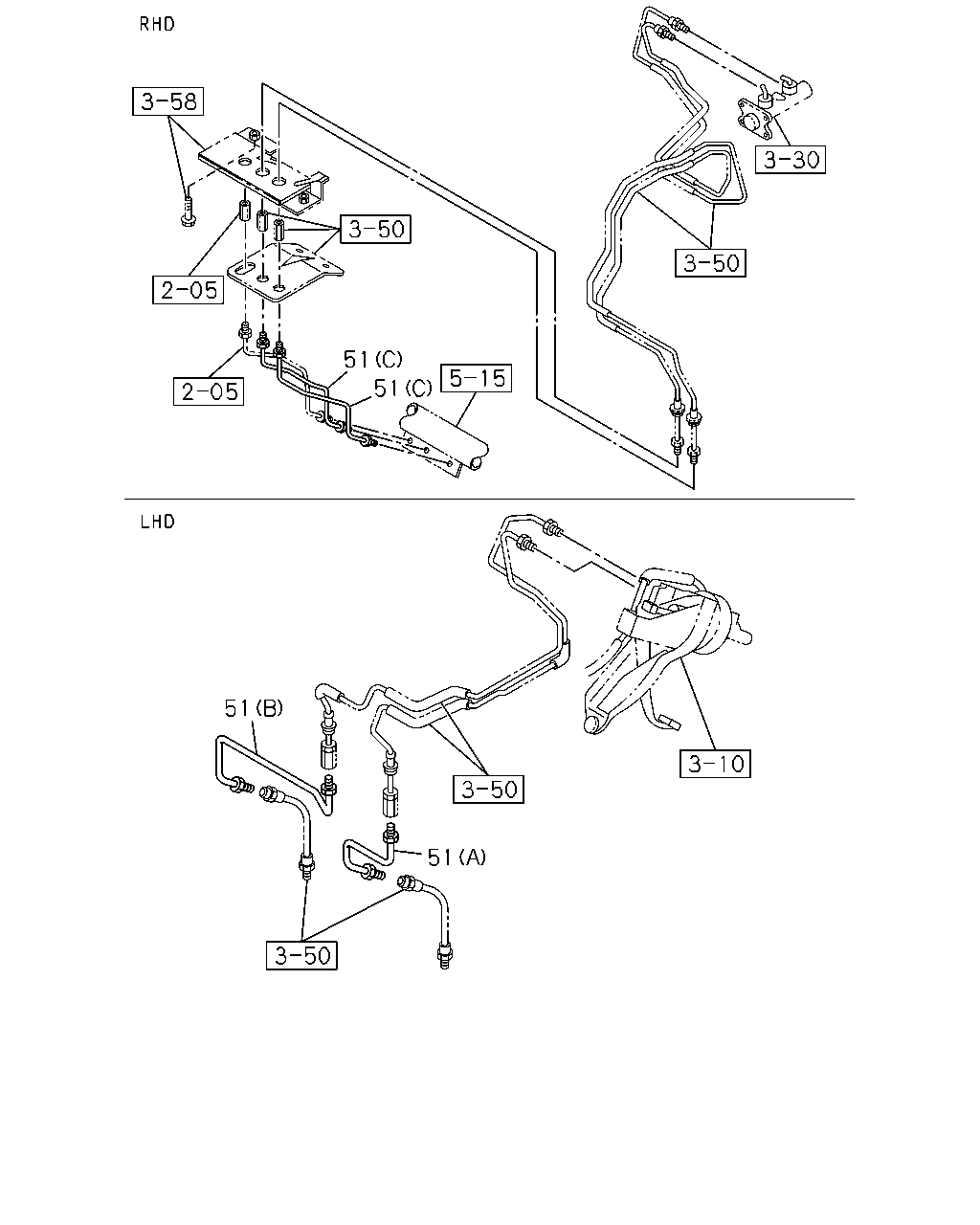

çizim 11139
51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
51 04.685 PIPE; BRK
(C) 		8-97035-978-0 02 1 0211- ● ● ●
51 04.685 PIPE; BRK
(B) 		5-47411-763-0 01 1 0211- ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97070-296-2 01 1 0211- ● ● ●
çizim 11993
13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT DSPV<JL8> 		8-97300-213-0 01 1 0701- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97300-213-0 01 1 0701- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0211-0612 ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97041-000-3 01 1 0211-0612 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0701- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0701- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97041-000-3 01 1 0701- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0701- ●

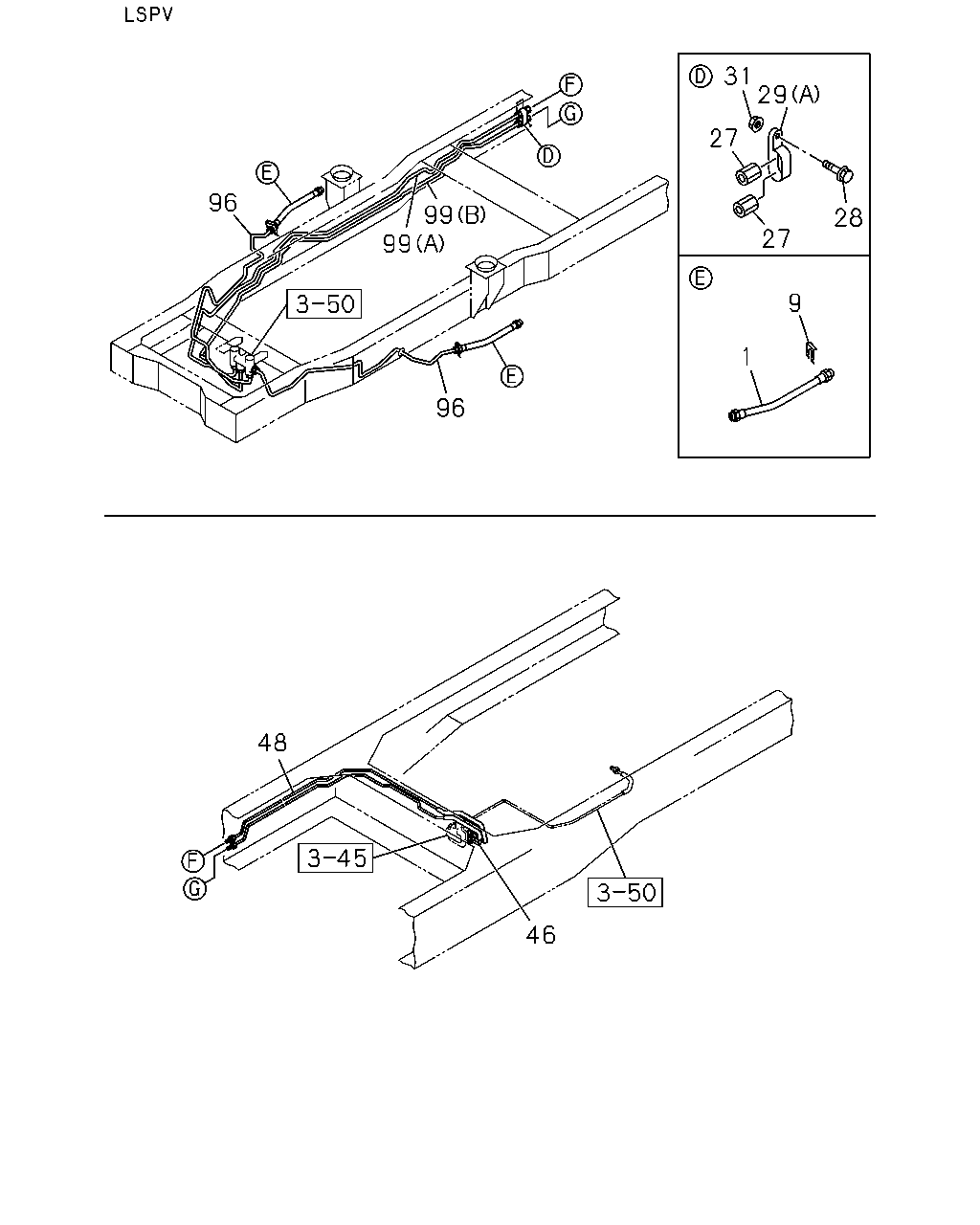

çizim 52198
31 29 27 99 99 96 28 27 9 1 96 48 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0211- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0505 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0506-0610 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0506-0610 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0211-0607 ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0211-0607 ●
27 04.686 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 01 1 0608- ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0608- ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0512 ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ● ● ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0606 ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0606 ●
29 04.686 CLIP; UNION
(B) ID=16 L=20 		0-95235-532-0 01 1 0607- ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0607- ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0211-0606 ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0607- ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0602 ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> FRONT 		8-97208-981-1 01 1 0211- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> REAR 		8-97208-980-1 01 1 0211- ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) 		8-98074-946-0 01 1 0701- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97035-629-1 01 1 0211- ● ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97035-630-2 01 1 0211-0612 ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 04.685 		8-97035-630-2 01 1 0701- ● ● ●
96 04.686 PIPE ASM; 6 WAY
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97288-636-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) BRK WHL LK CONT LSPV<6PH> 04.685 		8-97288-636-0 01 1 0502- ●
96 04.686 PIPE ASM; 6 WAY
EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97090-026-2 01 1 0211- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97090-026-2 01 1 0211- ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97091-059-3 01 1 0211- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) 		8-97300-283-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) 05.476 (A) 		8-97301-505-0 01 1 0607-0612 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) 		8-97205-103-0 01 1 0701-1108 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) 		8-98187-608-0 01 1 1109- ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) 		8-97092-863-4 01 1 0211-0606 ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 05.476 (A) 		8-97092-863-4 01 1 0607- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97288-634-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97288-634-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97288-635-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97288-635-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) 		8-97089-975-2 01 1 0211-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) 		8-97089-975-2 01 1 0211-0910 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) 		8-97089-975-2 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) 		8-97089-975-2 01 1 0911- ● ●

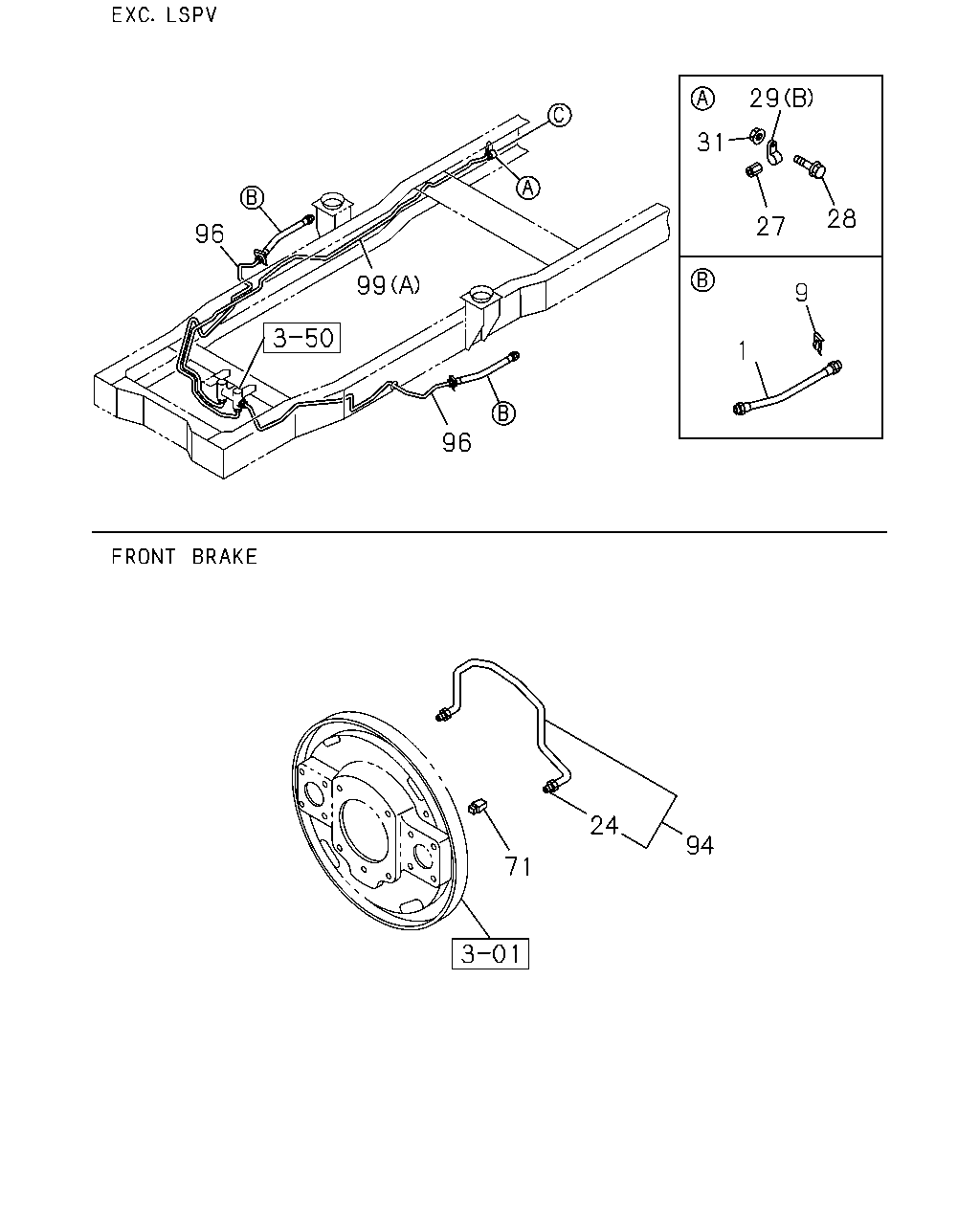

çizim 52199
29 31 28 27 96 99 9 1 96 24 94 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0211- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0505 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0506-0610 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0506-0610 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0211-0607 ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0608- ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0211-0607 ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0211-0607 ●
27 04.686 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 01 1 0608- ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0608- ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0512 ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ● ● ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0606 ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0606 ●
29 04.686 CLIP; UNION
(B) ID=16 L=20 		0-95235-532-0 01 1 0607- ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0607- ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0211-0606 ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0607- ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0602 ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09956-640-0 02 1 0211- ● ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-151-0 01 1 0211- ● ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-184-0 01 1 0211- ● ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) 		8-98074-946-0 01 1 0701- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97035-629-1 01 1 0211- ● ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97035-630-2 01 1 0211-0612 ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 04.685 		8-97035-630-2 01 1 0701- ● ● ●
96 04.686 PIPE ASM; 6 WAY
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97288-636-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) BRK WHL LK CONT LSPV<6PH> 04.685 		8-97288-636-0 01 1 0502- ●
96 04.686 PIPE ASM; 6 WAY
EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97090-026-2 01 1 0211- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97090-026-2 01 1 0211- ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97091-059-3 01 1 0211- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) 		8-97300-283-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) 05.476 (A) 		8-97301-505-0 01 1 0607-0612 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) 		8-97205-103-0 01 1 0701-1108 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) 		8-98187-608-0 01 1 1109- ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) 		8-97092-863-4 01 1 0211-0606 ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 05.476 (A) 		8-97092-863-4 01 1 0607- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97288-634-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97288-634-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97288-635-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97288-635-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) 		8-97089-975-2 01 1 0211-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) 		8-97089-975-2 01 1 0211-0910 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) 		8-97089-975-2 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) 		8-97089-975-2 01 1 0911- ● ●
