◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 3 - Brakes, Brake System ▶ 3-45 - LOAD SENSING PROPORTIONING VALVE ▶

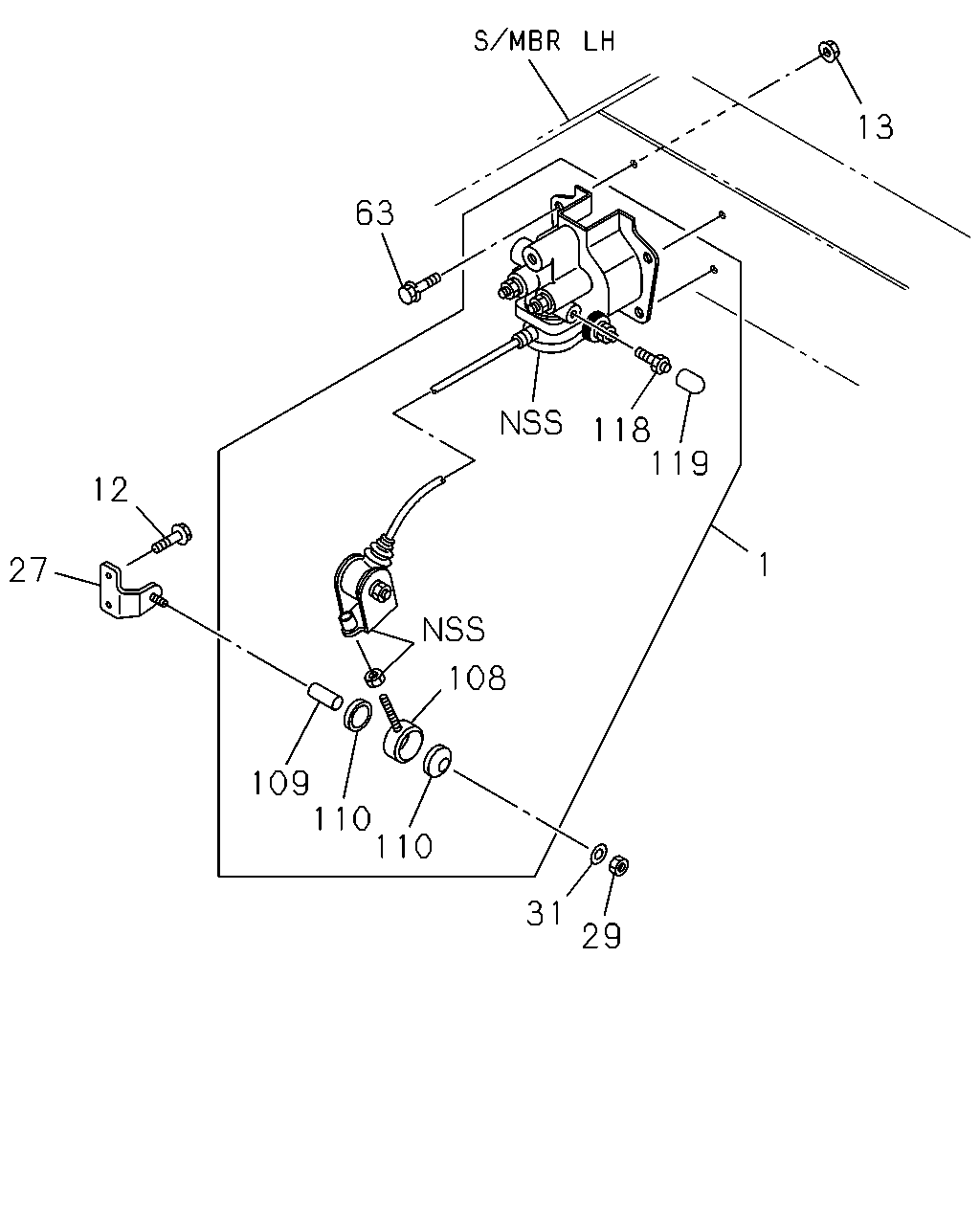

3-45 — LOAD SENSING PROPORTIONING VALVE (#43974) — 17 parça
çizim 49348
13 63 118 119 12 1 27 108 109 110 110 31 29
BalonParca AdiParca NoAdetTipApplied Date
1 04.730 VALVE ASM; LOAD SENSING PROPORTI
BRK WHL LK CONT LSPV<6PH> 		8-94368-455-2 01 1 0211-
12 04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0211-0512
12 04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-
13 04.730 NUT; LSPV TO BRKT
BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0211-0602
13 04.730 NUT; LSPV TO BRKT
BRK WHL LK CONT LSPV<6PH> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0603-
27 04.730 BRACKET; SHACKLE TO AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97165-494-0 01 1 0211-
29 04.710 NUT; SHACKLE
BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0602
29 04.710 NUT; SHACKLE
BRK WHL LK CONT LSPV<6PH> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-
31 04.710 WASHER; LK,SHACKLE
BRK WHL LK CONT LSPV<6PH> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0211-0605
31 04.710 WASHER; LK,SHACKLE
BRK WHL LK CONT LSPV<6PH> 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0606-
63 04.710 BOLT; LSPV
BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0211-0512
63 04.710 BOLT; LSPV
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0601-
108 04.710 SHACKLE; LSPV
BRK WHL LK CONT LSPV<6PH> 		8-97173-366-0 01 1 0211-
109 04.710 COLLAR; LSPV
BRK WHL LK CONT LSPV<6PH> 		8-97139-186-0 01 1 0211-
110 04.710 BUSHING; LSPV
BRK WHL LK CONT LSPV<6PH> 		8-97145-631-0 02 1 0211-
118 04.710 SCREW; BLEEDER,LSPV
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97093-663-0 01 1 0211-
119 04.710 CAP; BLEEDER SCREW,LSPV
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97093-662-0 01 1 0211-
