3-11 — PARKING BRAKE CONTROL (#43970) — 85 parça

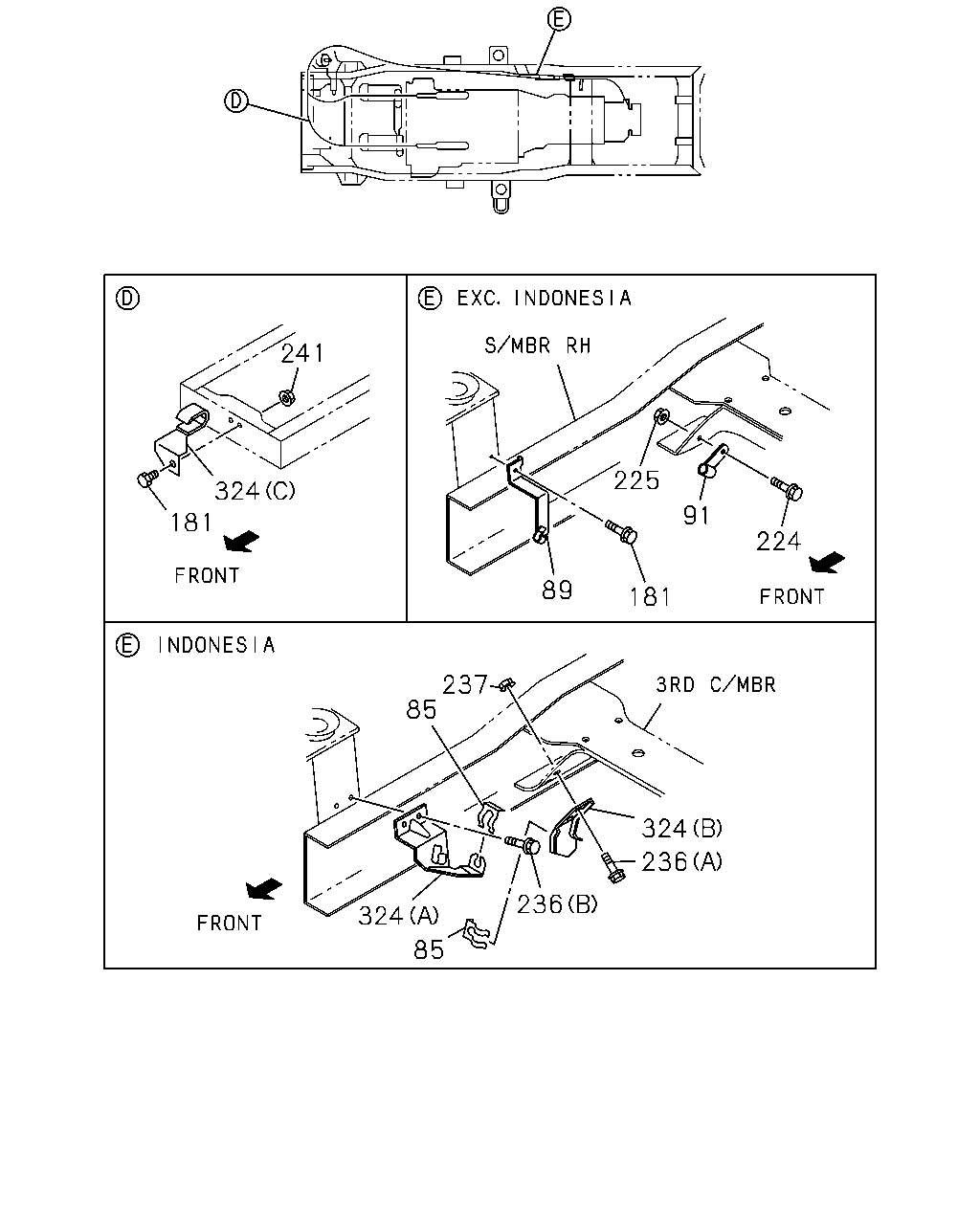

çizim 52152
241 225 324 181 91 224 89 181 237 85 324 236 236 324 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
85 04.785 CLIP; BRKT
INDONESIA EQUIPMENT(S4S) 		8-97084-216-0 02 1 0211- ●
89 04.785 BRACKET; CLIP
EXC. INDONESIA EQUIPMENT(S4S) 		8-97113-984-1 01 1 0211- ●
89 04.785 BRACKET; CLIP 8-97113-984-1 01 1 0211- ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. INDONESIA EQUIPMENT(S4S) ID=13 L=50 		9-09525-286-0 01 1 0211-0606 ●
91 04.785 CLIP; PARKING BRK CABLE
ID=13 L=50 		9-09525-286-0 01 1 0211-0606 ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. INDONESIA EQUIPMENT(S4S) ID=13 L=50 		0-95235-286-0 01 1 0607- ●
91 04.785 CLIP; PARKING BRK CABLE
ID=13 L=50 		0-95235-286-0 01 1 0607- ● ● ● ● ●
181 04.785 BOLT; BRKT
EXC. INDONESIA EQUIPMENT(S4S) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ● ●
181 04.785 BOLT; BRKT
EXC. INDONESIA EQUIPMENT(S4S) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. INDONESIA EQUIPMENT(S4S) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ●
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. INDONESIA EQUIPMENT(S4S) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
224 04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. INDONESIA EQUIPMENT(S4S) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
225 04.785 NUT; CABLE CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. INDONESIA EQUIPMENT(S4S) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
INDONESIA EQUIPMENT(S4S) 09.008 (A) M10X20 FLANGE 		0-28081-020-0 02 1 0211-0512 ●
236 04.785 BOLT; BRKT TO FRAME
INDONESIA EQUIPMENT(S4S) 00.029 (A) M10X20 FLANGE 		0-28051-020-0 02 1 0601- ●
236 04.785 BOLT; BRKT TO FRAME
INDONESIA EQUIPMENT(S4S) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ●
236 04.785 BOLT; BRKT TO FRAME
INDONESIA EQUIPMENT(S4S) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
237 04.785 NUT; BRKT TO FRAME
INDONESIA EQUIPMENT(S4S) M10 FLANGE 		0-91150-110-0 02 1 0211-0602 ●
237 04.785 NUT; BRKT TO FRAME
INDONESIA EQUIPMENT(S4S) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0603- ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
324 04.785 BRACKET
INDONESIA EQUIPMENT(S4S) (A) 		8-97063-090-1 01 1 0211- ●
324 04.785 BRACKET
INDONESIA EQUIPMENT(S4S) (B) 		8-97105-721-0 01 1 0211- ●
324 04.785 BRACKET
(C) 		8-97101-815-2 01 1 0211- ● ● ●

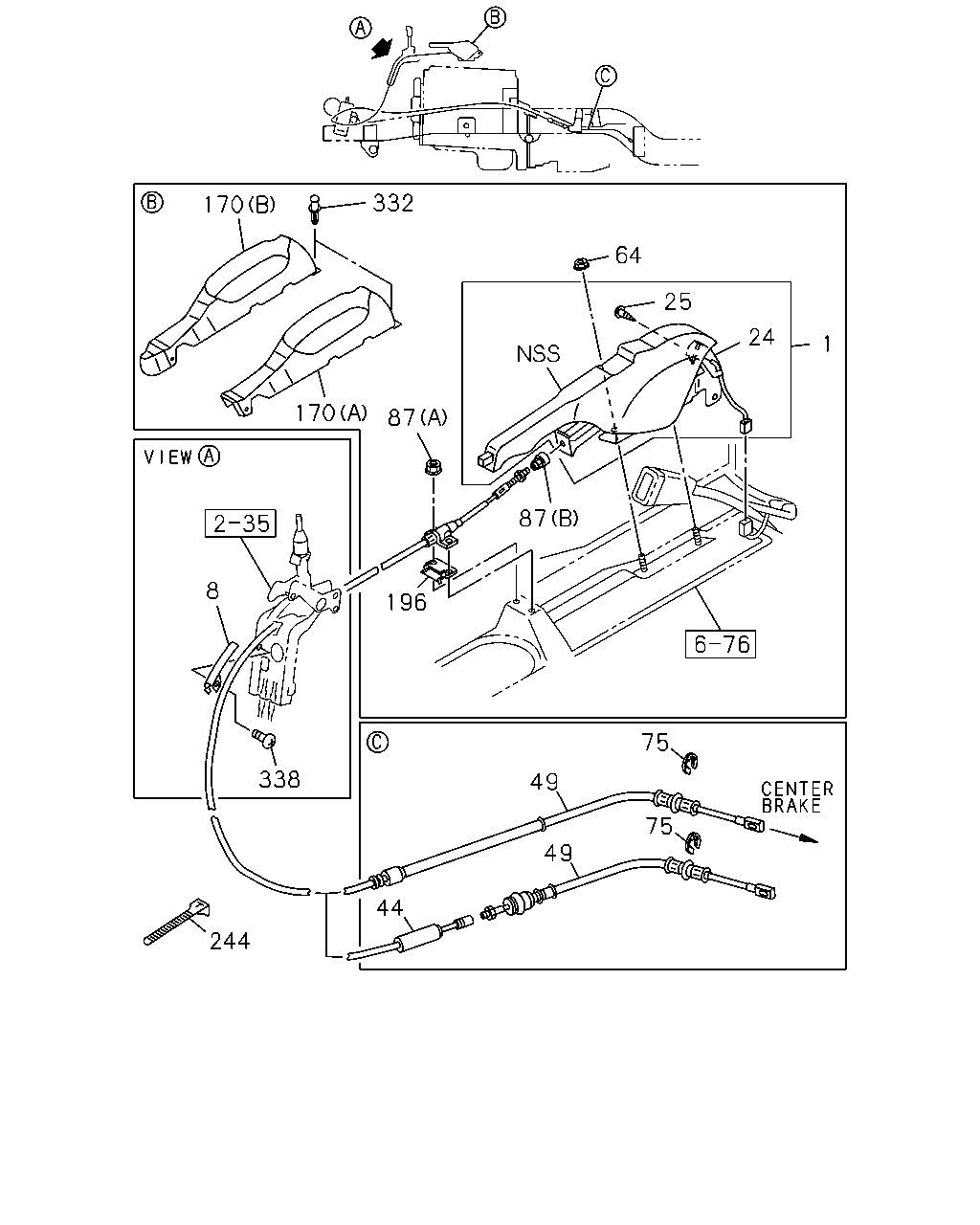

çizim 52196
332 170 64 25 24 1 170 87 87 8 196 75 338 49 75 49 44 244
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97582-333-2 01 1 0502-0610 ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97582-333-2 01 1 0502-0610 ● ●
1 04.592 STEM ASM; PARKING BRK
INTERIOR COLOR BLUISH GRAY(158) GRAY 		8-97409-386-0 01 1 0611-0709 ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-386-0 01 1 0611-0709 ● ●
1 04.592 STEM ASM; PARKING BRK
INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY 		8-97409-386-0 01 1 0710-1305 ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-386-0 01 1 0710-1305 ● ●
1 04.592 STEM ASM; PARKING BRK
INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY 		8-97427-545-0 01 1 1306- ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97427-545-0 01 1 1306- ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-2 01 1 0211-0501 ● ● ●
1 04.592 STEM ASM; PARKING BRK
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97996-542-2 01 1 0502-0709 ●
1 04.592 STEM ASM; PARKING BRK
INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97996-542-2 01 1 0710-1305 ●
1 04.592 STEM ASM; PARKING BRK
INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97427-541-0 01 1 1306- ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-2 01 1 0211-0501 ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97585-445-2 01 1 0502-0610 ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-385-0 01 1 0611-1305 ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97427-522-0 01 1 1306- ● ● ●
8 04.592 GUIDE; PARKING BRK 8-97190-672-0 01 1 0211- ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0211-1305 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306- ● ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0211- ● ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
INDONESIA EQUIPMENT(S4S) 		8-97176-235-0 01 1 0211- ●
49 04.779 CABLE; PARKING BRK
INDONESIA EQUIPMENT(S4S) 		8-97184-268-0 01 1 0211- ●
49 04.779 CABLE; PARKING BRK
EXC. INDONESIA EQUIPMENT(S4S) 		8-97184-270-0 01 1 0211- ●
49 04.779 CABLE; PARKING BRK 8-97184-270-0 01 1 0211- ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0211- ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0211-0610 ● ● ● ● ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12 		9-09185-412-0 01 1 0211-0604 ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0605- ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ● ● ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 0211-0310 ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0611 ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ● ● ● ● ●
170 04.595 COVER; PARKING BRK LEVER
INTERIOR COLOR BLUISH GRAY(158) (A) GRAY 		8-97396-940-1 01 1 0502-0702 ●
170 04.595 COVER; PARKING BRK LEVER
(A) GRAY 		8-97396-940-1 01 1 0502-0702 ● ●
170 04.595 COVER; PARKING BRK LEVER
INTERIOR COLOR BLUISH GRAY(158) (A) GRAY 		8-97409-480-0 01 1 0703-0709 ●
170 04.595 COVER; PARKING BRK LEVER
(A) GRAY 		8-97409-480-0 01 1 0703-0709 ● ●
170 04.595 COVER; PARKING BRK LEVER
INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) (A) GRAY 		8-97409-480-0 01 1 0710- ●
170 04.595 COVER; PARKING BRK LEVER
(A) GRAY 		8-97409-480-0 01 1 0710- ● ●
170 04.595 COVER; PARKING BRK LEVER
(A) DARK GRAY 		8-97155-172-0 01 1 0211-0501 ● ● ●
170 04.595 COVER; PARKING BRK LEVER
INTERIOR COLOR GRAY(153) (A) DARK GRAY 		8-97155-172-1 01 1 0502-0709 ●
170 04.595 COVER; PARKING BRK LEVER
INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) (A) DARK GRAY 		8-97155-172-1 01 1 0710-1001 ●
170 04.595 COVER; PARKING BRK LEVER
INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) (A) DARK GRAY 		8-97412-945-0 01 1 1002- ●
170 04.595 COVER; PARKING BRK LEVER
(B) DARK GRAY 		8-97158-915-0 01 1 0211-0501 ● ● ●
170 04.595 COVER; PARKING BRK LEVER
(B) GRAY 		8-97400-347-1 01 1 0502- ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97066-277-2 01 1 0211-0611 ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-98034-201-0 01 1 0612- ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97095-464-2 01 1 0211- ● ● ●
244 04.785 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 0211- ● ● ●
332 04.785 CLIP; COVER
03.602 D6X12.5 		8-94146-425-0 01 1 0211- ● ● ● ● ● ●
338 04.785 SCREW; GUIDE
16.270 M6X10 		9-03497-610-0 01 1 0211-0604 ● ● ●
338 04.785 SCREW; GUIDE
M6X10 		0-34218-610-0 01 1 0605- ● ● ●
