Sayfa 2-03 - Isuzu EPC

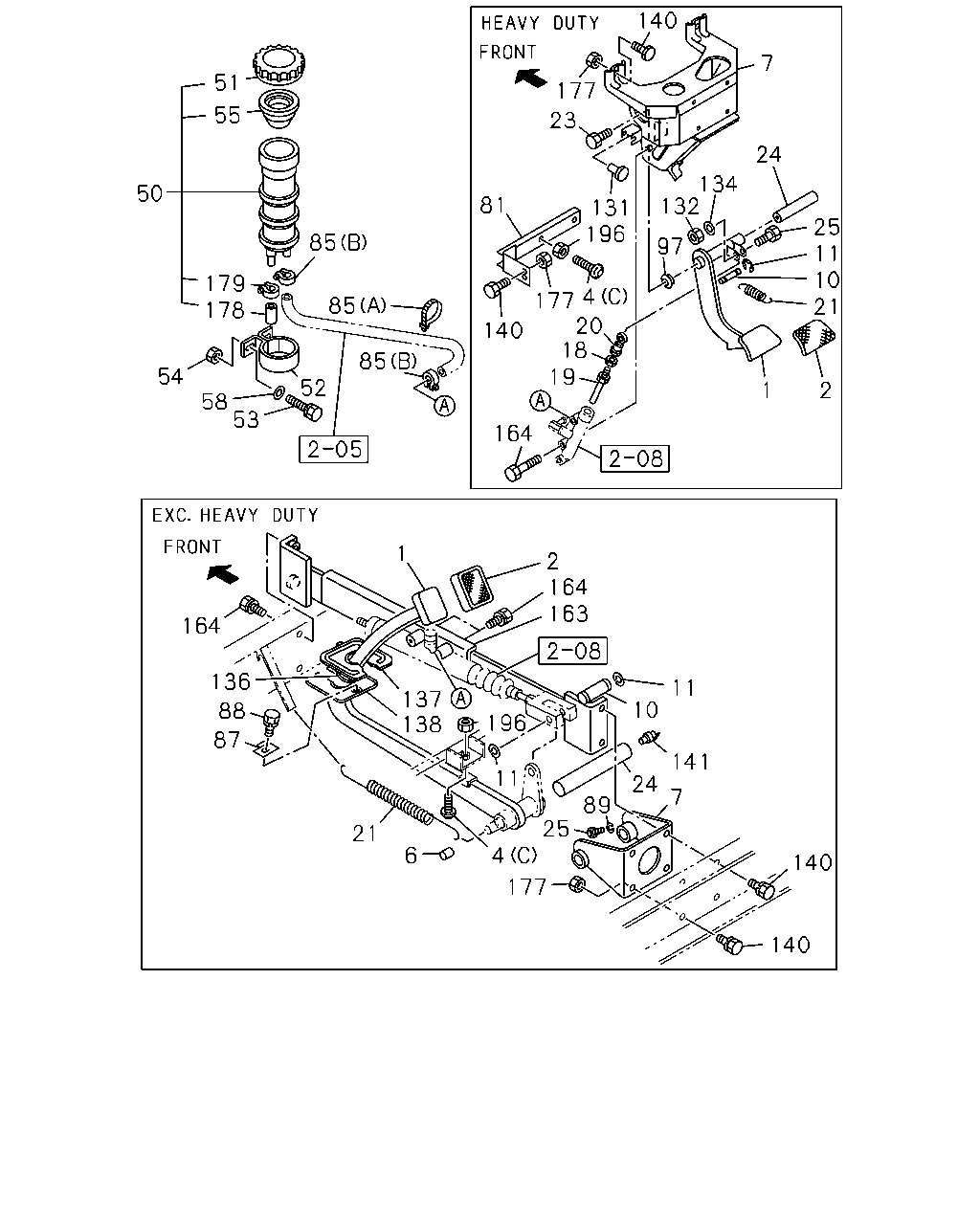

2-03 — CLUTCH PEDAL AND CONTROL (#4397) — 355 parça

140 7 51 177 55 23 24 134 132 97 50 81 131 196 25 11 10 21 85 179 178 177 4 20 18 19 85 140 85 54 52 2 1 58 53 164 1 2 164 163 164 136 11 137 138 196 10 88 87 141 11 24 7 89 25 4 21 6 140 177 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PEDAL; CLU BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-31411-141-4	01	1	9101-9504	●	●
1	PEDAL; CLU EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-31411-137-0	01	1	9101-9504	●	●
1	PEDAL; CLU CLU SYSTEM MINIPACK(B1Z)	1-73908-171-3	01	1	9505-	●	●
1	PEDAL; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-051-3	01	1	9505-9706	●	●
1	PEDAL; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-051-3	01	1	9707-9805	●
1	PEDAL; CLU ISUZU M/T<X9A> EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-051-3	01	1	9707-9805		●
1	PEDAL; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-051-3	01	1	9806-9809	●	●
1	PEDAL; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-331-2	01	1	9810-	●	●
2	COVER; CLU PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	8-94204-810-0	01	1	9101-9504	●	●
2	COVER; CLU PEDAL	8-94204-810-0	01	1	9505-9706	●	●
2	COVER; CLU PEDAL	8-94204-810-0	01	1	9707-9805	●
2	COVER; CLU PEDAL ISUZU M/T<X9A>	8-94204-810-0	01	1	9707-9805		●
2	COVER; CLU PEDAL	8-94204-810-0	01	1	9806-0106	●	●
2	COVER; CLU PEDAL	8-97893-618-1	01	1	0107-	●	●
2	COVER; CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-47313-015-0	01	1	9101-9504	●	●
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	04	1	9505-9511	●	●
4	STOPPER; CLU PEDAL CLU SYSTEM MINIPACK(B1Z) (A)	1-47319-014-1	02	1	9512-9512	●	●
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	04	1	9601-9706	●	●
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	04	1	9707-9805	●
4	STOPPER; CLU PEDAL ISUZU M/T<X9A> (A)	1-47319-014-1	04	1	9707-9805		●
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	04	1	9806-	●	●
4	STOPPER; CLU PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> (C)	9-54359-079-0	01	1	9101-9504	●	●
4	STOPPER; CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C)	1-47515-001-0	01	1	9101-9504	●	●
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9505-9706	●	●
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9707-9805	●
4	STOPPER; CLU PEDAL ISUZU M/T<X9A> (B)	5-31419-003-0	01	1	9707-9805		●
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9806-0106	●	●
4	STOPPER; CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z) (B)	1-73908-088-1	01	1	0107-	●	●
4	STOPPER; CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-47319-014-1	04	1	9512-9512	●	●
6	BUSHING; CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-47315-005-0	02	1	9101-9504	●	●
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	9505-9706	●	●
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	9707-9805	●
6	BUSHING; CLU PEDAL ISUZU M/T<X9A>	1-09330-045-0	02	1	9707-9805		●
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	9806-	●	●
7	BRACKET; CLU PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-73990-013-1	01	1	9101-9504	●	●
7	BRACKET; CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-31416-013-0	01	1	9101-9504	●	●
10	PIN; CLU PEDAL ISUZU M/T<X9A>	9-08254-235-0	01	1	9101-9504	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL ISUZU M/T<X9A> ID=9	9-09185-409-0	02	1	9101-9504	●	●
18	NUT; PUSH ROD CLU SYSTEM MINIPACK(B1Z) M8	0-91110-508-0	01	1	0204-	●	●
18	NUT; PUSH ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8	9-09110-508-0	01	1	9101-9504	●	●
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	9505-9706	●	●
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	9707-9805	●
18	NUT; PUSH ROD ISUZU M/T<X9A> M8	9-09110-508-0	01	1	9707-9805		●
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	9806-0203	●	●
18	NUT; PUSH ROD EXC. CLU SYSTEM MINIPACK(B1Z) M8	9-09110-508-0	01	1	0204-	●	●
19	ROD ASM; PUSH,CLU	1-73996-144-0	01	1	9505-9706	●	●
19	ROD ASM; PUSH,CLU	1-73996-144-0	01	1	9707-9805	●
19	ROD ASM; PUSH,CLU ISUZU M/T<X9A>	1-73996-144-0	01	1	9707-9805		●
19	ROD ASM; PUSH,CLU	1-73996-144-0	01	1	9806-9809	●	●
19	ROD ASM; PUSH,CLU	1-73908-332-0	01	1	9810-0106	●	●
19	ROD ASM; PUSH,CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-332-0	01	1	0107-	●	●
19	ROD ASM; PUSH,CLU BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-31422-009-2	01	1	9101-9504	●	●
19	ROD ASM; PUSH,CLU CLU SYSTEM MINIPACK(B1Z)	1-73996-144-1	01	1	0107-	●	●
20	END; ROD,CLU PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-09760-024-0	01	1	9101-9504	●	●
21	SPRING; RETURN,CLU PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-73998-401-1	01	1	9101-9504	●	●
21	SPRING; RETURN,CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-09942-561-0	01	1	9101-9504	●	●
21	SPRING; RETURN,CLU PEDAL CLU SYSTEM MINIPACK(B1Z)	1-73998-820-0	01	1	9505-9608	●	●
21	SPRING; RETURN,CLU PEDAL CLU SYSTEM MINIPACK(B1Z)	1-73908-265-0	01	1	9609-	●	●
23	BOLT; PUSH ROD CLU SYSTEM MINIPACK(B1Z) M8X35	0-10960-835-0	01	1	0204-	●	●
23	BOLT; PUSH ROD M8X35	9-01060-835-0	01	1	9505-9706	●	●
23	BOLT; PUSH ROD M8X35	9-01060-835-0	01	1	9707-9805	●
23	BOLT; PUSH ROD ISUZU M/T<X9A> M8X35	9-01060-835-0	01	1	9707-9805		●
23	BOLT; PUSH ROD M8X35	9-01060-835-0	01	1	9806-9809	●	●
23	BOLT; PUSH ROD M8X43.7	1-73908-333-0	01	1	9810-0106	●	●
23	BOLT; PUSH ROD EXC. CLU SYSTEM MINIPACK(B1Z) M8X43.7	1-73908-333-0	01	1	0107-	●	●
23	BOLT; PUSH ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M10X25 W/LK WASHER	0-50051-025-0	01	1	9101-9504	●	●
23	BOLT; PUSH ROD CLU SYSTEM MINIPACK(B1Z) M8X35	9-01060-835-0	01	1	0107-0203	●	●
24	SHAFT; CLU PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-31415-007-0	01	1	9101-9504	●	●
24	SHAFT; CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-31415-040-1	01	1	9101-9504	●	●
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	9505-9706	●	●
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	9707-9805	●
24	SHAFT; CLU PEDAL ISUZU M/T<X9A>	1-73998-936-1	01	1	9707-9805		●
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	9806-	●	●
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	9505-9706	●	●
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	9707-9805	●
25	BOLT; PEDAL ISUZU M/T<X9A> M10X25 W/LK WASHER	0-50051-025-0	02	1	9707-9805		●
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	9806-	●	●
25	BOLT; PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X35	9-01060-835-0	01	1	9101-9504	●	●
25	BOLT; PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X12	9-06120-812-0	01	1	9101-9504	●	●
50	TANK; OIL,CLU ISUZU M/T<X9A>	1-47530-165-0	01	1	9101-9204	●	●
50	TANK; OIL,CLU ISUZU M/T<X9A>	1-47530-149-1	01	1	9205-9805	●	●
50	TANK; OIL,CLU	1-47530-149-1	01	1	9806-0009	●	●
50	TANK; OIL,CLU	1-47530-183-1	01	1	0010-	●	●
51	CAP; OIL TANK,CLU ISUZU M/T<X9A>	1-47525-027-0	01	1	9101-9204	●	●
51	CAP; OIL TANK,CLU ISUZU M/T<X9A>	9-47525-032-1	01	1	9205-9805	●	●
51	CAP; OIL TANK,CLU	9-47525-032-1	01	1	9806-	●	●
52	BRACKET; OIL TANK,CLU M/CYL ISUZU M/T<X9A>	9-47537-009-1	01	1	9101-9504	●	●
52	BRACKET; OIL TANK,CLU M/CYL ISUZU M/T<X9A>	9-47537-023-0	01	1	9505-9805	●	●
52	BRACKET; OIL TANK,CLU M/CYL	9-47537-023-1	01	1	9806-	●	●
53	BOLT; BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> M5X16	9-92040-516-0	01	1	9101-9204	●	●
53	BOLT; BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> M5X16	0-20800-516-0	01	1	9205-9805	●	●
53	BOLT; BRKT,OIL TANK,CLU M/CYL M5X16	0-20800-516-0	01	1	9806-	●	●
54	NUT; BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> M5	9-99110-405-0	03	1	9101-9805	●	●
54	NUT; BRKT,OIL TANK,CLU M/CYL M5	9-99110-405-0	03	1	9806-0512	●	●
54	NUT; BRKT,OIL TANK,CLU M/CYL M5	0-91110-505-0	03	1	0601-	●	●
55	BAFFLE; RUBBER,CLU M/CYL ISUZU M/T<X9A>	1-47529-013-0	01	1	9101-9204	●	●
55	BAFFLE; RUBBER,CLU M/CYL ISUZU M/T<X9A>	9-47529-031-0	01	1	9205-9805	●	●
55	BAFFLE; RUBBER,CLU M/CYL	9-47529-031-0	01	1	9806-	●	●
58	WASHER; PL,BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> ID=5.3	9-09160-505-0	02	1	9101-9805	●	●
58	WASHER; PL,BRKT,OIL TANK,CLU M/CYL ID=5.3	9-09160-505-0	02	1	9806-0605	●	●
58	WASHER; PL,BRKT,OIL TANK,CLU M/CYL ID=5.3	0-91610-505-0	02	1	0606-	●	●
81	BRACKET; STOPPER,CLU PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-31429-242-0	01	1	9101-9504	●	●
85	CLIP; HOSE TO M/CYL ISUZU M/T<X9A> (A) L=140	5-09707-031-0	02	1	9101-9504	●	●
85	CLIP; HOSE TO M/CYL ISUZU M/T<X9A> (A) ID=15 L=65	1-09700-466-0	02	1	9505-9805	●	●
85	CLIP; HOSE TO M/CYL (A) ID=15 L=65	1-09700-466-0	02	1	9806-0607	●	●
85	CLIP; HOSE TO M/CYL (A) ID=14 L=44	9-09917-427-0	02	1	0608-	●	●
85	CLIP; HOSE TO M/CYL ISUZU M/T<X9A> (B) ID=15	9-09715-098-0	02	1	9101-9805	●	●
85	CLIP; HOSE TO M/CYL (B) ID=15	9-09715-098-0	02	1	9806-	●	●
87	SPACER; COVER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-61165-419-0	01	1	9101-9504	●	●
88	BOLT; SPACER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X14 W/LK WASHER	9-01900-614-0	01	1	9101-9204	●	●
88	BOLT; SPACER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X14 W/LK WASHER	0-50040-614-0	01	1	9205-9504	●	●
89	WASHER; LK,SHAFT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.2	9-09150-508-0	01	1	9101-9504	●	●
97	BUSHING; CLU PEDAL SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-09330-045-0	02	1	9101-9504	●	●
131	STOPPER; CLU SW BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	5-31419-003-0	01	1	9101-9504	●	●
132	NUT; LK,PUSH ROD CLU SYSTEM MINIPACK(B1Z) M8	0-91110-508-0	01	1	0204-	●	●
132	NUT; LK,PUSH ROD M8	9-09110-408-0	01	1	9505-9706	●	●
132	NUT; LK,PUSH ROD M8	9-09110-408-0	01	1	9707-9805	●
132	NUT; LK,PUSH ROD ISUZU M/T<X9A> M8	9-09110-408-0	01	1	9707-9805		●
132	NUT; LK,PUSH ROD M8	9-09110-408-0	01	1	9806-0203	●	●
132	NUT; LK,PUSH ROD EXC. CLU SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	01	1	0204-	●	●
132	NUT; LK,PUSH ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8	9-09110-508-0	01	1	9101-9504	●	●
134	WASHER; PL,PUSH ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> ID=8.2	9-09150-608-0	01	1	9101-9504	●	●
136	PLATE; SEAL,CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-47319-059-0	01	1	9101-9504	●	●
137	COVER; UPR,CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-73927-027-0	01	1	9101-9504	●	●
138	COVER; LWR,CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-61165-422-0	01	1	9101-9504	●	●
140	BOLT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X20 W/LK WASHER	0-50040-820-0	03	1	9101-9110	●	●
140	BOLT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X20 W/LK WASHER	0-50040-820-0	02	1	9111-9504	●	●
140	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9505-9507	●	●
140	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9508-0512	●	●
140	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
140	BOLT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X25 W/LK WASHER	0-50040-825-0	05	1	9101-9504	●	●
140	BOLT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9111-9204	●	●
140	BOLT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-9504	●	●
140	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	02	1	9505-9507	●	●
140	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9508-9603	●	●
140	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9604-0512	●	●
140	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
140	BOLT; BRKT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X30 W/LK WASHER	0-50041-030-0	04	1	9101-9504	●	●
140	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9505-9507	●	●
140	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9508-0512	●	●
140	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
140	BOLT; BRKT ISUZU M/T<X9A> M5X16	9-92040-516-0	02	1	9101-9204	●	●
140	BOLT; BRKT ISUZU M/T<X9A> M5X16	0-20800-516-0	02	1	9205-9805	●	●
140	BOLT; BRKT M5X16	0-20800-516-0	02	1	9806-	●	●
141	NIPPLE; GREASE,SHAFT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PT1/8 ELBOW	9-09031-210-0	01	1	9101-9504	●	●
163	BRACKET; CLU M/CYL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-65600-236-1	01	1	9101-9504	●	●
164	BOLT; CLU M/CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M10X65	9-01046-065-0	02	1	9101-9204	●	●
164	BOLT; CLU M/CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M10X65	0-10806-065-0	02	1	9205-9504	●	●
164	BOLT; CLU M/CYL ISUZU M/T<X9A> M10X65	0-10806-065-0	02	1	9505-9508	●	●
164	BOLT; CLU M/CYL ISUZU M/T<X9A> M10X70 FLANGE	0-28081-070-0	02	1	9509-9805	●	●
164	BOLT; CLU M/CYL M10X70 FLANGE	0-28081-070-0	02	1	9806-0512	●	●
164	BOLT; CLU M/CYL M10X70 FLANGE	0-28051-070-0	02	1	0601-	●	●
164	BOLT; CLU M/CYL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X22 W/LK WASHER	0-50041-022-0	02	1	9101-9504	●	●
164	BOLT; CLU M/CYL ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X40 W/LK WASHER	0-50051-040-0	02	1	9101-9504	●	●
177	NUT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8	9-09110-508-0	03	1	9101-9504	●	●
177	NUT; BRKT M8	9-09110-508-0	02	1	9505-9507	●	●
177	NUT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8	9-09110-508-0	02	1	9101-9110	●	●
177	NUT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8	9-09110-508-0	03	1	9111-9504	●	●
177	NUT; BRKT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10	9-09110-510-0	02	1	9101-9504	●	●
177	NUT; BRKT M10	9-09110-510-0	02	1	9505-9606	●	●
177	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-0602	●	●
177	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
178	CAP; OIL TANK HOSE ISUZU M/T<X9A>	1-47539-005-0	01	1	9101-9805	●	●
178	CAP; OIL TANK HOSE	1-47539-005-0	01	1	9806-	●	●
179	CLIP; CAP TO OIL TANK ISUZU M/T<X9A> ID=15	9-09715-098-0	01	1	9101-9805	●	●
179	CLIP; CAP TO OIL TANK ID=15	9-09715-098-0	01	1	9806-	●	●
196	NUT; STOPPER LOCK ISUZU M/T<X9A> M10	9-09110-510-0	01	1	9101-9504	●	●

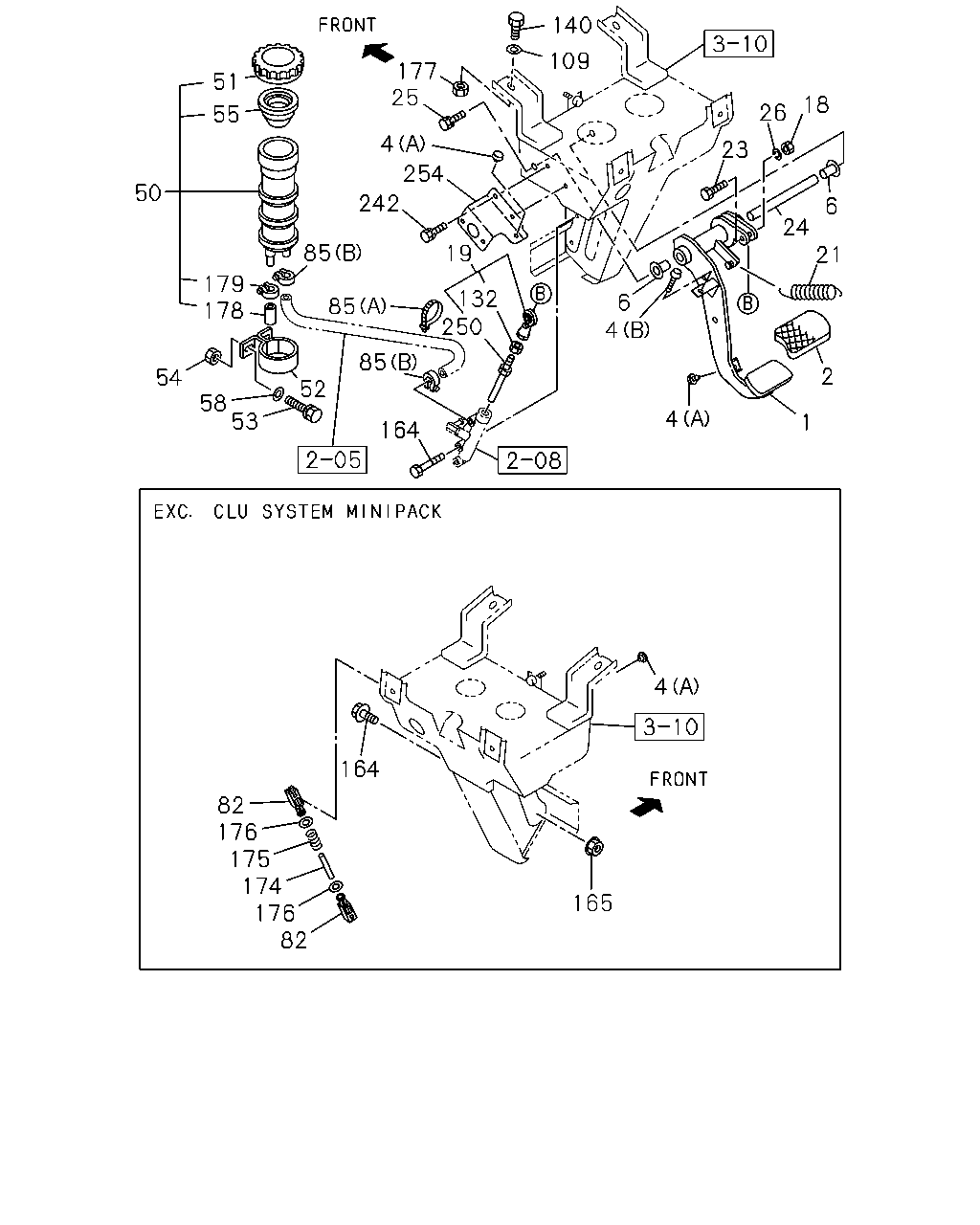

140 109 177 25 51 18 26 55 4 23 254 50 19 242 6 24 21 85 179 178 132 6 4 85 250 85 2 54 52 58 53 4 1 164 4 164 82 176 175 174 176 82 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PEDAL; CLU BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-31411-141-4	01	1	9101-9504	●	●
1	PEDAL; CLU EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-31411-137-0	01	1	9101-9504	●	●
1	PEDAL; CLU CLU SYSTEM MINIPACK(B1Z)	1-73908-171-3	01	1	9505-	●	●
1	PEDAL; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-051-3	01	1	9505-9706	●	●
1	PEDAL; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-051-3	01	1	9707-9805	●
1	PEDAL; CLU ISUZU M/T<X9A> EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-051-3	01	1	9707-9805		●
1	PEDAL; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-051-3	01	1	9806-9809	●	●
1	PEDAL; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-331-2	01	1	9810-	●	●
2	COVER; CLU PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	8-94204-810-0	01	1	9101-9504	●	●
2	COVER; CLU PEDAL	8-94204-810-0	01	1	9505-9706	●	●
2	COVER; CLU PEDAL	8-94204-810-0	01	1	9707-9805	●
2	COVER; CLU PEDAL ISUZU M/T<X9A>	8-94204-810-0	01	1	9707-9805		●
2	COVER; CLU PEDAL	8-94204-810-0	01	1	9806-0106	●	●
2	COVER; CLU PEDAL	8-97893-618-1	01	1	0107-	●	●
2	COVER; CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-47313-015-0	01	1	9101-9504	●	●
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	04	1	9505-9511	●	●
4	STOPPER; CLU PEDAL CLU SYSTEM MINIPACK(B1Z) (A)	1-47319-014-1	02	1	9512-9512	●	●
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	04	1	9601-9706	●	●
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	04	1	9707-9805	●
4	STOPPER; CLU PEDAL ISUZU M/T<X9A> (A)	1-47319-014-1	04	1	9707-9805		●
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	04	1	9806-	●	●
4	STOPPER; CLU PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> (C)	9-54359-079-0	01	1	9101-9504	●	●
4	STOPPER; CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C)	1-47515-001-0	01	1	9101-9504	●	●
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9505-9706	●	●
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9707-9805	●
4	STOPPER; CLU PEDAL ISUZU M/T<X9A> (B)	5-31419-003-0	01	1	9707-9805		●
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9806-0106	●	●
4	STOPPER; CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z) (B)	1-73908-088-1	01	1	0107-	●	●
4	STOPPER; CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-47319-014-1	04	1	9512-9512	●	●
6	BUSHING; CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-47315-005-0	02	1	9101-9504	●	●
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	9505-9706	●	●
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	9707-9805	●
6	BUSHING; CLU PEDAL ISUZU M/T<X9A>	1-09330-045-0	02	1	9707-9805		●
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	9806-	●	●
18	NUT; PUSH ROD CLU SYSTEM MINIPACK(B1Z) M8	0-91110-508-0	01	1	0204-	●	●
18	NUT; PUSH ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8	9-09110-508-0	01	1	9101-9504	●	●
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	9505-9706	●	●
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	9707-9805	●
18	NUT; PUSH ROD ISUZU M/T<X9A> M8	9-09110-508-0	01	1	9707-9805		●
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	9806-0203	●	●
18	NUT; PUSH ROD EXC. CLU SYSTEM MINIPACK(B1Z) M8	9-09110-508-0	01	1	0204-	●	●
19	ROD ASM; PUSH,CLU	1-73996-144-0	01	1	9505-9706	●	●
19	ROD ASM; PUSH,CLU	1-73996-144-0	01	1	9707-9805	●
19	ROD ASM; PUSH,CLU ISUZU M/T<X9A>	1-73996-144-0	01	1	9707-9805		●
19	ROD ASM; PUSH,CLU	1-73996-144-0	01	1	9806-9809	●	●
19	ROD ASM; PUSH,CLU	1-73908-332-0	01	1	9810-0106	●	●
19	ROD ASM; PUSH,CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-332-0	01	1	0107-	●	●
19	ROD ASM; PUSH,CLU BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-31422-009-2	01	1	9101-9504	●	●
19	ROD ASM; PUSH,CLU CLU SYSTEM MINIPACK(B1Z)	1-73996-144-1	01	1	0107-	●	●
21	SPRING; RETURN,CLU PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-73998-401-1	01	1	9101-9504	●	●
21	SPRING; RETURN,CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-09942-561-0	01	1	9101-9504	●	●
21	SPRING; RETURN,CLU PEDAL CLU SYSTEM MINIPACK(B1Z)	1-73998-820-0	01	1	9505-9608	●	●
21	SPRING; RETURN,CLU PEDAL CLU SYSTEM MINIPACK(B1Z)	1-73908-265-0	01	1	9609-	●	●
23	BOLT; PUSH ROD CLU SYSTEM MINIPACK(B1Z) M8X35	0-10960-835-0	01	1	0204-	●	●
23	BOLT; PUSH ROD M8X35	9-01060-835-0	01	1	9505-9706	●	●
23	BOLT; PUSH ROD M8X35	9-01060-835-0	01	1	9707-9805	●
23	BOLT; PUSH ROD ISUZU M/T<X9A> M8X35	9-01060-835-0	01	1	9707-9805		●
23	BOLT; PUSH ROD M8X35	9-01060-835-0	01	1	9806-9809	●	●
23	BOLT; PUSH ROD M8X43.7	1-73908-333-0	01	1	9810-0106	●	●
23	BOLT; PUSH ROD EXC. CLU SYSTEM MINIPACK(B1Z) M8X43.7	1-73908-333-0	01	1	0107-	●	●
23	BOLT; PUSH ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M10X25 W/LK WASHER	0-50051-025-0	01	1	9101-9504	●	●
23	BOLT; PUSH ROD CLU SYSTEM MINIPACK(B1Z) M8X35	9-01060-835-0	01	1	0107-0203	●	●
24	SHAFT; CLU PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A>	1-31415-007-0	01	1	9101-9504	●	●
24	SHAFT; CLU PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-31415-040-1	01	1	9101-9504	●	●
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	9505-9706	●	●
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	9707-9805	●
24	SHAFT; CLU PEDAL ISUZU M/T<X9A>	1-73998-936-1	01	1	9707-9805		●
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	9806-	●	●
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	9505-9706	●	●
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	9707-9805	●
25	BOLT; PEDAL ISUZU M/T<X9A> M10X25 W/LK WASHER	0-50051-025-0	02	1	9707-9805		●
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	9806-	●	●
25	BOLT; PEDAL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X35	9-01060-835-0	01	1	9101-9504	●	●
25	BOLT; PEDAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X12	9-06120-812-0	01	1	9101-9504	●	●
26	WASHER; LK,PUSH ROD CLU SYSTEM MINIPACK(B1Z) ID=8.2	0-91510-608-0	01	1	0204-	●	●
26	WASHER; LK,PUSH ROD ID=8.2	9-09150-608-0	01	1	9505-9706	●	●
26	WASHER; LK,PUSH ROD ID=8.2	9-09150-608-0	01	1	9707-9805	●
26	WASHER; LK,PUSH ROD ISUZU M/T<X9A> ID=8.2	9-09150-608-0	01	1	9707-9805		●
26	WASHER; LK,PUSH ROD ID=8.2	9-09150-608-0	01	1	9806-0203	●	●
26	WASHER; LK,PUSH ROD EXC. CLU SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-608-0	01	1	0204-	●	●
50	TANK; OIL,CLU ISUZU M/T<X9A>	1-47530-165-0	01	1	9101-9204	●	●
50	TANK; OIL,CLU ISUZU M/T<X9A>	1-47530-149-1	01	1	9205-9805	●	●
50	TANK; OIL,CLU	1-47530-149-1	01	1	9806-0009	●	●
50	TANK; OIL,CLU	1-47530-183-1	01	1	0010-	●	●
51	CAP; OIL TANK,CLU ISUZU M/T<X9A>	1-47525-027-0	01	1	9101-9204	●	●
51	CAP; OIL TANK,CLU ISUZU M/T<X9A>	9-47525-032-1	01	1	9205-9805	●	●
51	CAP; OIL TANK,CLU	9-47525-032-1	01	1	9806-	●	●
52	BRACKET; OIL TANK,CLU M/CYL ISUZU M/T<X9A>	9-47537-009-1	01	1	9101-9504	●	●
52	BRACKET; OIL TANK,CLU M/CYL ISUZU M/T<X9A>	9-47537-023-0	01	1	9505-9805	●	●
52	BRACKET; OIL TANK,CLU M/CYL	9-47537-023-1	01	1	9806-	●	●
53	BOLT; BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> M5X16	9-92040-516-0	01	1	9101-9204	●	●
53	BOLT; BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> M5X16	0-20800-516-0	01	1	9205-9805	●	●
53	BOLT; BRKT,OIL TANK,CLU M/CYL M5X16	0-20800-516-0	01	1	9806-	●	●
54	NUT; BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> M5	9-99110-405-0	03	1	9101-9805	●	●
54	NUT; BRKT,OIL TANK,CLU M/CYL M5	9-99110-405-0	03	1	9806-0512	●	●
54	NUT; BRKT,OIL TANK,CLU M/CYL M5	0-91110-505-0	03	1	0601-	●	●
55	BAFFLE; RUBBER,CLU M/CYL ISUZU M/T<X9A>	1-47529-013-0	01	1	9101-9204	●	●
55	BAFFLE; RUBBER,CLU M/CYL ISUZU M/T<X9A>	9-47529-031-0	01	1	9205-9805	●	●
55	BAFFLE; RUBBER,CLU M/CYL	9-47529-031-0	01	1	9806-	●	●
58	WASHER; PL,BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> ID=5.3	9-09160-505-0	02	1	9101-9805	●	●
58	WASHER; PL,BRKT,OIL TANK,CLU M/CYL ID=5.3	9-09160-505-0	02	1	9806-0605	●	●
58	WASHER; PL,BRKT,OIL TANK,CLU M/CYL ID=5.3	0-91610-505-0	02	1	0606-	●	●
82	CLEVIS; HELPER,CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-73998-472-1	02	1	9505-9706	●	●
82	CLEVIS; HELPER,CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-73998-472-1	02	1	9707-9805	●
82	CLEVIS; HELPER,CLU PEDAL ISUZU M/T<X9A> EXC. CLU SYSTEM MINIPACK(B1Z)	1-73998-472-1	02	1	9707-9805		●
82	CLEVIS; HELPER,CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-73998-472-1	02	1	9806-	●	●
85	CLIP; HOSE TO M/CYL ISUZU M/T<X9A> (A) L=140	5-09707-031-0	02	1	9101-9504	●	●
85	CLIP; HOSE TO M/CYL ISUZU M/T<X9A> (A) ID=15 L=65	1-09700-466-0	02	1	9505-9805	●	●
85	CLIP; HOSE TO M/CYL (A) ID=15 L=65	1-09700-466-0	02	1	9806-0607	●	●
85	CLIP; HOSE TO M/CYL (A) ID=14 L=44	9-09917-427-0	02	1	0608-	●	●
85	CLIP; HOSE TO M/CYL ISUZU M/T<X9A> (B) ID=15	9-09715-098-0	02	1	9101-9805	●	●
85	CLIP; HOSE TO M/CYL (B) ID=15	9-09715-098-0	02	1	9806-	●	●
109	WASHER; PL,BRKT ID=10.5 OD=22	9-09160-610-0	02	1	9505-9606	●	●
132	NUT; LK,PUSH ROD CLU SYSTEM MINIPACK(B1Z) M8	0-91110-508-0	01	1	0204-	●	●
132	NUT; LK,PUSH ROD M8	9-09110-408-0	01	1	9505-9706	●	●
132	NUT; LK,PUSH ROD M8	9-09110-408-0	01	1	9707-9805	●
132	NUT; LK,PUSH ROD ISUZU M/T<X9A> M8	9-09110-408-0	01	1	9707-9805		●
132	NUT; LK,PUSH ROD M8	9-09110-408-0	01	1	9806-0203	●	●
132	NUT; LK,PUSH ROD EXC. CLU SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	01	1	0204-	●	●
132	NUT; LK,PUSH ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8	9-09110-508-0	01	1	9101-9504	●	●
140	BOLT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X20 W/LK WASHER	0-50040-820-0	03	1	9101-9110	●	●
140	BOLT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X20 W/LK WASHER	0-50040-820-0	02	1	9111-9504	●	●
140	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9505-9507	●	●
140	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9508-0512	●	●
140	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
140	BOLT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X25 W/LK WASHER	0-50040-825-0	05	1	9101-9504	●	●
140	BOLT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9111-9204	●	●
140	BOLT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-9504	●	●
140	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	02	1	9505-9507	●	●
140	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9508-9603	●	●
140	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9604-0512	●	●
140	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
140	BOLT; BRKT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X30 W/LK WASHER	0-50041-030-0	04	1	9101-9504	●	●
140	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9505-9507	●	●
140	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9508-0512	●	●
140	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
140	BOLT; BRKT ISUZU M/T<X9A> M5X16	9-92040-516-0	02	1	9101-9204	●	●
140	BOLT; BRKT ISUZU M/T<X9A> M5X16	0-20800-516-0	02	1	9205-9805	●	●
140	BOLT; BRKT M5X16	0-20800-516-0	02	1	9806-	●	●
164	BOLT; CLU M/CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M10X65	9-01046-065-0	02	1	9101-9204	●	●
164	BOLT; CLU M/CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M10X65	0-10806-065-0	02	1	9205-9504	●	●
164	BOLT; CLU M/CYL ISUZU M/T<X9A> M10X65	0-10806-065-0	02	1	9505-9508	●	●
164	BOLT; CLU M/CYL ISUZU M/T<X9A> M10X70 FLANGE	0-28081-070-0	02	1	9509-9805	●	●
164	BOLT; CLU M/CYL M10X70 FLANGE	0-28081-070-0	02	1	9806-0512	●	●
164	BOLT; CLU M/CYL M10X70 FLANGE	0-28051-070-0	02	1	0601-	●	●
164	BOLT; CLU M/CYL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X22 W/LK WASHER	0-50041-022-0	02	1	9101-9504	●	●
164	BOLT; CLU M/CYL ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X40 W/LK WASHER	0-50051-040-0	02	1	9101-9504	●	●
165	NUT; CLU M/CYL EXC. CLU SYSTEM MINIPACK(B1Z) M10 FLANGE	0-91150-210-0	02	1	9509-9706	●	●
165	NUT; CLU M/CYL EXC. CLU SYSTEM MINIPACK(B1Z) M10 FLANGE	0-91150-210-0	02	1	9707-9805	●
165	NUT; CLU M/CYL ISUZU M/T<X9A> EXC. CLU SYSTEM MINIPACK(B1Z) M10 FLANGE	0-91150-210-0	02	1	9707-9805		●
165	NUT; CLU M/CYL EXC. CLU SYSTEM MINIPACK(B1Z) M10 FLANGE	0-91150-210-0	02	1	9806-0602	●	●
165	NUT; CLU M/CYL EXC. CLU SYSTEM MINIPACK(B1Z) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
174	PIN; STRAIGHT,CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-73998-474-0	01	1	9505-9706	●	●
174	PIN; STRAIGHT,CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-73998-474-0	01	1	9707-9805	●
174	PIN; STRAIGHT,CLU PEDAL ISUZU M/T<X9A> EXC. CLU SYSTEM MINIPACK(B1Z)	1-73998-474-0	01	1	9707-9805		●
174	PIN; STRAIGHT,CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-73998-474-0	01	1	9806-	●	●
175	SPRING; HELPER EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-052-0	01	1	9505-9706	●	●
175	SPRING; HELPER EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-052-0	01	1	9707-9805	●
175	SPRING; HELPER ISUZU M/T<X9A> EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-052-0	01	1	9707-9805		●
175	SPRING; HELPER EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-052-0	01	1	9806-	●	●
176	SEAT; SPRING EXC. CLU SYSTEM MINIPACK(B1Z)	1-09503-114-0	02	1	0107-	●	●
176	SEAT; SPRING ISUZU M/T<X9A> EXC. CLU SYSTEM MINIPACK(B1Z)	1-09503-114-0	02	1	9505-	●	●
177	NUT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8	9-09110-508-0	03	1	9101-9504	●	●
177	NUT; BRKT M8	9-09110-508-0	02	1	9505-9507	●	●
177	NUT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8	9-09110-508-0	02	1	9101-9110	●	●
177	NUT; BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8	9-09110-508-0	03	1	9111-9504	●	●
177	NUT; BRKT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10	9-09110-510-0	02	1	9101-9504	●	●
177	NUT; BRKT M10	9-09110-510-0	02	1	9505-9606	●	●
177	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-0602	●	●
177	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
178	CAP; OIL TANK HOSE ISUZU M/T<X9A>	1-47539-005-0	01	1	9101-9805	●	●
178	CAP; OIL TANK HOSE	1-47539-005-0	01	1	9806-	●	●
179	CLIP; CAP TO OIL TANK ISUZU M/T<X9A> ID=15	9-09715-098-0	01	1	9101-9805	●	●
179	CLIP; CAP TO OIL TANK ID=15	9-09715-098-0	01	1	9806-	●	●
242	BOLT; BRKT,CLUTCH CLU SYSTEM MINIPACK(B1Z) M6X16 W/LK WASHER	0-50540-616-0	02	1	0204-	●	●
242	BOLT; BRKT,CLUTCH CLU SYSTEM MINIPACK(B1Z) M6X16 W/LK WASHER	0-50040-616-0	02	1	9505-0203	●	●
242	BOLT; BRKT,CLUTCH EXC. CLU SYSTEM MINIPACK(B1Z) M6X16 W/LK WASHER	0-50040-616-0	04	1	9505-9706	●	●
242	BOLT; BRKT,CLUTCH EXC. CLU SYSTEM MINIPACK(B1Z) M6X16 W/LK WASHER	0-50040-616-0	04	1	9707-9805	●
242	BOLT; BRKT,CLUTCH ISUZU M/T<X9A> EXC. CLU SYSTEM MINIPACK(B1Z) M6X16 W/LK WASHER	0-50040-616-0	04	1	9707-9805		●
242	BOLT; BRKT,CLUTCH EXC. CLU SYSTEM MINIPACK(B1Z) M6X16 W/LK WASHER	0-50040-616-0	04	1	9806-	●	●
250	ROD; PUSH,CLU	1-73996-219-0	01	1	9505-9706	●	●
250	ROD; PUSH,CLU	1-73996-219-0	01	1	9707-9805	●
250	ROD; PUSH,CLU ISUZU M/T<X9A>	1-73996-219-0	01	1	9707-9805		●
250	ROD; PUSH,CLU	1-73996-219-0	01	1	9806-	●	●
254	BRACKET; CLU SENSOR	1-73998-979-3	01	1	9505-9706	●	●
254	BRACKET; CLU SENSOR	1-73998-979-3	01	1	9707-9805	●
254	BRACKET; CLU SENSOR ISUZU M/T<X9A>	1-73998-979-3	01	1	9707-9805		●
254	BRACKET; CLU SENSOR	1-73998-979-5	01	1	9806-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
