3-08 — PARKING BRAKE (#43968) — 23 parça

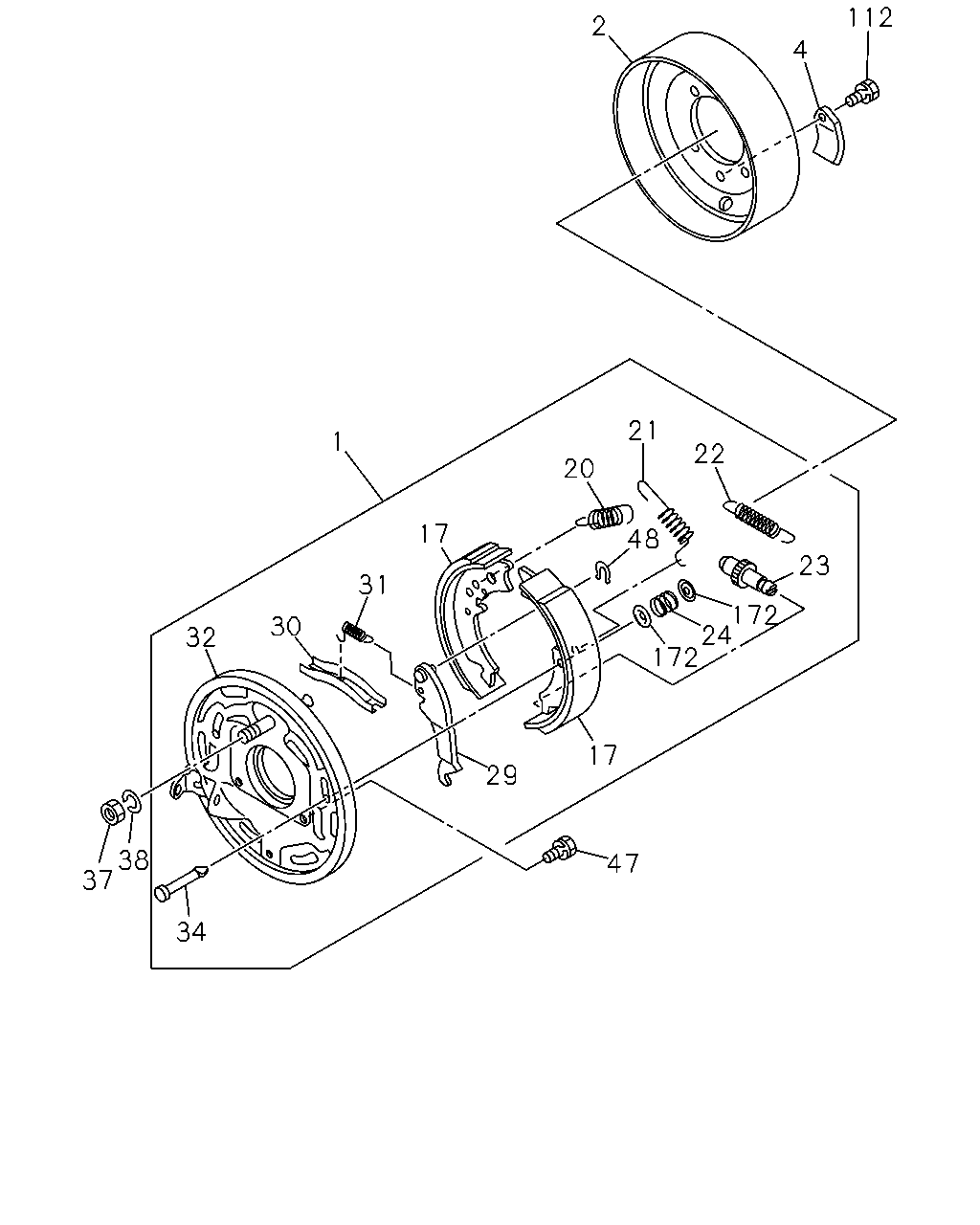

çizim 49945
112 2 4 21 1 22 20 17 48 23 31 172 24 172 30 32 17 29 38 37 47 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.610 BRAKE ASM; CENTER,PARKING 8-97034-553-2 01 1 0211- ● ● ● ● ● ●
2 05.605 DRUM; PARKING BRK 5-46210-005-3 01 1 0211- ● ● ● ● ● ●
4 05.606 COVER; ADJ HOLE 5-42319-003-0 01 1 0211- ● ● ● ● ● ●
17 05.606 SHOE; PARKING BRK 8-97042-933-1 02 1 0211- ● ● ● ● ● ●
20 05.606 SPRING; RETURN,SECONDARY,PARKING 9-09942-553-1 01 1 0211- ● ● ● ● ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE 9-09942-552-1 01 1 0211- ● ● ● ● ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK 9-09942-340-1 01 1 0211- ● ● ● ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 5-47165-025-0 01 1 0211- ● ● ● ● ● ●
24 05.605 SPRING; BRK SHOE 9-09941-062-1 02 1 0211- ● ● ● ● ● ●
29 04.591 LEVER; PARKING BRK 8-94128-765-0 01 1 0211- ● ● ● ● ● ●
30 05.605 STRUT; PARKING BRK 5-46251-007-0 01 1 0211- ● ● ● ● ● ●
31 05.605 SPRING; SHOE TO STRUT
05.606 		9-09942-521-1 01 1 0211- ● ● ● ● ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 9-46213-601-2 01 1 0211- ● ● ● ● ● ●
34 05.605 PIN; BRK SHOE
05.043 		9-47162-034-0 02 1 0211- ● ● ● ● ● ●
37 05.610 NUT; SUPPORT PLATE
M12 		8-97033-122-0 01 1 0211- ● ● ● ● ● ●
38 05.610 WASHER; LK,SUPPORT PLATE
04.046 ID=8.2 		9-09150-808-0 02 1 0211-0603 ● ● ● ● ● ●
38 05.610 WASHER; LK,SUPPORT PLATE
02.559 ID=8.2 		0-91510-808-0 02 1 0604- ● ● ● ● ● ●
47 05.610 BOLT; SUPPORT PLATE 9-02060-814-0 02 1 0211-0805 ● ● ● ● ● ●
47 05.610 BOLT; SUPPORT PLATE 8-98073-190-0 02 1 0806- ● ● ● ● ● ●
48 05.605 RETAINER; PIN,PARKING BRK
05.158 		9-46349-005-1 01 1 0211- ● ● ● ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
04.686 M6X16 W/LK WASHER 		0-50040-616-0 01 1 0211-0512 ● ● ● ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 0601- ● ● ● ● ● ●
172 05.605 CUP; SHOE HOLD 8-94378-404-0 04 1 0211- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
