2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#43964) — 128 parça

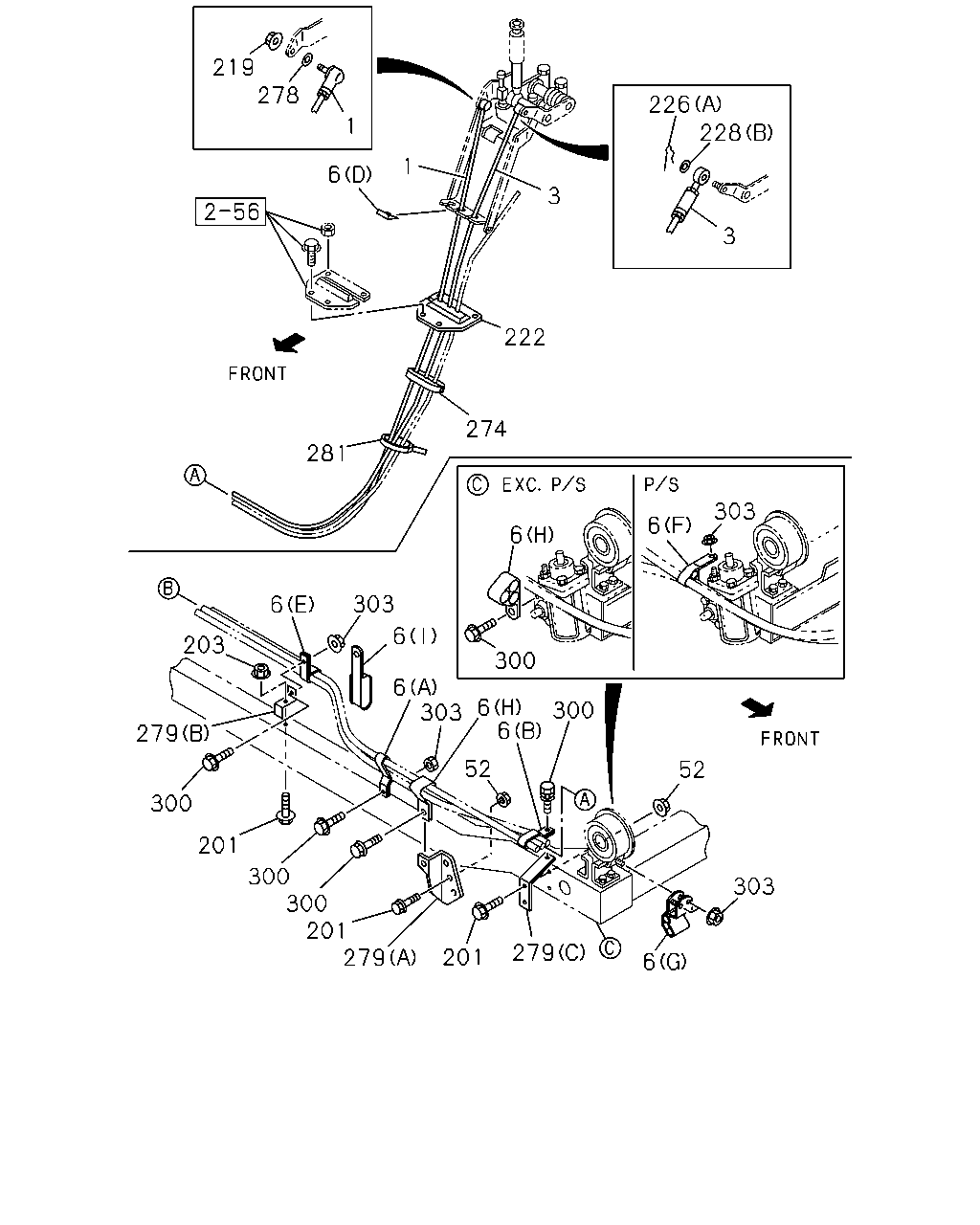

300 201 300 300 201 279 201 6 279 52 303 6 6 300 52 303 303 6 203 279 281 274 222 3 1 6 278 228 226 3 303 6 6 1 219 300 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT RHD(NH5*) FLOOR REMOTE SHIFT<M11> L=2643	8-97176-466-1	01	1	0211-0911
1	00.854 CABLE; SHIFT,TRANS CONT RHD(NH5*) FLOOR REMOTE SHIFT<M11> L=2643	8-98146-810-0	01	1	0912-
1	00.854 CABLE; SHIFT,TRANS CONT LHD(NH6*) FLOOR REMOTE SHIFT<M11> L=2540	8-97089-986-4	01	1	0211-0911
1	00.854 CABLE; SHIFT,TRANS CONT LHD(NH6*) FLOOR REMOTE SHIFT<M11> L=2540	8-98146-809-0	01	1	0912-
3	00.852 CABLE; SELECT,TRANS CONT RHD(NH5*) FLOOR REMOTE SHIFT<M11> L=2810	8-97176-474-0	01	1	0211-
3	00.852 CABLE; SELECT,TRANS CONT LHD(NH6*) FLOOR REMOTE SHIFT<M11> L=2684	8-97089-987-3	01	1	0211-
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) POWER STEERING<N40> (I)	8-98023-697-0	01	1	1212-
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	0211-
6	04.047 CLIP; CABLE (A)	8-97036-329-2	01	1	0211-
6	04.047 CLIP; CABLE (E)	8-97036-332-1	01	1	0211-1211
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. POWER STEERING<N40> (E)	8-97036-332-1	01	1	1212-
6	04.047 CLIP; CABLE 4JG2 ENG(RJC) (E)	8-97036-332-1	01	1	1212-
6	04.047 CLIP; CABLE (C) ID=19.2	8-97211-011-0	02	1	0211-
6	04.047 CLIP; CABLE RHD(NH5*) (G)	8-97147-985-0	01	1	0211-
6	04.047 CLIP; CABLE RHD(NH5*) POWER STEERING<N40> (F)	8-97036-334-2	01	1	0211-0501
6	04.047 CLIP; CABLE RHD(NH5*) POWER STEERING<N40> (F)	8-97036-334-2	01	1	0502-
6	04.047 CLIP; CABLE RHD(NH5*) EXC. POWER STEERING<N40> (H)	8-97036-333-1	01	1	0211-
6	04.047 CLIP; CABLE RHD(NH5*) FLOOR REMOTE SHIFT<M11> (H)	8-97036-333-1	01	1	0211-
6	04.047 CLIP; CABLE LHD(NH6*) (B)	8-97137-589-0	01	1	0211-
52	04.047 NUT; BRKT AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0602
52	04.047 NUT; BRKT AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
52	04.047 NUT; BRKT RHD(NH5*) EXC. POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
52	04.047 NUT; BRKT RHD(NH5*) EXC. POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
201	04.032 BOLT; BRKT AIR INTAKE REAR VERTICAL<KJ3> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0211-0512
201	04.032 BOLT; BRKT AIR INTAKE REAR VERTICAL<KJ3> 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0601-
201	04.032 BOLT; BRKT EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512
201	04.032 BOLT; BRKT EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
201	04.032 BOLT; BRKT RHD(NH5*) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512
201	04.032 BOLT; BRKT RHD(NH5*) EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
203	04.032 NUT; BRKT FIX EXC. POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602
203	04.032 NUT; BRKT FIX EXC. POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0211-
222	04.010 GROMMET; CABLE RHD(NH5*) FLOOR REMOTE SHIFT<M11>	8-97061-403-2	01	1	0211-
222	04.010 GROMMET; CABLE LHD(NH6*) FLOOR REMOTE SHIFT<M11>	8-97089-851-0	01	1	0211-
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0211-
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0211-
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0211-
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0211-0605
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	0211-
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0211-0604
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-
279	04.047 BRACKET; CABLE TO FRAME EXC. POWER STEERING<N40> (A)	8-97103-234-0	01	1	0211-
279	04.047 BRACKET; CABLE TO FRAME RHD(NH5*) EXC. POWER STEERING<N40> 06.606 (B)	8-97089-879-0	01	1	0211-
279	04.047 BRACKET; CABLE TO FRAME LHD(NH6*) (C)	8-97101-709-1	01	1	0211-
281	04.042 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	0211-
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
300	00.854 BOLT; CLIP RHD(NH5*) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
300	00.854 BOLT; CLIP RHD(NH5*) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
300	00.854 BOLT; CLIP RHD(NH5*) FLOOR REMOTE SHIFT<M11> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501
300	00.854 BOLT; CLIP RHD(NH5*) EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0512
300	00.854 BOLT; CLIP RHD(NH5*) EXC. POWER STEERING<N40> 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-
300	00.854 BOLT; CLIP LHD(NH6*) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512
300	00.854 BOLT; CLIP LHD(NH6*) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
303	00.855 NUT; CLIP RHD(NH5*) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
303	00.855 NUT; CLIP RHD(NH5*) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
303	00.855 NUT; CLIP RHD(NH5*) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602
303	00.855 NUT; CLIP RHD(NH5*) POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-

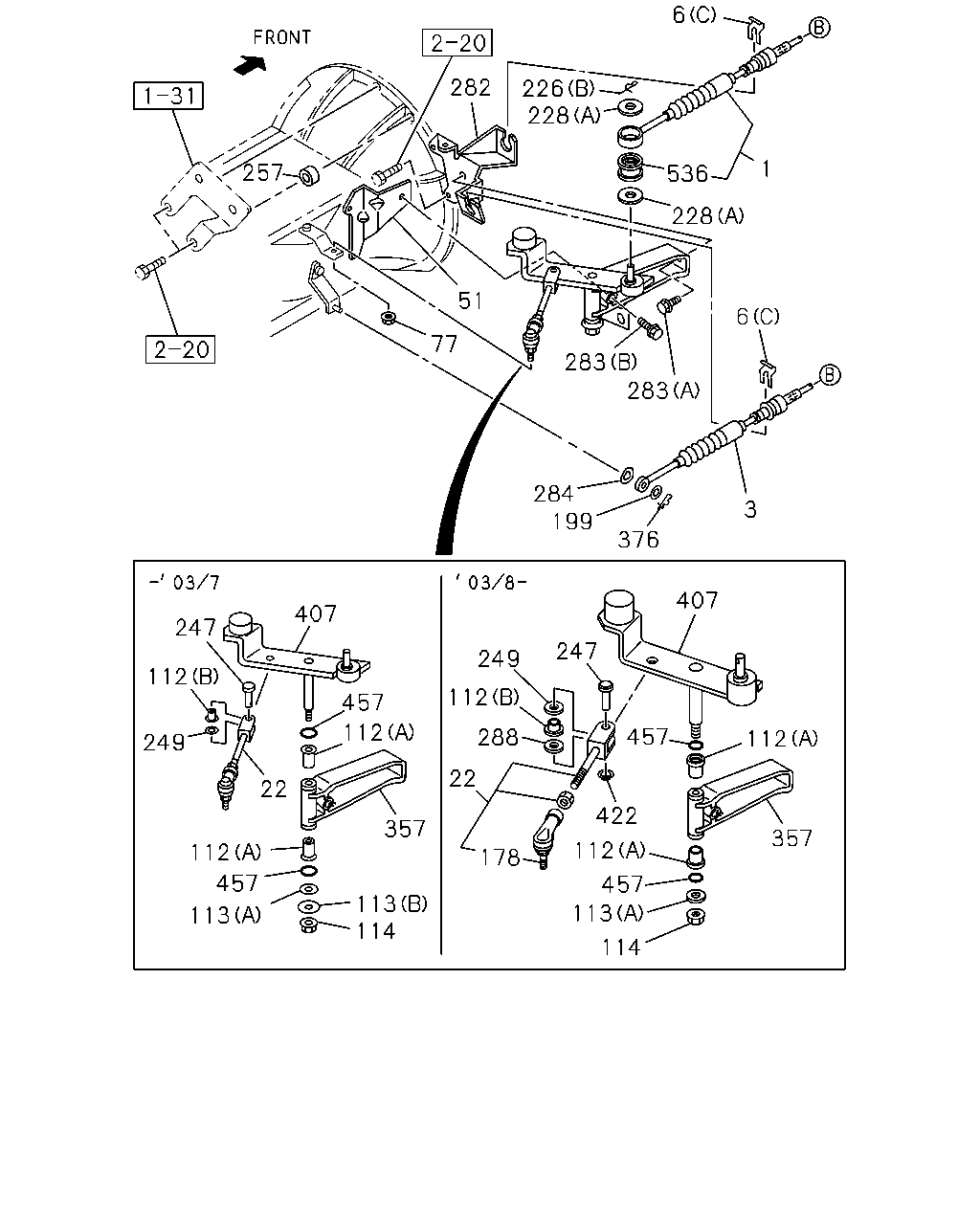

114 22 112 407 247 112 249 112 457 113 113 357 178 113 114 457 422 112 22 112 112 457 357 407 376 199 284 283 3 247 249 257 77 51 283 228 536 228 226 282 6 288 6 1 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT RHD(NH5*) FLOOR REMOTE SHIFT<M11> L=2643	8-97176-466-1	01	1	0211-0911
1	00.854 CABLE; SHIFT,TRANS CONT RHD(NH5*) FLOOR REMOTE SHIFT<M11> L=2643	8-98146-810-0	01	1	0912-
1	00.854 CABLE; SHIFT,TRANS CONT LHD(NH6*) FLOOR REMOTE SHIFT<M11> L=2540	8-97089-986-4	01	1	0211-0911
1	00.854 CABLE; SHIFT,TRANS CONT LHD(NH6*) FLOOR REMOTE SHIFT<M11> L=2540	8-98146-809-0	01	1	0912-
3	00.852 CABLE; SELECT,TRANS CONT RHD(NH5*) FLOOR REMOTE SHIFT<M11> L=2810	8-97176-474-0	01	1	0211-
3	00.852 CABLE; SELECT,TRANS CONT LHD(NH6*) FLOOR REMOTE SHIFT<M11> L=2684	8-97089-987-3	01	1	0211-
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) POWER STEERING<N40> (I)	8-98023-697-0	01	1	1212-
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	0211-
6	04.047 CLIP; CABLE (A)	8-97036-329-2	01	1	0211-
6	04.047 CLIP; CABLE (E)	8-97036-332-1	01	1	0211-1211
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. POWER STEERING<N40> (E)	8-97036-332-1	01	1	1212-
6	04.047 CLIP; CABLE 4JG2 ENG(RJC) (E)	8-97036-332-1	01	1	1212-
6	04.047 CLIP; CABLE (C) ID=19.2	8-97211-011-0	02	1	0211-
6	04.047 CLIP; CABLE RHD(NH5*) (G)	8-97147-985-0	01	1	0211-
6	04.047 CLIP; CABLE RHD(NH5*) POWER STEERING<N40> (F)	8-97036-334-2	01	1	0211-0501
6	04.047 CLIP; CABLE RHD(NH5*) POWER STEERING<N40> (F)	8-97036-334-2	01	1	0502-
6	04.047 CLIP; CABLE RHD(NH5*) EXC. POWER STEERING<N40> (H)	8-97036-333-1	01	1	0211-
6	04.047 CLIP; CABLE RHD(NH5*) FLOOR REMOTE SHIFT<M11> (H)	8-97036-333-1	01	1	0211-
6	04.047 CLIP; CABLE LHD(NH6*) (B)	8-97137-589-0	01	1	0211-
22	04.035 ROD; CONT,SHIFT	8-97174-058-0	01	1	0211-0307
22	04.035 ROD; CONT,SHIFT	8-97134-286-1	01	1	0308-
51	04.010 BRACKET; GEAR CONT INDONESIA EQUIPMENT(S4S)	8-98189-335-1	01	1	1210-1210
51	04.010 BRACKET; GEAR CONT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-335-1	01	1	1211-
51	04.010 BRACKET; GEAR CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97029-286-0	01	1	0211-0501
51	04.010 BRACKET; GEAR CONT 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97029-286-0	01	1	0502-1209
51	04.010 BRACKET; GEAR CONT	8-97029-286-0	01	1	1210-1210
51	04.010 BRACKET; GEAR CONT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97029-286-0	01	1	1211-
77	04.037 NUT; LK,BALL JOINT,CONT ROD M8 T=8.0	8-94363-045-0	01	1	0211-
112	04.046 BUSHING; RELAY LEVER (A)	8-97174-057-0	02	1	0211-
112	04.046 BUSHING; RELAY LEVER (B)	8-97174-060-0	01	1	0211-0307
112	04.046 BUSHING; RELAY LEVER (B)	8-97085-157-0	01	1	0308-
113	04.046 WASHER; RELAY LEVER 16.682 (A) ID=10.5 OD=22	9-09160-610-0	02	1	0211-0307
113	04.046 WASHER; RELAY LEVER 16.682 (A) ID=10.5 OD=22	9-09160-610-0	01	1	0308-0605
113	04.046 WASHER; RELAY LEVER (A) ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0606-
113	04.046 WASHER; RELAY LEVER 08.929 (B) ID=15 OD=36	9-09164-714-0	01	1	0211-0307
114	04.037 NUT; RELAY LEVER 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0602
114	04.037 NUT; RELAY LEVER 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
178	04.040 JOINT; BALL,LINK ROD 04.037 L=45.5	1-09760-118-1	01	1	0404-0501
178	04.040 JOINT; BALL,LINK ROD 04.037 L=45.5	1-09760-118-1	01	1	0502-
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0211-0605
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0211-
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0211-
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0211-
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0211-0605
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-
247	04.010 PIN; CONT ROD TO LEVER 04.037	9-09876-059-1	01	1	0211-0403
247	04.010 PIN; CONT ROD TO LEVER	8-97373-728-0	01	1	0404-
249	04.010 WASHER; RUBBER,CONT ROD TO LEVER 04.037 ID=8.5 T=1.5	9-09851-889-0	01	1	0211-
257	00.851 PIECE; DIST,RELAY LEVER AIR INTAKE REAR VERTICAL<KJ3>	8-94369-173-0	01	1	0211-1106
257	00.851 PIECE; DIST,RELAY LEVER SGL TIRE&SGL CAB(NHBS) 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT>	8-94369-173-0	01	1	1107-
282	04.010 BRACKET; TRANS SIDE	8-97034-142-1	01	1	0211-
283	04.037 BOLT; RELAY LEVER 03.405 (A) M10X25 FLANGE	0-28681-025-0	01	1	0211-0512
283	04.037 BOLT; RELAY LEVER 00.029 (A) M10X25 FLANGE	0-28651-025-0	01	1	0601-
283	04.037 BOLT; RELAY LEVER 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0211-0512
283	04.037 BOLT; RELAY LEVER 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0211-
288	04.047 WASHER; CABLE TO RELAY LEVER	8-97373-819-0	01	1	0404-
357	04.010 BRACKET; RELAY LEVER	8-97182-166-0	01	1	0211-
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0211-
407	04.030 LEVER; RELAY,SHIFT	8-97174-055-2	01	1	0211-
422	04.032 NUT; CONT ROD TO LEVER 04.047	8-97373-729-0	01	1	0404-
457	04.010 GASKET ID=13.8	9-09561-114-0	02	1	0211-
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	0211-
