◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01C - CLUTCH ▶
2-01C — CLUTCH (#4396) — 97 parça

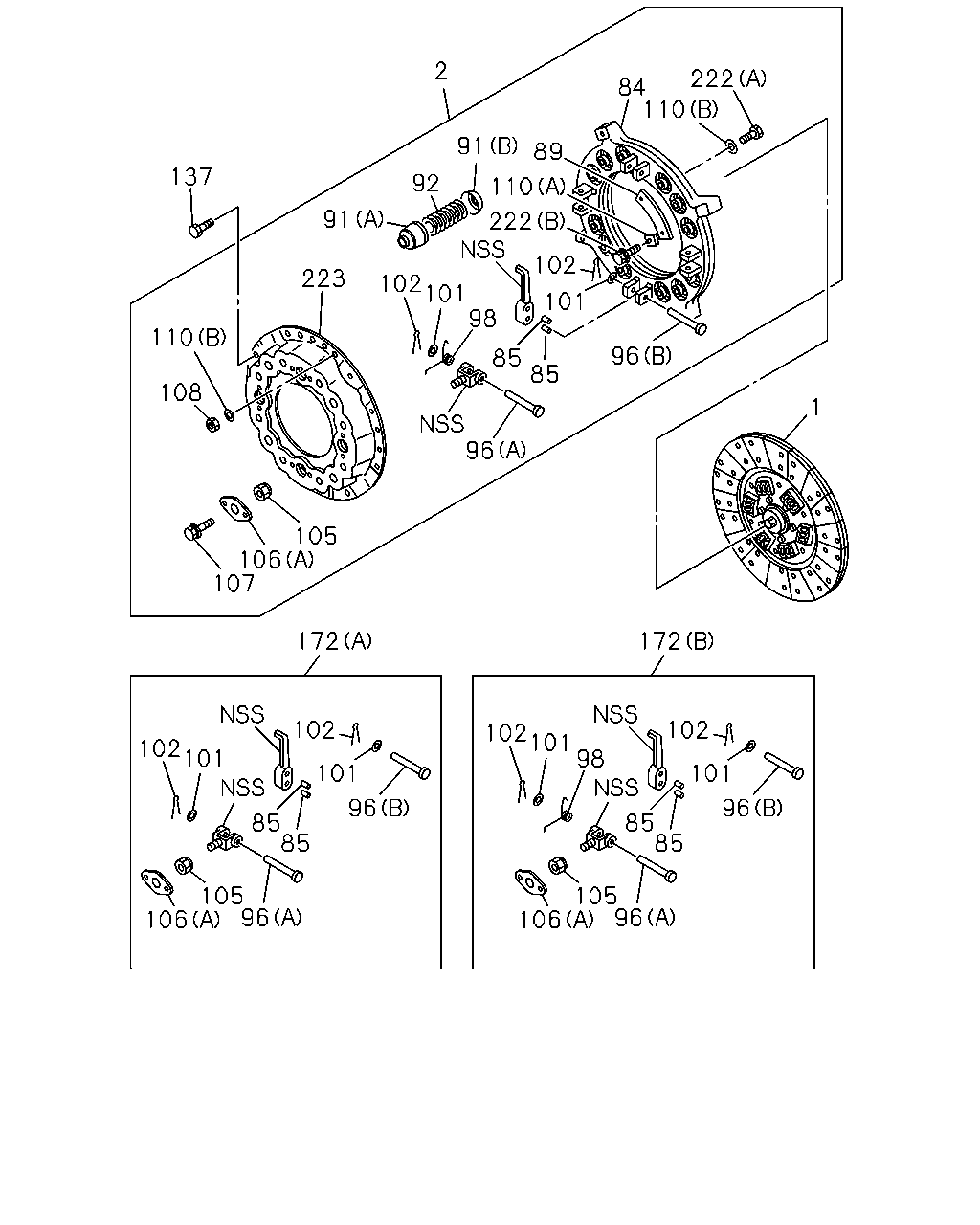

çizim 4968
2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 110 96 85 85 108 1 96 105 106 107 172 172 102 102 102 101 98 102 101 101 101 96 96 85 85 85 85 105 106 96 105 106 96
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15" 		1-31240-676-0 01 1 9810-9811
1 DISC; CLUTCH
15" 		1-31240-657-0 01 1 9812-0106
1 DISC; CLUTCH
15" 		1-31240-889-0 01 1 0107-
1 DISC; CLUTCH
BEST VALUE PARTS 		1-87610-142-0 01 1 0204-
2 PLATE ASM; PRESSURE,CLU 1-31220-264-1 01 1 9810-0109
2 PLATE ASM; PRESSURE,CLU 1-31220-376-2 01 1 0110-
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9811-
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9810-9810
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9811-
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9810-9810
89 PLATE; STRAP 1-31229-050-0 16 1 9811-
89 PLATE; STRAP 1-31229-050-0 16 1 9810-9810
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9811-1005
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 1006-
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9811-1005
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 1006-
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9810-9810
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9810-9810
92 SPRING; CLU 1-31214-039-0 12 1 9811-0109
92 SPRING; CLU 1-31214-065-0 12 1 0110-
92 SPRING; CLU 1-31214-039-0 12 1 9810-9810
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 9811-
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 9811-
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 9810-9810
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 9810-9810
98 SPRING; RETURN 1-31233-003-0 04 1 9811-
98 SPRING; RETURN 1-31233-003-0 04 1 9810-9810
101 WASHER; RELEASE LEVER
OD=18 ID=10.5 		9-31239-039-0 08 1 9811-0109
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0110-
101 WASHER; RELEASE LEVER
OD=18 ID=10.5 		9-31239-039-0 08 1 9810-9810
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9811-
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9810-9810
105 NUT; SUPPORT 1-31235-014-0 04 1 0310-
105 NUT; SUPPORT 9-31235-061-0 04 1 9811-0109
105 NUT; SUPPORT 1-31235-012-0 04 1 0110-0308
105 NUT; SUPPORT 1-31235-012-0 04 1 0309-0309
105 NUT; SUPPORT 9-31235-061-0 04 1 9810-9810
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9811-
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9810-9810
107 BOLT; LK PLATE 1-31239-061-0 08 1 0310-
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9811-0308
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0309-0309
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9810-9810
108 NUT; STRAP
M10 		1-09449-036-0 04 1 9811-
108 NUT; STRAP
M10 		1-09449-036-0 04 1 9810-9810
110 WASHER; SPECIAL,STRAP
(B) OD=22 ID=10.2 T=3.2 		1-09503-095-0 08 1 9811-0403
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0404-
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9811-
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 9810-9810
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9810-9810
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9810-0512
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0601-
172 LEVER KIT; RELEASE,CLU
(A) 		1-87830-513-0 01 1 9810-0109
172 LEVER KIT; RELEASE,CLU
(B) 15" 		1-87830-760-3 01 1 0110-0307
172 LEVER KIT; RELEASE,CLU
(B) 		1-87831-170-1 01 1 0308-
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9811-
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9811-
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9810-9810
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9810-9810
223 COVER; CLU 1-31211-019-1 01 1 9811-
223 COVER; CLU 1-31211-019-1 01 1 9810-9810

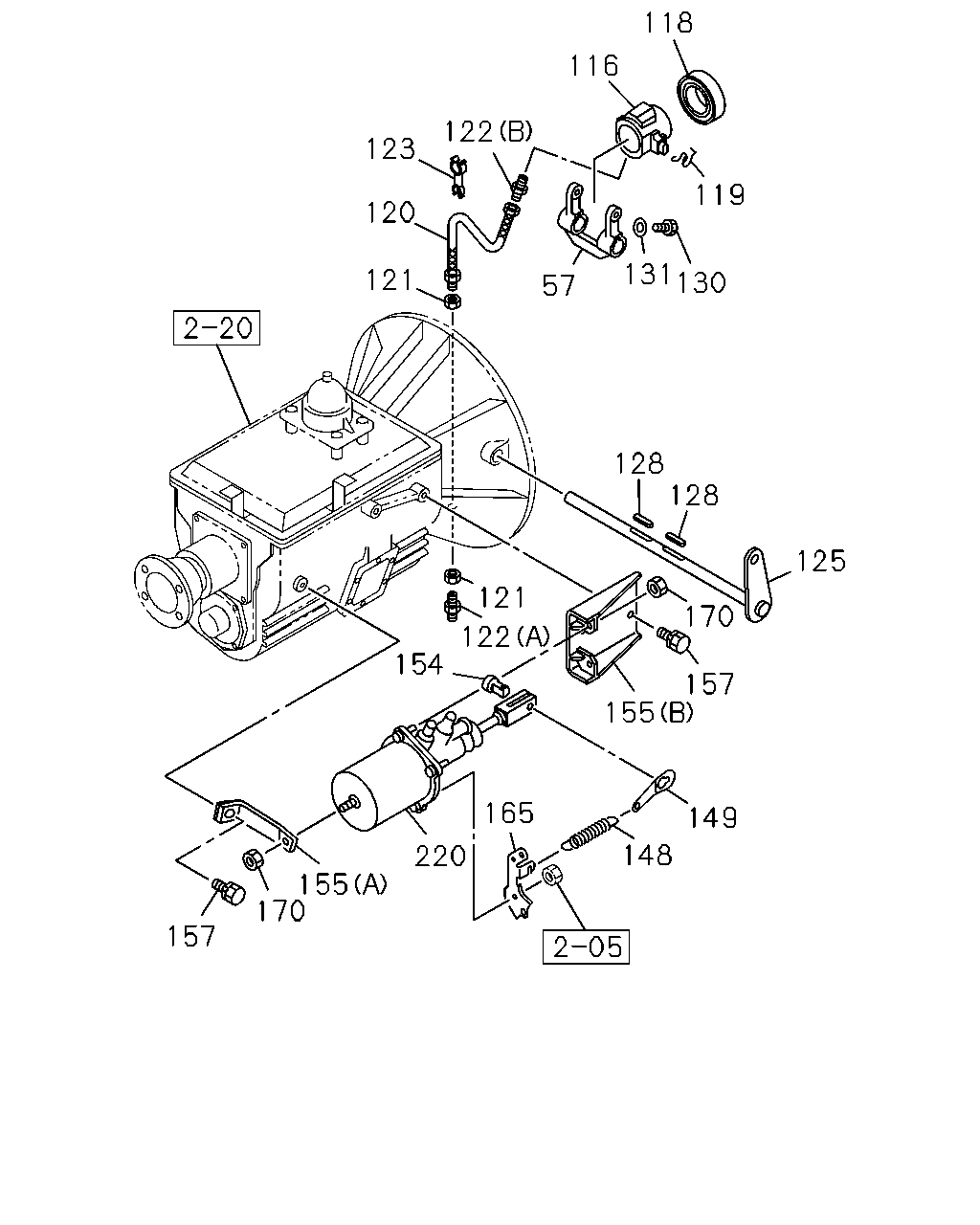

çizim 36849
118 116 122 123 119 120 131 130 121 57 128 128 125 121 122 154 170 157 155 149 148 165 220 155 170 157
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU 1-31341-044-0 01 1 9810-
116 BLOCK; SHIFT,CLU 1-31321-094-0 01 1 9810-9811
116 BLOCK; SHIFT,CLU 1-31321-077-1 01 1 9812-
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 9810-0111
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0112-
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0204-
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 9810-
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 9810-
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=400 		1-09364-934-0 01 1 9810-
121 NUT; SHIFT FORK
M16 FLANGE 		0-91160-216-0 01 1 9810-9811
121 NUT; SHIFT FORK
M16 FLANGE 		0-91160-216-0 02 1 9812-0602
121 NUT; SHIFT FORK
M16 FLANGE 		0-91180-216-0 02 1 0603-
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9810-0512
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601-
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9903-
123 CLIP; FLEX HOSE,SHIFT BLOCK 8-97010-484-0 01 1 9810-
125 SHAFT; CLU 1-31342-302-0 01 1 9810-
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9810-
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 9810-
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9810-0603
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0604-
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9810-
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 9810-
154 PIN; JAW JOINT 1-31424-009-0 01 1 0003-
154 PIN; JAW JOINT 1-31424-009-0 01 1 9810-0002
155 BRACKET; MINIPACK
(B) 		1-31429-398-0 01 1 9810-
155 BRACKET; MINIPACK
(A) 		1-31429-399-0 01 1 9810-
157 BOLT; BRKT
M10X25 FLANGE 		0-28181-025-0 02 1 9810-0512
157 BOLT; BRKT
M10X25 FLANGE 		0-28151-025-0 02 1 0601-
157 BOLT; BRKT
M12X25 FLANGE 		0-28181-225-0 01 1 9810-0512
157 BOLT; BRKT
M12X25 FLANGE 		0-28151-225-0 01 1 0601-
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE 1-47477-789-0 01 1 9810-
170 NUT; BOOSTER FIX
M8 FLANGE 		0-91150-208-0 03 1 9810-0602
170 NUT; BOOSTER FIX
M8 FLANGE 		0-91180-208-0 03 1 0603-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-406-4 01 1 9810-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-086-0 01 1 9810-
