2-03 — CLUTCH PEDAL AND CONTROL (#43954) — 38 parça

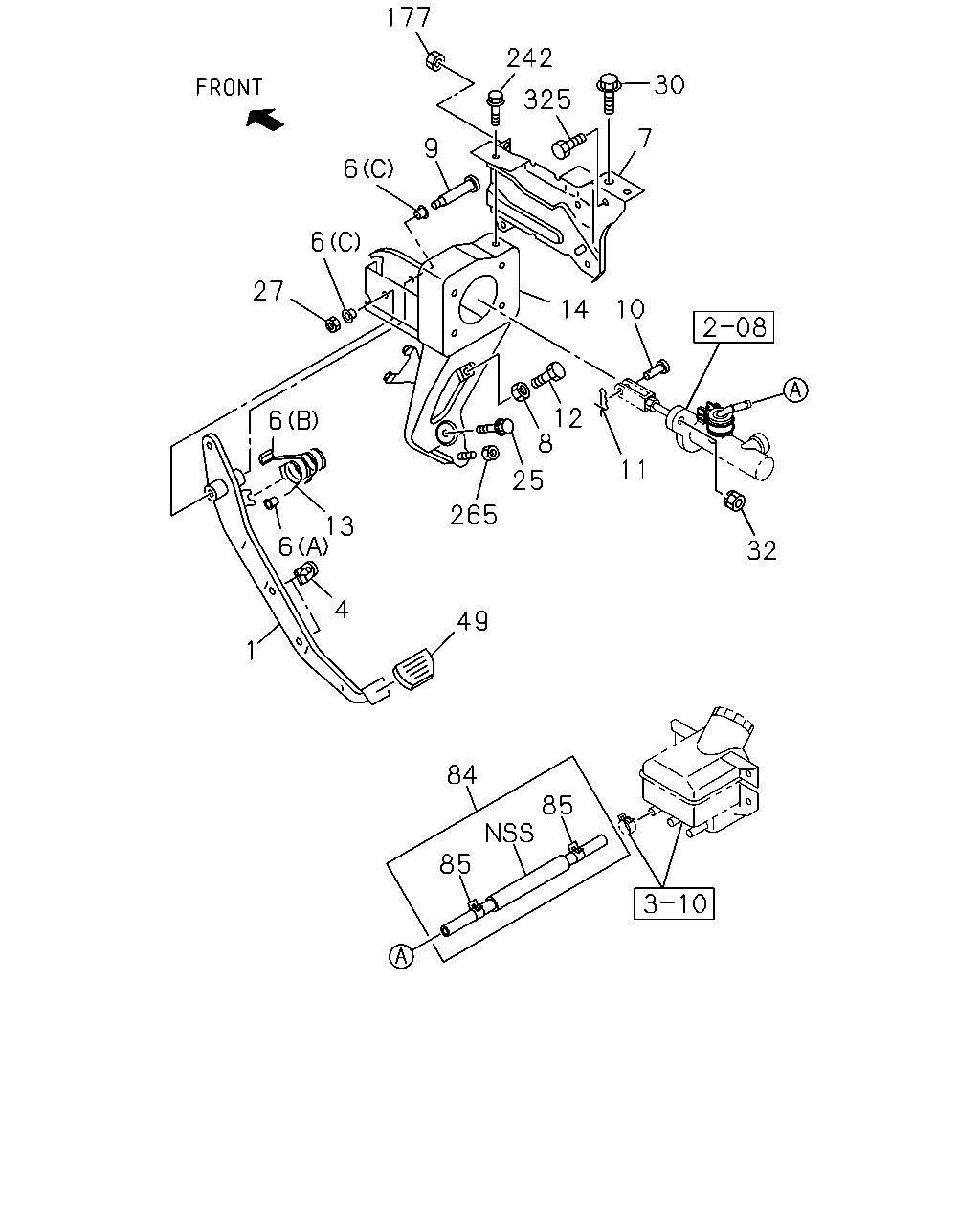

çizim 50512
177 242 30 325 7 9 6 6 27 10 14 12 8 6 11 25 265 13 6 32 4 49 1 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.830 PEDAL; CLU 8-97853-219-2 01 1 0211- ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0211- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 0211- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
(A) 		8-97853-619-0 02 1 0211- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
(B) 		8-97853-620-0 01 1 0211- ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0211- ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97856-307-3 01 1 0211- ● ● ●
8 00.833 NUT; PIN TO PEDAL
09.011 M10 		9-09110-410-0 01 1 0211-0512 ● ● ● ● ● ●
8 00.833 NUT; PIN TO PEDAL
M10 		0-91110-510-0 01 1 0601- ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 0211- ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0211-1406 ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL 8-97359-812-0 01 1 1407- ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0211- ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
00.805 M10X35 		0-20801-035-0 01 1 0211-0512 ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
M10X35 		0-20851-035-0 01 1 0601- ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL 8-97853-221-1 01 1 0211- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-97892-848-3 01 1 0211- ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-97892-851-3 01 1 0211-0604 ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-98030-646-0 01 1 0605- ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0211- ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0211- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0211-0512 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0601- ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0211- ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0211- ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-024-0 01 1 0211-1405 ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-98193-434-0 01 1 1406- ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-021-0 01 1 0211-1405 ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-98193-588-1 01 1 1406- ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 0211-1405 ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1406- ● ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0211- ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0211-0512 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0601- ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0211-0610 ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0512 ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ● ● ●
