1 |
03.609 PIPE; EXH
EXHAUST BRAKE<NF8>
(B)
|
8-97102-669-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
EXHAUST BRAKE<NF8>
EXC. CHARGE AIR COOLER<6PL>
(B)
|
8-97102-669-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
1 |
03.609 PIPE; EXH
4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
(B)
|
8-97102-669-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
1 |
03.609 PIPE; EXH
EXHAUST BRAKE<NF8>
(B)
|
8-97102-669-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
(B)
|
8-97102-669-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
● |
| |
1 |
03.609 PIPE; EXH
4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
(B)
|
8-97102-669-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
● |
| |
1 |
03.609 PIPE; EXH
EXHAUST BRAKE<NF8>
(B)
|
8-97102-669-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97102-668-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
EXC. EXHAUST BRAKE<NF8>,CHARGE AIR
COOLER<6PL>
(B)
|
8-97102-668-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
1 |
03.609 PIPE; EXH
4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97102-668-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
1 |
03.609 PIPE; EXH
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97102-668-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97102-668-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
● |
| |
1 |
03.609 PIPE; EXH
4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97102-668-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
● |
| |
1 |
03.609 PIPE; EXH
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97102-668-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
1 |

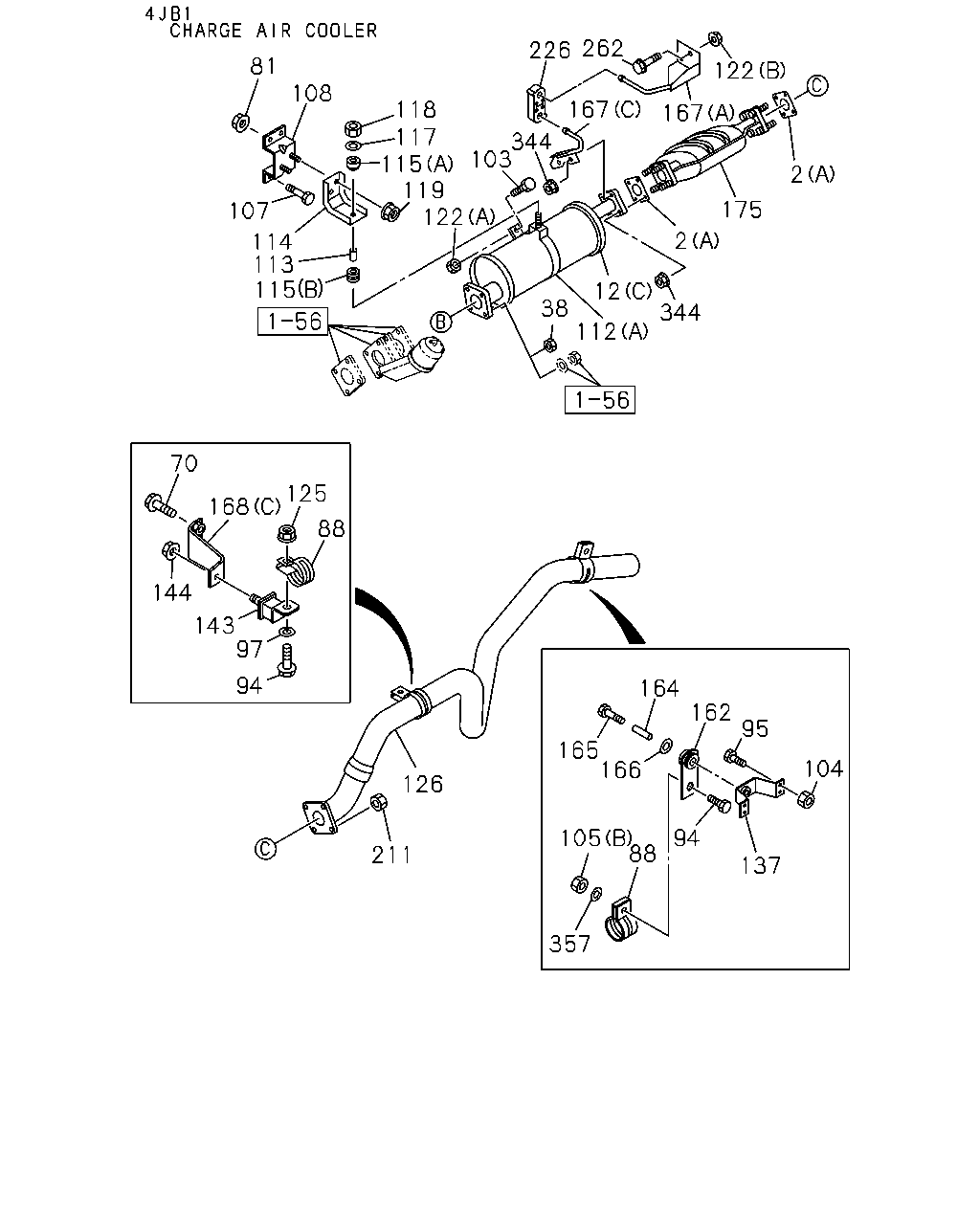

03.609 PIPE; EXH
CHARGE AIR COOLER<6PL>
EXC. EXHAUST BRAKE<NF8>
(D)
|
8-97212-759-3 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
1 |
03.609 PIPE; EXH
4JB1-TC ENG(RDT)
EXC. EXHAUST BRAKE<NF8>
(D)
|
8-97212-759-3 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
1 |
03.609 PIPE; EXH
4JB1-TC ENG(RDT)
EXC. EXHAUST BRAKE<NF8>
(D)
|
8-97212-759-3 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
1 |
03.609 PIPE; EXH
EXHAUST BRAKE<NF8>
CHARGE AIR COOLER<6PL>
(E)
|
8-97212-561-2 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
1 |
03.609 PIPE; EXH
4JB1-TC ENG(RDT)
EXHAUST BRAKE<NF8>
(E)
|
8-97212-561-2 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
1 |
03.609 PIPE; EXH
4JB1-TC ENG(RDT)
EXHAUST BRAKE<NF8>
(E)
|
8-97212-561-2 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
1 |

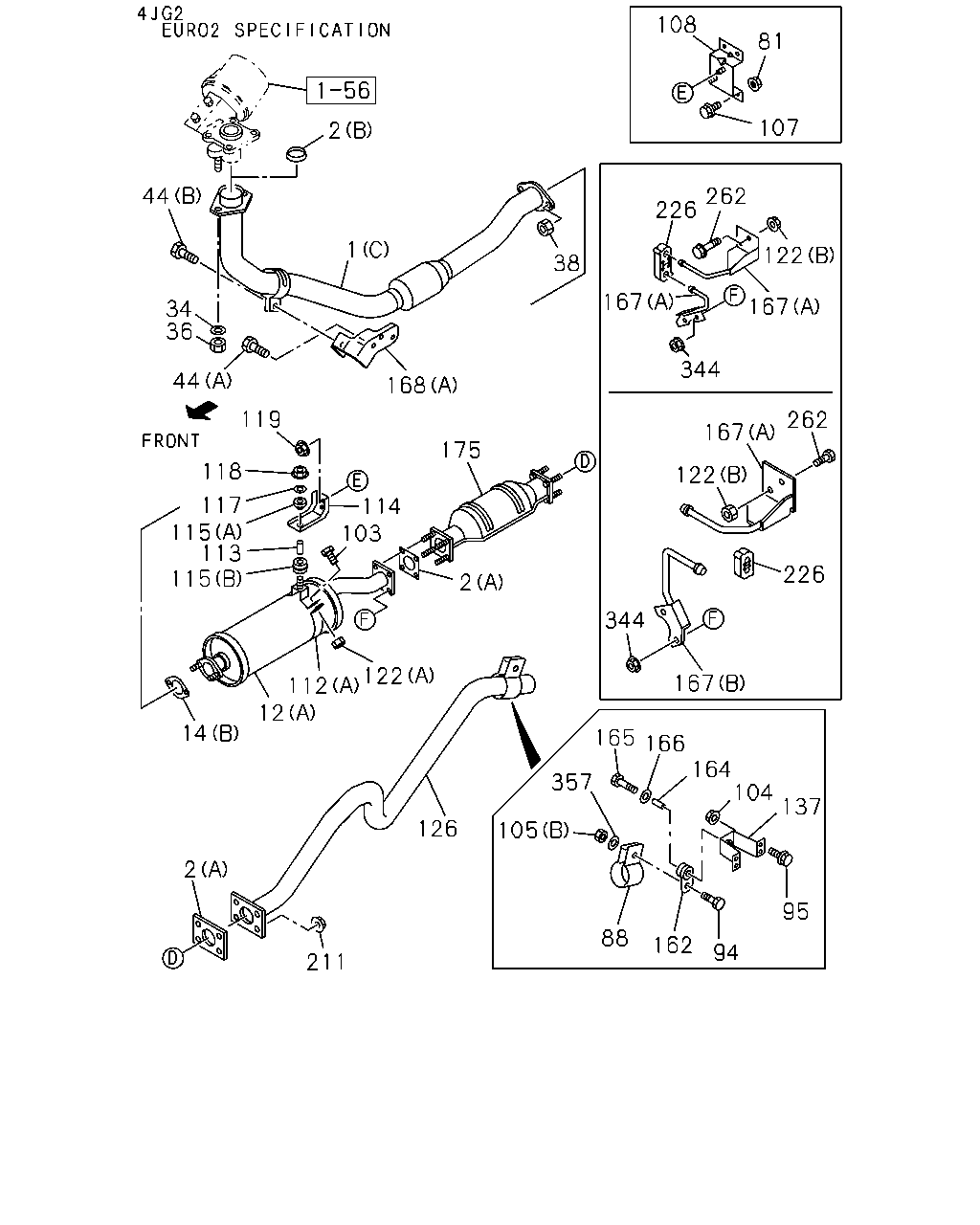

03.609 PIPE; EXH
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
EXC. EXHAUST BRAKE<NF8>
(C)
|
8-97167-462-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EURO2 SPECIFICATION(NT2)
(C)
|
8-97167-463-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
1 |
03.609 PIPE; EXH

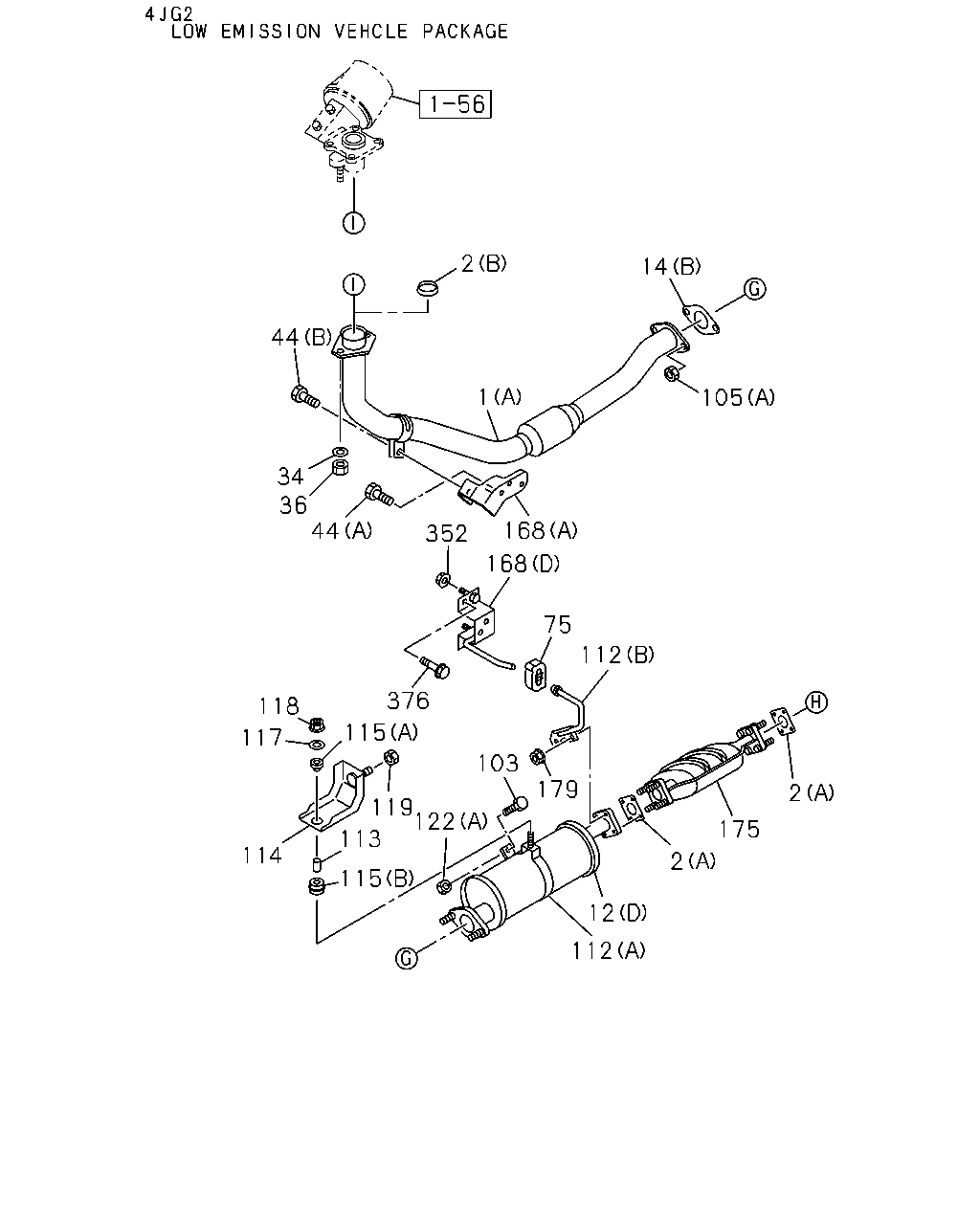

4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
LOW EMISSION VEHICLE PACKAGE<7VP>
(A)
|
8-97245-272-1 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
EXC. EXHAUST BRAKE<NF8>
(A)
|
8-97245-411-2 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97180-750-2 |
01 |
1 |
0211-0408 |
● |
● |
● |
● |
● |
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
EXHAUST BRAKE<NF8>
CHARGE AIR COOLER<6PL>
(B)
|
8-97180-750-2 |
01 |
1 |
0211-0408 |
|
|
|
|
● |
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97381-456-0 |
01 |
1 |
0409-0501 |
● |
● |
● |
● |
● |
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
EXHAUST BRAKE<NF8>
CHARGE AIR COOLER<6PL>
(B)
|
8-97381-456-0 |
01 |
1 |
0409-0501 |
|
|
|
|
● |
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97381-456-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1-TC ENG(RDT)
(B)
|
8-97381-456-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97381-456-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97381-456-0 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1-TC ENG(RDT)
(B)
|
8-97381-456-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97381-456-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97381-456-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97381-456-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
(A)
ID=71
|
8-94324-194-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
(A)
ID=71
|
8-94324-194-0 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
EXC. EURO2 SPECIFICATION(NT2)
(A)
ID=71
|
8-94324-194-0 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1-TC ENG(RDT)
(A)
ID=71
|
8-94324-194-1 |
02 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC)
(A)
ID=71
|
8-94324-194-1 |
02 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1-TC ENG(RDT)
(A)
ID=71
|
8-94324-194-1 |
02 |
1 |
0607- |
● |
|
|
|
● |
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC)
(A)
ID=71
|
8-94324-194-1 |
02 |
1 |
0607- |
|
|
|
|
|
● |
| |
12 |
03.701 SILENCER ASM; EXH
(B)
|
8-97049-721-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
12 |

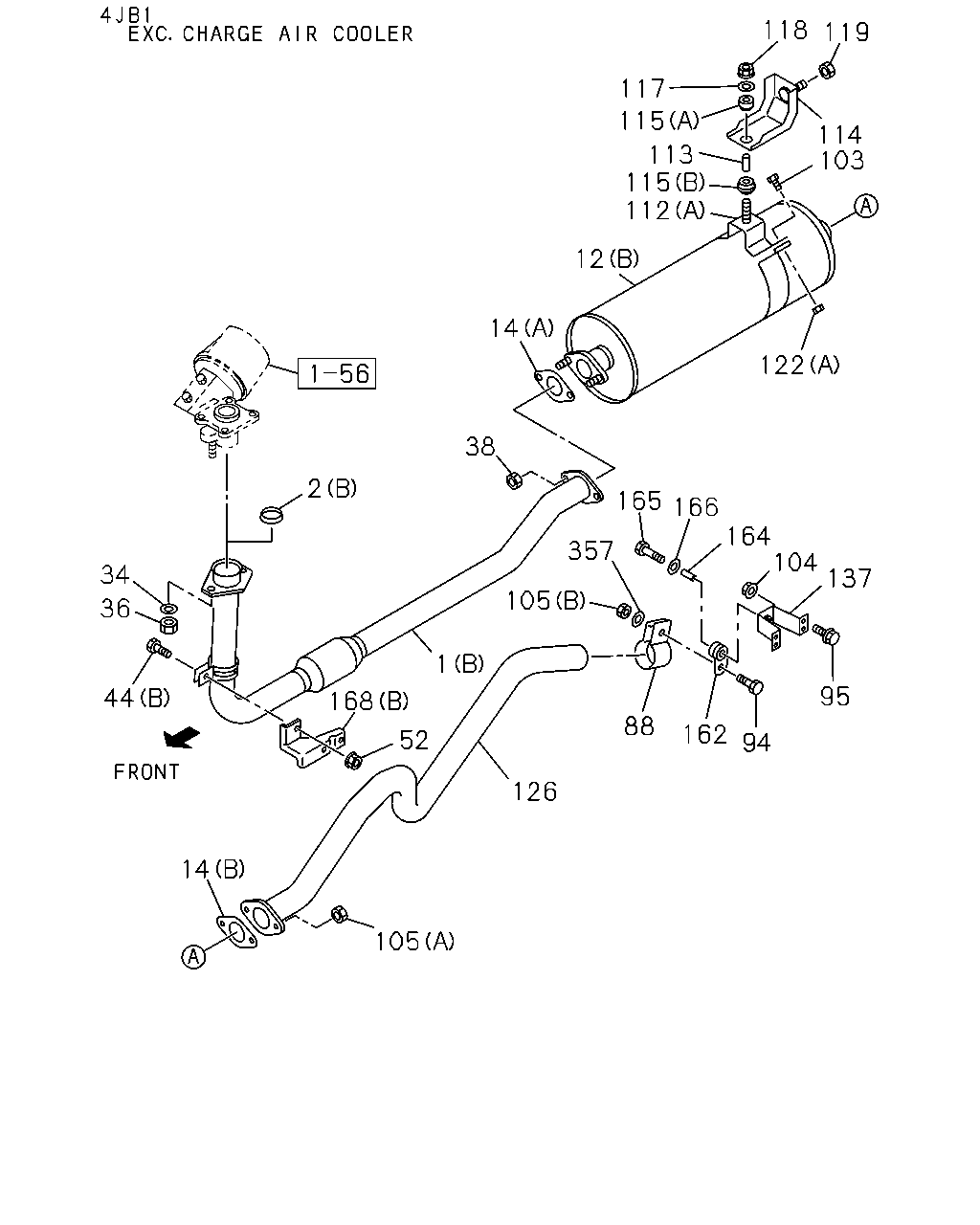

03.701 SILENCER ASM; EXH
EXC. CHARGE AIR COOLER<6PL>
(B)
|
8-97049-721-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 NA ENG(RLF)
(B)
|
8-97049-721-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
12 |
03.701 SILENCER ASM; EXH
(B)
|
8-97049-721-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 NA ENG(RLF)
(B)
|
8-97049-721-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
● |
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 NA ENG(RLF)
(B)
|
8-97049-721-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
● |
| |
12 |
03.701 SILENCER ASM; EXH
(B)
|
8-97049-721-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
(C)
|
8-97221-923-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1-TC ENG(RDT)
(C)
|
8-97221-923-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1-TC ENG(RDT)
(C)
|
8-97221-923-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
(A)
|
8-97145-037-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
(D)
|
8-97245-274-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
EXC. EURO2 SPECIFICATION(NT2)
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JB1 NA ENG(RLF)
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JB1 NA ENG(RLF)
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
EXC. CHARGE AIR COOLER<6PL>
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JB1 NA ENG(RLF)
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JB1 NA ENG(RLF)
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JB1 NA ENG(RLF)
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
CHARGE AIR COOLER<6PL>
EXC. EXHAUST BRAKE<NF8>
03.634
(C)
ID=54
|
8-94328-354-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JB1-TC ENG(RDT)
EXC. EXHAUST BRAKE<NF8>
03.634
(C)
ID=54
|
8-94328-354-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JB1-TC ENG(RDT)
EXC. EXHAUST BRAKE<NF8>
03.634
(C)
ID=54
|
8-94328-354-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
34 |
03.613 WASHER; EXH PIPE
EXHAUST BRAKE<NF8>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
34 |
03.613 WASHER; EXH PIPE
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
34 |
03.613 WASHER; EXH PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
34 |
03.613 WASHER; EXH PIPE
EXHAUST BRAKE<NF8>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
34 |
03.613 WASHER; EXH PIPE
4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
34 |
03.613 WASHER; EXH PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
34 |
03.613 WASHER; EXH PIPE
4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
0607- |
● |
|
|
|
● |
|
| |
34 |
03.613 WASHER; EXH PIPE
EXHAUST BRAKE<NF8>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
34 |
03.613 WASHER; EXH PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
0607- |
|
|
|
|
|
● |
| |
36 |
03.613 NUT; EXH PIPE
EXHAUST BRAKE<NF8>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
36 |
03.613 NUT; EXH PIPE
EXHAUST BRAKE<NF8>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
36 |
03.613 NUT; EXH PIPE
4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0607- |
● |
|
|
|
● |
|
| |
36 |
03.613 NUT; EXH PIPE
EXHAUST BRAKE<NF8>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
EXHAUST BRAKE<NF8>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
0607- |
|
|
|
|
|
● |
| |
36 |
03.613 NUT; EXH PIPE
EXC. EXHAUST BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
36 |
03.613 NUT; EXH PIPE
TURBOCHARGER<K51>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
36 |
03.613 NUT; EXH PIPE
EXC. EXHAUST BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JB1-TC ENG(RDT)
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
36 |
03.613 NUT; EXH PIPE
4JB1-TC ENG(RDT)
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0607- |
● |
|
|
|
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0607- |
● |
|
|
|
● |
|
| |
36 |
03.613 NUT; EXH PIPE
EXC. EXHAUST BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0607- |
|
|
|
|
|
● |
| |
38 |
00.002 NUT; SILENCER
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
38 |
00.002 NUT; SILENCER
EXC. CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
38 |
00.002 NUT; SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
38 |
00.002 NUT; SILENCER
4JB1 NA ENG(RLF)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
38 |
00.002 NUT; SILENCER
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
● |
● |
● |
● |
|
|
| |
38 |
00.002 NUT; SILENCER
4JB1 NA ENG(RLF)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
|
|
|
|
● |
● |
| |
38 |
00.002 NUT; SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
|
|
|
|
|
● |
| |
38 |
00.002 NUT; SILENCER
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603-0606 |
● |
● |
● |
● |
|
|
| |
38 |
00.002 NUT; SILENCER
4JB1 NA ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603-0606 |
|
|
|
|
● |
● |
| |
38 |
00.002 NUT; SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603-0606 |
|
|
|
|
|
● |
| |
38 |
00.002 NUT; SILENCER
4JB1 NA ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0607- |
● |
|
|
|
● |
● |
| |
38 |
00.002 NUT; SILENCER
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
38 |
00.002 NUT; SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0607- |
|
|
|
|
|
● |
| |
38 |
00.002 NUT; SILENCER
CHARGE AIR COOLER<6PL>
EXC. EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
38 |
00.002 NUT; SILENCER
4JB1-TC ENG(RDT)
EXC. EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0502-0602 |
|
|
|
|
● |
|
| |
38 |
00.002 NUT; SILENCER
4JB1-TC ENG(RDT)
EXC. EXHAUST BRAKE<NF8>
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603-0606 |
|
|
|
|
● |
|
| |
38 |
00.002 NUT; SILENCER
4JB1-TC ENG(RDT)
EXC. EXHAUST BRAKE<NF8>
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0607- |
● |
|
|
|
● |
|
| |
44 |
03.613 BOLT; BRKT
03.706
(B)
M8X40 W/LK WASHER
|
0-50040-840-0 |
01 |
1 |
0211-0401 |
● |
● |
● |
● |
● |
● |
| |
44 |
03.613 BOLT; BRKT
01.252
(B)
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
0402-0801 |
● |
● |
● |
● |
● |
● |
| |
44 |
03.613 BOLT; BRKT
03.704
(B)
M8X45 W/LK WASHER
|
0-50540-845-0 |
01 |
1 |
0802-0802 |
● |
● |
● |
● |
● |
● |
| |
44 |
03.613 BOLT; BRKT
01.252
(B)
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
0802-0909 |
● |
● |
● |
● |
● |
● |
| |
44 |
03.613 BOLT; BRKT
03.704
(B)
M8X45 W/LK WASHER
|
0-50540-845-0 |
01 |
1 |
0910- |
● |
● |
● |
● |
● |
● |
| |
44 |
03.613 BOLT; BRKT
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
44 |
03.613 BOLT; BRKT
4JB1-TC ENG(RDT)
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0502-0512 |
|
|
|
|
● |
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
01.062
(A)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0502-0512 |
|
|
|
|
|
● |
| |
44 |
03.613 BOLT; BRKT
4JB1-TC ENG(RDT)
02.343
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601-0606 |
|
|
|
|
● |
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
02.343
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601-0606 |
|
|
|
|
|
● |
| |
44 |
03.613 BOLT; BRKT
4JB1-TC ENG(RDT)
02.343
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0607- |
● |
|
|
|
● |
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
02.343
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0607- |
|
|
|
|
|
● |
| |
81 |
03.704 NUT; BRKT
EURO2 SPECIFICATION(NT2)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
81 |
03.704 NUT; BRKT
4JB1-TC ENG(RDT)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
|
|
|
|
● |
|
| |
81 |
03.704 NUT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
|
|
|
|
|
● |
| |
81 |
03.704 NUT; BRKT
4JB1-TC ENG(RDT)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603-0606 |
|
|
|
|
● |
|
| |
81 |
03.704 NUT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603-0606 |
|
|
|
|
|
● |
| |
81 |
03.704 NUT; BRKT
4JB1-TC ENG(RDT)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0607- |
● |
|
|
|
● |
|
| |
81 |
03.704 NUT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0607- |
|
|
|
|
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
● |
| |
88 |
03.708 CLAMP; EXH PIPE
CHARGE AIR COOLER<6PL>
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JB1-TC ENG(RDT)
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JB1-TC ENG(RDT)
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
ID=51.5
|
8-97325-352-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
● |
| |
94 |
03.704 BOLT; CLAMP
CHARGE AIR COOLER<6PL>
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
94 |
03.704 BOLT; CLAMP
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
● |
● |
| |
94 |
03.704 BOLT; CLAMP
4JB1-TC ENG(RDT)
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
94 |
03.704 BOLT; CLAMP
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
0607- |
● |
● |
● |
● |
● |
● |
| |
94 |
03.704 BOLT; CLAMP
4JB1-TC ENG(RDT)
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
94 |
03.704 BOLT; CLAMP
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
95 |
03.708 BOLT; BRKT
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0211-0512 |
● |
● |
● |
● |
● |
● |
| |
95 |
03.708 BOLT; BRKT
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
● |
● |
● |
● |
● |
| |
103 |
03.704 BOLT; SILENCER BRKT FIX
01.252
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
0211-0801 |
● |
● |
● |
● |
● |
● |
| |
103 |
03.704 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER
|
0-50540-845-0 |
01 |
1 |
0802-0802 |
● |
● |
● |
● |
● |
● |
| |
103 |
03.704 BOLT; SILENCER BRKT FIX
01.252
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
0802-0909 |
● |
● |
● |
● |
● |
● |
| |
103 |
03.704 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER
|
0-50540-845-0 |
01 |
1 |
0910- |
● |
● |
● |
● |
● |
● |
| |
104 |
03.704 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0602 |
● |
● |
● |
● |
● |
● |
| |
104 |
03.704 NUT; BRKT
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
● |
● |
● |
● |
| |
105 |
03.704 NUT; CLAMP
02.559
(B)
M8
|
9-09110-408-0 |
01 |
1 |
0211-0512 |
● |
● |
● |
● |
● |
● |
| |
105 |
03.704 NUT; CLAMP
02.334
(B)
M8
|
0-91110-508-0 |
01 |
1 |
0601- |
● |
● |
● |
● |
● |
● |
| |
105 |
03.704 NUT; CLAMP
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
105 |
03.704 NUT; CLAMP
EXC. EURO2 SPECIFICATION(NT2)
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
105 |
03.704 NUT; CLAMP
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
● |
● |
● |
● |
|
|
| |
105 |
03.704 NUT; CLAMP
4JB1 NA ENG(RLF)
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
|
|
|
|
● |
● |
| |
105 |
03.704 NUT; CLAMP
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
|
|
|
|
|
● |
| |
105 |
03.704 NUT; CLAMP
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603-0606 |
● |
● |
● |
● |
|
|
| |
105 |
03.704 NUT; CLAMP
4JB1 NA ENG(RLF)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603-0606 |
|
|
|
|
● |
● |
| |
105 |
03.704 NUT; CLAMP
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603-0606 |
|
|
|
|
|
● |
| |
105 |
03.704 NUT; CLAMP
4JB1 NA ENG(RLF)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0607- |
● |
|
|
|
● |
● |
| |
105 |
03.704 NUT; CLAMP
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
105 |
03.704 NUT; CLAMP
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0607- |
|
|
|
|
|
● |
| |
107 |
03.704 BOLT; BRKT
EURO2 SPECIFICATION(NT2)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
107 |
03.704 BOLT; BRKT
4JB1-TC ENG(RDT)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0502-0512 |
|
|
|
|
● |
|
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
03.405
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0502-0512 |
|
|
|
|
|
● |
| |
107 |
03.704 BOLT; BRKT
4JB1-TC ENG(RDT)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0601-0606 |
|
|
|
|
● |
|
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0601-0606 |
|
|
|
|
|
● |
| |
107 |
03.704 BOLT; BRKT
4JB1-TC ENG(RDT)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0607- |
● |
|
|
|
● |
|
| |
107 |
03.704 BOLT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0607- |
|
|
|
|
|
● |
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
EURO2 SPECIFICATION(NT2)
|
8-94378-511-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1-TC ENG(RDT)
|
8-94378-511-1 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-94378-511-1 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JB1-TC ENG(RDT)
|
8-94378-511-1 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
108 |
03.704 BRACKET; BRKT TO FRAME,EXH SILEN
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-94378-511-1 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
112 |
03.706 BRACKET; HANGER
(A)
|
8-97081-457-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
112 |
03.706 BRACKET; HANGER
EXC. CHARGE AIR COOLER<6PL>
(A)
|
8-97081-457-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
112 |
03.706 BRACKET; HANGER
4JB1 NA ENG(RLF)
(A)
|
8-97081-457-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
112 |
03.706 BRACKET; HANGER
(A)
|
8-97081-457-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
112 |
03.706 BRACKET; HANGER
4JB1 NA ENG(RLF)
(A)
|
8-97081-457-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
● |
| |
112 |
03.706 BRACKET; HANGER
4JB1 NA ENG(RLF)
(A)
|
8-97081-457-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
● |
| |
112 |
03.706 BRACKET; HANGER
(A)
|
8-97081-457-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
112 |
03.706 BRACKET; HANGER
COLOMBIA EQUIPMENT(X74)
CHARGE AIR COOLER<6PL>
(A)
|
8-97076-018-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
(A)
|
8-97076-018-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
112 |
03.706 BRACKET; HANGER
4JB1-TC ENG(RDT)
(A)
|
8-97076-018-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
(A)
|
8-97076-018-0 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
112 |
03.706 BRACKET; HANGER
4JB1-TC ENG(RDT)
(A)
|
8-97076-018-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
(A)
|
8-97076-018-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
(B)
|
8-97144-955-1 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
113 |
03.704 COLLAR; DIST,MTG BRKT
03.706
L=37.5
|
9-22151-217-0 |
01 |
1 |
0211- |
● |
● |
● |
● |
● |
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-856-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
EXC. EURO2 SPECIFICATION(NT2),CHARGE
AIR COOLER<6PL>
|
8-94329-856-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
|
8-94329-856-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
EXC. EURO2 SPECIFICATION(NT2),LOW
EMISSION VEHICLE PACKAGE<7VP>
|
8-94329-856-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-856-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JB1 NA ENG(RLF)
|
8-94329-856-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
|
8-94329-856-0 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
4JB1 NA ENG(RLF)
|
8-94329-856-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-856-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
|
8-94329-856-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
EURO2 SPECIFICATION(NT2)
|
8-97073-758-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
4JB1-TC ENG(RDT)
|
8-97073-758-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-97073-758-0 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
4JB1-TC ENG(RDT)
|
8-97073-758-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-97073-758-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
115 |
03.704 RUBBER; MTG,SILENCER
(A)
|
8-94457-277-1 |
01 |
1 |
0211- |
● |
● |
● |
● |
● |
● |
| |
115 |
03.704 RUBBER; MTG,SILENCER
(B)
|
8-94457-278-1 |
01 |
1 |
0211- |
● |
● |
● |
● |
● |
● |
| |
117 |
03.704 WASHER; PL,SILENCER MTG BRKT
OD=55
|
9-09852-169-0 |
01 |
1 |
0211- |
● |
● |
● |
● |
● |
● |
| |
118 |
03.704 NUT; SILENCER MTG BRKT
07.874
M10 FLANGE
|
5-09440-006-0 |
01 |
1 |
0211- |
● |
● |
● |
● |
● |
● |
| |
119 |
03.704 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0602 |
● |
● |
● |
● |
● |
● |
| |
119 |
03.704 NUT; BRKT
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
● |
● |
● |
● |
| |
122 |
03.275 NUT; HANGER BRKT
02.559
(A)
M8
|
9-09110-408-0 |
01 |
1 |
0211-0512 |
● |
● |
● |
● |
● |
● |
| |
122 |
03.275 NUT; HANGER BRKT
02.334
(A)
M8
|
0-91110-508-0 |
01 |
1 |
0601- |
● |
● |
● |
● |
● |
● |
| |
122 |
03.275 NUT; HANGER BRKT
EURO2 SPECIFICATION(NT2)
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
122 |
03.275 NUT; HANGER BRKT
4JB1-TC ENG(RDT)
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0502-0602 |
|
|
|
|
● |
|
| |
122 |
03.275 NUT; HANGER BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0502-0602 |
|
|
|
|
|
● |
| |
122 |
03.275 NUT; HANGER BRKT
4JB1-TC ENG(RDT)
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603-0606 |
|
|
|
|
● |
|
| |
122 |
03.275 NUT; HANGER BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603-0606 |
|
|
|
|
|
● |
| |
122 |
03.275 NUT; HANGER BRKT
4JB1-TC ENG(RDT)
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0607- |
● |
|
|
|
● |
|
| |
122 |
03.275 NUT; HANGER BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0607- |
|
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
|
8-97081-460-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
EXC. EURO2 SPECIFICATION(NT2)
|
8-97081-460-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
|
8-97081-460-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 NA ENG(RLF)
|
8-97081-460-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 NA ENG(RLF)
|
8-97081-460-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
|
8-97081-460-0 |
01 |
1 |
0607- |
|
● |
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
CHARGE AIR COOLER<6PL>
|
8-97258-860-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1-TC ENG(RDT)
|
8-97258-860-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1-TC ENG(RDT)
|
8-97258-860-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
EXC. EURO2 SPECIFICATION(NT2),LOW
EMISSION VEHICLE PACKAGE<7VP>
|
8-97081-465-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
|
8-97081-465-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 NA ENG(RLF)
|
8-97081-465-0 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
|
8-97081-465-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-97264-889-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
|
8-97245-273-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
137 |
03.706 BRACKET; TAIL PIPE
|
9-22121-146-1 |
01 |
1 |
0211- |
● |
● |
● |
● |
● |
● |
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
L=180
|
8-97222-646-0 |
01 |
1 |
0211- |
● |
● |
● |
● |
● |
● |
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
03.616
L=23
|
9-22151-175-0 |
01 |
1 |
0211- |
● |
● |
● |
● |
● |
● |
| |
165 |
03.706 BOLT; SUPPORT RUBBER
01.540
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
0211-0512 |
● |
● |
● |
● |
● |
● |
| |
165 |
03.706 BOLT; SUPPORT RUBBER
09.173
M8X45 FLANGE
|
0-28050-845-0 |
01 |
1 |
0601- |
● |
● |
● |
● |
● |
● |
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
01 |
1 |
0211-0605 |
● |
● |
● |
● |
● |
● |
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
ID=8.4 OD=26
|
0-91614-808-0 |
01 |
1 |
0606- |
● |
● |
● |
● |
● |
● |
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
(B)
|
8-97144-955-1 |
01 |
1 |
0507- |
|
|
|
|
|
● |
| |
167 |
03.706 HANGER; EXH PIPE
CHARGE AIR COOLER<6PL>
(C)
|
8-97206-510-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1-TC ENG(RDT)
(C)
|
8-97206-510-1 |
01 |
1 |
0502-0506 |
|
|
|
|
● |
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
(C)
|
8-97206-510-1 |
01 |
1 |
0502-0506 |
|
|
|
|
|
● |
| |
167 |
03.706 HANGER; EXH PIPE
4JB1-TC ENG(RDT)
(C)
|
8-97206-510-1 |
01 |
1 |
0507-0606 |
|
|
|
|
● |
|
| |
167 |
03.706 HANGER; EXH PIPE
4JB1-TC ENG(RDT)
(C)
|
8-97206-510-1 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
167 |
03.706 HANGER; EXH PIPE
EURO2 SPECIFICATION(NT2)
(A)
|
8-97144-952-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
167 |
03.706 HANGER; EXH PIPE
4JB1-TC ENG(RDT)
(A)
|
8-97144-952-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
(A)
|
8-97144-952-0 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
167 |
03.706 HANGER; EXH PIPE
4JB1-TC ENG(RDT)
(A)
|
8-97144-952-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
(A)
|
8-97144-952-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
(B)
|
8-97144-955-1 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
(B)
|
8-94445-704-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
EXC. TURBOCHARGER<K51>,CHARGE AIR
COOLER<6PL>
(B)
|
8-94445-704-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 NA ENG(RLF)
(B)
|
8-94445-704-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
(B)
|
8-94445-704-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 NA ENG(RLF)
(B)
|
8-94445-704-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 NA ENG(RLF)
(B)
|
8-94445-704-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
(B)
|
8-94445-704-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
CHARGE AIR COOLER<6PL>
(C)
|
8-97210-476-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
(C)
|
8-97210-476-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1-TC ENG(RDT)
(C)
|
8-97210-476-0 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
(C)
|
8-97210-476-0 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1-TC ENG(RDT)
(C)
|
8-97210-476-0 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
(C)
|
8-97210-476-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
(A)
|
8-97084-346-2 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
(A)
|
8-97084-346-2 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1-TC ENG(RDT)
(A)
|
8-97084-346-2 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
(A)
|
8-97084-346-2 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1-TC ENG(RDT)
(A)
|
8-97084-346-2 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
(A)
|
8-97084-346-2 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
(D)
|
8-97245-338-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
175 |
03.685 CONVERTER; CATALYST
4JB1-TC ENG(RDT)
INDONESIA EQUIPMENT(S4S)
INJ PUMP Q SET SPECIAL +5%Q<T1A>
|
8-98118-541-0 |
01 |
1 |
1010- |
● |
|
|
|
|
|
| |
175 |
03.685 CONVERTER; CATALYST
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
|
8-97140-417-2 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-97140-417-2 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
175 |
03.685 CONVERTER; CATALYST
4JB1-TC ENG(RDT)
|
8-97140-417-2 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-97140-417-2 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
175 |
03.685 CONVERTER; CATALYST
4JB1-TC ENG(RDT)
|
8-97140-417-2 |
01 |
1 |
0607-1009 |
● |
|
|
|
● |
|
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-97140-417-2 |
01 |
1 |
0607-1009 |
|
|
|
|
|
● |
| |
175 |
03.685 CONVERTER; CATALYST
4JB1-TC ENG(RDT)
EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>
|
8-97140-417-2 |
01 |
1 |
1010- |
● |
|
|
|
|
|
| |
175 |
03.685 CONVERTER; CATALYST
4JB1-TC ENG(RDT)
|
8-97140-417-2 |
01 |
1 |
1010- |
|
|
|
|
● |
|
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-97140-417-2 |
01 |
1 |
1010- |
|
|
|
|
|
● |
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
LOW EMISSION VEHICLE PACKAGE<7VP>
|
8-97245-517-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
211 |
03.685 NUT; CONV
EURO2 SPECIFICATION(NT2)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
211 |
03.685 NUT; CONV
4JB1-TC ENG(RDT)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0502-0602 |
|
|
|
|
● |
|
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0502-0602 |
|
|
|
|
|
● |
| |
211 |
03.685 NUT; CONV
4JB1-TC ENG(RDT)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0603-0606 |
|
|
|
|
● |
|
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0603-0606 |
|
|
|
|
|
● |
| |
211 |
03.685 NUT; CONV
4JB1-TC ENG(RDT)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0607- |
● |
|
|
|
● |
|
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0607- |
|
|
|
|
|
● |
| |
226 |
03.613 RUBBER; CUSHION
EURO2 SPECIFICATION(NT2)
|
8-97166-498-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
226 |
03.613 RUBBER; CUSHION
4JB1-TC ENG(RDT)
|
8-97166-498-1 |
01 |
1 |
0502-0606 |
|
|
|
|
● |
|
| |
226 |
03.613 RUBBER; CUSHION
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-97166-498-1 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
226 |
03.613 RUBBER; CUSHION
4JB1-TC ENG(RDT)
|
8-97166-498-1 |
01 |
1 |
0607- |
● |
|
|
|
● |
|
| |
226 |
03.613 RUBBER; CUSHION
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
|
8-97166-498-1 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
262 |
03.704 BOLT; HANGER TO BODY
EURO2 SPECIFICATION(NT2)
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
262 |
03.704 BOLT; HANGER TO BODY
4JB1-TC ENG(RDT)
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0502-0512 |
|
|
|
|
● |
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0502-0512 |
|
|
|
|
|
● |
| |
262 |
03.704 BOLT; HANGER TO BODY
4JB1-TC ENG(RDT)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601-0606 |
|
|
|
|
● |
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601-0606 |
|
|
|
|
|
● |
| |
262 |
03.704 BOLT; HANGER TO BODY
4JB1-TC ENG(RDT)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0607- |
● |
|
|
|
● |
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JG2 ENG(RJC)
EURO2 SPECIFICATION(NT2)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0607- |
|
|
|
|
|
● |
| |
344 |
03.602 NUT; SILENCER
EURO2 SPECIFICATION(NT2)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
344 |
03.602 NUT; SILENCER
EURO2 SPECIFICATION(NT2)
EXC. LOW EMISSION VEHICLE
PACKAGE<7VP>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
344 |
03.602 NUT; SILENCER
LOW EMISSION VEHICLE PACKAGE<7VP>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
344 |
03.602 NUT; SILENCER
4JB1-TC ENG(RDT)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0502-0602 |
|
|
|
|
● |
|
| |
344 |
03.602 NUT; SILENCER
4JG2 ENG(RJC)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0502-0602 |
|
|
|
|
|
● |
| |
344 |
03.602 NUT; SILENCER
4JB1-TC ENG(RDT)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0603-0606 |
|
|
|
|
● |
|
| |
344 |
03.602 NUT; SILENCER
4JG2 ENG(RJC)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0603-0606 |
|
|
|
|
|
● |
| |
344 |
03.602 NUT; SILENCER
4JB1-TC ENG(RDT)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0607- |
● |
|
|
|
● |
|
| |
344 |
03.602 NUT; SILENCER
4JG2 ENG(RJC)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0607- |
|
|
|
|
|
● |
| |
357 |
03.708 WASHER; PL,CLAMP
01.276
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
0211-0605 |
● |
● |
● |
● |
● |
● |
| |
357 |
03.708 WASHER; PL,CLAMP
02.559
ID=8.4 OD=18
|
0-91614-608-0 |
01 |
1 |
0606- |
● |
● |
● |
● |
● |
● |
