Sayfa 2-01B - Isuzu EPC

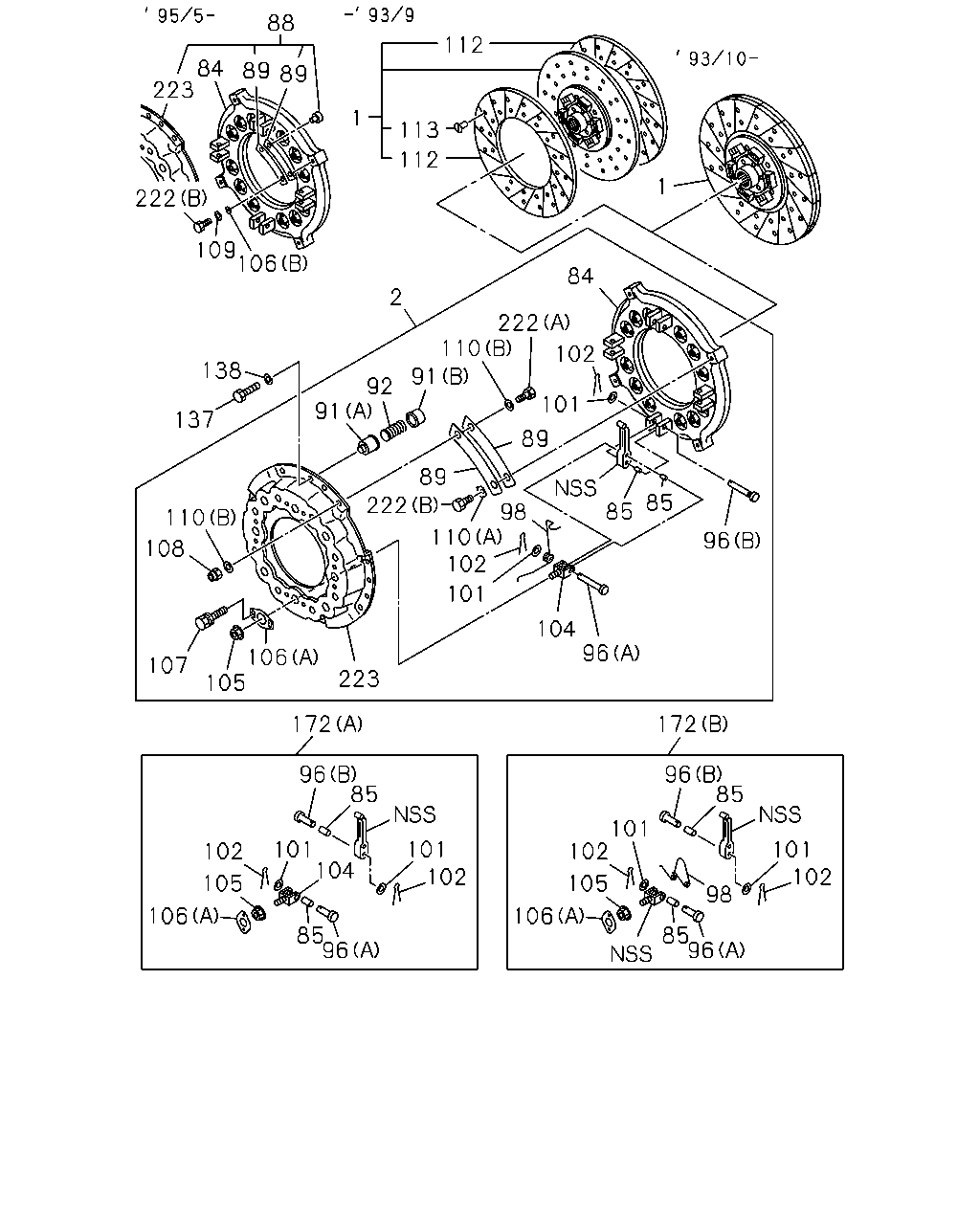

2-01B — CLUTCH (#4395) — 342 parça

88 112 89 84 223 89 1 113 112 1 222 109 106 84 2 222 110 91 102 138 92 101 91 137 89 89 85 85 222 98 110 110 102 96 108 101 104 96 106 105 107 223 172 172 96 85 96 85 101 102 101 104 98 101 102 101 102 102 105 105 106 106 85 96 85 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14"	1-31240-301-0	01	1	9101-9309	●	●	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9310-9504	●	●	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9505-9805	●	●	●
1	DISC; CLUTCH 6HH1 STD ENG(65L) 14"	1-31240-671-0	01	1	9806-0105	●	●	●	●
1	DISC; CLUTCH 6HH1 STD ENG(65L) 14"	1-31240-901-0	01	1	0106-	●	●	●	●
1	DISC; CLUTCH 15"	1-31240-676-0	01	1	9702-9805					●
1	DISC; CLUTCH 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 15"	1-31240-676-0	01	1	9806-9809				●	●
1	DISC; CLUTCH 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 15"	1-31240-676-0	01	1	9810-9811				●	●
1	DISC; CLUTCH 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 15"	1-31240-676-0	01	1	9812-0105				●	●
1	DISC; CLUTCH 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 15"	1-31240-902-0	01	1	0106-				●	●
1	DISC; CLUTCH 6HH1 STD ENG(65L) BEST VALUE PARTS	1-87610-139-0	01	1	0204-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-158-1	01	1	9101-9504	●	●	●
2	PLATE ASM; PRESSURE,CLU 14"	1-31220-291-0	01	1	9505-9805	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L) 14"	1-31220-291-0	01	1	9806-0109	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L)	1-31220-364-2	01	1	0110-1005	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L)	1-31220-447-0	01	1	1006-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-305-1	01	1	9702-9805					●
2	PLATE ASM; PRESSURE,CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-31220-305-1	01	1	9806-0109				●	●
2	PLATE ASM; PRESSURE,CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-31220-373-2	01	1	0110-				●	●
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L) BEST VALUE PARTS	1-87610-144-0	01	1	1006-	●	●	●	●
84	PLATE; PRESSURE 14"	1-31221-044-0	01	1	9101-9504	●	●	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9505-9805	●	●	●
84	PLATE; PRESSURE 6HH1 STD ENG(65L) 14"	1-31221-082-0	01	1	9806-	●	●	●	●
84	PLATE; PRESSURE 15"	1-31221-051-0	01	1	9702-9805					●
84	PLATE; PRESSURE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 15"	1-31221-051-0	01	1	9806-9810				●	●
84	PLATE; PRESSURE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 15"	1-31221-100-0	01	1	9811-				●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9101-9504	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9505-9710	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9711-9805	●	●	●		●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9806-9810	●	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9811-	●	●	●	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	02	1	9505-9701	●	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	9702-9805	●	●	●
88	COVER SUB ASM; CLU 6HH1 STD ENG(65L)	1-31211-036-0	01	1	9806-	●	●	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9101-9504	●	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9505-9805	●	●	●
89	PLATE; STRAP 6HH1 STD ENG(65L)	1-31229-001-0	08	1	9806-	●	●	●	●
89	PLATE; STRAP	1-31229-001-0	12	1	9702-9805					●
89	PLATE; STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-31229-001-0	12	1	9806-9810				●	●
89	PLATE; STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-31229-050-0	16	1	9811-				●	●
91	SEAT; SPR 6HH1 STD ENG(65L) (A) ID=37 H=25	1-31219-012-0	08	1	1006-	●	●	●	●
91	SEAT; SPR 6HH1 STD ENG(65L) (B) ID=37 H=15	1-31219-013-0	08	1	1006-	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9101-9504	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9505-9710	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9711-9805	●	●	●		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9806-9810	●	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9811-1005	●	●	●	●	●
91	SEAT; SPR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A) ID=37 H=25	1-31219-012-0	12	1	1006-				●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9101-9504	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9505-9710	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9711-9805	●	●	●		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9806-9810	●	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9811-1005	●	●	●	●	●
91	SEAT; SPR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) ID=37 H=15	1-31219-013-0	12	1	1006-				●	●
92	SPRING; CLU	1-09580-236-0	12	1	9101-9504	●	●	●
92	SPRING; CLU 14"	1-09580-234-0	12	1	9505-9805	●	●	●
92	SPRING; CLU 6HH1 STD ENG(65L) 14"	1-09580-234-0	12	1	9806-0308	●	●	●	●
92	SPRING; CLU 6HH1 STD ENG(65L)	1-31214-088-0	12	1	0309-1005	●	●	●	●
92	SPRING; CLU 6HH1 STD ENG(65L)	1-31214-060-0	08	1	1006-	●	●	●	●
92	SPRING; CLU	1-31214-039-0	12	1	9702-9805					●
92	SPRING; CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-31214-039-0	12	1	9806-9810				●	●
92	SPRING; CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-31214-039-0	12	1	9811-0109				●	●
92	SPRING; CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-31214-065-0	12	1	0110-				●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9101-9504	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9505-9710	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9711-9805	●	●	●		●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9806-9810	●	●	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9811-	●	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-008-0	04	1	9101-9504	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9505-9805	●	●	●
96	PIN; RELEASE LEVER 6HH1 STD ENG(65L) (B) L=57.0	1-31232-014-0	04	1	9806-9810	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9811-	●	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-008-0	04	1	9702-9805					●
96	PIN; RELEASE LEVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) L=57.0	1-31232-008-0	04	1	9806-9810				●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9101-9504	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9505-9710	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9711-9805	●	●	●		●
98	SPRING; RETURN	1-31233-003-0	04	1	9806-9810	●	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9811-	●	●	●	●	●
101	WASHER; RELEASE LEVER OD=18 ID=10.5	9-31239-039-0	08	1	9101-9504	●	●	●
101	WASHER; RELEASE LEVER OD=18 ID=10.5	9-31239-039-0	08	1	9505-9710	●	●	●
101	WASHER; RELEASE LEVER OD=18 ID=10.5	9-31239-039-0	08	1	9711-9805	●	●	●		●
101	WASHER; RELEASE LEVER OD=18 ID=10.5	9-31239-039-0	08	1	9806-9810	●	●	●	●	●
101	WASHER; RELEASE LEVER OD=18 ID=10.5	9-31239-039-0	08	1	9811-0109	●	●	●	●	●
101	WASHER; RELEASE LEVER 6HH1 STD ENG(65L)	9-31239-039-0	08	1	0110-	●	●	●	●
101	WASHER; RELEASE LEVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-31239-058-0	08	1	0110-				●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9101-9504	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9505-9805	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6HH1 STD ENG(65L) OD=2.7 L=22	9-08113-022-0	08	1	9806-	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9702-9805					●
102	PIN; SPLIT,RELEASE LEVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) OD=2.7 L=22	9-08103-022-0	08	1	9806-9810				●	●
102	PIN; SPLIT,RELEASE LEVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) OD=2.7 L=22	9-08103-022-0	08	1	9811-				●	●
104	SUPPORT; LEVER	9-31235-060-0	04	1	9101-9504	●	●	●
105	NUT; SUPPORT 6HH1 STD ENG(65L)	1-31235-014-0	04	1	0309-0309	●	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0310-	●	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9101-9504	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9505-9710	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9711-9805	●	●	●		●
105	NUT; SUPPORT	9-31235-061-0	04	1	9806-9810	●	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9811-0109	●	●	●	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●	●	●	●	●
105	NUT; SUPPORT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-31235-012-0	04	1	0309-0309				●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9101-9504	●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9505-9710	●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9711-9805	●	●	●		●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9806-9810	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9811-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	9505-9701	●	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9702-9805	●	●	●
106	PLATE; LK,LEVER SUPPORT 6HH1 STD ENG(65L) (B)	1-31235-008-0	08	1	9806-0109	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6HH1 STD ENG(65L) (B)	1-31235-008-0	04	1	0110-	●	●	●	●
107	BOLT; LK PLATE 6HH1 STD ENG(65L)	1-31239-061-0	08	1	0309-0309	●	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0310-	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9101-9504	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9505-9710	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9711-9805	●	●	●		●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9806-9810	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9811-0308	●	●	●	●	●
107	BOLT; LK PLATE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-0309				●	●
108	NUT; STRAP M10	1-09449-036-0	04	1	9101-9504	●	●	●
108	NUT; STRAP M10	1-09449-036-0	04	1	9702-9805					●
108	NUT; STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M10	1-09449-036-0	04	1	9806-9810				●	●
108	NUT; STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M10	1-09449-036-0	04	1	9811-				●	●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	9505-9805	●	●	●
109	WASHER; LK,STRAP 6HH1 STD ENG(65L) ID=10.2	9-09150-510-0	04	1	9806-0603	●	●	●	●
109	WASHER; LK,STRAP 6HH1 STD ENG(65L) ID=10.2	0-91510-510-0	04	1	0604-	●	●	●	●
110	WASHER; SPECIAL,STRAP (B) OD=22 ID=10.2 T=3.2	1-09503-095-0	08	1	9101-9504	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9101-9504	●	●	●
110	WASHER; SPECIAL,STRAP (B) OD=22 ID=10.2 T=3.2	1-09503-095-0	08	1	9702-9805					●
110	WASHER; SPECIAL,STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) OD=22 ID=10.2 T=3.2	1-09503-095-0	08	1	9806-9810				●	●
110	WASHER; SPECIAL,STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) OD=22 ID=10.2 T=3.2	1-09503-095-0	08	1	9811-0403				●	●
110	WASHER; SPECIAL,STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) T=3.2	8-97374-512-0	08	1	0404-				●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9702-9805					●
110	WASHER; SPECIAL,STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A) T=1.2	1-31229-009-0	04	1	9806-9810				●	●
110	WASHER; SPECIAL,STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A) T=1.2	1-31229-009-0	04	1	9811-				●	●
112	FACING; FRICTION	1-31246-033-0	02	1	9101-9309	●	●	●
113	RIVET; FACING	1-09732-009-0	36	1	9101-9309	●	●	●
137	BOLT; CLU COVER M10X20	0-23801-020-0	12	1	9101-9504	●	●	●
137	BOLT; CLU COVER M10X25 FLANGE	0-28781-025-0	12	1	9505-9608	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9609-9809	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9810-0512	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●	●	●
138	WASHER; LK,CLU COVER ID=10.2	9-09150-510-0	12	1	9101-9504	●	●	●
172	LEVER KIT; RELEASE,CLU 6HH1 STD ENG(65L) (B)	1-87831-173-0	01	1	0307-0307	●	●	●	●
172	LEVER KIT; RELEASE,CLU (B)	1-87831-173-1	01	1	0308-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU (B)	1-87830-902-1	01	1	0204-0306	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B)	1-87830-902-1	01	1	0307-0307				●	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-0	01	1	9101-9504	●	●	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-1	01	1	9505-9805	●	●	●
172	LEVER KIT; RELEASE,CLU 6HH1 STD ENG(65L) (A)	1-87830-620-1	01	1	9806-0109	●	●	●	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-2	01	1	0110-0203	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-808-1	01	1	9702-9805					●
172	LEVER KIT; RELEASE,CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A)	1-87830-808-1	01	1	9806-0109				●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9101-9504	●	●	●
222	BOLT; STRAP (B) M10X26 HEX SOCKET	1-09040-101-0	04	1	9505-9805	●	●	●
222	BOLT; STRAP 6HH1 STD ENG(65L) (B) M10X26 HEX SOCKET	1-09040-101-0	04	1	9806-0109	●	●	●	●
222	BOLT; STRAP 6HH1 STD ENG(65L) (B)	1-31239-059-0	04	1	0110-	●	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9101-9504	●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9702-9805					●
222	BOLT; STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) M10X23.2	1-09040-042-0	04	1	9806-9810				●	●
222	BOLT; STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) M10X23.2	1-09040-042-0	04	1	9811-				●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9702-9805					●
222	BOLT; STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9806-9810				●	●
222	BOLT; STRAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9811-				●	●
223	COVER; CLU	1-31211-018-0	01	1	9101-9504	●	●	●
223	COVER; CLU	1-31211-035-0	01	1	9505-	●	●	●
223	COVER; CLU	1-31211-019-1	01	1	9702-9805					●
223	COVER; CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-31211-019-1	01	1	9806-9810				●	●
223	COVER; CLU 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-31211-019-1	01	1	9811-				●	●

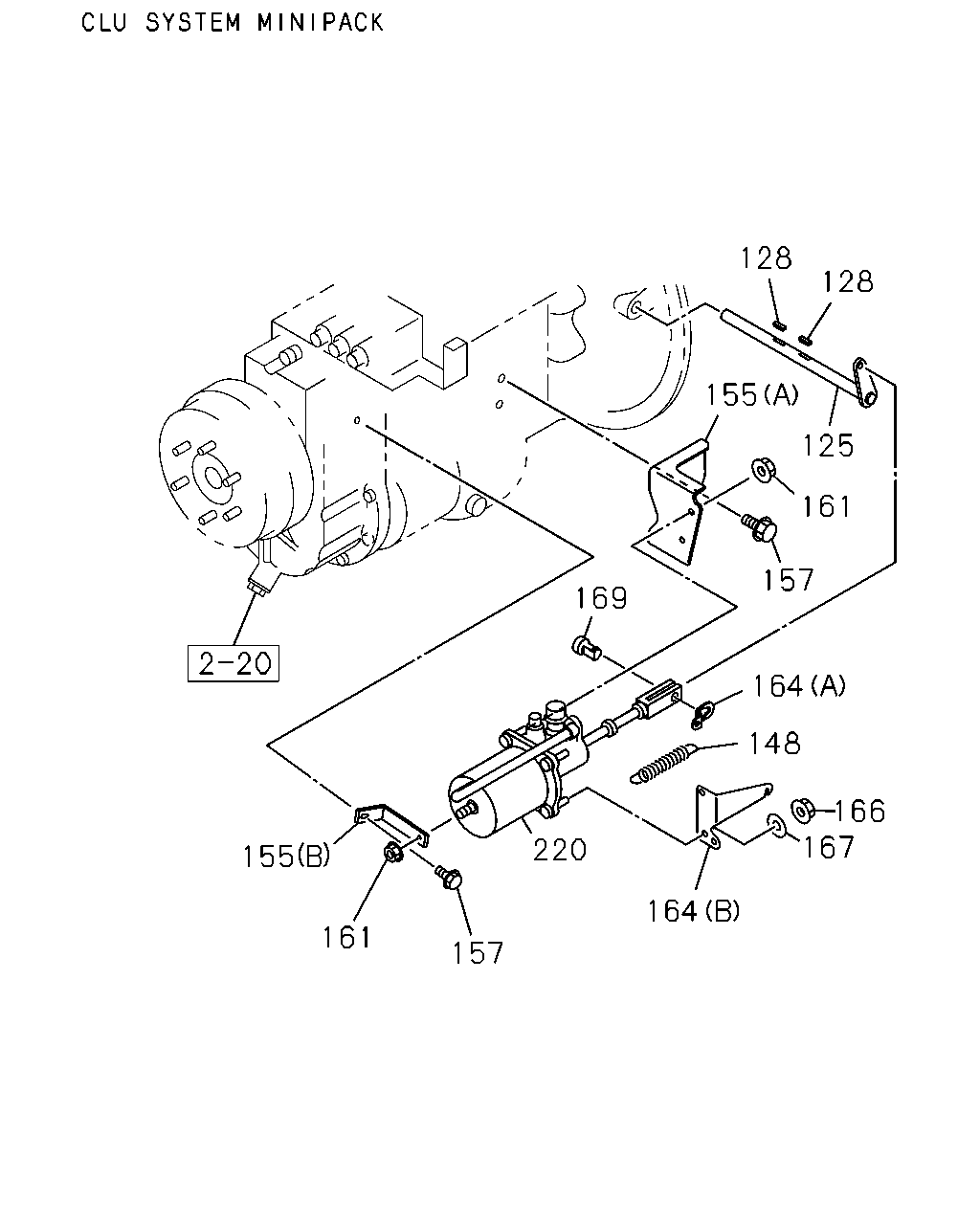

128 128 155 125 161 157 169 164 148 166 167 220 155 164 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
125	SHAFT; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-271-0	01	1	9505-9701	●	●	●
125	SHAFT; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-271-0	01	1	9702-9803	●	●	●		●
125	SHAFT; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-298-1	01	1	9804-0002	●	●	●		●
125	SHAFT; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-298-1	01	1	0003-	●	●	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9202-9504	●	●	●
125	SHAFT; CLU CLU SYSTEM MINIPACK(B1Z)	1-31342-169-1	01	1	9505-9808	●	●	●		●
125	SHAFT; CLU CLU SYSTEM MINIPACK(B1Z)	1-31342-169-1	01	1	9809-	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9101-9504	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9505-9701	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9702-9808	●	●	●		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9809-9809	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9810-	●	●	●	●	●
148	SPRING; CLU RETURN EXC. CLU SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9101-9504	●	●	●
148	SPRING; CLU RETURN EXC. CLU SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9505-9701	●	●	●
148	SPRING; CLU RETURN EXC. CLU SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9702-0002	●	●	●		●
148	SPRING; CLU RETURN EXC. CLU SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	0003-	●	●	●	●	●
148	SPRING; CLU RETURN CLU SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9101-9504	●	●	●
148	SPRING; CLU RETURN CLU SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9505-9808	●	●	●		●
148	SPRING; CLU RETURN CLU SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9809-	●	●	●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (B)	1-31429-174-0	01	1	9203-9504	●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (B)	1-31429-176-0	01	1	9505-9808	●	●	●		●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (B)	1-31429-176-0	01	1	9809-0203	●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2> (B)	1-31429-176-0	01	1	9809-0203				●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (B)	1-31429-176-0	01	1	0204-	●	●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (A)	1-31429-217-0	01	1	9203-9504	●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (A)	1-31429-175-2	01	1	9505-9808	●	●	●		●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (A)	1-31429-175-2	01	1	9809-0203	●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2> (A)	1-31429-175-2	01	1	9809-0203				●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (A)	1-31429-175-2	01	1	0204-	●	●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (B)	1-31429-174-0	01	1	9702-					●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (A)	1-31429-217-0	01	1	9702-					●
157	BOLT; BRKT CLU SYSTEM MINIPACK(B1Z) M10X18 FLANGE	0-28181-018-0	02	1	9206-9504	●	●	●
157	BOLT; BRKT CLU SYSTEM MINIPACK(B1Z) M10X20 W/LK WASHER	0-50051-020-0	03	1	9203-9205	●	●	●
157	BOLT; BRKT CLU SYSTEM MINIPACK(B1Z) M10X18 FLANGE	0-28181-018-0	03	1	9206-9504	●	●	●
157	BOLT; BRKT CLU SYSTEM MINIPACK(B1Z) M10X18 FLANGE	0-28181-018-0	03	1	9505-9808	●	●	●		●
157	BOLT; BRKT CLU SYSTEM MINIPACK(B1Z) M10X18 FLANGE	0-28181-018-0	03	1	9809-	●	●	●	●	●
161	NUT; BRKT CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	03	1	9206-9504	●	●	●
161	NUT; BRKT CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	03	1	9505-9808	●	●	●		●
161	NUT; BRKT CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	03	1	9809-0602	●	●	●	●	●
161	NUT; BRKT CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91180-208-0	03	1	0603-	●	●	●	●	●
164	EYE; SPRING BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9203-9504	●	●	●
164	EYE; SPRING CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9505-9808	●	●	●		●
164	EYE; SPRING CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9809-	●	●	●	●	●
164	EYE; SPRING CLU SYSTEM MINIPACK(B1Z) (B) ID=9X2 & 13	1-47475-658-0	01	1	9203-9504	●	●	●
164	EYE; SPRING CLU SYSTEM MINIPACK(B1Z) (B) L=85	1-47476-574-0	01	1	9505-9605	●	●	●		●
164	EYE; SPRING CLU SYSTEM MINIPACK(B1Z) (B) L=85	1-47477-788-0	01	1	9606-9808	●	●	●		●
164	EYE; SPRING CLU SYSTEM MINIPACK(B1Z) (B) L=85	1-47477-788-0	01	1	9809-	●	●	●	●	●
166	NUT; SPRING EYE CLU SYSTEM MINIPACK(B1Z) M8	9-09110-508-0	02	1	9101-9205	●
166	NUT; SPRING EYE CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	02	1	9206-9504	●	●	●
166	NUT; SPRING EYE CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	02	1	9505-9808	●	●	●		●
166	NUT; SPRING EYE CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	02	1	9809-0602	●	●	●	●	●
166	NUT; SPRING EYE CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91180-208-0	02	1	0603-	●	●	●	●	●
167	WASHER; LK,SPRING EYE CLU SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-508-0	02	1	9101-9205	●
169	PIN; JOINT,MINIPACK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9203-9312	●	●	●
169	PIN; JOINT,MINIPACK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9401-9504	●	●	●
169	PIN; JOINT,MINIPACK CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9505-9808	●	●	●		●
169	PIN; JOINT,MINIPACK CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9809-	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU SYSTEM MINIPACK(B1Z)	1-31800-406-0	01	1	9505-9808	●	●	●		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU SYSTEM MINIPACK(B1Z)	1-31800-406-0	01	1	9809-9809	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU SYSTEM MINIPACK(B1Z)	1-31800-406-4	01	1	9810-	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31800-349-2	01	1	9203-9504	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31800-349-2	01	1	9101-9202	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU SYSTEM MINIPACK(B1Z) BEST VALUE PARTS	1-87610-086-0	01	1	9810-	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z) BEST VALUE PARTS	1-87610-084-0	01	1	9203-9504	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU SYSTEM MINIPACK(B1Z) BEST VALUE PARTS	1-87610-086-0	01	1	9505-9808	●	●	●		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU SYSTEM MINIPACK(B1Z) BEST VALUE PARTS	1-87610-086-0	01	1	9809-9809	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z) BEST VALUE PARTS	1-87610-084-0	01	1	9101-9202	●	●	●

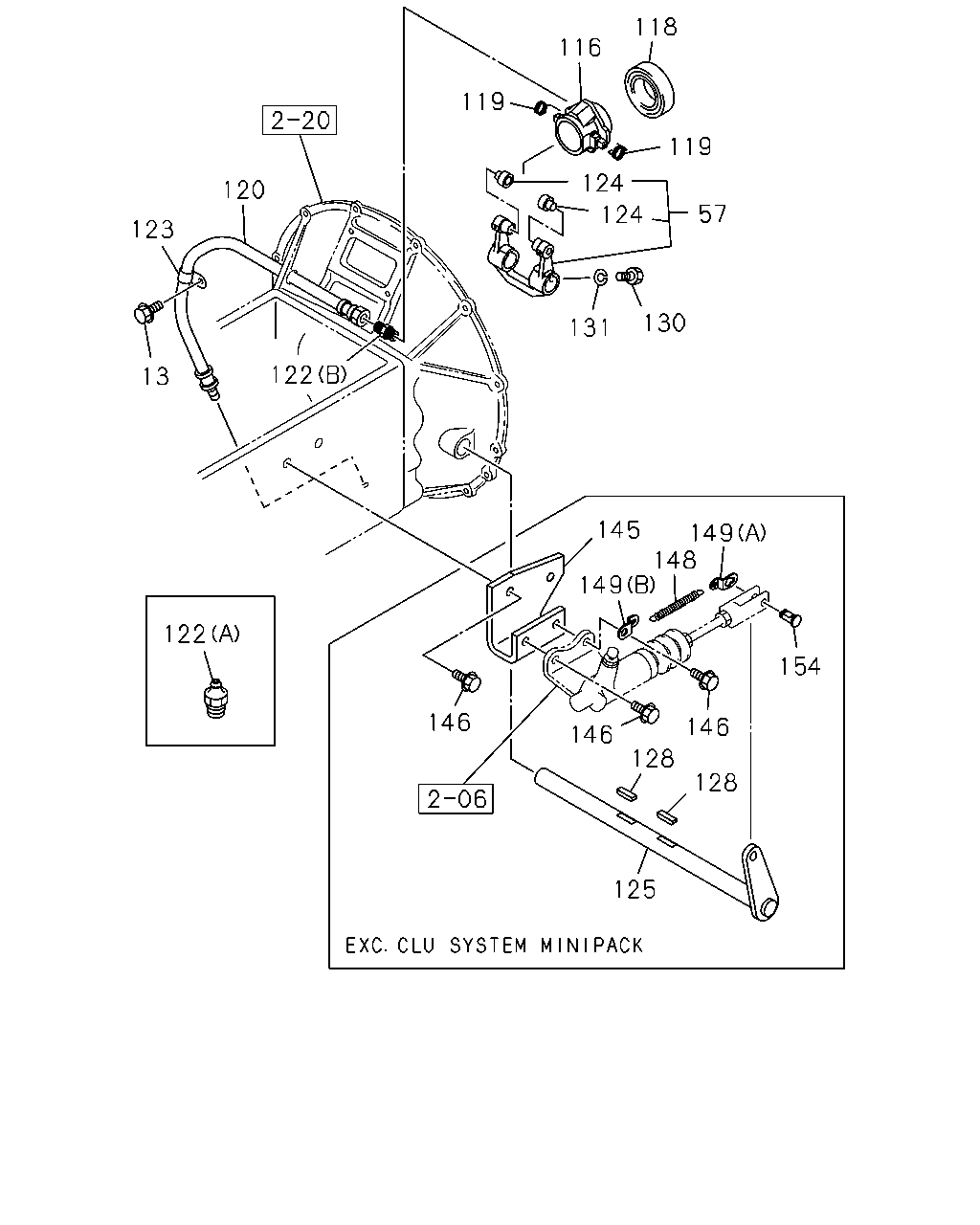

118 116 119 119 124 120 57 124 123 130 131 122 13 145 149 148 149 122 154 146 146 146 128 128 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9505-9701	●	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9702-9808	●	●	●		●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9809-0512	●	●	●	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9202-9701	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9702-9808	●	●	●		●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9809-	●	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9202-9701	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9702-9808	●	●	●		●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9809-	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9101-9504	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9505-9701	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9702-9808	●	●	●		●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9809-0111	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-	●	●	●	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0204-	●	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9202-9701	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9702-9808	●	●	●		●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	9809-	●	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9202-9701	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9702-9808	●	●	●		●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	9809-	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9101-9504	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9505-9701	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9702-9808	●	●	●		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9809-0003	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9101-9504	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9505-9701	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9702-9808	●	●	●		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9809-9809	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9810-0512	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9505-9701	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9702-9808	●	●	●		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9809-9902	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9903-	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=15.5	1-09700-814-1	01	1	9101-9504	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=22	1-09700-644-1	01	1	9202-9504	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9505-9701	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9702-9808	●	●	●		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9809-0606	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0204-	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9202-9701	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9702-9808	●	●	●		●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9809-0203	●	●	●	●	●
125	SHAFT; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-271-0	01	1	9505-9701	●	●	●
125	SHAFT; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-271-0	01	1	9702-9803	●	●	●		●
125	SHAFT; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-298-1	01	1	9804-0002	●	●	●		●
125	SHAFT; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-298-1	01	1	0003-	●	●	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9202-9504	●	●	●
125	SHAFT; CLU CLU SYSTEM MINIPACK(B1Z)	1-31342-169-1	01	1	9505-9808	●	●	●		●
125	SHAFT; CLU CLU SYSTEM MINIPACK(B1Z)	1-31342-169-1	01	1	9809-	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9101-9504	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9505-9701	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9702-9808	●	●	●		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9809-9809	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9810-	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9101-9504	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9505-9701	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9702-9808	●	●	●		●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9809-0512	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9101-9504	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9505-9701	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9702-9808	●	●	●		●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9809-9809	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9810-0603	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-47579-044-0	01	1	9202-9206	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-47579-051-0	01	1	9207-9504	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-47579-052-0	01	1	9505-9701	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-47579-052-0	01	1	9702-9803	●	●	●		●
145	BRACKET; SLAVE CYL,OIL CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-47579-058-0	01	1	9804-0002	●	●	●		●
145	BRACKET; SLAVE CYL,OIL CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-47579-058-0	01	1	0003-	●	●	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-9205	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 FLANGE	0-28181-025-0	04	1	9206-9504	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 FLANGE	0-28181-025-0	04	1	9505-9701	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 FLANGE	0-28181-025-0	04	1	9702-0002	●	●	●		●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 FLANGE	0-28181-025-0	04	1	0003-0512	●	●	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 FLANGE	0-28151-025-0	04	1	0601-	●	●	●	●	●
148	SPRING; CLU RETURN EXC. CLU SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9101-9504	●	●	●
148	SPRING; CLU RETURN EXC. CLU SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9505-9701	●	●	●
148	SPRING; CLU RETURN EXC. CLU SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9702-0002	●	●	●		●
148	SPRING; CLU RETURN EXC. CLU SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	0003-	●	●	●	●	●
148	SPRING; CLU RETURN CLU SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9101-9504	●	●	●
148	SPRING; CLU RETURN CLU SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9505-9808	●	●	●		●
148	SPRING; CLU RETURN CLU SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9809-	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9203-9306	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9307-9504	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9505-9701	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9702-0002	●	●	●		●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	0003-	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (B) T=2.3	1-47324-005-0	01	1	9202-9202	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (B) T=2.3	1-47324-005-1	01	1	9203-9206	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (B) T=2.3	1-47324-005-1	01	1	9207-9504	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (B) T=2.3	1-47324-005-1	01	1	9505-9701	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (B) T=2.3	1-47324-005-1	01	1	9702-0002	●	●	●		●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (B) T=2.3	1-47324-005-1	01	1	0003-	●	●	●	●	●
154	PIN; JAW JOINT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9203-9306	●	●	●
154	PIN; JAW JOINT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9307-9312	●	●	●
154	PIN; JAW JOINT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9401-9504	●	●	●
154	PIN; JAW JOINT EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9505-9701	●	●	●
154	PIN; JAW JOINT EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9702-0002	●	●	●		●
154	PIN; JAW JOINT EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	0003-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
