1-45 — WATER SEDIMENTER; FUEL (#43949) — 224 parça
çizim 11105
20 1 20 1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 0211-0501 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0502-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0607-1404 ● ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0607-1404 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0607-1404 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014<VZE> 		8-97081-815-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1405-1405 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-97081-815-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1406- ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-2 01 1 0211-0501 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0502-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0607-1404 ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0607-1404 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0607-1404 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WIT H HEATER<6HU> 		8-97081-814-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1406- ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1406- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
VIN MODEL YEAR 2014<VZE> 03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1405-1405 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.685 (A) M10X30 FLANGE 		0-28081-030-0 02 1 0211-0512 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
(A) M10X30 FLANGE 		0-28051-030-0 02 1 0601-1404 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
EXC. VIN MODEL YEAR 2014<VZE> (A) M10X30 FLANGE 		0-28051-030-0 02 1 1405-1405 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
(A) M10X30 FLANGE 		0-28051-030-0 02 1 1405-1405 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) M10X30 FLANGE 		0-28051-030-0 02 1 1406- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
(A) M10X30 FLANGE 		0-28051-030-0 02 1 1406- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-1404 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
EXC. VIN MODEL YEAR 2014<VZE> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1405-1405 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1405-1405 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ● ● ● ● ●

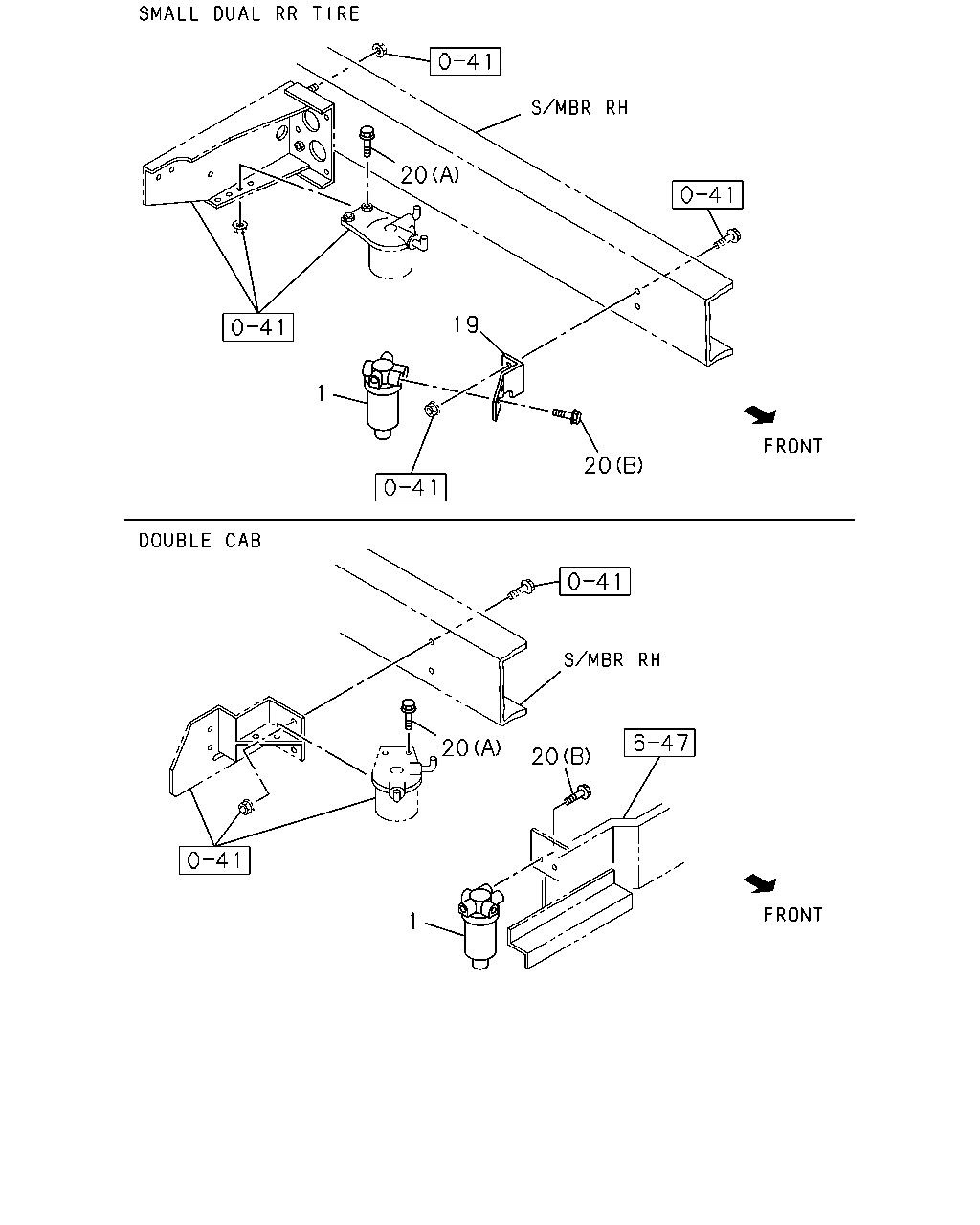

çizim 11997
20 19 1 20 20 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 0211-0501 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0502-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0607-1404 ● ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0607-1404 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0607-1404 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014<VZE> 		8-97081-815-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1405-1405 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-97081-815-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1406- ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-2 01 1 0211-0501 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0502-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0607-1404 ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0607-1404 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0607-1404 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WIT H HEATER<6HU> 		8-97081-814-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1406- ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1406- ●
19 03.890 BRACKET; FUEL SEDIMENTER 8-94366-685-0 01 1 0211- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
VIN MODEL YEAR 2014<VZE> 03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1405-1405 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.685 (A) M10X30 FLANGE 		0-28081-030-0 02 1 0211-0512 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
(A) M10X30 FLANGE 		0-28051-030-0 02 1 0601-1404 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
EXC. VIN MODEL YEAR 2014<VZE> (A) M10X30 FLANGE 		0-28051-030-0 02 1 1405-1405 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
(A) M10X30 FLANGE 		0-28051-030-0 02 1 1405-1405 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) M10X30 FLANGE 		0-28051-030-0 02 1 1406- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
(A) M10X30 FLANGE 		0-28051-030-0 02 1 1406- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-1404 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
EXC. VIN MODEL YEAR 2014<VZE> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1405-1405 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1405-1405 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1406- ● ● ● ● ●

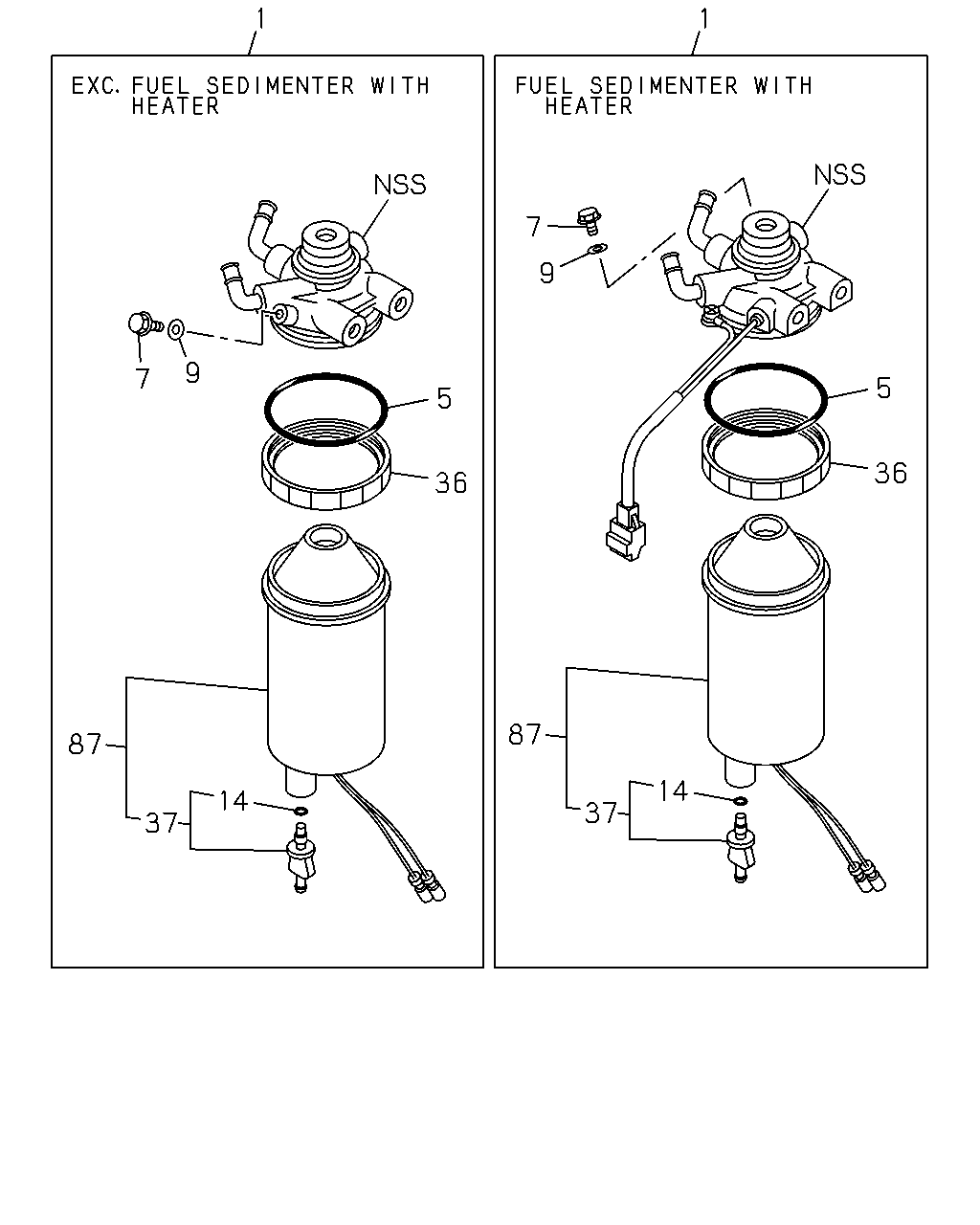

çizim 50480
1 1 7 9 9 7 5 5 36 36 87 87 14 14 37 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 0211-0501 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0502-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0607-1404 ● ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0607-1404 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 0607-1404 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014<VZE> 		8-97081-815-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1405-1405 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-97081-815-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1406- ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-2 01 1 0211-0501 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0502-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0502-0606 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0607-1404 ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0607-1404 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 0607-1404 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1405-1405 ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WIT H HEATER<6HU> 		8-97081-814-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1406- ● ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1406- ●
1 03.890 SEDIMENTER; FUEL
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-3 01 1 1406- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 0211-0501 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 0502-0606 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		5-09623-075-0 01 1 0502-0606 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		5-09623-075-0 01 1 0502-0606 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		5-09623-075-0 01 1 0607-1404 ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 0607-1404 ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		5-09623-075-0 01 1 0607-1404 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE> 		5-09623-075-0 01 1 1405-1405 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 1405-1405 ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		5-09623-075-0 01 1 1405-1405 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		5-09623-075-0 01 1 1405-1405 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		5-09623-075-0 01 1 1406- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 1406- ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		5-09623-075-0 01 1 1406- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		5-09623-075-0 01 1 1406- ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0211-0501 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0502-0606 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94132-674-0 01 1 0502-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94132-674-0 01 1 0502-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94132-674-0 01 1 0607-1404 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0607-1404 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94132-674-0 01 1 0607-1404 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE> 		8-94132-674-0 01 1 1405-1405 ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 1405-1405 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94132-674-0 01 1 1405-1405 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94132-674-0 01 1 1405-1405 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-94132-674-0 01 1 1406- ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 1406- ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94132-674-0 01 1 1406- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94132-674-0 01 1 1406- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 0211-0501 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 0502-0606 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94132-675-0 01 1 0502-0606 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94132-675-0 01 1 0502-0606 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94132-675-0 01 1 0607-1404 ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 0607-1404 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94132-675-0 01 1 0607-1404 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE> 		8-94132-675-0 01 1 1405-1405 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 1405-1405 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94132-675-0 01 1 1405-1405 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94132-675-0 01 1 1405-1405 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-94132-675-0 01 1 1406- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 1406- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94132-675-0 01 1 1406- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94132-675-0 01 1 1406- ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 0211-0501 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 0502-0606 ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94447-156-0 01 1 0502-0606 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94447-156-0 01 1 0502-0606 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94447-156-0 01 1 0607-1404 ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 0607-1404 ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94447-156-0 01 1 0607-1404 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE> 		8-94447-156-0 01 1 1405-1405 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 1405-1405 ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94447-156-0 01 1 1405-1405 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94447-156-0 01 1 1405-1405 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-94447-156-0 01 1 1406- ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 1406- ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94447-156-0 01 1 1406- ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94447-156-0 01 1 1406- ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 0211-0501 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 0502-0606 ● ● ● ●
36 03.890 RING; BODY TO CASE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		5-13234-001-0 01 1 0502-0606 ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		5-13234-001-0 01 1 0502-0606 ●
36 03.890 RING; BODY TO CASE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		5-13234-001-0 01 1 0607-1404 ● ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 0607-1404 ● ● ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		5-13234-001-0 01 1 0607-1404 ●
36 03.890 RING; BODY TO CASE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE> 		5-13234-001-0 01 1 1405-1405 ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 1405-1405 ● ● ●
36 03.890 RING; BODY TO CASE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		5-13234-001-0 01 1 1405-1405 ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		5-13234-001-0 01 1 1405-1405 ●
36 03.890 RING; BODY TO CASE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		5-13234-001-0 01 1 1406- ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 1406- ● ● ●
36 03.890 RING; BODY TO CASE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		5-13234-001-0 01 1 1406- ●
36 03.890 RING; BODY TO CASE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		5-13234-001-0 01 1 1406- ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 0211-0501 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 0502-0606 ● ● ● ●
37 03.890 PLUG; SENSOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94453-746-0 01 1 0502-0606 ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94453-746-0 01 1 0502-0606 ●
37 03.890 PLUG; SENSOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94453-746-0 01 1 0607-1404 ● ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 0607-1404 ● ● ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94453-746-0 01 1 0607-1404 ●
37 03.890 PLUG; SENSOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE> 		8-94453-746-0 01 1 1405-1405 ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 1405-1405 ● ● ●
37 03.890 PLUG; SENSOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94453-746-0 01 1 1405-1405 ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94453-746-0 01 1 1405-1405 ●
37 03.890 PLUG; SENSOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-94453-746-0 01 1 1406- ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 1406- ● ● ●
37 03.890 PLUG; SENSOR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-94453-746-0 01 1 1406- ●
37 03.890 PLUG; SENSOR
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-94453-746-0 01 1 1406- ●
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-0 01 1 0211-0501 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-1 01 1 0502-0606 ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97219-363-1 01 1 0502-0606 ●
87 03.890 CASE ASM; SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97219-363-1 01 1 0502-0606 ●
87 03.890 CASE ASM; SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97219-363-1 01 1 0607-1404 ● ●
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-1 01 1 0607-1404 ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97219-363-1 01 1 0607-1404 ●
87 03.890 CASE ASM; SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE> 		8-97219-363-1 01 1 1405-1405 ●
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-1 01 1 1405-1405 ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97219-363-1 01 1 1405-1405 ●
87 03.890 CASE ASM; SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97219-363-1 01 1 1405-1405 ●
87 03.890 CASE ASM; SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-97219-363-1 01 1 1406- ●
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-1 01 1 1406- ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97219-363-1 01 1 1406- ●
87 03.890 CASE ASM; SEDIMENTER
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97219-363-1 01 1 1406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
