Sayfa 1-41 - Isuzu EPC

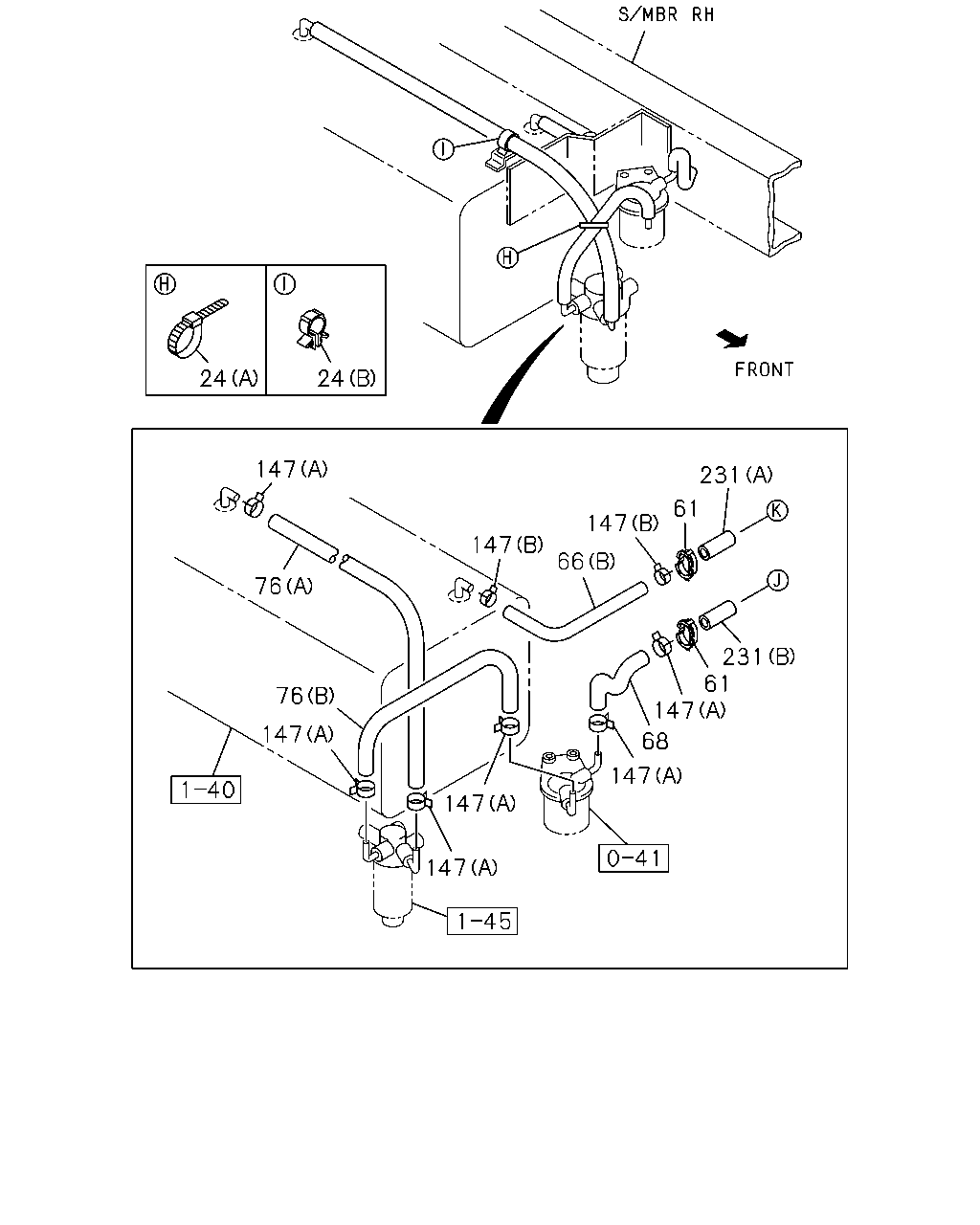

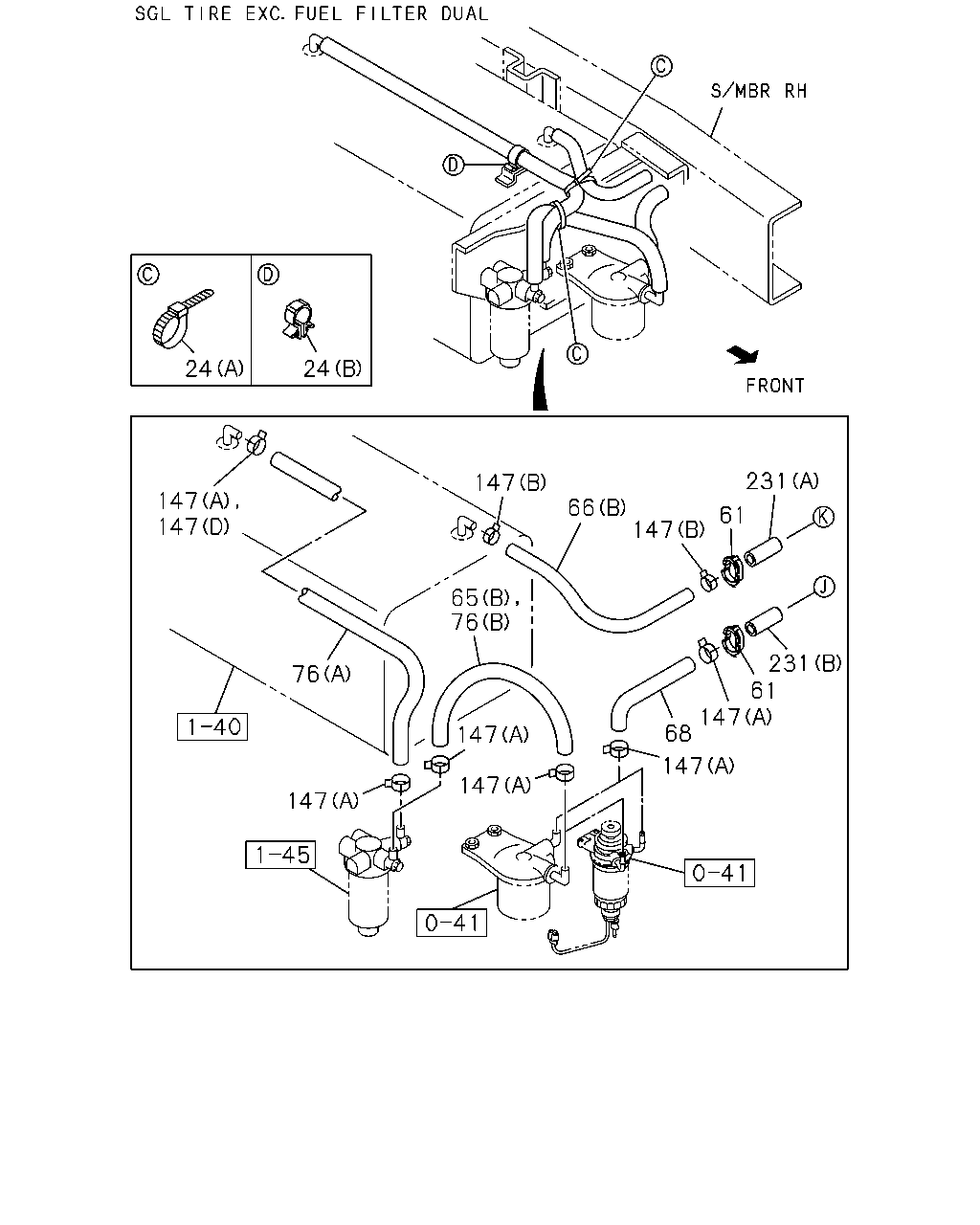

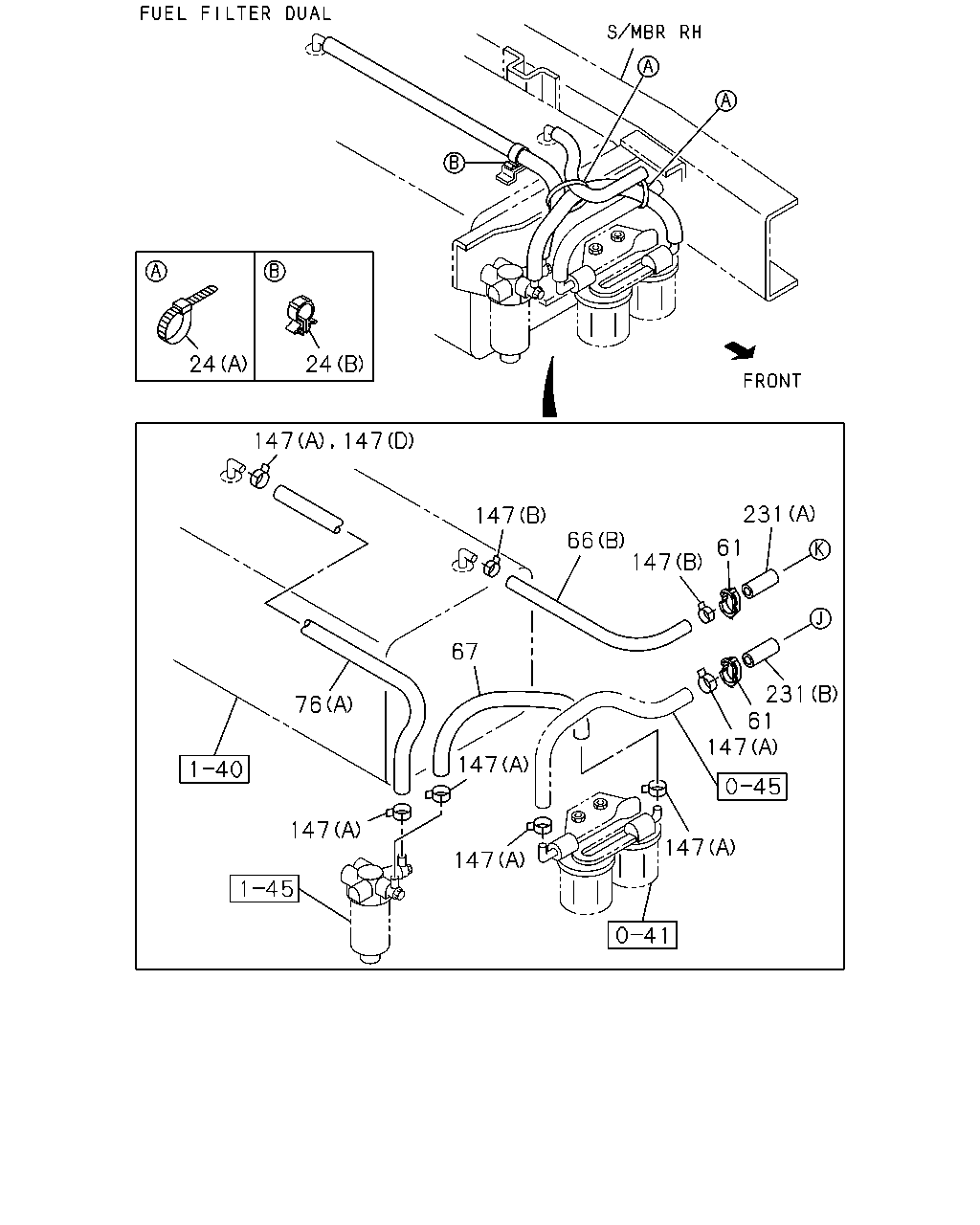

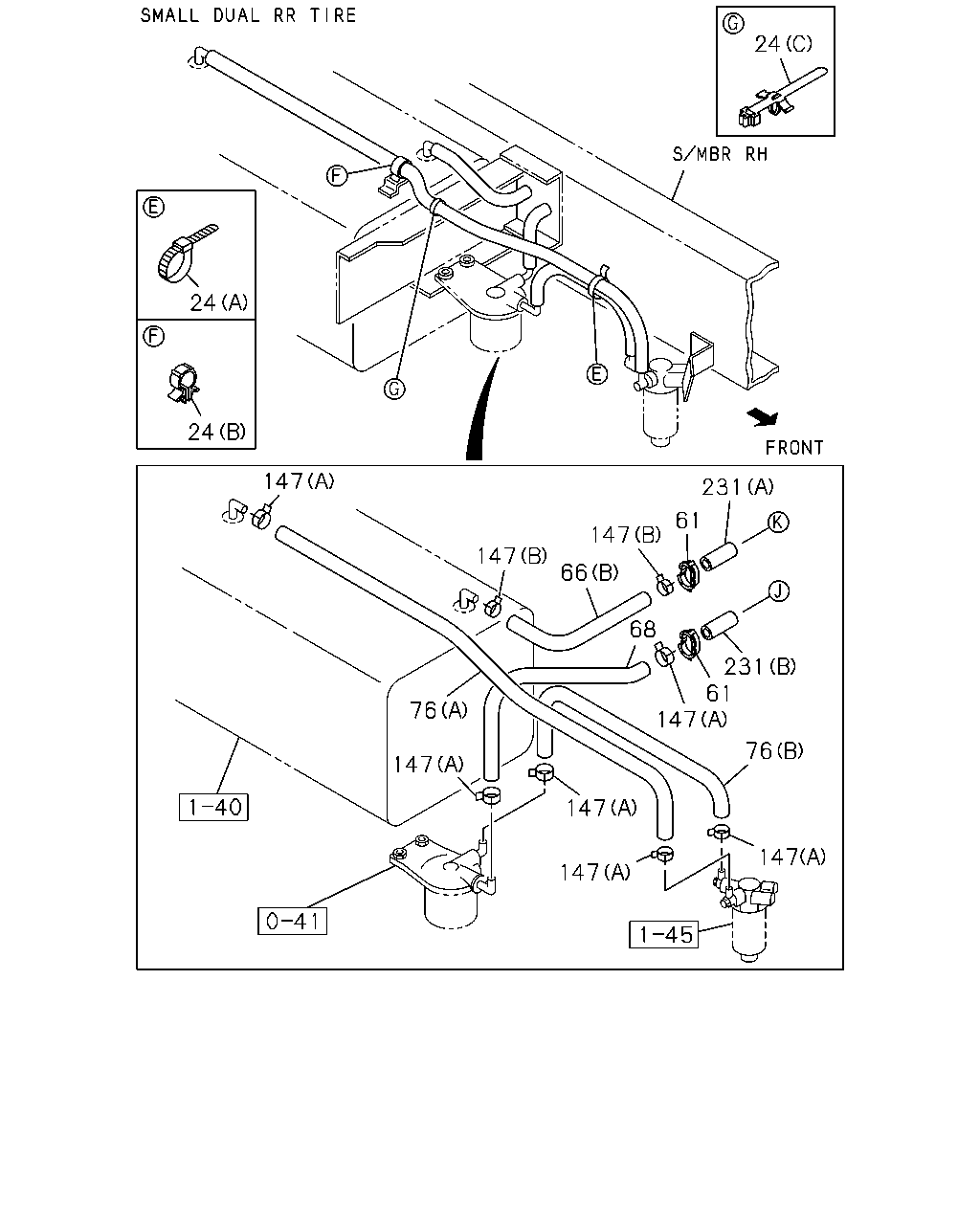

1-41 — FUEL PIPING; CHASSIS (#43948) — 552 parça

24 24 147 147 147 147 66 61 231 65 76 147 147 147 68 147 61 231 147 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0211-0212	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B)	8-97089-536-0	01	1	0301-	●		●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0301-		●		●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	0211-1404	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 02.559 (A) L=250	5-09707-030-1	01	1	1406-	●
24	03.162 CLIP; FUEL HOSE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1406-	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	1406-			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0211-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0211-					●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0211-1404	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0211-1404		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE> (A) L=140	5-09707-031-1	02	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1405-1405		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1405-1405			●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) L=140	5-09707-031-1	02	1	1406-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1406-		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1406-			●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> BIO DIESEL FUEL B10<8NV> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=520 SERVICED BY L=3000	0-01859-300-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (B) L=520 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
65	03.163 HOSE; FUEL,DELIVERY PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (B) L=520 SERVICED BY L=3000	0-01259-300-0	01	1	1406-1410	●
65	03.163 HOSE; FUEL,DELIVERY PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX>,BIO DIESEL FUEL B10<8NV> 03.003 (B) L=520 SERVICED BY L=3000	0-01259-300-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-1410	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1411-		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> BIO DIESEL FUEL B10<8NV> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01855-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1406-1410	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX>,BIO DIESEL FUEL B10<8NV> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-1410	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1411-		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-1404	●		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. VIN MODEL YEAR 2014<VZE>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405			●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL TANK 75 LITTER"NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1406-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1406-			●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0301-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0211-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	0211-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	0211-1404	●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	0211-1404					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>	8-97091-765-0	01	1	1405-1405	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	1405-1405			●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	1405-1405					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-97091-765-0	01	1	1406-	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	1406-			●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	1406-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0211-		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> BIO DIESEL FUEL B10<8NV> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) L=600 SERVICED BY L=3000	0-01859-300-0	01	1	1411-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0301-1404	●		●
76	03.163 HOSE; FUEL,TANK EXC. VIN MODEL YEAR 2014<VZE>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405			●
76	03.163 HOSE; FUEL,TANK EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL TANK 75 LITTER"NON BOX TYPE"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1406-	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1406-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) L=350	8-97353-528-0	01	1	0301-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-1404	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405			●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1406-	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1406-			●
76	03.163 HOSE; FUEL,TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. FUEL FILTER DUAL<S6B> (A) L=380	8-97353-524-0	01	1	0301-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0211-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0211-1404		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1406-1410	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1406-1410		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX>,BIO DIESEL FUEL B10<8NV> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1411-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1411-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0211-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0211-0602					●	●
76	03.163 HOSE; FUEL,TANK 4JB1 NA ENG(RLF) (A)	8-97107-495-1	01	1	0603-0603					●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0603-0603						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97107-495-1	01	1	0604-					●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0604-						●
147	03.162 CLIP; FUEL PIPE TO HOSE BIO DIESEL FUEL B10<8NV> 01.240 (B) ID=12	8-98150-358-0	06	1	1411-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. VIN MODEL YEAR 2014<VZE> (A) ID=16	8-98008-098-0	09	1	1405-1405	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	1405-1405		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) ID=16	8-98008-098-0	09	1	1406-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	1406-		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0211-1410	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	0211-0212	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	09	1	0301-0911	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-1404	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	07	1	1405-1405	●
147	03.162 CLIP; FUEL PIPE TO HOSE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	07	1	1406-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0911	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-1410	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=13	8-98150-357-0	06	1	1411-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	1411-		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0301	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0911	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0911		●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	01	1	0912-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-		●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.762 (D) ID=19	8-94238-569-0	01	1	0301-0911	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (D) ID=19	8-98150-356-0	01	1	0912-	●		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0211-	●	●	●	●	●	●

231 61 147 147 66 231 61 147 147 147 147 76 67 147 147 147 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0211-0212	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B)	8-97089-536-0	01	1	0301-	●		●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0301-		●		●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	0211-1404	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 02.559 (A) L=250	5-09707-030-1	01	1	1406-	●
24	03.162 CLIP; FUEL HOSE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1406-	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	1406-			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0211-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0211-					●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0211-1404	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0211-1404		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE> (A) L=140	5-09707-031-1	02	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1405-1405		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1405-1405			●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) L=140	5-09707-031-1	02	1	1406-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1406-		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1406-			●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> BIO DIESEL FUEL B10<8NV> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01855-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1406-1410	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX>,BIO DIESEL FUEL B10<8NV> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-1410	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1411-		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-1404	●		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. VIN MODEL YEAR 2014<VZE>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405			●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL TANK 75 LITTER"NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1406-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1406-			●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0301-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0211-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	0211-					●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> 03.003 L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0301-	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.003 L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0301-	●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> BIO DIESEL FUEL B10<8NV> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) L=600 SERVICED BY L=3000	0-01859-300-0	01	1	1411-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0301-1404	●		●
76	03.163 HOSE; FUEL,TANK EXC. VIN MODEL YEAR 2014<VZE>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405			●
76	03.163 HOSE; FUEL,TANK EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL TANK 75 LITTER"NON BOX TYPE"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1406-	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1406-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) L=350	8-97353-528-0	01	1	0301-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-1404	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405			●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1406-	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1406-			●
76	03.163 HOSE; FUEL,TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. FUEL FILTER DUAL<S6B> (A) L=380	8-97353-524-0	01	1	0301-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0211-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0211-1404		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1406-1410	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1406-1410		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX>,BIO DIESEL FUEL B10<8NV> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1411-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1411-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0211-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0211-0602					●	●
76	03.163 HOSE; FUEL,TANK 4JB1 NA ENG(RLF) (A)	8-97107-495-1	01	1	0603-0603					●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0603-0603						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97107-495-1	01	1	0604-					●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0604-						●
147	03.162 CLIP; FUEL PIPE TO HOSE BIO DIESEL FUEL B10<8NV> 01.240 (B) ID=12	8-98150-358-0	06	1	1411-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. VIN MODEL YEAR 2014<VZE> (A) ID=16	8-98008-098-0	09	1	1405-1405	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	1405-1405		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) ID=16	8-98008-098-0	09	1	1406-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	1406-		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0211-1410	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	0211-0212	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	09	1	0301-0911	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-1404	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	07	1	1405-1405	●
147	03.162 CLIP; FUEL PIPE TO HOSE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	07	1	1406-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0911	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-1410	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=13	8-98150-357-0	06	1	1411-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	1411-		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0301	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0911	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0911		●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	01	1	0912-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-		●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.762 (D) ID=19	8-94238-569-0	01	1	0301-0911	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (D) ID=19	8-98150-356-0	01	1	0912-	●		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0211-	●	●	●	●	●	●

24 24 147 231 61 147 147 66 76 231 61 147 76 147 68 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0211-0212	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B)	8-97089-536-0	01	1	0301-	●		●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0301-		●		●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	0211-1404	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 02.559 (A) L=250	5-09707-030-1	01	1	1406-	●
24	03.162 CLIP; FUEL HOSE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1406-	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	1406-			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0211-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0211-					●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0211-1404	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0211-1404		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE> (A) L=140	5-09707-031-1	02	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1405-1405		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1405-1405			●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) L=140	5-09707-031-1	02	1	1406-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1406-		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1406-			●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> BIO DIESEL FUEL B10<8NV> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01855-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1406-1410	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX>,BIO DIESEL FUEL B10<8NV> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-1410	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1411-		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-1404	●		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. VIN MODEL YEAR 2014<VZE>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405			●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL TANK 75 LITTER"NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1406-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1406-			●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0301-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0211-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	0211-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	0211-1404	●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	0211-1404					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>	8-97091-765-0	01	1	1405-1405	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	1405-1405			●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	1405-1405					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-97091-765-0	01	1	1406-	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	1406-			●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	1406-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0211-		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> BIO DIESEL FUEL B10<8NV> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) L=600 SERVICED BY L=3000	0-01859-300-0	01	1	1411-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0301-1404	●		●
76	03.163 HOSE; FUEL,TANK EXC. VIN MODEL YEAR 2014<VZE>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405			●
76	03.163 HOSE; FUEL,TANK EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL TANK 75 LITTER"NON BOX TYPE"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1406-	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1406-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) L=350	8-97353-528-0	01	1	0301-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-1404	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405			●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1406-	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1406-			●
76	03.163 HOSE; FUEL,TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. FUEL FILTER DUAL<S6B> (A) L=380	8-97353-524-0	01	1	0301-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0211-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0211-1404		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1406-1410	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1406-1410		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX>,BIO DIESEL FUEL B10<8NV> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1411-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1411-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0211-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0211-0602					●	●
76	03.163 HOSE; FUEL,TANK 4JB1 NA ENG(RLF) (A)	8-97107-495-1	01	1	0603-0603					●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0603-0603						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97107-495-1	01	1	0604-					●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0604-						●
147	03.162 CLIP; FUEL PIPE TO HOSE BIO DIESEL FUEL B10<8NV> 01.240 (B) ID=12	8-98150-358-0	06	1	1411-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. VIN MODEL YEAR 2014<VZE> (A) ID=16	8-98008-098-0	09	1	1405-1405	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	1405-1405		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) ID=16	8-98008-098-0	09	1	1406-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	1406-		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0211-1410	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	0211-0212	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	09	1	0301-0911	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-1404	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	07	1	1405-1405	●
147	03.162 CLIP; FUEL PIPE TO HOSE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	07	1	1406-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0911	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-1410	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=13	8-98150-357-0	06	1	1411-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	1411-		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0301	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0911	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0911		●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	01	1	0912-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-		●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.762 (D) ID=19	8-94238-569-0	01	1	0301-0911	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (D) ID=19	8-98150-356-0	01	1	0912-	●		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0211-	●	●	●	●	●	●

51 147 45 47 147 147 81 79 147 66 147 78 147 65 147 147 14 62 46 39 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.162 CLIP; HOSE CHARGE AIR COOLER<6PL> 09.242 ID=22 L=22	5-83574-045-0	01	1	0211-0501			●
14	03.162 CLIP; HOSE 4JB1-TC ENG(RDT) 09.242 ID=22 L=22	5-83574-045-0	01	1	0502-0606			●
14	03.162 CLIP; HOSE 4JB1-TC ENG(RDT) 09.242 ID=22 L=22	5-83574-045-0	01	1	0607-1201	●		●
14	03.162 CLIP; HOSE 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) 09.242 ID=22 L=22	5-83574-045-0	01	1	1202-	●
39	03.163 PIPE; FUEL	8-97090-339-3	01	1	0211-	●		●		●	●
39	03.163 PIPE; FUEL	8-97089-641-4	01	1	0211-		●		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(S4S)	8-98192-830-0	01	1	1202-	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT)	8-98192-830-0	01	1	1202-			●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0211-0501	●	●		●		●
45	03.163 PIPE; FUEL,DELIVERY EXC. CHARGE AIR COOLER<6PL>	8-97090-340-3	01	1	0211-0501			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 NA ENG(RLF)	8-97090-340-3	01	1	0211-0501					●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0502-0606	●	●		●		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 NA ENG(RLF)	8-97090-340-3	01	1	0502-0606			●		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 NA ENG(RLF)	8-97090-340-3	01	1	0607-	●		●		●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0607-		●		●		●
45	03.163 PIPE; FUEL,DELIVERY CHARGE AIR COOLER<6PL>	8-97260-217-0	01	1	0211-0501			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT)	8-97260-217-0	01	1	0502-0606			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT)	8-97260-217-0	01	1	0607-1201	●		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S)	8-97260-217-0	01	1	1202-	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EURO2 SPECIFICATION(NT2)	8-97035-639-3	01	1	0211-					●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP>	8-97245-279-0	01	1	0211-0501					●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) LOW EMISSION VEHICLE PACKAGE<7VP>	8-97245-279-0	01	1	0502-					●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-972-3	01	1	0211-	●		●		●	●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-971-4	01	1	0211-		●		●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(S4S)	8-98204-243-0	01	1	1202-	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT)	8-98204-243-0	01	1	1202-			●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	0211-0501	●	●	●	●		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) EURO2 SPECIFICATION(NT2)	8-97080-712-5	01	1	0211-0501					●
47	03.163 PIPE; FUEL,RETURN 4JB1 NA ENG(RLF)	8-97080-712-5	01	1	0211-0501					●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	0502-0606	●	●		●		●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97080-712-5	01	1	0502-0606			●
47	03.163 PIPE; FUEL,RETURN 4JB1 NA ENG(RLF)	8-97080-712-5	01	1	0502-0606					●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) EURO2 SPECIFICATION(NT2)	8-97080-712-5	01	1	0502-0606					●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97080-712-5	01	1	0607-1201	●		●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	0607-1201		●		●		●
47	03.163 PIPE; FUEL,RETURN 4JB1 NA ENG(RLF)	8-97080-712-5	01	1	0607-1201					●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) EURO2 SPECIFICATION(NT2)	8-97080-712-5	01	1	0607-1201					●
47	03.163 PIPE; FUEL,RETURN 4JB1 NA ENG(RLF)	8-97080-712-5	01	1	1202-	●		●		●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S)	8-97080-712-5	01	1	1202-	●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	1202-		●		●		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) EURO2 SPECIFICATION(NT2)	8-97080-712-5	01	1	1202-					●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP>	8-97245-280-1	01	1	0211-0501					●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC) LOW EMISSION VEHICLE PACKAGE<7VP>	8-97245-280-1	01	1	0502-					●
51	03.162 NUT; CLIP,PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	0211-0602	●	●	●	●	●	●
51	03.162 NUT; CLIP,PIPE 01.062 M6 FLANGE	0-91180-106-0	03	1	0603-	●	●	●	●	●	●
62	03.162 BOLT; CLIP FIX CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501			●
62	03.162 BOLT; CLIP FIX 4JB1-TC ENG(RDT) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512			●
62	03.162 BOLT; CLIP FIX 4JB1-TC ENG(RDT) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606			●
62	03.162 BOLT; CLIP FIX 4JB1-TC ENG(RDT) M6X12 FLANGE	0-28050-612-0	01	1	0607-1201	●		●
62	03.162 BOLT; CLIP FIX 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) M6X12 FLANGE	0-28050-612-0	01	1	1202-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> BIO DIESEL FUEL B10<8NV> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=520 SERVICED BY L=3000	0-01859-300-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (B) L=520 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
65	03.163 HOSE; FUEL,DELIVERY PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (B) L=520 SERVICED BY L=3000	0-01259-300-0	01	1	1406-1410	●
65	03.163 HOSE; FUEL,DELIVERY PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX>,BIO DIESEL FUEL B10<8NV> 03.003 (B) L=520 SERVICED BY L=3000	0-01259-300-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-1410	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1411-		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> BIO DIESEL FUEL B10<8NV> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01855-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1406-1410	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX>,BIO DIESEL FUEL B10<8NV> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-1410	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1411-		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-1404	●		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. VIN MODEL YEAR 2014<VZE>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405			●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL TANK 75 LITTER"NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1406-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1406-			●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0301-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0211-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	0211-					●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) BIO DIESEL FUEL B10<8NV>	8-98289-250-0	01	1	1411-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(S4S)	8-98201-250-0	01	1	1202-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1-TC ENG(RDT)	8-98201-250-0	01	1	1202-			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501	●	●		●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE EXC. CHARGE AIR COOLER<6PL> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 NA ENG(RLF) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501					●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0606	●	●		●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 NA ENG(RLF) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0606			●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 NA ENG(RLF) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●		●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0607-		●		●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0211-0501			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1-TC ENG(RDT)	8-97222-766-0	01	1	0502-0606			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1-TC ENG(RDT)	8-97222-766-0	01	1	0607-1201	●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S)	8-97222-766-0	01	1	1202-1410	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) EXC. BIO DIESEL FUEL B10<8NV>	8-97222-766-0	01	1	1411-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) EURO2 SPECIFICATION(NT2) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0211-					●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 03.003 L=330 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501					●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) LOW EMISSION VEHICLE PACKAGE<7VP> 03.003 L=330 SERVICED BY L=3000	0-01259-300-0	01	1	0502-					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) BIO DIESEL FUEL B10<8NV> L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1411-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(S4S)	8-98201-251-0	01	1	1202-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT)	8-98201-251-0	01	1	1202-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●	●	●	●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) EURO2 SPECIFICATION(NT2) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1 NA ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0606	●	●		●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0606			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1 NA ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0606					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) EURO2 SPECIFICATION(NT2) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0606					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0607-1201	●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0607-1201		●		●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1 NA ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0607-1201					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) EURO2 SPECIFICATION(NT2) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0607-1201					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1 NA ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1202-1410	●		●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1202-1410	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1202-1410		●		●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) EURO2 SPECIFICATION(NT2) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1202-1410					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1 NA ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●		●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(S4S) EXC. BIO DIESEL FUEL B10<8NV> L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1411-		●		●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) EURO2 SPECIFICATION(NT2) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1411-					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> L=200 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) LOW EMISSION VEHICLE PACKAGE<7VP> L=200 SERVICED BY L=3000	0-01256-300-0	01	1	0502-					●
81	03.162 CLIP; FUEL HOSE TO HOSE 4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 02.589 ID=13 & 16.5	8-94169-028-0	01	1	0211-0501					●
81	03.162 CLIP; FUEL HOSE TO HOSE 4JG2 ENG(RJC) LOW EMISSION VEHICLE PACKAGE<7VP> 02.589 ID=13 & 16.5	8-94169-028-0	01	1	0502-					●
147	03.162 CLIP; FUEL PIPE TO HOSE BIO DIESEL FUEL B10<8NV> 01.240 (B) ID=12	8-98150-358-0	06	1	1411-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. VIN MODEL YEAR 2014<VZE> (A) ID=16	8-98008-098-0	09	1	1405-1405	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	1405-1405		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) ID=16	8-98008-098-0	09	1	1406-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	1406-		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0211-1410	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	0211-0212	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	09	1	0301-0911	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-1404	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	07	1	1405-1405	●
147	03.162 CLIP; FUEL PIPE TO HOSE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	07	1	1406-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0911	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-1410	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=13	8-98150-357-0	06	1	1411-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	1411-		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0301	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0911	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0911		●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	01	1	0912-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-		●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.762 (D) ID=19	8-94238-569-0	01	1	0301-0911	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (D) ID=19	8-98150-356-0	01	1	0912-	●		●

24 24 24 147 231 61 147 147 66 68 231 61 147 76 76 147 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0211-0212	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B)	8-97089-536-0	01	1	0301-	●		●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0301-		●		●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	0211-1404	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	1405-1405			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 02.559 (A) L=250	5-09707-030-1	01	1	1406-	●
24	03.162 CLIP; FUEL HOSE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1406-	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	1406-			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0211-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0211-					●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0211-1404	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0211-1404		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE> (A) L=140	5-09707-031-1	02	1	1405-1405	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1405-1405		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1405-1405			●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) L=140	5-09707-031-1	02	1	1406-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1406-		●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1406-			●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> BIO DIESEL FUEL B10<8NV> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01855-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1406-1410	●
66	03.163 HOSE; FUEL,RETURN PIPE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX>,BIO DIESEL FUEL B10<8NV> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-1410	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1411-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1411-		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-1404	●		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. VIN MODEL YEAR 2014<VZE>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1405-1405			●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL TANK 75 LITTER"NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1406-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	1406-			●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0301-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0211-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	0211-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	0211-1404	●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	0211-1404					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>	8-97091-765-0	01	1	1405-1405	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	1405-1405			●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	1405-1405					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-97091-765-0	01	1	1406-	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	1406-			●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	1406-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0211-		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> BIO DIESEL FUEL B10<8NV> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) L=600 SERVICED BY L=3000	0-01859-300-0	01	1	1411-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0301-1404	●		●
76	03.163 HOSE; FUEL,TANK EXC. VIN MODEL YEAR 2014<VZE>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405			●
76	03.163 HOSE; FUEL,TANK EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,FUEL TANK 75 LITTER"NON BOX TYPE"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1406-	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	1406-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) L=350	8-97353-528-0	01	1	0301-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-1404	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405			●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1406-	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1406-			●
76	03.163 HOSE; FUEL,TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. FUEL FILTER DUAL<S6B> (A) L=380	8-97353-524-0	01	1	0301-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0211-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0211-1404		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1405-1405		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1406-1410	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1406-1410		●		●
76	03.163 HOSE; FUEL,TANK VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX>,BIO DIESEL FUEL B10<8NV> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1411-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1411-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0211-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0211-0602					●	●
76	03.163 HOSE; FUEL,TANK 4JB1 NA ENG(RLF) (A)	8-97107-495-1	01	1	0603-0603					●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0603-0603						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A)	8-97107-495-1	01	1	0604-					●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0604-						●
147	03.162 CLIP; FUEL PIPE TO HOSE BIO DIESEL FUEL B10<8NV> 01.240 (B) ID=12	8-98150-358-0	06	1	1411-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. VIN MODEL YEAR 2014<VZE> (A) ID=16	8-98008-098-0	09	1	1405-1405	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	1405-1405		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A) ID=16	8-98008-098-0	09	1	1406-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	1406-		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0211-1410	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	0211-0212	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	09	1	0301-0911	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-1404	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE VIN MODEL YEAR 2014<VZE> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	07	1	1405-1405	●
147	03.162 CLIP; FUEL PIPE TO HOSE VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	07	1	1406-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0911	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-1410	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=13	8-98150-357-0	06	1	1411-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	1411-		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0301	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0911	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0911		●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYP E"<7GX> (A) ID=16	8-98008-098-0	01	1	0912-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-		●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.762 (D) ID=19	8-94238-569-0	01	1	0301-0911	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (D) ID=19	8-98150-356-0	01	1	0912-	●		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0211-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
