Sayfa 1-11 - Isuzu EPC

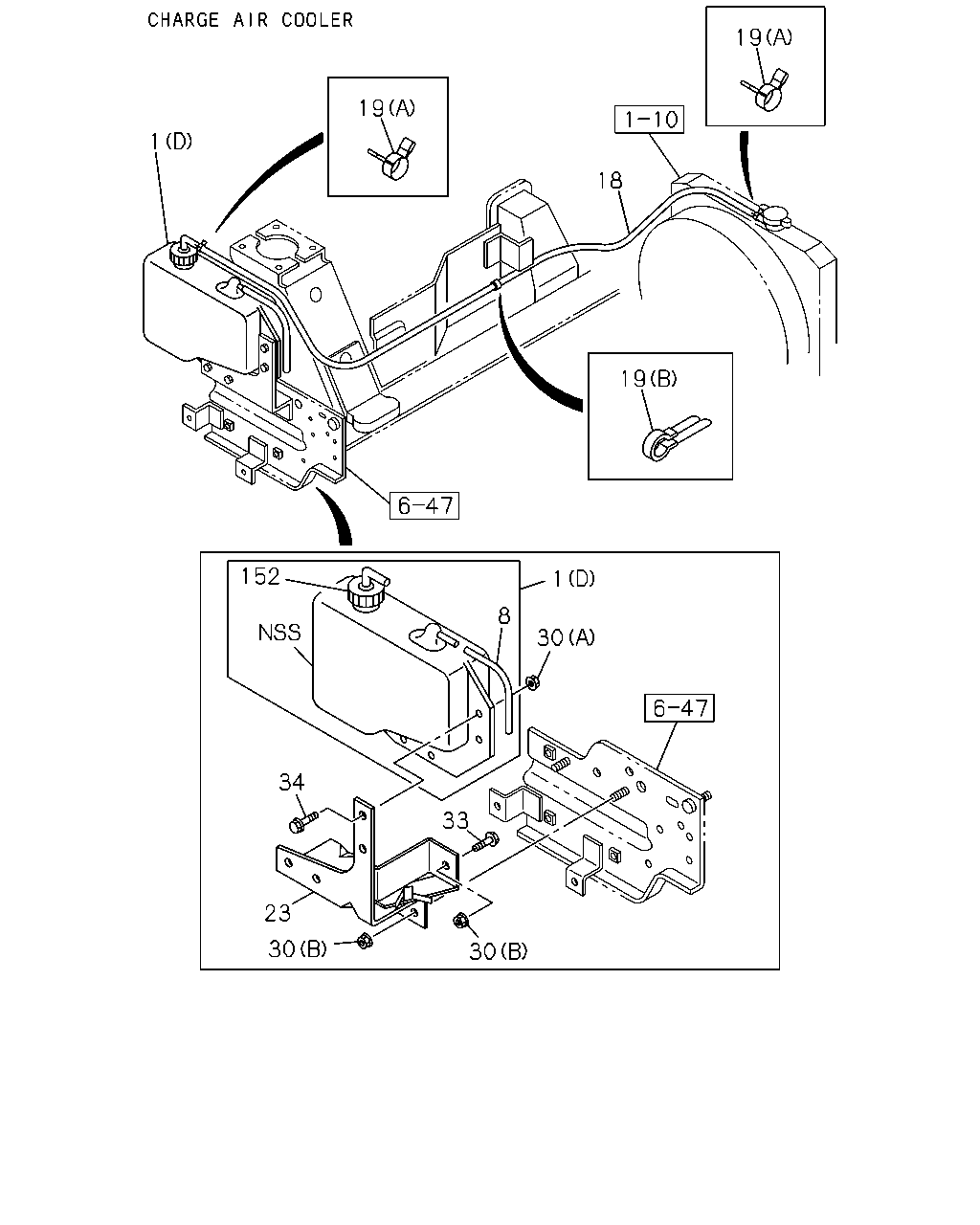

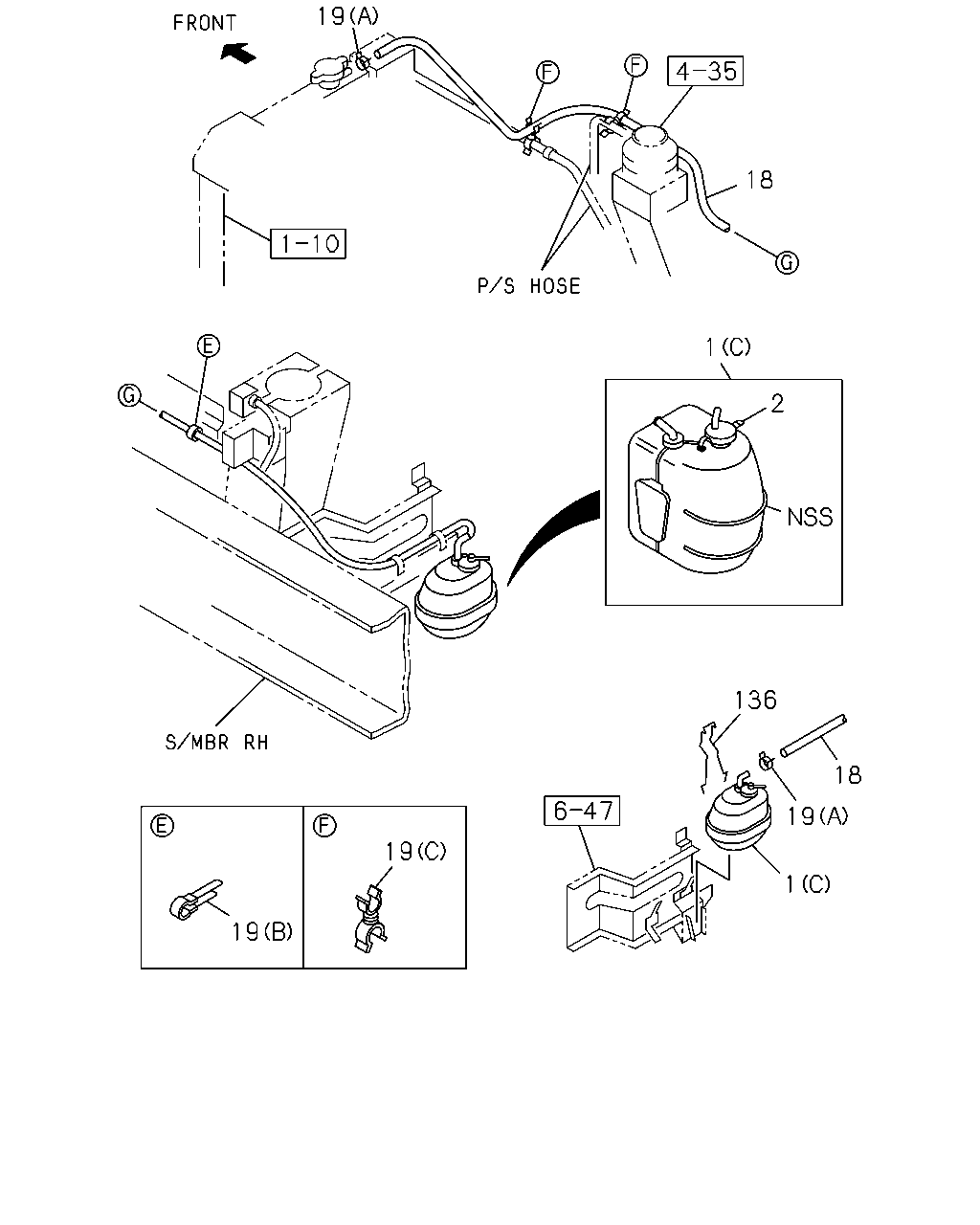

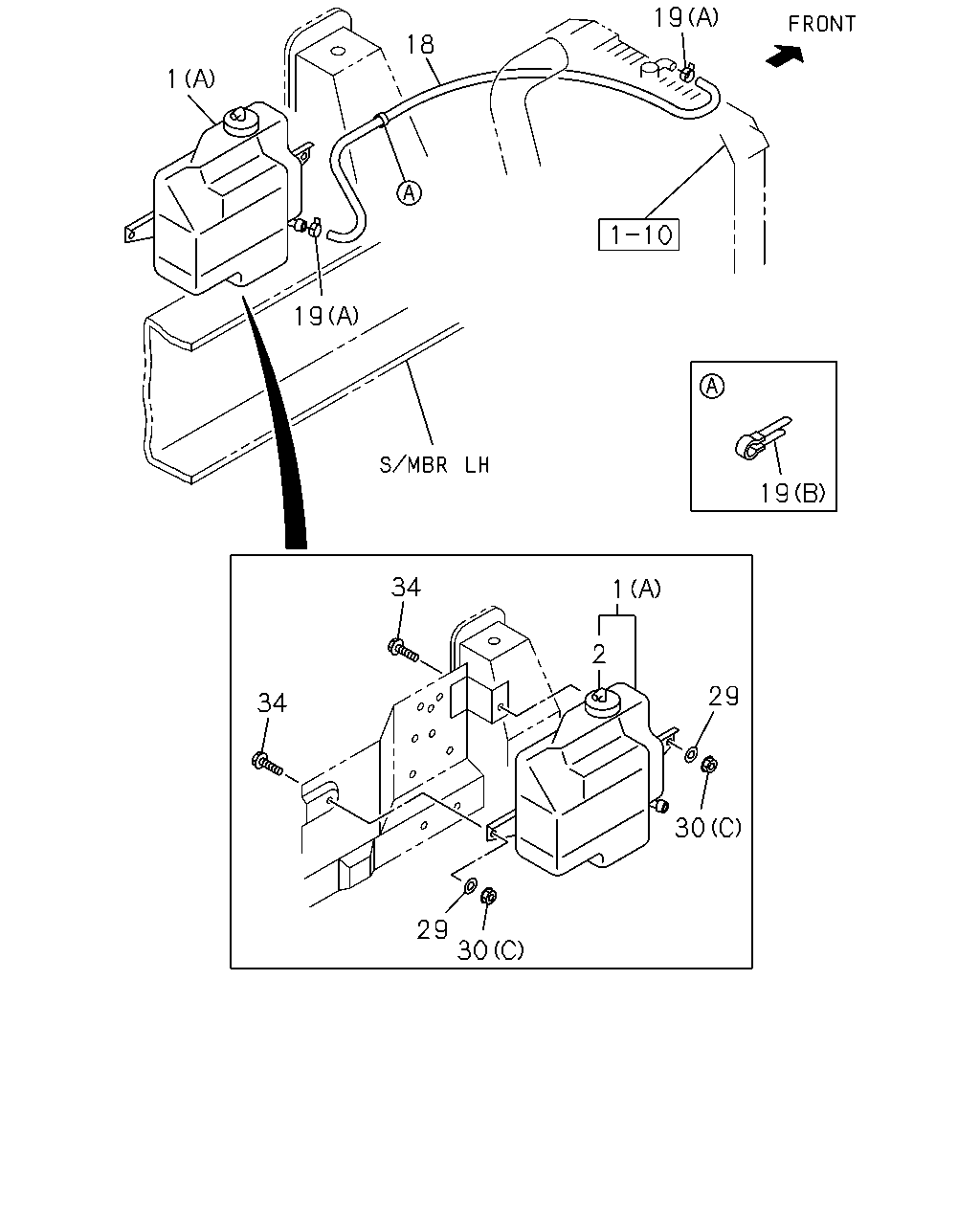

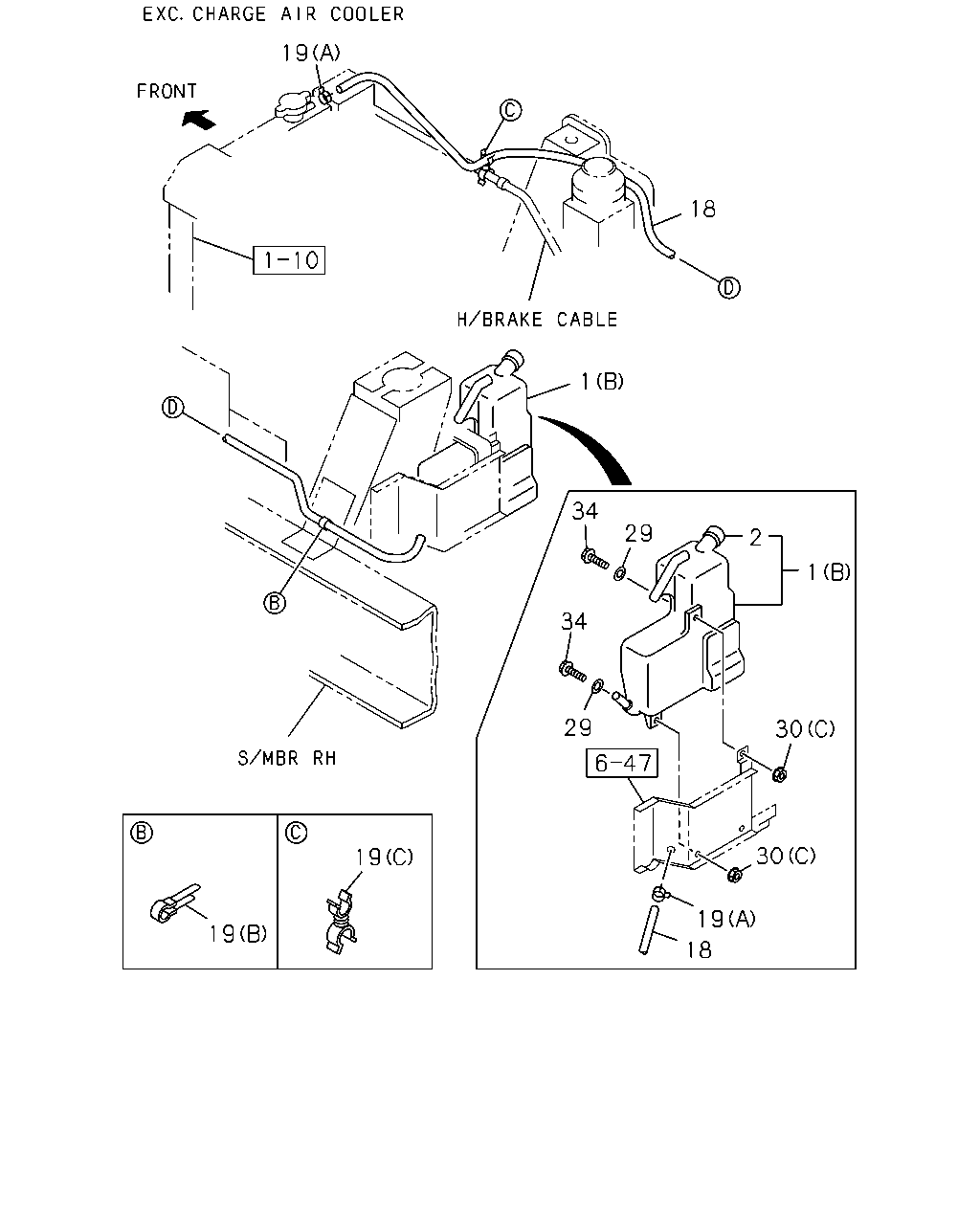

1-11 — RADIATOR HOSE AND SUB TANK (#43943) — 491 parça

19 18 1 19 19 34 1 2 29 34 30 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0211-0501	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97138-509-0	01	1	0211-0501		●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0502-0606	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0502-0606		●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0607-	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0211-0501	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0211-0501			●	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0502-0506	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0502-0506			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0507-0606	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0507-0606		●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97210-844-0	01	1	0507-0606			●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0507-0606				●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0607-1010	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97210-844-0	01	1	0607-1010			●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0607-1010				●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-98178-177-0	01	1	1011-	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-98178-177-0	01	1	1011-			●
1	01.219 TANK; SURGE,RAD (B)	8-98178-177-0	01	1	1011-				●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	0211-					●	●
1	01.219 TANK; SURGE,RAD CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0211-0501		●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (D)	8-97205-136-1	01	1	0502-0606		●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (D)	8-97205-136-1	01	1	0607-	●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0211-0501	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0211-0501					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0211-0501		●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0502-0606	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0502-0606					●	●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0502-0606		●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0607-	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0607-					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0211-0501	●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0211-0501			●	●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0502-0506	●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0502-0506			●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0507-0606	●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0507-0606		●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97217-796-0	01	1	0507-0606			●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0507-0606				●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0607-1010	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97217-796-0	01	1	0607-1010			●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0607-1010				●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-98178-074-0	01	1	1011-	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-98178-074-0	01	1	1011-			●
2	01.203 CAP; SURGE TANK	8-98178-074-0	01	1	1011-				●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1740	8-97225-444-1	01	1	0607-	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0211-0501	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0211-0501		●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0502-0606	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0502-0606		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0607-	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0211-0501	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0211-0501			●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0502-0506	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0502-0506			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0507-0606	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0507-0606		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=1450	8-97162-122-2	01	1	0507-0606			●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0507-0606				●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0607-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=1450	8-97162-122-2	01	1	0607-			●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0607-				●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-2	01	1	0211-					●	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL> L=1700	8-97225-445-2	01	1	0211-0501		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1700	8-97225-445-2	01	1	0502-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (A) ID=12	8-94238-610-0	02	1	0211-0911	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0211-0501		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0502-0506	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0502-0506		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606	●			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606			●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0607-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0607-				●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0607-			●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	0211-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	0211-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0211-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0211-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0211-0501		●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47	5-09700-319-0	02	1	0502-0606		●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47	5-09700-319-0	02	1	0607-	●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0211-0501	●		●	●
29	01.203 WASHER; PL,RESERVE TANK EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0211-0501		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0502-0506	●		●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 NA ENG(RLF) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0502-0506		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0507-0605	●			●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 NA ENG(RLF) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0507-0605		●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0507-0605			●
29	01.203 WASHER; PL,RESERVE TANK 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-0606	●			●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 NA ENG(RLF) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-0606		●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-0606			●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 NA ENG(RLF) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0607-	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0607-			●
29	01.203 WASHER; PL,RESERVE TANK 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0607-				●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0211-0501	●		●	●
30	01.203 NUT EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0211-0501		●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0502-0506	●		●	●
30	01.203 NUT 4JB1 NA ENG(RLF) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0502-0506		●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0507-0602	●			●
30	01.203 NUT 4JB1 NA ENG(RLF) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0507-0602		●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0507-0602			●
30	01.203 NUT 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0603-0606	●			●
30	01.203 NUT 4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0603-0606		●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0603-0606			●
30	01.203 NUT 4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0607-	●	●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0607-			●
30	01.203 NUT 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0607-				●
30	01.203 NUT CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0211-0501		●
30	01.203 NUT 4JB1-TC ENG(RDT) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0502-0602		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-	●	●
30	01.203 NUT CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0211-0501		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0502-0602		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE	0-91180-208-0	03	1	0603-0606		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE	0-91180-208-0	03	1	0607-	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0211-0501	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0211-0501		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0502-0512	●
34	01.203 BOLT; RESERVE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0502-0512		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0601-0606	●
34	01.203 BOLT; RESERVE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0601-0606		●
34	01.203 BOLT; RESERVE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0607-	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0211-0512	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0211-0512			●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0601-	●	●
34	01.203 BOLT; RESERVE TANK 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0601-			●	●
34	01.203 BOLT; RESERVE TANK CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0211-0501		●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512		●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0606		●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0607-	●	●

56 56 128 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
55	01.173 HOSE; WATER,RAD OUTLET	8-97089-916-1	01	1	0211-0501	●	●	●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97089-916-1	01	1	0502-0506	●			●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97089-916-1	01	1	0502-0506		●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1 NA ENG(RLF)	8-97089-916-1	01	1	0502-0506			●
55	01.173 HOSE; WATER,RAD OUTLET	8-97089-916-1	01	1	0507-0606	●			●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97089-916-1	01	1	0507-0606		●
55	01.173 HOSE; WATER,RAD OUTLET 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97089-916-1	01	1	0507-0606			●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97089-916-1	01	1	0607-	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97089-916-1	01	1	0607-				●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97089-916-1	01	1	0607-			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	5-09704-047-1	01	1	0211-0901	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-98133-958-0	01	1	0902-	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	5-09704-049-0	03	1	0211-0610	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98036-282-0	03	1	0611-0901	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	03	1	0902-	●	●	●	●	●	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT)	8-97177-853-0	01	1	0607-	●
128	01.159 HOSE; WATER,RAD INL	8-97147-473-0	01	1	0211-0501	●			●	●	●
128	01.159 HOSE; WATER,RAD INL EXC. CHARGE AIR COOLER<6PL>	8-97147-473-0	01	1	0211-0501		●
128	01.159 HOSE; WATER,RAD INL 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97147-473-0	01	1	0211-0501			●
128	01.159 HOSE; WATER,RAD INL	8-97147-473-0	01	1	0502-0506	●		●	●	●	●
128	01.159 HOSE; WATER,RAD INL 4JB1 NA ENG(RLF)	8-97147-473-0	01	1	0502-0506		●
128	01.159 HOSE; WATER,RAD INL	8-97147-473-0	01	1	0507-0606	●			●	●	●
128	01.159 HOSE; WATER,RAD INL 4JB1 NA ENG(RLF)	8-97147-473-0	01	1	0507-0606		●
128	01.159 HOSE; WATER,RAD INL 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97147-473-0	01	1	0507-0606			●
128	01.159 HOSE; WATER,RAD INL 4JB1 NA ENG(RLF)	8-97147-473-0	01	1	0607-	●	●
128	01.159 HOSE; WATER,RAD INL	8-97147-473-0	01	1	0607-				●	●	●
128	01.159 HOSE; WATER,RAD INL 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97147-473-0	01	1	0607-			●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97221-676-0	01	1	0211-0501		●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT)	8-97221-676-0	01	1	0502-		●

19 18 1 2 136 18 19 19 1 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0211-0501	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97138-509-0	01	1	0211-0501		●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0502-0606	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0502-0606		●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0607-	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0211-0501	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0211-0501			●	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0502-0506	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0502-0506			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0507-0606	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0507-0606		●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97210-844-0	01	1	0507-0606			●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0507-0606				●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0607-1010	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97210-844-0	01	1	0607-1010			●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0607-1010				●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-98178-177-0	01	1	1011-	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-98178-177-0	01	1	1011-			●
1	01.219 TANK; SURGE,RAD (B)	8-98178-177-0	01	1	1011-				●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	0211-					●	●
1	01.219 TANK; SURGE,RAD CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0211-0501		●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (D)	8-97205-136-1	01	1	0502-0606		●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (D)	8-97205-136-1	01	1	0607-	●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0211-0501	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0211-0501					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0211-0501		●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0502-0606	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0502-0606					●	●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0502-0606		●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0607-	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0607-					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0211-0501	●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0211-0501			●	●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0502-0506	●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0502-0506			●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0507-0606	●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0507-0606		●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97217-796-0	01	1	0507-0606			●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0507-0606				●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0607-1010	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97217-796-0	01	1	0607-1010			●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0607-1010				●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-98178-074-0	01	1	1011-	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-98178-074-0	01	1	1011-			●
2	01.203 CAP; SURGE TANK	8-98178-074-0	01	1	1011-				●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1740	8-97225-444-1	01	1	0607-	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0211-0501	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0211-0501		●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0502-0606	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0502-0606		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0607-	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0211-0501	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0211-0501			●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0502-0506	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0502-0506			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0507-0606	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0507-0606		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=1450	8-97162-122-2	01	1	0507-0606			●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0507-0606				●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0607-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=1450	8-97162-122-2	01	1	0607-			●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0607-				●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-2	01	1	0211-					●	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL> L=1700	8-97225-445-2	01	1	0211-0501		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1700	8-97225-445-2	01	1	0502-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (A) ID=12	8-94238-610-0	02	1	0211-0911	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0211-0501		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0502-0506	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0502-0506		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606	●			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606			●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0607-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0607-				●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0607-			●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	0211-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	0211-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0211-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0211-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0211-0501		●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47	5-09700-319-0	02	1	0502-0606		●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47	5-09700-319-0	02	1	0607-	●	●
136	01.219 STOPPER; SURGE TANK	8-97087-220-0	01	1	0211-					●	●

19 19 1 18 19 152 1 8 30 34 33 23 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0211-0501	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97138-509-0	01	1	0211-0501		●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0502-0606	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0502-0606		●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0607-	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0211-0501	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0211-0501			●	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0502-0506	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0502-0506			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0507-0606	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0507-0606		●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97210-844-0	01	1	0507-0606			●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0507-0606				●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0607-1010	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97210-844-0	01	1	0607-1010			●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0607-1010				●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-98178-177-0	01	1	1011-	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-98178-177-0	01	1	1011-			●
1	01.219 TANK; SURGE,RAD (B)	8-98178-177-0	01	1	1011-				●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	0211-					●	●
1	01.219 TANK; SURGE,RAD CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0211-0501		●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (D)	8-97205-136-1	01	1	0502-0606		●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (D)	8-97205-136-1	01	1	0607-	●	●
8	01.166 HOSE; VINYL CHARGE AIR COOLER<6PL> 01.240 L=500	1-09366-179-0	01	1	0211-0501		●
8	01.166 HOSE; VINYL 4JB1-TC ENG(RDT) 01.240 L=500	1-09366-179-0	01	1	0502-0606		●
8	01.166 HOSE; VINYL 4JB1-TC ENG(RDT) 01.240 L=500	1-09366-179-0	01	1	0607-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1740	8-97225-444-1	01	1	0607-	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0211-0501	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0211-0501		●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0502-0606	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0502-0606		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0607-	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0211-0501	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0211-0501			●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0502-0506	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0502-0506			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0507-0606	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0507-0606		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=1450	8-97162-122-2	01	1	0507-0606			●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0507-0606				●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0607-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=1450	8-97162-122-2	01	1	0607-			●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0607-				●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-2	01	1	0211-					●	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL> L=1700	8-97225-445-2	01	1	0211-0501		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1700	8-97225-445-2	01	1	0502-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (A) ID=12	8-94238-610-0	02	1	0211-0911	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0211-0501		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0502-0506	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0502-0506		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606	●			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606			●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0607-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0607-				●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0607-			●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	0211-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	0211-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0211-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0211-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0211-0501		●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47	5-09700-319-0	02	1	0502-0606		●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47	5-09700-319-0	02	1	0607-	●	●
23	01.219 BRACKET; RESERVE TANK CHARGE AIR COOLER<6PL>	8-97225-271-1	01	1	0211-0501		●
23	01.219 BRACKET; RESERVE TANK 4JB1-TC ENG(RDT)	8-97225-271-1	01	1	0502-0606		●
23	01.219 BRACKET; RESERVE TANK 4JB1-TC ENG(RDT)	8-97225-271-1	01	1	0607-	●	●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0211-0501	●		●	●
30	01.203 NUT EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0211-0501		●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0502-0506	●		●	●
30	01.203 NUT 4JB1 NA ENG(RLF) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0502-0506		●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0507-0602	●			●
30	01.203 NUT 4JB1 NA ENG(RLF) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0507-0602		●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0507-0602			●
30	01.203 NUT 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0603-0606	●			●
30	01.203 NUT 4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0603-0606		●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0603-0606			●
30	01.203 NUT 4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0607-	●	●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0607-			●
30	01.203 NUT 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0607-				●
30	01.203 NUT CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0211-0501		●
30	01.203 NUT 4JB1-TC ENG(RDT) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0502-0602		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-	●	●
30	01.203 NUT CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0211-0501		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0502-0602		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE	0-91180-208-0	03	1	0603-0606		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE	0-91180-208-0	03	1	0607-	●	●
33	01.277 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501		●
33	01.277 BOLT; BRKT 4JB1-TC ENG(RDT) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
33	01.277 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606		●
33	01.277 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0211-0501	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0211-0501		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0502-0512	●
34	01.203 BOLT; RESERVE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0502-0512		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0601-0606	●
34	01.203 BOLT; RESERVE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0601-0606		●
34	01.203 BOLT; RESERVE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0607-	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0211-0512	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0211-0512			●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0601-	●	●
34	01.203 BOLT; RESERVE TANK 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0601-			●	●
34	01.203 BOLT; RESERVE TANK CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0211-0501		●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512		●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0606		●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0607-	●	●
152	01.203 CAP ASM; SURGE TANK CHARGE AIR COOLER<6PL>	8-97217-799-0	01	1	0211-0501		●
152	01.203 CAP ASM; SURGE TANK 4JB1-TC ENG(RDT)	8-97217-799-0	01	1	0502-0606		●
152	01.203 CAP ASM; SURGE TANK 4JB1-TC ENG(RDT)	8-97217-799-0	01	1	0607-	●	●

19 18 1 34 29 2 1 34 29 30 30 19 19 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0211-0501	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97138-509-0	01	1	0211-0501		●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0502-0606	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0502-0606		●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97138-509-0	01	1	0607-	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0211-0501	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0211-0501			●	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0502-0506	●	●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0502-0506			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0507-0606	●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0507-0606		●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97210-844-0	01	1	0507-0606			●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0507-0606				●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97210-844-0	01	1	0607-1010	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-97210-844-0	01	1	0607-1010			●
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	0607-1010				●
1	01.219 TANK; SURGE,RAD 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-98178-177-0	01	1	1011-	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B)	8-98178-177-0	01	1	1011-			●
1	01.219 TANK; SURGE,RAD (B)	8-98178-177-0	01	1	1011-				●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	0211-					●	●
1	01.219 TANK; SURGE,RAD CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0211-0501		●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (D)	8-97205-136-1	01	1	0502-0606		●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (D)	8-97205-136-1	01	1	0607-	●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0211-0501	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0211-0501					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0211-0501		●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0502-0606	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0502-0606					●	●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0502-0606		●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	0607-	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0607-					●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0211-0501	●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0211-0501			●	●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0502-0506	●	●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0502-0506			●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0507-0606	●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0507-0606		●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97217-796-0	01	1	0507-0606			●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0507-0606				●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0607-1010	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97217-796-0	01	1	0607-1010			●
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0607-1010				●
2	01.203 CAP; SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-98178-074-0	01	1	1011-	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-98178-074-0	01	1	1011-			●
2	01.203 CAP; SURGE TANK	8-98178-074-0	01	1	1011-				●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1740	8-97225-444-1	01	1	0607-	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0211-0501	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0211-0501		●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0502-0606	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0502-0606		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	0607-	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0211-0501	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0211-0501			●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0502-0506	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0502-0506			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0507-0606	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0507-0606		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=1450	8-97162-122-2	01	1	0507-0606			●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0507-0606				●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-2	01	1	0607-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=1450	8-97162-122-2	01	1	0607-			●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-2	01	1	0607-				●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-2	01	1	0211-					●	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL> L=1700	8-97225-445-2	01	1	0211-0501		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1700	8-97225-445-2	01	1	0502-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (A) ID=12	8-94238-610-0	02	1	0211-0911	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0211-0501		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0502-0506	●		●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0502-0506		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606	●			●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0507-0606			●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0607-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0607-				●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=14 L=47	5-09700-319-0	01	1	0607-			●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	0211-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	0211-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0211-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0211-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0211-0501		●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47	5-09700-319-0	02	1	0502-0606		●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47	5-09700-319-0	02	1	0607-	●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0211-0501	●		●	●
29	01.203 WASHER; PL,RESERVE TANK EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0211-0501		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0502-0506	●		●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 NA ENG(RLF) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0502-0506		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0507-0605	●			●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 NA ENG(RLF) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0507-0605		●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0507-0605			●
29	01.203 WASHER; PL,RESERVE TANK 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-0606	●			●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 NA ENG(RLF) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-0606		●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-0606			●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 NA ENG(RLF) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0607-	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0607-			●
29	01.203 WASHER; PL,RESERVE TANK 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0607-				●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0211-0501	●		●	●
30	01.203 NUT EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0211-0501		●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0502-0506	●		●	●
30	01.203 NUT 4JB1 NA ENG(RLF) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0502-0506		●
30	01.203 NUT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0507-0602	●			●
30	01.203 NUT 4JB1 NA ENG(RLF) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0507-0602		●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0507-0602			●
30	01.203 NUT 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0603-0606	●			●
30	01.203 NUT 4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0603-0606		●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0603-0606			●
30	01.203 NUT 4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0607-	●	●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0607-			●
30	01.203 NUT 01.062 (C) M6 FLANGE	0-91180-106-0	03	1	0607-				●
30	01.203 NUT CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0211-0501		●
30	01.203 NUT 4JB1-TC ENG(RDT) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0502-0602		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-	●	●
30	01.203 NUT CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0211-0501		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0502-0602		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE	0-91180-208-0	03	1	0603-0606		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE	0-91180-208-0	03	1	0607-	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0211-0501	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0211-0501		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0502-0512	●
34	01.203 BOLT; RESERVE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0502-0512		●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0601-0606	●
34	01.203 BOLT; RESERVE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0601-0606		●
34	01.203 BOLT; RESERVE TANK 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0607-	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0211-0512	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0211-0512			●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0601-	●	●
34	01.203 BOLT; RESERVE TANK 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0601-			●	●
34	01.203 BOLT; RESERVE TANK CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0211-0501		●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512		●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0606		●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0607-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
