1-10 — RADIATOR (#43942) — 228 parça

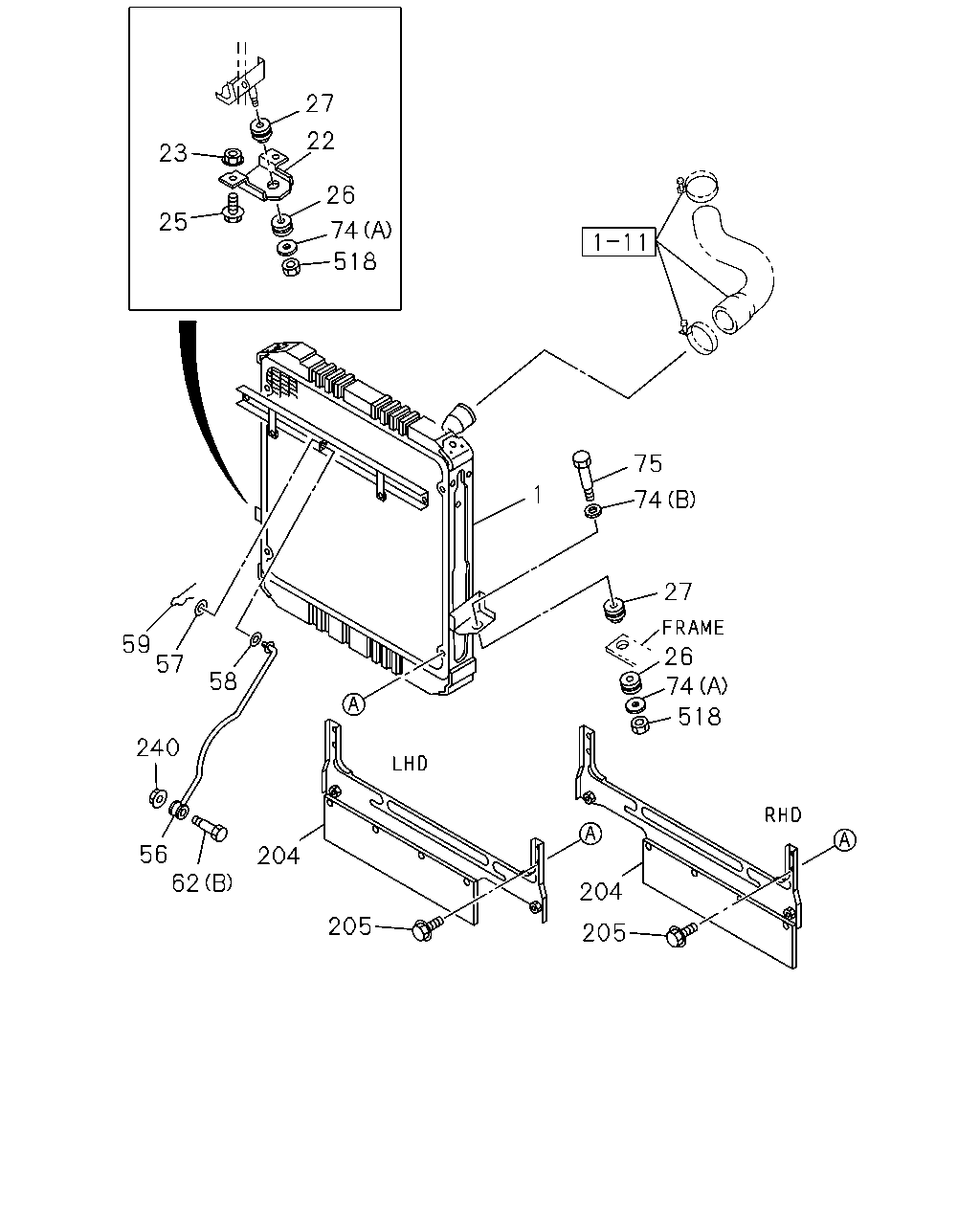

27 22 23 26 25 74 518 75 1 74 27 59 57 26 74 58 518 240 56 62 204 204 205 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97178-662-2	01	1	0607-	●
1	01.219 RADIATOR ASM	8-97162-144-1	01	1	0211-0606	●	●
1	01.219 RADIATOR ASM 4JB1 NA ENG(RLF)	8-97162-144-1	01	1	0211-0606			●
1	01.219 RADIATOR ASM 4JB1 NA ENG(RLF)	8-97162-144-1	01	1	0607-	●		●
1	01.219 RADIATOR ASM	8-97162-144-1	01	1	0607-		●
1	01.219 RADIATOR ASM CHARGE AIR COOLER<6PL>	8-97221-762-0	01	1	0211-0501				●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97221-762-0	01	1	0502-1109				●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98203-145-0	01	1	1110-				●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL>	8-97162-135-1	01	1	0211-0305				●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97162-135-1	01	1	0211-0305					●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL>	8-97371-007-0	01	1	0306-0501				●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97371-007-0	01	1	0306-0501					●
1	01.219 RADIATOR ASM 4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2)	8-97371-007-0	01	1	0502-				●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97371-007-0	01	1	0502-					●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2), CHARGE AIR COOLER<6PL>	8-97162-145-1	01	1	0211-0501				●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	0211-0501						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	0211-0501					●
1	01.219 RADIATOR ASM 4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	0502-				●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	0502-						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	0502-					●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97162-131-1	01	1	0211-0501			●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97162-131-1	01	1	0502-			●
22	01.270 BRACKET; RAD MTG	8-94257-949-1	01	1	0211-	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	02	1	0211-	●	●	●	●	●	●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0211-0512	●	●	●	●	●	●
25	01.271 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0211-	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0211-	●	●	●	●	●	●
56	01.270 STAY; RAD	8-97350-324-0	01	1	0211-0501	●	●	●	●	●	●
56	01.270 STAY; RAD	8-97350-324-0	01	1	0502-0506	●	●			●	●
56	01.270 STAY; RAD 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97350-324-0	01	1	0502-0506				●
56	01.270 STAY; RAD 4JB1 NA ENG(RLF)	8-97350-324-0	01	1	0502-0506			●
56	01.270 STAY; RAD	8-97350-324-0	01	1	0507-0606	●	●			●	●
56	01.270 STAY; RAD 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97350-324-0	01	1	0507-0606				●
56	01.270 STAY; RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97350-324-0	01	1	0507-0606			●
56	01.270 STAY; RAD 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97350-324-0	01	1	0607-	●			●
56	01.270 STAY; RAD	8-97350-324-0	01	1	0607-		●			●	●
56	01.270 STAY; RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97350-324-0	01	1	0607-			●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0211-0605	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0211-	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0211-0610	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●	●		●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501			●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506	●	●			●	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506				●
62	01.271 BOLT; STAY 4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506			●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606	●	●			●	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606				●
62	01.271 BOLT; STAY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606			●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-	●			●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-		●			●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-			●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0211-0610	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0211-	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0211-	●	●	●	●	●	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	0211-0501	●	●	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	0502-0506	●	●
204	01.267 GUIDE ASM; AIR 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	0502-0506			●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	0507-0606	●	●
204	01.267 GUIDE ASM; AIR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	0507-0606			●
204	01.267 GUIDE ASM; AIR 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	0607-	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	0607-		●
204	01.267 GUIDE ASM; AIR 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	0607-			●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97089-919-3	01	1	0211-0501				●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97089-919-3	01	1	0211-0501					●	●
204	01.267 GUIDE ASM; AIR 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97089-919-3	01	1	0502-				●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97089-919-3	01	1	0502-					●	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0501	●	●	●		●	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0501				●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0506	●	●			●	●
205	01.267 BOLT; AIR GUIDE 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0506			●	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0507-0512	●	●			●	●
205	01.267 BOLT; AIR GUIDE 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0507-0512				●
205	01.267 BOLT; AIR GUIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0507-0512			●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-0606	●	●			●	●
205	01.267 BOLT; AIR GUIDE 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-0606				●
205	01.267 BOLT; AIR GUIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-0606			●
205	01.267 BOLT; AIR GUIDE 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0607-	●			●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0607-		●			●	●
205	01.267 BOLT; AIR GUIDE 4JG2 ENG(RJC),4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0607-			●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0211-	●	●	●	●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0211-0610	●	●	●	●	●	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●	●	●	●

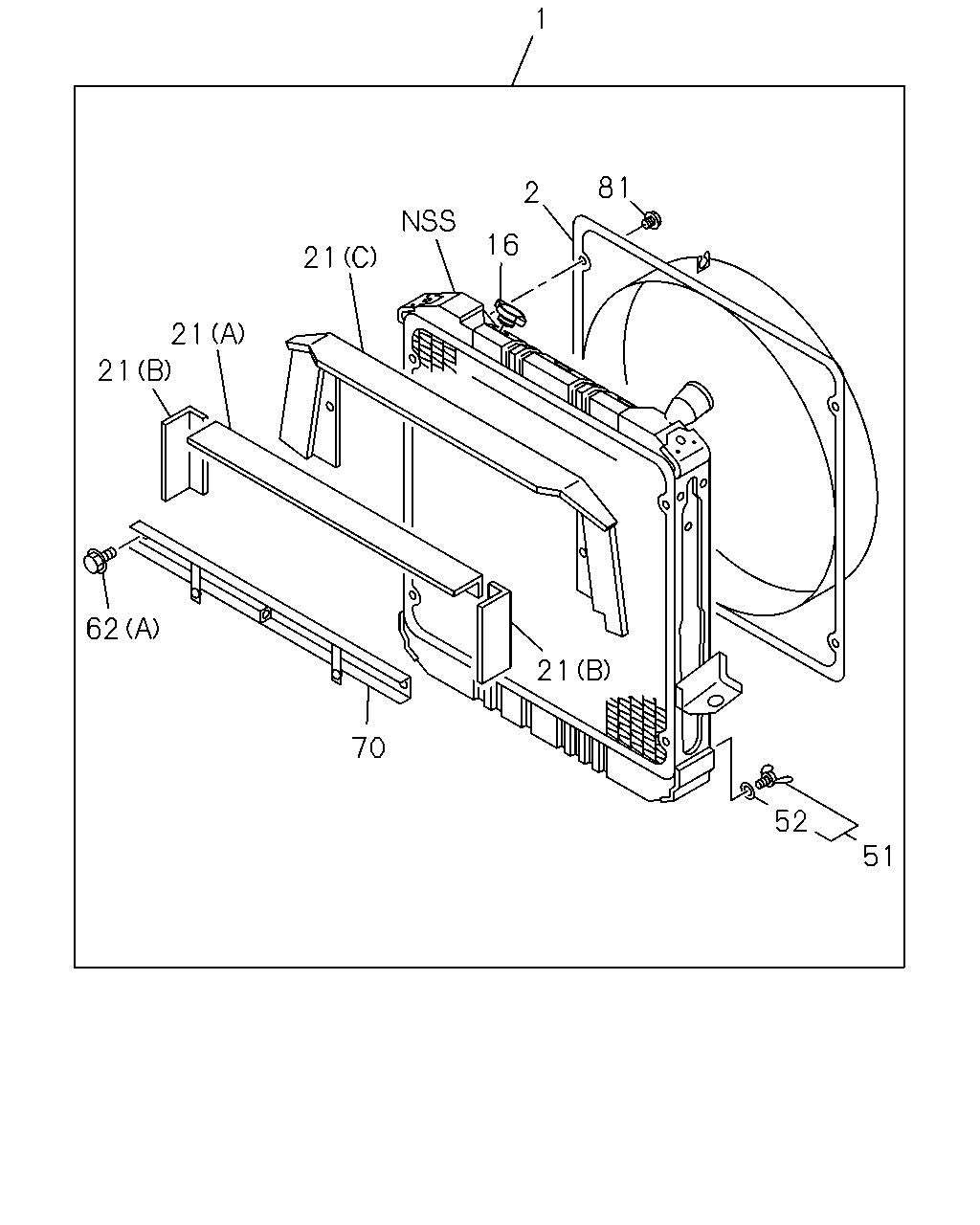

1 81 2 16 21 21 21 62 21 70 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97178-662-2	01	1	0607-	●
1	01.219 RADIATOR ASM	8-97162-144-1	01	1	0211-0606	●	●
1	01.219 RADIATOR ASM 4JB1 NA ENG(RLF)	8-97162-144-1	01	1	0211-0606			●
1	01.219 RADIATOR ASM 4JB1 NA ENG(RLF)	8-97162-144-1	01	1	0607-	●		●
1	01.219 RADIATOR ASM	8-97162-144-1	01	1	0607-		●
1	01.219 RADIATOR ASM CHARGE AIR COOLER<6PL>	8-97221-762-0	01	1	0211-0501				●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97221-762-0	01	1	0502-1109				●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98203-145-0	01	1	1110-				●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL>	8-97162-135-1	01	1	0211-0305				●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97162-135-1	01	1	0211-0305					●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL>	8-97371-007-0	01	1	0306-0501				●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97371-007-0	01	1	0306-0501					●
1	01.219 RADIATOR ASM 4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2)	8-97371-007-0	01	1	0502-				●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97371-007-0	01	1	0502-					●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2), CHARGE AIR COOLER<6PL>	8-97162-145-1	01	1	0211-0501				●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	0211-0501						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	0211-0501					●
1	01.219 RADIATOR ASM 4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	0502-				●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	0502-						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	0502-					●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97162-131-1	01	1	0211-0501			●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97162-131-1	01	1	0502-			●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT)	8-97223-685-0	01	1	1110-				●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	0211-0501	●	●		●	●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97066-011-0	01	1	0211-0501			●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	0502-0506	●	●			●	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97066-011-0	01	1	0502-0506				●
2	01.277 GUIDE; FAN 4JB1 NA ENG(RLF)	8-97066-011-0	01	1	0502-0506			●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	0507-0606	●	●			●	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97066-011-0	01	1	0507-0606				●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97066-011-0	01	1	0507-0606			●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97066-011-0	01	1	0607-1109	●			●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	0607-1109		●			●	●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97066-011-0	01	1	0607-1109			●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97066-011-0	01	1	1110-	●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	1110-		●			●	●
2	01.277 GUIDE; FAN 4JB1 NA ENG(RLF)	8-97066-011-0	01	1	1110-				●
2	01.277 GUIDE; FAN 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97066-011-0	01	1	1110-			●
16	01.203 CAP; RAD	8-97167-854-0	01	1	0211-0501	●	●				●
16	01.203 CAP; RAD EXC. SAUDI ARABIA EQUIPMENT(EU2), CHARGE AIR COOLER<6PL>	8-97167-854-0	01	1	0211-0501				●
16	01.203 CAP; RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97167-854-0	01	1	0211-0501			●
16	01.203 CAP; RAD EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97167-854-0	01	1	0211-0501					●
16	01.203 CAP; RAD	8-97167-854-0	01	1	0502-0606	●	●				●
16	01.203 CAP; RAD 4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97167-854-0	01	1	0502-0606				●
16	01.203 CAP; RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97167-854-0	01	1	0502-0606			●
16	01.203 CAP; RAD EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97167-854-0	01	1	0502-0606					●
16	01.203 CAP; RAD 4JB1 NA ENG(RLF)	8-97167-854-0	01	1	0607-	●
16	01.203 CAP; RAD	8-97167-854-0	01	1	0607-		●				●
16	01.203 CAP; RAD 4JB1 NA ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97167-854-0	01	1	0607-				●
16	01.203 CAP; RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97167-854-0	01	1	0607-			●
16	01.203 CAP; RAD EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97167-854-0	01	1	0607-					●
16	01.203 CAP; RAD SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0211-0305				●
16	01.203 CAP; RAD CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0211-0305				●
16	01.203 CAP; RAD SAUDI ARABIA EQUIPMENT(EU2)	8-97177-872-0	01	1	0211-0305					●
16	01.203 CAP; RAD CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0306-0501				●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT)	8-97177-872-0	01	1	0502-0606				●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT)	8-97177-872-0	01	1	0607-1109	●			●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT)	8-97177-872-0	01	1	1110-	●
16	01.203 CAP; RAD SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL>	8-97371-017-0	01	1	0306-0501				●
16	01.203 CAP; RAD SAUDI ARABIA EQUIPMENT(EU2)	8-97371-017-0	01	1	0306-0501					●
16	01.203 CAP; RAD 4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2)	8-97371-017-0	01	1	0502-1109				●
16	01.203 CAP; RAD SAUDI ARABIA EQUIPMENT(EU2)	8-97371-017-0	01	1	0502-1109					●
16	01.203 CAP; RAD 4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2)	8-97371-017-0	01	1	1110-				●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT)	8-97371-017-0	01	1	1110-				●
16	01.203 CAP; RAD SAUDI ARABIA EQUIPMENT(EU2)	8-97371-017-0	01	1	1110-					●
21	01.276 SEAL; RAD CHARGE AIR COOLER<6PL> (C)	8-97219-806-1	01	1	0211-0501				●
21	01.276 SEAL; RAD 4JB1-TC ENG(RDT) (C)	8-97219-806-1	01	1	0502-0606				●
21	01.276 SEAL; RAD 4JB1-TC ENG(RDT) (C)	8-97219-806-1	01	1	0607-	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL> (A)	8-97085-689-0	01	1	0211-0501				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (A)	8-97085-689-0	01	1	0211-0501			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	0211-0501					●
21	01.276 SEAL; RAD 4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	0502-0506			●		●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (A)	8-97085-689-0	01	1	0502-0506			●
21	01.276 SEAL; RAD 4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	0507-				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (A)	8-97085-689-0	01	1	0507-			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	0507-					●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-690-0	02	1	0211-0501				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (B)	8-97085-690-0	02	1	0211-0501			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	0211-0501					●
21	01.276 SEAL; RAD 4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	0502-0506			●		●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (B)	8-97085-690-0	02	1	0502-0506			●
21	01.276 SEAL; RAD 4JB1 NA ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	0507-				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (B)	8-97085-690-0	02	1	0507-			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	0507-					●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	0211-0501	●	●		●	●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.915 W/GASKET	8-94321-236-0	01	1	0211-0501			●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	0507-0606	●	●			●	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.915 W/GASKET	8-94321-236-0	01	1	0507-0606				●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.915 W/GASKET	8-94321-236-0	01	1	0507-0606			●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.915 W/GASKET	8-94321-236-0	01	1	0607-	●			●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	0607-		●			●	●
51	08.951 PLUG; DRAIN 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.915 W/GASKET	8-94321-236-0	01	1	0607-			●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	0211-0501	●	●		●	●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	0211-0501			●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	0502-0506	●	●			●	●
52	08.951 GASKET; DRAIN PLUG 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	0502-0506				●
52	08.951 GASKET; DRAIN PLUG 4JB1 NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	0502-0506			●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	0507-0606	●	●			●	●
52	08.951 GASKET; DRAIN PLUG 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	0507-0606				●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	0507-0606			●
52	08.951 GASKET; DRAIN PLUG 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	0607-1109	●			●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	0607-1109		●			●	●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	0607-1109			●
52	08.951 GASKET; DRAIN PLUG 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	1110-	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	1110-		●			●	●
52	08.951 GASKET; DRAIN PLUG 4JB1 NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	1110-				●
52	08.951 GASKET; DRAIN PLUG 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	1110-			●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●	●		●	●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501			●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506	●	●			●	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506				●
62	01.271 BOLT; STAY 4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506			●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606	●	●			●	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606				●
62	01.271 BOLT; STAY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0606			●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-	●			●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-		●			●	●
62	01.271 BOLT; STAY 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0607-			●
70	01.271 STAY; RAD	8-97047-899-0	01	1	0211-0501	●	●		●	●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97047-899-0	01	1	0211-0501			●
70	01.271 STAY; RAD	8-97047-899-0	01	1	0502-0506	●	●			●	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97047-899-0	01	1	0502-0506				●
70	01.271 STAY; RAD 4JB1 NA ENG(RLF)	8-97047-899-0	01	1	0502-0506			●
70	01.271 STAY; RAD	8-97047-899-0	01	1	0507-0606	●	●			●	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97047-899-0	01	1	0507-0606				●
70	01.271 STAY; RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97047-899-0	01	1	0507-0606			●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97047-899-0	01	1	0607-	●			●
70	01.271 STAY; RAD	8-97047-899-0	01	1	0607-		●			●	●
70	01.271 STAY; RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97047-899-0	01	1	0607-			●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	0211-0501	●	●		●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97088-810-0	04	1	0211-0501			●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	0502-0506	●	●			●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97088-810-0	04	1	0502-0506				●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1 NA ENG(RLF)	8-97088-810-0	04	1	0502-0506			●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	0507-0606	●	●			●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97088-810-0	04	1	0507-0606				●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97088-810-0	04	1	0507-0606			●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)	8-97088-810-0	04	1	0607-	●			●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	0607-		●			●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JG2 ENG(RJC),4JB1 NA ENG(RLF)	8-97088-810-0	04	1	0607-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
