Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#43941) — 187 parça

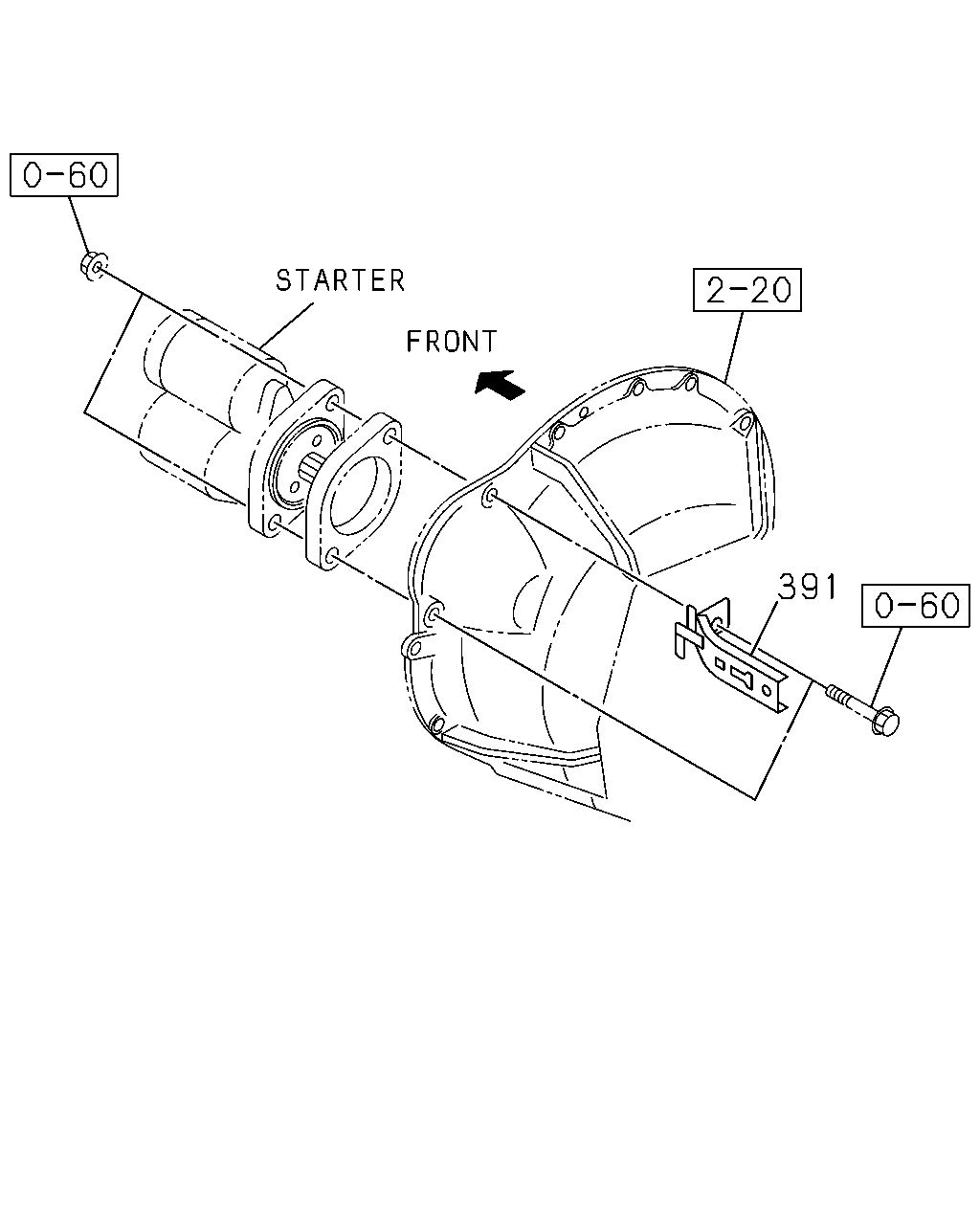

391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
391	03.452 BRACKET; ENG CONT 02.483	8-97068-801-1	01	1	0211-0501	●	●	●	●
391	03.452 BRACKET; ENG CONT EXC. TURBOCHARGER<K51> 02.483	8-97068-801-1	01	1	0211-0501					●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) 02.483	8-97068-801-1	01	1	0211-0501						●
391	03.452 BRACKET; ENG CONT 02.483	8-97068-801-1	01	1	0502-0606	●	●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) 02.483	8-97068-801-1	01	1	0502-0606					●	●
391	03.452 BRACKET; ENG CONT 4JB1 NA ENG(RLF) 02.483	8-97068-801-1	01	1	0607-	●				●	●
391	03.452 BRACKET; ENG CONT 02.483	8-97068-801-1	01	1	0607-		●	●	●

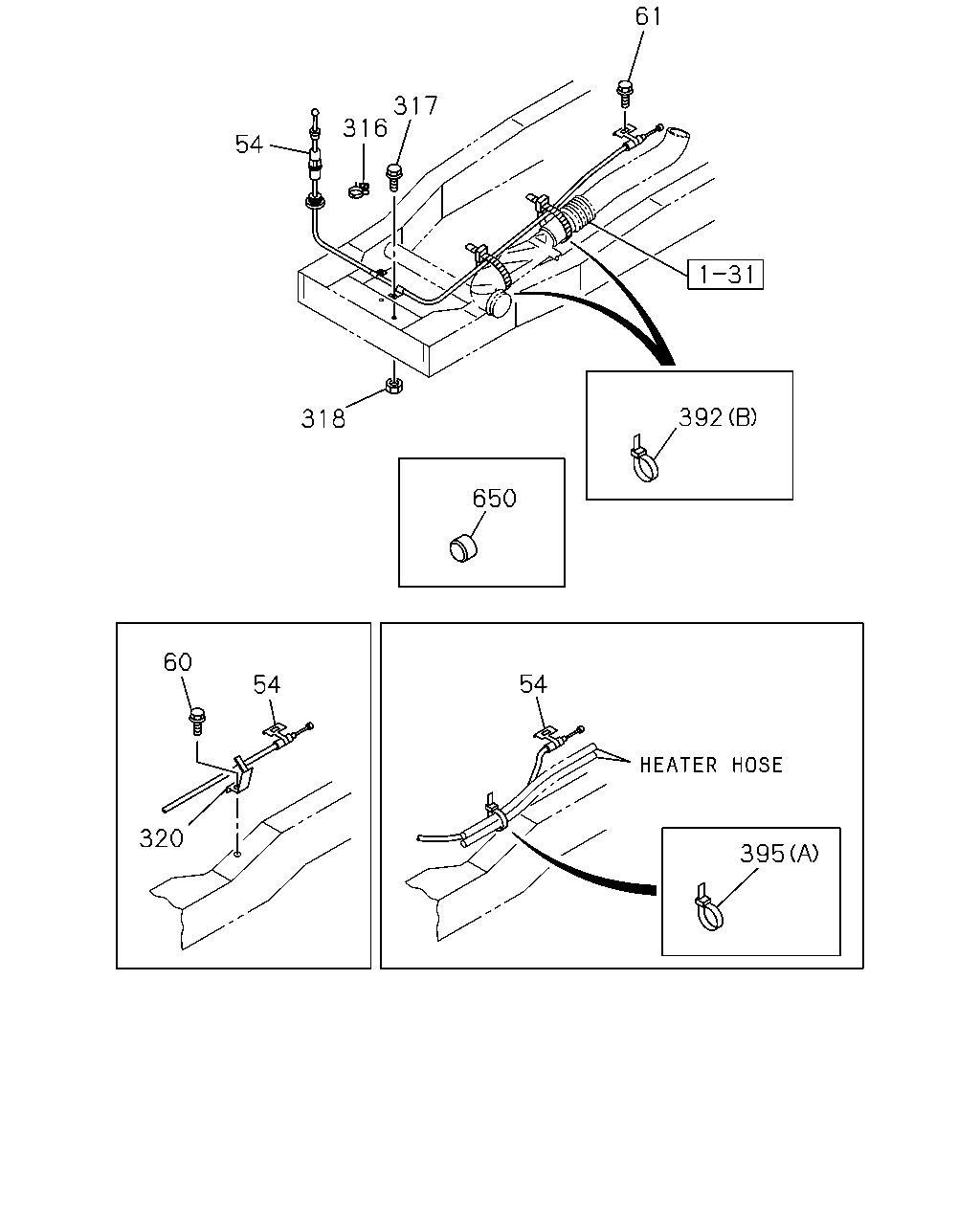

317 316 54 61 392 650 318 54 60 320 54 395

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) L=2330	8-97387-019-0	01	1	0607-	●
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-4	01	1	0211-0407	●	●				●
54	03.430 CABLE; ENG CONT L=2300	8-97386-872-0	01	1	0408-0501	●	●				●
54	03.430 CABLE; ENG CONT L=2300	8-97386-872-0	01	1	0502-0606	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=2300	8-97386-872-0	01	1	0502-0606						●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) L=2300	8-97386-872-0	01	1	0607-	●
54	03.430 CABLE; ENG CONT L=2300	8-97386-872-0	01	1	0607-		●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=2300	8-97386-872-0	01	1	0607-						●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> L=1749	8-97228-819-2	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) L=1701	8-97118-537-3	01	1	0502-					●
54	03.430 CABLE; ENG CONT L=1701	8-97118-537-3	01	1	0502-			●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL> L=1701	8-97118-537-2	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT L=1701	8-97118-537-2	01	1	0211-0501			●	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) L=1749	8-97228-819-3	01	1	0502-					●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501					●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●
60	08.155 BOLT; CABLE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512					●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●
60	08.155 BOLT; CABLE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0606					●
60	08.155 BOLT; CABLE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-	●				●
60	08.155 BOLT; CABLE CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501					●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512					●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0606					●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0607-	●				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0512	●	●	●	●	●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	0211-0501	●	●				●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	0502-0606	●	●
316	03.425 CLIP; LAMP BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 16.065 ID=9	5-09707-027-0	01	1	0502-0606						●
316	03.425 CLIP; LAMP BRKT 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 16.065 ID=9	5-09707-027-0	01	1	0607-	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	0607-		●
316	03.425 CLIP; LAMP BRKT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) 16.065 ID=9	5-09707-027-0	01	1	0607-						●
317	03.425 BOLT; LAMP BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●	●				●
317	03.425 BOLT; LAMP BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●				●
318	03.275 NUT; LAMP BRKT 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0805	●	●				●
318	03.275 NUT; LAMP BRKT 03.417 M8 W/LK WASHER	8-97581-234-0	02	1	0806-	●	●				●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0211-0501	●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL>	8-94167-969-2	01	1	0211-0501					●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0502-0606	●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0502-0606					●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0607-	●				●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 03.008 (B) L=330	5-09709-118-0	02	1	0211-	●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	02	1	0211-		●				●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> (E) ID=10 & 12	1-09709-278-1	01	1	0305-0501					●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> (E) ID=10 & 12	1-09709-278-1	01	1	0502-					●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0211-					●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0211-			●	●
392	03.483 CLIP; ACCEL CONT CABLE CHARGE AIR COOLER<6PL> 02.334 (C) ID=16	9-09525-552-0	01	1	0211-0501					●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 02.334 (C) ID=16	9-09525-552-0	01	1	0502-0606					●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 02.334 (C) ID=16	9-09525-552-0	01	1	0607-0607	●				●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (C) ID=16 L=28	0-95235-552-0	01	1	0607-	●				●
392	03.483 CLIP; ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40>,CHARGE AIR COOLER<6PL> 04.930 (D) ID=10 & 16.5	8-94360-745-0	01	1	0305-0501					●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> 04.930 (D) ID=10 & 16.5	8-94360-745-0	01	1	0502-					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	0211-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0502-0606	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0502-0606					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0607-	●				●
650	06.672 PROTECTOR; ACCEL CABLE 4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) IDENTIFICATION LABEL FOR KD<6UT>	8-98185-066-0	01	1	1209-	●	●				●

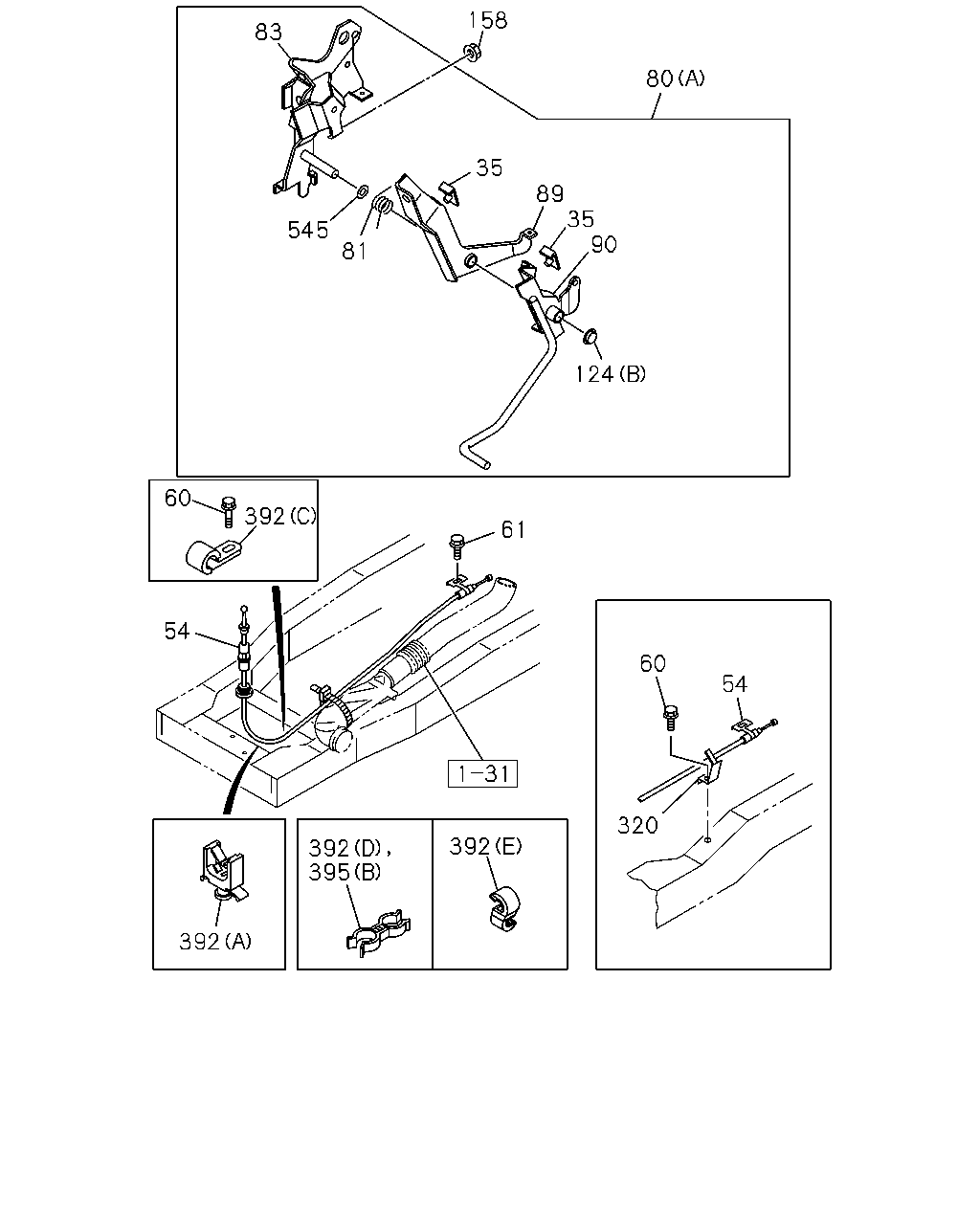

158 83 80 35 89 35 90 545 81 124 60 392 61 54 60 54 392 392 395 392 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0211-	●	●				●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0211-			●	●	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) L=2330	8-97387-019-0	01	1	0607-	●
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-4	01	1	0211-0407	●	●				●
54	03.430 CABLE; ENG CONT L=2300	8-97386-872-0	01	1	0408-0501	●	●				●
54	03.430 CABLE; ENG CONT L=2300	8-97386-872-0	01	1	0502-0606	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=2300	8-97386-872-0	01	1	0502-0606						●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) L=2300	8-97386-872-0	01	1	0607-	●
54	03.430 CABLE; ENG CONT L=2300	8-97386-872-0	01	1	0607-		●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 NA ENG(RLF) L=2300	8-97386-872-0	01	1	0607-						●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> L=1749	8-97228-819-2	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT 4JB1 NA ENG(RLF) L=1701	8-97118-537-3	01	1	0502-					●
54	03.430 CABLE; ENG CONT L=1701	8-97118-537-3	01	1	0502-			●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL> L=1701	8-97118-537-2	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT L=1701	8-97118-537-2	01	1	0211-0501			●	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) L=1749	8-97228-819-3	01	1	0502-					●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501					●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●
60	08.155 BOLT; CABLE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512					●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●
60	08.155 BOLT; CABLE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0606					●
60	08.155 BOLT; CABLE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-	●				●
60	08.155 BOLT; CABLE CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501					●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512					●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0606					●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0607-	●				●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0512	●	●	●	●	●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0211-	●	●				●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0211-	●	●				●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0211-			●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	0211-			●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0211-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	0211-	●	●				●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	0211-			●	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	0211-	●	●				●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	0211-			●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	0211-	●	●				●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	0211-			●	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-	●	●				●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0211-	●	●				●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-			●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-	●	●	●	●	●	●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0211-0501	●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL>	8-94167-969-2	01	1	0211-0501					●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0502-0606	●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0502-0606					●
320	03.483 CLIP; FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	0607-	●				●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 03.008 (B) L=330	5-09709-118-0	02	1	0211-	●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	02	1	0211-		●				●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> (E) ID=10 & 12	1-09709-278-1	01	1	0305-0501					●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> (E) ID=10 & 12	1-09709-278-1	01	1	0502-					●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0211-					●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	0211-			●	●
392	03.483 CLIP; ACCEL CONT CABLE CHARGE AIR COOLER<6PL> 02.334 (C) ID=16	9-09525-552-0	01	1	0211-0501					●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 02.334 (C) ID=16	9-09525-552-0	01	1	0502-0606					●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 02.334 (C) ID=16	9-09525-552-0	01	1	0607-0607	●				●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (C) ID=16 L=28	0-95235-552-0	01	1	0607-	●				●
392	03.483 CLIP; ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40>,CHARGE AIR COOLER<6PL> 04.930 (D) ID=10 & 16.5	8-94360-745-0	01	1	0305-0501					●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> 04.930 (D) ID=10 & 16.5	8-94360-745-0	01	1	0502-					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	0211-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0502-0606	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0502-0606					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0607-	●				●
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0211-			●	●	●

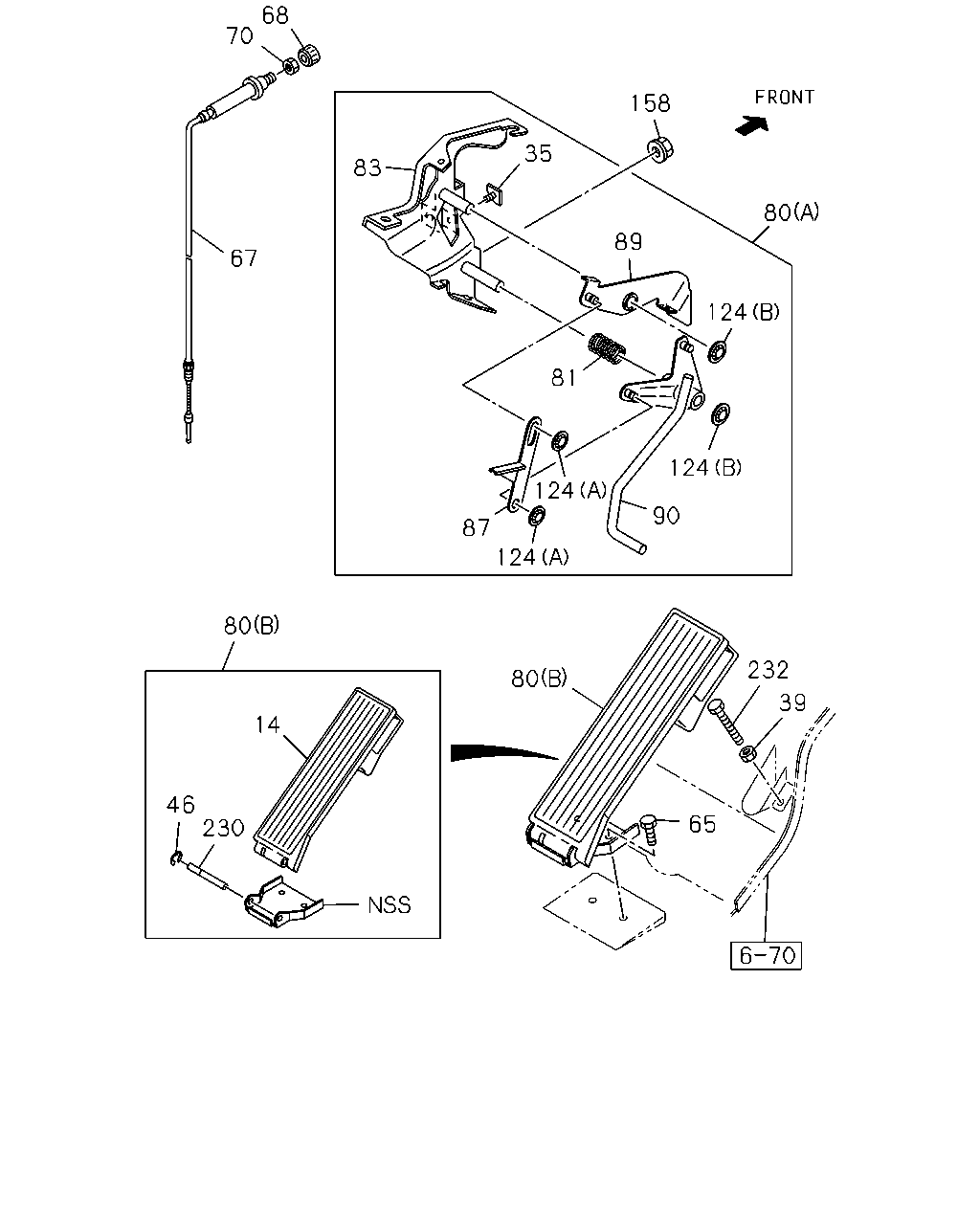

537 537 70 68 67 80 80 65 80 14 230 24 242 46 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0211-	●	●				●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0211-			●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	0211-			●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0604	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-	●	●				●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0211-			●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0211-	●	●				●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	0211-			●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0211-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0211-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0211-	●	●				●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0211-	●	●				●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0211-			●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	0211-			●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0211-			●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-	●	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8	9-09110-408-0	01	1	0211-0512			●	●	●
242	03.483 NUT; ACCEL PEDAL 02.334 M8	0-91110-508-0	01	1	0601-			●	●	●
537	03.483 CLIP; IDLING CONT CABLE 04.342 ID=7	5-09707-053-0	02	1	0211-			●	●	●

68 70 158 35 83 80 89 67 124 81 124 124 90 87 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0211-	●	●				●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0211-			●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0211-	●	●				●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0211-			●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0211-0512	●	●				●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●				●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0604	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-	●	●				●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0211-			●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0211-	●	●				●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	0211-			●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0211-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0211-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0211-	●	●				●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0211-	●	●				●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0211-			●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	0211-			●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0211-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	0211-	●	●				●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	0211-			●	●	●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	0211-	●	●				●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	0211-	●	●				●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	0211-			●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	0211-	●	●				●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	0211-			●	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-	●	●				●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0211-	●	●				●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-			●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0211-0404	●	●				●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-	●	●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
