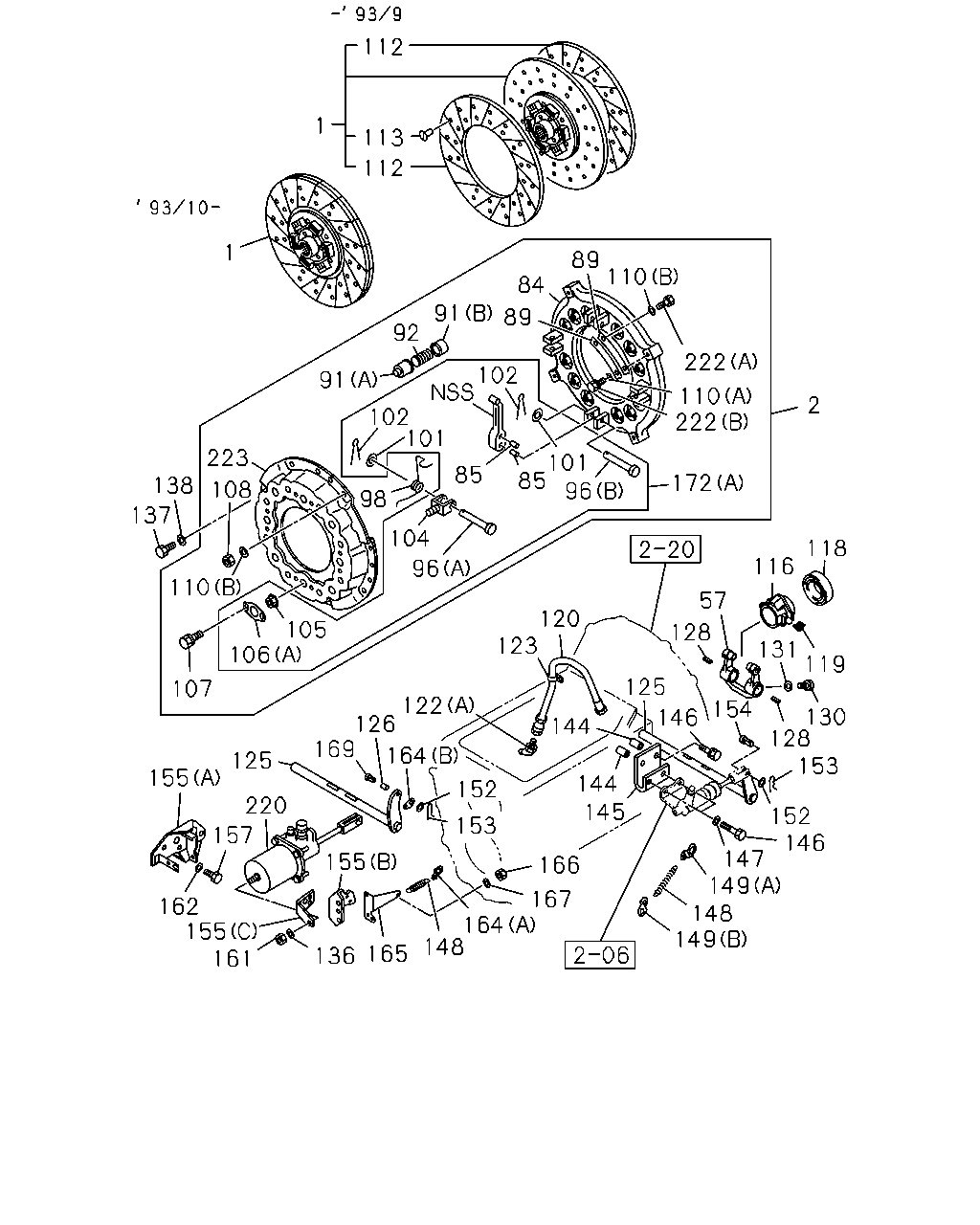

2-01A — CLUTCH (#4394) — 103 parça

112 1 113 112 1 89 110 84 91 89 92 222 102 91 110 222 2 102 101 101 85 96 223 98 85 172 138 108 137 104 118 116 96 110 57 120 123 105 106 128 131 119 125 107 122 126 169 154 130 128 153 146 144 164 125 144 145 155 152 153 220 152 146 157 147 149 148 149 155 166 167 162 155 161 164 148 165 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DISC; CLUTCH 14"	1-31240-301-0	01	1	9101-9309	●	●	●	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9310-9504	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-158-1	01	1	9101-9504	●	●	●	●
57	FORK; SHIFT,CLU	1-31341-028-0	01	1	9101-9504	●	●	●	●
84	PLATE; PRESSURE 14"	1-31221-044-0	01	1	9101-9504	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9101-9504	●	●	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9101-9504	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9101-9504	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9101-9504	●	●	●	●
92	SPRING; CLU	1-09580-236-0	12	1	9101-9504	●	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9101-9504	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-008-0	04	1	9101-9504	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9101-9504	●	●	●	●
101	WASHER; RELEASE LEVER OD=18 ID=10.5	9-31239-039-0	08	1	9101-9504	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9101-9504	●	●	●	●
104	SUPPORT; LEVER	9-31235-060-0	04	1	9101-9504	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9101-9504	●	●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9101-9504	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9101-9504	●	●	●	●
108	NUT; STRAP M10	1-09449-036-0	04	1	9101-9504	●	●	●	●
110	WASHER; SPECIAL,STRAP (B) OD=22 ID=10.2 T=3.2	1-09503-095-0	08	1	9101-9504	●	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9101-9504	●	●	●	●
112	FACING; FRICTION	1-31246-033-0	02	1	9101-9309	●	●	●	●
113	RIVET; FACING	1-09732-009-0	36	1	9101-9309	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-054-0	01	1	9101-9504	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9101-9504	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9101-9504	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9101-9504	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9101-9504	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9101-9504	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=15.5	1-09700-814-1	01	1	9101-9504	●	●	●	●
125	SHAFT; CLU BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-164-0	01	1	9101-9105	●	●	●
125	SHAFT; CLU BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-265-0	01	1	9106-9504	●	●	●
125	SHAFT; CLU EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-31342-059-0	01	1	9101-9504	●	●	●
125	SHAFT; CLU CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>	1-31342-168-0	01	1	9101-9105	●	●	●
125	SHAFT; CLU CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>	1-31342-266-1	01	1	9106-9504	●	●	●
126	BUSHING; SHAFT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-31429-126-0	01	1	9101-9504	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9101-9504	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9101-9504	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9101-9504	●	●	●	●
136	WASHER; PL CLU SYSTEM MINIPACK(B1Z) ID=8.4	9-09160-508-0	01	1	9101-9205	●	●	●	●
137	BOLT; CLU COVER M10X20	0-23801-020-0	12	1	9101-9504	●	●	●	●
138	WASHER; LK,CLU COVER ID=10.2	9-09150-510-0	12	1	9101-9504	●	●	●	●
144	SPACER; SLAVE CYL TO TRANS CASE EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B>	1-46133-001-0	02	1	9101-9504	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-47579-007-0	01	1	9101-9504	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE FINAL GEAR 43/7 15.5" HYPOID(W1R) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 W/LK WASHER	0-50051-025-0	04	1	9101-9201	●
146	BOLT; SLAVE CYL TO TRANS CASE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 W/LK WASHER	0-50051-025-0	04	1	9101-9201	●
146	BOLT; SLAVE CYL TO TRANS CASE FINAL GEAR 43/7 15.5" HYPOID(W1R) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-9205	●
146	BOLT; SLAVE CYL TO TRANS CASE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-9205	●
146	BOLT; SLAVE CYL TO TRANS CASE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> FINAL GEAR 43/7 15.5" HYPOID(W1R) EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 FLANGE	0-28181-025-0	04	1	9206-9504	●
146	BOLT; SLAVE CYL TO TRANS CASE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 FLANGE	0-28181-025-0	04	1	9206-9504	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> M10X60	0-16806-060-0	02	1	9101-9205	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> M10X60 FLANGE	0-28181-060-0	02	1	9206-9504	●	●	●
147	WASHER; LK,SLAVE CYL TO TRANS CASE EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> ID=10.2	9-09150-510-0	02	1	9101-9205	●	●	●
148	SPRING; CLU RETURN EXC. CLU SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9101-9504	●	●	●
148	SPRING; CLU RETURN CLU SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9101-9504	●	●	●	●
149	EYE; SPRING,RETURN SPRING BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9101-9201	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9202-9202	●	●	●
149	EYE; SPRING,RETURN SPRING BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9203-9306	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9307-9504	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (B) ID=12.5	9-47324-022-0	01	1	9101-9206	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> (A) ID=10.5	9-47324-075-0	01	1	9101-9504	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (B) T=2.3	1-47324-005-1	01	1	9203-9206	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (B) T=2.3	1-47324-005-1	01	1	9207-9504	●	●	●
152	WASHER; PL,CLU SHAFT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.5	9-09164-510-0	01	1	9101-9504	●	●	●
152	WASHER; PL,CLU SHAFT EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B> ID=10.5 OD=18	9-09160-510-0	01	1	9101-9504	●	●	●
153	PIN; SPLIT,CLU SHAFT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09747-007-0	01	1	9101-9504	●	●	●
154	PIN; JAW JOINT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9101-9201	●	●	●
154	PIN; JAW JOINT EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9202-9202	●	●	●
154	PIN; JAW JOINT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9203-9306	●	●	●
154	PIN; JAW JOINT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9307-9312	●	●	●
154	PIN; JAW JOINT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9401-9504	●	●	●
154	PIN; JAW JOINT EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B>	9-08234-031-0	01	1	9101-9504	●	●	●
155	BRACKET; MINIPACK EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-31429-056-1	01	1	9101-9504	●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (A)	1-31429-184-0	01	1	9101-9504	●	●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> (C)	1-31429-185-0	01	1	9101-9504	●	●	●	●
157	BOLT; BRKT CLU SYSTEM MINIPACK(B1Z) M10X25 W/LK WASHER	0-50051-025-0	02	1	9101-9205	●	●	●	●
157	BOLT; BRKT CLU SYSTEM MINIPACK(B1Z) M10X18 FLANGE	0-28181-018-0	02	1	9206-9504	●	●	●	●
157	BOLT; BRKT CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> M12X25 W/LK WASHER	0-50051-225-0	01	1	9101-9205	●	●	●	●
157	BOLT; BRKT CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> M12X25 FLANGE	0-28181-225-0	01	1	9206-9504	●	●	●	●
161	NUT; BRKT CLU SYSTEM MINIPACK(B1Z) M8	9-09110-508-0	03	1	9101-9205	●	●	●	●
161	NUT; BRKT CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	03	1	9206-9504	●	●	●	●
162	WASHER; LK,BRKT CLU SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-508-0	03	1	9101-9205	●	●	●	●
164	EYE; SPRING EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=10.5	9-47324-075-0	01	1	9101-9504	●	●	●
164	EYE; SPRING CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> (A)	1-31426-019-1	01	1	9101-9202	●	●	●	●
164	EYE; SPRING BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9203-9504	●	●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE ID=9X2 & 13	1-47475-658-0	01	1	9101-9504	●	●	●	●
166	NUT; SPRING EYE CLU SYSTEM MINIPACK(B1Z) M8	9-09110-508-0	02	1	9101-9205	●	●	●	●
166	NUT; SPRING EYE CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	02	1	9206-9504	●	●	●	●
167	WASHER; LK,SPRING EYE CLU SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-508-0	02	1	9101-9205	●	●	●	●
169	PIN; JOINT,MINIPACK EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-08234-031-0	01	1	9101-9504	●	●	●
169	PIN; JOINT,MINIPACK CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>	1-31424-001-1	01	1	9101-9202	●	●	●	●
169	PIN; JOINT,MINIPACK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9203-9312	●	●	●	●
169	PIN; JOINT,MINIPACK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9401-9504	●	●	●	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-0	01	1	9101-9504	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-31800-217-0	01	1	9101-9504	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>	1-31800-349-1	01	1	9101-9202	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z)	1-31800-349-2	01	1	9203-9504	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> BEST VALUE PARTS	1-87610-084-0	01	1	9101-9202	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> CLU SYSTEM MINIPACK(B1Z) BEST VALUE PARTS	1-87610-084-0	01	1	9203-9504	●	●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9101-9504	●	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9101-9504	●	●	●	●
223	COVER; CLU	1-31211-018-0	01	1	9101-9504	●	●	●	●
