◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#43931) — 86 parça

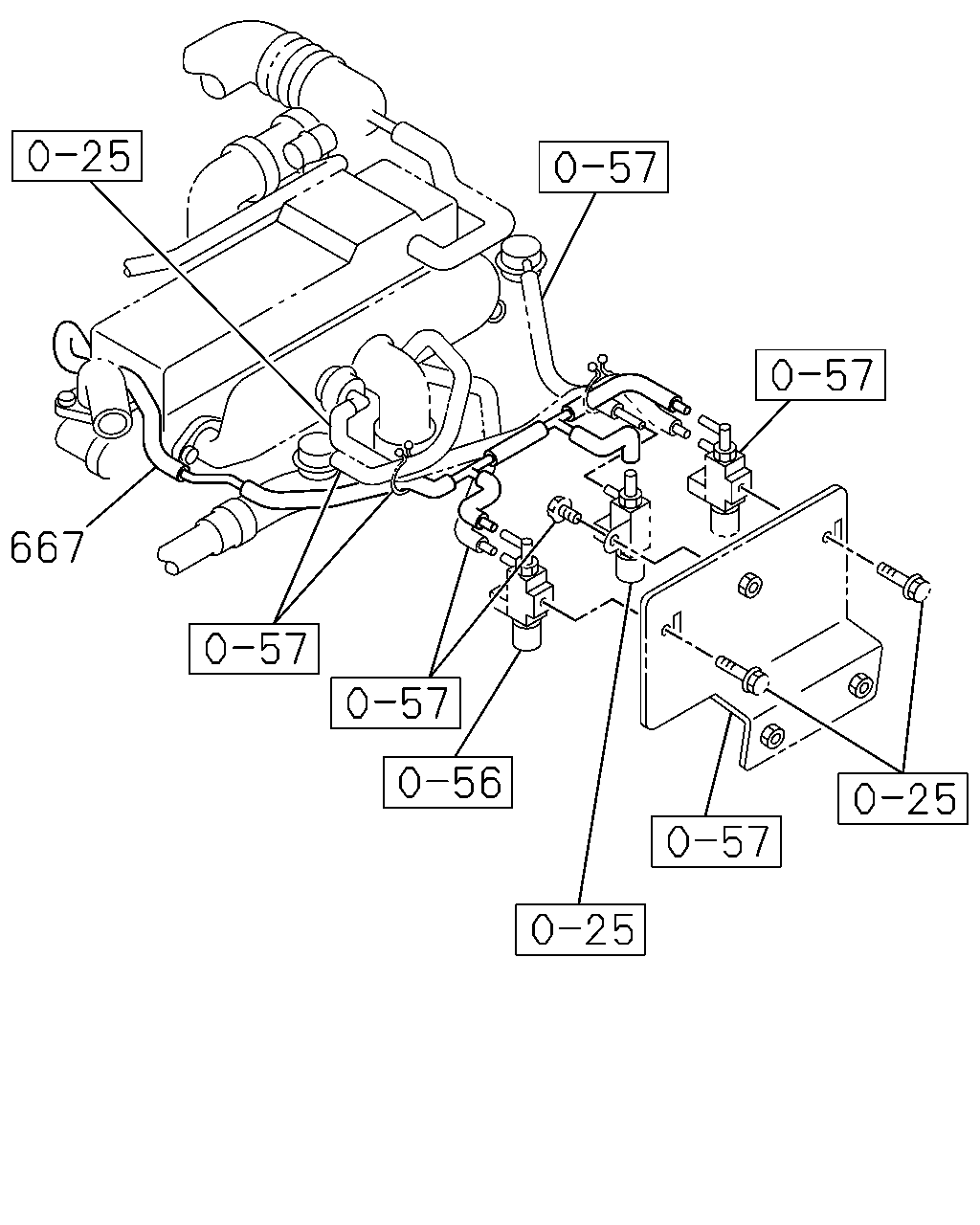

çizim 11091
667
BalonParca AdiParca NoAdetTipApplied Date A B C
667 03.280 HOSE; VAC,PUMP TO VSV
TURBOCHARGER<K51> 		8-97228-358-1 01 1 0211-0501 ●
667 03.280 HOSE; VAC,PUMP TO VSV 8-97228-358-1 01 1 0502- ●

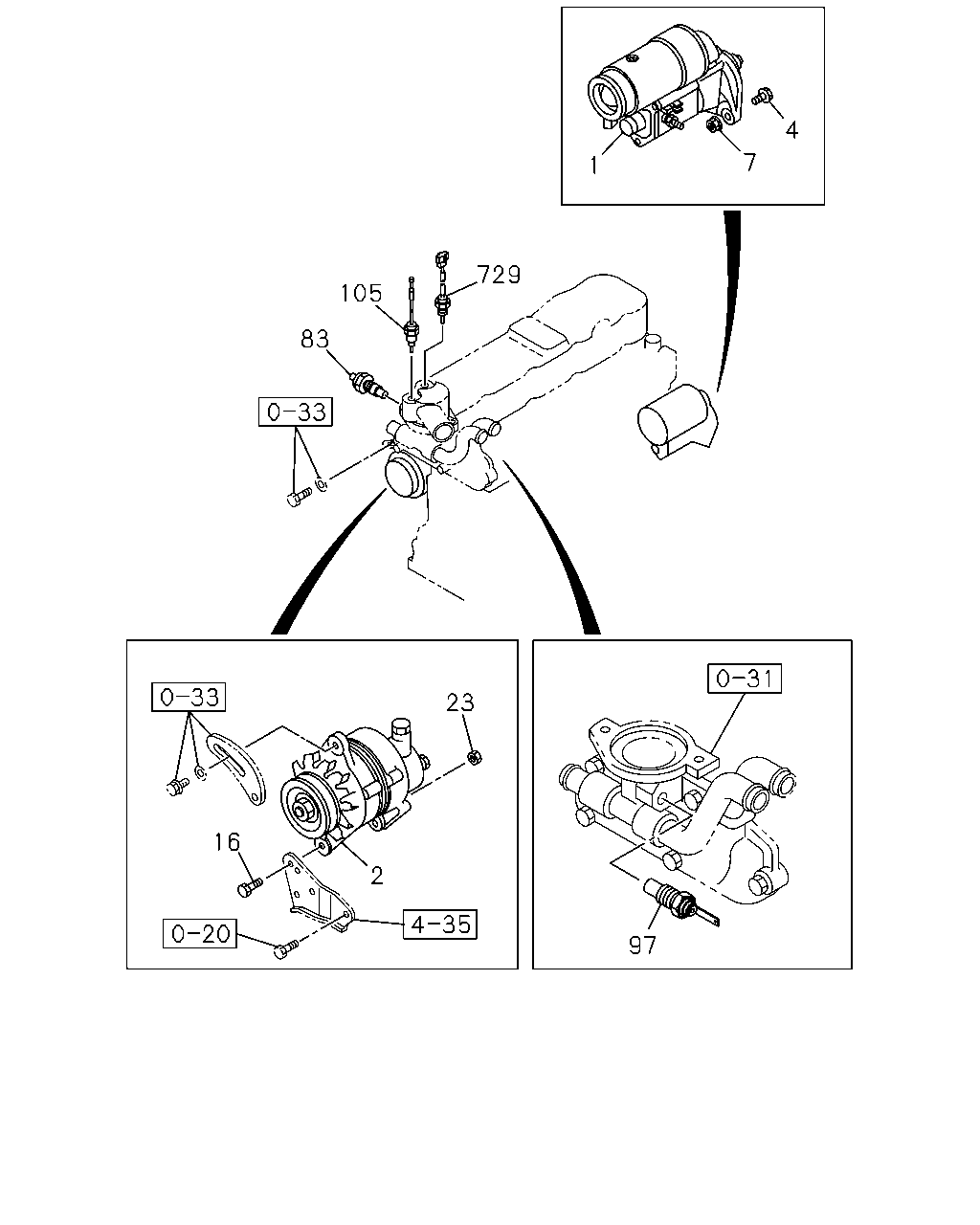

çizim 11720
4 7 1 729 105 83 23 16 2 97
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0211-0501 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0502- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A> 12V 60A 		8-97695-602-0 01 1 1507- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 0211-0501 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 0502-1408 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506-1506 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-98300-335-0 01 1 1507- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> 12V 60A 		8-98300-335-0 01 1 1507- ●
4 02.042 BOLT; STARTER
CHINA CHONGQING EQUIPMENT<R5B> OIL COOLER<KC4> 00.685 M12X45 FLANGE 		0-28081-245-0 02 1 0508-0512 ●
4 02.042 BOLT; STARTER
CHINA CHONGQING EQUIPMENT<R5B> OIL COOLER<KC4> 00.685 M12X45 FLANGE 		0-28051-245-0 02 1 0601- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0211-0501 ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0502-0512 ● ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0601- ● ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0211-0501 ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0502-0602 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0603- ● ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0211-0501 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0502-0512 ● ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0601- ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0502-0602 ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211-0501 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0502- ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211-0501 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0502- ● ● ●
97 01.150 SWITCH; THERMO,EGR CONT
TURBOCHARGER<K51> 		8-94368-591-0 01 1 0211-0501 ●
97 01.150 SWITCH; THERMO,EGR CONT
LOW EMISSION VEHICLE PACKAGE<7VP> 		8-94368-591-0 01 1 0211-0501 ●
97 01.150 SWITCH; THERMO,EGR CONT
LOW EMISSION VEHICLE PACKAGE<7VP> 		8-94368-591-0 01 1 0502- ●
97 01.150 SWITCH; THERMO,EGR CONT 8-94368-591-0 01 1 0502- ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> 		8-94336-668-0 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS 8-94336-668-0 01 1 0502- ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> 		8-94457-511-0 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS
EXC. TURBOCHARGER<K51>,INDONESIA EQUIPMENT(S4S) 		8-94457-511-0 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS
EXC. INDONESIA EQUIPMENT(S4S) 		8-94457-511-0 01 1 0502- ●
105 01.150 SWITCH; THERMO,QOS 8-94457-511-0 01 1 0502- ●
729 01.150 SENSOR; QOS THERMO 8-97018-064-0 01 1 0211- ●

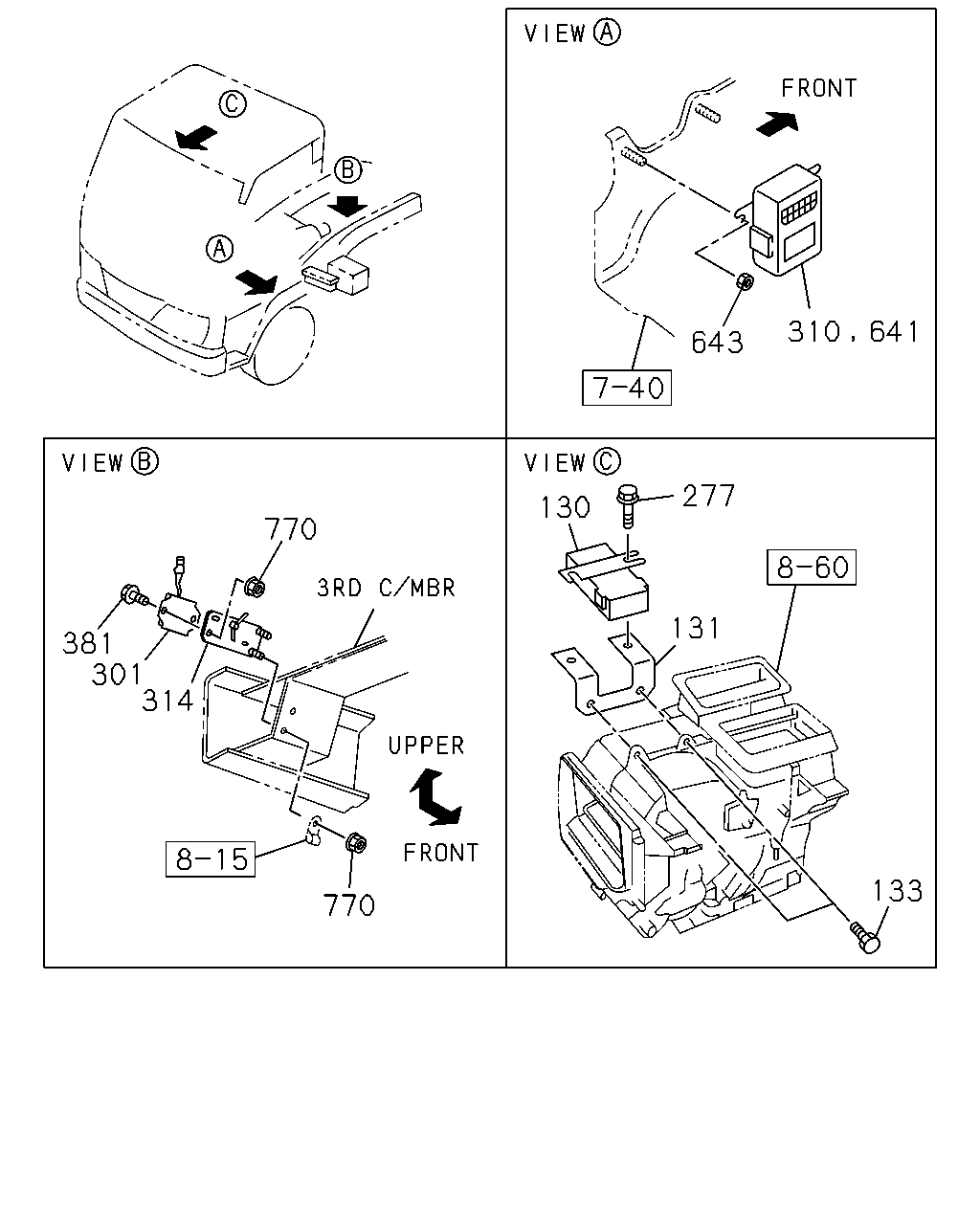

çizim 50870
310 641 643 277 130 770 131 381 301 314 133 770
BalonParca AdiParca NoAdetTipApplied Date A B C
130 02.510 CONTROLLER; EGR
LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97217-995-1 01 1 0211- ●
130 02.510 CONTROLLER; EGR
TURBOCHARGER<K51> 		8-97201-734-3 01 1 0211-0501 ●
130 02.510 CONTROLLER; EGR 8-97201-734-3 01 1 0502- ●
131 03.670 BRACKET; EGR
TURBOCHARGER<K51> 		8-97217-813-1 01 1 0211-0501 ●
131 03.670 BRACKET; EGR
LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97217-813-1 01 1 0211-0501 ●
131 03.670 BRACKET; EGR
LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97217-813-1 01 1 0502- ●
131 03.670 BRACKET; EGR 8-97217-813-1 01 1 0502- ●
133 02.500 BOLT; EGR CONTROLLER
TURBOCHARGER<K51> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ●
133 02.500 BOLT; EGR CONTROLLER
LOW EMISSION VEHICLE PACKAGE<7VP> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ●
133 02.500 BOLT; EGR CONTROLLER
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ●
133 02.500 BOLT; EGR CONTROLLER
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
277 02.510 BOLT; BRKT
TURBOCHARGER<K51> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ●
277 02.510 BOLT; BRKT
LOW EMISSION VEHICLE PACKAGE<7VP> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ●
277 02.510 BOLT; BRKT
LOW EMISSION VEHICLE PACKAGE<7VP> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ●
277 02.510 BOLT; BRKT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ●
277 02.510 BOLT; BRKT
LOW EMISSION VEHICLE PACKAGE<7VP> 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
277 02.510 BOLT; BRKT
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
301 02.510 RESISTOR; DROPPING 8-94389-802-1 01 1 0211- ●
310 02.510 CONTROLLER; QOS 8-97047-029-0 01 1 0508- ●
310 02.510 CONTROLLER; QOS 8-97047-029-0 01 1 0211-0501 ●
314 02.500 BRACKET; DROPPING RESISTOR 8-97061-910-2 01 1 0211- ●
381 02.183 BOLT; DROPPING RESISTOR
02.334 M6X25 FLANGE 		0-28680-625-0 02 1 0211-0512 ●
381 02.183 BOLT; DROPPING RESISTOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 0601- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 0211-0301 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-0 01 1 0302-0510 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-3 01 1 0511- ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0507 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0508-0510 ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0508-0510 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0511-0602 ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0511-0602 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ●
770 02.183 NUT; DROPPING REGISTER
04.594 M6 FLANGE 		0-91150-106-0 04 1 0211-0602 ●
770 02.183 NUT; DROPPING REGISTER
01.062 M6 FLANGE 		0-91180-106-0 04 1 0603- ●
çizim 53579
644 46 10 10 46 644 578 578
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 0211-0501 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 0502- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 01 1 0211-0501 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 01 1 0502- ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 0211- ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0211-0501 ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0502- ● ● ●
644 02.510 RELAY; COLD START DEVICE
EXC. TURBOCHARGER<K51> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ●
644 02.510 RELAY; COLD START DEVICE
12V 20A 		8-97173-037-1 01 1 0502- ●
