Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#43930) — 88 parça

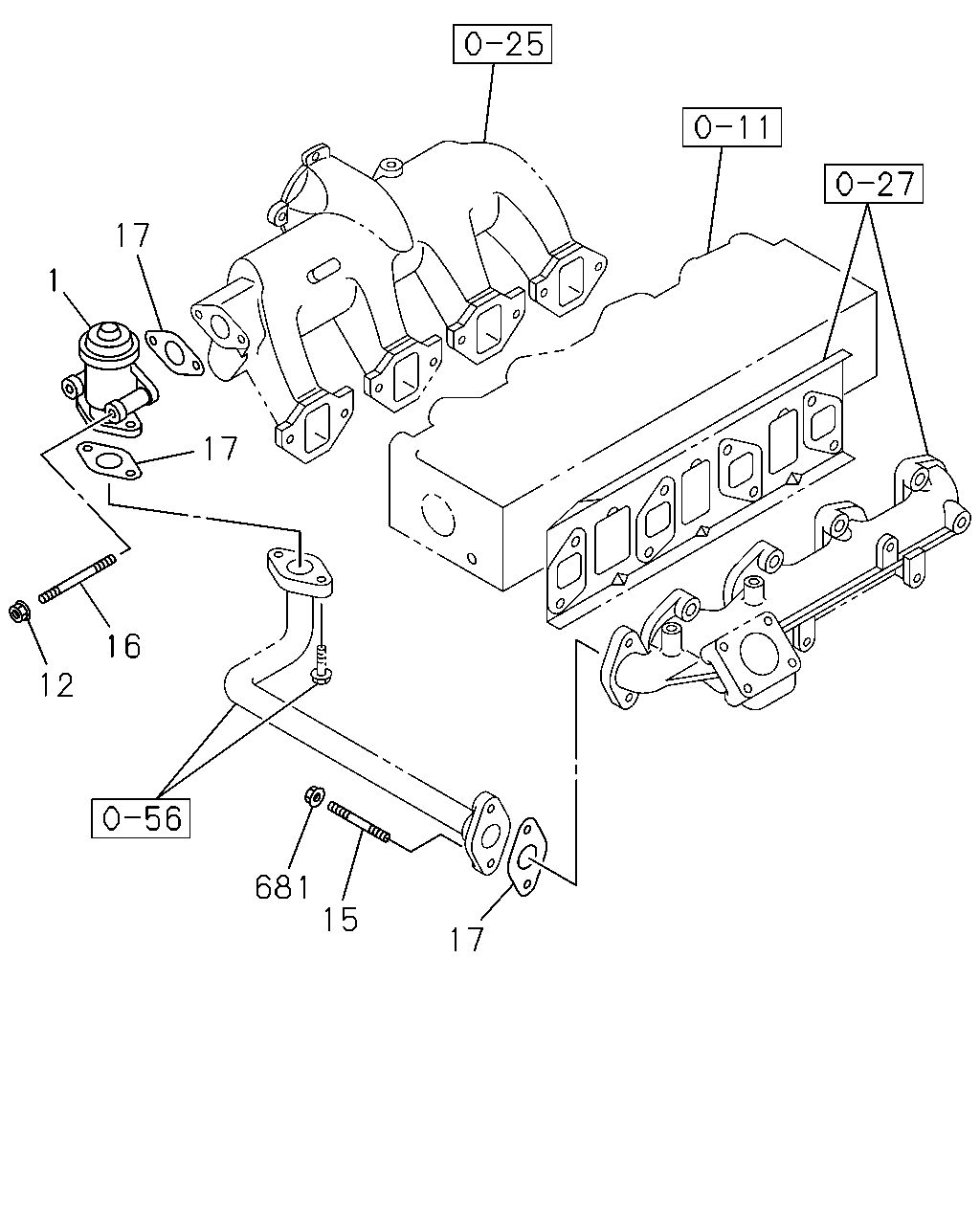

17 1 17 16 12 681 15 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR TURBOCHARGER<K51>	8-97208-656-3	01	1	0211-0501	●
1	03.670 VALVE; EGR LOW EMISSION VEHICLE PACKAGE<7VP>	8-97208-656-3	01	1	0211-0501		●
1	03.670 VALVE; EGR LOW EMISSION VEHICLE PACKAGE<7VP>	8-97208-656-4	01	1	0502-		●
1	03.670 VALVE; EGR	8-97208-656-4	01	1	0502-			●
12	03.671 NUT; EGR VLV TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	02	1	0211-0501	●
12	03.671 NUT; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 01.540 M8 FLANGE	0-91150-208-0	02	1	0211-0501		●
12	03.671 NUT; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 01.540 M8 FLANGE	0-91150-208-0	02	1	0502-0602		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0502-0602			●
12	03.671 NUT; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-			●
15	03.670 STUD; EGR PIPE TURBOCHARGER<K51> M8X25 L=36	8-94156-470-2	02	1	0211-0408	●
15	03.670 STUD; EGR PIPE TURBOCHARGER<K51> 03.601 M8X25 L=36	8-97378-062-0	02	1	0409-0501	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0502-			●
16	03.275 STUD; EGR VLV TURBOCHARGER<K51> 00.413 M8X55 L=67	9-04110-855-0	02	1	0211-0501	●
16	03.275 STUD; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 00.413 M8X55 L=67	9-04110-855-0	02	1	0211-0501		●
16	03.275 STUD; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 00.413 M8X55 L=67	9-04110-855-0	02	1	0502-0604		●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0502-0604			●
16	03.275 STUD; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 01.097 M8X55 L=67	0-41010-855-0	02	1	0605-		●
16	03.275 STUD; EGR VLV 01.097 M8X55 L=67	0-41010-855-0	02	1	0605-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>	8-97192-765-0	03	1	0211-0501	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97192-765-0	03	1	0502-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). LOW EMISSION VEHICLE PACKAGE<7VP>	8-97192-765-0	02	1	0211-		●
681	03.671 NUT; EGR PIPE TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	02	1	0211-0501	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0502-0602			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-			●

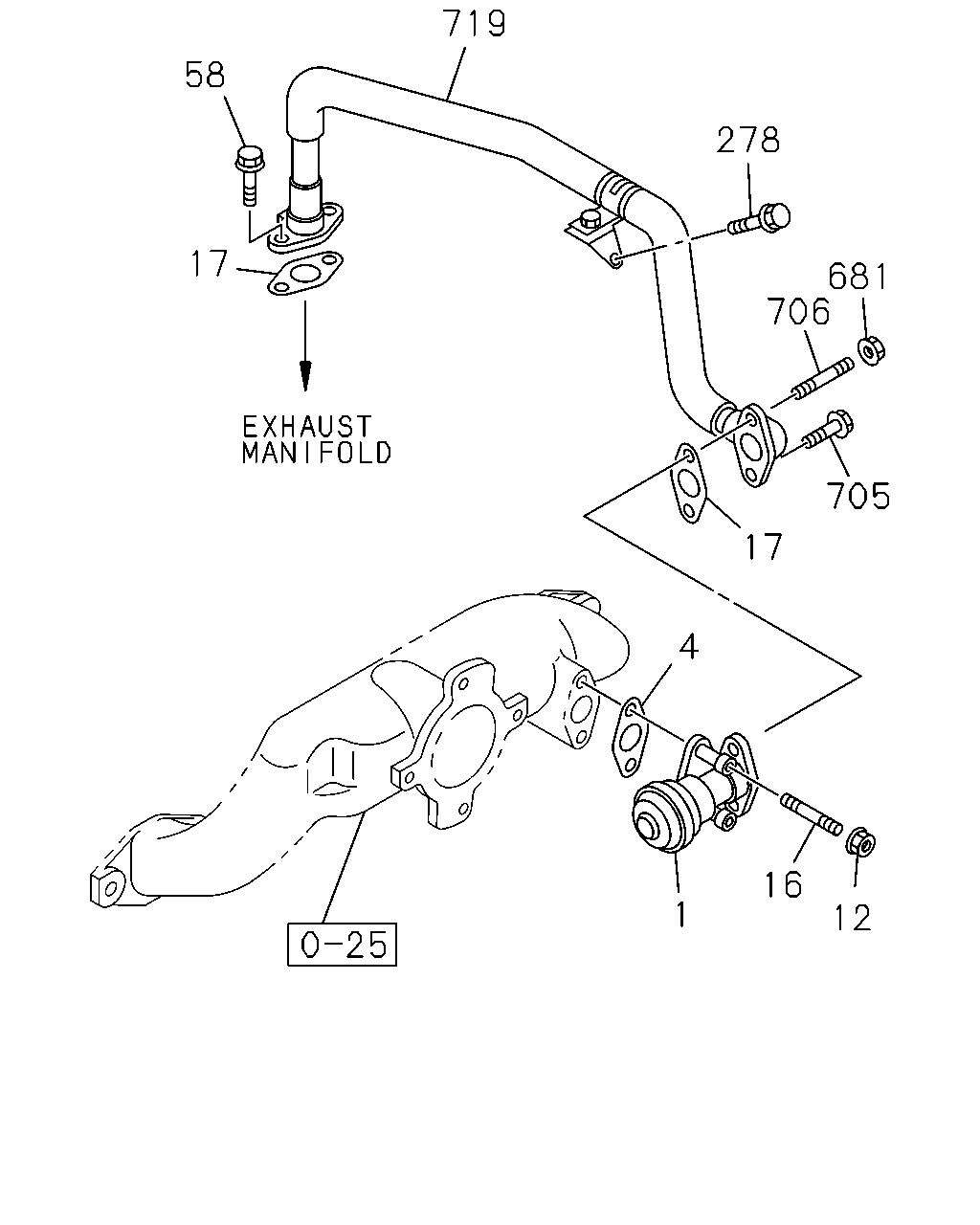

719 58 278 17 681 706 705 17 4 16 1 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR TURBOCHARGER<K51>	8-97208-656-3	01	1	0211-0501	●
1	03.670 VALVE; EGR LOW EMISSION VEHICLE PACKAGE<7VP>	8-97208-656-3	01	1	0211-0501		●
1	03.670 VALVE; EGR LOW EMISSION VEHICLE PACKAGE<7VP>	8-97208-656-4	01	1	0502-		●
1	03.670 VALVE; EGR	8-97208-656-4	01	1	0502-			●
4	03.671 GASKET; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 03.665	8-97192-765-0	01	1	0211-		●
12	03.671 NUT; EGR VLV TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	02	1	0211-0501	●
12	03.671 NUT; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 01.540 M8 FLANGE	0-91150-208-0	02	1	0211-0501		●
12	03.671 NUT; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 01.540 M8 FLANGE	0-91150-208-0	02	1	0502-0602		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0502-0602			●
12	03.671 NUT; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-			●
16	03.275 STUD; EGR VLV TURBOCHARGER<K51> 00.413 M8X55 L=67	9-04110-855-0	02	1	0211-0501	●
16	03.275 STUD; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 00.413 M8X55 L=67	9-04110-855-0	02	1	0211-0501		●
16	03.275 STUD; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 00.413 M8X55 L=67	9-04110-855-0	02	1	0502-0604		●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0502-0604			●
16	03.275 STUD; EGR VLV LOW EMISSION VEHICLE PACKAGE<7VP> 01.097 M8X55 L=67	0-41010-855-0	02	1	0605-		●
16	03.275 STUD; EGR VLV 01.097 M8X55 L=67	0-41010-855-0	02	1	0605-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>	8-97192-765-0	03	1	0211-0501	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97192-765-0	03	1	0502-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). LOW EMISSION VEHICLE PACKAGE<7VP>	8-97192-765-0	02	1	0211-		●
58	03.417 BOLT; PIPE LOW EMISSION VEHICLE PACKAGE<7VP> 03.670 M8X23 FLANGE	8-94103-629-2	02	1	0211-0408		●
58	03.417 BOLT; PIPE LOW EMISSION VEHICLE PACKAGE<7VP> M8X23 FLANGE	8-97378-077-0	02	1	0409-		●
278	03.680 BOLT; CLIP LOW EMISSION VEHICLE PACKAGE<7VP> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●
278	03.680 BOLT; CLIP LOW EMISSION VEHICLE PACKAGE<7VP> 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
681	03.671 NUT; EGR PIPE TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	02	1	0211-0501	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0502-0602			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-			●
705	03.675 BOLT; EGR VLV TO EGR PIPE LOW EMISSION VEHICLE PACKAGE<7VP> 03.275 M8X30 FLANGE	0-28080-830-0	01	1	0211-0512		●
705	03.675 BOLT; EGR VLV TO EGR PIPE LOW EMISSION VEHICLE PACKAGE<7VP> 00.206 M8X30 FLANGE	0-28050-830-0	01	1	0601-		●
706	03.675 STUD; EGR VLV TO EGR PIPE LOW EMISSION VEHICLE PACKAGE<7VP> 05.387 M8X30 L=41	9-04110-830-0	01	1	0211-0604		●
706	03.675 STUD; EGR VLV TO EGR PIPE LOW EMISSION VEHICLE PACKAGE<7VP> 02.042 M8X30 L=41	0-41010-830-0	01	1	0605-		●
719	03.675 PIPE; EGR LOW EMISSION VEHICLE PACKAGE<7VP>	8-97218-478-1	01	1	0211-		●

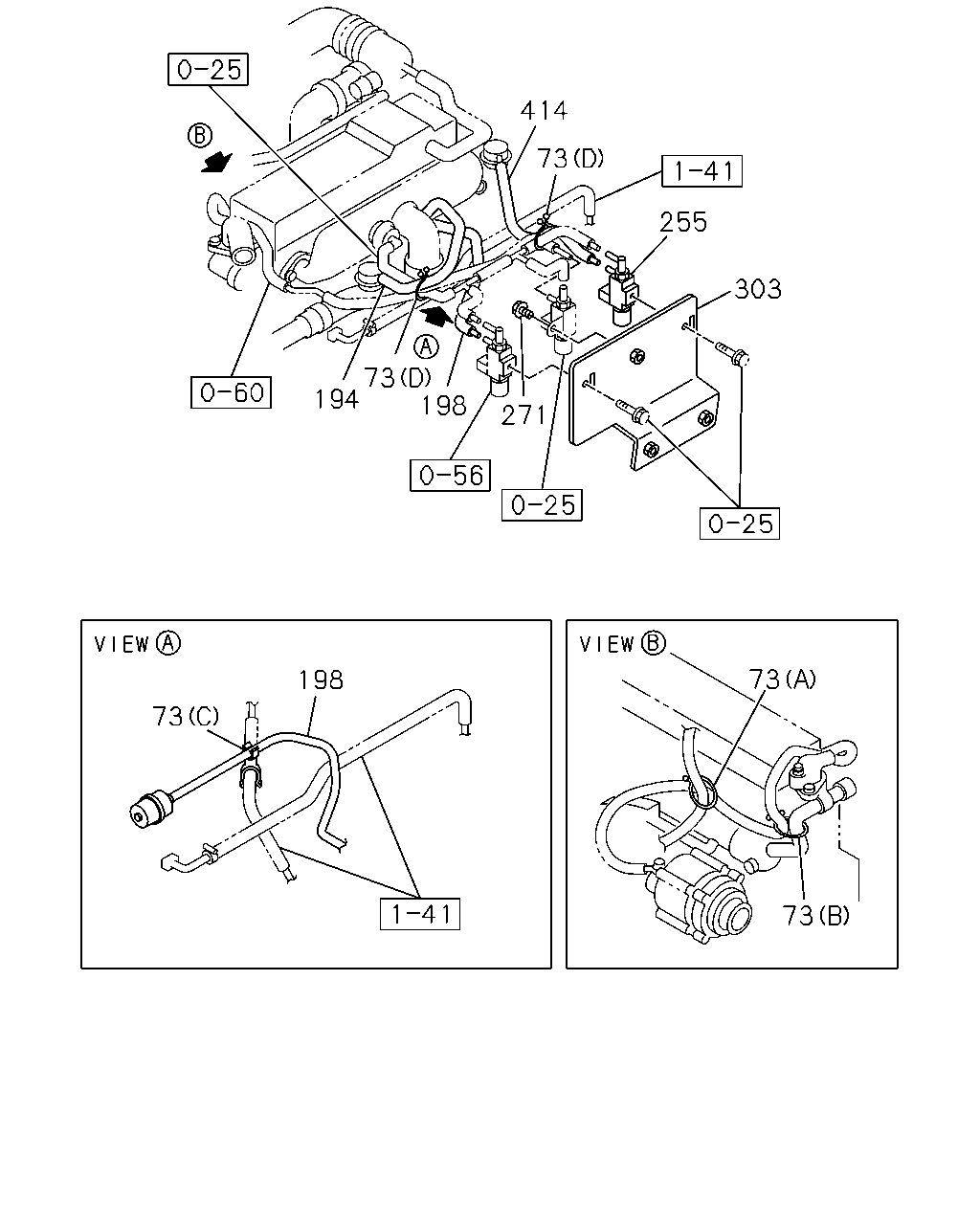

414 73 255 303 73 194 198 271 73 198 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> 01.540 (D) ID=30	8-94315-423-0	03	1	0211-0501	●
73	03.680 CLIP; VAC HOSE 01.540 (D) ID=30	8-94315-423-0	03	1	0502-			●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	0211-0501	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	0502-			●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> 03.278 (B) ID=37	8-94481-468-0	01	1	0211-0501	●
73	03.680 CLIP; VAC HOSE 03.278 (B) ID=37	8-94481-468-0	01	1	0502-			●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> (A) ID=16.5 & 7	8-97226-171-0	01	1	0211-0501	●
73	03.680 CLIP; VAC HOSE (A) ID=16.5 & 7	8-97226-171-0	01	1	0502-1201			●
73	03.680 CLIP; VAC HOSE INDONESIA EQUIPMENT(S4S) (A) ID=16.5 & 7	8-97226-171-0	01	1	1202-			●
194	03.675 HOSE; VAC TURBOCHARGER<K51>	8-97208-495-0	01	1	0211-0501	●
194	03.675 HOSE; VAC	8-97208-495-0	01	1	0502-			●
198	03.675 HOSE; VAC,VSV TURBOCHARGER<K51> L=300 SERVICED BY L=3000	0-04930-300-0	01	1	0211-0501	●
198	03.675 HOSE; VAC,VSV L=300 SERVICED BY L=3000	0-04930-300-0	01	1	0502-			●
255	03.675 VALVE; VAC SW,EGR CONT TURBOCHARGER<K51>	8-97171-030-0	01	1	0211-0501	●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0502-			●
271	03.675 BOLT; BRKT TURBOCHARGER<K51> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●
271	03.675 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512			●
271	03.675 BOLT; BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
303	03.671 BRACKET; VAC SW TURBOCHARGER<K51>	8-97225-561-0	01	1	0211-0501	●
303	03.671 BRACKET; VAC SW	8-97225-561-0	01	1	0502-			●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV LOW EMISSION VEHICLE PACKAGE<7VP> L=205	8-97259-505-1	01	1	0211-		●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV TURBOCHARGER<K51>	8-97259-489-0	01	1	0211-0501	●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV	8-97259-489-0	01	1	0502-			●

414 728 70 70 70 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
70	03.680 CLIP; RUBBER HOSE LOW EMISSION VEHICLE PACKAGE<7VP> EXC. EXHAUST BRAKE<NF8> 04.510 (A) ID=23	8-97010-411-0	02	1	0211-		●
70	03.680 CLIP; RUBBER HOSE LOW EMISSION VEHICLE PACKAGE<7VP> 03.278 (B) ID=37	8-94481-468-0	01	1	0211-		●
70	03.680 CLIP; RUBBER HOSE LOW EMISSION VEHICLE PACKAGE<7VP> 03.430 (C) ID=6 & 16.5	8-94165-402-0	01	1	0211-		●
70	03.680 CLIP; RUBBER HOSE LOW EMISSION VEHICLE PACKAGE<7VP> 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	0211-		●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV LOW EMISSION VEHICLE PACKAGE<7VP> L=205	8-97259-505-1	01	1	0211-		●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV TURBOCHARGER<K51>	8-97259-489-0	01	1	0211-0501	●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV	8-97259-489-0	01	1	0502-			●
728	03.675 HOSE; VAC,PUMP TO VLV LOW EMISSION VEHICLE PACKAGE<7VP>	8-97329-338-0	01	1	0211-		●
