Sayfa 1-56 - Isuzu EPC

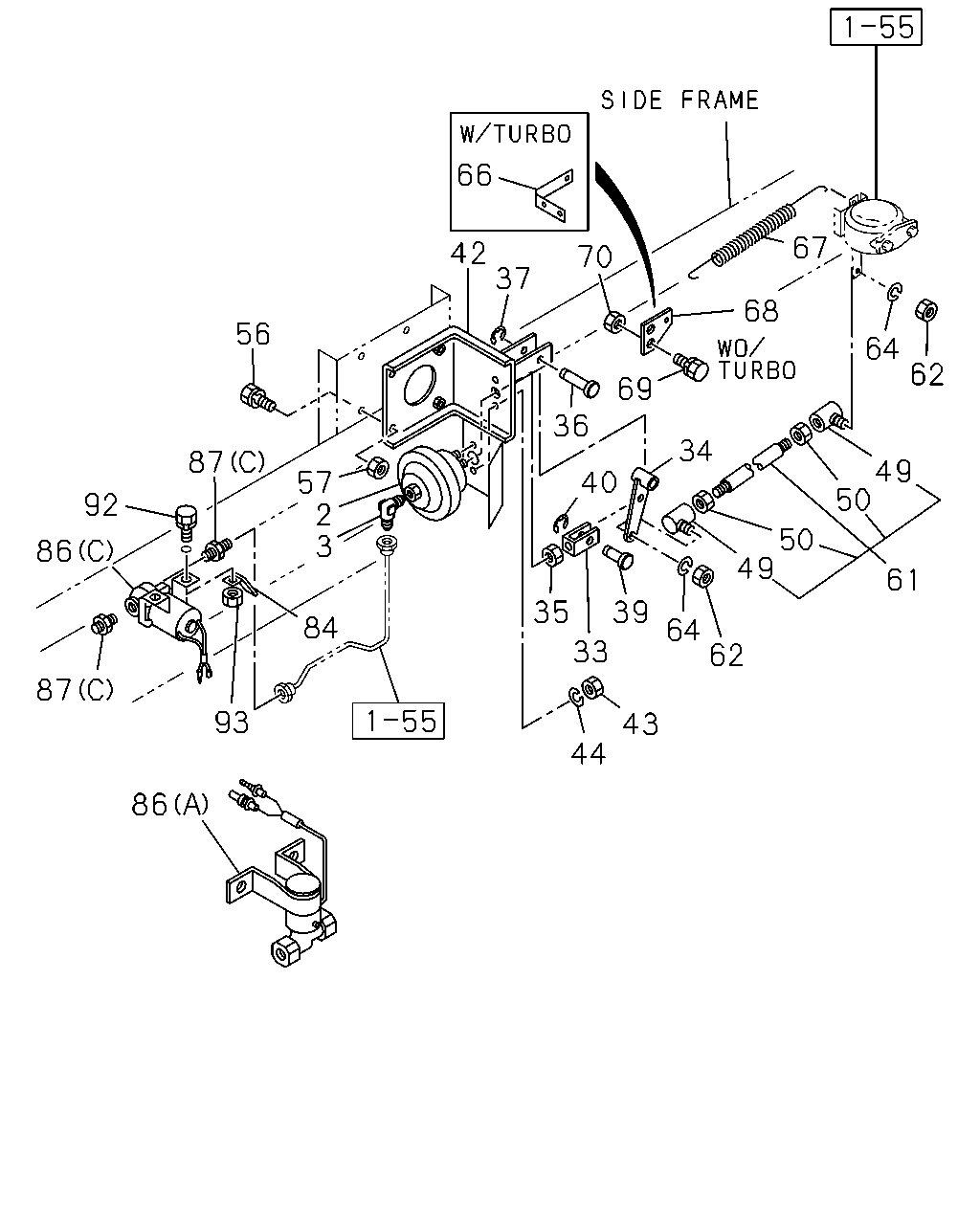

1-56 — EXHAUST BRAKE SYSTEM (#4393) — 297 parça

66 67 42 37 70 68 56 64 62 69 36 34 40 87 49 50 57 2 3 92 50 49 86 61 39 35 84 64 62 33 87 93 43 44 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	CHAMBER; POWER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22190-464-0	01	1	9101-9504	●	●	●
2	CHAMBER; POWER EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22190-179-0	01	1	9101-9504	●	●	●
3	CONNECTOR; POWER CHAMBER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-09650-267-1	01	1	9101-9504	●	●	●
3	CONNECTOR; POWER CHAMBER EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9101-9307	●	●	●
3	CONNECTOR; POWER CHAMBER EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9308-9504	●	●	●
33	JOINT; YOKE,POWER CHAMBER EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09768-044-0	01	1	9101-9504	●	●	●
34	LEVER; CONT BOX EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22196-161-0	01	1	9101-9504	●	●
34	LEVER; CONT BOX BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22196-149-0	01	1	9101-9504	●	●	●
34	LEVER; CONT BOX EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22196-162-0	01	1	9101-9504			●
35	NUT; JOINT YOKE,LK EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09111-508-0	01	1	9101-9504	●	●	●
36	PIN; JOINT,CONT LEVER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	9-08204-241-0	01	1	9101-9504	●	●	●
36	PIN; JOINT,CONT LEVER EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09744-059-0	01	1	9101-9504	●	●	●
37	RING; SNAP,CONT LEVER EXH BRK<NF8> ID=9	9-09185-409-0	01	1	9101-9504	●	●	●
39	PIN; JOINT YOKE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-09747-003-0	02	1	9101-9504	●	●	●
39	PIN; JOINT YOKE EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09744-058-0	01	1	9101-9504	●	●	●
40	RING; SNAP,JOINT YOKE EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8	9-09185-408-0	01	1	9101-9504	●	●	●
42	BRACKET; POWER CHAMBER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22196-169-0	01	1	9101-9504	●	●	●
42	BRACKET; POWER CHAMBER EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22196-156-0	01	1	9101-9504	●	●	●
43	NUT; POWER CHAMBER TO BRKT EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09111-508-0	02	1	9101-9504	●	●	●
44	WASHER; LK,POWER CHAMBER TO BRKT EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.2	9-09150-508-0	02	1	9101-9504	●	●	●
49	JOINT; BALL,LINK ROD EXH BRK<NF8> RH THREAD	1-09760-009-0	02	1	9101-9504	●	●	●
50	NUT; JOINT BALL,LK EXH BRK<NF8> M8	9-09110-408-0	02	1	9101-9504	●	●	●
56	BOLT; BRKT,CONT BOX EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X28 W/LK WASHER	0-50040-828-0	04	1	9101-9504	●	●	●
57	NUT; BRKT,CONT BOX EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	02	1	9101-9504	●	●	●
61	ROD; LINK,EXH BRK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22190-507-0	01	1	9101-9504	●	●
61	ROD; LINK,EXH BRK EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22190-374-0	01	1	9101-9504	●	●
61	ROD; LINK,EXH BRK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22190-511-0	01	1	9101-9504			●
61	ROD; LINK,EXH BRK EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22190-436-0	01	1	9101-9504			●
62	NUT; LINK ROD EXH BRK<NF8> M8	9-09110-408-0	02	1	9101-9504	●	●	●
64	WASHER; LK,LINK ROD EXH BRK<NF8> ID=8.2	9-09150-508-0	02	1	9101-9504	●	●	●
66	BRACKET; RETURN SPR EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22196-112-0	01	1	9101-9504			●
67	SPRING; RETURN,EXH BRK EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-09942-062-1	01	1	9101-9504	●	●	●
68	EYE; SPR,RETURN SPR EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22196-111-0	01	1	9101-9504	●	●
69	BOLT; SPR EYE EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X18 W/LK WASHER	0-50040-818-0	01	1	9101-9504	●	●
69	BOLT; SPR EYE EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER	0-50040-820-0	02	1	9101-9504			●
70	NUT; SPR EYE EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-508-0	01	1	9101-9504	●	●
70	NUT; SPR EYE EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-508-0	02	1	9101-9504			●
84	CLIP; HARNESS EXH BRK<NF8> L=63	1-09700-418-1	08	1	9101-9110	●	●	●
86	VALVE; MAG,EXH BRK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) (A) 2-WAY VALVE	1-82563-095-0	01	1	9101-9504	●	●	●
86	VALVE; MAG,EXH BRK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (B) 3-WAY VALVE	1-82563-222-0	01	1	9101-9504	●	●	●
86	VALVE; MAG,EXH BRK EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 2-WAY VALVE	1-82563-099-0	01	1	9101-9504	●	●	●
86	VALVE; MAG,EXH BRK RIGHT HAND DRIVE(LTR5FB) AIR HORN(WB8) (A) 2-WAY VALVE	1-82563-165-0	01	1	9101-9106	●	●	●
86	VALVE; MAG,EXH BRK LEFT HAND DRIVE(LTR6FB) AIR HORN(WB8) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 2-WAY VALVE	1-82563-165-0	01	1	9101-9106	●	●	●
86	VALVE; MAG,EXH BRK RIGHT HAND DRIVE(LTR5FB) AIR HORN(WB8) (A) 2-WAY VALVE	1-82563-456-1	01	1	9107-9504	●	●	●
86	VALVE; MAG,EXH BRK LEFT HAND DRIVE(LTR6FB) AIR HORN(WB8) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 2-WAY VALVE	1-82563-456-1	01	1	9107-9504	●	●	●
86	VALVE; MAG,EXH BRK (D) 3-WAY VALVE	1-82563-402-0	01	1	9505-9701				●
86	VALVE; MAG,EXH BRK (D) 3-WAY VALVE	1-82563-402-0	01	1	9702-9709				●	●
86	VALVE; MAG,EXH BRK (D) 3-WAY VALVE	1-82563-402-0	01	1	9710-				●	●	●
86	VALVE; MAG,EXH BRK OVERHEAD COOLING SYSTEM<YS9> (E) 3-WAY VALVE	1-82563-404-0	01	1	9505-				●
87	CONNECTOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9101-9504	●	●	●
87	CONNECTOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9101-9302	●	●	●
87	CONNECTOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9504	●	●	●
87	CONNECTOR EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M14	1-09650-031-0	02	1	9101-9103	●	●	●
87	CONNECTOR EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	9104-9504	●	●	●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9505-9701				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9505-9701				●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9702-9708				●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9702-9708				●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9709				●
87	CONNECTOR MT643 A/T ALLISON(PR7),ISUZU M/T<X9A> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9709				●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9709					●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9710-0306				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9710-0306				●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0307-				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0307-				●
87	CONNECTOR (E) M20 & PT1/4	9-09902-386-0	01	1	9505-9701				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (E) M20 & PT1/4	9-09902-386-0	01	1	9505-9701				●
87	CONNECTOR (E) M20 & PT1/4	9-09902-386-0	01	1	9702-				●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (E) M20 & PT1/4	9-09902-386-0	01	1	9702-				●
87	CONNECTOR (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9702-9709					●
87	CONNECTOR (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9710-					●	●
92	BOLT; MAG VLV EXH BRK<NF8> M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9110	●	●	●
92	BOLT; MAG VLV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9110	●	●	●
92	BOLT; MAG VLV EXH BRK<NF8> M8X20 W/LK WASHER	9-01900-820-0	02	1	9111-9204	●	●	●
92	BOLT; MAG VLV EXH BRK<NF8> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●	●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X30 FLANGE	0-28080-830-0	02	1	9505-9606				●	●	●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9710-0512				●	●	●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X35 FLANGE	0-28650-835-0	02	1	0601-				●	●	●
92	BOLT; MAG VLV ISUZU M/T<X9A> RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9607-9702				●
92	BOLT; MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	9505-9606				●
92	BOLT; MAG VLV MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6S M/T(X7W) M8X25 FLANGE	0-28680-825-0	02	1	9607-9805				●	●	●
92	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	02	1	9806-0512				●	●	●
92	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-				●	●	●
92	BOLT; MAG VLV ISUZU M/T<X9A> EXH BRK<NF8> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709				●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709				●
92	BOLT; MAG VLV LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) EXH BRK<NF8> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709				●
92	BOLT; MAG VLV EXH BRK<NF8> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709					●
92	BOLT; MAG VLV ISUZU M/T<X9A> RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9703-9709				●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9703-9709					●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X25 FLANGE	0-28080-825-0	02	1	9505-9606				●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X30 FLANGE	0-28680-830-0	02	1	9607-0512				●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X30 FLANGE	0-28650-830-0	02	1	0601-				●
93	NUT; MAG VLV EXH BRK<NF8> M8	9-09110-408-0	02	1	9101-9110	●	●	●
93	NUT; MAG VLV RETARDER BRK<RE2> ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9703-9708				●	●
93	NUT; MAG VLV ISUZU M/T<X9A> EXH BRK<NF8> M8 FLANGE	0-91150-108-0	02	1	9703-9708				●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91150-108-0	02	1	9703-9708				●
93	NUT; MAG VLV RETARDER BRK<RE2> M8	9-09110-408-0	02	1	9505-9606				●	●	●
93	NUT; MAG VLV M8	9-09110-408-0	02	1	9505-9606				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8	9-09110-408-0	02	1	9505-9606				●
93	NUT; MAG VLV RETARDER BRK<RE2> M8 FLANGE	0-91150-108-0	02	1	9607-0602				●	●	●
93	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	9607-0602				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91150-108-0	02	1	9607-0602				●
93	NUT; MAG VLV RETARDER BRK<RE2> M8 FLANGE	0-91180-108-0	02	1	0603-				●	●	●
93	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0603-				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91180-108-0	02	1	0603-				●
93	NUT; MAG VLV RETARDER BRK<RE2> ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9710-				●	●	●
93	NUT; MAG VLV MT643 A/T ALLISON(PR7),ISUZU M/T<X9A> EXH BRK<NF8> M8 FLANGE	0-91150-108-0	02	1	9710-				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91150-108-0	02	1	9710-				●

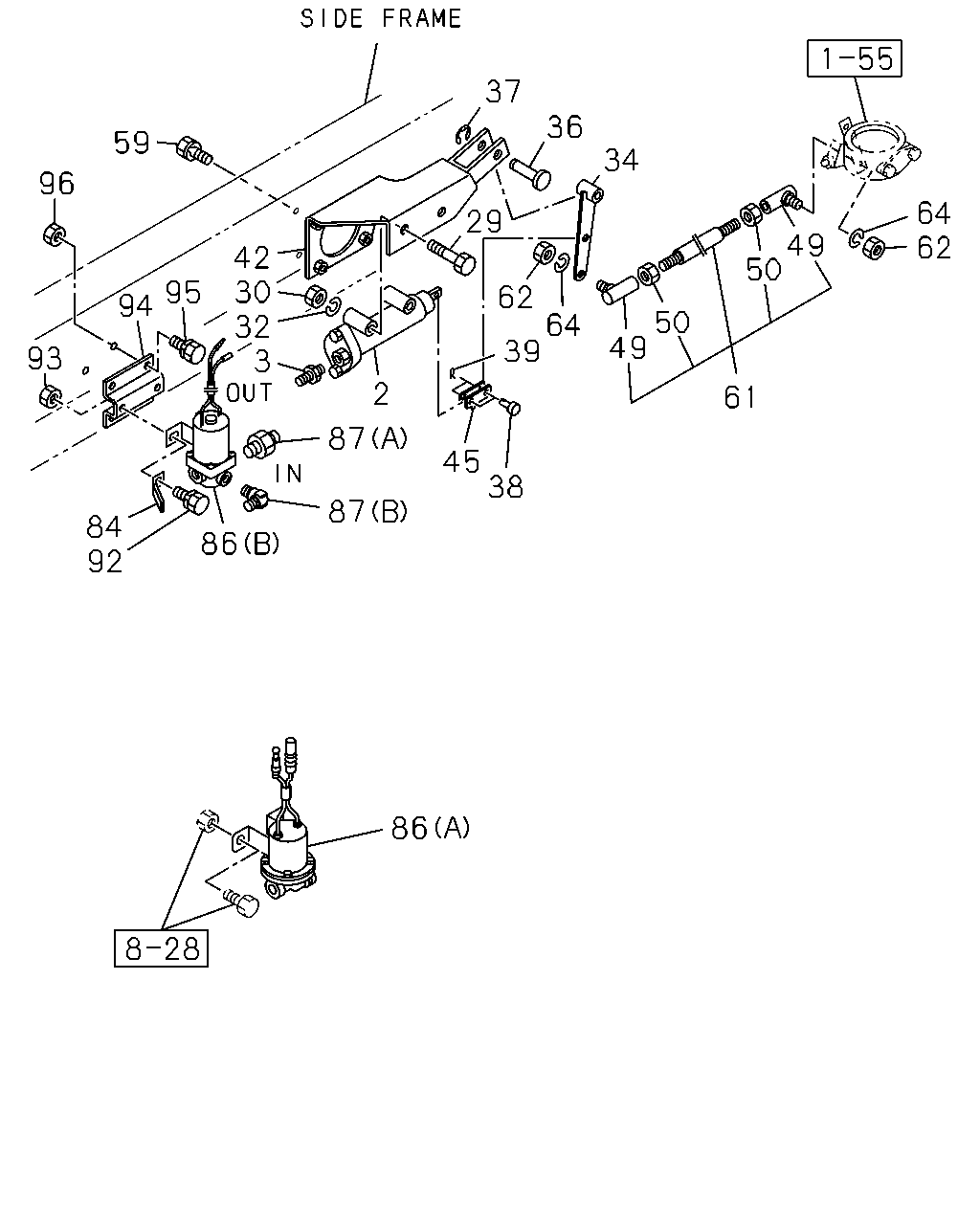

93 86 92 87 87 94 96 86 87 93 92 87 95 92 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
86	VALVE; MAG,EXH BRK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) (A) 2-WAY VALVE	1-82563-095-0	01	1	9101-9504	●	●	●
86	VALVE; MAG,EXH BRK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (B) 3-WAY VALVE	1-82563-222-0	01	1	9101-9504	●	●	●
86	VALVE; MAG,EXH BRK EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 2-WAY VALVE	1-82563-099-0	01	1	9101-9504	●	●	●
86	VALVE; MAG,EXH BRK RIGHT HAND DRIVE(LTR5FB) AIR HORN(WB8) (A) 2-WAY VALVE	1-82563-165-0	01	1	9101-9106	●	●	●
86	VALVE; MAG,EXH BRK LEFT HAND DRIVE(LTR6FB) AIR HORN(WB8) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 2-WAY VALVE	1-82563-165-0	01	1	9101-9106	●	●	●
86	VALVE; MAG,EXH BRK RIGHT HAND DRIVE(LTR5FB) AIR HORN(WB8) (A) 2-WAY VALVE	1-82563-456-1	01	1	9107-9504	●	●	●
86	VALVE; MAG,EXH BRK LEFT HAND DRIVE(LTR6FB) AIR HORN(WB8) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 2-WAY VALVE	1-82563-456-1	01	1	9107-9504	●	●	●
86	VALVE; MAG,EXH BRK (D) 3-WAY VALVE	1-82563-402-0	01	1	9505-9701				●
86	VALVE; MAG,EXH BRK (D) 3-WAY VALVE	1-82563-402-0	01	1	9702-9709				●	●
86	VALVE; MAG,EXH BRK (D) 3-WAY VALVE	1-82563-402-0	01	1	9710-				●	●	●
86	VALVE; MAG,EXH BRK OVERHEAD COOLING SYSTEM<YS9> (E) 3-WAY VALVE	1-82563-404-0	01	1	9505-				●
87	CONNECTOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9101-9504	●	●	●
87	CONNECTOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9101-9302	●	●	●
87	CONNECTOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9504	●	●	●
87	CONNECTOR EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M14	1-09650-031-0	02	1	9101-9103	●	●	●
87	CONNECTOR EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	9104-9504	●	●	●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9505-9701				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9505-9701				●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9702-9708				●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9702-9708				●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9709				●
87	CONNECTOR MT643 A/T ALLISON(PR7),ISUZU M/T<X9A> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9709				●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9709					●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9710-0306				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9710-0306				●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0307-				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0307-				●
87	CONNECTOR (E) M20 & PT1/4	9-09902-386-0	01	1	9505-9701				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (E) M20 & PT1/4	9-09902-386-0	01	1	9505-9701				●
87	CONNECTOR (E) M20 & PT1/4	9-09902-386-0	01	1	9702-				●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (E) M20 & PT1/4	9-09902-386-0	01	1	9702-				●
87	CONNECTOR (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9702-9709					●
87	CONNECTOR (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9710-					●	●
92	BOLT; MAG VLV EXH BRK<NF8> M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9110	●	●	●
92	BOLT; MAG VLV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9110	●	●	●
92	BOLT; MAG VLV EXH BRK<NF8> M8X20 W/LK WASHER	9-01900-820-0	02	1	9111-9204	●	●	●
92	BOLT; MAG VLV EXH BRK<NF8> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●	●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X30 FLANGE	0-28080-830-0	02	1	9505-9606				●	●	●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9710-0512				●	●	●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X35 FLANGE	0-28650-835-0	02	1	0601-				●	●	●
92	BOLT; MAG VLV ISUZU M/T<X9A> RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9607-9702				●
92	BOLT; MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	9505-9606				●
92	BOLT; MAG VLV MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6S M/T(X7W) M8X25 FLANGE	0-28680-825-0	02	1	9607-9805				●	●	●
92	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	02	1	9806-0512				●	●	●
92	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-				●	●	●
92	BOLT; MAG VLV ISUZU M/T<X9A> EXH BRK<NF8> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709				●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709				●
92	BOLT; MAG VLV LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) EXH BRK<NF8> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709				●
92	BOLT; MAG VLV EXH BRK<NF8> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709					●
92	BOLT; MAG VLV ISUZU M/T<X9A> RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9703-9709				●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9703-9709					●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X25 FLANGE	0-28080-825-0	02	1	9505-9606				●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X30 FLANGE	0-28680-830-0	02	1	9607-0512				●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X30 FLANGE	0-28650-830-0	02	1	0601-				●
93	NUT; MAG VLV EXH BRK<NF8> M8	9-09110-408-0	02	1	9101-9110	●	●	●
93	NUT; MAG VLV RETARDER BRK<RE2> ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9703-9708				●	●
93	NUT; MAG VLV ISUZU M/T<X9A> EXH BRK<NF8> M8 FLANGE	0-91150-108-0	02	1	9703-9708				●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91150-108-0	02	1	9703-9708				●
93	NUT; MAG VLV RETARDER BRK<RE2> M8	9-09110-408-0	02	1	9505-9606				●	●	●
93	NUT; MAG VLV M8	9-09110-408-0	02	1	9505-9606				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8	9-09110-408-0	02	1	9505-9606				●
93	NUT; MAG VLV RETARDER BRK<RE2> M8 FLANGE	0-91150-108-0	02	1	9607-0602				●	●	●
93	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	9607-0602				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91150-108-0	02	1	9607-0602				●
93	NUT; MAG VLV RETARDER BRK<RE2> M8 FLANGE	0-91180-108-0	02	1	0603-				●	●	●
93	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0603-				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91180-108-0	02	1	0603-				●
93	NUT; MAG VLV RETARDER BRK<RE2> ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9710-				●	●	●
93	NUT; MAG VLV MT643 A/T ALLISON(PR7),ISUZU M/T<X9A> EXH BRK<NF8> M8 FLANGE	0-91150-108-0	02	1	9710-				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91150-108-0	02	1	9710-				●
94	BRACKET; MAG VLV,EXH BRAKE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-82569-058-0	01	1	9101-9504	●	●	●
94	BRACKET; MAG VLV,EXH BRAKE OVERHEAD COOLING SYSTEM<YS9>	1-82569-177-0	01	1	9505-				●
95	BOLT; BRKT,MAG VLV,EXH BRAKE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9504	●	●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE OVERHEAD COOLING SYSTEM<YS9> M8X20 FLANGE	0-28080-820-0	02	1	9505-0512				●
95	BOLT; BRKT,MAG VLV,EXH BRAKE OVERHEAD COOLING SYSTEM<YS9> M8X20 FLANGE	0-28050-820-0	02	1	0601-				●
96	NUT; BRKT,MAG VLV,EXH BRAKE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M8	9-09110-508-0	04	1	9101-9504	●	●	●
96	NUT; BRKT,MAG VLV,EXH BRAKE OVERHEAD COOLING SYSTEM<YS9> M8	9-09110-508-0	02	1	9505-0512				●
96	NUT; BRKT,MAG VLV,EXH BRAKE OVERHEAD COOLING SYSTEM<YS9> M8	0-91110-508-0	02	1	0601-				●

37 36 49 50 59 29 34 96 64 62 42 30 32 3 95 94 62 50 49 64 39 93 2 61 87 45 38 87 84 92 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	CHAMBER; POWER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22190-464-0	01	1	9101-9504	●	●	●
2	CHAMBER; POWER EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22190-179-0	01	1	9101-9504	●	●	●
3	CONNECTOR; POWER CHAMBER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-09650-267-1	01	1	9101-9504	●	●	●
3	CONNECTOR; POWER CHAMBER EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9101-9307	●	●	●
3	CONNECTOR; POWER CHAMBER EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9308-9504	●	●	●
29	BOLT; CONT CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M10X60	9-01046-060-0	02	1	9101-9204	●	●	●
29	BOLT; CONT CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M10X60	0-10806-060-0	02	1	9205-9504	●	●	●
30	NUT; CONT CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M10	9-09110-410-0	02	1	9101-9504	●	●	●
32	WASHER; LK,CONT CYL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> ID=10.2	9-09150-510-0	02	1	9101-9504	●	●	●
34	LEVER; CONT BOX EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22196-161-0	01	1	9101-9504	●	●
34	LEVER; CONT BOX BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22196-149-0	01	1	9101-9504	●	●	●
34	LEVER; CONT BOX EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22196-162-0	01	1	9101-9504			●
36	PIN; JOINT,CONT LEVER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	9-08204-241-0	01	1	9101-9504	●	●	●
36	PIN; JOINT,CONT LEVER EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09744-059-0	01	1	9101-9504	●	●	●
37	RING; SNAP,CONT LEVER EXH BRK<NF8> ID=9	9-09185-409-0	01	1	9101-9504	●	●	●
38	PIN; CLEVIS BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22199-054-0	02	1	9101-9504	●	●	●
39	PIN; JOINT YOKE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-09747-003-0	02	1	9101-9504	●	●	●
39	PIN; JOINT YOKE EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09744-058-0	01	1	9101-9504	●	●	●
42	BRACKET; POWER CHAMBER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22196-169-0	01	1	9101-9504	●	●	●
42	BRACKET; POWER CHAMBER EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22196-156-0	01	1	9101-9504	●	●	●
45	CLEVIS; LINK ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22199-053-0	01	1	9101-9504	●	●	●
49	JOINT; BALL,LINK ROD EXH BRK<NF8> RH THREAD	1-09760-009-0	02	1	9101-9504	●	●	●
50	NUT; JOINT BALL,LK EXH BRK<NF8> M8	9-09110-408-0	02	1	9101-9504	●	●	●
59	BOLT; CONT BOX TO BRKT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M8X25 W/LK WASHER	0-50040-825-0	04	1	9101-9504	●	●	●
61	ROD; LINK,EXH BRK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22190-507-0	01	1	9101-9504	●	●
61	ROD; LINK,EXH BRK EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22190-374-0	01	1	9101-9504	●	●
61	ROD; LINK,EXH BRK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-22190-511-0	01	1	9101-9504			●
61	ROD; LINK,EXH BRK EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-22190-436-0	01	1	9101-9504			●
62	NUT; LINK ROD EXH BRK<NF8> M8	9-09110-408-0	02	1	9101-9504	●	●	●
64	WASHER; LK,LINK ROD EXH BRK<NF8> ID=8.2	9-09150-508-0	02	1	9101-9504	●	●	●
84	CLIP; HARNESS EXH BRK<NF8> L=63	1-09700-418-1	08	1	9101-9110	●	●	●
86	VALVE; MAG,EXH BRK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> AIR HORN(WB8) (A) 2-WAY VALVE	1-82563-095-0	01	1	9101-9504	●	●	●
86	VALVE; MAG,EXH BRK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (B) 3-WAY VALVE	1-82563-222-0	01	1	9101-9504	●	●	●
86	VALVE; MAG,EXH BRK EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 2-WAY VALVE	1-82563-099-0	01	1	9101-9504	●	●	●
86	VALVE; MAG,EXH BRK RIGHT HAND DRIVE(LTR5FB) AIR HORN(WB8) (A) 2-WAY VALVE	1-82563-165-0	01	1	9101-9106	●	●	●
86	VALVE; MAG,EXH BRK LEFT HAND DRIVE(LTR6FB) AIR HORN(WB8) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 2-WAY VALVE	1-82563-165-0	01	1	9101-9106	●	●	●
86	VALVE; MAG,EXH BRK RIGHT HAND DRIVE(LTR5FB) AIR HORN(WB8) (A) 2-WAY VALVE	1-82563-456-1	01	1	9107-9504	●	●	●
86	VALVE; MAG,EXH BRK LEFT HAND DRIVE(LTR6FB) AIR HORN(WB8) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 2-WAY VALVE	1-82563-456-1	01	1	9107-9504	●	●	●
86	VALVE; MAG,EXH BRK (D) 3-WAY VALVE	1-82563-402-0	01	1	9505-9701				●
86	VALVE; MAG,EXH BRK (D) 3-WAY VALVE	1-82563-402-0	01	1	9702-9709				●	●
86	VALVE; MAG,EXH BRK (D) 3-WAY VALVE	1-82563-402-0	01	1	9710-				●	●	●
86	VALVE; MAG,EXH BRK OVERHEAD COOLING SYSTEM<YS9> (E) 3-WAY VALVE	1-82563-404-0	01	1	9505-				●
87	CONNECTOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9101-9504	●	●	●
87	CONNECTOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9101-9302	●	●	●
87	CONNECTOR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9504	●	●	●
87	CONNECTOR EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M14	1-09650-031-0	02	1	9101-9103	●	●	●
87	CONNECTOR EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	9104-9504	●	●	●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9505-9701				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9505-9701				●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9702-9708				●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9702-9708				●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9709				●
87	CONNECTOR MT643 A/T ALLISON(PR7),ISUZU M/T<X9A> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9709				●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9709					●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9710-0306				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9710-0306				●
87	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0307-				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0307-				●
87	CONNECTOR (E) M20 & PT1/4	9-09902-386-0	01	1	9505-9701				●	●	●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (E) M20 & PT1/4	9-09902-386-0	01	1	9505-9701				●
87	CONNECTOR (E) M20 & PT1/4	9-09902-386-0	01	1	9702-				●
87	CONNECTOR OVERHEAD COOLING SYSTEM<YS9> (E) M20 & PT1/4	9-09902-386-0	01	1	9702-				●
87	CONNECTOR (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9702-9709					●
87	CONNECTOR (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9710-					●	●
92	BOLT; MAG VLV EXH BRK<NF8> M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9110	●	●	●
92	BOLT; MAG VLV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9110	●	●	●
92	BOLT; MAG VLV EXH BRK<NF8> M8X20 W/LK WASHER	9-01900-820-0	02	1	9111-9204	●	●	●
92	BOLT; MAG VLV EXH BRK<NF8> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504	●	●	●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X30 FLANGE	0-28080-830-0	02	1	9505-9606				●	●	●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9710-0512				●	●	●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X35 FLANGE	0-28650-835-0	02	1	0601-				●	●	●
92	BOLT; MAG VLV ISUZU M/T<X9A> RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9607-9702				●
92	BOLT; MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	9505-9606				●
92	BOLT; MAG VLV MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6S M/T(X7W) M8X25 FLANGE	0-28680-825-0	02	1	9607-9805				●	●	●
92	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	02	1	9806-0512				●	●	●
92	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-				●	●	●
92	BOLT; MAG VLV ISUZU M/T<X9A> EXH BRK<NF8> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709				●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709				●
92	BOLT; MAG VLV LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) EXH BRK<NF8> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709				●
92	BOLT; MAG VLV EXH BRK<NF8> M8X30 FLANGE	0-28680-830-0	02	1	9703-9709					●
92	BOLT; MAG VLV ISUZU M/T<X9A> RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9703-9709				●
92	BOLT; MAG VLV RETARDER BRK<RE2> M8X35 FLANGE	0-28680-835-0	02	1	9703-9709					●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X25 FLANGE	0-28080-825-0	02	1	9505-9606				●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X30 FLANGE	0-28680-830-0	02	1	9607-0512				●
92	BOLT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8X30 FLANGE	0-28650-830-0	02	1	0601-				●
93	NUT; MAG VLV EXH BRK<NF8> M8	9-09110-408-0	02	1	9101-9110	●	●	●
93	NUT; MAG VLV RETARDER BRK<RE2> ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9703-9708				●	●
93	NUT; MAG VLV ISUZU M/T<X9A> EXH BRK<NF8> M8 FLANGE	0-91150-108-0	02	1	9703-9708				●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91150-108-0	02	1	9703-9708				●
93	NUT; MAG VLV RETARDER BRK<RE2> M8	9-09110-408-0	02	1	9505-9606				●	●	●
93	NUT; MAG VLV M8	9-09110-408-0	02	1	9505-9606				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8	9-09110-408-0	02	1	9505-9606				●
93	NUT; MAG VLV RETARDER BRK<RE2> M8 FLANGE	0-91150-108-0	02	1	9607-0602				●	●	●
93	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	9607-0602				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91150-108-0	02	1	9607-0602				●
93	NUT; MAG VLV RETARDER BRK<RE2> M8 FLANGE	0-91180-108-0	02	1	0603-				●	●	●
93	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0603-				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91180-108-0	02	1	0603-				●
93	NUT; MAG VLV RETARDER BRK<RE2> ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9710-				●	●	●
93	NUT; MAG VLV MT643 A/T ALLISON(PR7),ISUZU M/T<X9A> EXH BRK<NF8> M8 FLANGE	0-91150-108-0	02	1	9710-				●	●	●
93	NUT; MAG VLV OVERHEAD COOLING SYSTEM<YS9> M8 FLANGE	0-91150-108-0	02	1	9710-				●
94	BRACKET; MAG VLV,EXH BRAKE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8>	1-82569-058-0	01	1	9101-9504	●	●	●
94	BRACKET; MAG VLV,EXH BRAKE OVERHEAD COOLING SYSTEM<YS9>	1-82569-177-0	01	1	9505-				●
95	BOLT; BRKT,MAG VLV,EXH BRAKE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●	●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9504	●	●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE OVERHEAD COOLING SYSTEM<YS9> M8X20 FLANGE	0-28080-820-0	02	1	9505-0512				●
95	BOLT; BRKT,MAG VLV,EXH BRAKE OVERHEAD COOLING SYSTEM<YS9> M8X20 FLANGE	0-28050-820-0	02	1	0601-				●
96	NUT; BRKT,MAG VLV,EXH BRAKE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> M8	9-09110-508-0	04	1	9101-9504	●	●	●
96	NUT; BRKT,MAG VLV,EXH BRAKE OVERHEAD COOLING SYSTEM<YS9> M8	9-09110-508-0	02	1	9505-0512				●
96	NUT; BRKT,MAG VLV,EXH BRAKE OVERHEAD COOLING SYSTEM<YS9> M8	0-91110-508-0	02	1	0601-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
