0-52 — OIL AND VACUUM PIPING; ENGINE (#43928) — 108 parça

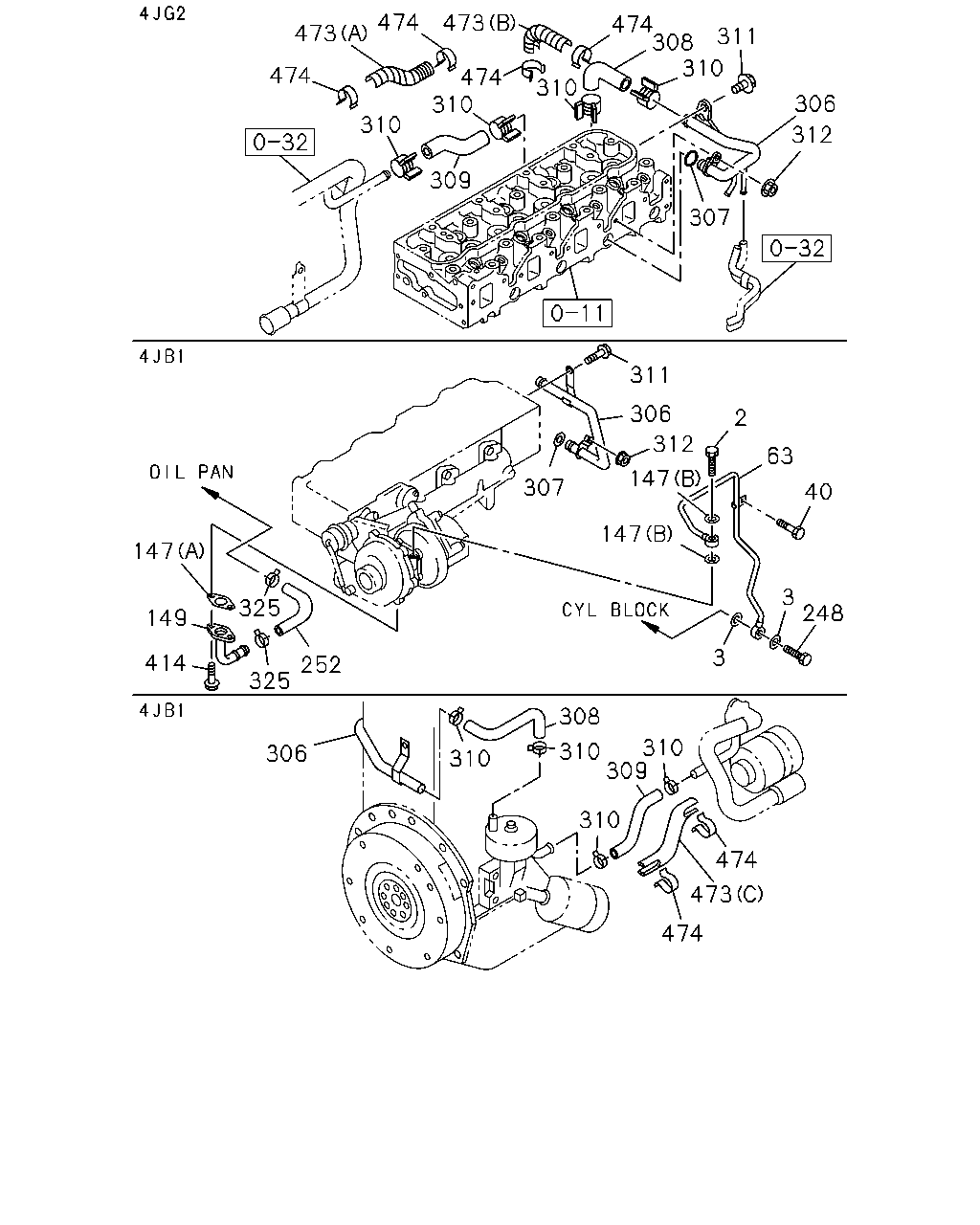

çizim 10665
474 473 474 308 310 473 311 474 474 310 310 306 310 312 309 307 311 306 2 312 63 147 307 40 147 147 3 248 325 149 3 414 252 325 308 310 310 309 306 310 310 474 473 474
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 M10X23 FLANGE 		8-94332-831-1 01 1 0502- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0502- ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0211-0501 ●
40 01.531 BOLT; OIL PIPE
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0502-0512 ●
40 01.531 BOLT; OIL PIPE
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> 		8-97224-297-0 01 1 0211-0501 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 0502- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 03.358 (A) 		8-94362-672-0 01 1 0211-0501 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A) 		8-94362-672-1 01 1 0502- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0211-0501 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0502- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
TURBOCHARGER<K51> 		8-97192-313-0 01 1 0211-0501 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97192-313-0 01 1 0502- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
TURBOCHARGER<K51> 03.162 M14X27 FLANGE 		1-09675-086-0 01 1 0211-0501 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 0502- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN
INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-98269-695-0 01 1 1401- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN
TURBOCHARGER<K51> 		8-97176-141-0 01 1 0211-0501 ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97176-141-0 01 1 0502-1312 ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN
EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97176-141-0 01 1 1401- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94450-627-0 01 1 0211-0501 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-1 01 1 0502- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97225-604-1 01 1 0211-0501 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 0211-0501 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 0502- ● ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0211-0501 ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). OIL COOLER<KC4> EXC. TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0211-0501 ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0211-0501 ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). OIL COOLER<KC4>. 		8-97264-168-0 01 1 0502- ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0502- ● ●
308 01.540 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> 		8-94174-464-1 01 1 0211-0501 ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94174-464-1 01 1 0211-0501 ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-1 01 1 0502- ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-1 01 1 0502- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-4 01 1 0211- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97022-314-1 01 1 0211-0501 ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> 		8-97022-314-1 01 1 0502- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97224-318-1 01 1 0211-0501 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97224-318-1 01 1 0502- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-1 01 1 0211- ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0211-0501 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0211-0501 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0211-0501 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> 01.166 ID=20.8 		8-94125-862-1 04 1 0502- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0502- ● ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0211-0501 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0211-0501 ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0211-0501 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0502- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0502- ● ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0211-0501 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0211-0501 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0211-0501 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0502-0805 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0502-0805 ● ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> 04.634 M8 FLANGE 		8-97581-233-0 01 1 0806- ●
312 01.531 NUT; PIPE FIX
04.634 M8 FLANGE 		8-97581-233-0 01 1 0806- ● ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 02 1 0211-0501 ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 0502- ●
414 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0211-0310 ●
414 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0311-0501 ●
414 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0502-0512 ●
414 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0601- ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> (C) 		8-97101-331-0 02 1 0211-0501 ●
473 01.540 INSULATOR; HOSE
(C) 		8-97101-331-0 02 1 0502- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0211- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0211- ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 0211-0501 ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 0211-0501 ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 0502- ● ●

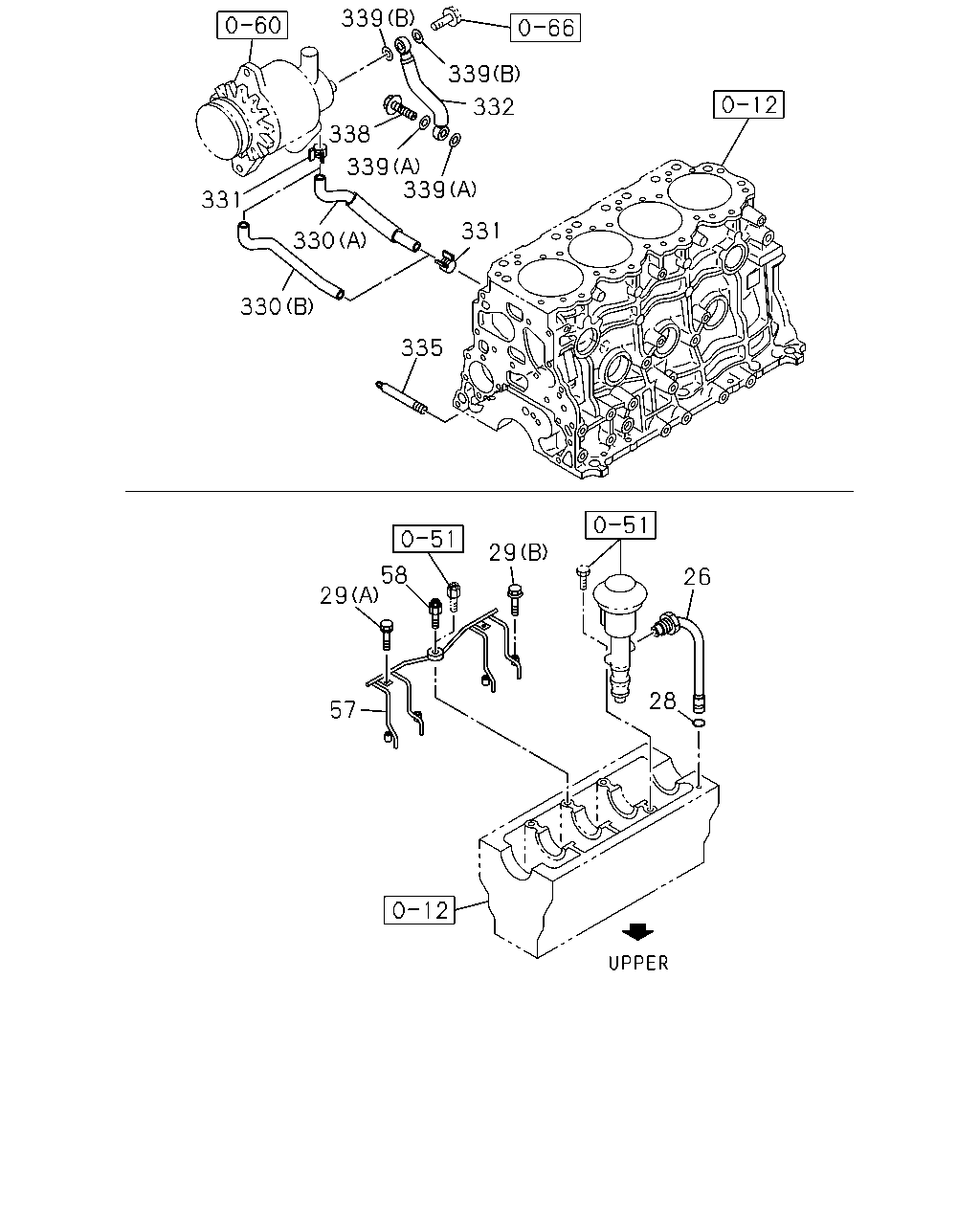

çizim 49950
28 26 29 58 29 57 335 330 330 331 331 339 339 338 339 339 332
BalonParca AdiParca NoAdetTipApplied Date A B C
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0211-0308 ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97920-470-0 01 1 0309-0501 ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97920-470-0 01 1 0502-0801 ● ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97923-928-0 01 1 0802- ● ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 0211-0501 ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 0502- ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0211-0501 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0211-0501 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0502-0512 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0601- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0211-0501 ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0211-0501 ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0502-0512 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 0601- ● ●
57 01.519 PIPE; OIL,OIL JET
TURBOCHARGER<K51> 		8-94469-709-3 01 1 0211-0501 ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-3 01 1 0502- ●
57 01.519 PIPE; OIL,OIL JET 8-97043-741-2 01 1 0211- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 01.639 		8-97311-976-0 01 1 0211-0501 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
01.639 		8-97311-976-1 01 1 0502- ●
330 03.278 HOSE; VAC PUMP,RETURN
INJ PUMP Q SET SPECIAL +5%Q<T1A> (B) 		8-98269-691-0 01 1 1401- ●
330 03.278 HOSE; VAC PUMP,RETURN
(B) 		8-98204-694-0 01 1 1112-1312 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> (B) 		8-98204-694-0 01 1 1401- ●
330 03.278 HOSE; VAC PUMP,RETURN
(A) 		8-97073-920-1 01 1 0211-0501 ● ●
330 03.278 HOSE; VAC PUMP,RETURN
(A) 		8-97073-920-2 01 1 0502-1111 ● ● ●
330 03.278 HOSE; VAC PUMP,RETURN
(A) 		8-97073-920-2 01 1 1112- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0211-0501 ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0502- ● ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 0211-0501 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 0502- ● ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 0211-0501 ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 0502- ● ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0211-0501 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0502- ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0211-0501 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0502- ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0211-0501 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0502- ● ● ●
